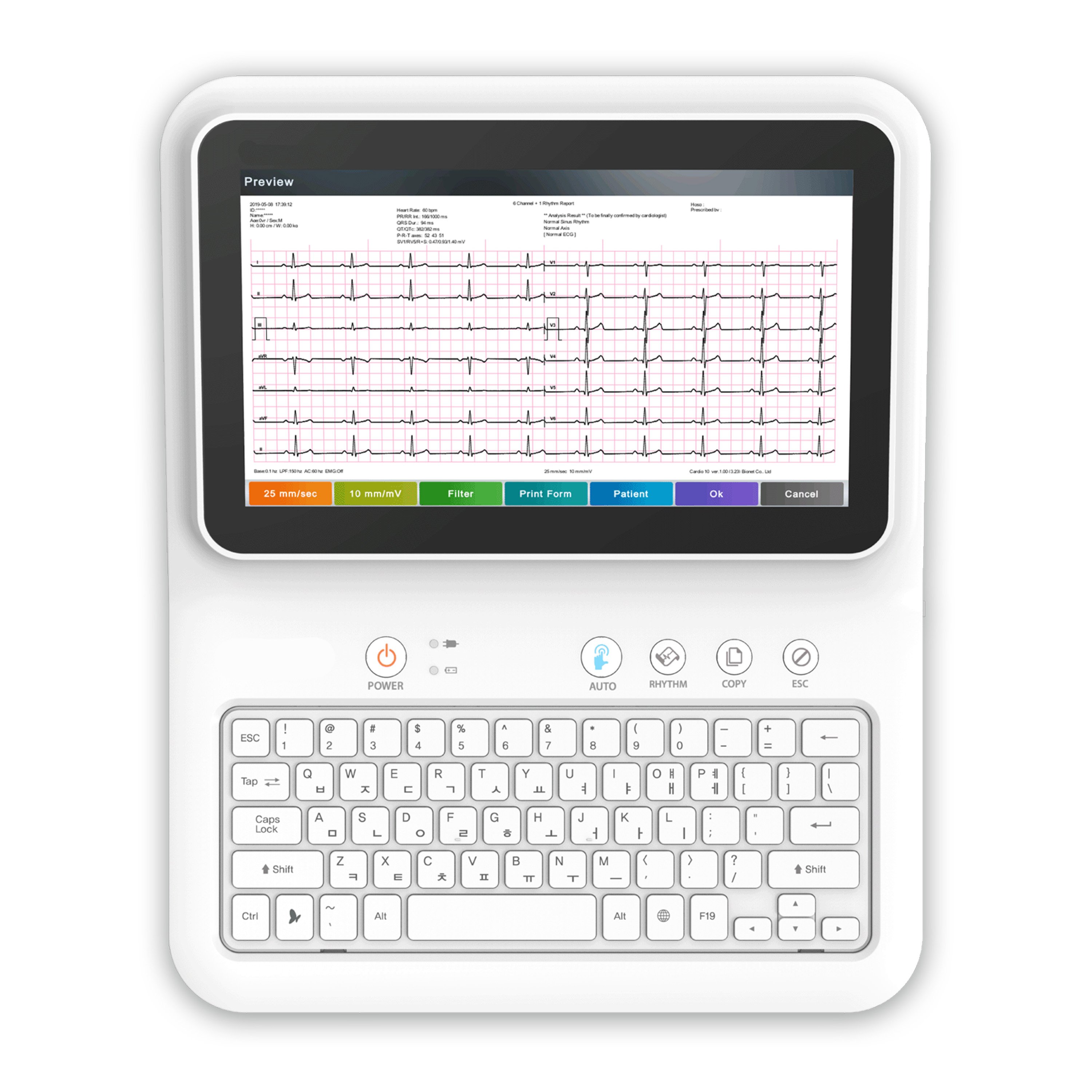

MDPro Guardian Q70 12-Channel ECG with 10" Touchscreen, WiFi, and Spirometry

The MDPro Guardian Q70 12-Channel ECG with 10" Touchscreen, Wi-Fi, and Spirometry combines advanced functionality with an intuitive design to deliver reliable cardiac assessments.

Features:

• Smart AUTO workflow streamlines ECG acquisition with easy patient registration, user profile management, and customizable report formats
• Real-time ECG interpretation for fast clinical decision-making
• Supports long-term recording for up to 30 minutes with full disclosure and live data comparison mode
• Stores up to 500 ECG data sets with USB data export in PDF, XML, MFER, BMP, JPG, and DICOM formats
• Wireless LAN connectivity with HIPAA-compliant data transmission
• HDMI output for larger screen display
• Three USB ports for compatible spirometer connection
• Advanced spirometry supporting COPD, FVC, SVC, and MVV test modes

Technical Specifications:

• ECG Leads: Simultaneous 12-Channel ECG acquisition
• Recording Channels:
  • 3CH+1RHY
  • 3CH+3RHY
  • 6CH+1RHY
  • 12CH
  • 1CH+3
  • Cabrera Report
  • Long-time Recording (1, 3, 5, 10, 20, 30 mins)
  • Special Beat Report (Text, Guide, Vector)
• Gain: 2.5, 5, 10, 20, Auto (I∼aVF: 10 mm/mV, V1∼V6: 5 mm/mV)
• Printing Speed: 5, 12.5, 25, 50, 100 mm/sec
• Sampling Rate:
  • Analysis: 500 Hz
  • Digital: 8,000 Hz
• Filters:

  • AC: 50/60 Hz, -20 dB or better
  • Muscle: 25∼35 Hz, -3 dB or better
  • Baseline Drift: 0.05, 0.1, 0.2 Hz, -3 dB or better
  • Low Pass Filter: Off, 40 Hz, 100 Hz, 150 Hz
• Patient Data:

  • ID
  • Name
  • Date of Birth
  • Age
  • Gender
  • Height
  • Weight
  • Race
  • Smoking Status
  • Department
  • Room Number
  • Study Description
  • Accession No.
  • Referring Physician
• Measurements and Interpretation
  • Heart Rate (30-300 bpm, ± 3 bpm)
  • PR/RR Interval
  • QRS Duration
  • QT/QTc Interval
  • P-R-T Axis
  • SV1/RV5/R+S Amplitude
  • Bionet ECG Analysis Algorithm
  • University of Glasgow ECG analysis algorithm
• Electrical:

  • Internal Noise: ≤ 20 µV (p-p)
  • Input Impedance: ≥ 50 MΩ
  • Input Voltage Range: ±5 mV
  • CMRR: > 105 dB
  • DC Offset Voltage: ≥ ± 400 mV
  • Patient Leakage Current: < 10 µA
  • Frequency Response: 0.05 Hz ∼200 Hz (within -3 dB)
  • Isolated, Defibrillation, and ESU protected
• Signal Quality Control:
  • Pacemaker Pulse Detection
  • Lead Fault Detection
  • Signal Saturation Detection
• Data Storage: Internal storage for up to 500 ECG data sets
• Display:
  • 10.1” Color TFT wide display (1024 x 600 resolution)
  • 12-channel preview ECG wave
• User Interface
  • Capacitive touch screen
  • Alphanumeric and symbol input
  • Function keys and keyboard
• Printing and Resolution:

  • Thermal Print Head
  • Z-fold Paper
  • Report Paper

    • A4: 8.30" x 11.80"
    • Letter: 8.50" x 11"
  • Paper Size

    • A4: 8.30" x 5.91"
    • Letter: 8.50" x 5.51"
  • Resolution:

    • Vertical: 8 dots/mm
    • Horizontal: 16 dots/mm (0.125 mm pitch)
• Battery Type:

  • Replaceable and Rechargeable Lithium-ion
  • Voltage: 10.8 V
  • Capacity: 6500 mAh
  • Up to 350 ECG prints (12-channel, 25 mm/s, 10 mm/mV)
  • Full recharge in 3 hours (Device off)
• Communication:

  • LAN
  • USB WiFi
  • USB Flash Drive
  • USB Barcode Scanner
• *Measuring Values:

  • FVC: FVC, FEV 1.0, FEV 1/FVC, FEF 0.2-1.2L, FEF 25-75%, FEF 75-85%, PEF, FEF 25%, FEF 50%, FEF 75%, FIVC, FEV6, PEFT, FET 100%, Error Code, Extrapolation Volume
  • FEV1/FEV6: FEV1, FEV6, FEV1/FEV6, LFI
  • SVC: SVC, ERV, IRV, TV, EC
  • MVV: MVV, FB, TV
• *Presentation:

  • Flow Volume Loop
  • Volume Time Graph
  • Measurement Values Table
• *Measuring Range:

  • Flow: 0 to ± 14 L/s
  • Volume: 0 to ± 12 L
• *Measuring Method: Differential Pressure Method
• *Prediction Equation: Morris-Polgar, ECCS-Quanjer, Knudson-ITS, Pereira, Korea CJK, GLI-2012
• *Sample Rate: 200 samples per second
• *Flow Impedance: < 0.2 mbar s/L at 12 L/s
• *Measuring Accuracy: Complies with ISO 26782, ISO 23747
• Operating Conditions:

  • Ambient Temperature: 10°C to 40°C
  • Relative Humidity: 30% to 85%
  • Atmospheric Pressure: 700 hPa to 1060 hPa
• Comes standard with:
  • (1) Q70 Main Unit
  • (1) 10-Lead ECG Patient Cable
  • (10) ECG Clip Adapters
  • (1) Disposable Electrodes
  • (1) Pack of ECG Chart Paper
  • (1) Bottle of Ultrasound Gel
  • (1) USB WiFi Dongle (Pre-installed)
  • (1) Rechargeable Battery
  • (1) Operation Manual
• Warranty: 3 Years
• Overall Dimensions: 11.25" W x 13.80" D x 5.60" H
• Actual Product Weight: 9.92 lbs

Please note: Specifications marked with an asterisk (*) require a compatible spirometer. The Guardian Q70 includes built-in spirometry software. Compatible spirometer and accessories are sold separately.
