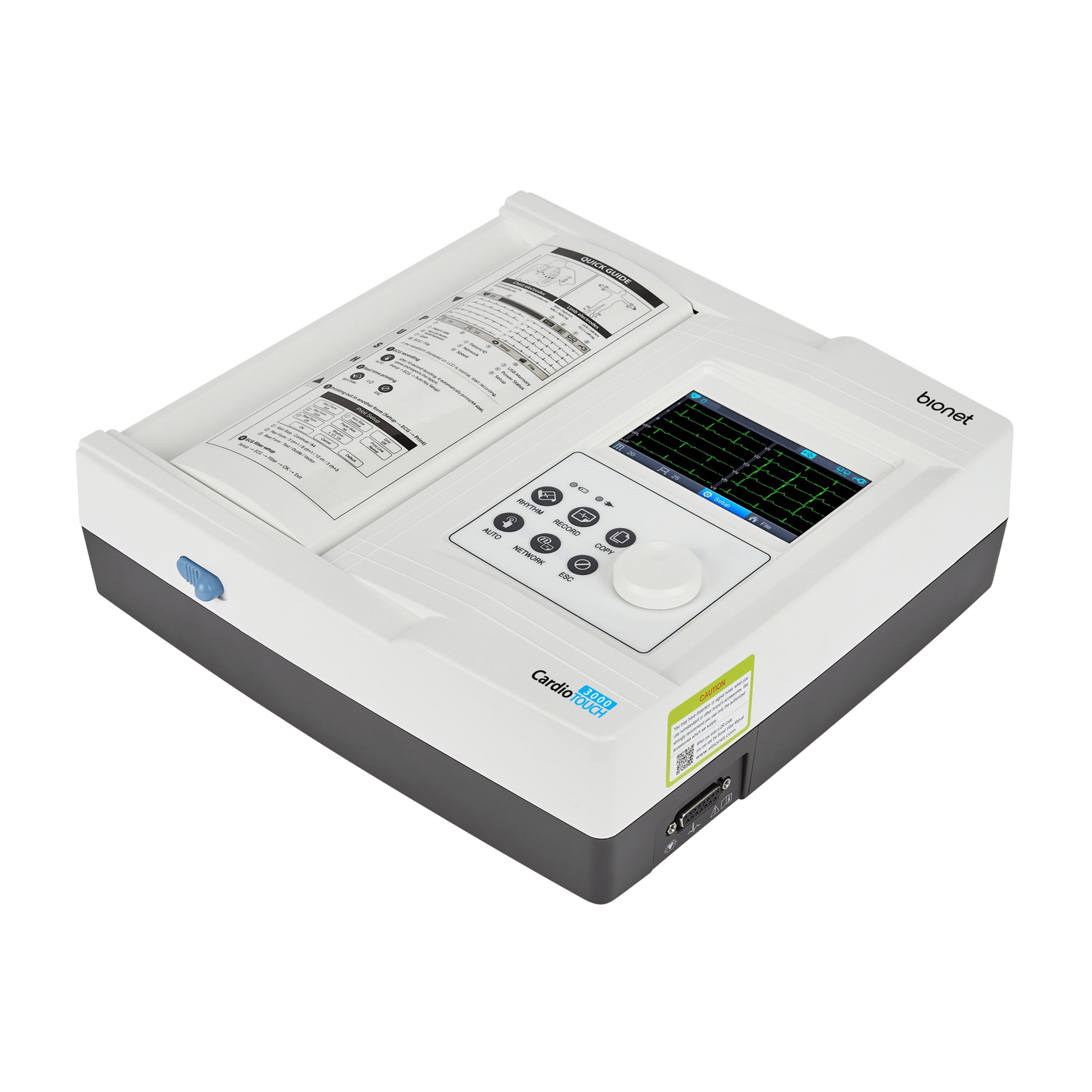

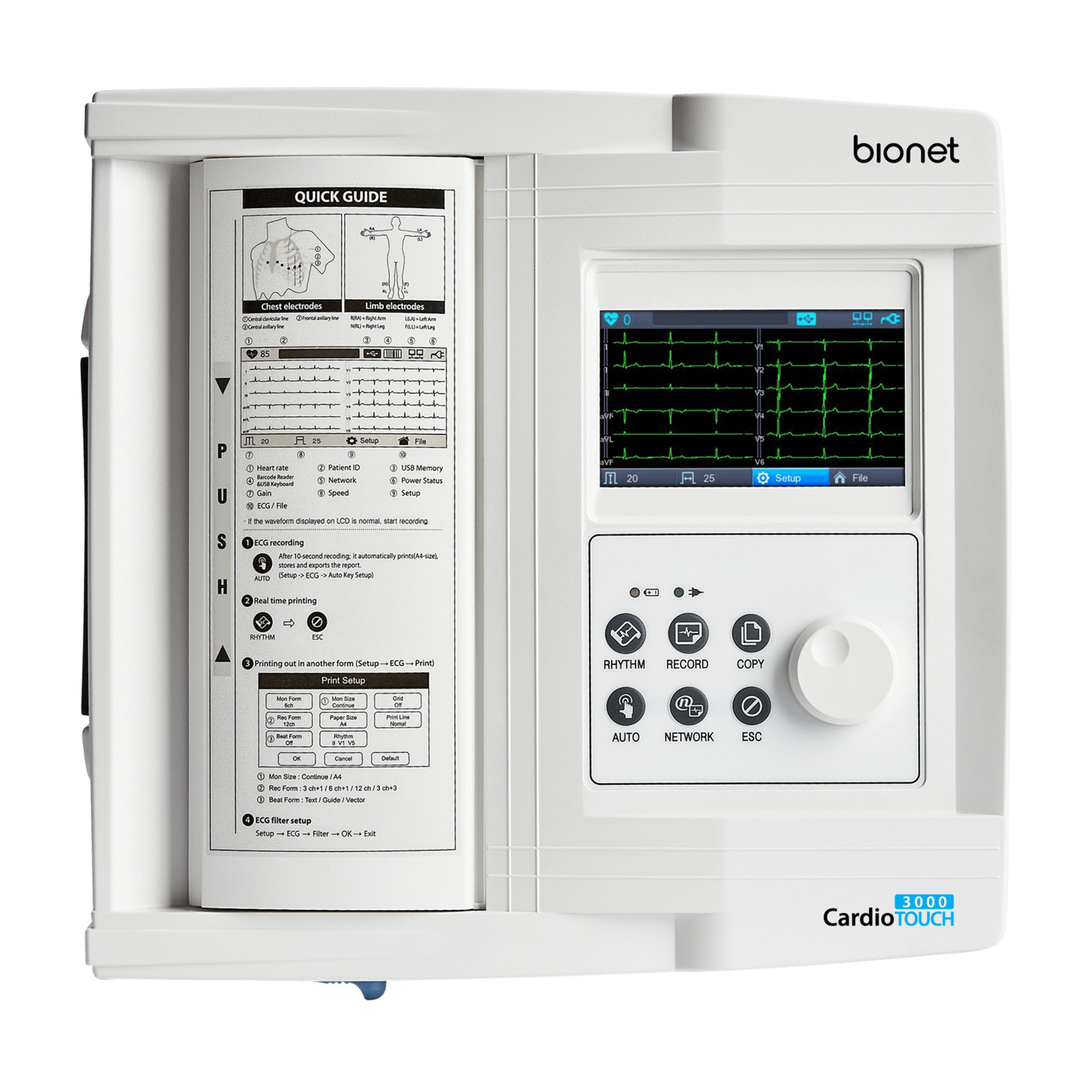

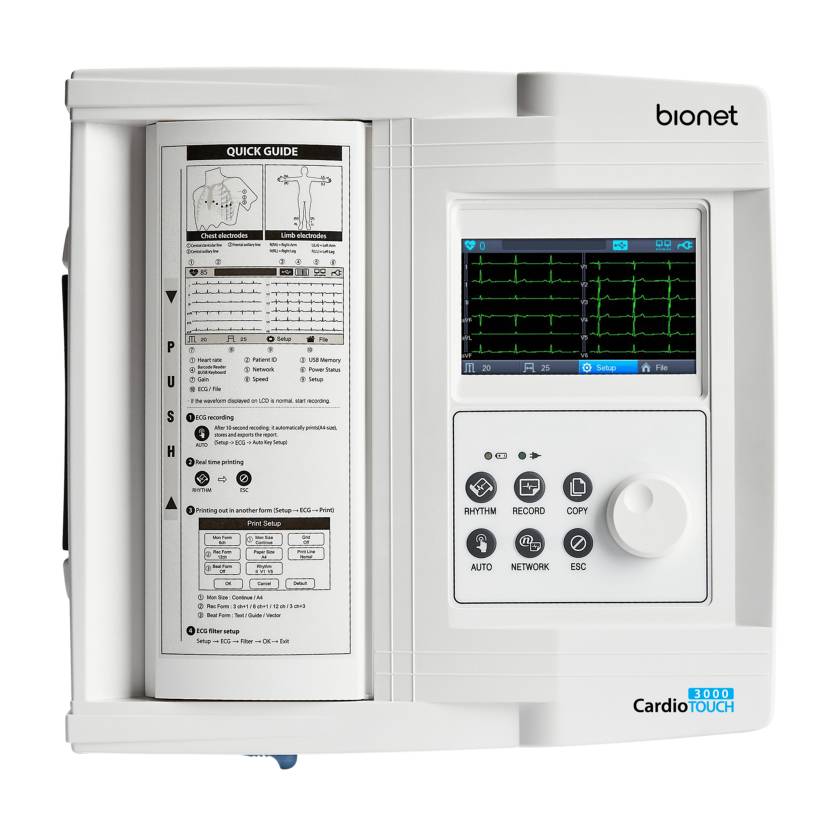

Bionet CardioTouch 3000 12-Channel Interpretive ECG with LCD Touch Screen

The Bionet CardioTouch 3000 12-Channel Interpretive ECG with LCD Touch Screen is designed for maximum ease of use and convenience.

Features:

• A premium quality interpretive 12-channel electrocardiogram (ECG/EKG) machine that does not compromise on performance
• Suitable for use in private practice, the ER, or hospitals
• Software is user-upgradeable and continuously improved
• Simultaneous 12 Channel Electrocardiograph (ECG/EKG) with a Touch of Succinct Report, Simple, Intuitive, yet Accurate
  • Easy-to-use interface with 4.3" LCD TFT Touch screen with rotary knob button
  • One button "AUTO" operation from acquisition to data storage, print-out & data transfer in 3 seconds
  • Convenient A4 print-out for 12CH ECG with a single-page report
  • 8,000 sampling rate per second
• User-Friendly Interface and Diagnosis
  • Quick guide indication on the printer cover for easy operation recognition
  • Rotary knob push button for controlling all menus
  • Thermal A4 paper compatible with grid printing mode
  • 120 types of interpretation algorithms integrated
  • Rechargeable Li-ion battery for 3hr operation / 200 pages printout
• Network and Data management
  • Wired and wireless connectivity with an easy DHCP interface
  • BMS-Plus connection to PC for data transfer to HIS (PACS/EMR) with various file format conversion: JPEG, BMP, XML, PDF
• BMS-Plus - ECG Filing System
  • Software program that enables CardioCare 2000 to interface with Windows-based computers via LAN
  • ECG data is saved in either Bionet’s proprietary file format (.ecg), JPEG, or PDF
  • JPEG format ensures compatibility with most EMR systems
  • Displays real-time ECG data on-screen
  • Instantly performs a full set of measurements and offers diagnostic aid
  • Can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper
• Comes standard with:
  • (1) CardioTouch 3000 Main Unit

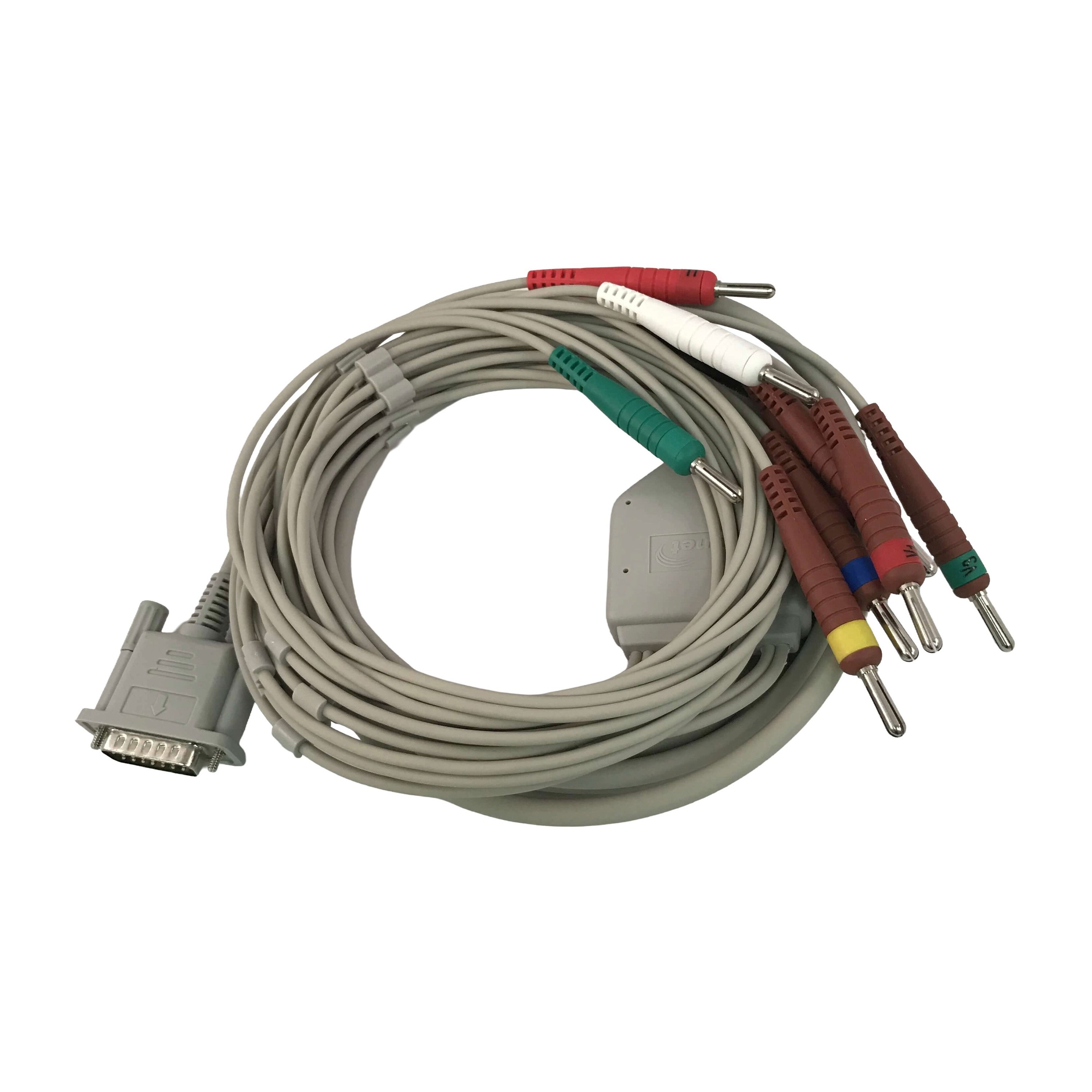

  • (1) 10-Lead ECG Patient Cable

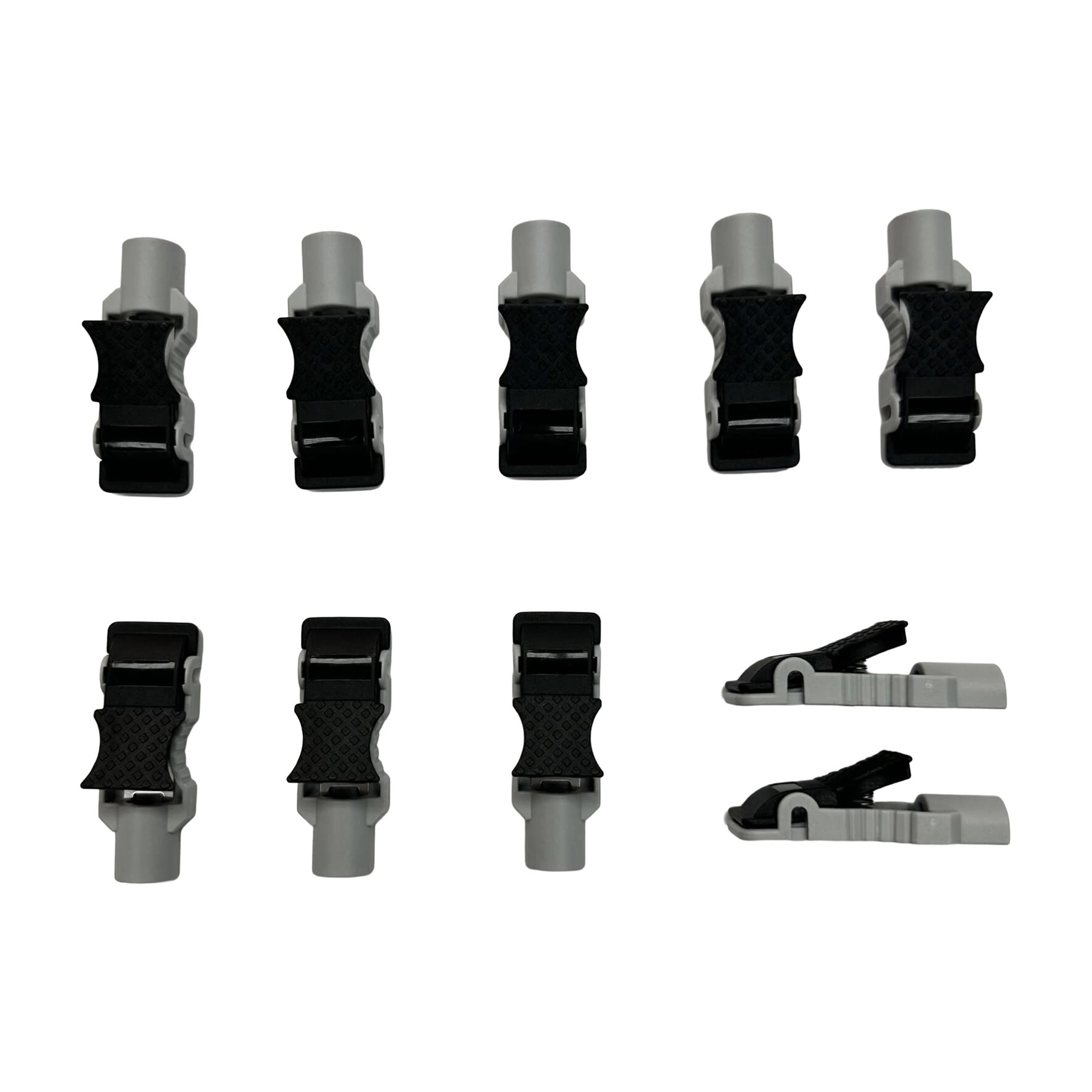

  • (10) Alligator Clips

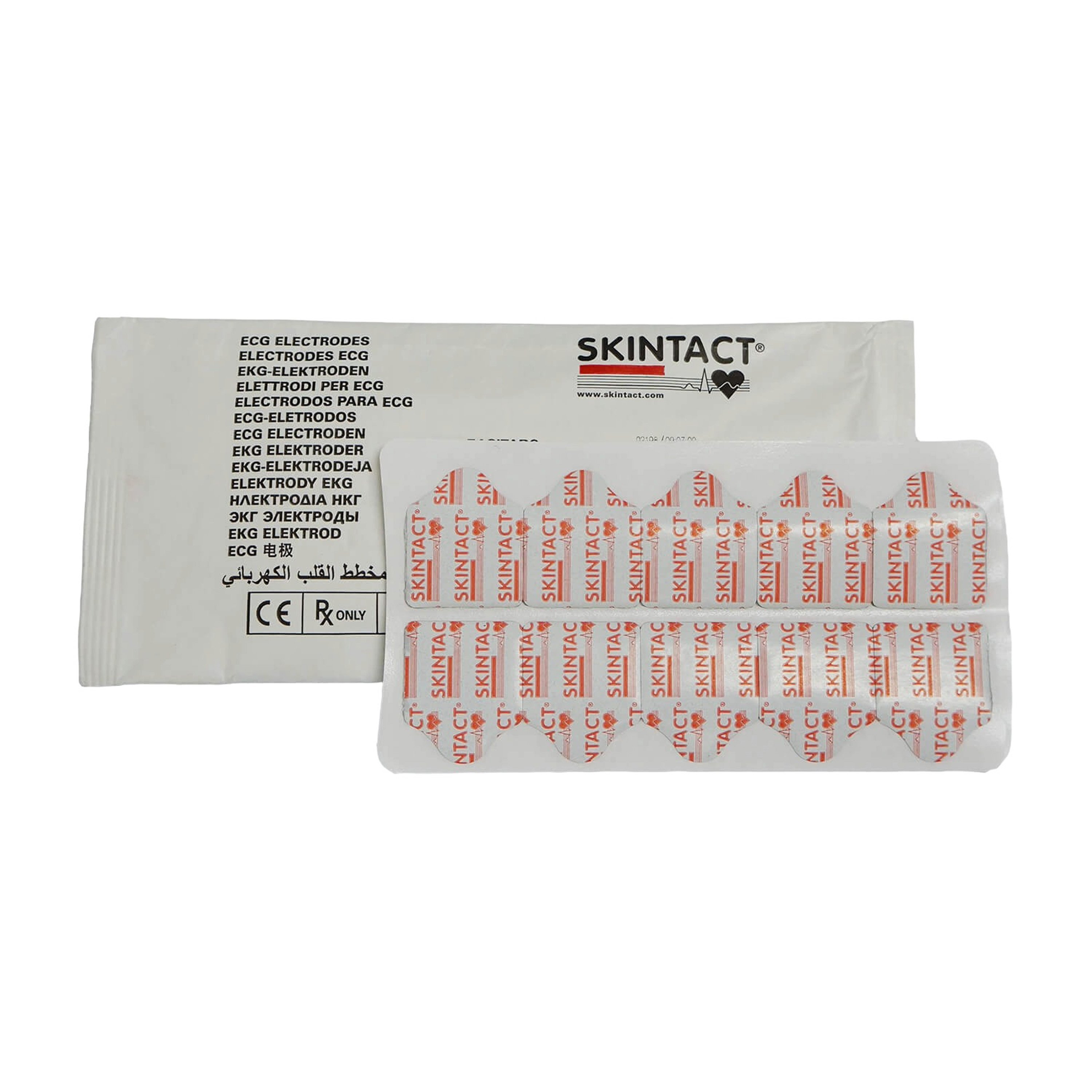

  • (1) Electrodes
  • (1) Medi-Graph Paper

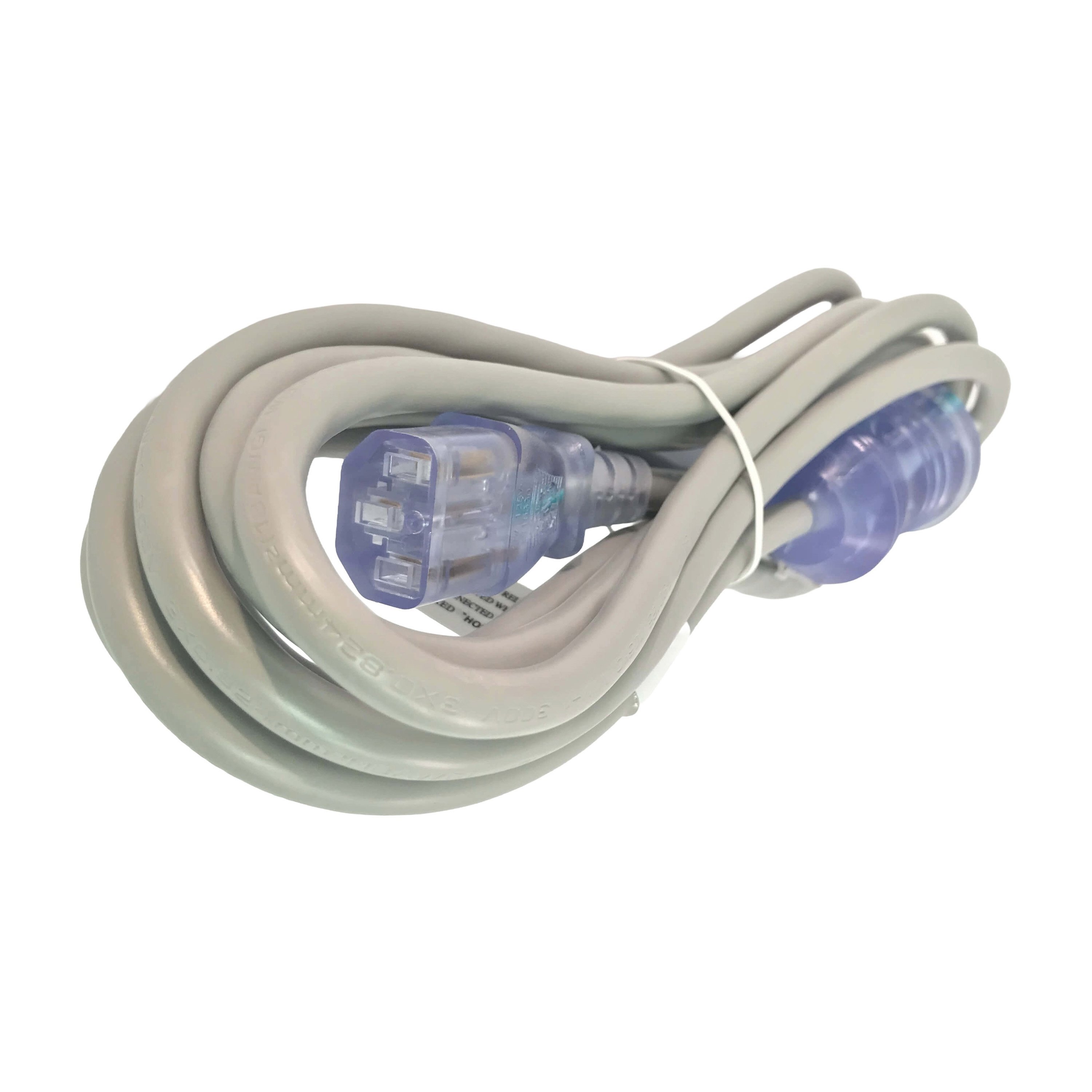

  • (1) Hospital Grade Power Cord

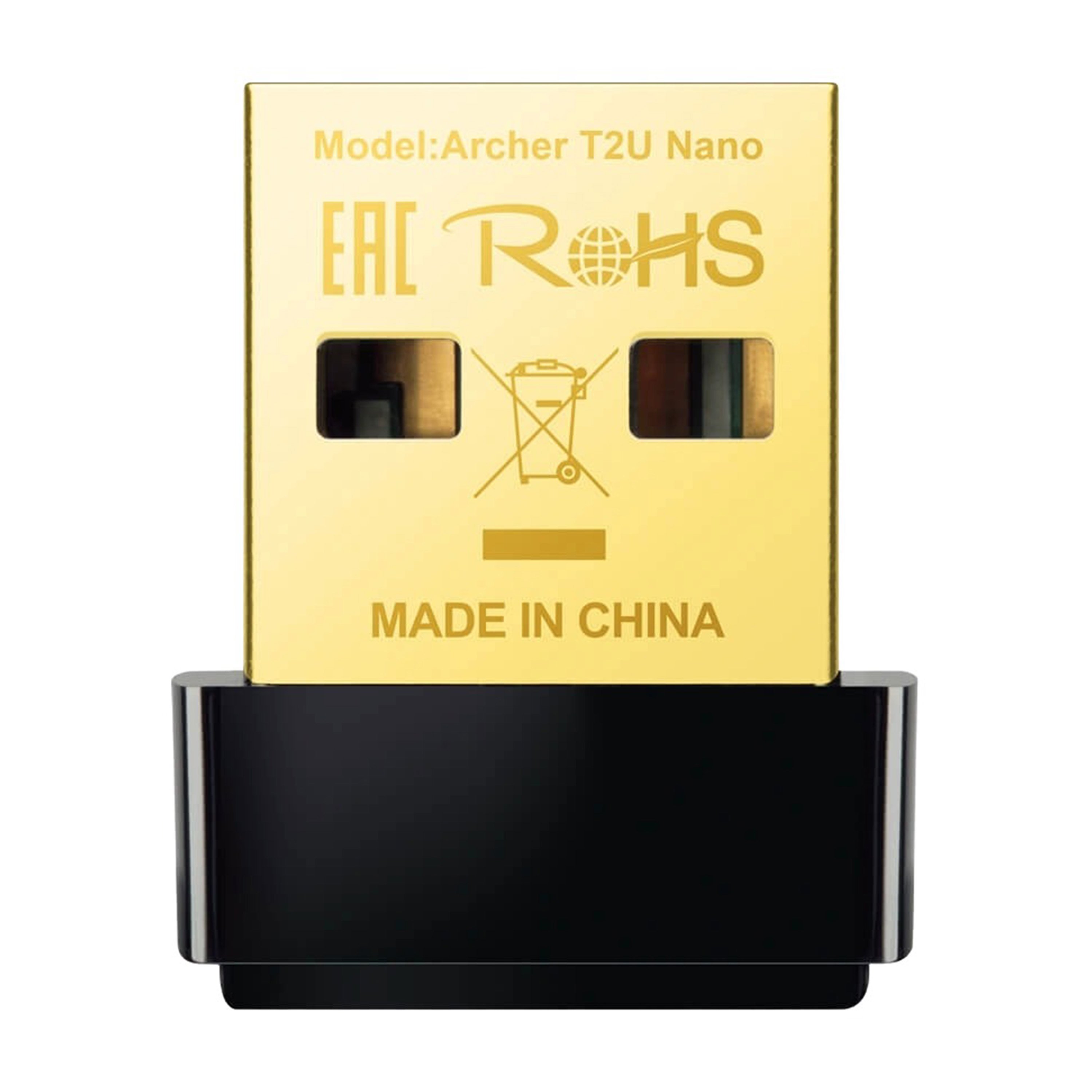

  • (1) Wi-Fi USB Dongle
  • (1) Operation Manual
  • (1) Diagnostic Guidebook
  • (1) Quick Reference Guide
  • 3-Year Warranty Card

Technical Specifications:

• ECG Leads: Simultaneous 10 Leads Resting ECG (12 channel)
• Recording Modes:
  • 3CH+1RHY
  • 3CH+3RHY
  • 6CH+1RHY
  • 12CH
  • 1-Channel Long-time (1 min)
  • Beat Report
• Sensitivity: 2.5, 5, 10, 20, Auto (I∼aVF: 10 mm/mV, V1∼V6: 5 mm/mV)
• Printing Speed: 5, 12.50, 25, 50, 100 mm/sec
• Sampling Rate:
  • Analysis: 500 samples/sec
  • Digital: 8,000 samples/sec
• Filters:

  • AC: 50/60 Hz, -20 dB or better
  • Muscle: 25∼35 Hz, -3 dB or better
  • Baseline Drift: 0.1 Hz, -3 dB or better
  • Low Pass Filter: Off, 40 Hz, 100 Hz, 150 Hz
• Patient Data:
  • ID
  • Name
  • Age
  • Gender
  • Height
  • Weight
• Basic Measurements:
  • Heart Rate (30∼300 bpm, ±3 bpm)
  • PR Interval
  • QRS Duration
  • QT/QTc Interval
  • P-R-T Axis
• Electrical:

  • Internal Noise: ≤ 20 µV (p-p) max
  • Input Impedance: > 50 MΩ
  • Input Voltage Range: ± 5 mV
  • CMRR: > 105 dB
  • DC Offset Voltage: ≥ ± 400 mV
  • Patient Leakage Current: < 10 µA
  • Frequency Response: 0.05 Hz ~150 Hz
  • Isolated, defibrillation, and ESU protected
• Signal Quality Control:
  • Pacemaker Pulse Detection
  • Lead Fault Detection
  • Signal Saturation Detection
• Data Storage:
  • Internal storage: Built-in memory for up to 200 ECGs
  • External memory support available
• Display:
  • 272 × 480 pixel resolution
  • 4.3" color TFT display
  • LCD shows:
    • 12-channel preview
    • ID
    • Heart Rate (HR)
    • Gain
    • Speed
    • Power Status
• Printing and Resolution:
  • Thermal print head
  • Thermal roll paper
  • Report paper:
    • A4: 8.5 x 11"
    • Letter: 11"
  • Resolution: 8 dots mm (0.125 mm pitch)
• Export file format:
  • ECG
  • XML
  • PDF
  • JPEG
  • MFER
• User Interface:
  • Touch Screen
  • Rotary Push-knob
• Power:
  • Input:
    • 100-240 VAC
    • 1.50-0.75 A
    • 50-60 Hz
  • Output:
    • 15 VDC
    • 4.20 A
• Battery Type:
  • Replaceable and rechargeable Lithium-ion
  • Voltage: 11.1 V
  • Capacity: 2600 mAh
• Battery Capacity:
  • Up to 6 hours of normal use (without recording, up to 200 ECGs, 12-channel)
  • Battery Charging time: 3 hours
• Communication:
  • LAN
  • USB
  • WiFi (optional)
• Environment:

  • Operating Humidity: 10% to 90%
  • Operating Temperature: 5°C to 40°C
  • Atmospheric Pressure: 70 KPa to 106 KPa
• Overall Dimensions: 11.41" W x 11.81" D x 3.84" H
• Actual Product Weight: 7.72 lbs
• Warranty: 3 Years
