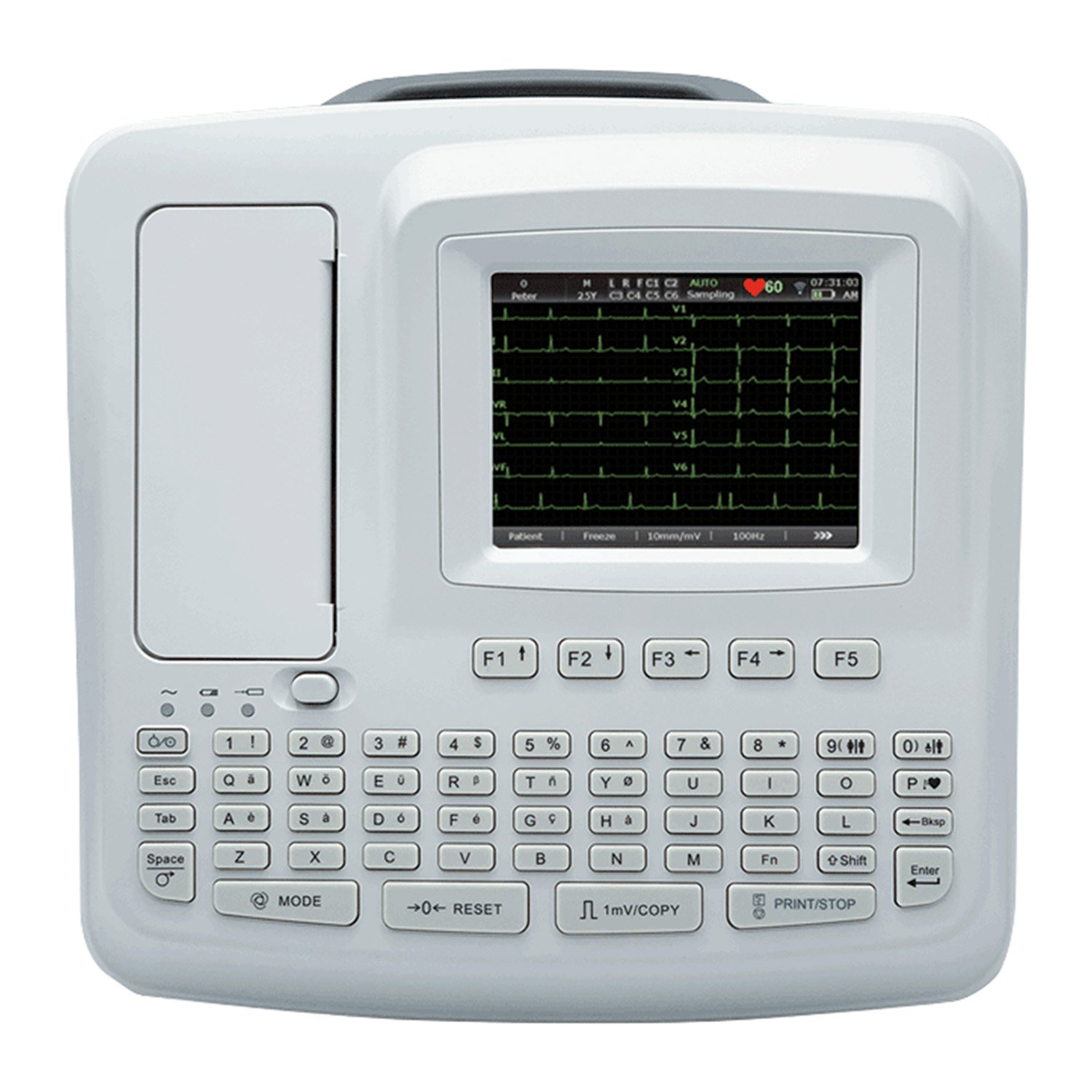

Edan SE-601C 6-Channel ECG with 5.7" Touch Screen

The Edan SE-601C 6-Channel ECG with 5.7" Touch Screen is a powerful and versatile machine that packs outstanding capabilities into a sleek design without compromising on quality.

Features:

• Compact Design:
  • Lightweight and Portable Design
  • 5.7" Multi-Color LCD Touch Screen Display
  • Built-In Rechargeable Li-ion Battery
  • Alphanumeric Keyboard
  • One-Touch Operation
  • 800 ECG Test Memory
• Accurate Analysis and Diagnosis:

  • Automatic measurements and interpretation tested by CSE/AHA/MIT database
  • Automatic analysis with gender- and age-specific
  • Pacemaker detection that meets the requirements of AMSI/AAMI EC11
• Sensitive Signal Acquisition:
  • Weak signal detection with the most advanced 24-bit A/D converter technology
  • Anti-noise technology with comprehensive filters and a high CMRR over 115 dB
  • 12-lead simultaneous acquisition
• Flexible Printing Solutions:
  • Built-in high-resolution thermal recorder
  • External USB printer support
• Data Management:
  • Large internal memory which can be enlarged by USB flash disk
  • LAN/RS232 connection to PC
• Multiple Ports:
  • Patient Cable Socket
  • Serial Port
  • USB Socket
  • Net Port
  • External Input/Output
• Comes Standard With:
  • (1) ECG Cable with 4 mm Banana Connector
  • (1) Adult Resting Tab Electrodes
  • (1) 10-Lead Universal Clips
  • (1) Recording Paper (110 mm x 140 mm x 144 Pages)
  • (1) Fuse
  • (1) US Standard Power Cord
  • (1) Power Adapter (16V)
  • (1) Rechargeable Lithium-Ion Battery (2500 mAh)

Technical Specifications:

• Display: 5.7", 640×480 Multicolor LCD Touch Screen
• Power Supply:
  • Main Supply:
    • Operating Voltage: 100V - 240V
    • Operating Frequency: 50 Hz/ 60 Hz
    • Input Current: 0.9-0.4 A
  • Internal Lithium-Ion Battery Pack:
    • Rated Capacity: 2500 mAh (1.5 Hours Continuous Printing, 300 ECG Reports)
    • Necessary Charge Time: 5 Hours
• Recording:
  • Recorder: Thermal Dot-Matrix Recorder
  • Printing Density:
    • 8 Dots per mm / 200 Dots per inch (Amplitude Axes)
    • 40 Dots per mm / 1000 Dots per inch (Time Axes, @ 25 mm/s)
  • Recorder Paper (Folded Thermal Paper): 110 mm × 140 mm
  • Paper Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
  • External Printer: HP 1010/1510, HP M401, HP 1020/1020PLUS/1106, HP 2010/1050/2000, HP 2015/2035, HP 1525
• HR Recognition:
  • Technique: Peak-Peak Detection
  • HR Range: 30 BPM ~ 300 BPM
  • Accuracy: ±1 BPM
• ECG Unit:
  • Leads: 12 Standard Leads
  • Acquisition Mode: Simultaneously 12 Leads
  • A/D Converter: 24 Bits
  • Resolution: 2.52 uV/LSB
  • Time Constant: ≥ 3.2 s
  • Frequency Response: 0.01 Hz ~ 300 Hz (-3 dB)
  • Gain: 2.5, 5, 10, 20, 10/5 mm/mV, AGC
  • Input Impedance: ≥ 100 MΩ (10 Hz)
  • Input Circuit Current: ≤ 0.01 μA
  • Input Voltage Range: ≤ ±5 mVpp
  • Calibration Voltage: 1 mV±2%
  • CMRR:
    • ≥ 140dB (AC On)
    • ≥ 123 dB (AC Off)
  • Sampling Frequency: 16000 Hz
• Pacemaker:
  • Amplitude: ±750 μV to ±700 mV
  • Width: 50 μs to 2.0 ms
• Filter:
  • AC Filter: 50/60 Hz
  • DFT Filter: 0.01 Hz/ 0.05 Hz/ 0.15 Hz/ 0.25 Hz/ 0.32 Hz/ 0.5 Hz/ 0.67 Hz
  • EMG Filter: Off/ 25 Hz/ 35 Hz/ 45 Hz
  • LOWPASS Filter: 300 Hz/ 270 Hz/ 150 Hz/ 100 Hz/ 75 Hz
• Data Transmission:
  • Report Format: PDF, XML, DICOM, FDA-SCP
  • Data Transmission: Wi-Fi, Ethernet, RS232
  • Data Management System:
    • SE-1515 Data Management System
    • Bi-Directional Communication
  • HIS Connection: DICOM Worklist/ DICOM Storage/ HL7/ GDT
• Safety Specifications:
  • Anti-Electric-Shock Type: Class І with Internal Power Supply
  • Anti-Electric-Shock Degree: CF Type with Defibrillation-Proof
  • Patient Leakage Current:
    • NC < 10 μA (AC) / < 10 μA (DC)
    • SFC < 50 μA (AC) / < 50 μA (DC)
  • Patient Auxiliary Current:
    • NC < 10 μA (AC) / < 10 μA (DC)
    • SFC < 50 μA (AC) / < 50 μA (DC)
• Working Environment Specifications:
  • Temperature: +5ºC ~ +40ºC
  • Relative Humidity: 25% ~ 80% Non-Condensing
  • Atmospheric Pressure: 86 kPa ~ 106 kPa
• Overall Dimensions: 12.20" L x 12.68" W x 3.98" H
• Actual Product Weight: 6.61 lbs (Excluding Recorder Paper and Battery)
• Warranty: 2 Years
