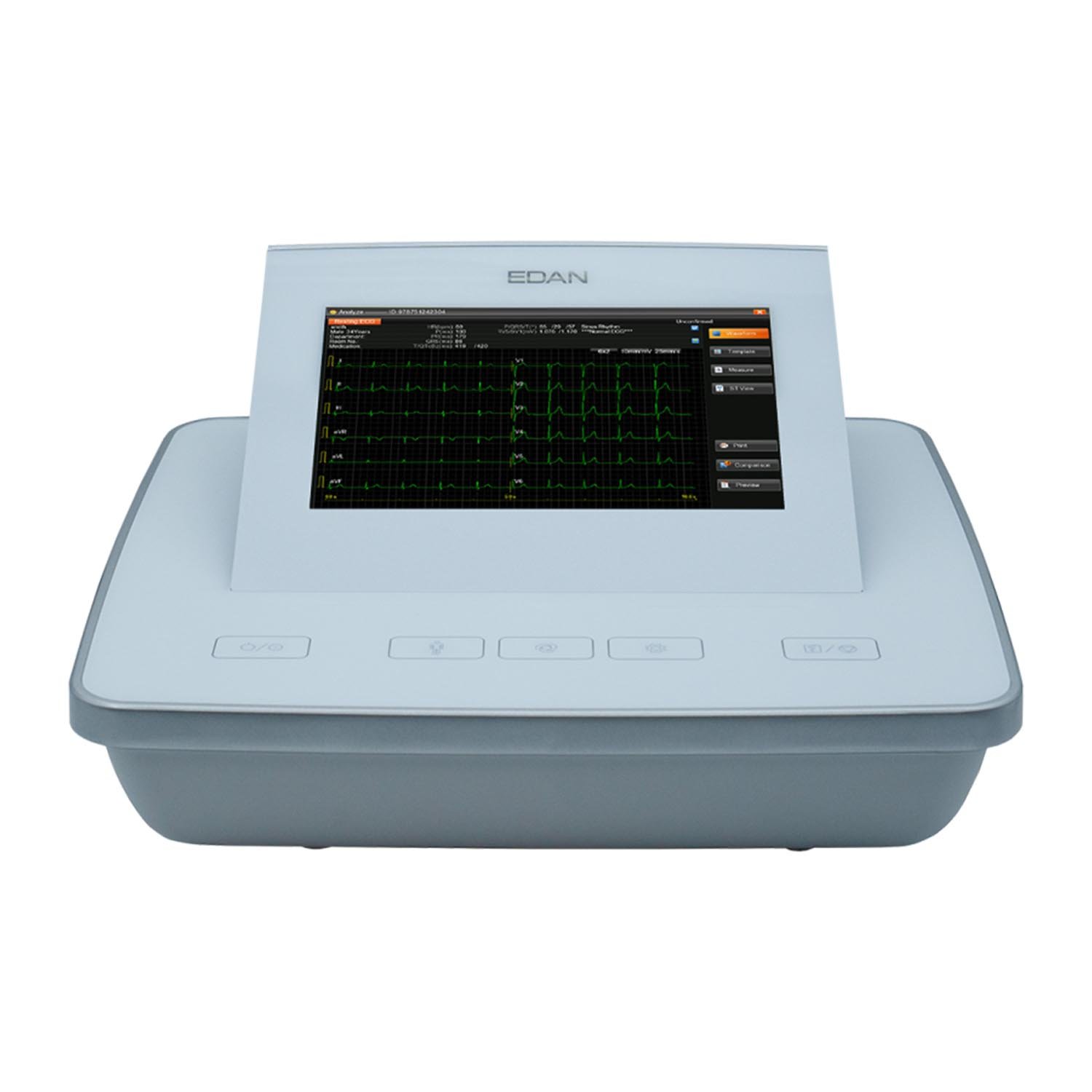

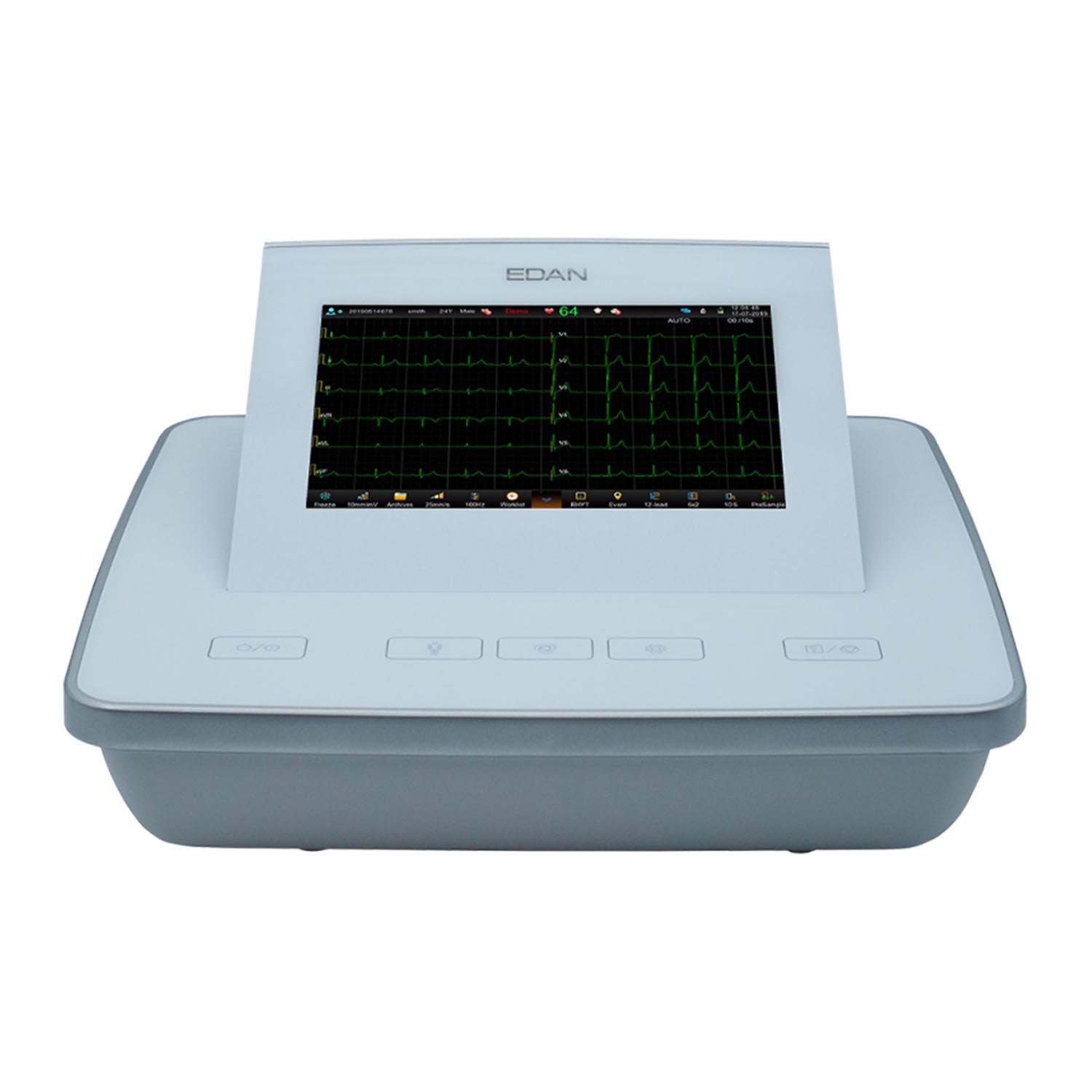

Edan SE-1202 12-Channel ECG with 10.1" Touch Screen and WiFi

The Edan SE-1202 12-Channel ECG with 10.1" Touch Screen and WiFi is a powerful and sleek machine that provides a comprehensive set of cardiac diagnosis tools and delivers cutting-edge technologies that ensure excellent performance for every practice.

Features:

• Excellent Performance:
  • 10.1" Folding Touch Screen
  • Glass-Covered Surface for Easy Cleaning and Disinfection
  • On-Screen Toolbar with Customizable Hotkeys
  • Waterproof Keys for Effortless Sterilization
  • 1000 ECG Test Storage
  • Pacemaker Detection
• Cutting-Edge Technology:
  • Auto Lead Placement Detection
  • Auto Arrhythmia Detection
  • Data Connectivity (HL7/DICOM/WiFi)
  • ST-View (Intuitive Display of ST-Segment)
  • Direct EMR Integration
  • 12-Lead Standard Resting ECG
  • 9-Lead Resting ECG Tailored for Neonates

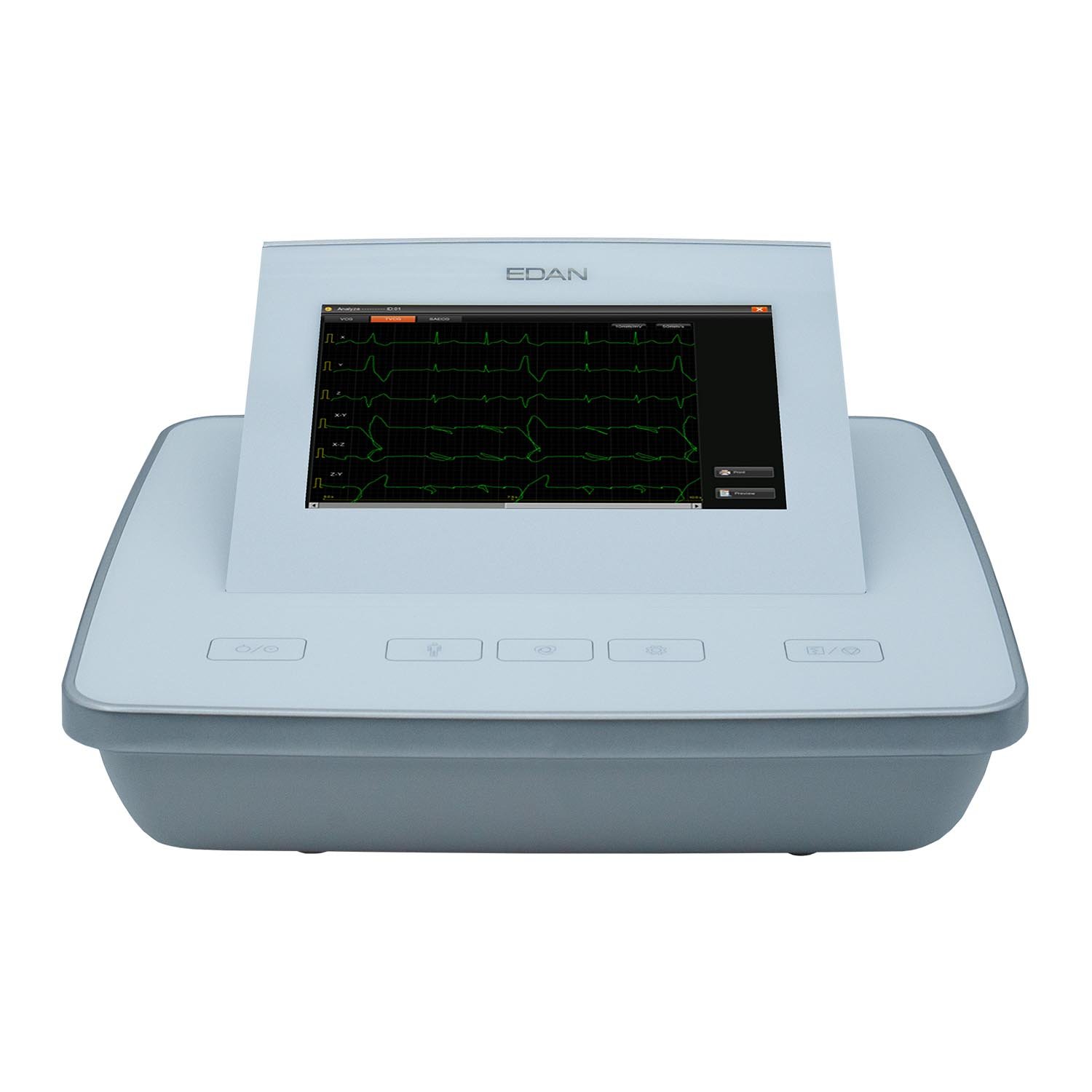

  • Vector ECG and Timed Vector ECG (VCG and TVCG)
  • Signal-Average ECG (SAECG)
  • Heart Rate Variability (HRV)
  • File Export for PDF, JPG, FDA XML, DICOM ECG Waveform/Worklist, HL7
  • Powerful Hardware and Soft Tools for Excellent Performance
• Exceptional Diagnostic Support:
  • Long-time Sampling: To assist with pre-treatment diagnosis or post-treatment evaluations, an extended practice session of 1800 seconds can be utilized
  • Enhancing ECG Accuracy: Innovative color visualization for precise lead placement detection
  • Auto Arrhythmia Detection: Segments of arrhythmia traces can be emphasized on display, with automatic saving strips for further analysis
• On-Screen Diagnosis:
  • Designed as an “All-in-One” workstation
  • Allows a complete paperless workflow with all measurements and diagnosis on screen, correctly and coherently
  • Any waveform segments can be amplified and measured
  • Any report can be edited and confirmed
  • Any two reports can be selected and compared
• Streamlined Data Connectivity:
  • Direct communication with HIS/EMR/PACs based on HL7/DICOM protocol
  • Workflow enhancement with access to HIS/EMR/PACs through SE-1515 Data Management System
• Multiple Ports:
  • Patient Cable Socket
  • SIM Card Slot
  • SD Card Slot
  • (2) USB Sockets
  • Serial Port
  • Net Port
• Comes Standard With:
  • (1) ECG Cable with 4 mm Banana Connector
  • (1) Adult Resting Tab Electrodes
  • (1) 10-Lead Universal Clips
  • (1) Recording Paper (210 mm x 295 mm x 100 Pages)
  • (1) Fuse
  • (1) US Standard Power Cord
  • (1) Fixed Bar for Battery

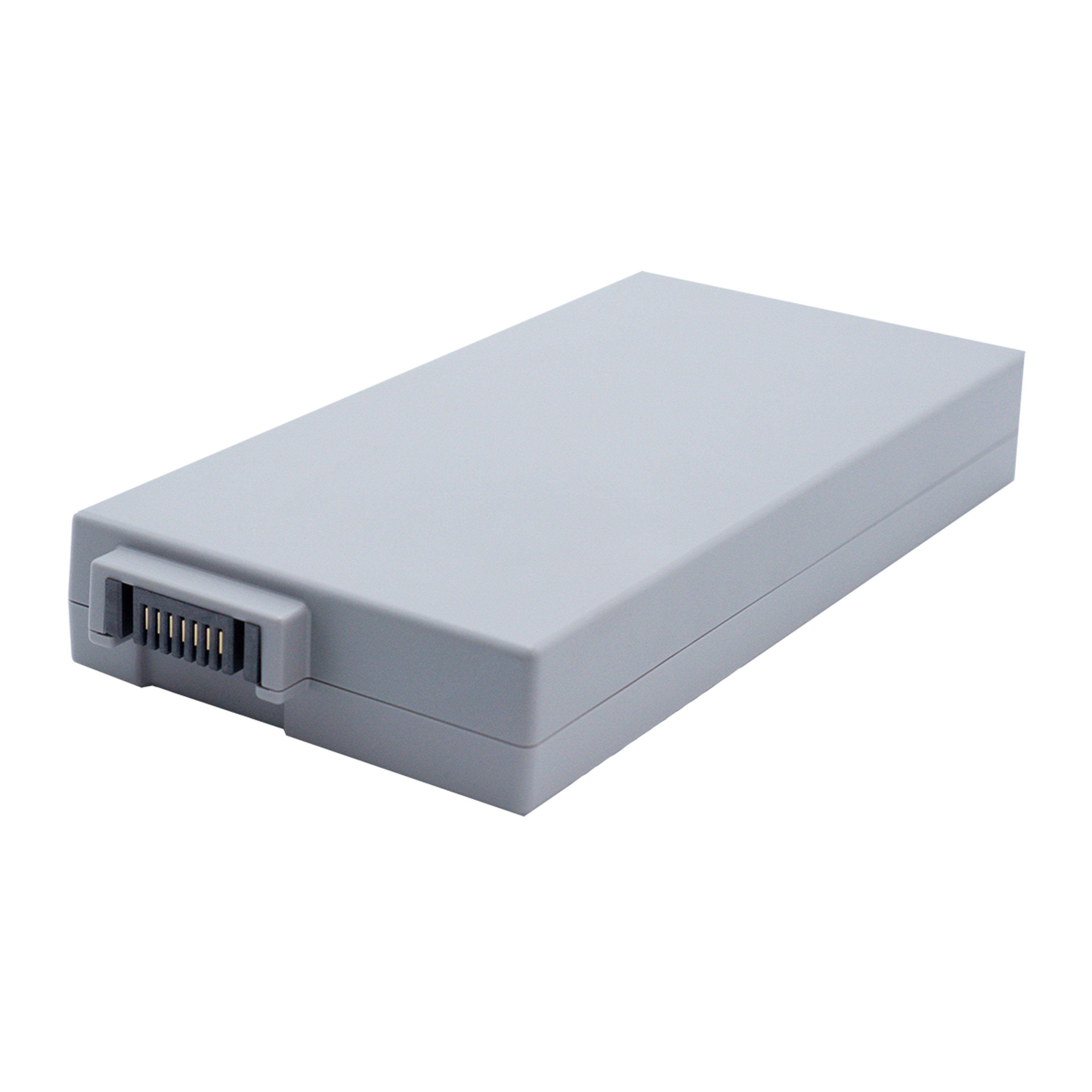

  • (1) Rechargeable Lithium-Ion Battery (2500 mAh)

Technical Specifications:

• Display: 10.1", 1280x800 Multicolor LCD Screen (Can be Flipped 25° Clockwise)
• Power Supply:
  • Main Supply:
    • Operating Voltage: 100V - 240V
    • Operating Frequency: 50 Hz/ 60 Hz
    • Input Current: 0.9-0.4 A
  • Internal Lithium Battery (When the Battery is Fully Charged, and SE-1202 Operates at 23ºC ±3ºC):
    • Typical Capacity: 2500 mAh
      • 100% Recharge: 3 Hours
      • 90% Recharge: 2.5 Hours
    • Typical Capacity: 5000 mAh
      • 100% Recharge: 6 Hours
      • 90% Recharge: 5 Hours
    • Rated Voltage: 14.8V
    • Rated Capacity: 2,500 mAh or 5,000 mAh
    • Necessary Charge Time: 3 Hours or 6 Hours
• Recording:
  • Recorder: Thermal Dot-Matrix Recorder
  • Printing Density:
    • 8 Dots per mm / 200 Dots per inch (Amplitude Axes)
    • 40 Dots per mm / 1000 Dots per inch (Time Axes, @ 25 mm/s)
  • Recorder Paper:
    • Folded Thermal Paper: 210 mm x 295 mm x 100 Pages
    • Folded Thermal Paper: 215 mm x 280 mm x 100 Pages
  • Effective Width: 210 mm
  • Paper Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s (±3%)
  • External Printer: HP 1510, HP 1020P, HP 1112, HP 2132, HP DeskJet 4729, HP DeskJet 3638, HP M401, HP LaserJet P2035, HP 1010, HP LaserJet Pro M403D, HP LaserJet Pro M202DW
• HR:
  • HR Range: 30 BPM ~ 300 BPM
  • Accuracy: ±1 BPM
• ECG:
  • Leads: 9 or 12 Standard Leads
  • Acquisition Mode: 9 or 12 Leads Simultaneously
  • Sampling Frequency: 64000/Sec/Channel
  • A/D Converter: 24 Bits
  • Resolution: 0.1192 μV/LSB
  • Time Constant: ≥ 5 s
  • Frequency Response: 0.01 Hz ~ 350 Hz (-3 dB)
  • Gain: 1.25, 2.5, 5, 10, 20, 10/5, AGC, ±5% (mm/mV)
  • Input Impedance: ≥ 100 MΩ (10 Hz)
  • Input Circuit Current: ≤ 0.01 μA
  • Input Voltage Range: ≤ ±5 mVpp
  • Calibration Voltage: 1 mV±2%
  • DC Offset Voltage: ±900 mV, ±5%
  • Minimum Amplitude: 20 μVp-p (10 Hz)
  • Noise: ≤ 12.5 μVp-p
  • Multichannel Crosstalk: ≤ 0.5 mm
  • CMRR:
    • ≥ 140 dB (AC On)
    • ≥ 123 dB (AC Off)
  • QTc Formulas: Bazett, Fridericia, Framingham, Hodges, and QRS
• Pacemaker Detection:
  • Amplitude: ±500 μV to ±700 mV
  • Width: 30 μs to 2.0 ms
  • Sampling Frequency: 80,000/Sec/Channel, Rhythm Lead
• Filter:
  • AC Filter: Off/ 50 Hz/ 60 Hz
  • DFT Filter: 0.01 Hz/ 0.05 Hz/ 0.32 Hz/ 0.67 Hz
  • EMG Filter: Off/ 25 Hz/ 35 Hz/ 45 Hz
  • LOWPASS Filter: 350 Hz/ 300 Hz/ 270 Hz/ 150 Hz/ 100 Hz/ 75 Hz
• Data Transmission:
  • Report Format: DAT, PDF, JPG, BMP, TIFF, SCP, FDAXML, DICOM ECG Waveform, DICOM Encapsulated PDF
  • Data Transmission: Wi-Fi, Ethernet
  • Data Management System: SE-1515 Data Management System, Bidirectional Communication
  • HIS connection: DICOM Worklist/ DICOM Storage/ HL7/ GDT
  • Data Storage: 1,000 ECGs
• WiFi:
  • Radio Technology: 802.11 a/b/g/n
  • Frequency Range:
    • FCC: 2412 MHz ~ 2462 MHz, 5180 MHz ~ 5825 MHz
    • CE: 2412 MHz ~ 2472 MHz, 5180 MHz ~ 5825 MHz
    • Modulation: DBPSK, DQPSK, CCK, BPSK, QPSK, 16-QAM, 64-QAM
    • Output Power:
      • < 20 dBm (CE Requirement: Detection Mode - RMS)
      • < 30 dBm (FCC Requirement: Detection Mode - Peak Power)
    • Transmit Rate:
      • IEEE 802.11b: 1 Mbps to 11 Mbps
      • IEEE 802.11g: 6 Mbps to 54 Mbps
      • IEEE 802.11n: 6.5 Mbps to 72.2 Mbps
      • IEEE 802.11a: 6 Mbps to 54 Mbps
      • Bandwidth:
        • 2.4 GHz and 5 GHz
        • 20 MHz
• Safety Specifications:
  • Anti-Electric-Shock Type: Class І with Internal Power Supply
  • Anti-Electric-Shock Degree: CF Type with Defibrillation-Proof
  • Patient Leakage Current:
    • NC < 10 μA (AC) / < 10 μA (DC)
    • SFC < 50 μA (AC) / < 50 μA (DC)
  • Patient Auxiliary Current:
    • NC < 10 μA (AC) / < 10 μA (DC)
    • SFC < 50 μA (AC) / < 50 μA (DC)
• Working Environment Specifications:
  • Temperature: +5ºC ~ +40ºC
  • Relative Humidity: 15% ~ 95% Non-Condensing
  • Atmospheric Pressure: 70 kPa ~ 106 kPa
• Overall Dimensions: 15.75" L x 14.17" W x 3.54" H
• Actual Product Weight: 14.33 lbs, ±0.66 lbs (Excluding Recorder Paper and Battery)
• Warranty: 2 Years
