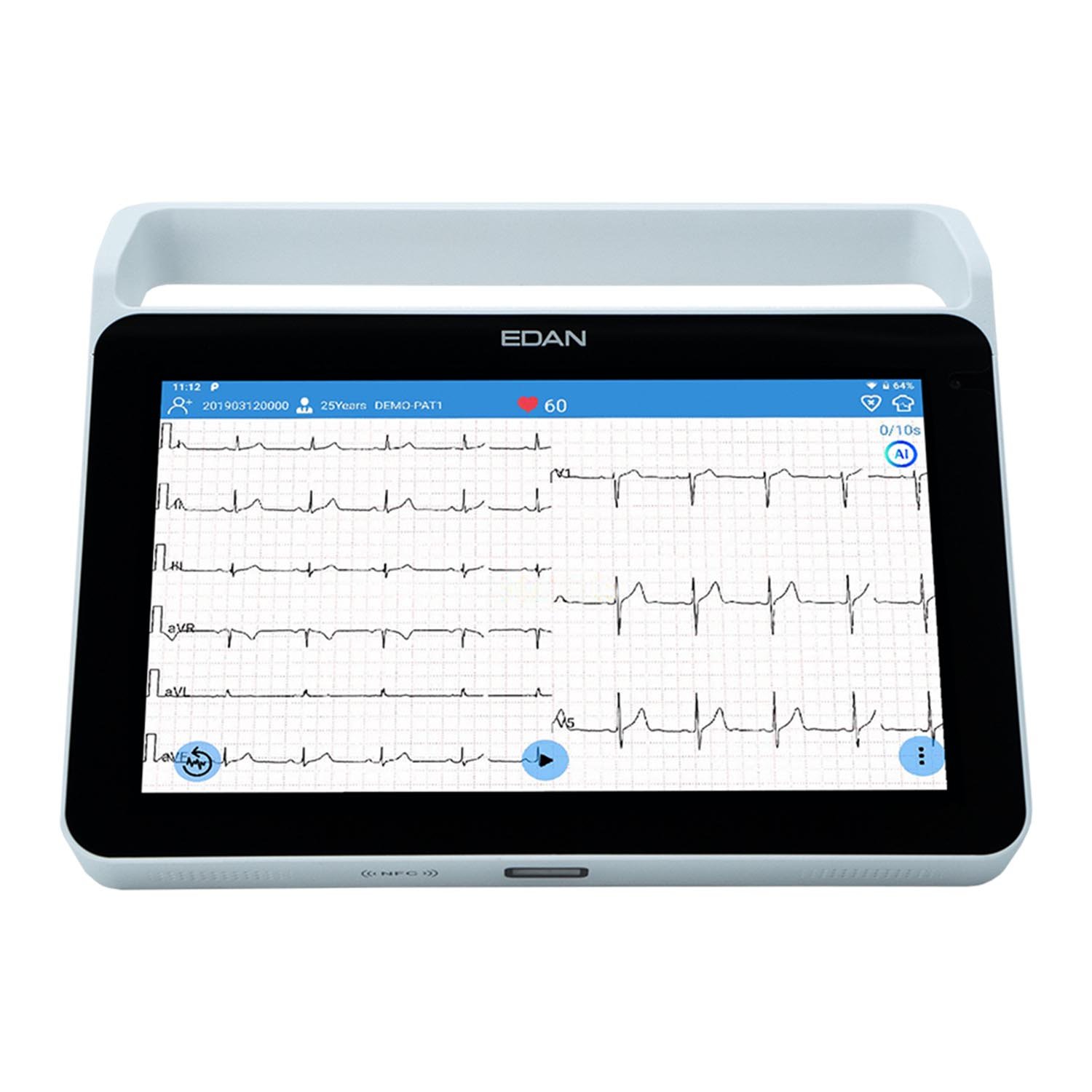

Edan iSE Series ECG with 10.1" Touch Screen and WiFi

The Edan iSE Series ECG with 10.1" Touch Screen and WiFi is an innovative and powerful machine that utilizes a complete set of electrocardiographic diagnostic information and provides in-depth data that ensures excellent performance for all practices.

Features:

• Effortlessly supports both 18-lead and 12-lead applications
• With the appearance and functionality of a tablet
• Delivers an outstanding mobile experience while forging a smooth integration with IT systems
• Excels at effortlessly integrating into diverse mobile applications, spanning from ambulance or first-aid services to modern, paperless hospital environments
• With resolution reaching up to 1920x1200, the display captures intricate waveform details clearly
• Zero button design for easy cleaning and disinfection
• Automatic sampling once all lead cables are connected
• Built-in Lithium-Ion battery with up to 8 hours of operating time
• File export for PDF, JPG, FDA XML, DICOM ECG Waveform/Worklist, HL7
• Efficient Design:
  • 10.1" Multi-Touch Screen
  • Lightweight for Maximum Portability
  • Large Internal Storage: 100,000 ECGs
  • Up to 8 Hours of Operating Time
• Leading-Edge Technology:
  • Auto Arrhythmia Detection
  • QTC Analysis and Interpretation (Glasgow Included)
  • Self-Adaptive Filter Technology: Guarantees superior ECG signal quality in real-world clinical settings
  • On-Screen Measurement and Diagnosis
    • Amplify and measure any waveform with precision, while seamlessly editing and confirming reports
    • Explore historical data by selecting and comparing reports side by side for comprehensive analysis
• Powerful Connectivity:
  • Provides various network solutions to share ECG data with IT systems via LAN, Wi-Fi, Bluetooth, or 4G
  • Bi-directional communication with added-on SE-1515 software
• Multiple Ports:
  • Main AC Power
  • LAN Port
  • USB Interface
  • Type-C Interface
  • SIM and SD Card Two-in-One Slot
  • ECG Cable Socket
  • DE18 Socket
• Comes Standard With:
  • (1) ECG Cable with 4 mm Banana Connector

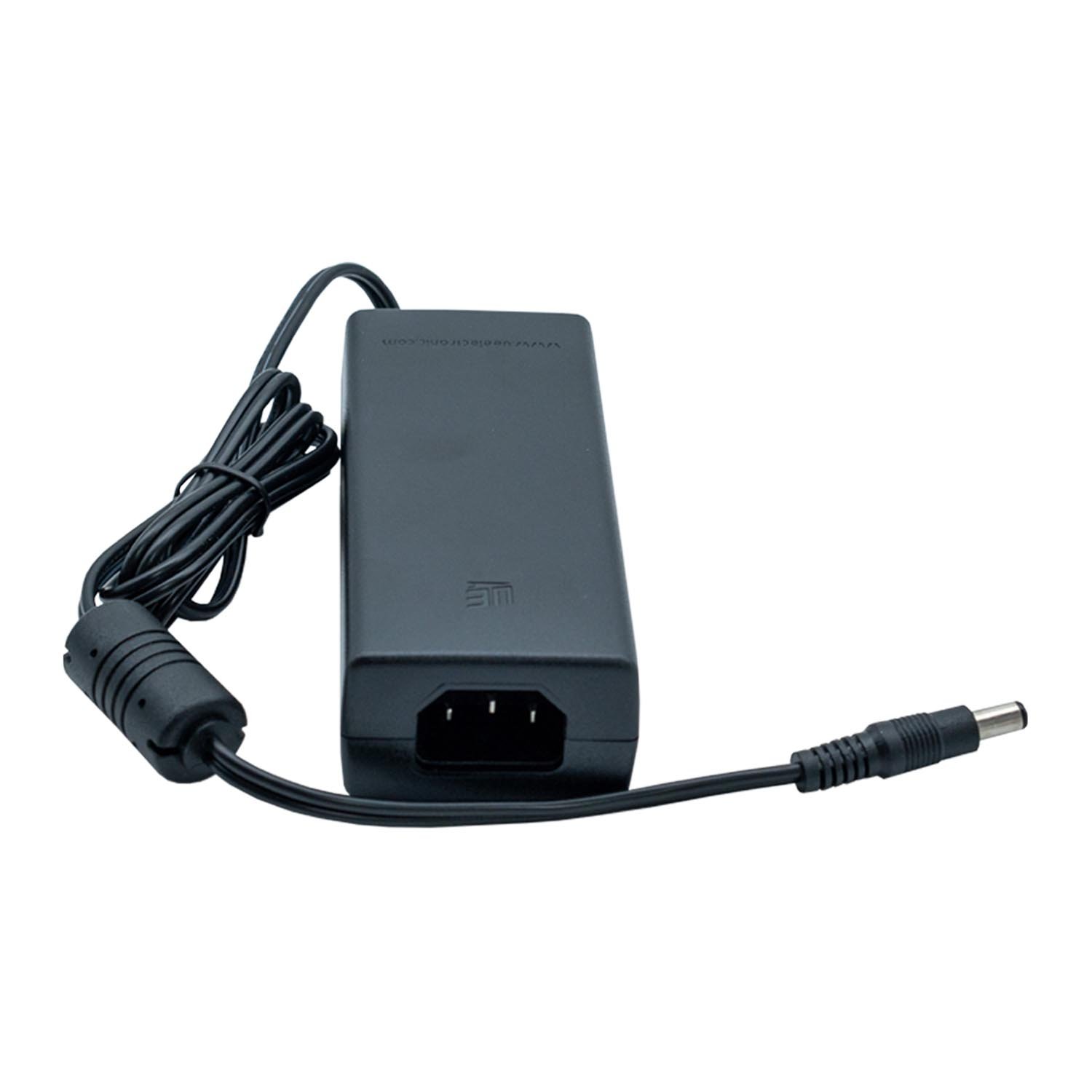

  • (1) Power Adapter (19V)
  • (1) 10-Lead Universal Clips
  • (1) Rechargeable Lithium-Ion Battery (3550 mAh)
  • (1) US Standard Power Cord

Technical Specifications:

• Display:
  • Screen Size: 10.1"
  • Resolution: 1920 x 1200 LCD Full Touch Screen
• Power Supply:
  • Mains Supply:
    • Operating Voltage: 100V - 240V
    • Operating Frequency: 50 Hz/ 60 Hz
    • Input Current: 1.1 A
  • Internal Li-ion Battery Pack
    • Rated Voltage: 15.2V
    • Rated Capacity: 3,550 mAh
    • Operating Time: > 8 Hours
    • Charge Time: ≤ 5 Hours
• HR Recognition:
  • Range: 30 BPM ~ 300 BPM
  • Accuracy: ±1 BPM
• DE12/DE18 Performance:
  • Leads:
    • DE12: 12 Standard Leads
    • DE18: 18 Standard Leads
  •  A/D Converter: 24 Bits
  • Sampling Frequency: 64,000/Sec/Channel
  • Acquisition Mode:
    • DE12: Simultaneously 12 Leads
    • DE18: Simultaneously 18 Leads
  • Resolution: 0.1192 μV/LSB
  • Time Constant: ≥ 5 s
  • Frequency Response: 0.01 Hz ~ 350 Hz (3 dB)
  • Input Impedance: ≥ 100 MΩ (10 Hz)
  • Input Voltage Range: ≤ ±5 mVpp
  • CMRR:
    • ≥ 140 dB (AC On)
    • ≥ 123 dB (AC Off)
  • Gain: 1.25, 2.5, 5, 10, 20, 10/5 mm/mV, AGC (±5%)
  • Input Circuit Current: ≤ 0.01 μA
  • Calibration Voltage: 1 mV±2%
  • QTc Formulas: Bazzet, Fridericia, Framingham, Hodges, and QRS
• Pacemaker:
  • Amplitude:
    • DE12: ±500 μV to ±700 mV
    • DE18: ±750 μV to ±700 mV
  • Width:
    • DE12: 30 μs to 2.0 ms
    • DE18: 50 μs to 2.0 ms
• Filter:
  • AC Filter: Off/ 50 Hz/ 60 Hz
  • DFT Filter: 0.01 Hz/ 0.05 Hz/ 0.32 Hz/ 0.67 Hz
  • EMG Filter: Off/ 25 Hz/ 35 Hz/ 45 Hz
  • LOWPASS Filter: 350 Hz/ 300 Hz/ 270 Hz/ 150 Hz/ 100 Hz/ 75 Hz
• Data Transmission:
  • Report Format: SCP, FDA-XML, DICOM (Encapsulated PDF), DICOM (ECG Waveform), PDF, JPG, BMP, PNG, and TIFF Data
  • Transmission: WiFi, Ethernet, 4G Network
  • Data Storage: 100,000 Pieces of 10s DAT Examination with Files
  • Data Management System:
    • SE-1515 Data Management System
    • Bi-Directional Communication
• WiFi
  • Transmitting Frequency: 2.4 GHz and 5 GHz
  • Frequency Band:
    • 2412 MHz - 2472 MHz (2.4 GHz)
    • 5150 MHz - 5850 MHz (5 GHz)
  • Modulation Type: DBPSK/ DQPSK/ CCK/ BPSK/ QPSK/ 16QAM/ 64QAM, GFSK, π/4 DQPSK, 8 DPSK
  • Transmitting Power:
    • ≤ 17 dBm (2.4 GHz)
    • ≤ 17 dBm (5 GHz)
• Safety Specifications:
  • Anti-Electric-Shock Type: Class І with Internal Power Supply
  • Anti-Electric-Shock Degree: CF Type with Defibrillation-Proof
  • Patient Leakage Current:
    • NC < 10 μA (AC) / < 10 μA (DC)
    • SFC < 50 μA (AC) / < 50 μA (DC)
  • Patient Auxiliary Current:
    • NC < 10 μA (AC) / < 10 μA (DC)
    • SFC < 50 μA (AC) / < 50 μA (DC)
• Working Environment Specifications:
  • Temperature: +5ºC ~ +40ºC
  • Relative Humidity: 15% ~ 95% Non-Condensing
  • Atmospheric Pressure: 70 kPa ~ 106 kPa
• Warranty: 2 Years
