Edan SE-1515 12-Channel PC-Based ECG
Usually Ships in 1-2 Business Days
In stock
Only %1 left
You May Also Need
Checked products are added to the cart with this item.
Product Description
The Edan SE-1515 12-Channel PC-Based ECG is a portable, sophisticated machine that integrates high-performance PC software with a compact yet powerful EKG system. By combining reliable algorithms with rich outputs, this all-in-one workstation can help maximize daily workflow.
Features:
- Portable Design:
- Color-Coded Lead Wires
- One-Button Start and Stop
- LED Signal Quality Indicator

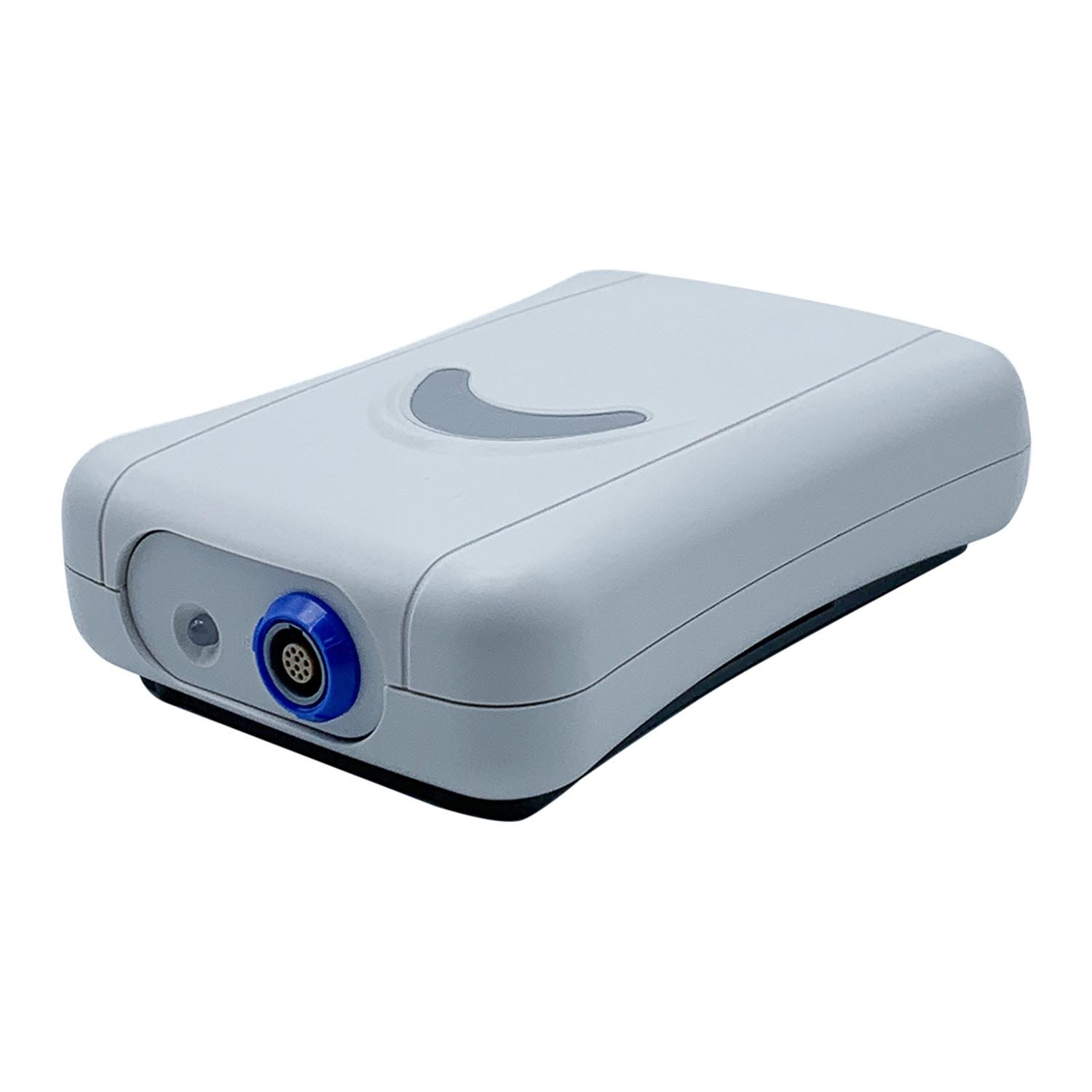

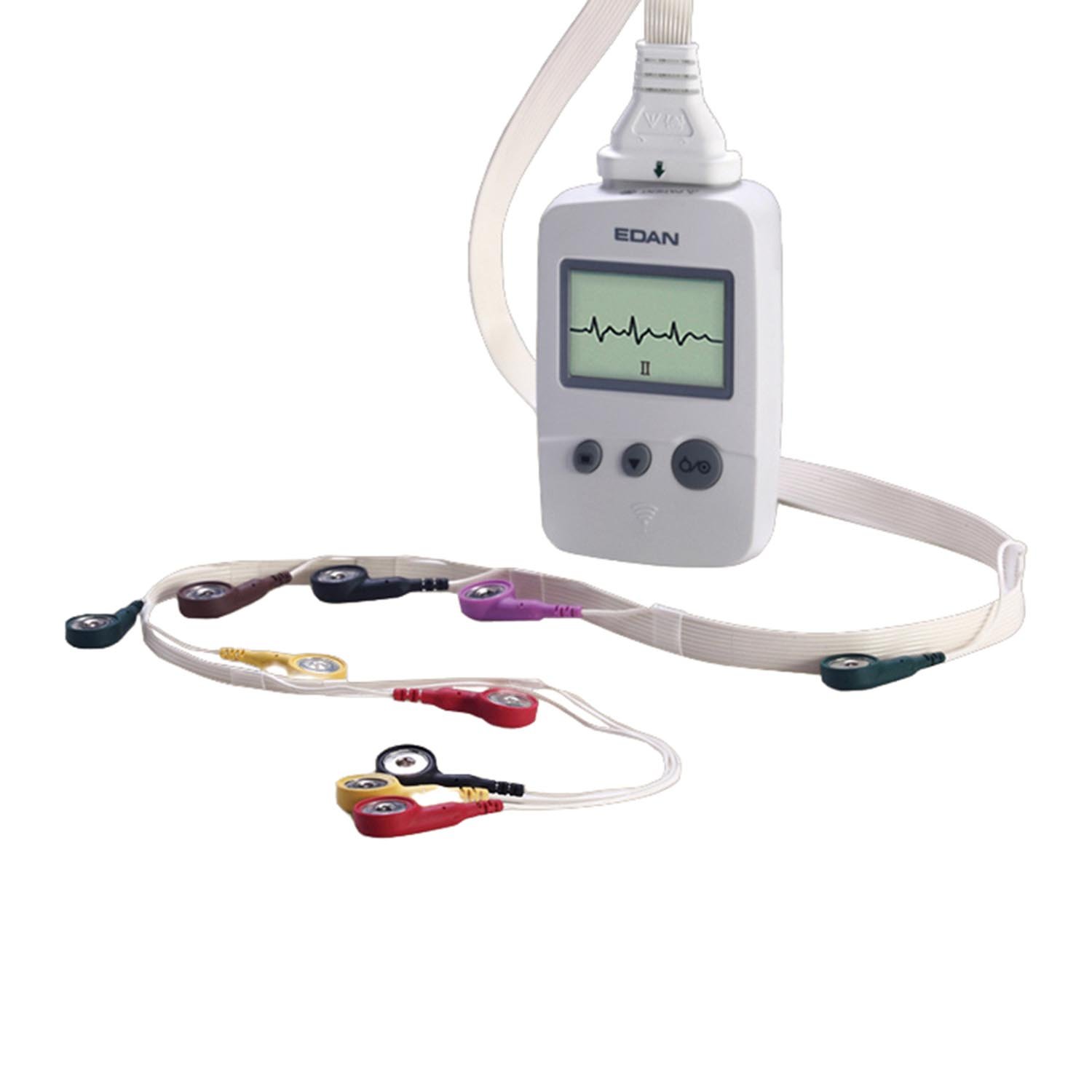

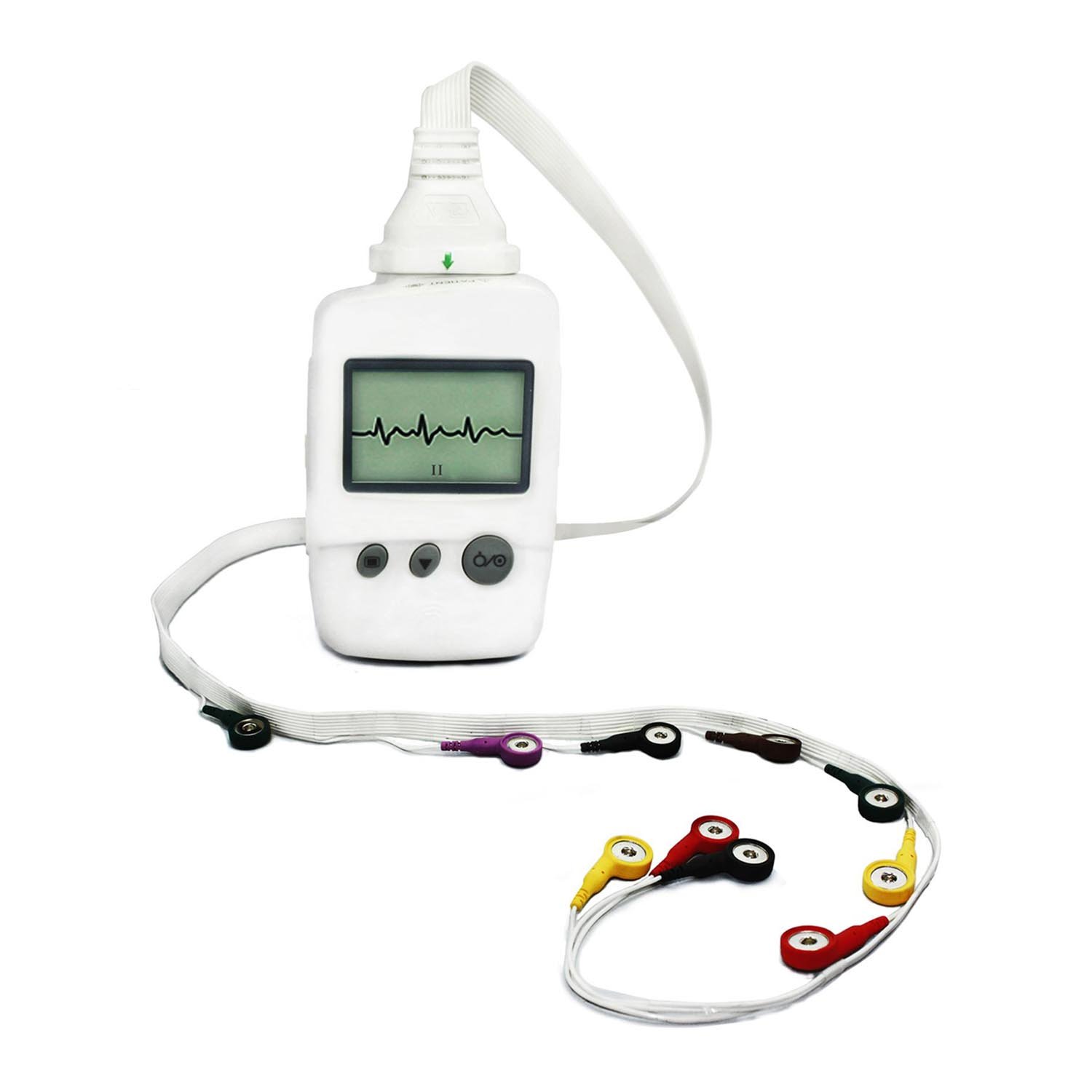

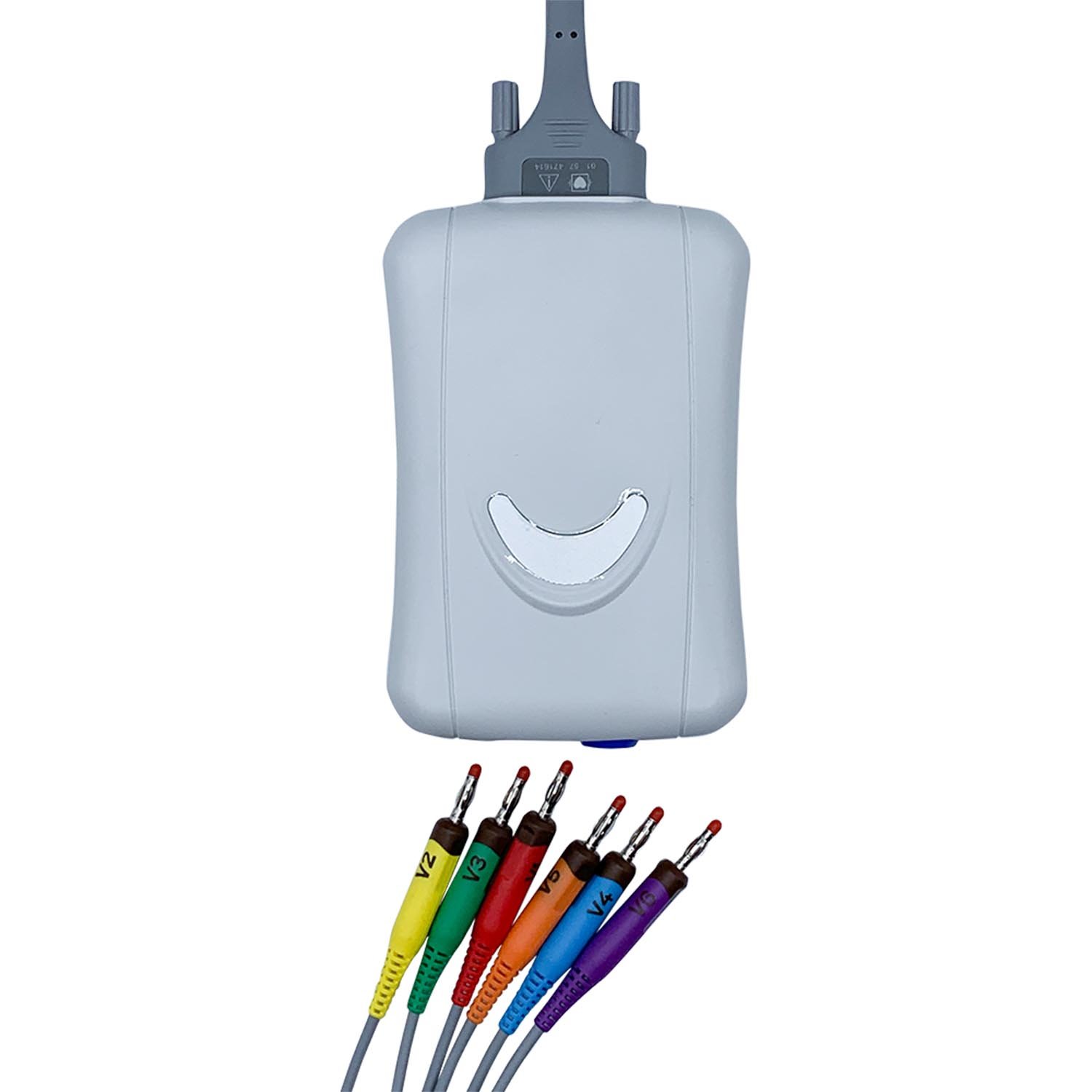

- 12-Lead Wired Sampling Box (SE-1515-DP12) or Wireless Transmitter (SE-1515-DX12)

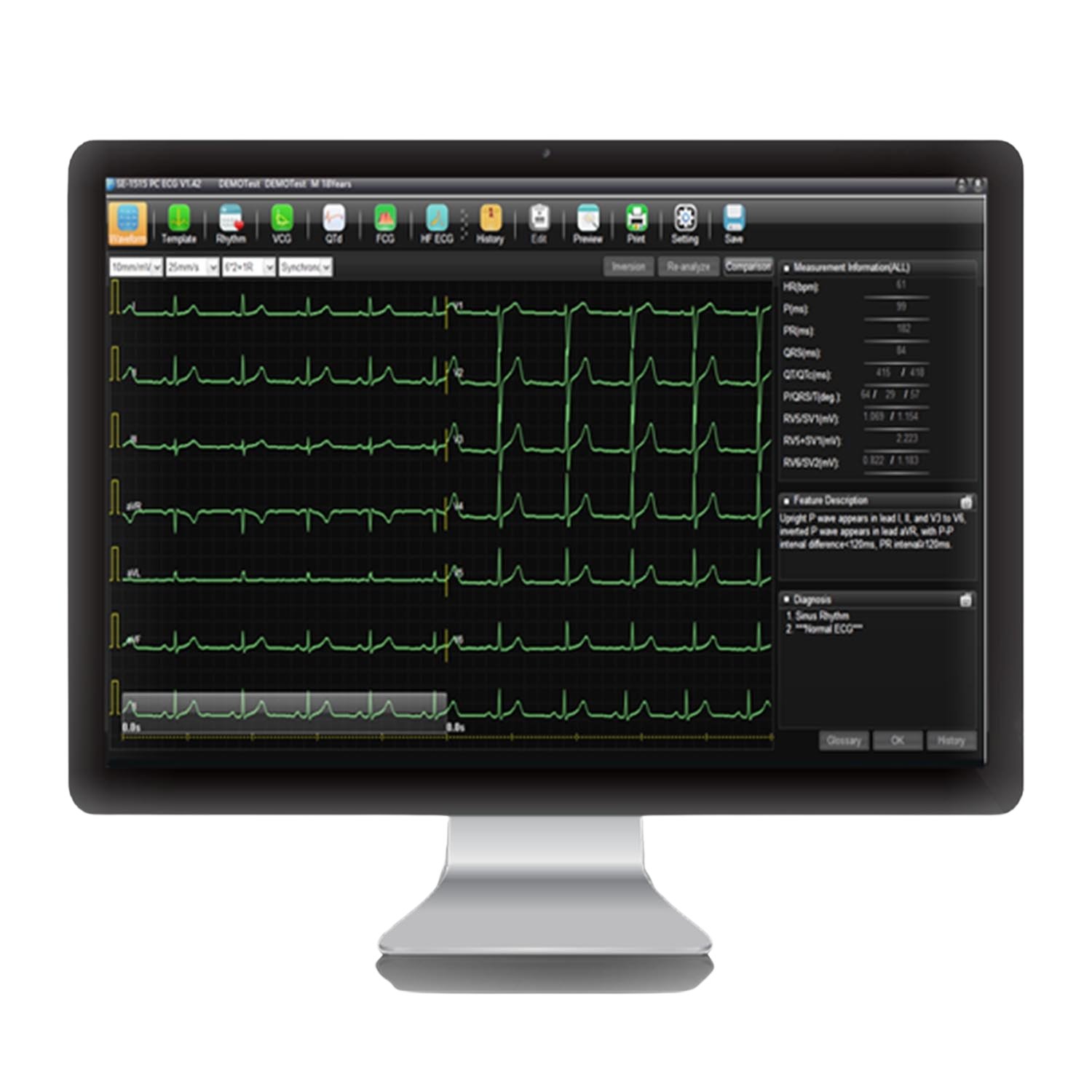

- Powerful Software:
- Powerful software with comprehensive functions
- Multi-user permission configuration
- Lead-reversal function to easily rectify the wrong placement of electrodes
- Arrhythmia segments can be detected, highlighted, and saved automatically
- Custom PDF reports
- Enhanced signal quality and Glasgow interpretation for reliable reporting
- The ECG glossary contains detailed templates and diagnostic results, helping clinicians make quick and accurate conclusions
- Centralized ECG Explorer:
- Bi-directional communication with ECG machines on the worklist and reports
- Multiple report formats output, including PDF, XML, SCP, DICOM, JPG, BMP, and DOC
- Data access with HIS/EMR/PACs/CIS based on HL7/DICOM/GDT protocol
- Effortlessly combines advanced ECG solutions within a user-friendly PC-based platform
- With a flexible PC software interface, a wired ECG sampling box, or a 12-channel wireless transmitter, this system delivers streamlined access to a wide range of applications
- Compatible with a variety of treadmills and ergometers, offering standard Bruce protocol along with additional customizable options
- Comes Standard With:

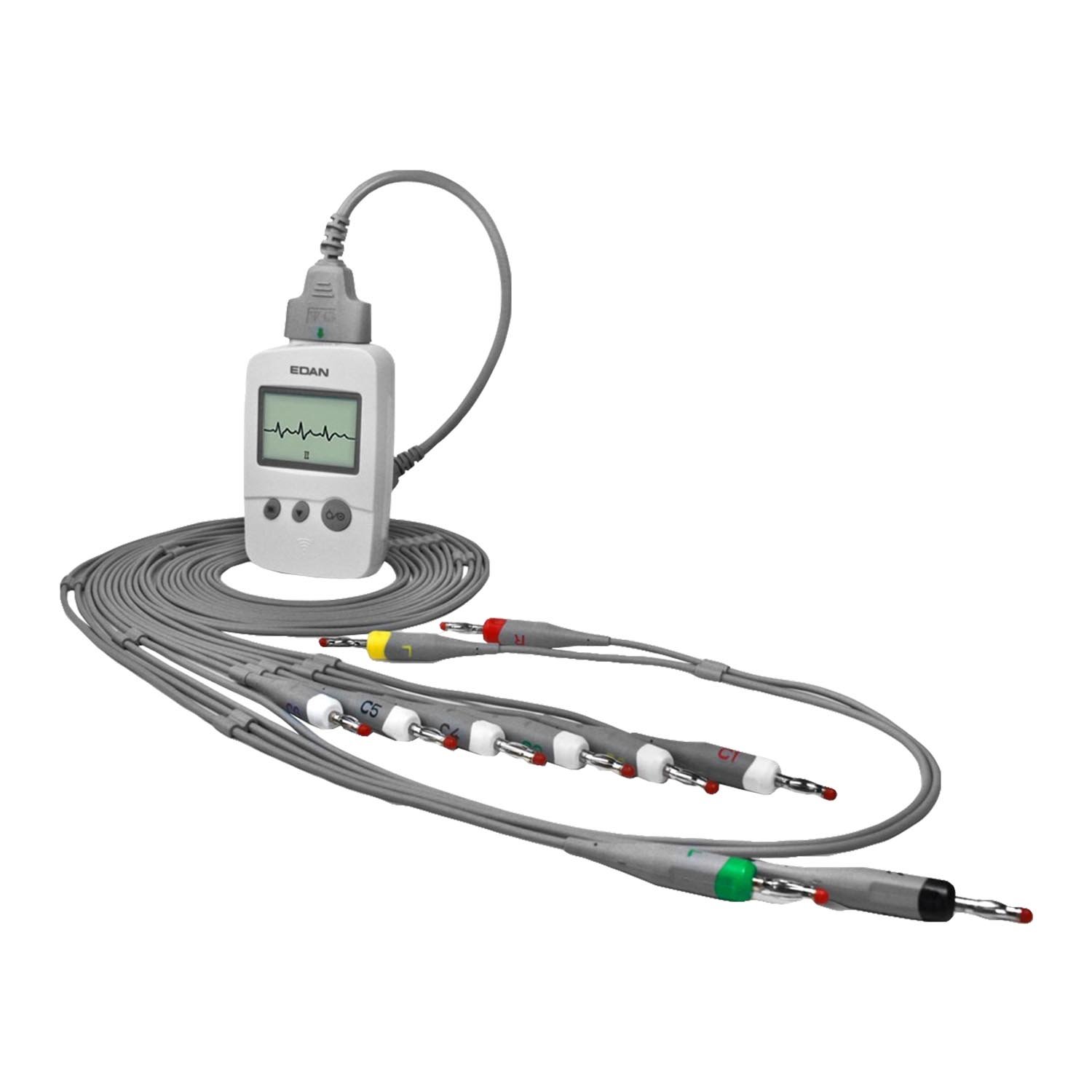

- (1) ECG Cable with 4 mm Banana Connector
- (1) Adult Resting Tab Electrodes
- (1) 10-Lead Universal Clips
- (1) USB Connection Cable

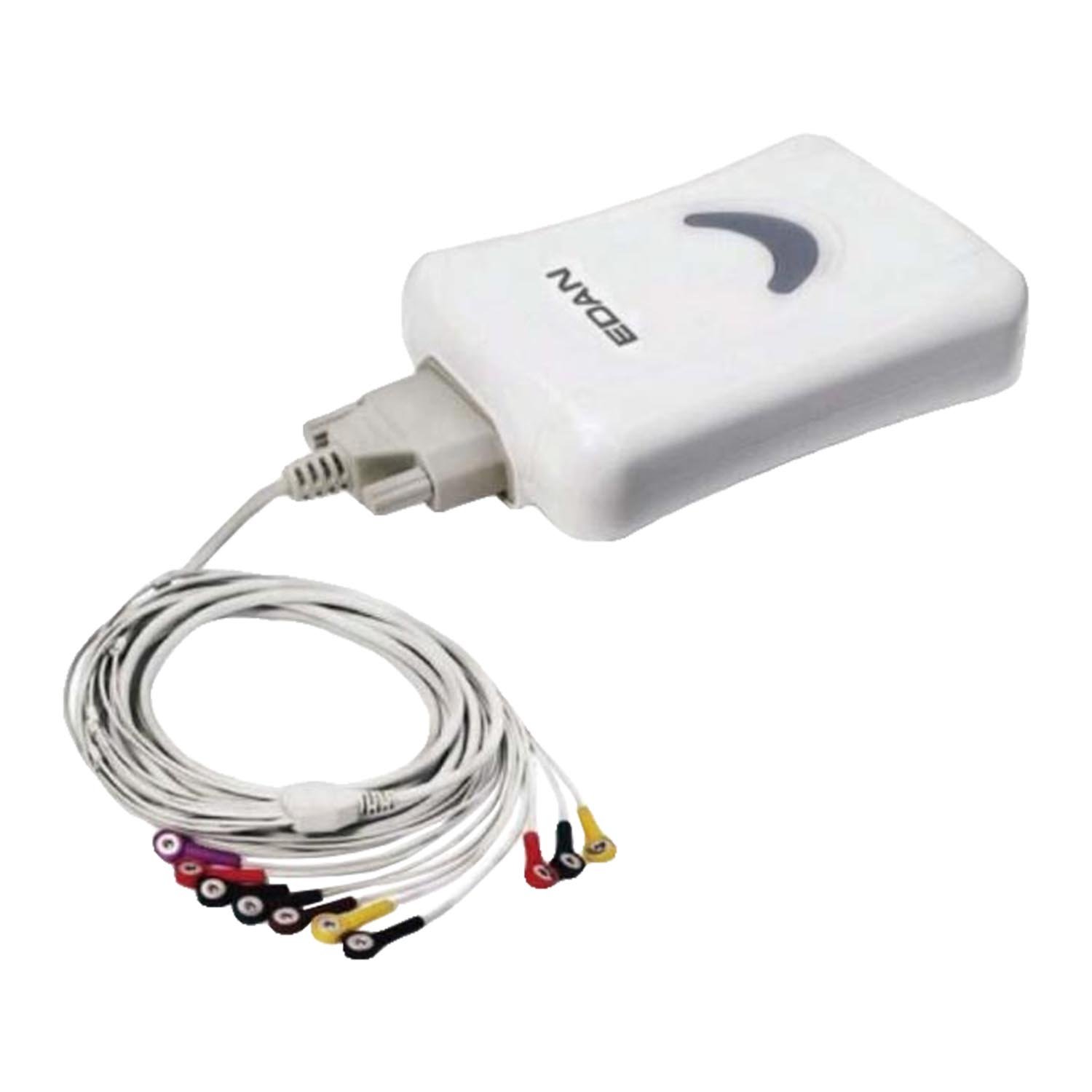

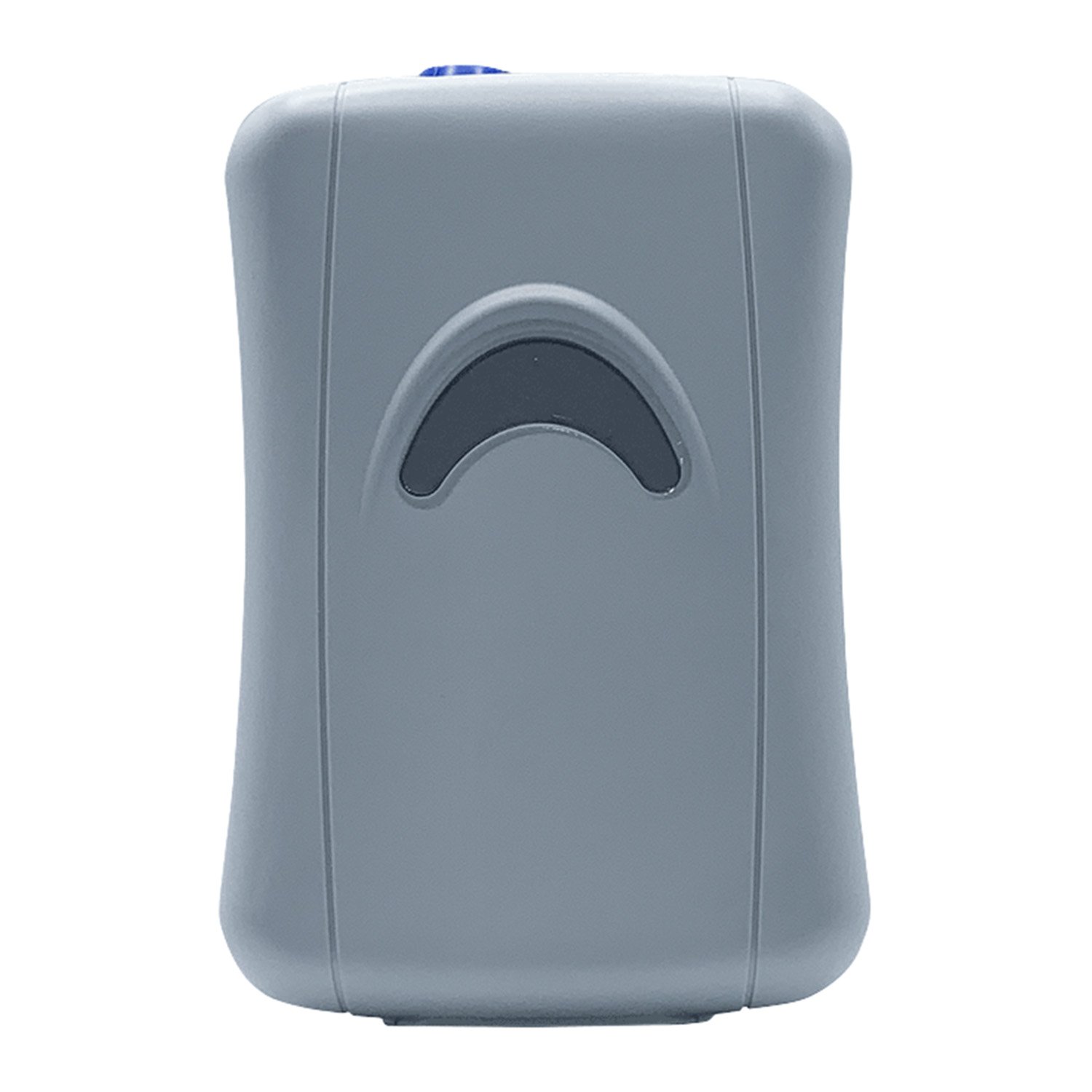

- (1) ECG Data Sampling Box (SE-1515-DP12 only)

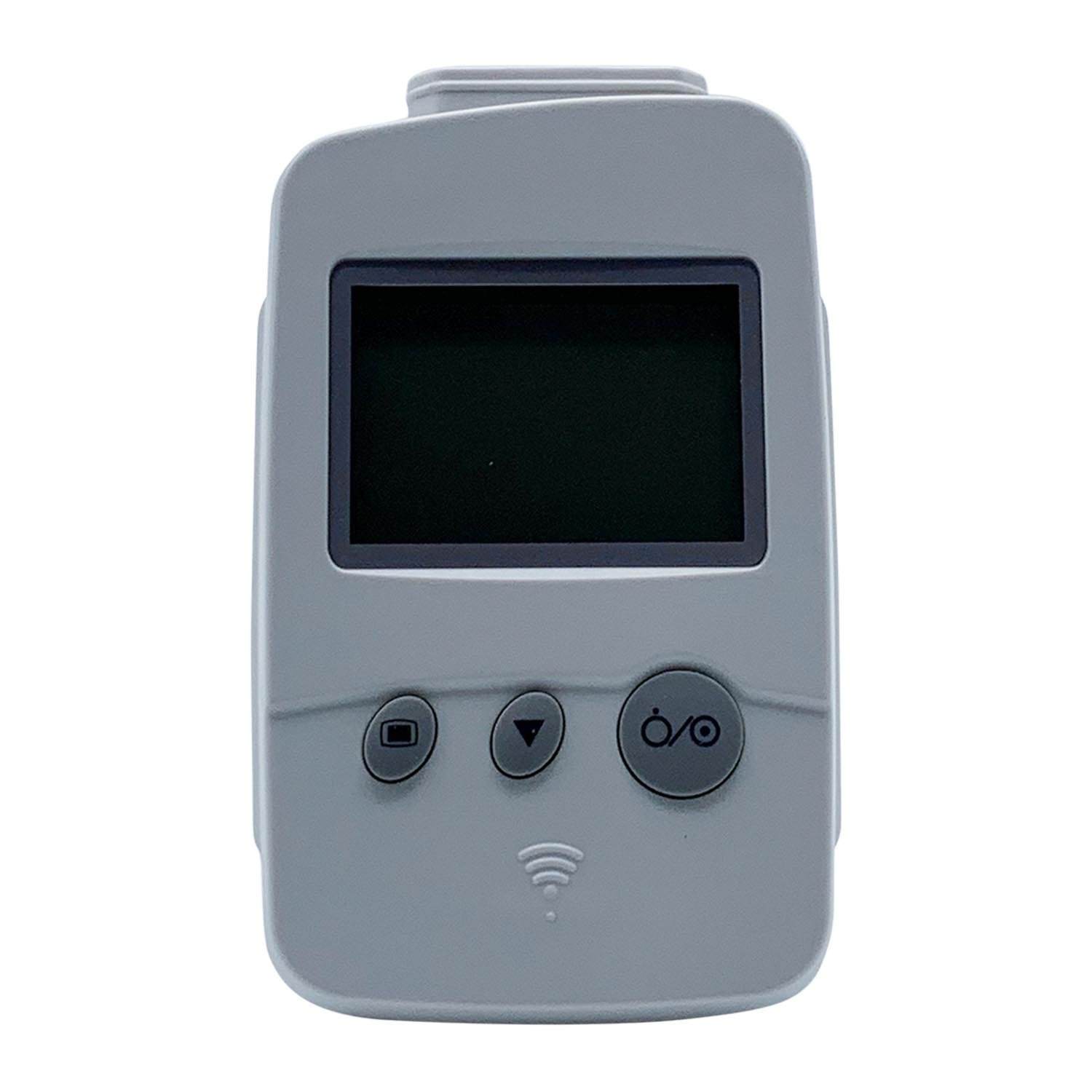

- (1) Wireless Transmitter (SE-1515-DX12 only)
- (1) Wired Receiver (SE-1515-DX12 only)
- (1) SE-1515 PC ECG Software CD
- (1) Software Installation Guide
- (1) PC ECG User Manual
Technical Specifications:
| SE-1515-DP12 | SE-1515-DX12 | ||
| Configuration | Wired Data Transmission | Wireless Data Transmission | |
| Power Supply | Operating Voltage (PC) | 110V - 240V | |
| Operating Frequency (PC) | 50 Hz / 60 Hz | ||
| DP12 ECG Sampling Box | 5 V, 1 VA (MAX), 0.5 VA (MIN) | - | |
| DX12 Transmitter | - | Input Power: 2 x 1.5 V Excell Alkaline AA IEC LR6 Battery Life: ≥ 12 hours |
|
| DX12 Receiver | - | DC 5 V Input Power: 350 mW |
|
| HR | HR Range | 30 BPM ~ 300 BPM | |
| Accuracy | Accuracy: ±1 BPM | ||
| DX12 Bluetooth | Transmitting Frequency | - | 2402 Hz ~ 2480 Hz |
| Frequency Band | - | 2402 Hz ~ 2480 Hz | |
| Modulation Type | - | FHSS, GFSK, DPSK, DQPSK | |
| Transmitting Power | - | ≥ 0 dBm | |
| ECG Sampling Box Performance | Leads | 12 Leads | |
| Acquisition Mode | Simultaneously 12 Leads | ||
| Sample Frequency | 1 kHz (Analysis) 1 kHz (Sampling) |
0.5 kHz (Analysis) 10 kHz (Sampling) |
|
| A/D | - | 18 Bits | |
| Resolution | 2.52 uV/LSB | ||
| Input Voltage Range | < ±5 mVp-p | ||
| Time Constant | ≥ 3.2 s | ||
| CMRR | ≥ 115 dB (AC Off) | ≥ 100 dB (AC Off) | |
| Frequency Response | 0.05 Hz ~ 150 Hz (-3 dB) | ||
| Gain | 2.5, 5, 10, 20, 10/5, AGC (mm/mV) | ||
| Input Impedance | ≥ 50 MΩ | ≥ 20 MΩ | |
| Input Circuit Current | ≤ 10 nA | ≤ 0.05 μA | |
| Calibration Voltage | 1 mV ± 2% | ||
| DC Offset Voltage | ±600 mV | ±500 mV | |
| Minimum Amplitude | 20 μVp-p | ||
| Noise | ≤ 12.5 μVp-p | ≤ 15 μVp-p | |
| Recovery Time After Defibrillation | < 5 s | ||
| Multichannel Crosstalk | ≤ 0.5 mm | ||
| Insulation | 4000 Vrms/min | ||
| Safety Specifications | Anti-Electric Shock Type | Class II | |
| Anti-Electric Shock Degree | Type CF with Defibrillation-Proof | ||
| Ingress Protection Rating | Ordinary Equipment (Sealed Equipment without Liquid Proof) | ||
| Gas Safety Category | Equipment Not Suitable for Use in the Presence of Flammable Gas | ||
| Working Mode | Continuous Operation | ||
| EMC | CISPR 11, Group 1, Class A | ||
| Patient Leakage Current | NC: < 10 μA (AC) / < 10 μA (DC) SFC: < 50 μA (AC) / < 50 μA (DC) |
||
| Patient Auxiliary Current | NC: < 10 μA (AC) / < 10 μA (DC) SFC: < 50 μA (AC) / < 50 μA (DC) |
||
| Working Environment Specifications | Temperature | +5ºC ~ +40ºC | |
| Relative Humidity | 25% RH ~ 80% RH Non-Condensing | ||
| Atmospheric Pressure | 86 kPa ~ 106 kPa | ||
| Filter | AC | - | 50 Hz/ 60 Hz/ Off |
| EMG | - | 25 Hz/ 35 Hz/ 45 Hz/ Off | |
| DFT | - | 0.05 Hz/ 0.32 Hz/ 0.67 Hz | |
| LOWPASS Filter | - | 150 Hz/ 100 Hz/ 75 Hz | |
| Pacemaker Detection | ±2 mV ~ ±700 mV, 0.1 ms ~ 2.0 ms | ±2 mV ~ ±500 mV, 0.1 ms ~ 2.0 ms | |
| Overall Dimensions | 5.83" L x 3.94" W x 1.57" H | DX12 Transmitter: 2.48" L x 4.21" W x 0.91" H ± 0.08" DX 12 Receiver: 6.10" L x 3.94" W x 1.18" H ± 0.08" |
|
| Actual Product Weight | 0.46 lb | DX12 Transmitter: 0.25 lb (Excluding Battery) DX 12 Receiver: 0.38 lb |
|
| Warranty | 2 Years | ||
Please note: The ECG cable with AHA snap connector and PC monitor are not included.
About this Brand
Founded in 2009, EdanUSA provides products, service, and training for Edan products in the US market. Its broad product line features patient monitors, vitals monitors, ECGs, dopplers, and ultrasounds.
Specifications
| Manufacturer | EdanUSA |
|---|---|
| Country of Manufacture | China |
| Item Ships From | California |
