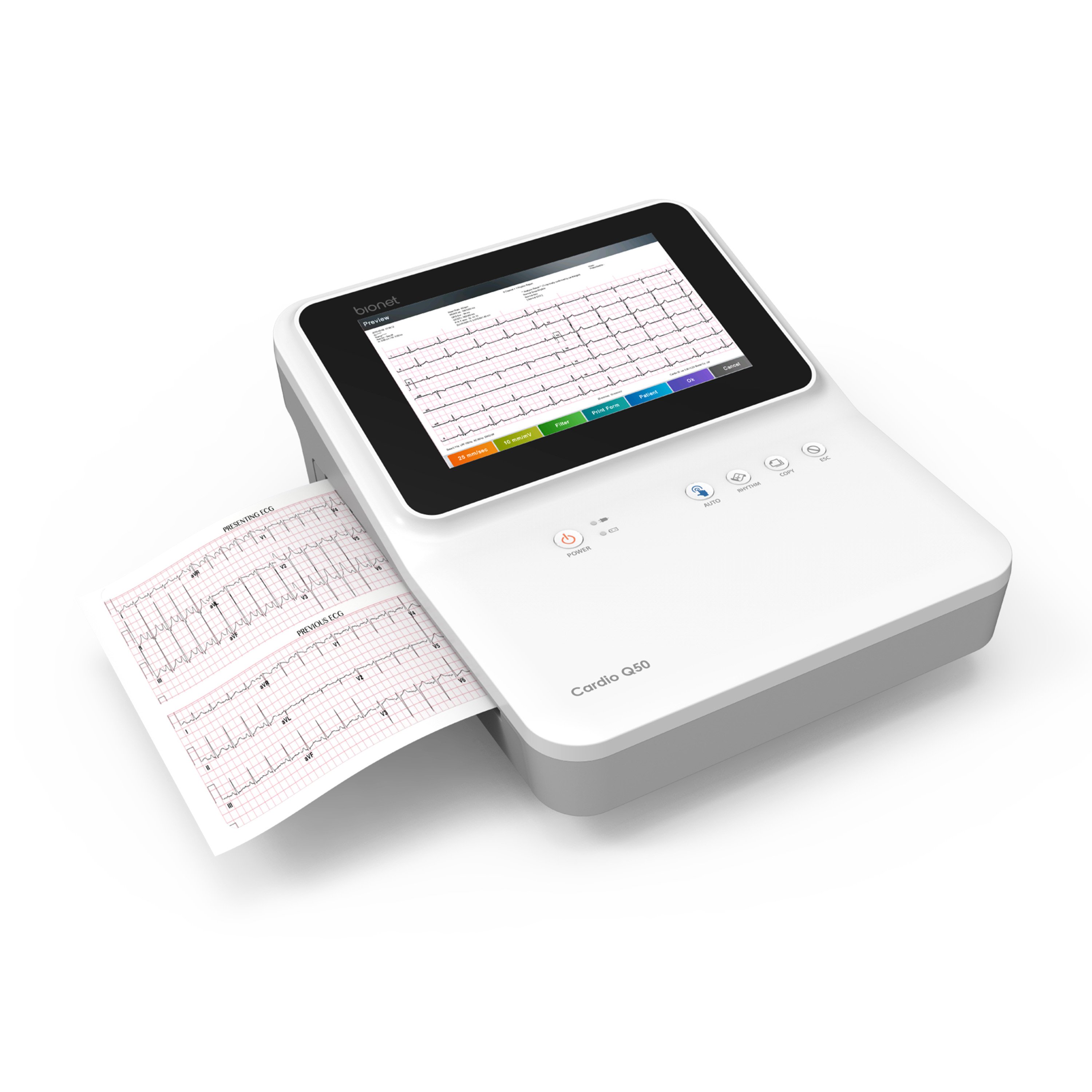

Bionet Cardio Q50 12-Channel Interpretive ECG with 8" Touch Screen and WiFi

The Bionet Cardio Q50 12-Channel Interpretive ECG with 8" Touch Screen and WiFi is designed to make your ECG workflow intuitively simplified with a capacitive touch screen for easy and prompt access to the workflow.

Features:

• With its fully loaded interpretive diagnostic modes, the Q50 features data export in XML, PDF, MFER, JPEG, BMP, and DICOM for easy data management of patient information
• Supports exports to EMR, HIS, and PACS systems
• 8-inch capacitive, shock-resistant LCD screen that works well with medical gloves
• Built-In Memory, USB Flash Drive & Barcode Scanner Support
  • Stores up to 500 ECGs in internal flash memory
  • Converts saved ECGs into standard file formats (JPG, PDF, XML, MFER, DICOM)
  • Supports export to an external USB flash drive and a barcode scanner
• Automatic ECG acquisition with one-touch operation

  • Built-in “AUTO” key streamlines the ECG workflow
  • Performs acquisition, analysis, and documentation in a single step
  • Processes ECG leads for interpretation, print-out, and storage in just 3 seconds
  • Maintains continuous ECG acquisition
• Long-term acquisition (Recording) & Auto Real-time Arrhythmia Detection
  • Pre-configured ECG acquisition time ranges from 10 seconds to 30 minutes
  • Enhances real-time automatic arrhythmia detection
  • Provides optimized diagnostic time range
  • Supports further HRV analysis
• Glasgow Algorithm
  • Provide the most accurate ECG interpretation for pediatric and adult STEMI based on extensive use of age- and sex-based criteria
• Full disclosure up to 30 minutes
  • Automatic and real-time arrhythmia analysis throughout the recording period
  • Provides comprehensive full-waveform trend data for deeper insights
  • Enhances diagnostic accuracy by capturing and analyzing every heartbeat
  • Ensures reliable ECG interpretation with no missed events
• Cybersecurity / HIPAA-compliant Architecture
  • Patient data is encrypted and protected by unique IDs, configurable passwords, and concealment of patient names and hospital information
  • Ensure the safety of all information under any circumstances
• Pulmonary Function Test (Cardio Q50-S Only)

  • Provides pulmonary function tests (PFT), including: FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Ventilation)
  • Supports pre- and post-bronchodilator comparison
  • Uses a disposable mouthpiece, eliminating the need for cleaning and sterilization
• Available in two options: ECG only (Cardio Q50) or ECG and Spirometer (Cardio Q50-S)
• Overall Dimensions:
  • Cardio Q50: 11.26" W x 13.78" D x 5.67" H
  • Cardio Q50-S: 14" W x 15.20" D x 7.87" H
• Warranty: 3 Years

Technical Specifications:

Electrocardiograph ECG / EKG

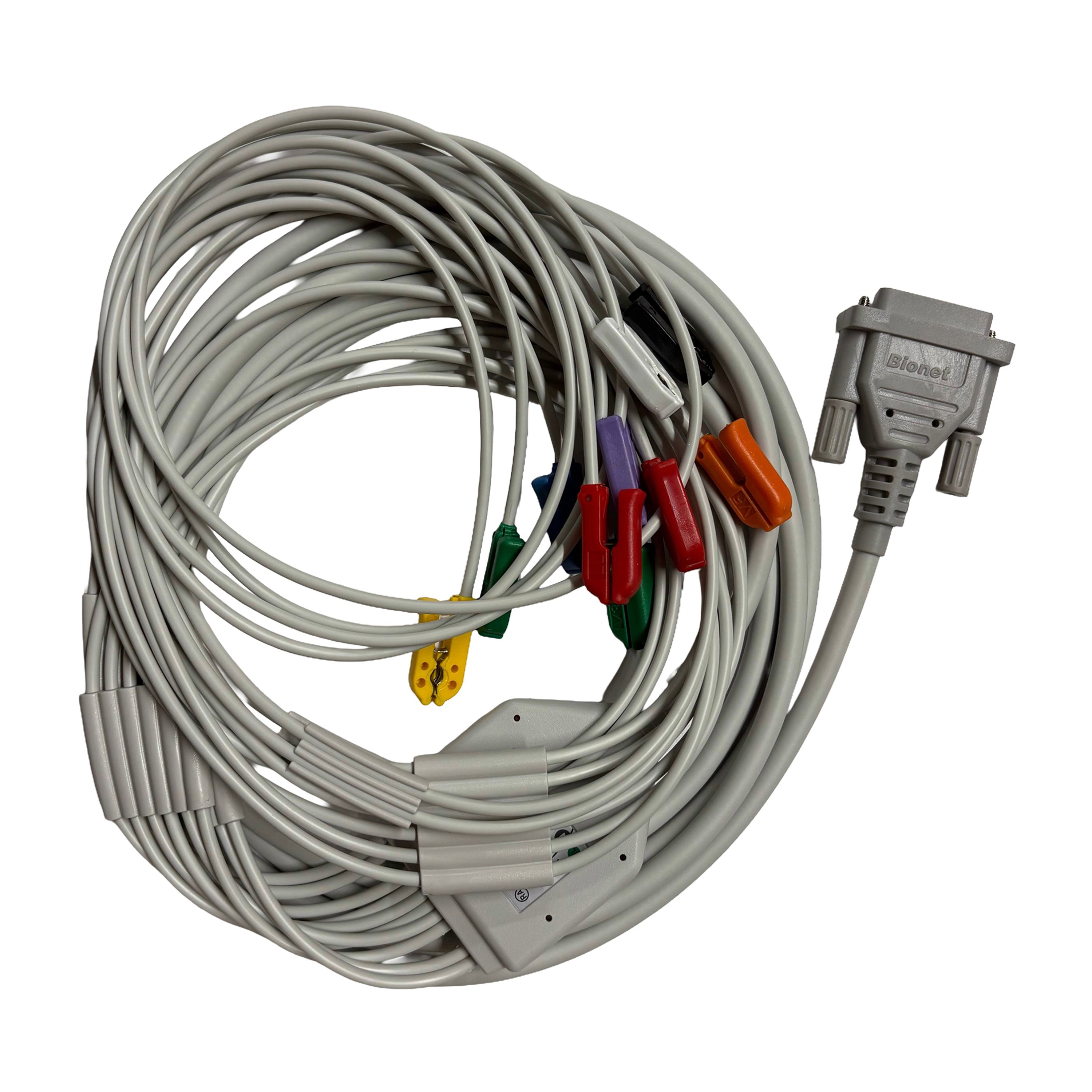

• ECG Leads: Simultaneous 12-Channel ECG acquisition
• Recording Modes:
  • 3CH+1RHY
  • 3CH+3RHY
  • 6CH+1RHY
  • 12CH
  • 1CH+3
  • Cabrera Report
  • 1-Channel Long-time Recording (1, 3, 5, 10, 20, 30 mins)
  • Special Beat Report (Text, Guide, Vector)
• Gain: 2.5, 5, 10, 20, Auto (I∼aVF: 10 mm/mV, V1∼V6: 5 mm/mV)
• Printing Speed: 5, 12.5, 25, 50, 100 mm/sec
• Sampling Rate: Digital: 8,000 Hz
• Filters:
  • AC: 50/60 Hz, -20 dB or better
  • Muscle: 25∼35 Hz, -3 dB or better
  • Baseline Drift: 0.05, 0.1, 0.2 Hz, -3 dB or better
  • Low Pass Filter: Off, 40 Hz, 100 Hz, 150 Hz
• Patient Data:
  • ID
  • Name
  • Birthday
  • Age
  • Gender
  • Height
  • Weight
  • Race
  • Smoking Status
  • Department
  • Room Number
  • Study Description
  • Accession No.
  • Referring Physician
• Basic Measurements:
  • Heart Rate (30-300 bpm, ± 3 bpm)
  • PR/RR Interval
  • QRS Duration
  • QT/QTc Interval
  • P-R-T Axis
  • SV1/RV5/R+S Amplitude
  • Bionet ECG Analysis Algorithm
  • University of Glasgow ECG analysis algorithm
• Electrical:

  • Internal Noise: ≤ 20 µV (p-p)
  • Input Impedance: ≥ 50 MΩ
  • Input Voltage Range: ±5 mV
  • CMRR: > 105 dB
  • DC Offset Voltage: ≥ ± 400 mV
  • Patient Leakage Current: < 10 µA
  • Frequency Response: 0.05 Hz ∼200 Hz (within -3 dB)
  • Isolated, defibrillation, and ESU protected
• Signal Quality Control:
  • Pacemaker Detection
  • Lead Fault Detection
  • Signal Saturation Detection
• Data Storage: Internal storage for up to 500 ECG data sets

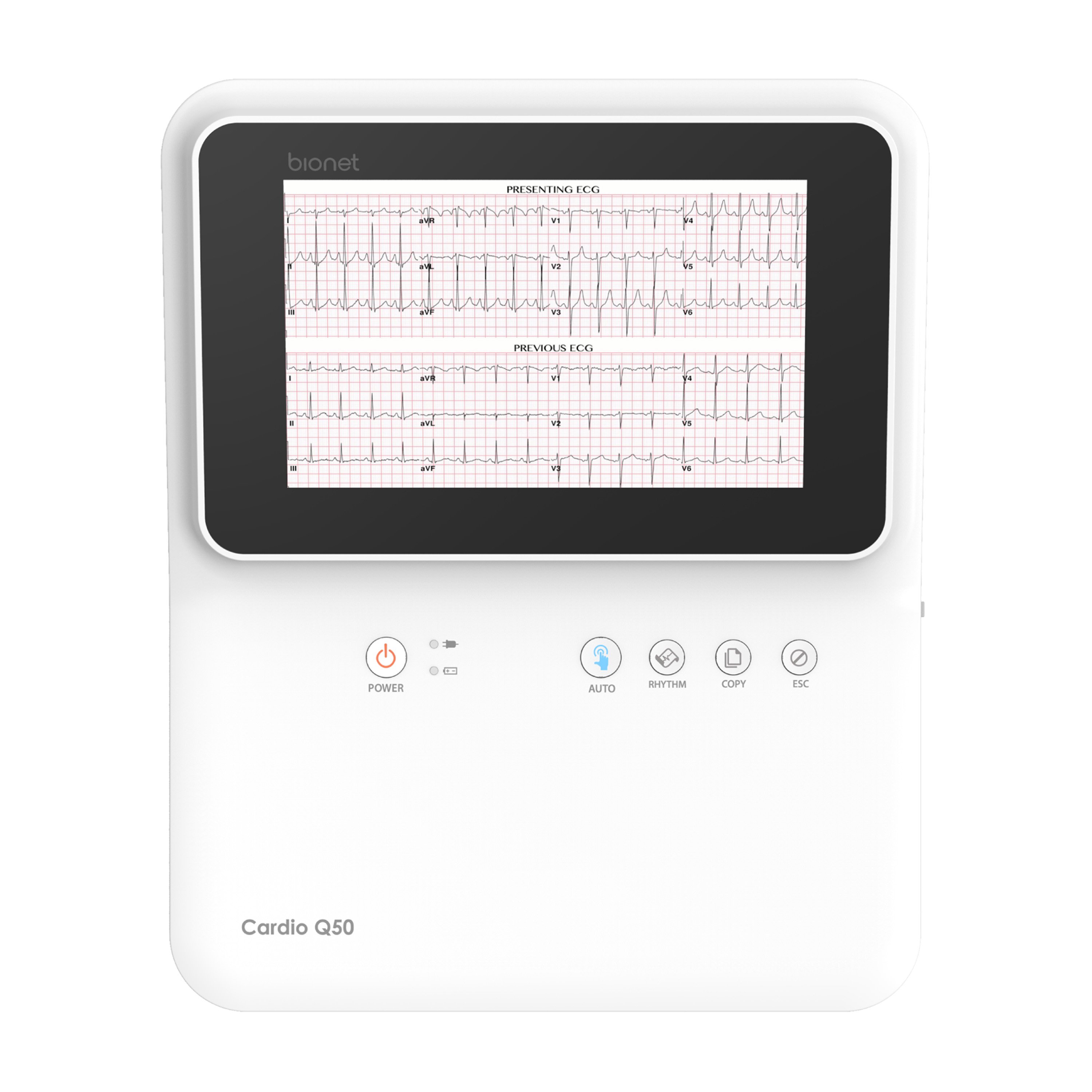

• Display:
  • 8" color TFT wide display (1024 × 600 resolution)
  • 12-Channel ECG wave preview
• User Interface
  • Capacitive touch screen (alphanumeric and symbols)
  • Function keys

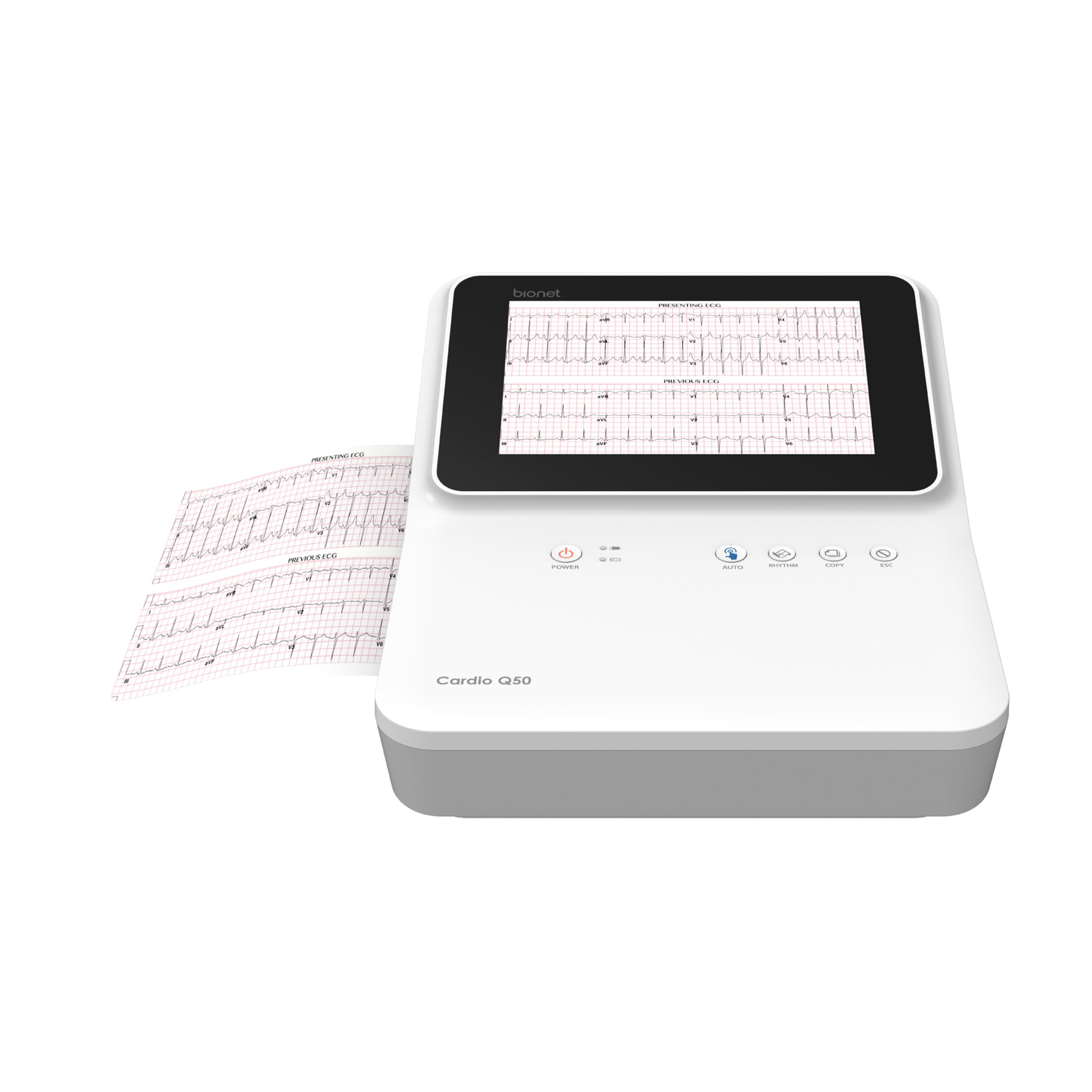

• Printing and Resolution:

  • Thermal Print Head
  • Z-fold Paper
  • Report Paper
    • A4: 8.30" x 11.80"
    • Letter: 8.50" x 11"
  • Paper Size
    • A4: 8.30" x 5.91"
    • Letter: 8.50" x 5.51"
  • Resolution:
    • Vertical: 8 dots/mm
    • Horizontal: 16 dots/mm (0.125 mm pitch)
• Power:
  • Input
    • 100~240 VAC
    • 1.5~0.75 A
    • 50/60 Hz
  • Output:
    • 15 VDC
    • 4.20 A
• Battery Type:
  • Rechargeable Lithium-ion
  • Voltage: 10.8 V
  • Capacity: 6500 mAh
  • Up to 350 ECG prints (12-channel, 25 mm/s, 10 mm/mV)
  • Full recharge in 3 hours (Device off)
• Communication:
  • LAN
  • WiFi (optional)
  • USB Flash Drive
  • USB Barcode Scanner
• Safety Conformity:
  • Class I
  • Type CF applied parts (ECG electrodes)
  • Type B applied parts (spirometer handle)
• Operating Conditions:

  • Ambient Temperature: 10°C to 40°C
  • Relative Humidity: 30% to 85%
  • Atmospheric Pressure: 700 hPa to 1060 hPa

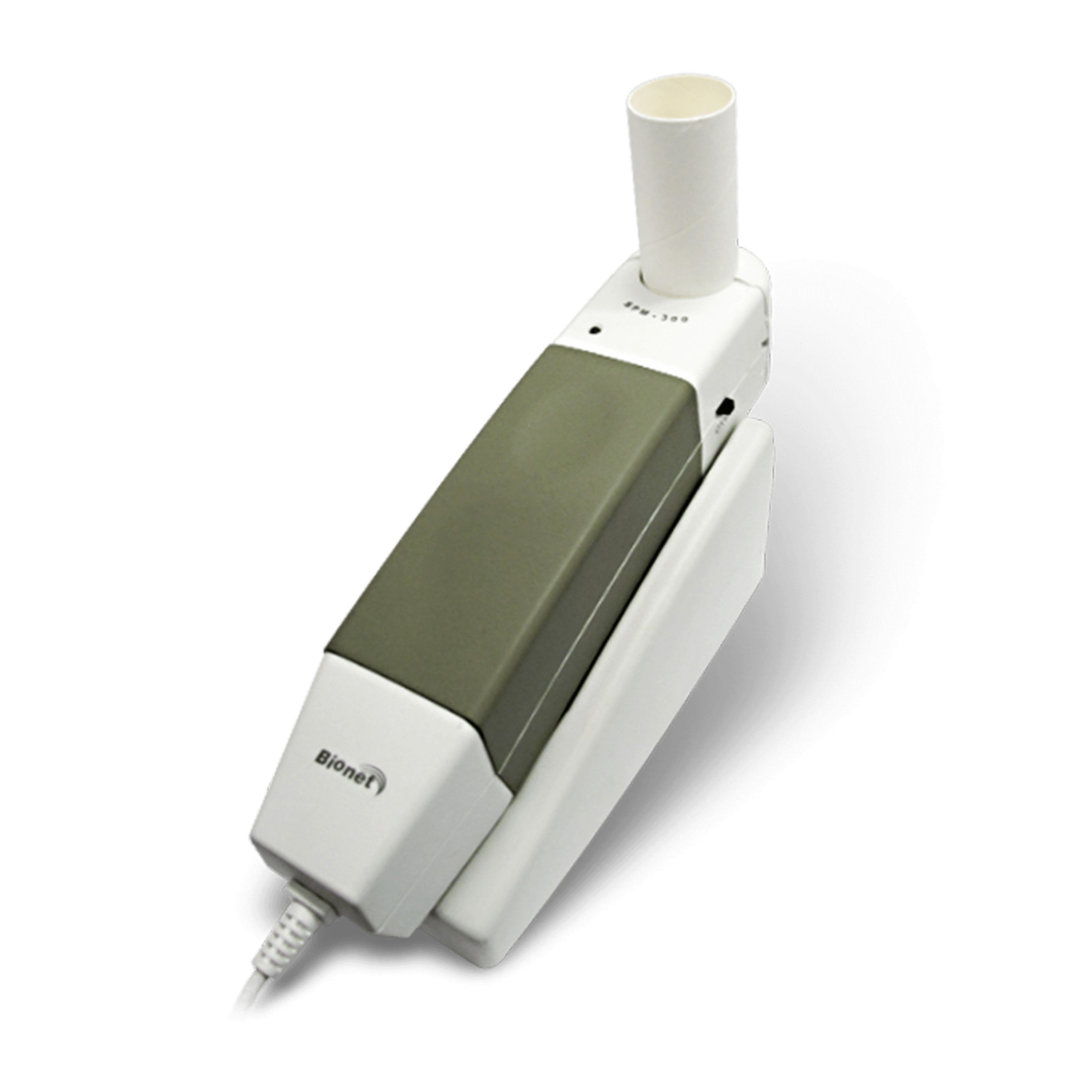

*Spirometer (Cardio Q50-S Only)

• Measuring Values:
  • FVC: FVC, FEV 1.0, FEV 1/FVC, FEF 0.2-1.2L, FEF 25-75%, FEF 75-85%, PEF, FEF 25%, FEF 50%, FEF 75%, FIVC, FEV6, PEFT, FET 100%
  • SVC: SVC, ERV, IRV, TV, EC
  • MVV: MVV, FB, TV
• Presentation:

  • Flow Volume Loop
  • MVV: MVV, FB, TV
  • Measurement Values Table
• Measuring Range:

  • Flow: 0 to ± 14 L/s
  • Volume: 0 to ± 12 L
• Measuring Method: Differential Pressure Method
• Prediction Equation: Morris-Polgar, ECCS-Quanjer, Knudson-ITS, Pereira, Korea CJK
• Sample Rate: 200 samples per second
• Flow Impedance: < 0.2 mbar s/L at 12 L/s
• Measuring Accuracy: Complies with ATS (American Thoracic Society)*
• Environment:

  • Ambient Temperature: 15°C to 40°C (59°F to 104°F)
  • Relative Humidity: 10% to 90% (Non-Condensing)
  • Atmospheric Pressure: 700 hPa to 1060 hPa

*Based upon the guidelines from the American Thoracic Society (ATS) and the European Respiratory Society (ERS), it is highly recommended to calibrate the SpiroCare at least once a day with a single discharge of the Bionet 3-liter calibration syringe (sold separately) to ensure accurate calibration. The printer paper is not included.

Please note: The Spirometer sensor, (100) disposable mouthpieces, nose clip, mouthpiece adapter, and handle dock are included only with the Cardio Q50-S.
