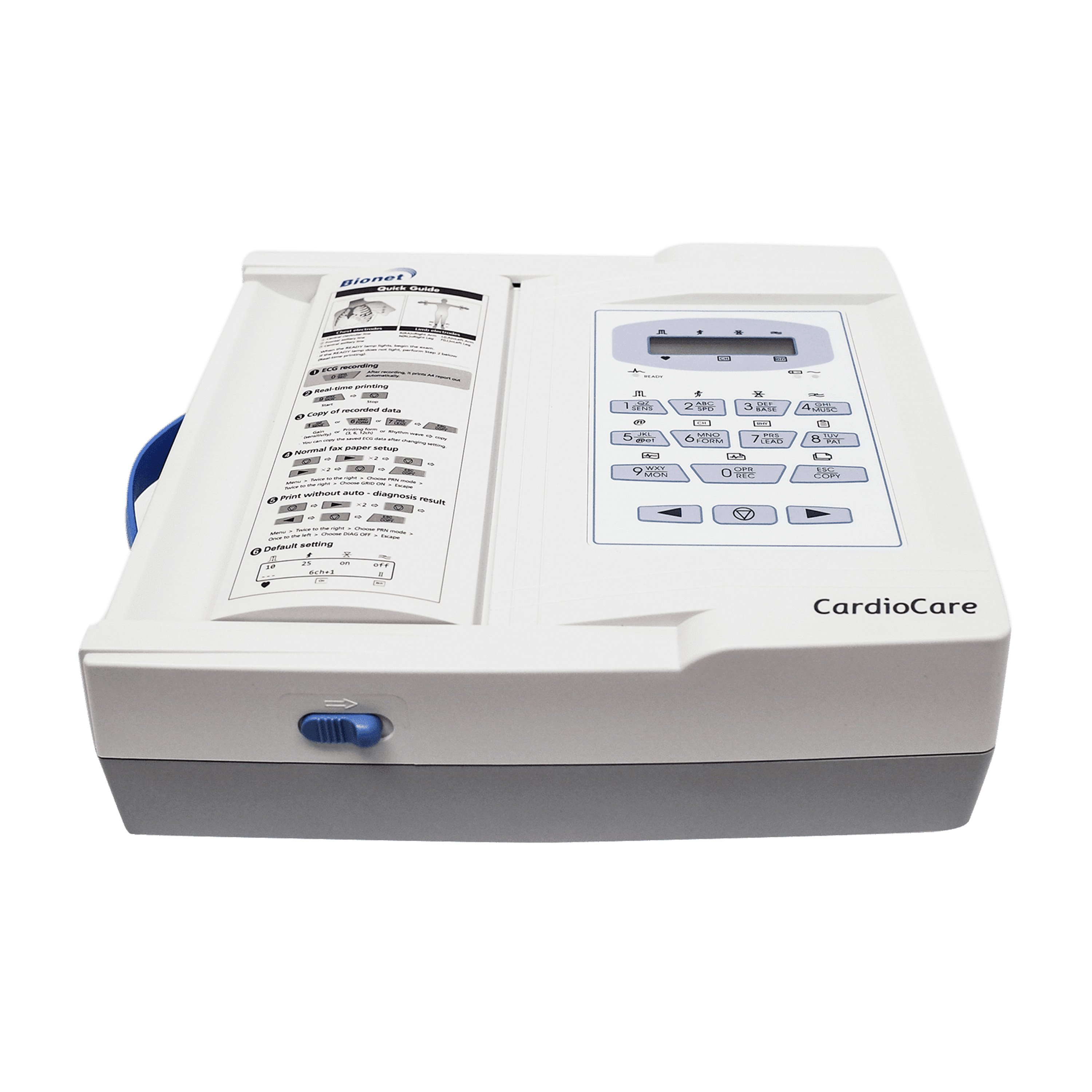

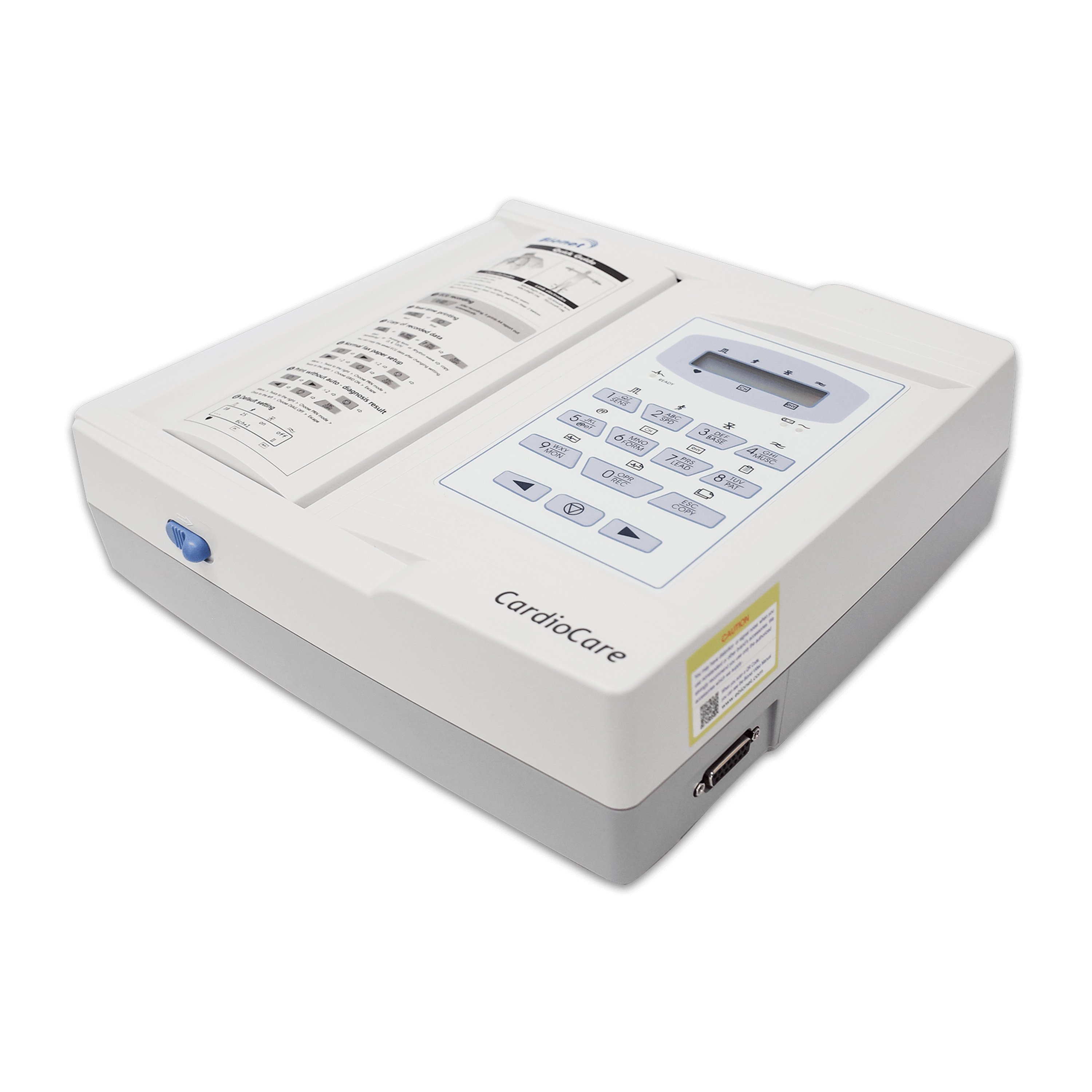

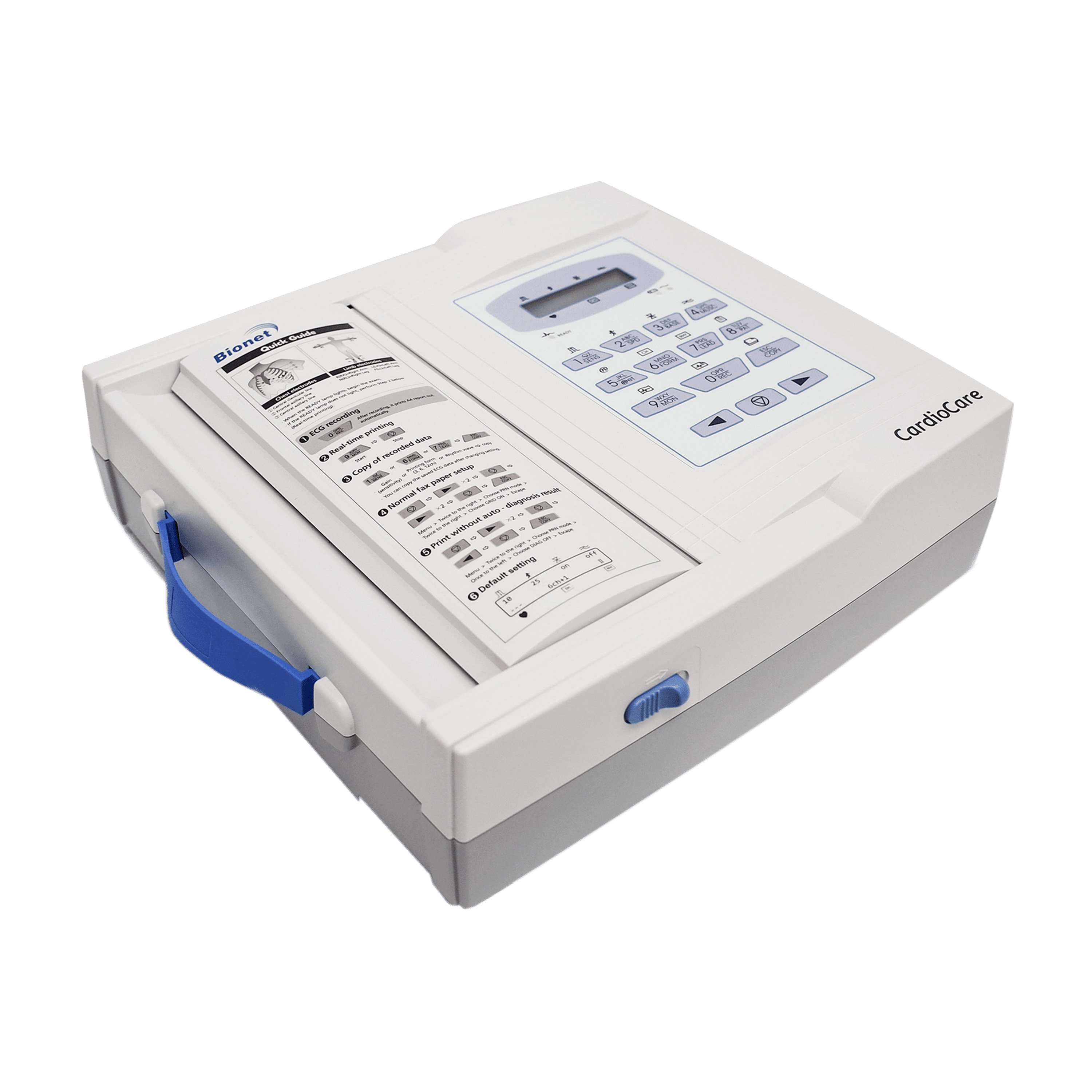

Bionet CardioCare 2000 12-Channel Interpretive ECG

The Bionet CardioCare 2000 12-Channel Interpretive ECG is designed for maximum ease of use and convenience.

Features:

• Economically priced interpretive 12-channel electrocardiogram (ECG/EKG) machine that does not compromise on performance
• Suitable for use in private practice, the ER, or hospitals
• Software is user-upgradeable, continuously improved, and networkable
• Simultaneous 12 Channel Electrocardiograph (ECG/EKG) with 10-second data acquisition from 10 leads for accurate 12-channel analysis and printout
• ECG Interpretation Program
  • Provides over 80 types of interpretation results based on the advanced Minnesota Code to support diagnosis
  • Interpretation algorithms are enhanced through regular software updates
• A4 Full Size Paper

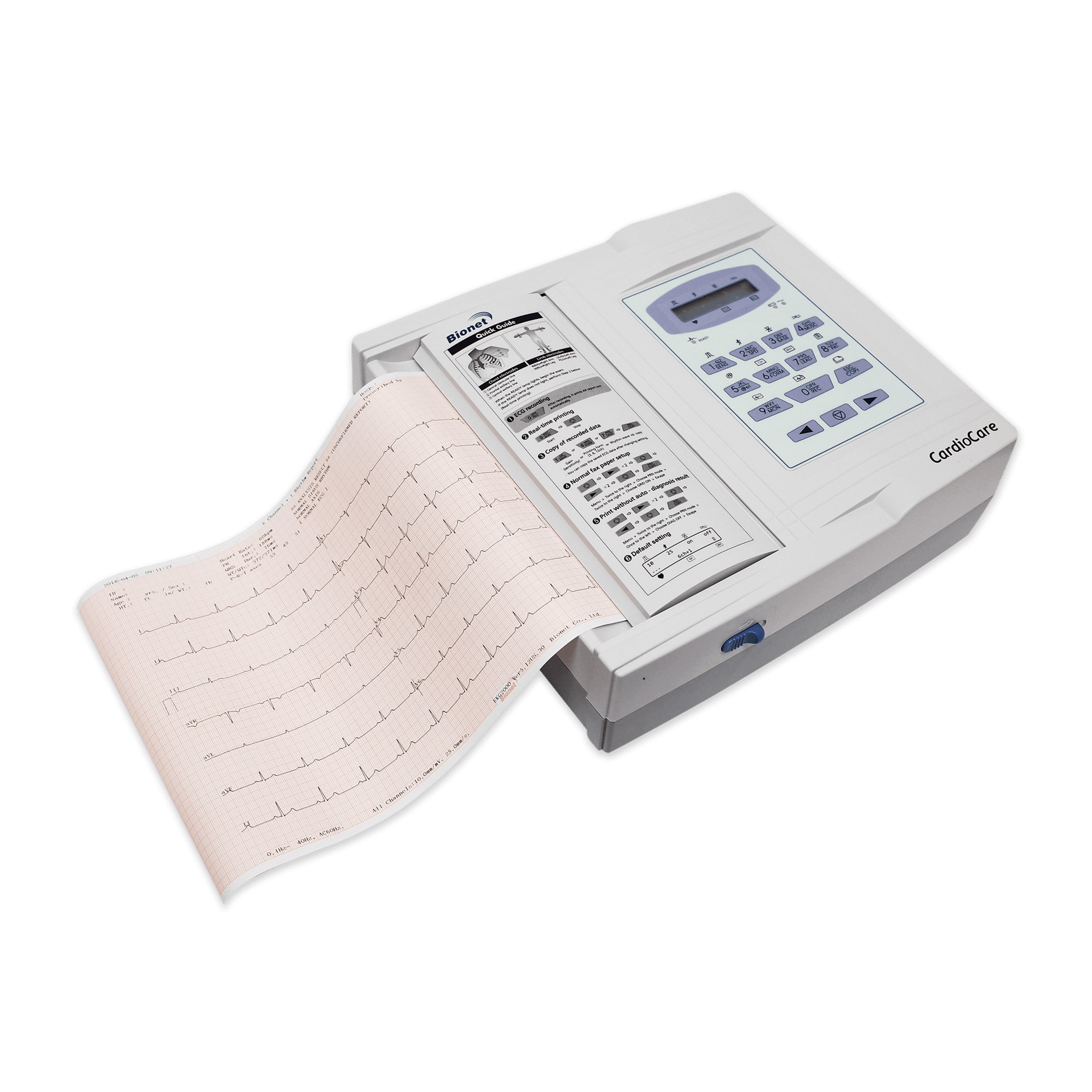

  • Produces full-size A4 printouts in 1, 3, 6, and 12 channel formats, improving readability and making filing in patient charts easier
  • A copy button allows you to generate ECG copies in any available format
• BMS-Plus - ECG Filing System
  • Software program that enables CardioCare 2000 to interface with Windows-based computers via LAN
  • ECG data is saved in either Bionet’s proprietary file format (.ecg), JPEG, or PDF
  • JPEG format ensures compatibility with most EMR systems
  • Displays real-time ECG data on-screen
  • Instantly performs a full set of measurements and offers diagnostic aid
  • Can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper
• Comes standard with:
  • (1) CardioCare 2000 Main Unit

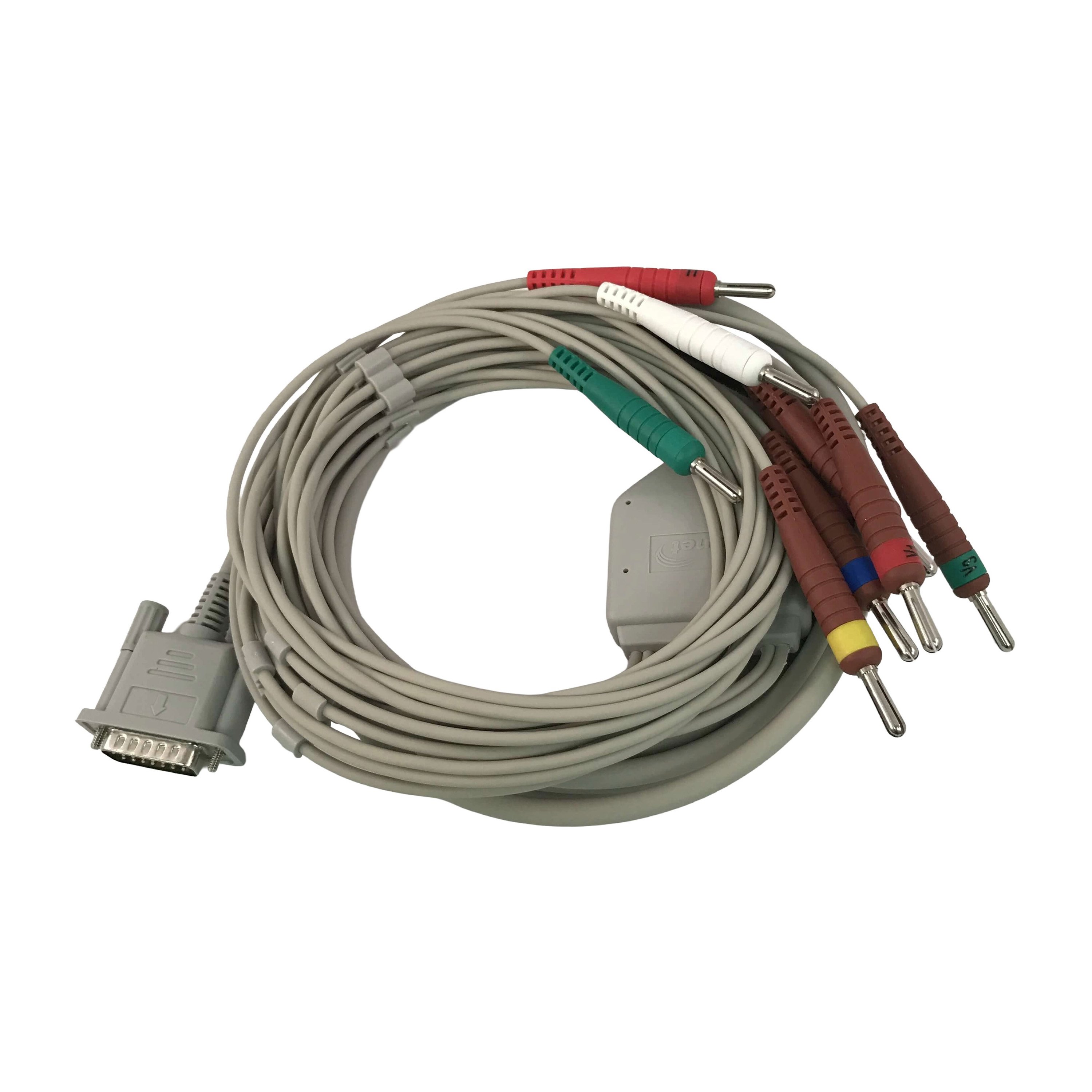

  • (1) 10-Lead ECG Patient Cable

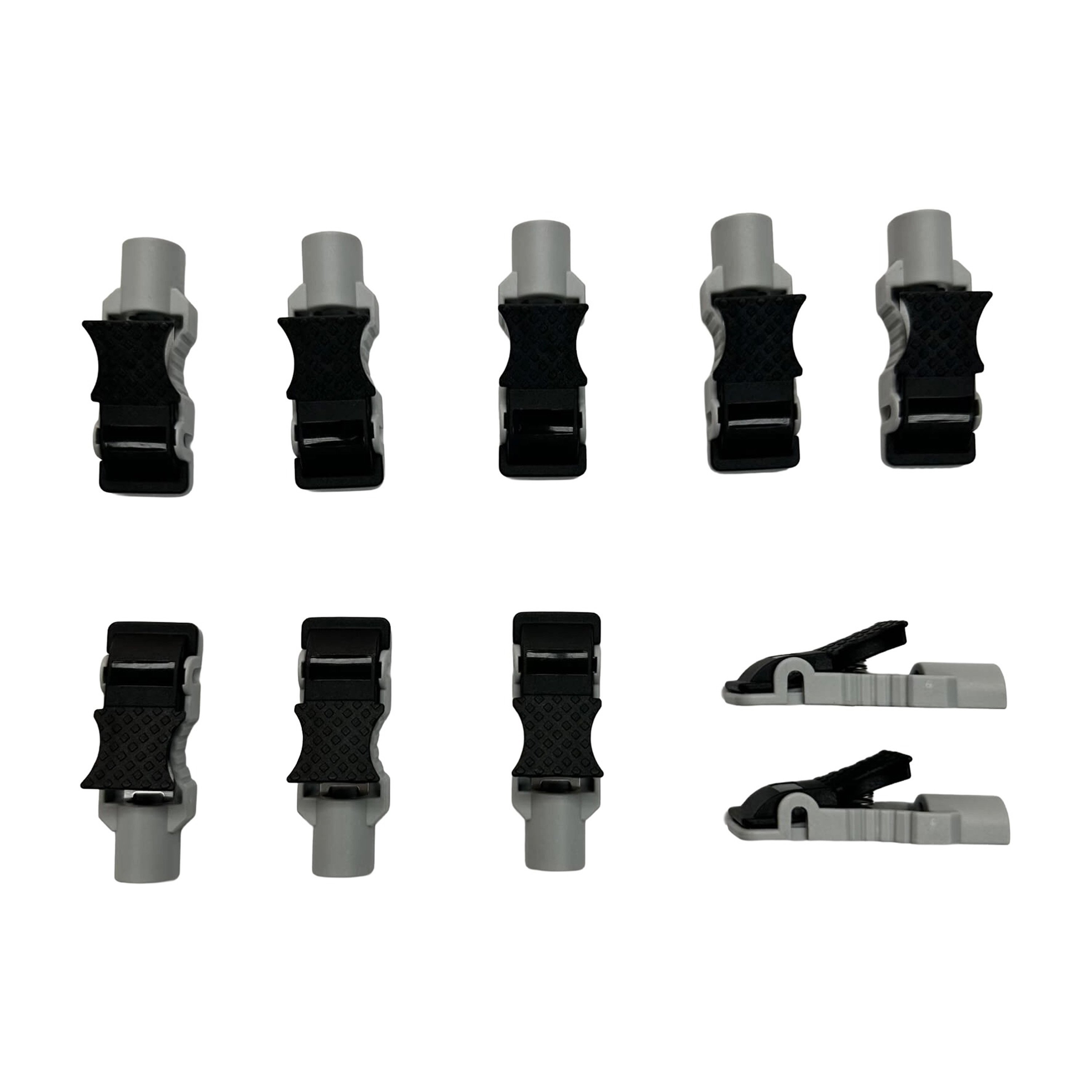

  • (10) Alligator Clips

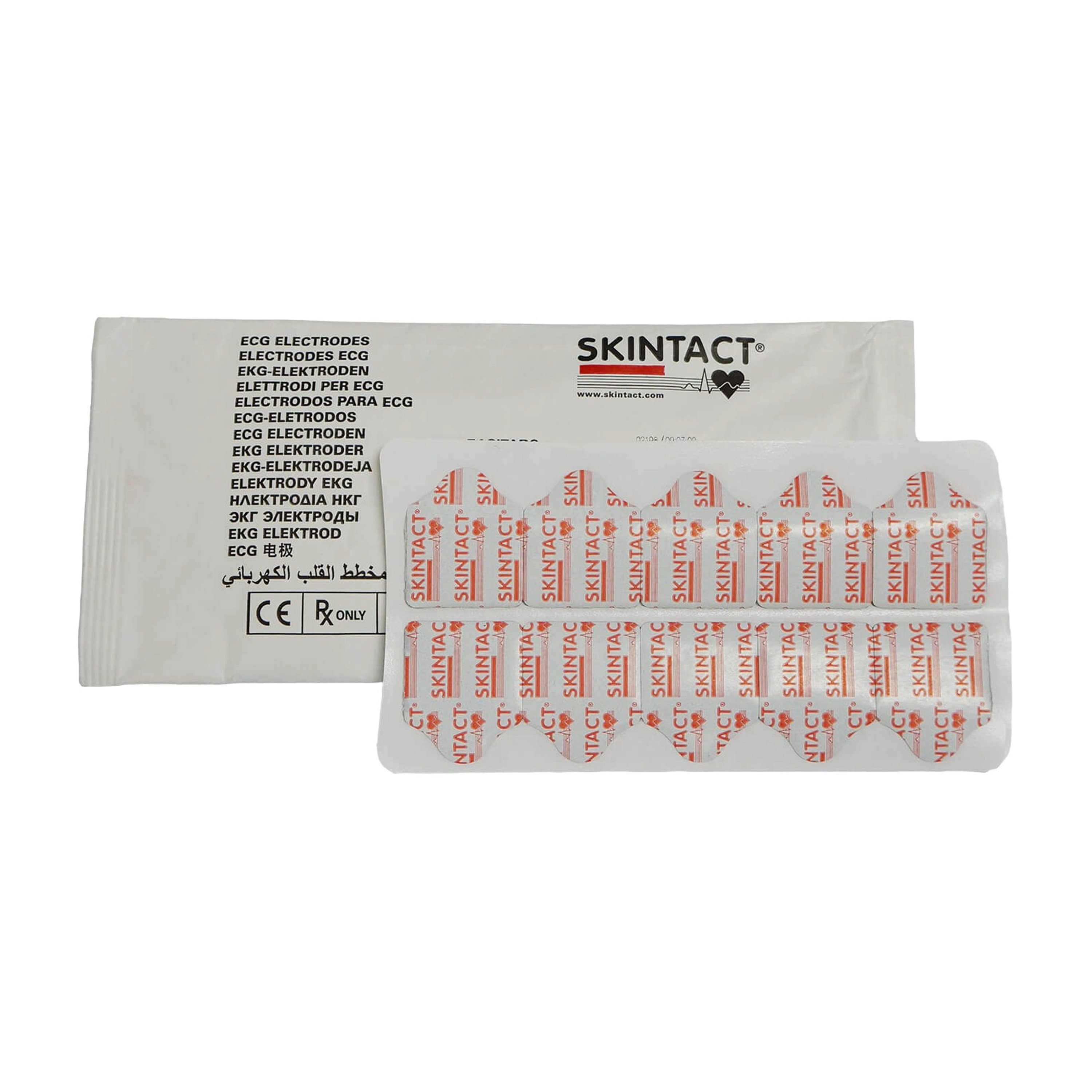

  • (1) Electrodes
  • (1) Medi-Graph Paper

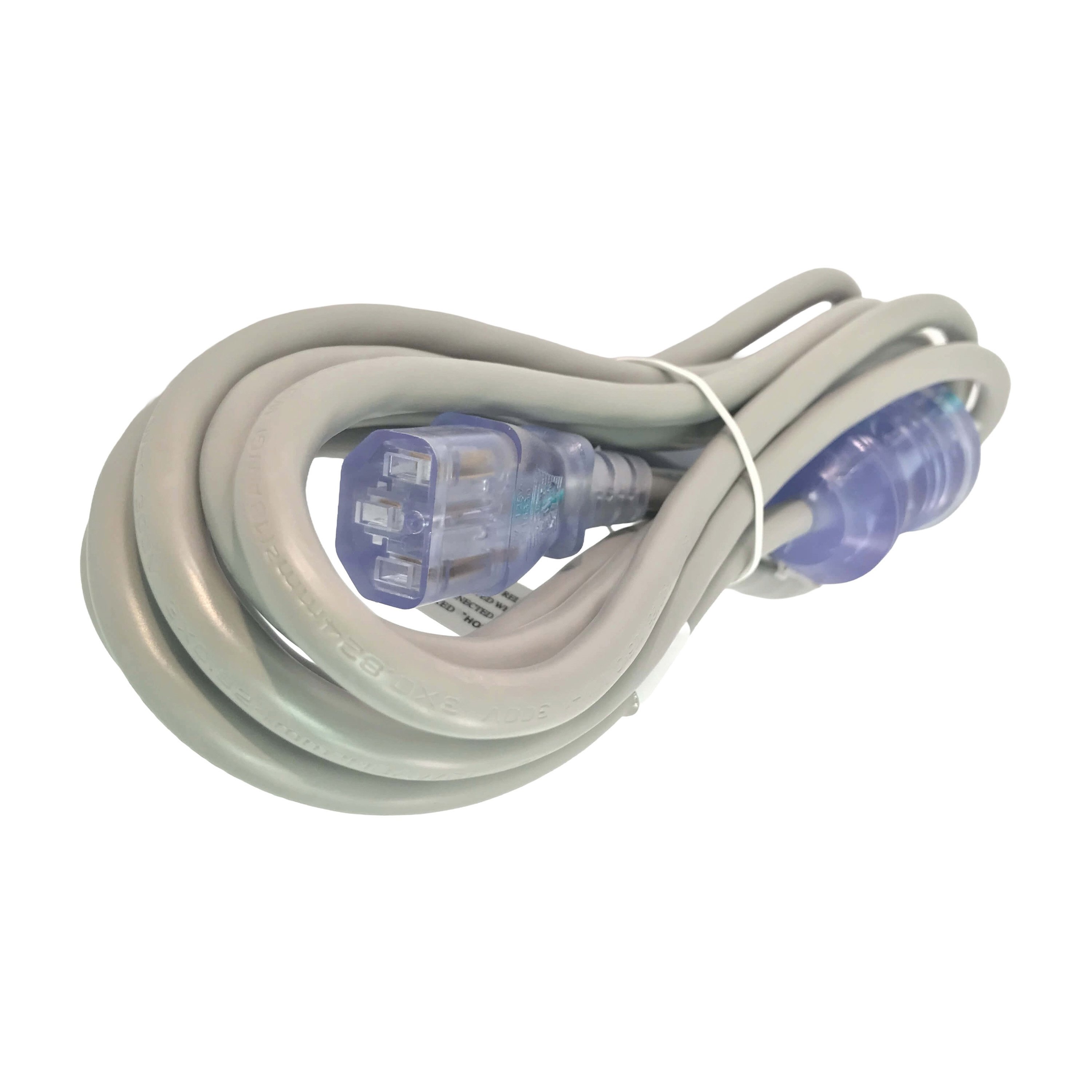

  • (1) Hospital Grade Power Cord
  • (1) Operation Manual
  • (1) Diagnostic Guidebook
  • (1) Quick Reference Guide
  • 3-Year Warranty Card

Technical Specifications:

• ECG Leads: 10-lead, 12-channel simultaneous 10-second resting ECG
• Recording Modes: 3, 6, 12 channel, and 1 channel (60 sec)
• Sensitivity: 5, 10, 20, Auto (I∼aVF: 10 mm/mV, V1∼V6: 5 mm/mV)
• Printing Speed: 12.5, 25, 50 mm/sec
• Filters:

  • AC: 50/60 Hz, -20 dB or better
  • Muscle: 25∼35 Hz, -3 dB or better
  • Baseline Drift: 0.1 Hz, -3 dB or better
  • Low Pass Filter: Off, 40 Hz, 100 Hz, 150 Hz

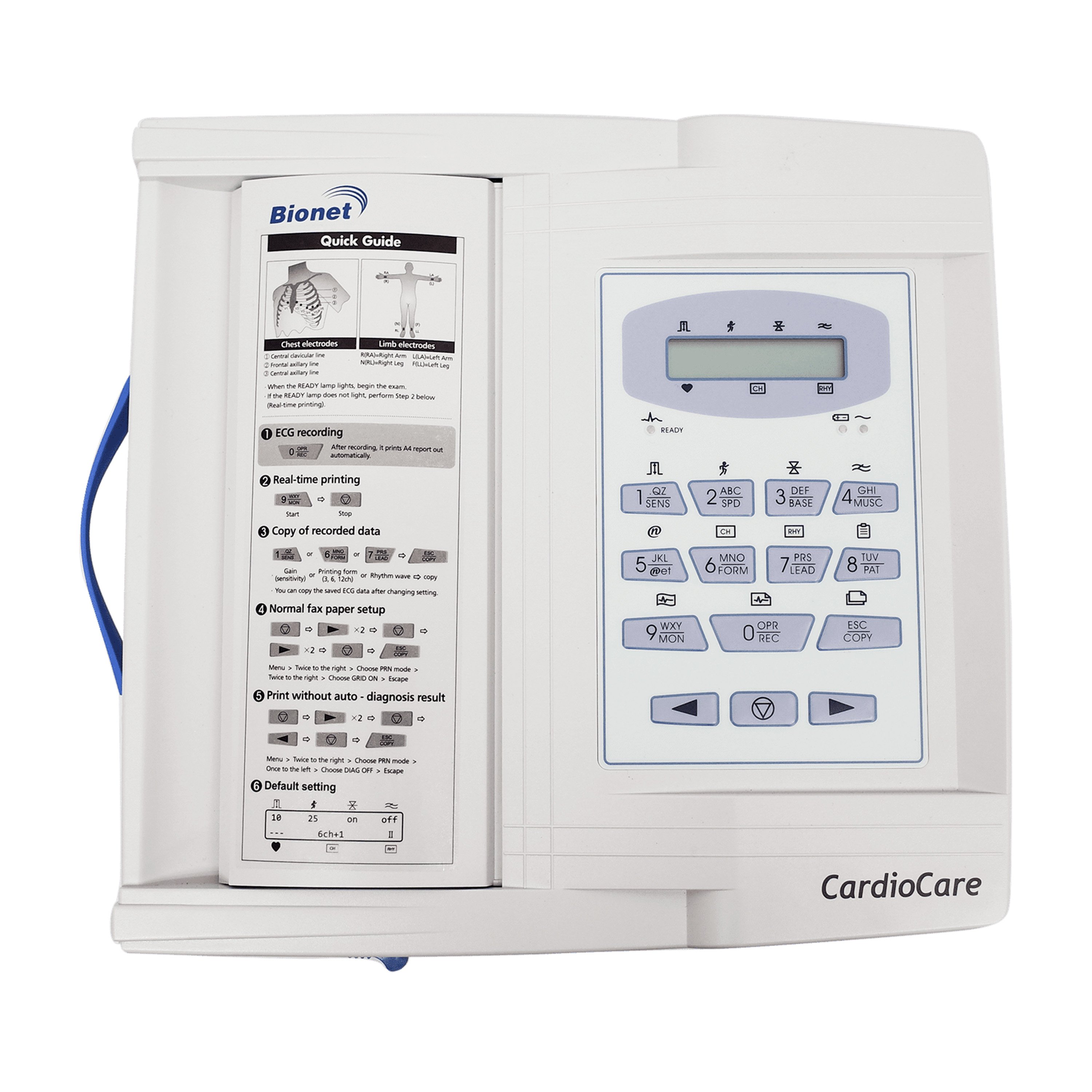

• Display & Indicators
  • 2 × 16-character LCD
  • LCD shows:
    • Sensitivity
    • Speed
    • Filter status
    • Heart Rate
    • Printing form
    • Rhythm lead
  • LED indicators:
    • Signal quality
    • Power source
    • Battery status
• Keyboard:
  • Membrane keyboard
  • Alphanumeric and symbol available
• Patient Data:
  • ID
  • Name
  • Age
  • Gender
  • Height
  • Weight
• Basic Measurements:
  • Heart Rate
  • PR Interval
  • QRS Duration
  • QT/QTc Interval
  • P-R-T Axis
• Recorder and Printing:
  • Thermal print head
  • Thermal roll paper
  • Report paper: A4 - 8.5" W x 11" L
• Electrical:

  • Internal Noise: ≤ 20 µV (p-p) max
  • Input Circuit: Floating input
  • Isolated and defibrillation protected
  • Input Impedance: ≥ 10 MΩ
  • Input Voltage Range: ± 5 mV
  • Common Mode Rejection : ≥ + 100 dB
  • DC Offset Voltage: ≥ ± 3000 mV
  • Time Constant: 3.2 sec
  • Patient leakage current: < 10 µA
  • Frequency response: 0.05 Hz ~150 Hz
• Signal Quality Control: Disconnected lead detection
• Communication: PC connection with RS-232 interface and LAN
• Safety: Class 1, Type BF
• Conformity: CE, CSA
• Power:
  • Supply: AC or built-in battery (optional)
  • Requirement: 100-240 VAC, 50/60 Hz, 1.0-0.5 A
  • Consumption: 60W max
• Battery Capacity: 1 hour of normal use (approximately 100 automatic ECG printouts)
• Environment:

  • Operating Humidity: 30 to 85%
  • Operating Temperature: 10°C to 40°C
  • Atmospheric Pressure: 70 KPa to 106 KPa
• Overall Dimensions: 11.65" W x 3.64" D x 12" H
• Actual Product Weight: 6.57 lbs
• Warranty: 3 Years
