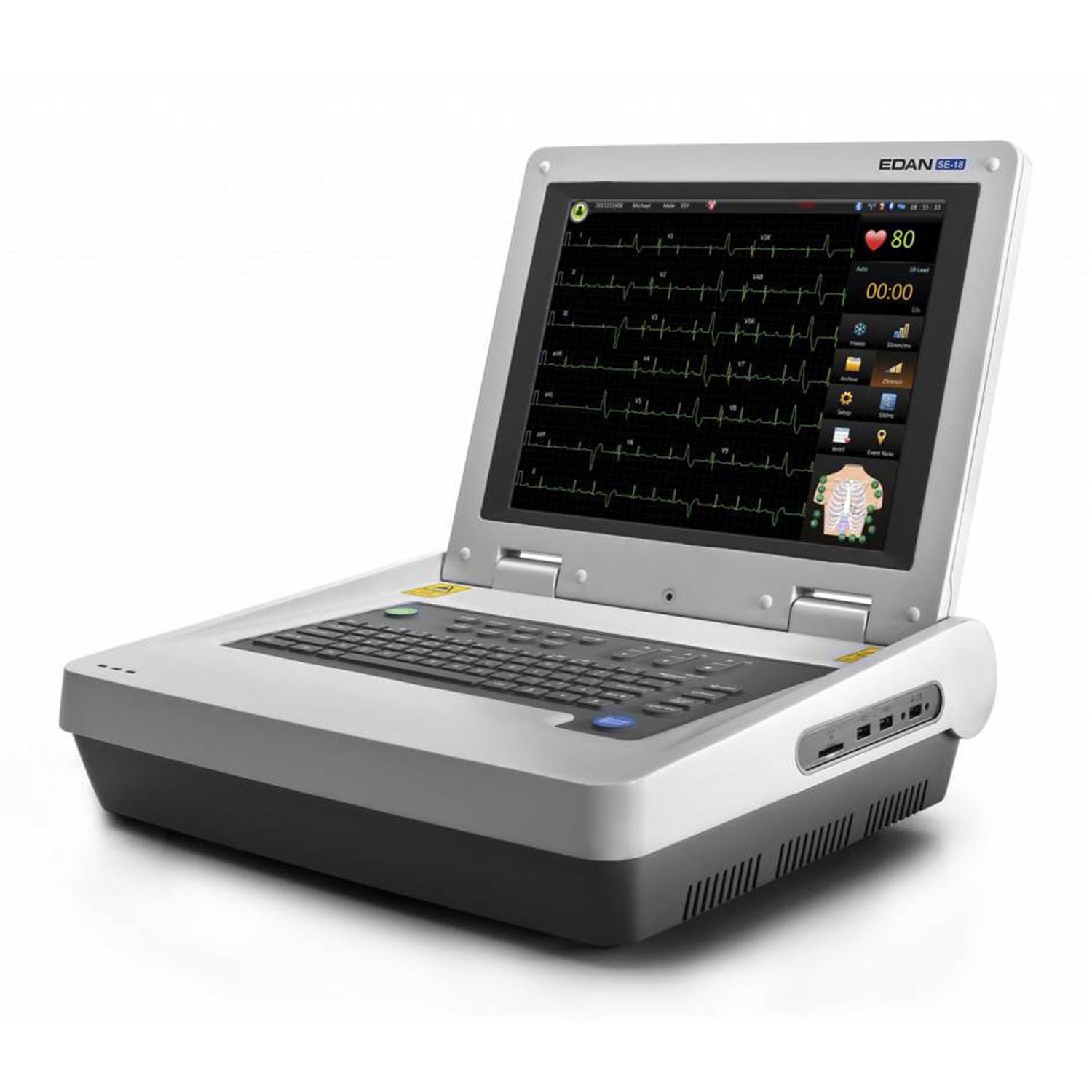

Edan SE-18 ECG with 15" Touch Screen and WiFi

The Edan SE-18 ECG with 15" Touch Screen and WiFi is a professional ECG system, delivering advanced functions and reliable interpretation to increase clinicians’ productivity.

Features:

• All for Convenience of Use:
  • 15" High-resolution color touchscreen with one-touch operation
  • Alphanumeric keyboard with great waterproof performance
  • Flexible Storage Solution: 512M internal memory, can be enlarged by USB/SD card external memory
  • The Light Sensor: The smart light sensor automatically changes the brightness of the screen according to the environment to protect users' eyes
  • The Signal Quality Indicator: The three-color indicator enables users to identify the signal quality of each lead at one glance
• All for Professionalism:

  • Long Time Sampling: 10-1800 sec sampling, analysis, and storage capability with 9/12/15/18-lead configuration breaks the limitation of insufficient sampling time in certain cases and gives much more flexibility in conducting examinations
  • Color Identification of Arrhythmia: Users can quickly identify poor or missing electrode connections via color-coded ECG waveforms and lead map at one glance
  • Event Mark: The event mark function provides users with an easy way of labeling ECG events during long-term sampling and handy reviewing afterwards through a segment list
• All for Reliable Result

  • The sampling frequency is as high as 16,000 Hz, and the CMRR is 140dB
  • The 24-bit A/D converter helps generate more accurate waveforms
  • The 0.01-300  Hz bandwidth is absolutely competent in dealing with pediatric patients according to AHA’s recommendation
  • The Patented 0.67 Hz baseline drift filter guarantees the stability of the traces
  • Latest SEMIP algorithm with 208 ECG findings for automatic measurements and interpretation provides 12/15/18-lead ECG auto diagnosis
  • Powerful on-screen diagnosis functions such as waveform amplification, measurement, and confirmation enable users to review, edit, and confirm reports on SE-18
• With the newly designed DE18 sampling box, it facilitates a standard 12-lead ECG and also easily conducts an expanded-lead ECG examination of 15/16/18 leads with additional pluggable lead wires
• Enhanced weak signal detection
• Comprehensive filters and anti-noise technology
• Bi-directional communication with SE-1515 Data Management System
• Available Options:
  • SE-18-12: 12-Lead Configuration
  • SE-18-15: 15-Lead Configuration
  • SE-18-18: 18-Lead Configuration

Technical Specifications:

• Display: 15", 1024×768 Multicolor LCD Touch Screen
• Power Supply:
  • Main Supply:
    • Operating Voltage: 100V - 240V
    • Operating Frequency: 50 Hz/ 60 Hz
    • Input Current: 0.9-0.4 A
  • Internal Lithium-Ion Battery Pack:
    • Rated Voltage: 14.8V
    • Rated Capacity: 5000 mAh (1.75 Hours Continuous Printing, 250 ECG Reports)
    • Necessary Charge Time: 6 Hours
• Recording:
  • Recorder: Thermal Dot-Matrix Recorder
  • Printing Density:
    • 8 Dots per mm / 200 Dots per inch (Amplitude Axes)
    • 40 Dots per mm / 1000 Dots per inch (Time Axes, @ 25 mm/s)
  • Recorder Paper:
    • Folded Thermal Paper: 210 mm × 295 mm × 100 Pages
    • Folded Thermal Paper: 215 mm × 280 mm × 100 Pages
    • Folded Thermal Paper: 210 mm × 295 mm × 200 Pages
  • Paper Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
  • External Printer: HP 1010/1510, HP M401, HP 1020/1020PLUS/1106, HP 2010/1050/2000, HP 2015/2035, HP 1525
• HR Recognition:
  • HR Range: 30 BPM ~ 300 BPM
  • Accuracy: ±1 BPM
• ECG Unit:
  • Leads: 18 Standard Leads
  • Acquisition Mode: Simultaneously 18 Leads
  • A/D Converter: 24 Bits
  • Resolution: 0.1575 μV/LSB
  • Time Constant: ≥ 3.2 s
  • Frequency Response: 0.01 Hz ~ 300 Hz (-3 dB)
  • Gain: 2.5, 5, 10, 20, 10/5 mm/mV, AGC
  • Input Impedance: ≥ 100 MΩ (10 Hz)
  • Input Circuit Current: ≤ 0.01 μA
  • Input Voltage Range: ≤ ±5 mVpp
  • Calibration Voltage: 1 mV±2%
  • CMRR:
    • ≥ 140dB (AC On)
    • ≥ 123 dB (AC Off)
  • Sampling Frequency: 16000 Hz
• Pacemaker:
  • Amplitude: ±750 μV to ±700 mV
  • Width: 50 μs to 2.0 ms
• Filter:
  • AC Filter: 50/60 Hz
  • DFT Filter: 0.01 Hz/ 0.05 Hz/ 0.32 Hz/ 0.67 Hz
  • EMG Filter: Off/ 25 Hz/ 35 Hz/ 45 Hz
  • LOWPASS Filter: 300 Hz/ 270 Hz/ 150 Hz/ 100 Hz/ 75 Hz
• Data Transmission:
  • Report Format: PDF, XML, DICOM, FDA-SCP
  • Data Transmission: Wi-Fi, Ethernet, RS232
  • Data Management System:
    • SE-1515 Data Management System
    • Bi-Directional Communication
  • HIS Connection: DICOM Worklist/ DICOM Storage/ HL7/ GDT
• WiFi:
  • Transmitting Frequency: 2.4 GHz
  • Frequency Band: 2.400-2.500 GHz (2.4 GHz ISM Band)
  • Modulation Type:
    • OFDM with BPSK, QPSK, 16-QAM, and 64-QAM
    • 802.11b with CCK and DSSS
  • Transmitting Power:
    • 17 dBm for 802.11b DSSS
    • 17 dBm for 802.11b CCK
    • 15 dBm for 802.11g/n OFDM
• Safety Specifications:
  • Anti-Electric-Shock Type: Class І with Internal Power Supply
  • Anti-Electric-Shock Degree: CF Type with Defibrillation-Proof
  • Patient Leakage Current:
    • NC < 10 μA (AC) / < 10 μA (DC)
    • SFC < 50 μA (AC) / < 50 μA (DC)
  • Patient Auxiliary Current:
    • NC < 10 μA (AC) / < 10 μA (DC)
    • SFC < 50 μA (AC) / < 50 μA (DC)
• Working Environment Specifications:
  • Temperature: +5ºC ~ +40ºC
  • Relative Humidity: 15% ~ 95% Non-Condensing
  • Atmospheric Pressure: 70 kPa ~ 106 kPa
• Overall Dimensions: 17.24" L x 15.55" W x 5.31" H
• Actual Product Weight: 20.94 lbs (Excluding Recorder Paper and Battery)
• Warranty: 2 Years
