Bionet Cardio P1 12-Channel Interpretive PC-Based ECG System

The Bionet Cardio P1 12-Channel Interpretive PC-Based ECG System is a compact, PC-based ECG system that allows physicians to streamline the ECG workflow, enabling prompt and accurate decision-making for ECG interpretation and diagnosis.

Features:

• Designed with the busy daily practice of physicians in mind, simplifies the entire process at the touch of a button
• Supports data export in XML, PDF, MFER, JPEG, BMP, and DICOM
• Automatic ECG acquisition with one touch of a button
  • Built-in "AUTO" key enables one-touch ECG workflow, covering acquisition, analysis, documentation, and export to EMR, HIS, and PACS
  • Pre-configured ECG acquisition time from 10 seconds up to 30 minutes, giving physicians flexible and optimized diagnostic durations for enhanced analysis
• 30-Minute full-disclosure mode
  • Automatic and real-time arrhythmia analysis
  • Provides comprehensive full-waveform trend data for deeper ECG insights
  • Enhances diagnostic accuracy by capturing and analyzing every heartbeat
• Pre-acquisition mode
  • Prompt interpretation and immediate print-out
  • Continuous ECG acquisition ensures seamless data capture
  • ECG leads are processed in just 3 seconds for quick print-out and storage
  • Supports efficient ECG review and faster clinical interpretation
• Enhanced built-in memory
  • Supports storage of up to 500 ECG datasets within a 10-second recording window
  • Enables efficient data retention for quick access, review, and clinical reference
• CardioSync integration

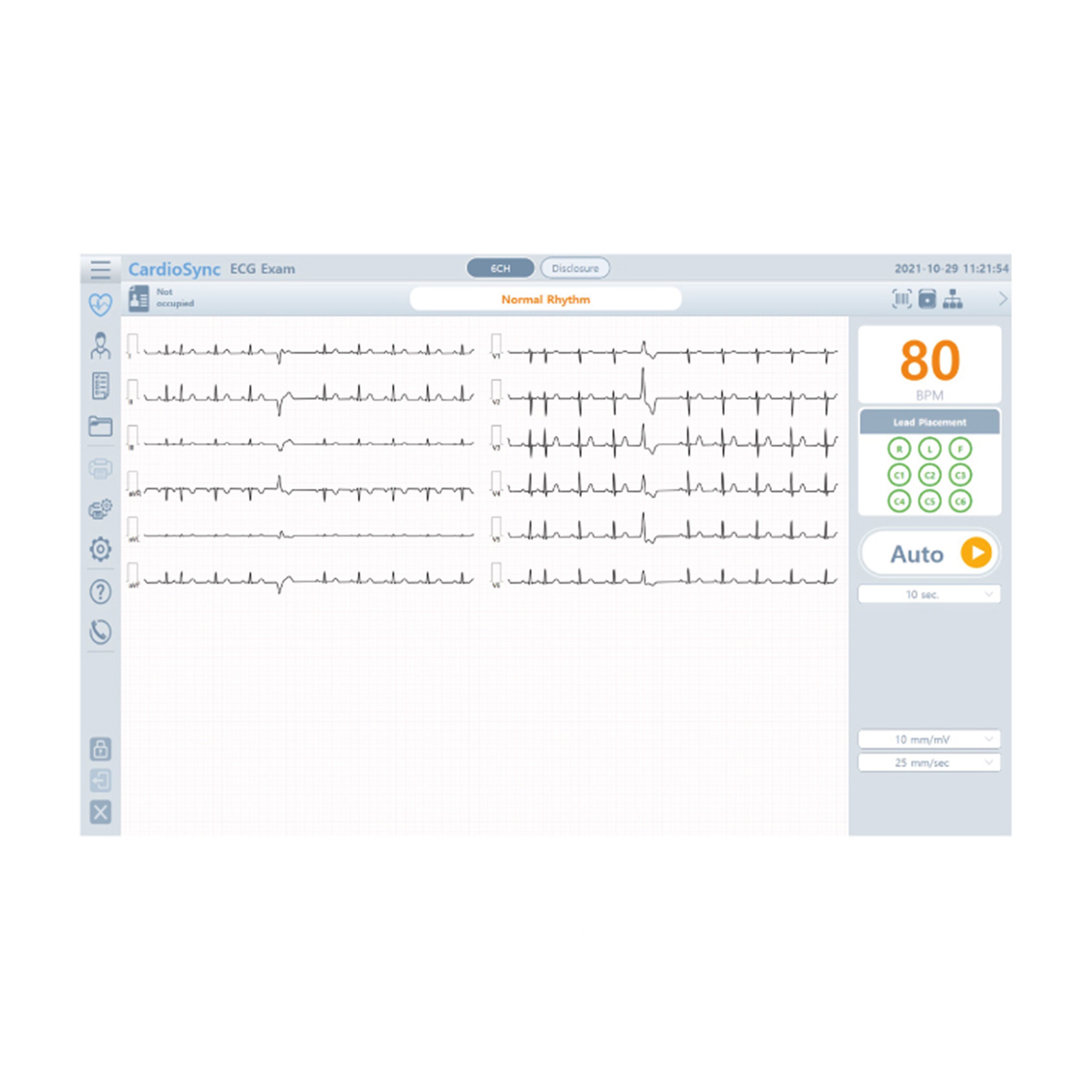

  • Real-time arrhythmia detection
  • On-screen preview before print-out
  • Compare/zoom/RR measurement functions for further data review
  • Full disclosure up to 30 minutes for interpretive analysis

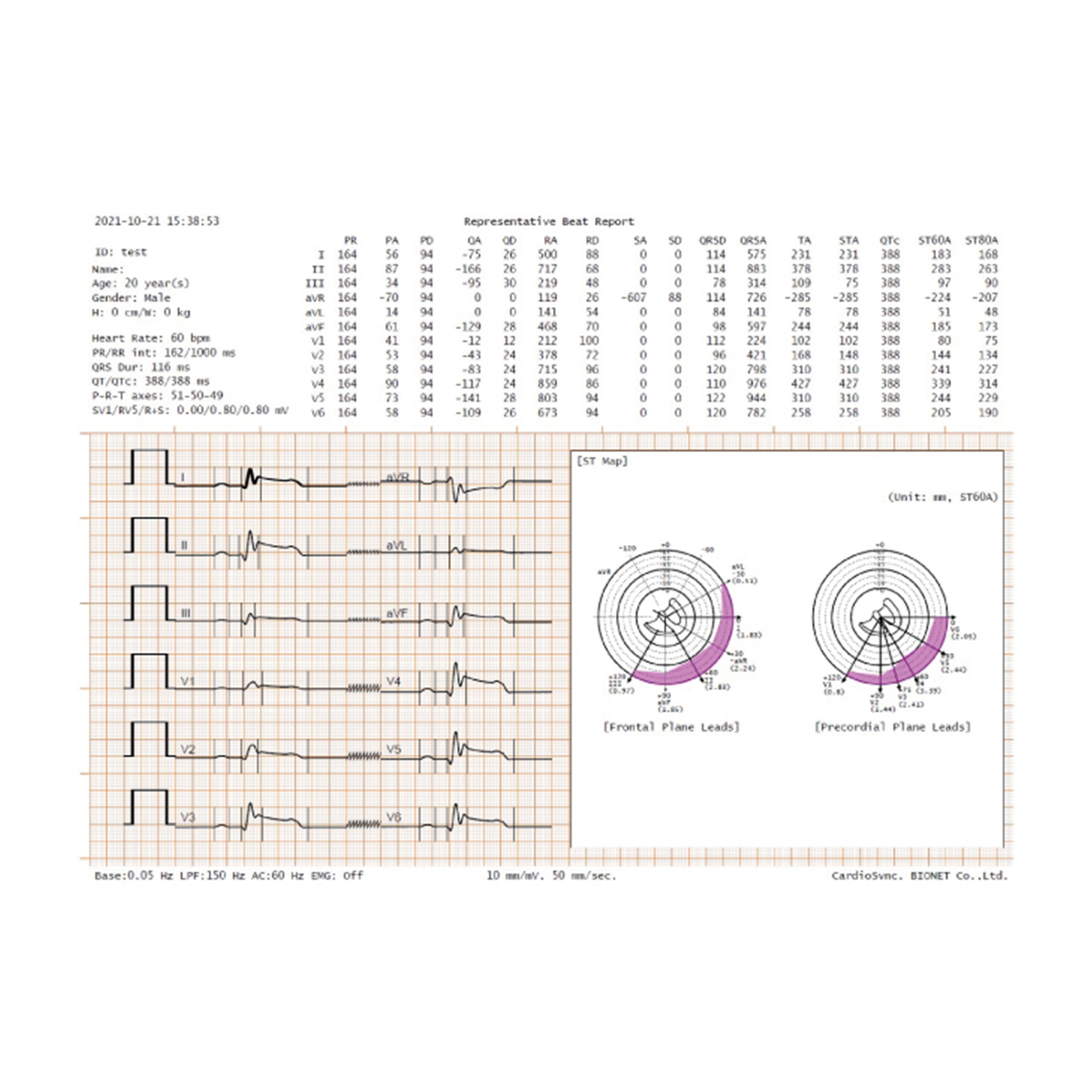

  • Enabling premium report formats: Text, Guide, Vector, and ST Map
  • Minimum PC System Requirements for CardioSync
    • Operating System: Windows 10
    • Processor (CPU): Core2Duo 1.86 GHz
    • Memory (RAM): 2GB
    • Graphics Adapter: VGA with RAM 256 MB, supporting 1600 x 900 resolution
    • Hard Drive: 500 GB
    • LAN Speed: 10 Mbps
    • USB Ports: 2

• Comes standard with:

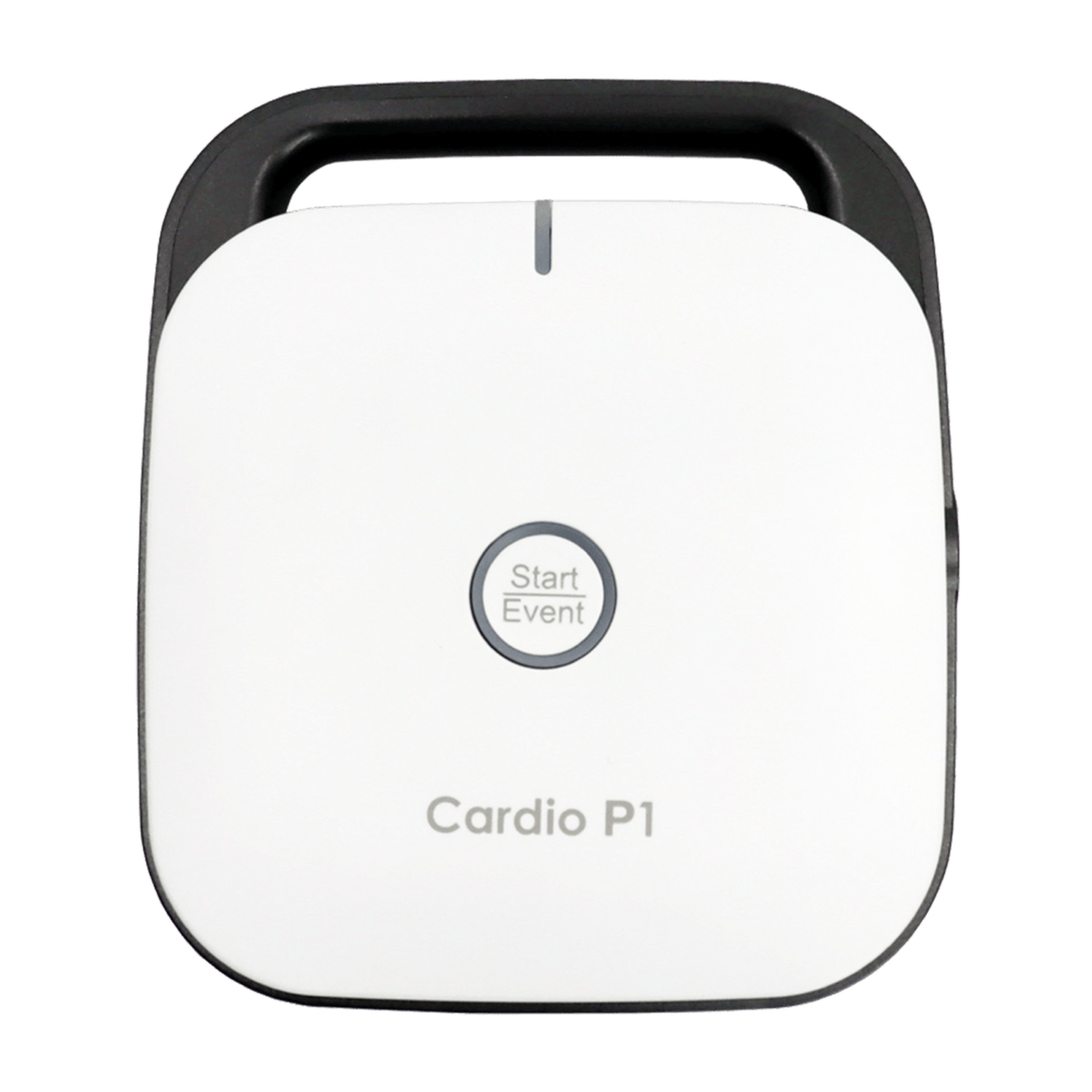

  • (1) Cardio P1 Main Unit

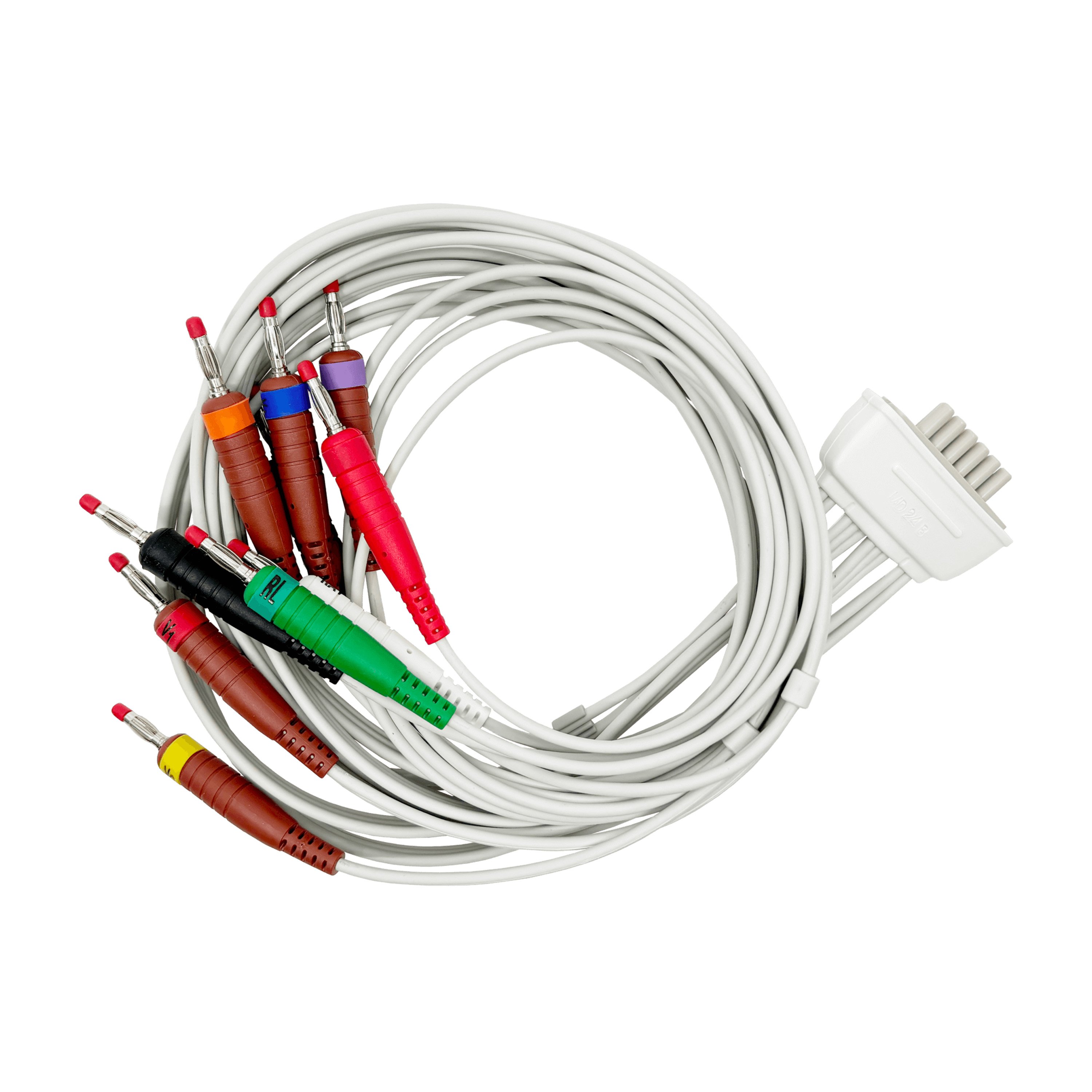

  • (1) 10-Lead ECG Patient Cable

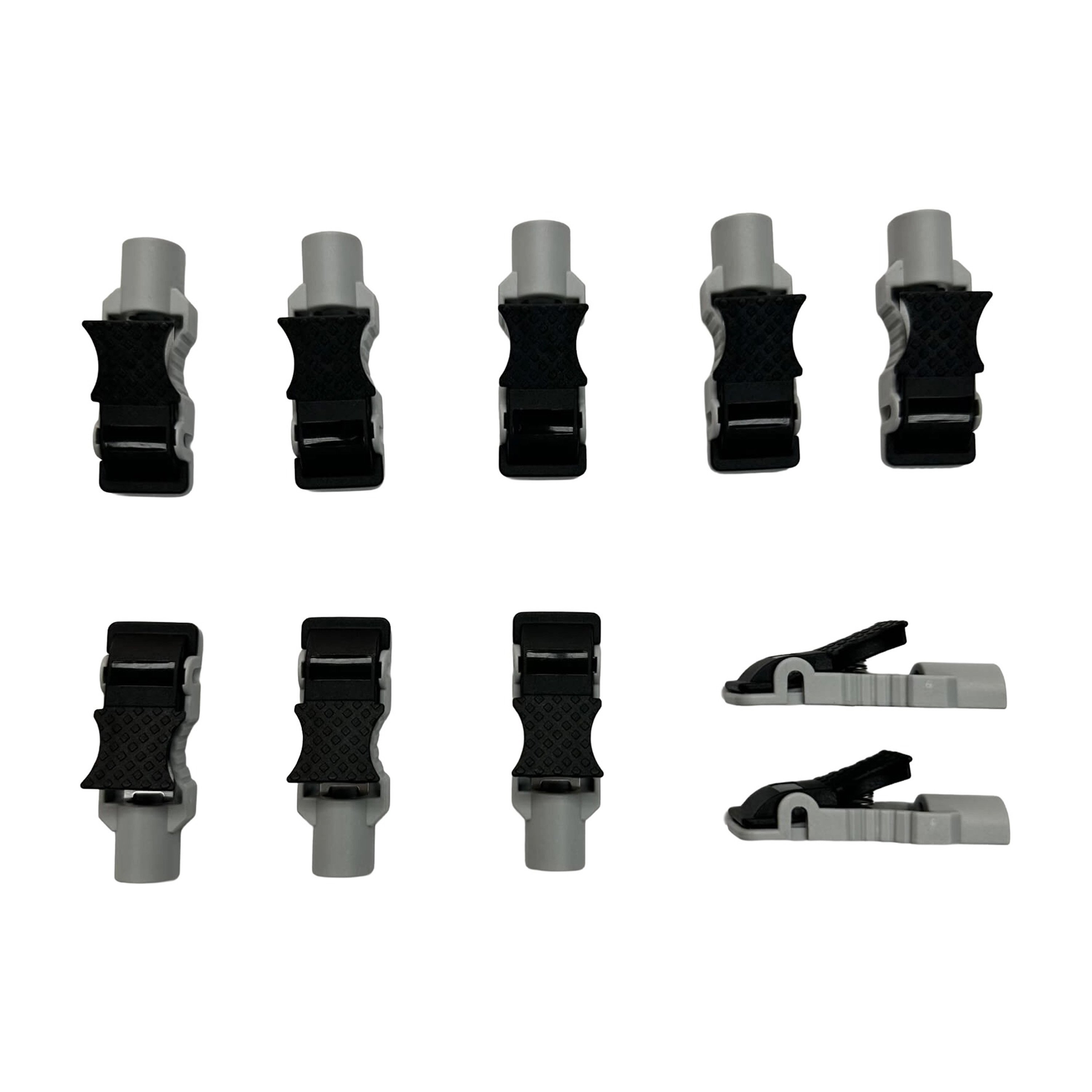

  • (10) Alligator Clips

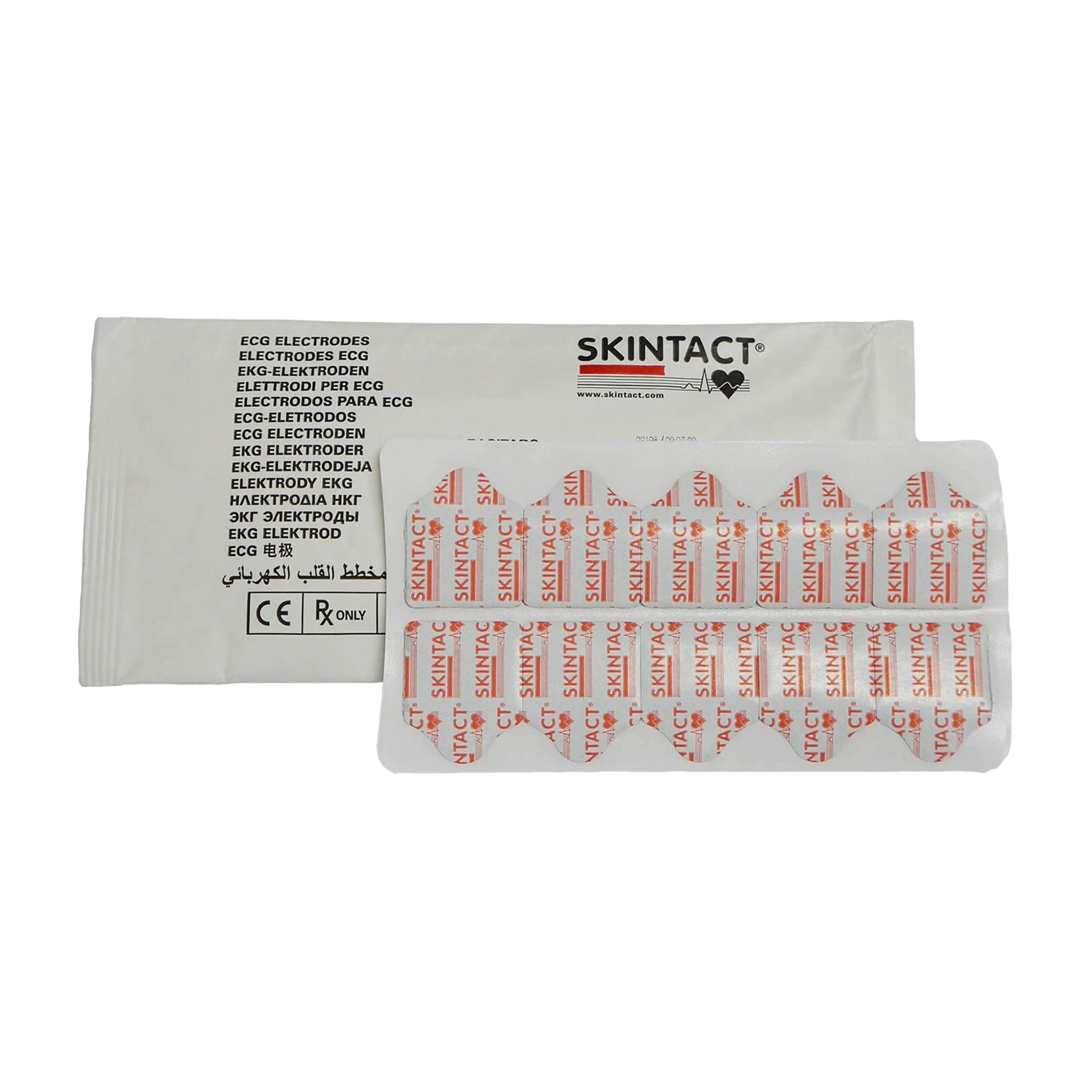

  • (1) Electrodes

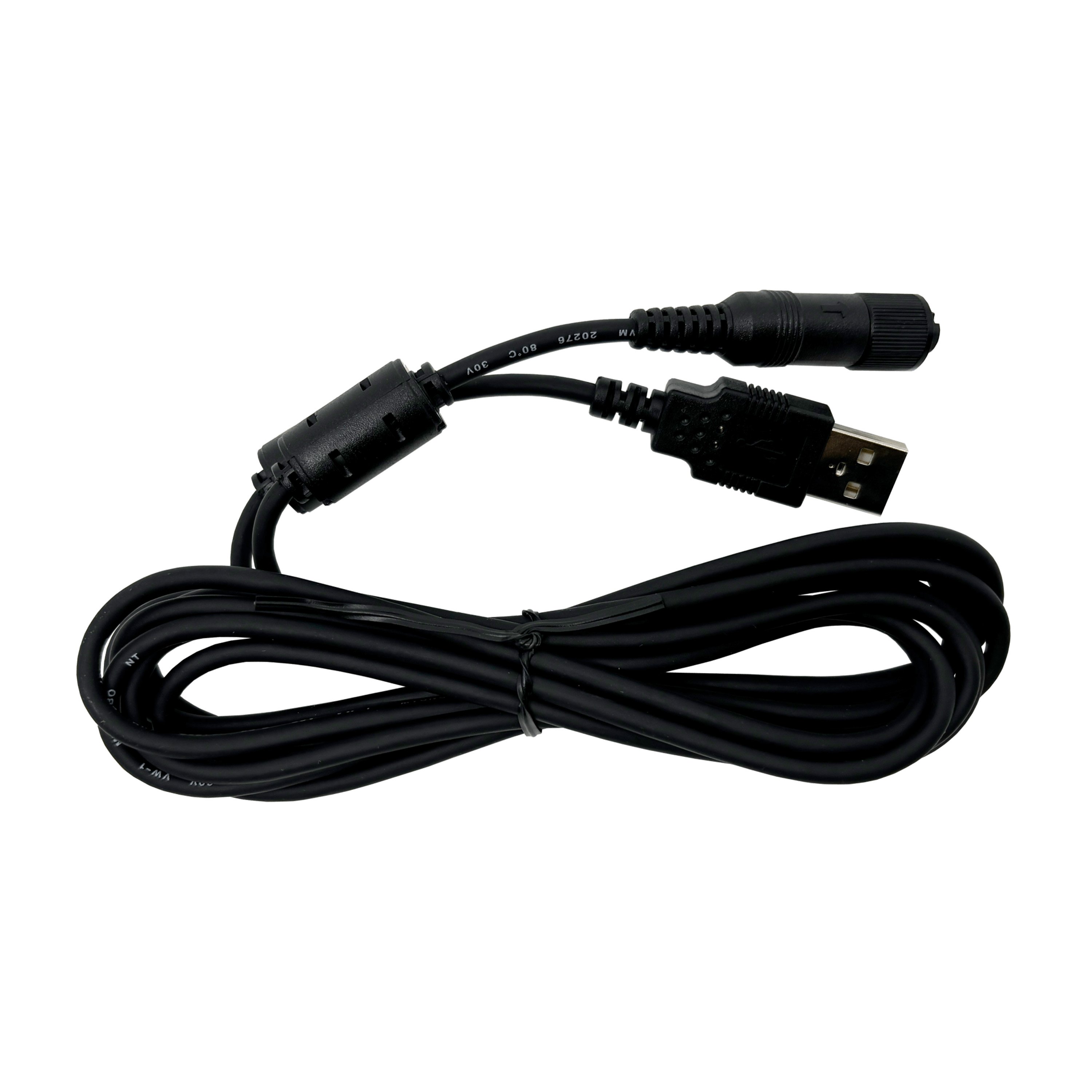

  • (1) USB Power Cable

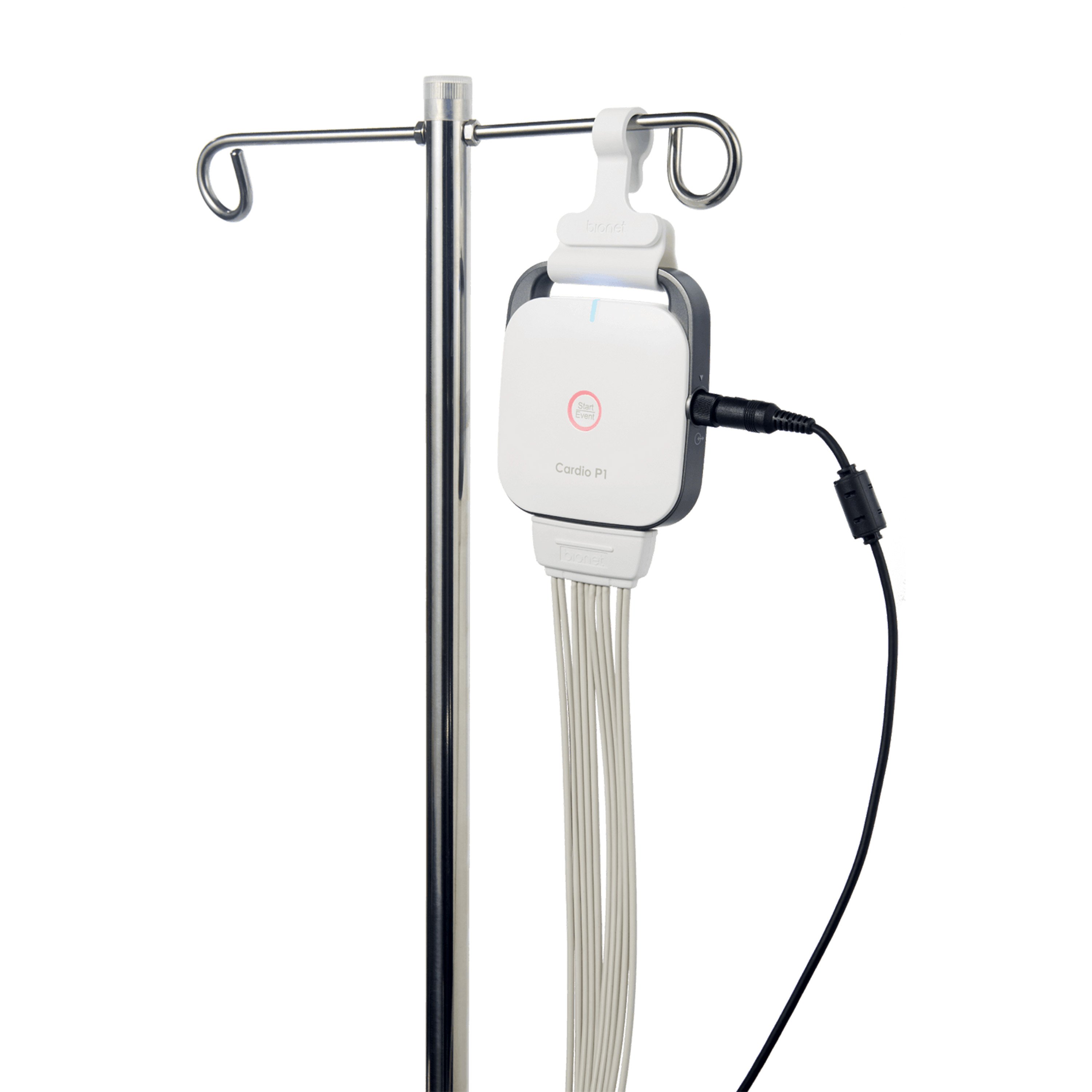

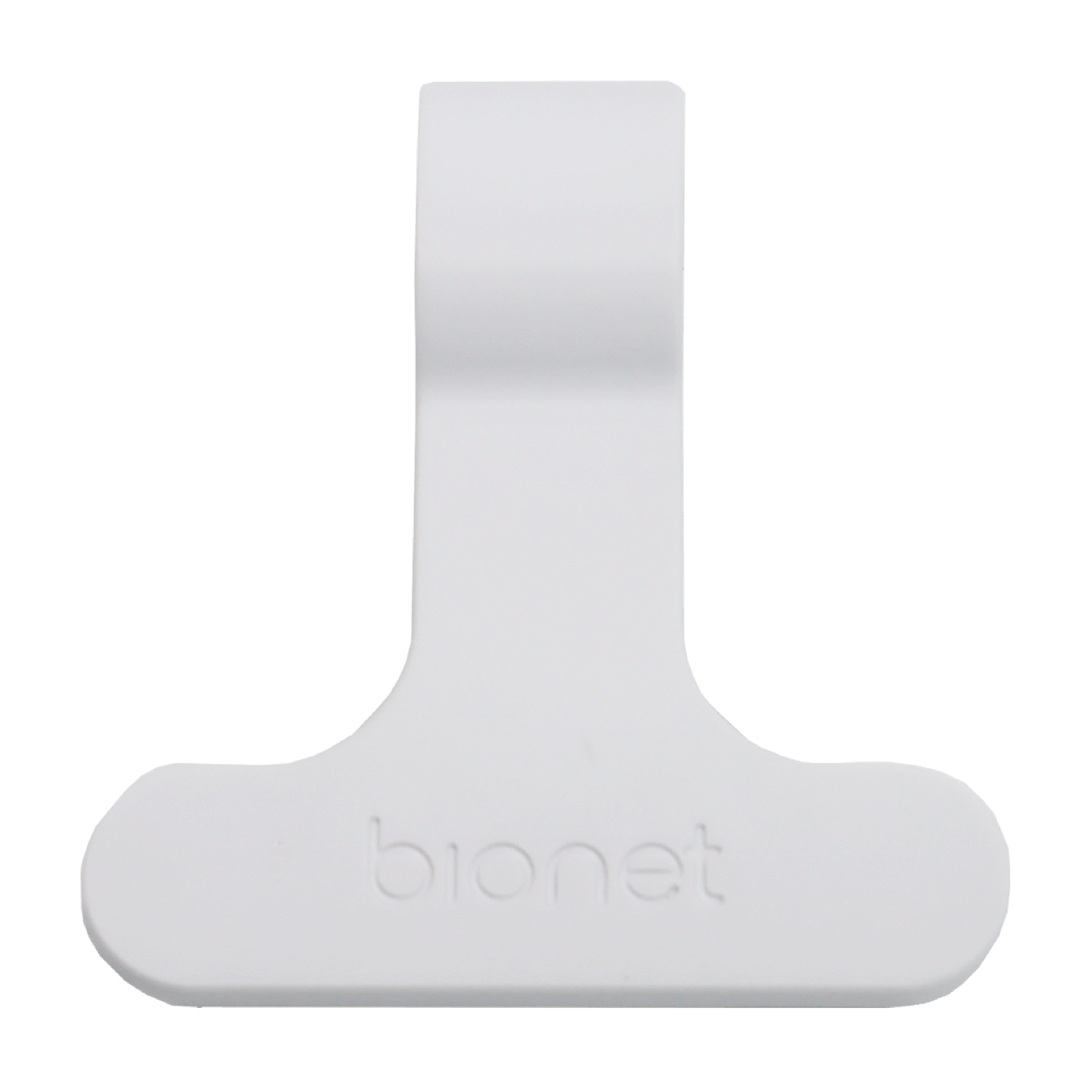

  • (1) IV Pole Hanger

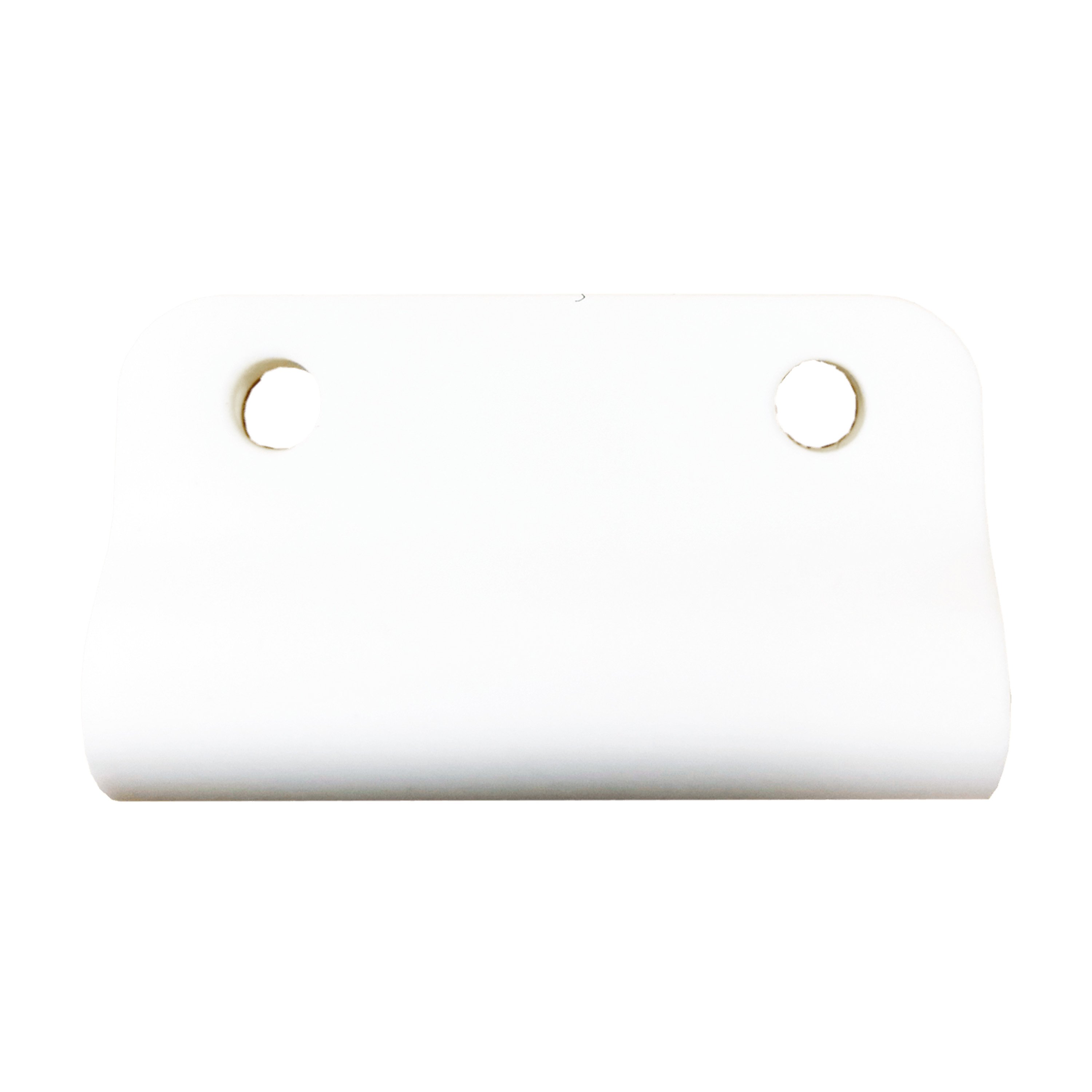

  • (1) Silicone Pad
  • (1) USB Lock Key with CardioSync Software
  • (1) Operation Manual
  • (1) Diagnostic Guidebook
  • (1) Quick Reference Guide
  • 2-Year Warranty Card

Technical Specifications:

• ECG Leads: Simultaneous 12-Channel ECG acquisition
• Recording Modes:
  • 3CH+1RHY
  • 3CH+3RHY
  • 6CH+1RHY
  • 12CH
  • 6CH+ST Map
  • 1-Channel Long-time Recording (1, 3, 5, 10, 20, 30 mins)
  • Special Beat Report (Text, Guide, Vector, ST Map)
• Gain: 2.5, 5, 10, 20, Auto (I∼aVF: 10 mm/mV, V1∼V6: 5 mm/mV)
• Printing Speed: 5, 12.50, 25, 50, 100 mm/sec
• Sampling Rate:
  • Analysis: 500 Hz
  • Digital: 8,000 Hz
• Filters:
  • AC: 50/60 Hz, -20 dB or better
  • Muscle: 25∼35 Hz, -3 dB or better
  • Baseline Drift: 0.05, 0.1, 0.2 Hz, -3 dB or better
  • Low Pass Filter: Off, 40 Hz, 100 Hz, 150 Hz
• Patient Data:
  • ID
  • Name
  • Birthday
  • Age
  • Gender
  • Height
  • Weight
  • Race
  • Smoking Status
  • Department
  • Room No.
  • Study Description
  • Accession No.
  • Referring Physician
• Basic Measurements:
  • Heart Rate (30∼300 bpm, ±3 bpm)
  • PR/RR Interval
  • QRS Duration
  • QT/QTc Interval
  • P-R-T Axis
  • SV1/RV5/R+S Amplitude
• Electrical:

  • Internal Noise: ≤ 20 µV (p-p) max
  • Input Impedance: ≥ 50 MΩ
  • Input Voltage Range: ± 5 mV
  • CMRR: > 105 dB
  • DC Offset Voltage: ≥ ± 4000 mV
  • Patient Leakage Current: < 10 µA
  • Frequency Response: 0.05∼200 Hz (within -3 dB)
  • Isolated, defibrillation, and ESU protected
• Signal Quality Control:
  • Pacemaker Detection
  • Lead Fault Detection
  • Signal Saturation Detection
• Communication: USB (PC connection)
• Safety: Class I, Type CF applied parts
• Power: 5V DC (USB), max 0.5 A
• Operating Conditions:

  • Ambient Temperature: 10°C to 40°C
  • Relative Humidity: 30% to 85%
  • Atmospheric Pressure: 700 hPa to 1060 hPa
• Overall Dimensions: 3.57" W x 4.07" D x 0.98" H
• Actual Product Weight: 0.24 lb
• Warranty: 2 Years

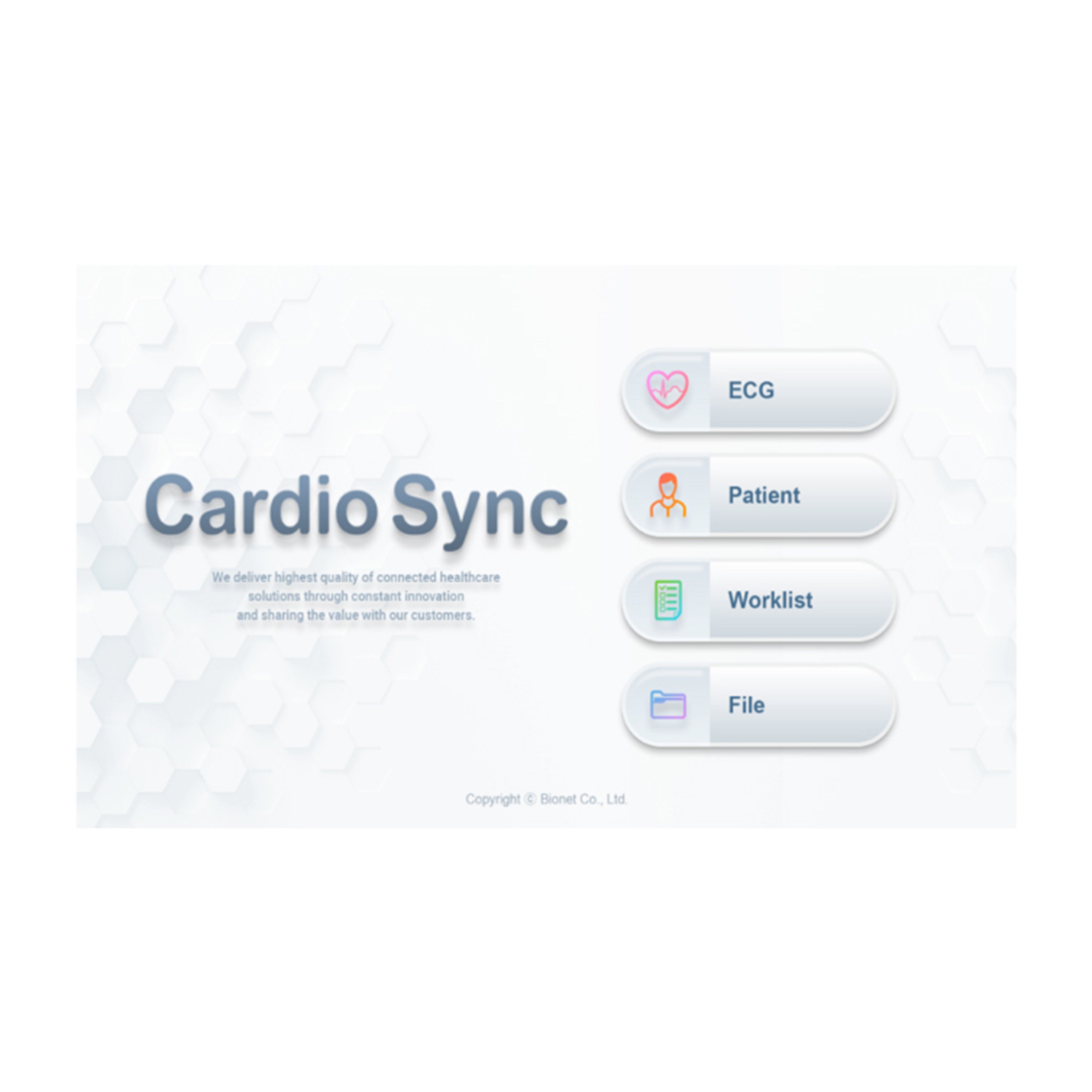

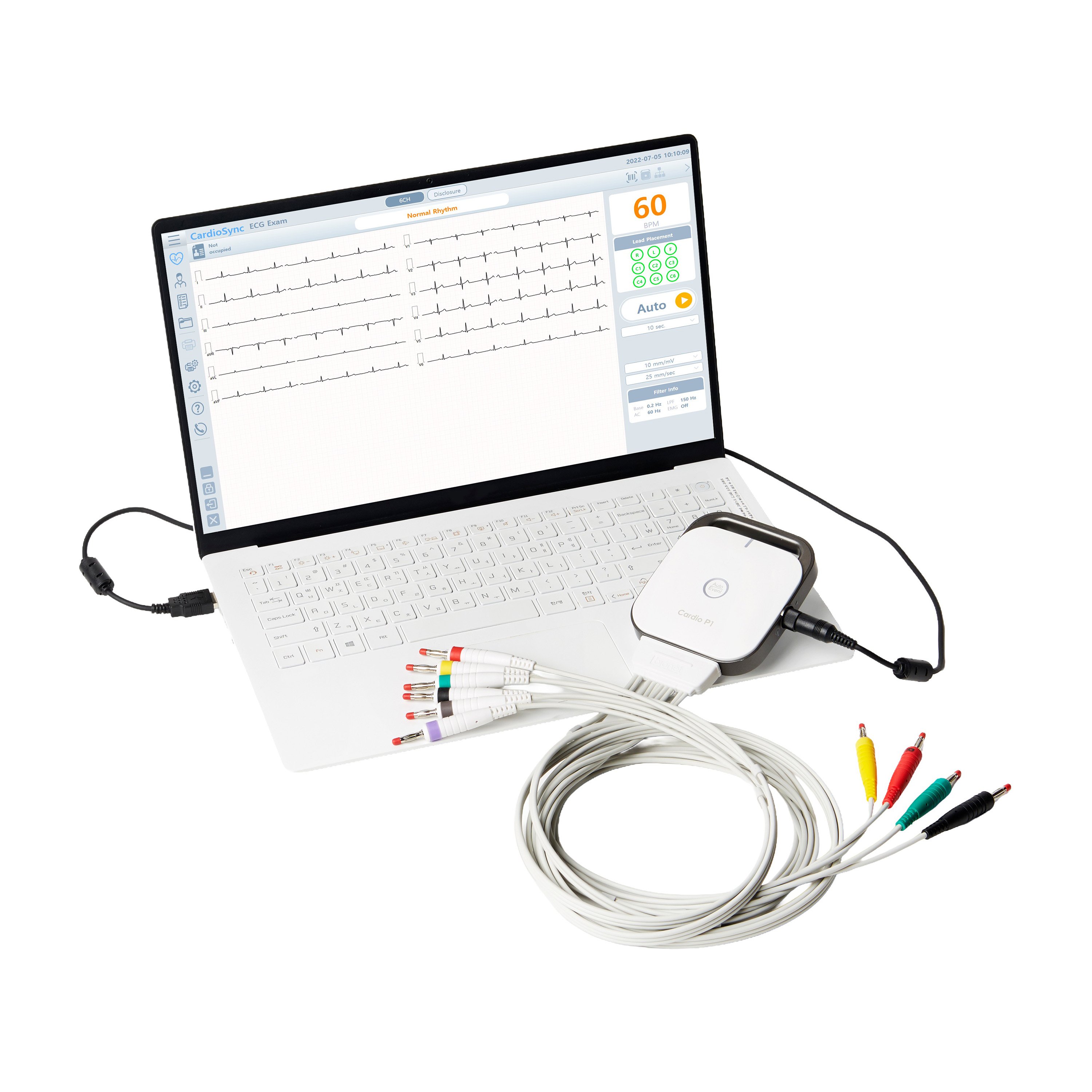

CardioSync is an ECG data management software from Bionet that enables seamless connection of the P1 to Windows-based computers via a direct wired interface. It allows ECG data to be saved and transferred in Bionet’s proprietary .ecg format, as well as JPEG, PDF, XML, MFER, and DICOM, ensuring compatibility with most EMR systems.

The software provides real-time on-screen ECG display, instant arrhythmia detection, and diagnostic support tools to assist clinical interpretation. In addition, CardioSync helps reduce the need for thermal paper by offering a range of premium digital report formats, including Text, Guide, Vector, and ST-MAP, for enhanced review and analysis.

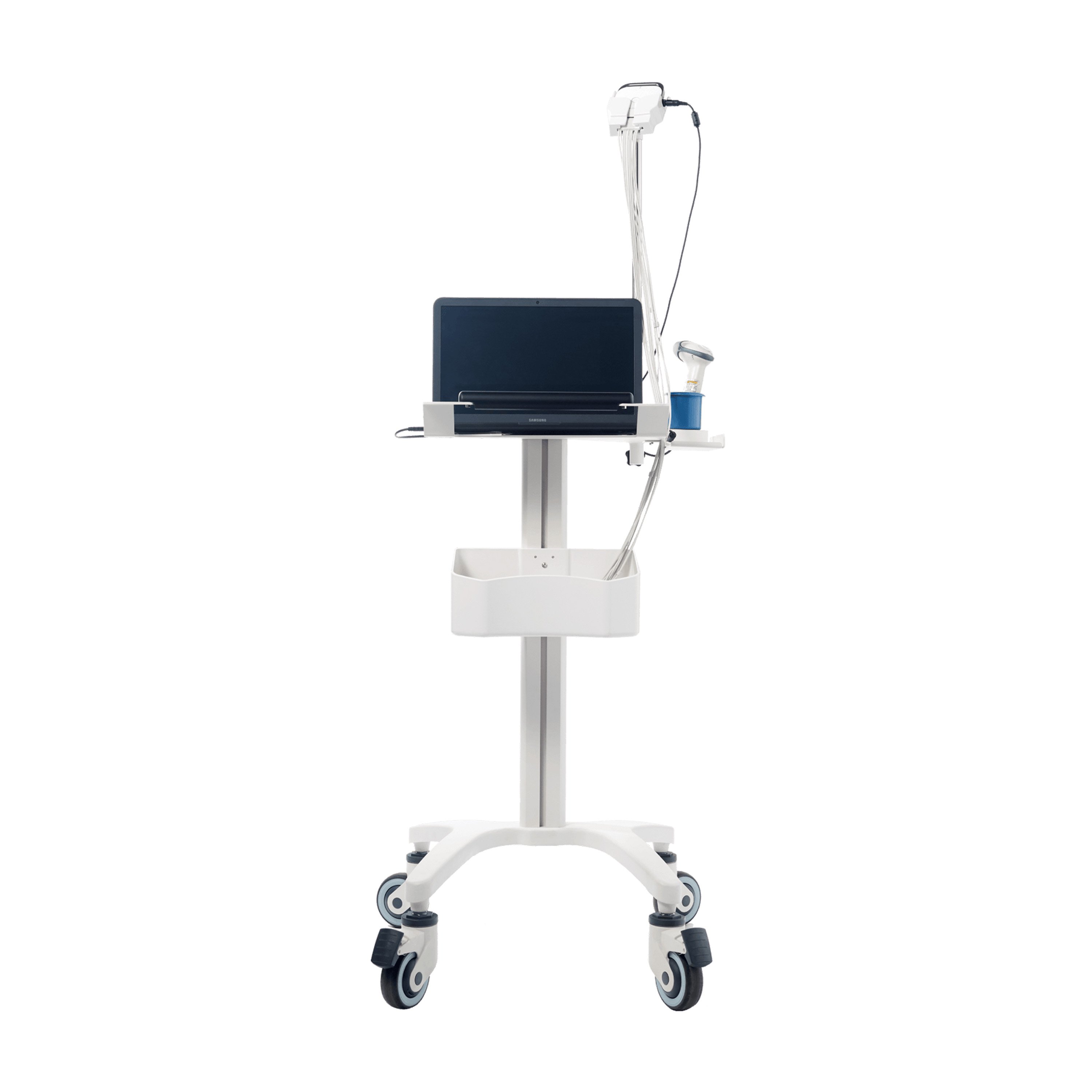

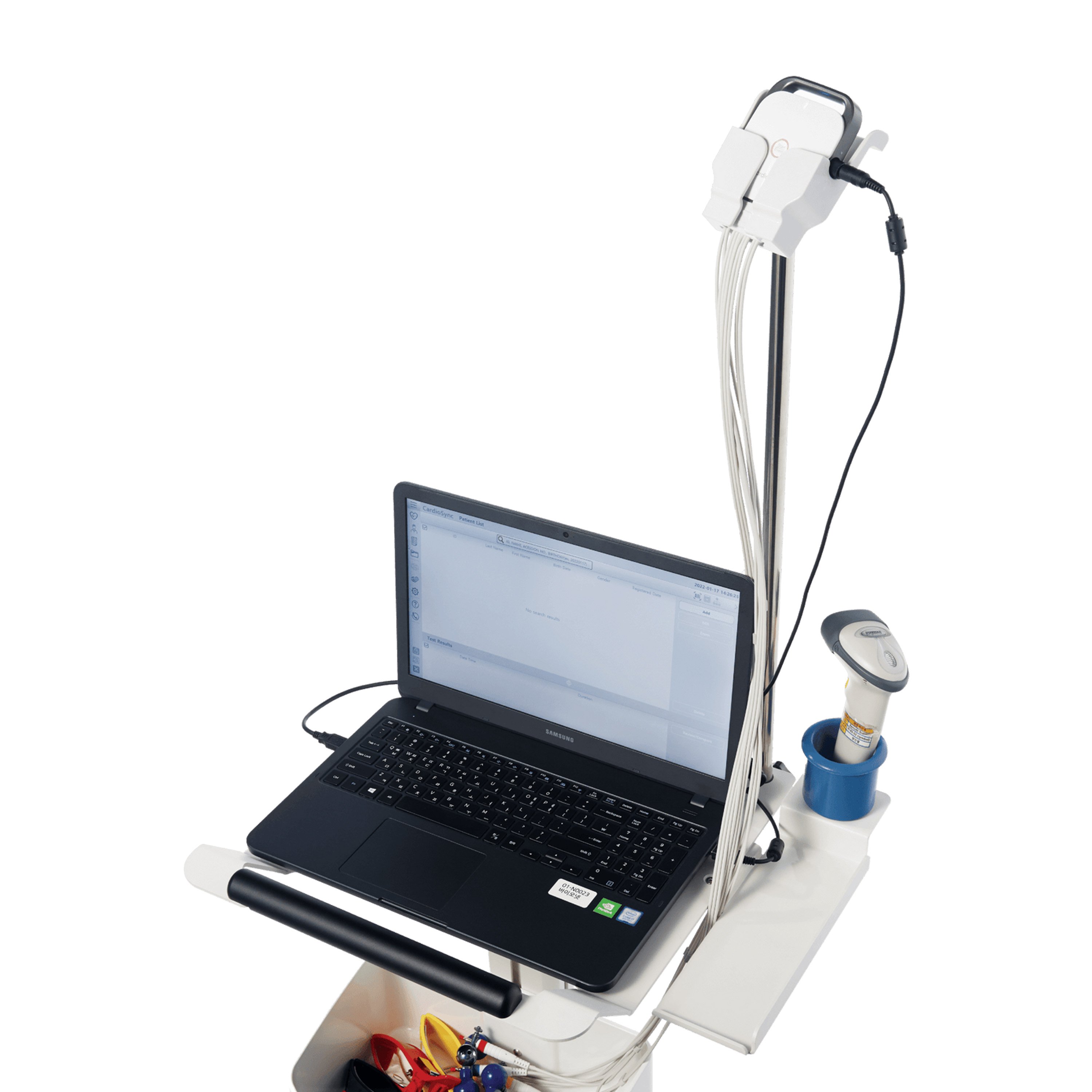

Please note: The cart is sold separately. Laptop, probe, probe holder, and IV pole are not included.
