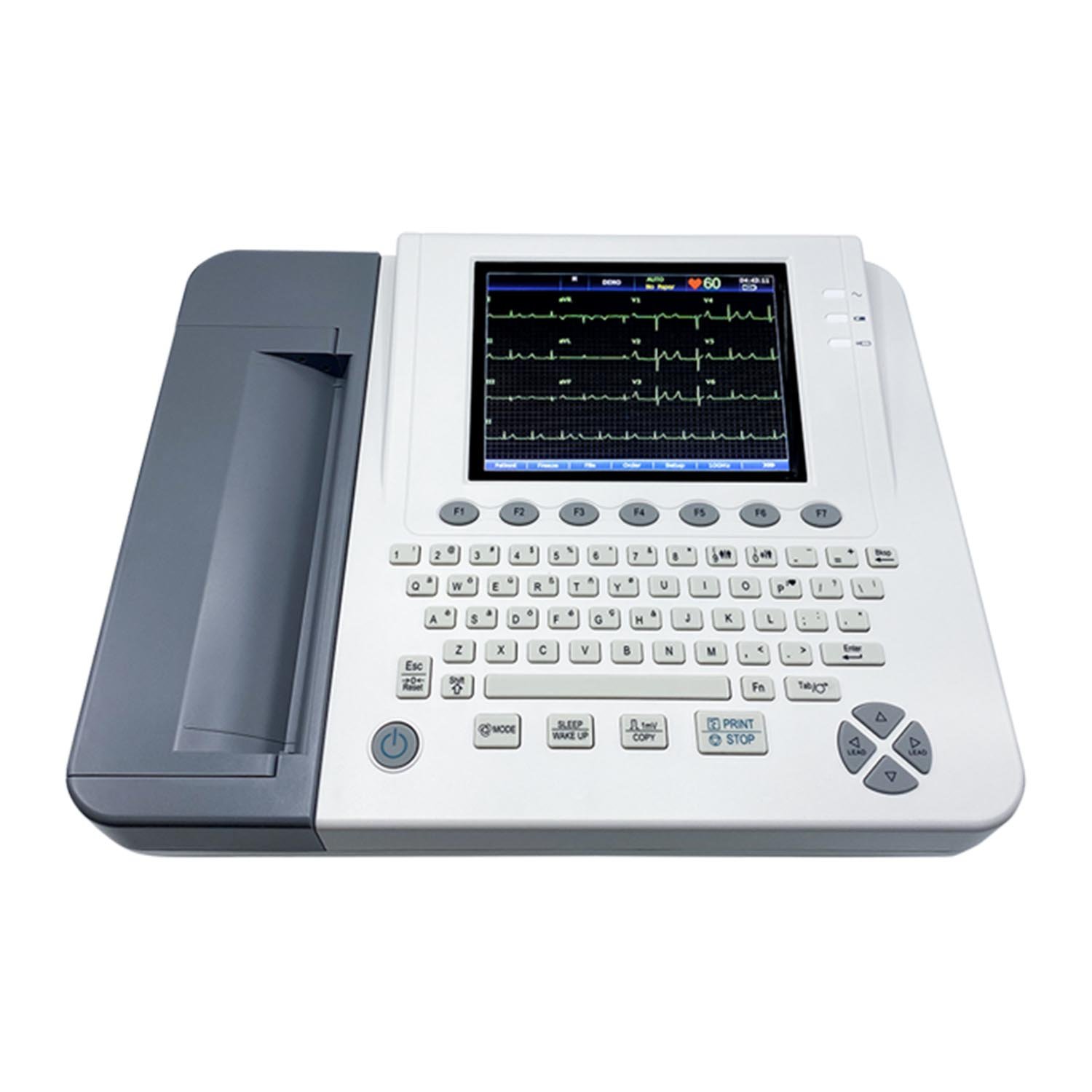

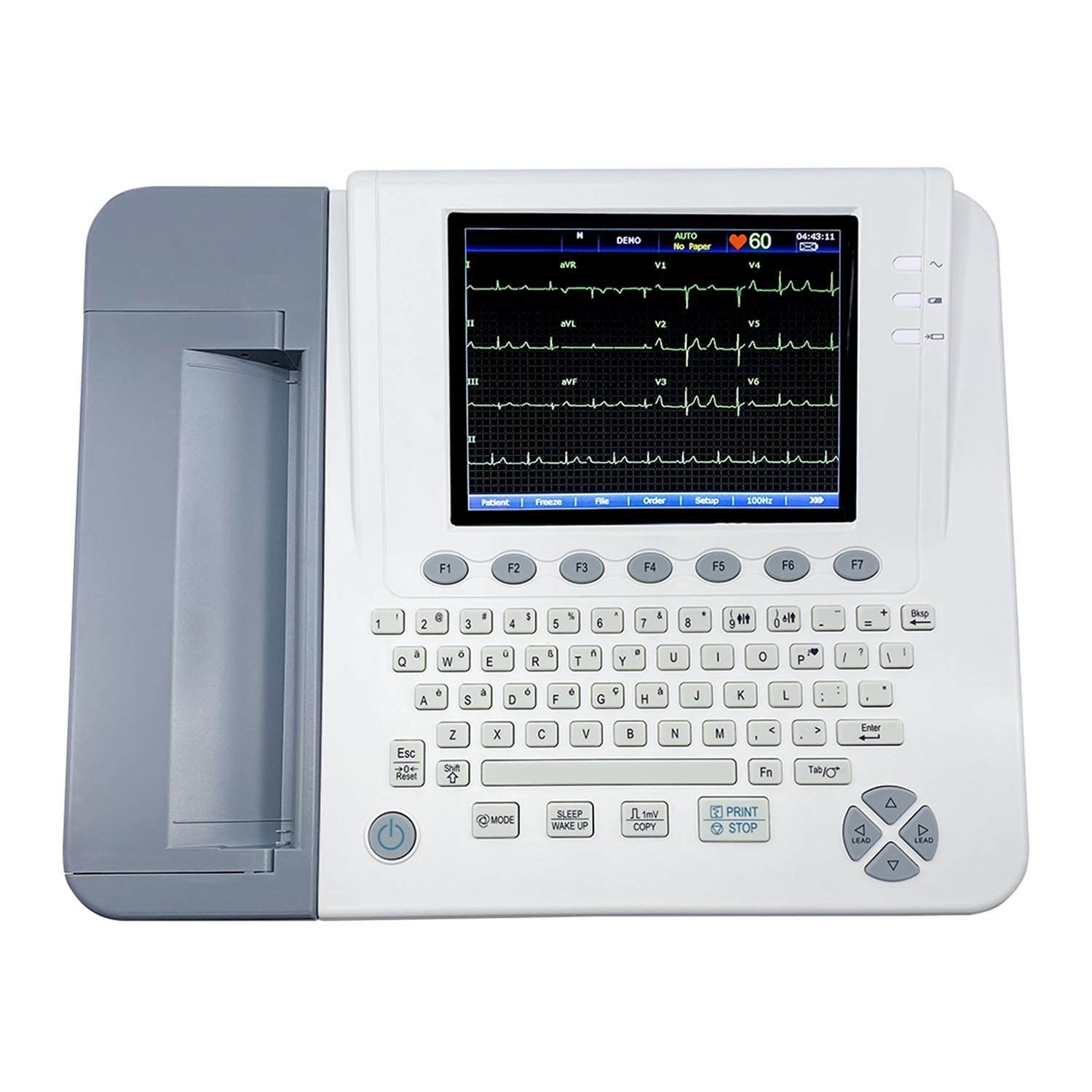

Edan SE-1200 Express 12-Channel ECG with 8.4" Screen and WiFi

The Edan SE-1200 Express 12-Channel ECG with 8.4" Screen and WiFi reliably fulfills primary clinical requirements in various environments and is ideal for adults and pediatrics.

Features:

• All-in-one package that provides sampling, analysis, printing, storage, and transmission, making the practice more efficient
• User-Friendly Design:
  • 8.4” Color LCD Display
  • Alphanumeric Keyboard
  • Onboard PDF Creator and USB Data Export
  • Built-in Thermal Printer
  • Barcode Scanner Support
  • One-Touch Operation with Age and Gender Shortcuts
• Expert Communications:
  • Auto-Analyzing and Diagnostic Software
  • Glasgow Interpretation
  • Preview/Printing for Waveform and Analysis
• Data Management:

  • Data Transmission to PC via LAN/WiFi
  • PDF, SCP, FDA-XML, DICOM Data Export Options
  • WiFi Module for Use with the SE-1515 Software
  • 800 ECG Memory (Can be easily enlarged by USB flash disk)
• Exceptional Clinical Performance:
  • High CMRR over 115 dB
  • Integrated advanced ECG analysis with Vector ECG
  • Extended printing when arrhythmia is detected
  • Anti-noise technology with comprehensive filters
  • 120s real-time ECG waveform freezing and overview
  • Weak signal detection with 24-bit A/D converter technology
  • Automatic measurements and interpretation tested by CSE/AHA/MIT database
• Multiple Ports:
  • Patient Cable
  • VGA Output
  • USB Thumb Drive
  • Networking Port
• Available Options:
  • SE-1200-EXPRESS-BASIC: Without Touch Screen
  • SE-1200-EXPRESS: With Touch Screen
• Comes Standard With:
  • (1) ECG Cable with 4 mm Banana Connector
  • (1) Resting Tab Electrodes

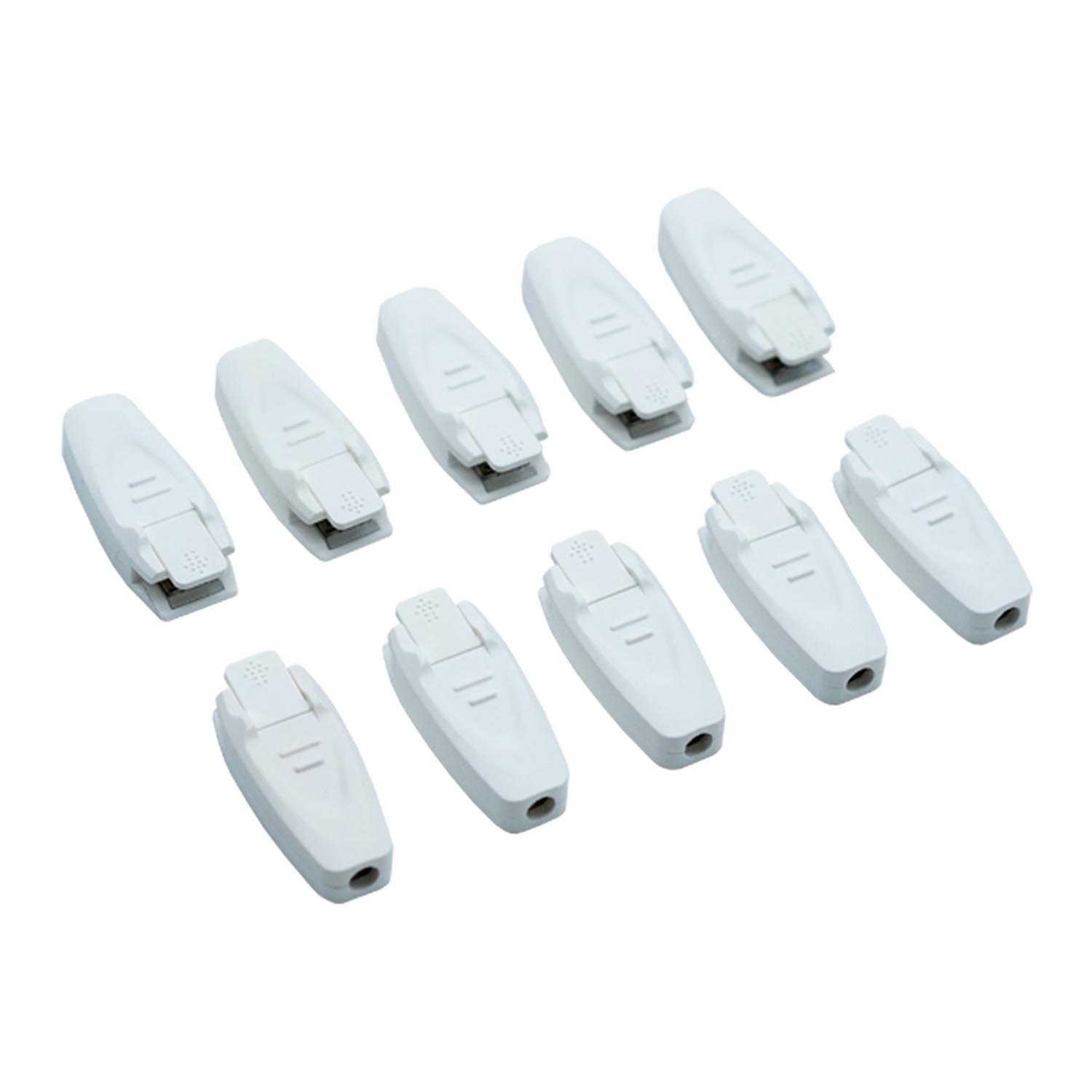

  • (1) 10-Lead Universal Clips
  • (1) Recording Paper (210 mm x 295 mm, Z-Fold)
  • (1) US Standard Power Cord
  • (1) Rechargeable Lithium-Ion Battery
  • (1) User Manual

Technical Specifications:

• Display: 8.4”, 800x600 Multicolor LCD Screen
• Power Supply:

  • Main Supply:

    • Operating Voltage: 100V - 240V
    • Operating Frequency: 50 Hz / 60 Hz
    • Input Current: 0.9-0.4 A
  • Internal Li-Ion Battery Pack Power Supply:

    • Rated Voltage: 14.8V
    • Rated Capacity:
      • 2500/5000 mAh (4/8 Normal Work Hours)
      • 1.5/2.5 Hours Continuous Printing, 300/450 ECG Report
    • Necessary Charge Time: 3/6 Hours
• Recording:
  • Recorder: Thermal Dot Matrix Recorder
  • Recorder Paper: SE-12P Z-Fold Thermal Paper (210 mm x 295 mm x 100 Pages)
  • Printing Density:

    • 8 Dots per mm / 200 Dots per inch (Amplitude Axes)
    • 40 Dots per mm / 1000 Dots per Inch (Time Axes, at 25 mm/S)
  • Paper Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s (±3%)
  • External Printer: HP2010/2132/1050/2000, HPM401/2015/2035, HP1106/1020P, HP1112/4729/3638, HPM202D/1525/M403D
•  HR Recognition:
  • HR Range: 30 BPM - 300 BPM
  • Accuracy: ±1 BPM
• ECG Unit:
  • Leads: 12 Standard Leads
  • A/D Converter: 24 Bits
  • Time Constant: ≥ 5 s
  • Sampling Frequency: 64,000 Hz
  • Input Impedance: ≥ 100 MΩ (10Hz)
  • Input Voltage Range: ≤ ±5 mVpp
  • CMRR:

    • ≥ 140 dB (AC On)
    • ≥ 123 dB (AC Off)
  • Acquisition Mode: Simultaneously 12 Leads
  • Resolution: 0.1192uV/LSB
  • Frequency Response: 0.01 Hz ~ 500 Hz (3 dB)
  • Gain: 1.25, 2.5, 5, 10, 20, 10/5 mm/mV, AGC
  • Input Circuit Current: ≤ 0.01 μA
  • Calibration Voltage: 1 mV±2%
  • QTc Formulas: Bazett, Fridericia, Framingham, Hodges, QRS
• Pacemaker:
  • Amplitude: ±750μV to ±700 mV
  • Width: 50 μs to 2.0 ms
  • Sampling Frequency: 80,000/sec/channel, Rhythm Lead
• Filter:
  • AC Filter: 50/60 Hz
  • DFT Filter: 0.01 Hz/ 0.05 Hz/ 0.15 Hz/ 0.25 Hz/ 0.32 Hz/ 0.5 Hz/ 0.67 Hz
  • EMG Filter: Off/ 25 Hz/ 35 Hz/ 45 Hz
  • Lowpass Filter: 350 Hz/ 300 Hz/ 270 Hz/ 150 Hz/ 100 Hz/ 75 Hz
• Data Transmission:
  • Report Format: PDF, XML, DICOM, FDA SCP
  • Data Management System:

    • SE-1515 Data Management System
    • Bi-Directional Communication
  • Data Storage: 800 ECGs
  • Data Transmission: WiFi, Ethernet, RS232
  • HIS Connection: DICOM Worklist/ DICOM Storage/ HL7/ GDT
• WiFi:
  • Transmitting Frequency: 2400-2497 MHz
  • Modulation Type: DSSS, CCK, OFDM
  • Frequency Band: 2400-2497 MHz
  • Transmitting Power: 6-17 dBm
  • Effective Radiated Power: 6-17 dBm
• Safety Specifications:
  • Anti-Electric-Shock Type: Class І with Internal Power Supply
  • Anti-Electric-Shock Degree: CF Type with Defibrillation-Proof
  • Patient Leakage Current:
    • NC < 10 μA (AC) / < 10 μA (DC)
    • SFC < 50 μA (AC) / < 50 μA (DC)
  • Patient Auxiliary Current:
    • NC < 10 μA (AC) / < 10 μA (DC)
    • SFC < 50 μA (AC) / < 50 μA (DC)
• Working Environment Specifications:
  • Temperature: +5ºC ~ +40ºC
  • Relative Humidity: 25% ~ 80% Non-Condensing
  • Atmospheric Pressure: 86 kPa ~ 106 kPa
• Overall Dimensions: 16.54" L x 12.99" W x 4.72" H
• Actual Product Weight: 11.02 lbs (Excluding Recorder Paper and Battery)
• Warranty: 2 Years
