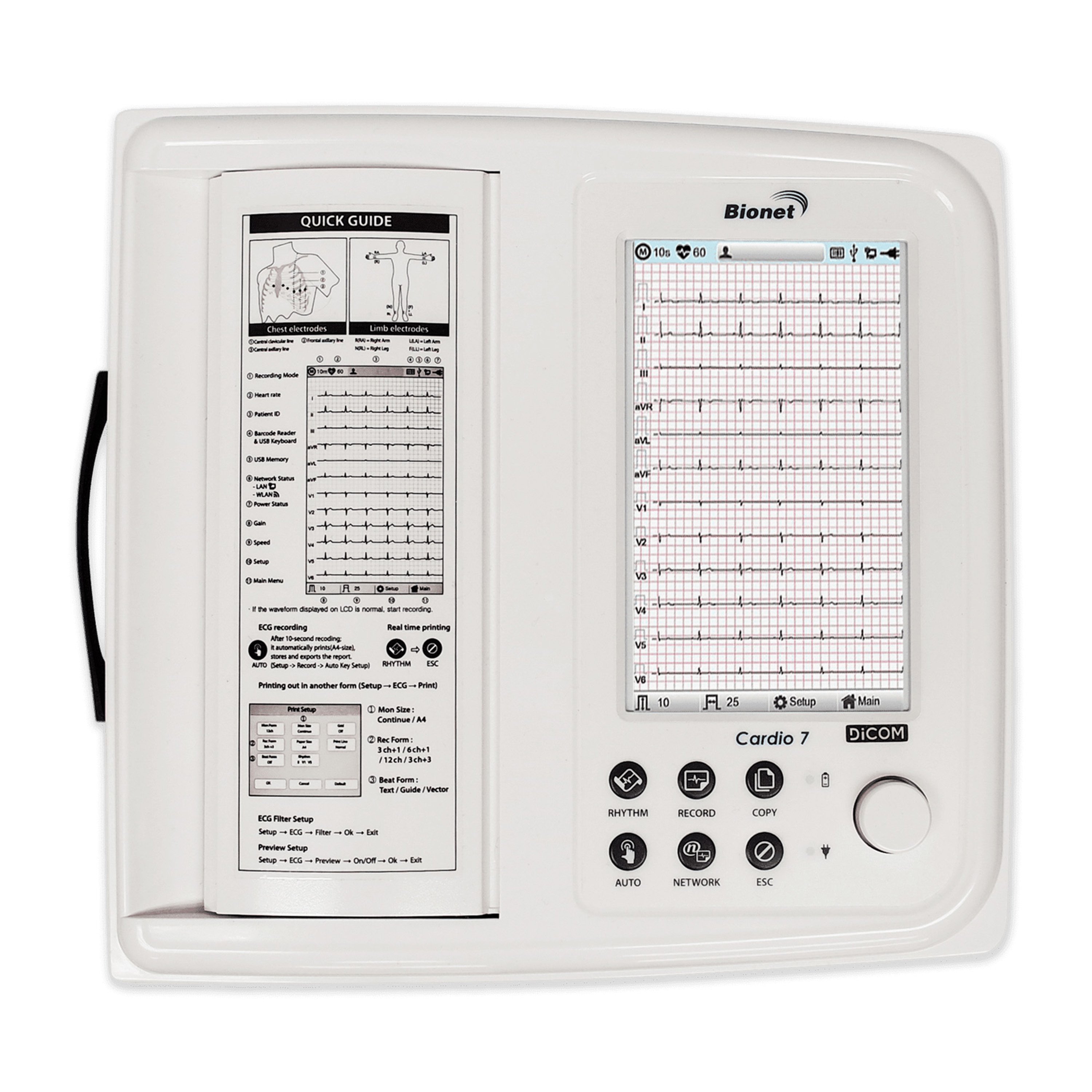

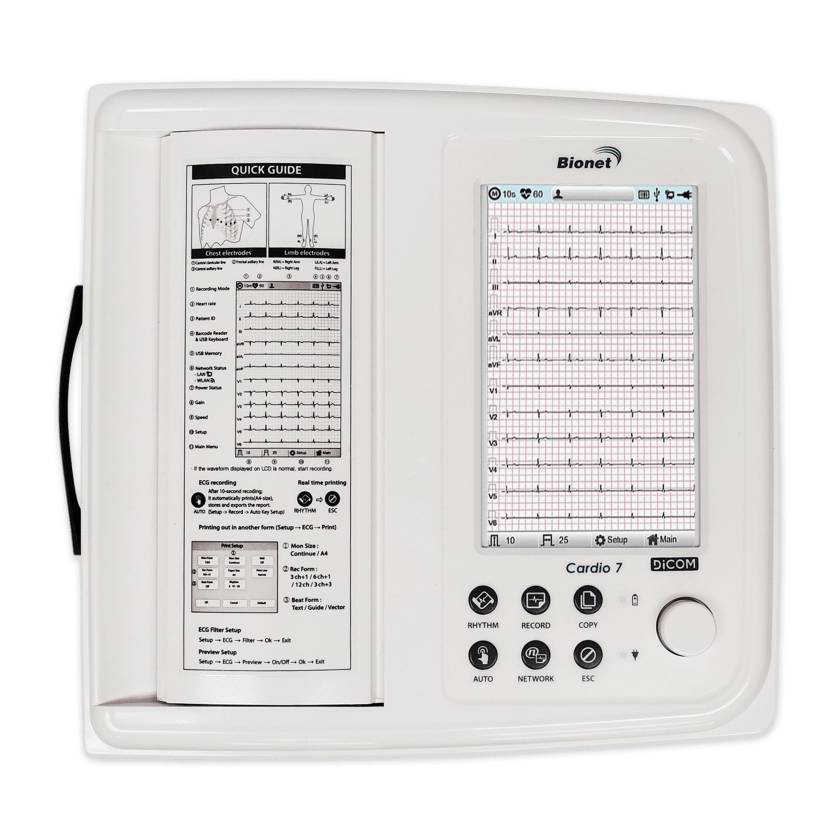

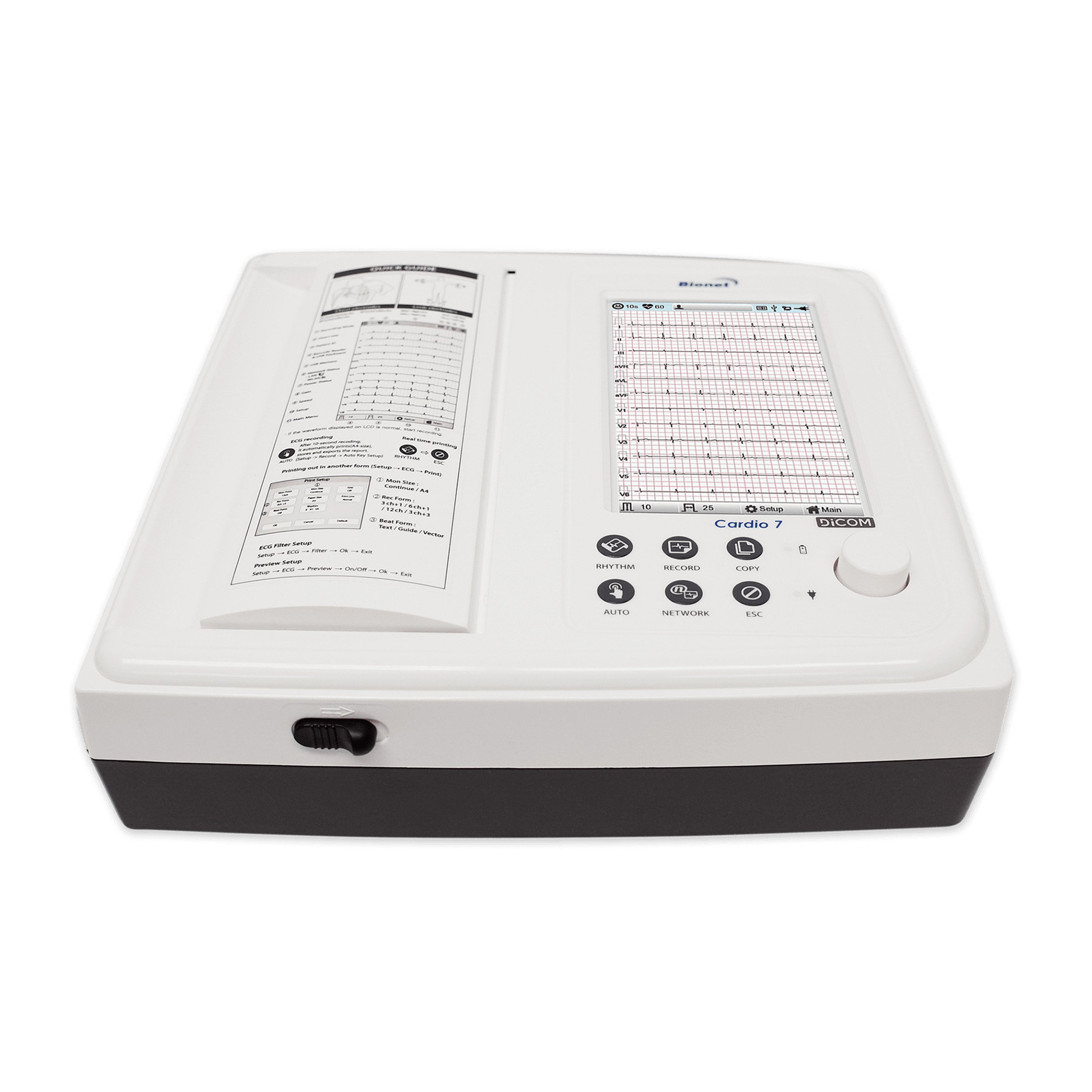

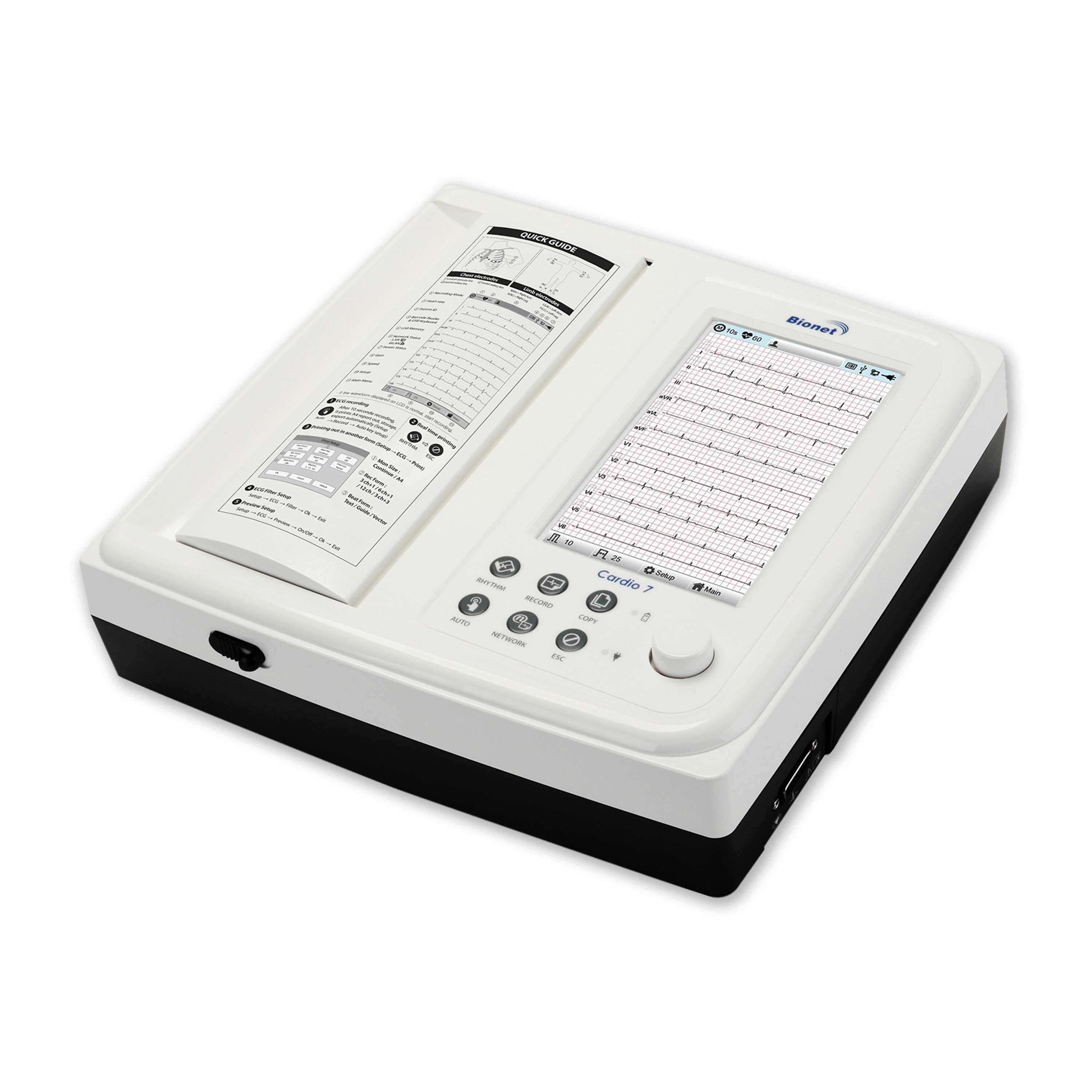

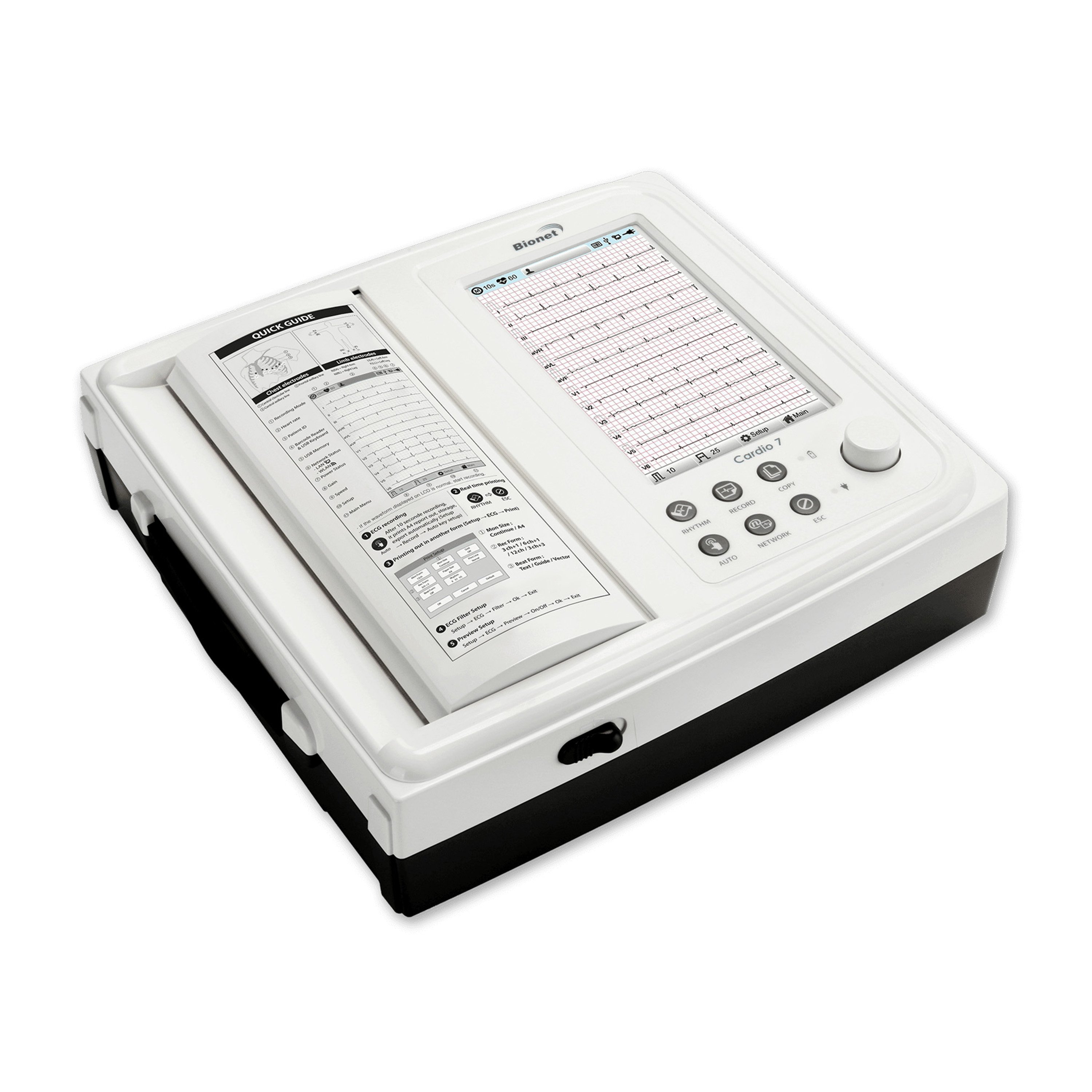

Bionet Cardio-7B 12-Channel Interpretive ECG with 7" Touch Screen and WiFi

The Bionet Cardio-7B 12-Channel Interpretive ECG with 7" Touch Screen and WiFi is a reliable, interpretive touch screen electrocardiogram (ECG/EKG) machine.

Features:

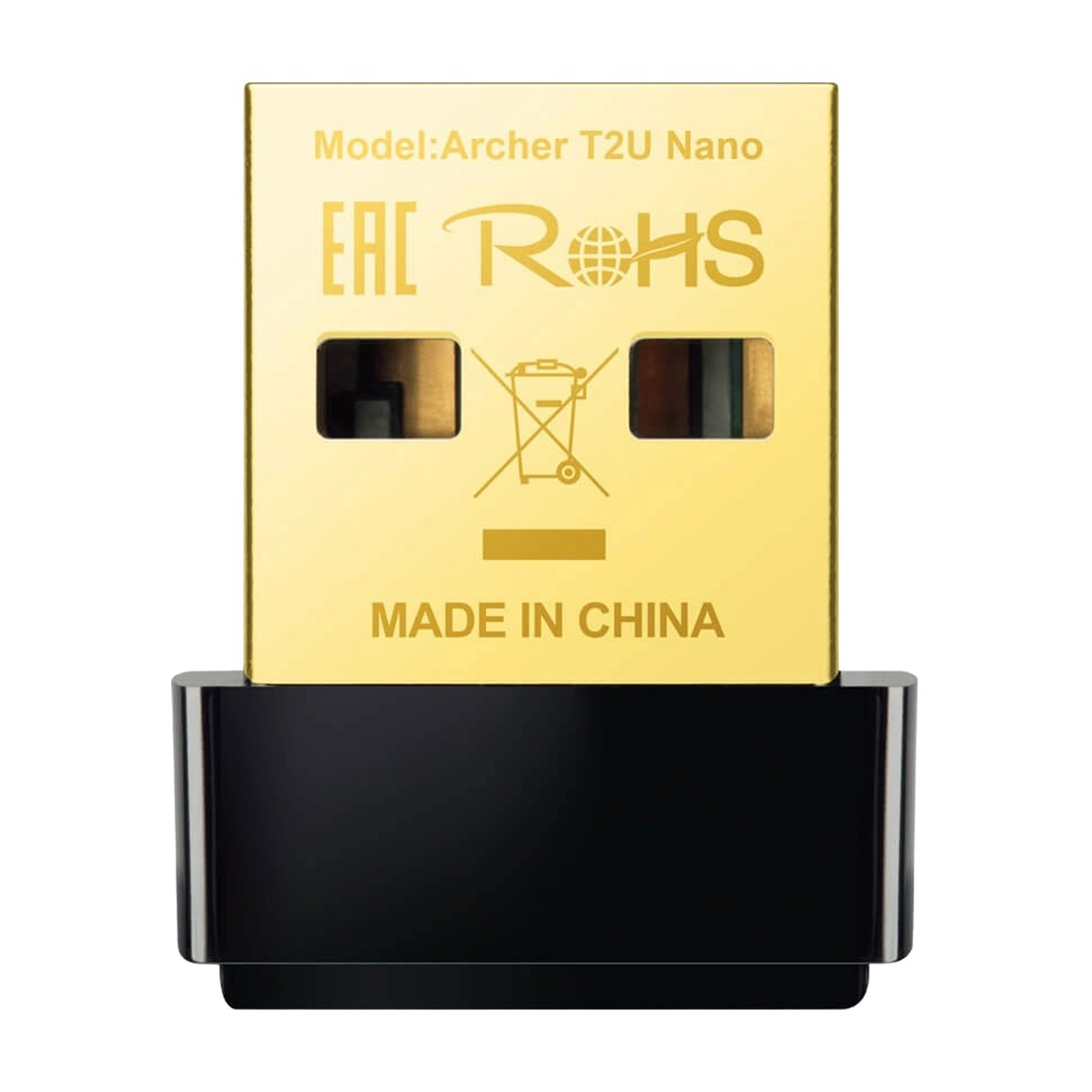

• 7" TFT LCD touch screen with Wi-Fi
• QWERTY keyboard support
• Stores and displays the recent 5-minute full-channel ECG
• Prints multi-channel ECG reports (12/6/3 or 12, 6, 3 formats)
• Stands out for its advanced technology, high functionality, ease of use, and an unbeatable price/performance ratio
• Maximized Ease of Use
  • Combines menu-guided touch screen technology with a convenient rotary key and buttons to maximize ease of use
  • A USB barcode reader and keyboard can be attached through USB ports
• Built-In Memory and Supports USB Flash Drive
  • Stores up to 200 ECG records in internal flash memory
  • Saved ECGs can be converted into multiple standard file formats: JPG, PDF, XML, MFER, and DCM
  • Supports export of ECG files to an external USB flash drive
• EMR support
  • Sends ECG data to PC using BMS-Plus Windows-based software via LAN or Wi-Fi connection
  • Supports DICOM 3.0 protocol for retrieving worklists from PACS systems
  • Enables saving of ECG images directly to PACS via DICOM integration
  • Allows transfer of stored ECG data from Cardio7-S to PC using a USB flash drive
• Clinically Important Simultaneous 12 Lead Acquisition

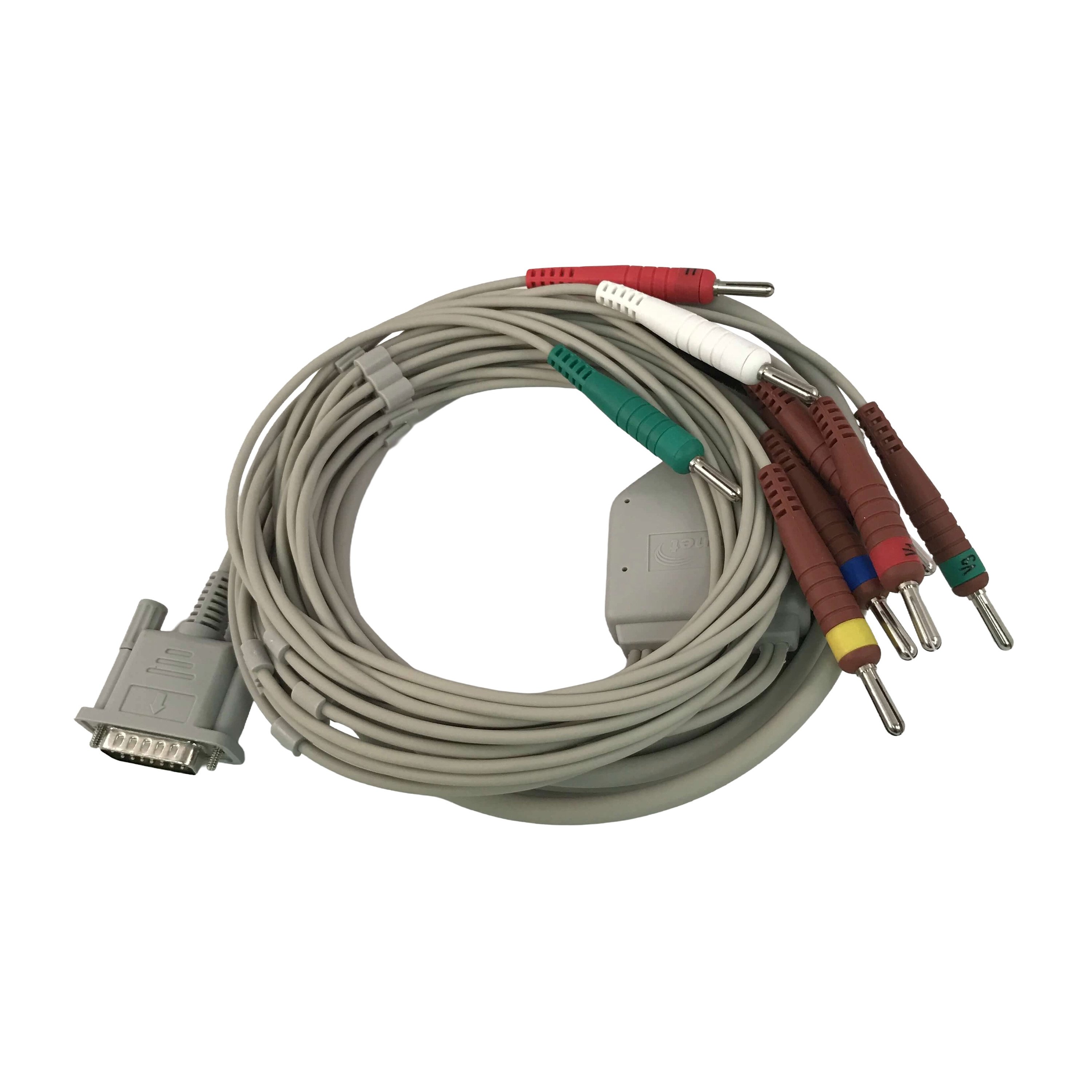

  • Acquires 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12-channel printout with analysis
• Full Disclosure Function
  • Stores and shows the recent 5-minute full channel ECG to print out the missed abnormal ECG waveforms
• Enhanced Interpretation
  • Printout offers detailed interpretation information in text/guide/vector report formats to aid in diagnosis
  • Provides multiple report formats:
    • 12 channel
    • 6 channel + 1 rhythm
    • 3 channel + 1 rhythm
  • Supports pediatric interpretation
• Long-Term Recording & Automatic Arrhythmia Detection
  • Provides one-channel long-term recording options (1, 3, 5, and 10 minutes)
  • Includes arrhythmia detection functionality
  • Supports Heart Rate Variability (HRV) analysis

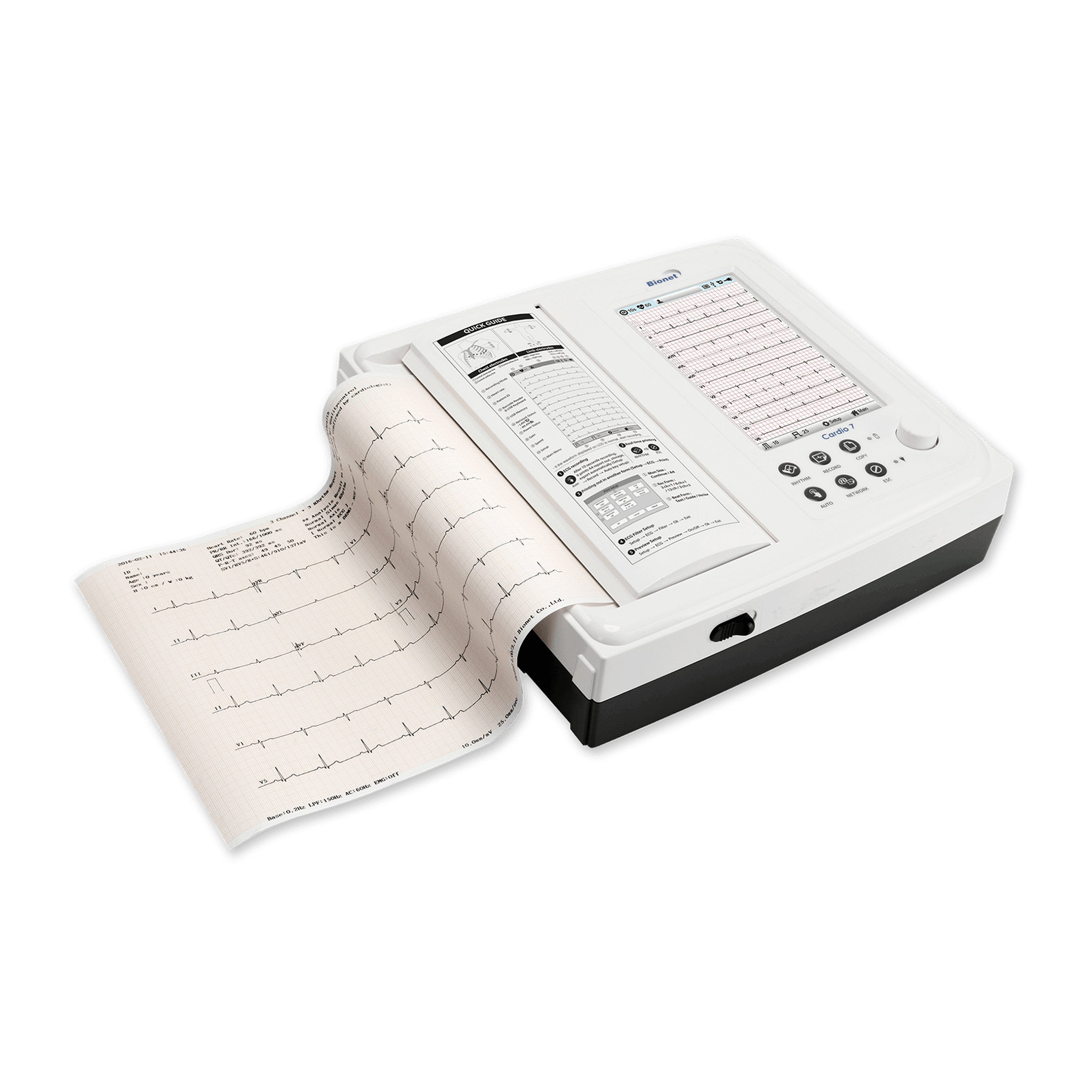

• A4 Full Size Paper

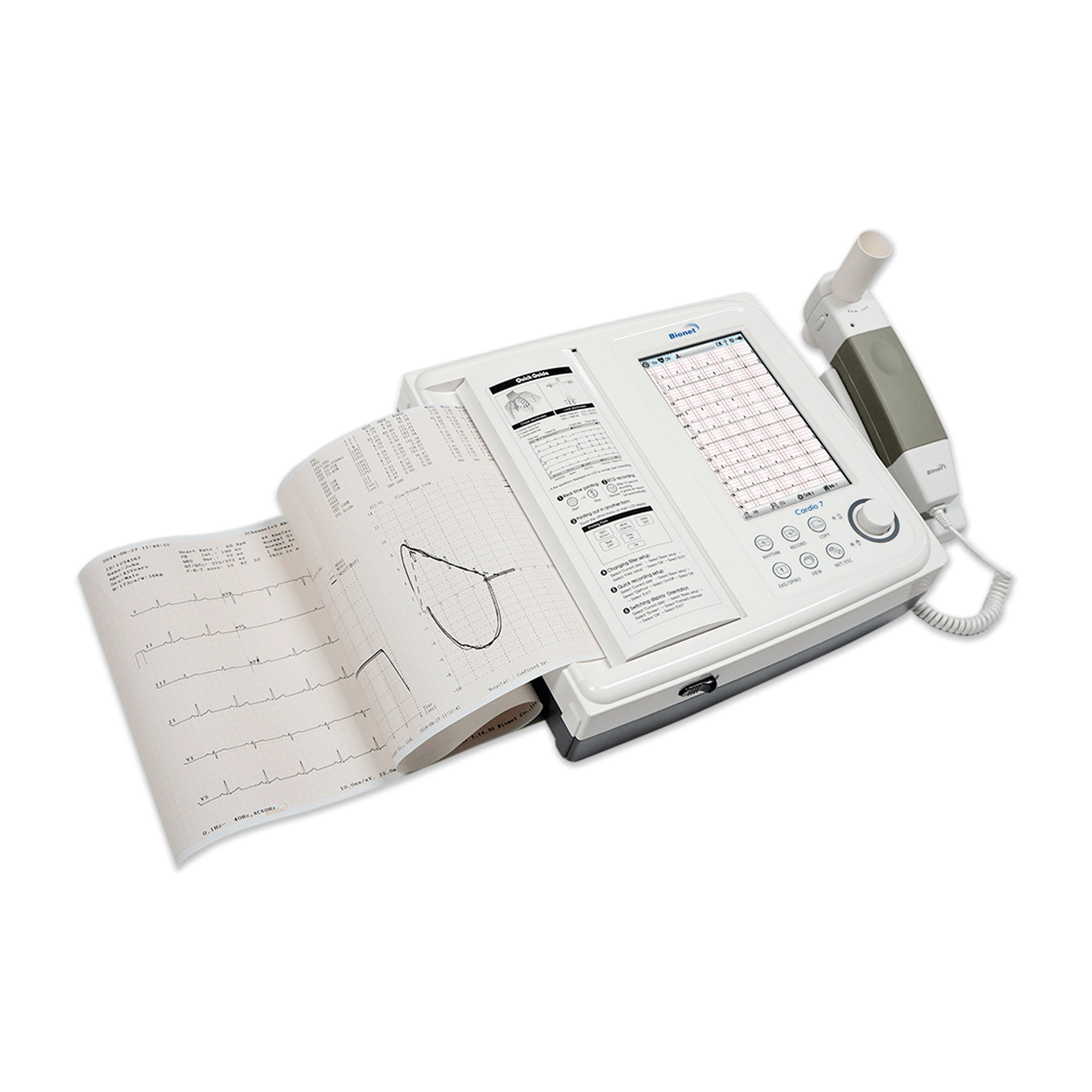

  • Produces printouts in 1, 3, 6, and 12 channel formats and FVC/SVC/MVV test formats
  • Improve readability and make it easier to file in the patient chart
• BMS-Plus - ECG Filing System
  • Software program that enables CardioCare 2000 to interface with Windows-based computers via LAN
  • ECG data is saved in either Bionet’s proprietary file format (.ecg), JPEG, or PDF
  • JPEG format ensures compatibility with most EMR systems
  • Displays real-time ECG data on-screen
  • Instantly performs a full set of measurements and offers diagnostic aid
  • Can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper
• Optional DICOM 3.0 PACS connectivity

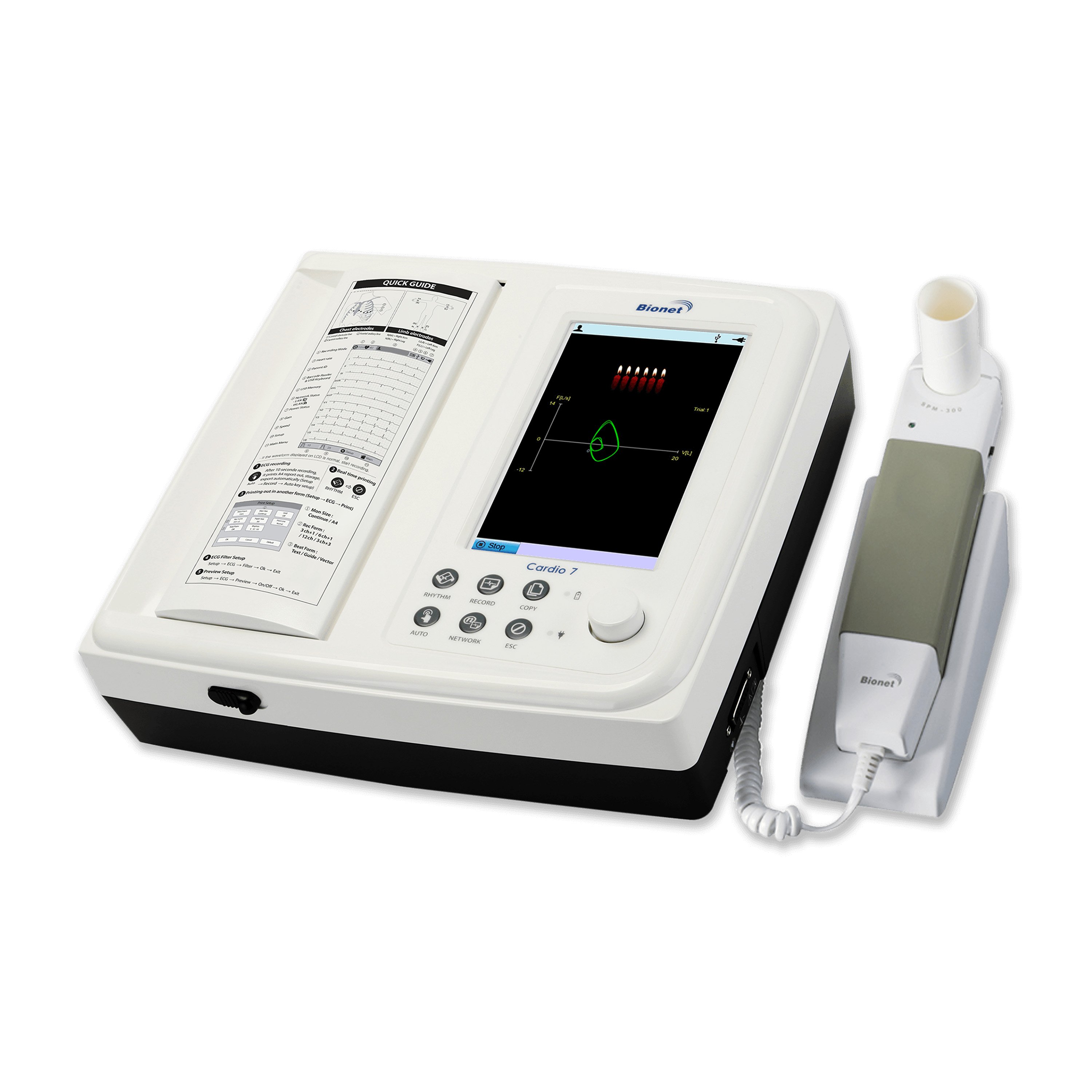

• Pulmonary Function Test (Cardio-7BS Only)
  • Provides pulmonary function tests (PFT), including: FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Ventilation)
  • Supports pre- and post-bronchodilator comparison
  • Uses a disposable mouthpiece, eliminating the need for cleaning and sterilization

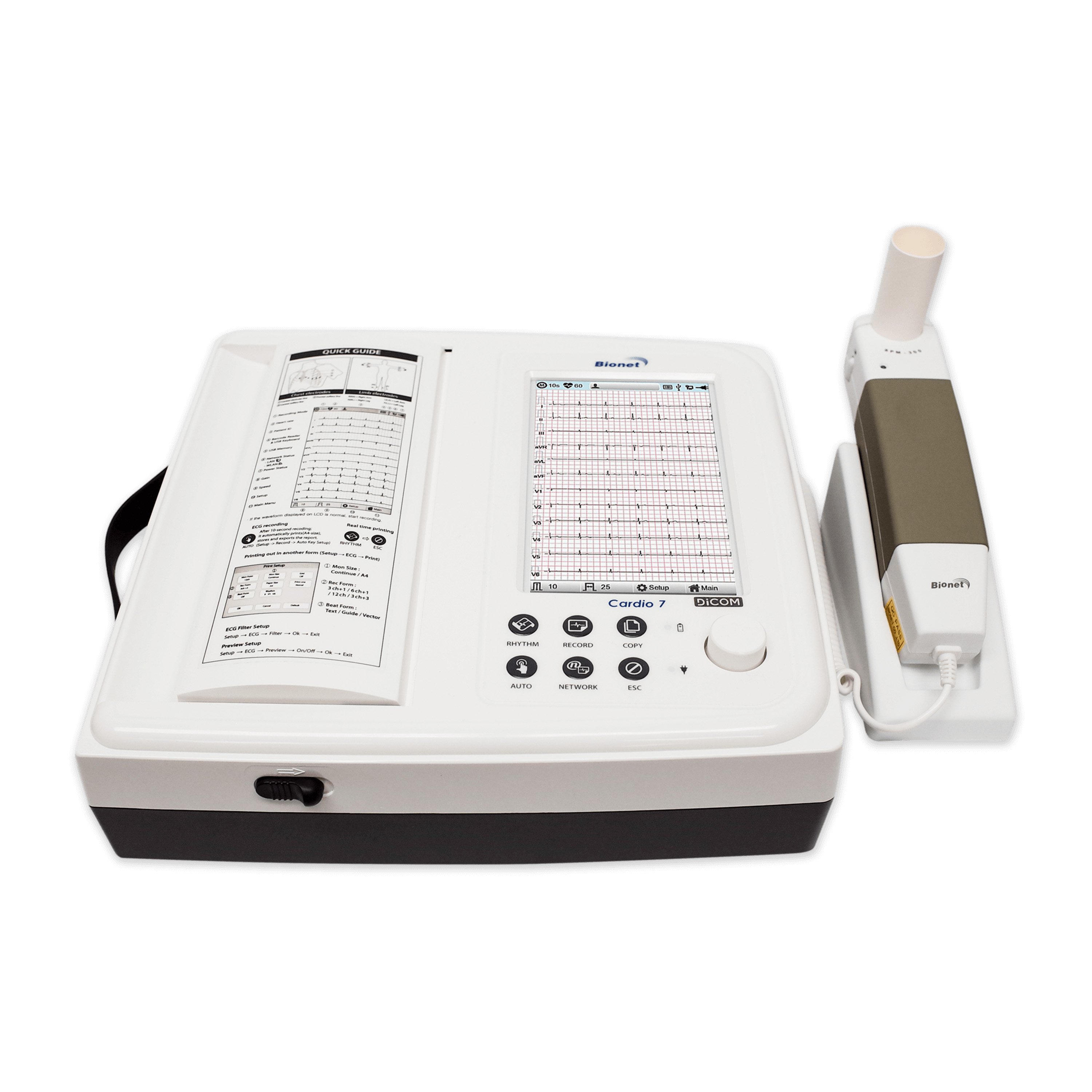

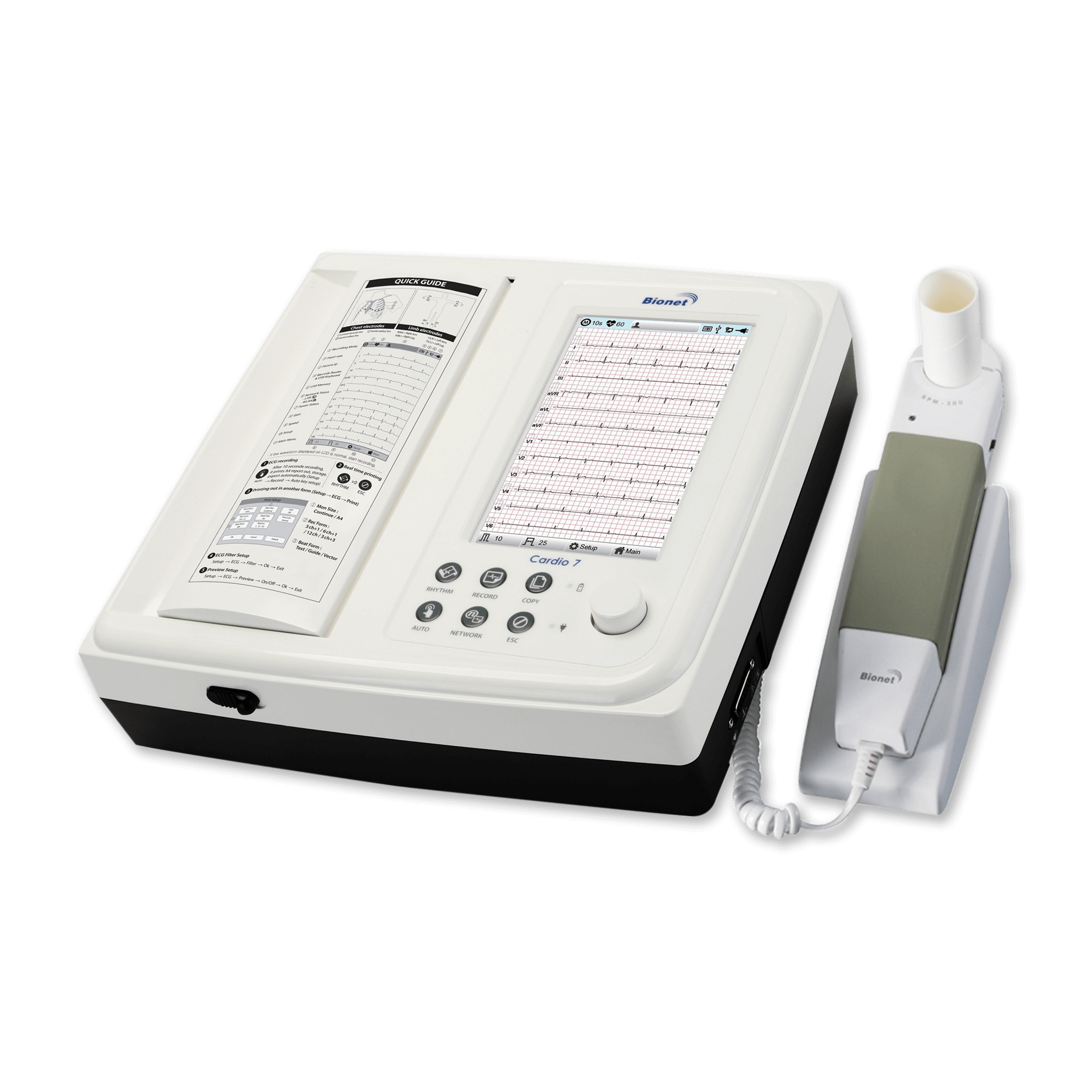

• Available in two options: ECG only (Cardio-7B) or ECG and Spirometer (Cardio-7BS)
• Overall Dimensions:
  • Cardio-7B: 11.81" W x 4.84" D x 11.77" H
  • Cardio-7BS: 14" W x 6.50" D x 11.77" H
• Actual Product Weight:
  • Cardio-7B: 8.82 lbs
  • Cardio-7BS: 9.37 lbs
• Warranty: 3 Years

Technical Specifications:

Electrocardiograph ECG / EKG

• ECG Leads: Simultaneous 12-Channel ECG acquisition
• Recording Modes:
  • 3CH+1RHY
  • 3CH+3RHY
  • 6CH+1RHY
  • 12CH
  • 1-Channel Long-time Recording (1, 3, 5, 10 mins)
  • Special Reports (Text, Guide, Vector)
• Gain: 2.5, 5, 10, 20, Auto (I∼aVF: 10 mm/mV, V1∼V6: 5 mm/mV)
• Printing Speed: 5, 12.5, 25, 50, 100 mm/sec
• Sampling Rate: 2,000 samples per second
•  Filters:
  • AC: 50/60 Hz, -20 dB or better
  • Muscle 25∼35 Hz, -3 dB or better
  • Baseline Drift: 0.05, 0.1, 0.2 Hz, -3 dB or better
  • Low Pass Filter: Off, 40 Hz, 100 Hz, 150 Hz
• Patient Data:
  • ID
  • Name
  • Age
  • Gender
  • Height
  • Weight
  • Race
  • Smoking Status
  • Department
  • Room Number
  • Study Description
  • Accession No.
  • Referring Physician
• Basic Measurements:
  • Heart Rate (30∼300 bpm, ± 3 bpm)
  • PR Interval
  • QRS Duration
  • QT/QTc Interval
  • P-R-T Axis
• Electrical:

  • Internal Noise: 20 µV (p-p) max
  • Input Impedance: ≥ 50 MΩ
  • Input Voltage Range: ± 5 mV
  • CMRR: > 105 dB
  • DC Offset Voltage: ≥ ± 400 mV
  • Patient leakage current: < 10 µA
  • Frequency Response: 0.05∼200 Hz (within -3 dB)
  • Isolated, defibrillation, and ESU protected
• Signal Quality Control:
  • Pacemaker detection
  • Lead fault detection
  • Signal saturation detection
• Display:
  • 7" color TFT wide display (800 × 480 resolution)
  •  Heart Rate (HR)
  • ID
  • Date
  • AC or battery state
  • Sensitivity
  • Speed
  • Number of saved data
  • Printing form
  • Rhythm lead
• User Interface
  • Touch screen
  • Hot key
  • Barcode scanner
  • USB keyboard
• Printing and Resolution:

  • Thermal Print Head
  • Thermal roll paper
  • Report Paper
    • A4: 8.30" W x 11.80" L
    • Letter: 8.50" W x 11" L
  • Resolution:
    • Vertical: 8 dots/mm
    • Horizontal: 16 dots/mm (0.125 mm pitch)

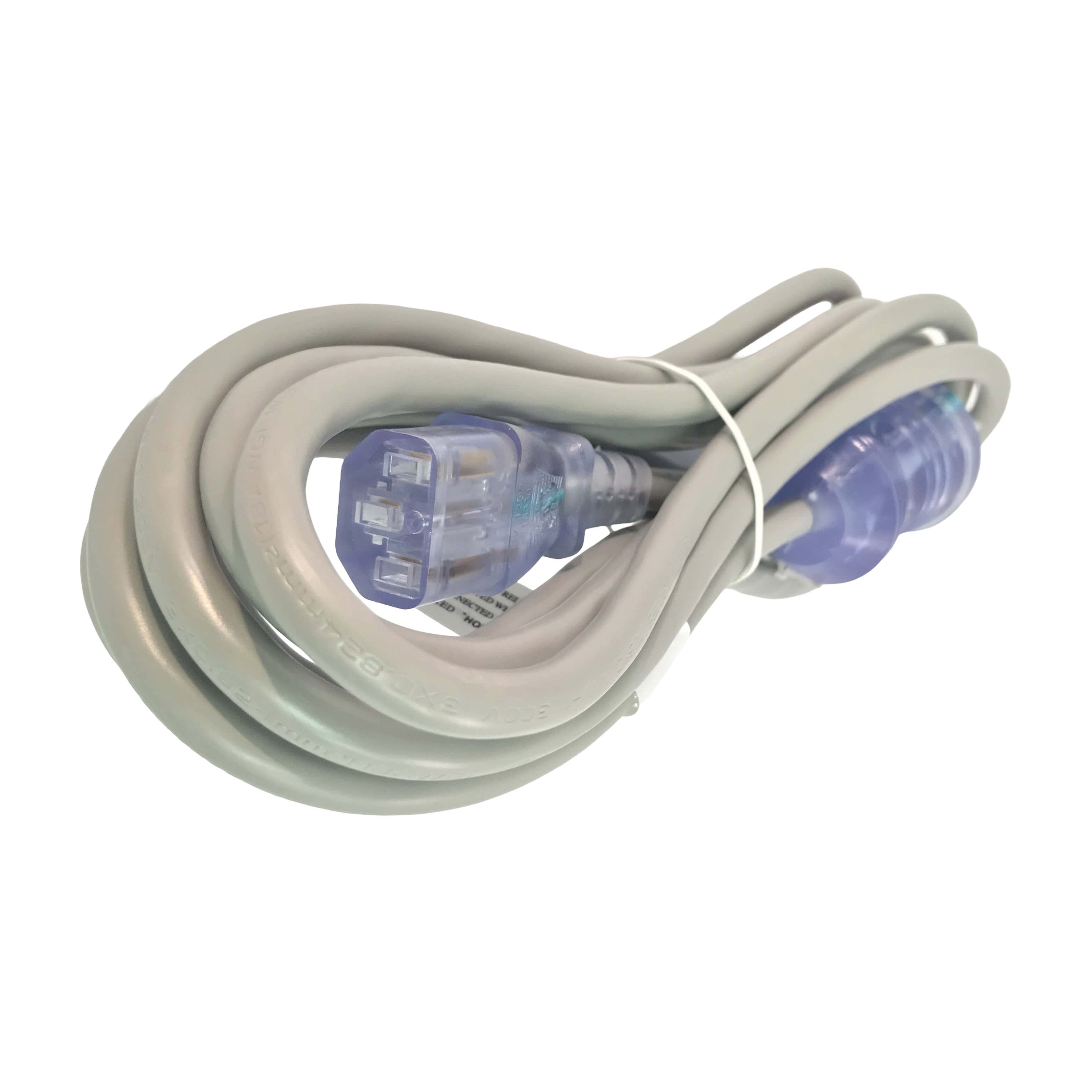

• Power:
  • Input:
    • 100~240 VAC
    • 1.5~0.75 A
    • 50/60 Hz
  • Output:
    • 15 VDC
    • 4.20 A
• Battery Type:
  • Rechargeable Lithium-ion
  • Voltage: 10.8 V
  • Capacity: 6500 mAh
  • Up to 6 hours of continuous operation without printing
  • Approximately 3 hours for 200 ECG printouts
• Communication:
  • RS232
  • LAN
  • WiFi
  • USB flash drive
  • USB barcode scanner
• Safety Conformity:
  • Class I
  • Type CF
  • CE
  • FDA
  • KFDA
  • CFDA
  • NCC
• Environment:

  • Operating Humidity: 30% to 85%
  • Operating Temperature: 10°C to 40°C
  • Atmospheric Pressure: 70 KPa to 106 KPa

*Spirometer (Cardio-7BS Only)

• Measuring Values:
  • FVC: FVC, FEV 1.0, FEV 1/FVC, FEF 0.2-1.2L, FEF 25-75%, FEF 75-85%, PEF, FEF 25%, FEF 50%, FEF 75%, FIVC, FEV6, PEFT, FET 100%
  • SVC: SVC, ERV, IRV, TV, EC
  • MVV: MVV, FB, TV
• Presentation:

  • Flow Volume Loop
  • MVV: MVV, FB, TV
  • Measurement Values Table
• Measuring Range:

  • Flow: 0 to ± 14 L/s
  • Volume: 0 to ± 12 L
• Measuring Method: Differential Pressure Method
• Prediction Equation: Morris-Polgar, ECCS-Quanjer, Knudson-ITS, Pereira, Korea CJK
• Sample Rate: 200 samples per second
• Flow Impedance: < 0.2 mbar s/L at 12 L/s
• Measuring Accuracy: Complies with ATS (American Thoracic Society)*
  • Environment:

    • Ambient Temperature: 15°C to 40°C (59°F to 104°F)
    • Relative Humidity: 10% to 90% (Non-Condensing)
    • Atmospheric Pressure: 700 hPa to 1060 hPa

*Based upon the guidelines from the American Thoracic Society (ATS) and the European Respiratory Society (ERS), it is highly recommended to calibrate the SpiroCare at least once a day with a single discharge of the Bionet 3-liter calibration syringe (sold separately) to ensure accurate calibration. The printer paper is not included.

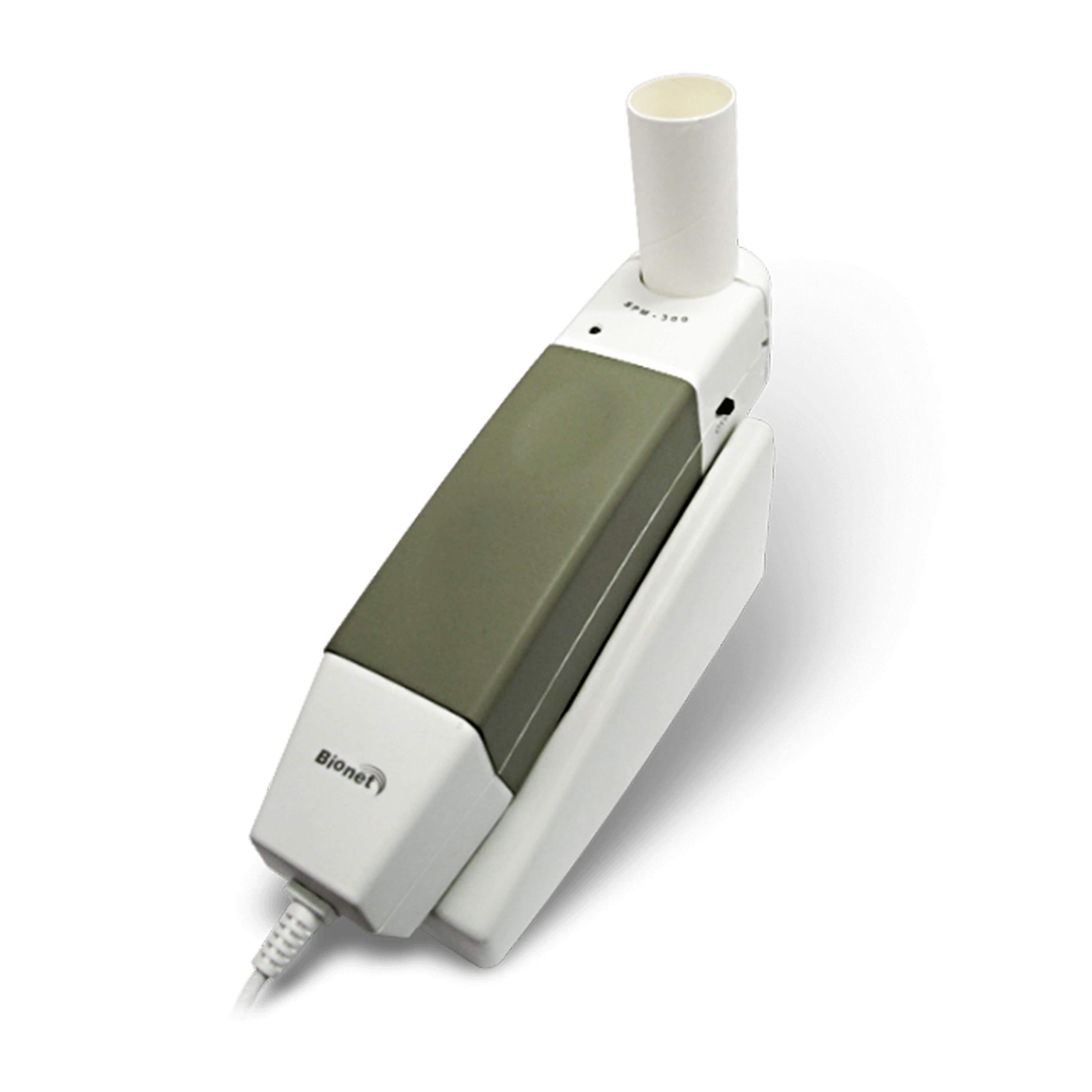

Please note: The Spirometer sensor, (100) disposable mouthpieces, nose clip, mouthpiece adapter, and handle dock are included only with the Cardio-7BS.
