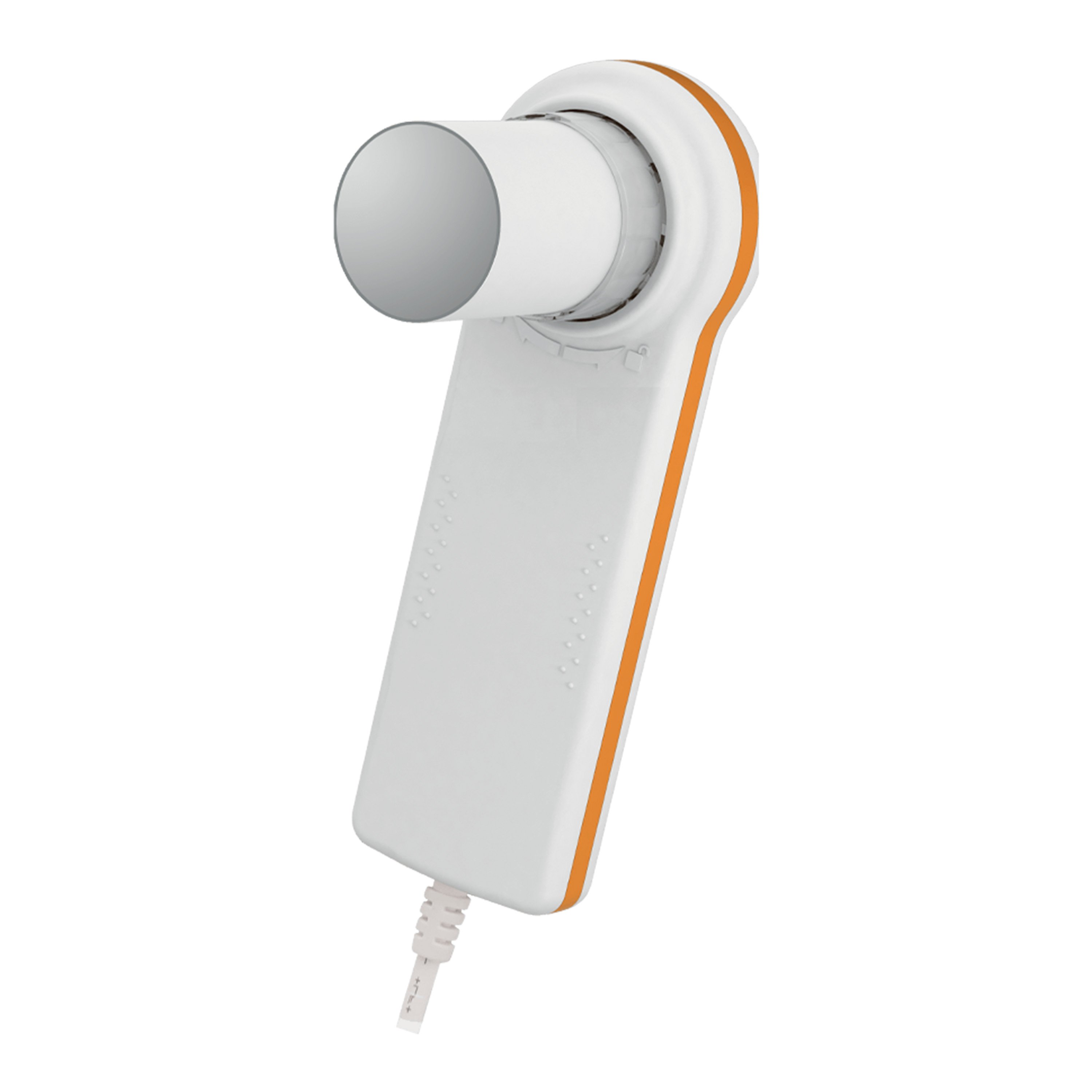

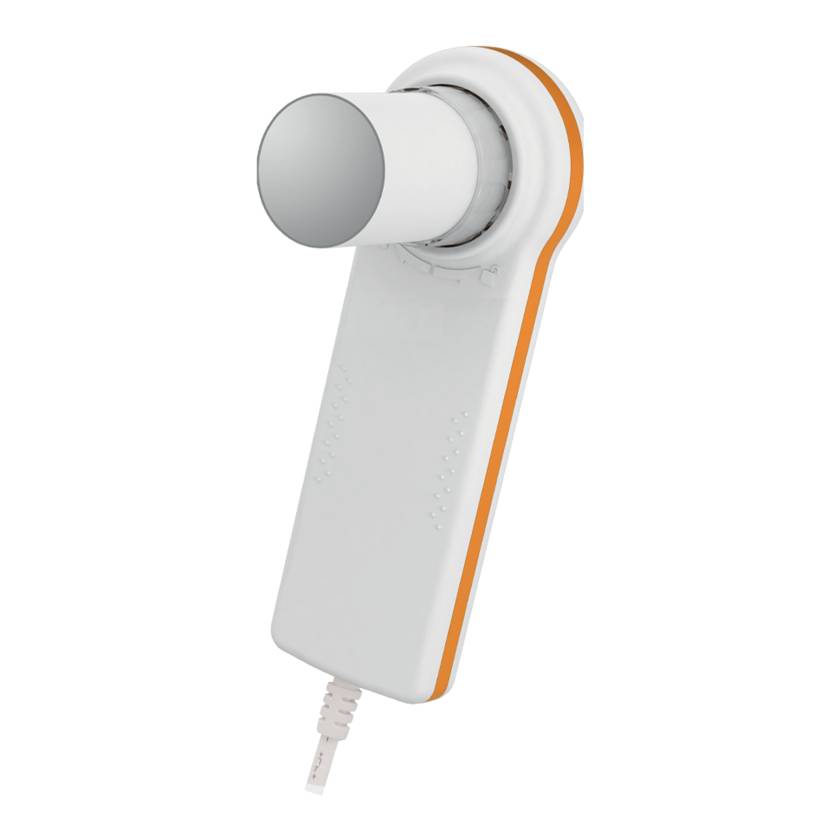

MIR Minispir USB Spirometer

The MIR Minispir USB Spirometer is a lightweight, compact USB spirometer that offers a practical and economical plug-and-play solution for high-quality, real-time spirometry with virtually no maintenance required.

Features:

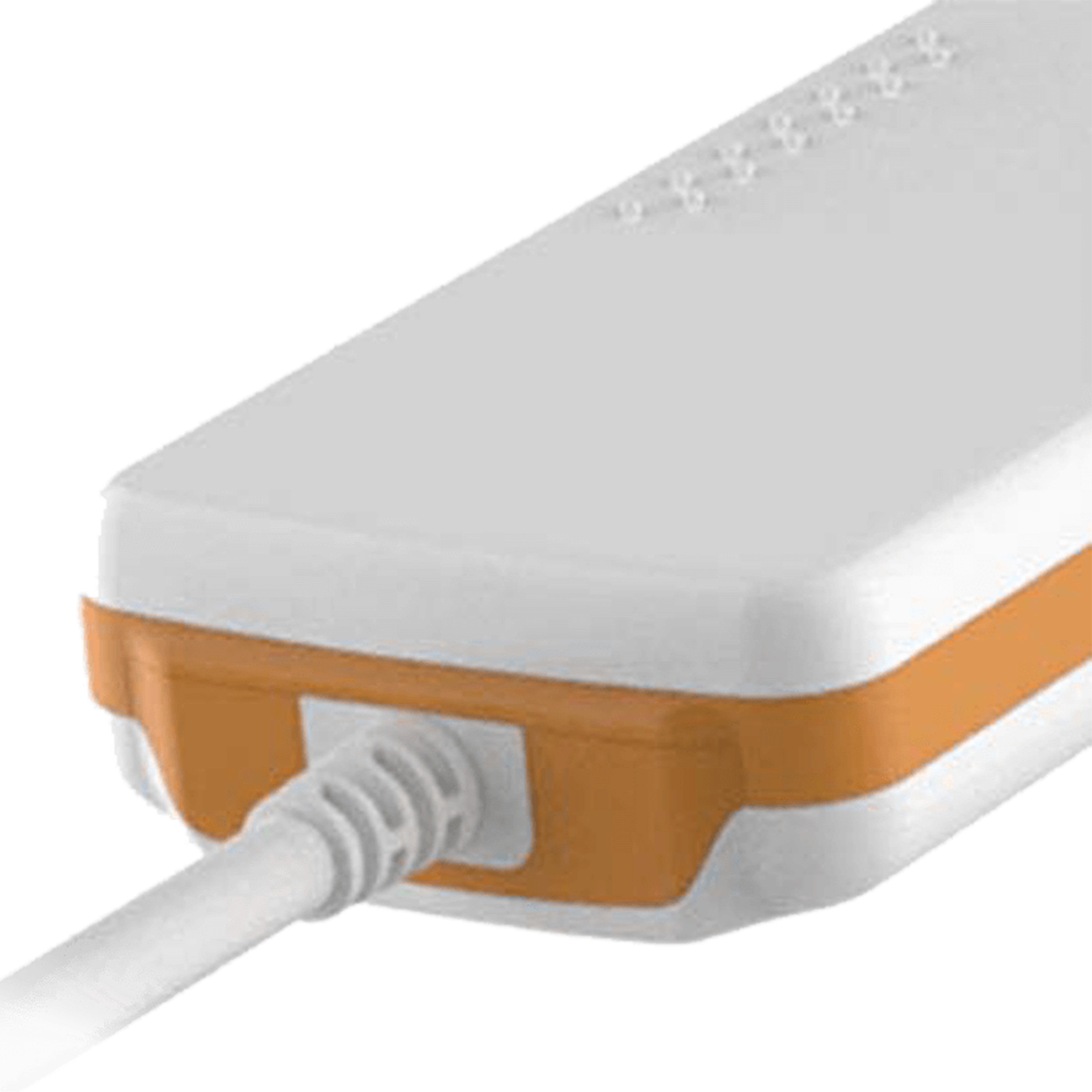

• Plug and Play: Device powered via integrated USB cable, without screen, without internal memory, and with direct data recording on MIR Spiro Software
• Integrated Temperature Sensor: Automatic Body Temperature and Pressure, Saturated (BTPS) conversion
• Pediatric Incentive: Real-time animation on the PC using MIR Spiro Software to improve patient compliance during the test
• Real-Time Testing: Tests, flow/volume curves, and volume/time curves displayed on the PC via MIR Spiro Software
• Wide Selection of Predicted Sets and Values on the PC:
  • Predicted Sets: Including GLI, Knudson, NHanse, Zapletal
  • Predicted Values: Including comparison %Pred, Z-score, and LLN
• EMR/EHR Connectivity: Integration via MIR Spiro Software with EMR/EHR (in HL7, GDT, FHIR, and Exchange Protocol)
• Software Compatibility: Compatible with Winspiro PRO and MIR Spiro for Windows or Mac-based software solutions in spirometry
• Additional Prevention During COVID-19: Compatible with the use of disposable in-line filters as recommended by the ERS
• Compatible Turbine Flowmeters (Sold Separately):
  • MIR FlowMIR® Disposable Turbine Flowmeter with Mouthpiece
  • MIR FlowMIR® Disposable Turbine Flowmeter with VBMax™ Filter Mouthpiece
  • MIR Reusable Turbine Flowmeter
• Comes Standard With:
  • 1-Year Code for MIR Spiro Platinum
  • 1 USB Cable
  • 1 Nose Clip
  • 1 Carrying Case

Technical Specifications:

• Supply Voltage: 5 V DC via USB Connection
• Nominal Electrical Power: 0.25 W
• Nominal Input Current: 50 mA Maximum
• Backup Battery Voltage: Absent
• Connectivity: USB 2.0
• Display: Absent
• Degree of Protection Against Water Penetration: IPX1
• Electrical Safety Specifications:
  • Safety Class: Class II Device
  • Applied Part: Type BF Device
• Terms of Use: Device for Continuous Use
• Operating Conditions:
  • Temperature: 10°C to 40°C
  • Humidity: 10% to 95% RH
• PC Software: MIR Spiro and Winspiro PRO
• Memory Capacity: PC Software Database
• Spirometry Specifications:
  • Sensor: Two-Way Digital Turbine
  • Flow Range: ±16 L/s
  • Volume Range: 10 L
  • Volume Accuracy: ±2.5% or 50 mL
  • Flow Accuracy: ±5% or 200 mL/s
  • Dynamic Resistance: < 0.5 cm H2O/L/s
  • Temperature Sensor: Semiconductor (0°C to 45°C)
  • Available Tests: FVC, VC, IVC, MVV, PRE-POST
  • Measured Parameters: FVC, FEV1, FEV1/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, TPEF, FEF25, FEF50, FEF75, FEF2575, FEF7585, FET, FEV05, FEV05%, FEV075, FEV075%, FEV2, FEV2%, ELA, BEV, FIVC, FIV1, PIF, FIV1/FIVC%, PIF, IRV, VC, IVC, EVC, IC, EI, RFEV, ERV, FIVC, FIV1/FIVC, FEV1/VC%, FIF25, FIF50,FIF75, R50, VT, VE, RR, tI, tE, ti/tTOT, VT/tI, MVV, MVV cal, MV
• Certifications: ATS/ERS 2005 + 2019 Update, ISO 23747:2015, ISO 26782:2009
• Mouthpiece Diameter: Ø 1.18" (30 mm)
• Overall Dimensions: 5.59" L x 1.96" W x 1.02" H
• Actual Product Weight: 0.14 lb
• Warranty: 3 Years

Please note: The turbine flowmeters are sold separately.
