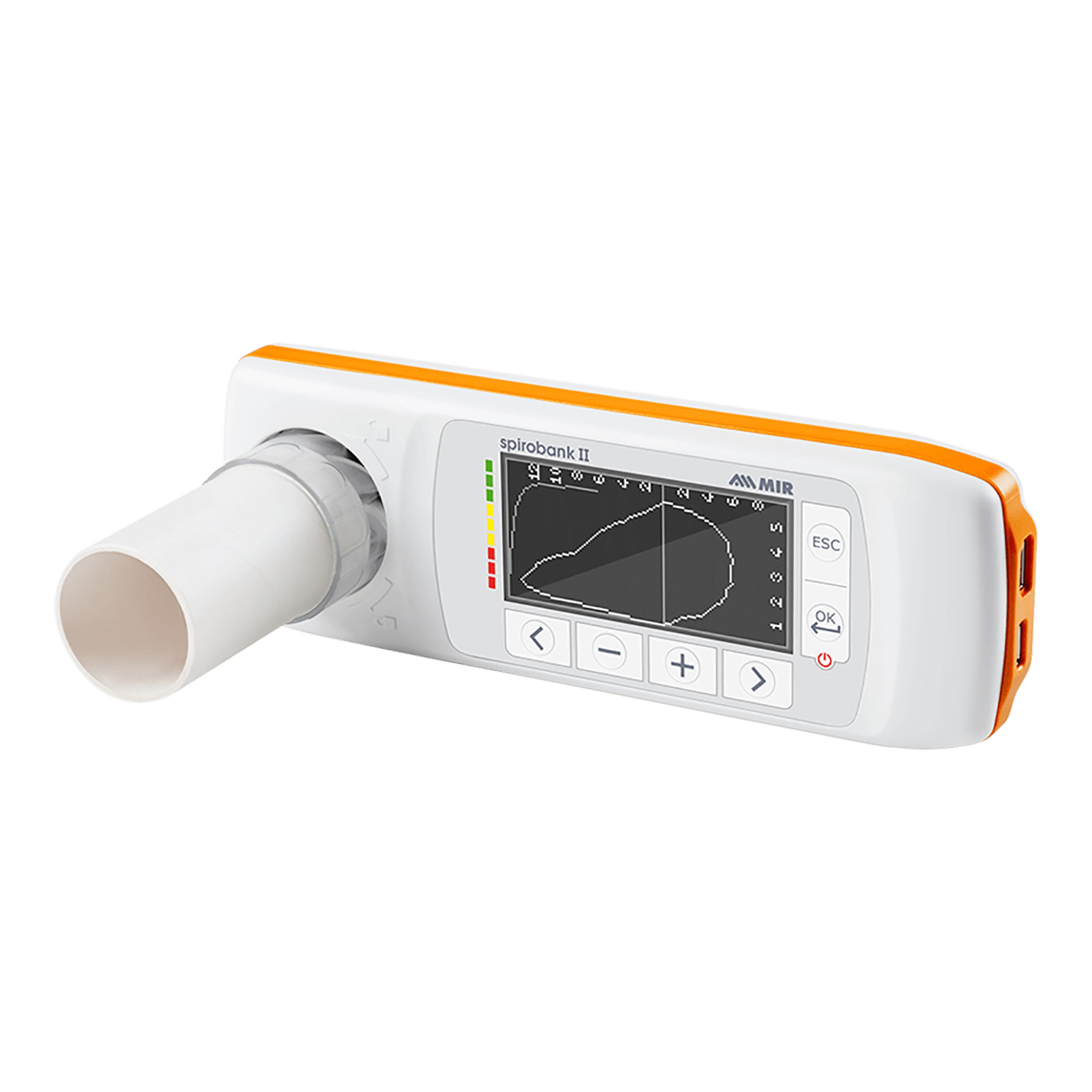

MIR Spirobank II Smart Portable Spirometer, Bluetooth and USB

The MIR Spirobank II Smart Portable Spirometer, Bluetooth and USB, is a versatile portable spirometer with an oximetry option and offers three usage modes in one device.

Features:

• Three Usage Modes:
  • Stand-Alone: For maximum freedom of movement
  • PC via USB 2.0 (MIR Spiro Software and Winspiro PRO): For advanced integration and in-depth data visualization
  • Tablet (iOS or Android) via Bluetooth® 4.0 (MIR Spiro App): For intuitive and flexible interaction during spirometry procedures
• Display: Intuitive display with easy-to-use buttons
• Long-Lasting Battery: Rechargeable lithium-ion battery
• Integrated Temperature Sensor: Automatic Body Temperature and Pressure, Saturated (BTPS) conversion

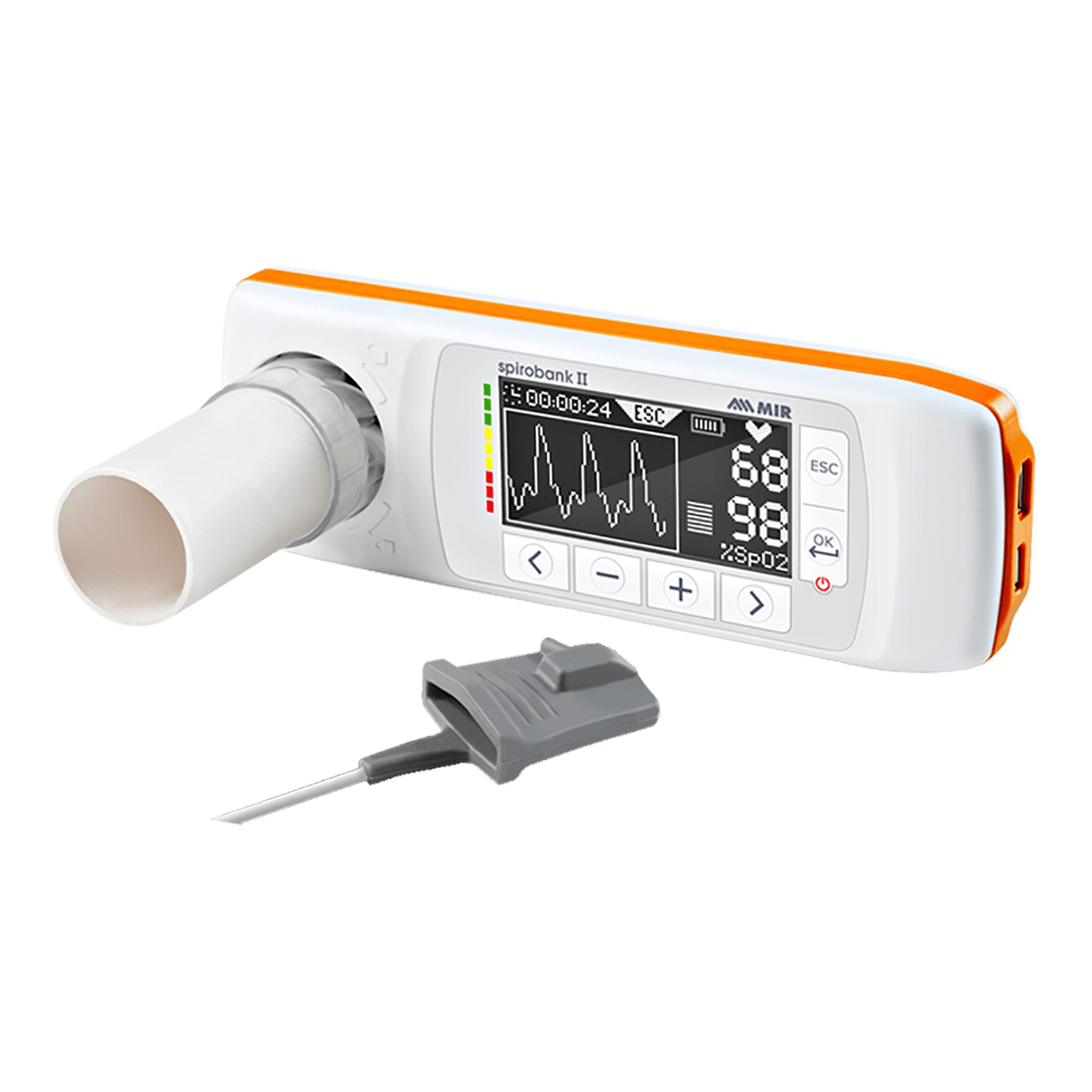

• Optional SpO2% Sensor: Oximetry sensor to detect blood oxygen saturation (Available in 911029 only)
• Large Internal Memory: Storage of up to 10,000 spirometric tests (For both 911028 and 911029) or 300 hours of oximetry (For 911029 only)
• Pediatric Incentive: Real-time animation, both on tablet and PC, to improve patient compliance during the test
• Real-Time Testing: Tests displayed on the device screen, tablet, and PC
• Traffic Light System: Integrated traffic light system for immediate test interpretation
• Wide Selection of Predicted Sets and Values: Including GLI and ERS, among others, directly on the device, tablet, and PC
• Virtual Assistant: A highly innovative virtual assistant available on the MIR Spiro App, which supports the operator before, during, and after the spirometry test
• Audible Feedback: Provides audible coaching or feedback to encourage patient effort
• EMR/EHR Connectivity: Integration via MIR Spiro Software and MIR Spiro App with EMR/EHR (in HL7, GDT, FHIR, and Exchange Protocol)
• Software Compatibility: Compatible with Winspiro PRO, MIR Spiro, and MIR Spiro App for Windows computer, Mac computer, iPad, iPad Mini, or Android tablet
• Additional Prevention During COVID-19: Compatible with the use of disposable in-line filters as recommended by the ERS
• Compatible Turbine Flowmeters (Sold Separately):
  • MIR FlowMIR® Disposable Turbine Flowmeter with Mouthpiece
  • MIR FlowMIR® Disposable Turbine Flowmeter with VBMax™ Filter Mouthpiece
  • MIR Reusable Turbine Flowmeter
  • MIR Reusable Turbine and Mouthpiece Replacement Kit for Spirobank II Smart
• Comes Standard With:
  • 1-Year Code for MIR Spiro Platinum
  • Rechargeable Batteries
  • 1 USB Cable
  • 1 Nose Clip
  • 1 Carrying Case
  • 1 Adult Oximetry Finger Sensor (For 911029 only)

Technical Specifications:

• Power Supply: 3.7 V Rechargeable Lithium-Ion Battery Pack
• Current: 1100 mAh
• Average Consumption: 20-30 mA (During Testing)
• Battery Charging using 110V Power Supply (Sold Separately):
  • Voltage: 5 V DC
  • Minimum Current: 500 mA
  • Connector: Micro USB Type B
  • Compliant with EN 60601-1
• Autonomy: 50 Hours
• Connectivity: USB 2.0, Bluetooth® 4.0
• Display: Monochrome LCD with 160x80 Pixel Resolution
• Keyboard: 6-Key Membrane
• Electrical Safety Specifications:
  • Safety Class: Internally Powered
  • Applied Part: Type BF Device
• Degree of Protection Against Water Penetration: IPX1
• Terms of Use: Device for Continuous Use
• Operating Conditions:
  • Temperature: 10°C to 40°C
  • Humidity: 10% to 95% RH
• Spirometry Specifications:
  • Sensor: Two-Way Digital Turbine
  • Flow Range: ±16 L/s
  • Volume Accuracy: ±2.5% or 50 mL
  • Flow Accuracy: ±5% or 200 mL/s
  • Dynamic Resistance: <0.5 cm H2O/L/s
  • Temperature Sensor: Semiconductor (0°C to 45°C)
  • Available Tests: FVC, VC, IVC, MVV, PRE-POST
  • Measured Parameters: FVC, FEV1, FEV1/FVC%, TPEF, FEV 0.5, FEV0.5/FVC%, FEV0.75, FEV0.75/FVC%, FEV2, FEV2/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85%, FET, Vext, ELA, EVOL, FIVC, FIV1, PIF, FIV1/FIVC%, FIF25, FIF50, FIF75, R50, IRV, VC, IVC, EVC, IC, ERV, FEV1/VC%, TV, VE, RR, tI, tE, tI/t-tot, TV/tI, MVV, MVV cal
  • Memory Capacity: More than 10,000 Tests
• Oximetry Specifications (For 911029 only):

  • Measurement Method: Red and Infrared Absorption
  • SpO2% Range: 0-99%
  • Accuracy of SpO2%: ±2% Between 70-99% SpO2
  • Average Number of Beats for SpO2% Calculation: 8 Beats
  • Cardiac Pulse Range: 30-300 BPM
  • Cardiac Pulse Accuracy: ±2 BPM or 2% (Whichever is Greater)
  • Mean Interval for Calculation of Heartbeat: 8 Seconds
  • Signal Quality Indication: 0-8 Segments on Screen
  • Test Available: Spot
  • Measured Parameters:
    • SpO2% (Min, Max, Average)
    • BPM (Min, Max, Average)
    • Test Duration
    • % Duration of Bradycardia (<40 BPM)
    • % Duration of Tachycardia (>120 BPM)
    • % Time with %SpO2 ≤ 90% (T90%, T89%)
  • Memory Capacity: About 300 Hours of Oximetry
• Certifications:
  • Spirometry: ATS/ERS 2005 + 2019 Update; ISO 23747:2015; ISO 26782:2009
  • Oximetry: ISO 80601-2-61:2017 (For 911029 only)
• Mouthpiece Diameter: Ø 1.18" (30 mm)
• Overall Dimensions: 6.30" L x 2.17" W x 0.98" H
• Actual Product Weight (Battery Pack Included): 0.31 lb
• Warranty: 3 Years

Please note: The tablet, turbine flowmeters, and power supply are not included.
