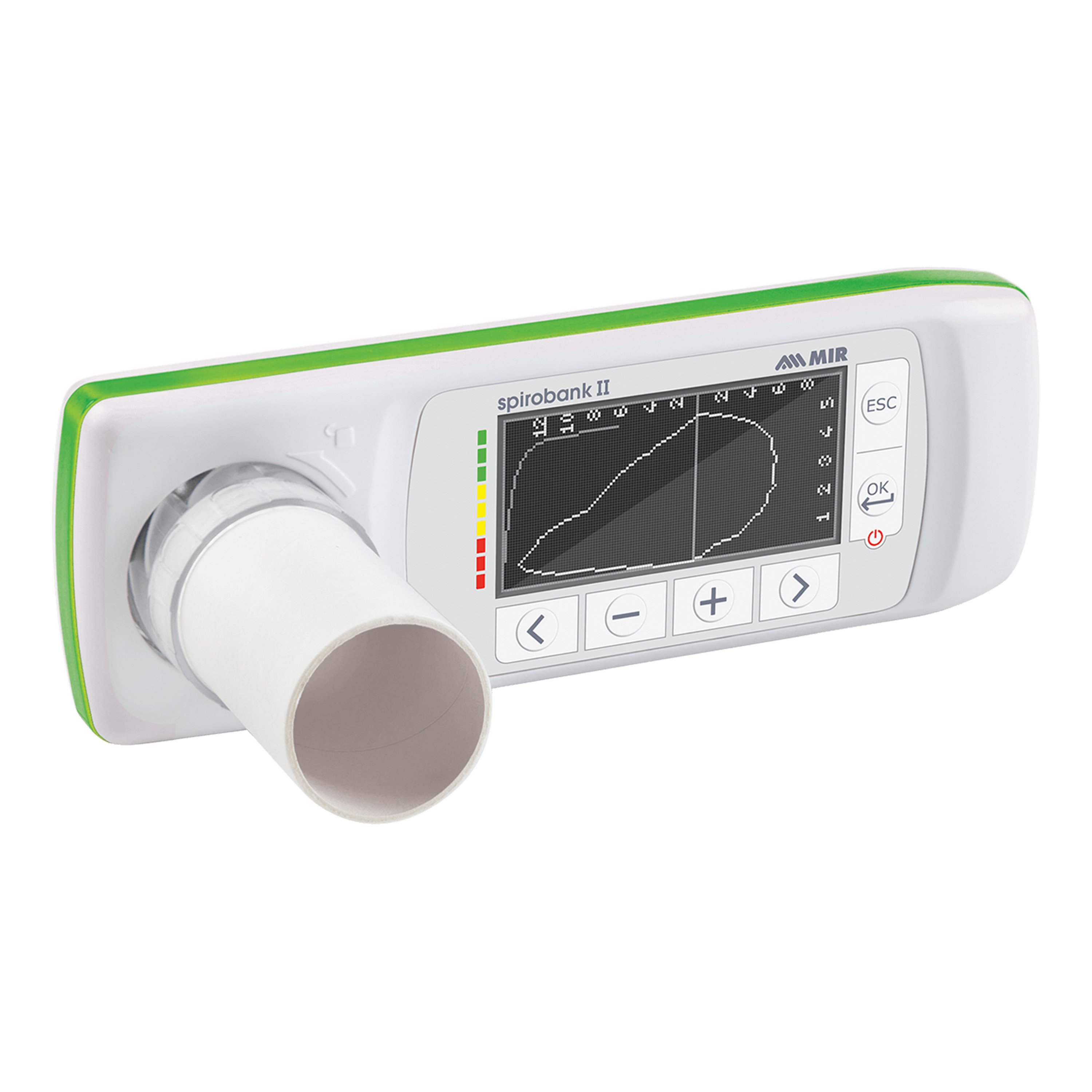

MIR Spirobank II Basic Portable Spirometer, USB Only

The MIR Spirobank II Basic Portable Spirometer, USB Only, is an easy-to-use portable spirometer that provides essential spirometry parameters. Ideal for basic spirometry screening in general practice, occupational medicine, and urgent care.

Features:

• Easy to Use for Outpatients: Ideal for pediatricians, family doctors, sports doctors, and screening
• Two Usage Modes:
  • Stand-Alone
  • PC via USB 2.0 (MIR Spiro Software and WinSpiro Pro)
• Display: Intuitive, backlit, high-resolution display with easy-to-use buttons, for on-screen results and curves preview
• Long-Lasting Battery: Rechargeable lithium-ion battery
• Integrated Temperature Sensor: Automatic Body Temperature and Pressure, Saturated (BTPS) conversion
• Pediatric Incentive: Real-time animation on the PC using MIR Spiro Software to improve patient compliance during the test
• Audible Feedback: Provides audible coaching or feedback to encourage patient effort
• Real-Time Testing: Tests displayed both on the device screen and on the PC via MIR Spiro Software
• Traffic Light System: Integrated traffic light system for immediate test interpretation
• Wide Selection of Predicted Sets and Values: Including GLI and ERS, among others, directly on the device and PC
• EMR/EHR Connectivity: Integration via MIR Spiro Software with EMR/EHR (in HL7, GDT, FHIR, and Exchange Protocol)
• Software Compatibility: Compatible with Winspiro PRO and MIR Spiro for Windows or Mac-based software solutions in spirometry
• Additional Prevention During COVID-19: Compatible with the use of disposable in-line filters as recommended by the ERS
• Compatible Turbine Flowmeters (Sold Separately):
  • MIR FlowMIR® Disposable Turbine Flowmeter with Mouthpiece
  • MIR FlowMIR® Disposable Turbine Flowmeter with VBMax™ Filter Mouthpiece
  • MIR Reusable Turbine Flowmeter
• Comes Standard With:
  • 1-Year Code for MIR Spiro Platinum
  • Rechargeable Battery Pack
  • Micro USB Cable
  • Carrying Case

Technical Specifications:

• Power Supply: 3.7 V Rechargeable Lithium-Ion Battery Pack
• Current: 1100 mAh
• Average Consumption: 20-30 mA (During Testing)
• Battery Charging using 110V Power Supply (Sold Separately):
  • Voltage: 5 V DC
  • Minimum Current: 500 mA
  • Input Current: 100-240 V AC
  • Connector: Micro USB Type B
  • Compliant with EN 60601-1
• Autonomy: 50 Hours
• Connectivity: USB 2.0
• Display: Monochrome LCD with 160x80 Pixel Resolution
• Keyboard: 6-Key Membrane
• Electrical Safety Specifications:
  • Safety Class: Internally Powered
  • Applied Part: Type BF Device
• Degree of Protection Against Water Penetration: IPX1
• Terms of Use: Device for Continuous Use
• Operating Conditions:
  • Temperature: 10°C to 40°C
  • Humidity: 10% to 95% RH
• Spirometry Specifications:
  • Sensor: Two-Way Digital Turbine
  • Flow Range: ±16 L/s
  • Volume Accuracy: ±2.5% or 50 mL
  • Flow Accuracy: ±5% or 200 mL/s
  • Dynamic Resistance: <0.5 cm H2O/L/s
  • Temperature Sensor: Semiconductor (0°C to 45°C)
  • Available Tests: FVC, VC, IVC, MVV, PRE-POST
  • Measured Parameters: FVC, VC, IVC, IC, ERV, FEV1, FEV1%, PEF, FEF 25-75, FET, EVOL, ELA
  • Memory Capacity: More than 10,000 Tests
  • Certifications: ATS/ERS 2005 + 2019 Update, ISO 23747:2015, ISO 26782:2009
• Mouthpiece Diameter: Ø 1.18" (30 mm)
• Overall Dimensions: 6.30" L x 2.17" W x 0.98" H
• Actual Product Weight (Battery Pack Included): 0.31 lb
• Warranty: 3 Years

Please note: The turbine flowmeters and power supply are sold separately.
