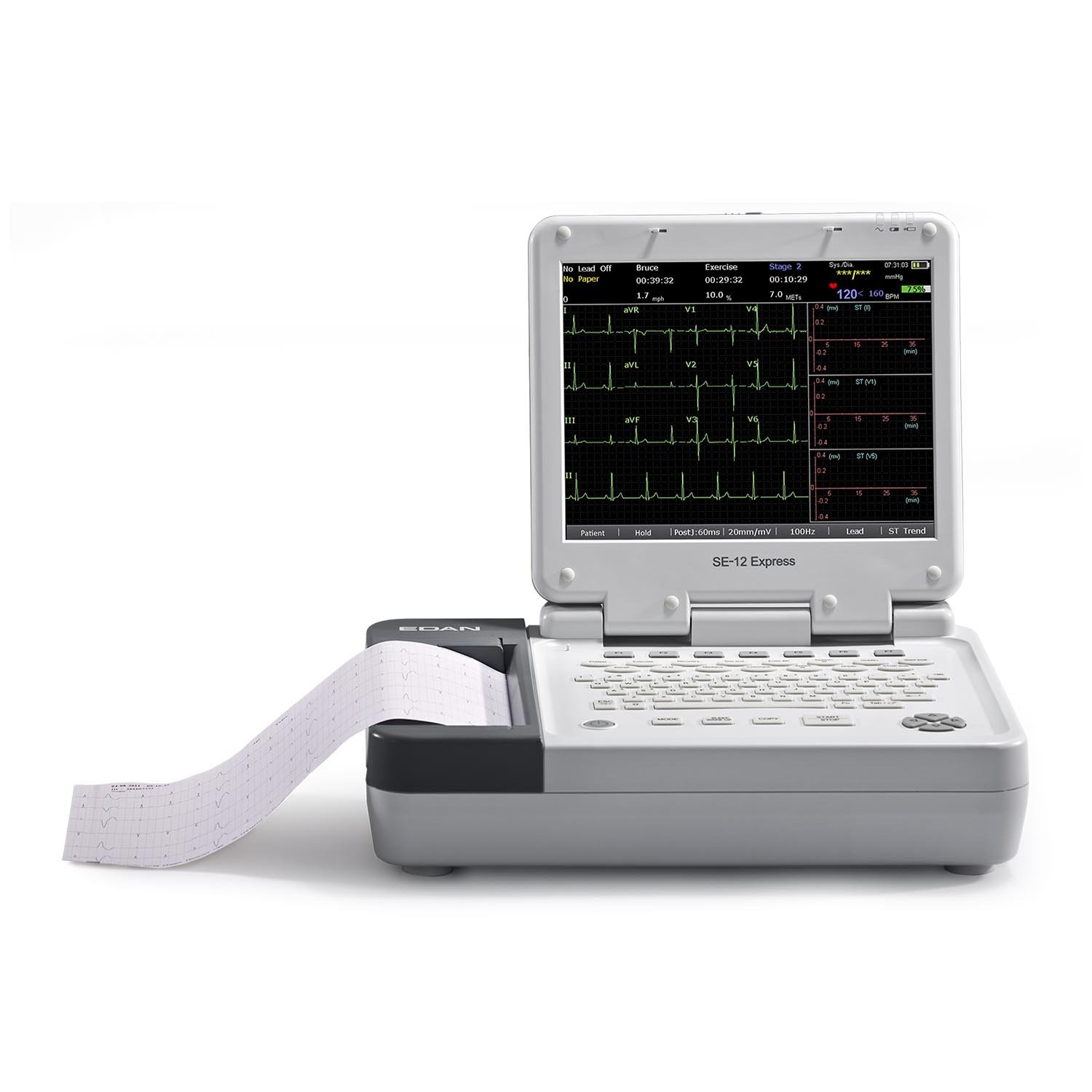

Edan SE-12 Express Laptop-Style 12-Channel ECG with 12.1" Touch Screen and WiFi

The Edan SE-12 Express Laptop-Style 12-Channel ECG with 12.1" Touch Screen and WiFi is a special system in the Edan ECG series with a full alphanumeric keyboard and shortcut function keys for stress tests, supporting both resting ECG and exercise ECGs, all in one.

Features:

• Offers both resting and stress solutions with high performance and reliable analysis
• One-touch operation with barcode scanner and wireless transmission enables streamlined workflow
• User-Friendly Design:
  • 12.1” High-Resolution Color Touch Screen with Grid Display
  • Alphanumeric Keyboard
  • Foldable Screen
• Streamlined Workflow:
  • One-touch operation with age and gender shortcuts
  • Supports barcode scanner to simplify workflow
• Accurate Clinical Performance:
  • Weak signal detection with the most advanced 24-bit A/D converter technology
  • Anti-noise technology with comprehensive filters and a high CMRR over 115 dB
  • 120s Real-time ECG waveform freezing and review to assist your diagnosis
  • Automatic measurements and interpretation tested by CSE/AHA/MIT database
  • Extend printing once arrhythmia is detected to further rhythm analysis
  • Integrated advanced ECG analysis: Vector ECG
• Flexible Printing Solutions:
  • Built-in high-resolution thermal recorder to print on normal thermal paper and A4-size fax paper
  • External USB printer support
• Data Management: 200 ECGs internal memory, which can be enlarged by USB flash disk
• Extensive Communications:
  • Data transmission to PC via LAN/WiFi
  • Standard ECG formats: PDF, SCP, FDA-XML, and DICOM data export
  • Bi-directional data communication with DMS

Technical Specifications:

• Display: 12.1", 800×600 Multicolor LCD Touch Screen
• Power Supply:
  • Main Supply:
    • Operating Voltage: 100V - 240V
    • Operating Frequency: 50 Hz/ 60 Hz
    • Input Current: 0.9-0.4 A
  • Internal Lithium-Ion Battery Pack:
    • Rated Voltage: 14.8V
    • Rated Capacity: 5000 mAh (2.5 Hours Continuous Printing, 350 ECG Reports)
    • Necessary Charge Time: 6 Hours
• Recording:
  • Recorder: Thermal Dot-Matrix Recorder
  • Printing Density:
    • 8 Dots per mm / 200 Dots per inch (Amplitude Axes)
    • 40 Dots per mm / 1000 Dots per inch (Time Axes, @ 25 mm/s)
  • Recorder Paper (Folded Thermal Paper): 210 mm x 295 mm x 100 Pages
  • Paper Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
  • External Printer: HP 1010/1510, HP M401, HP 1020/1020PLUS/1106, HP 2010/1050/2000, HP 2015/2035, HP 1525
• HR Recognition:
  • HR Range: 30 BPM ~ 300 BPM
  • Accuracy: ±1 BPM
• ECG Unit:
  • Leads: 12 Standard Leads
  • Acquisition Mode: Simultaneously 12 Leads
  • A/D Converter: 24 Bits
  • Resolution: 2.52 uV/LSB
  • Time Constant: ≥ 3.2 s
  • Frequency Response: 0.01 Hz ~ 300 Hz (-3 dB)
  • Gain: 1.25, 2.5, 5, 10, 20, 10/5 mm/mV, AGC
  • Input Impedance: ≥ 100 MΩ (10 Hz)
  • Input Circuit Current: ≤ 0.01 μA
  • Input Voltage Range: ≤ ±5 mVpp
  • Calibration Voltage: 1 mV±2%
  • CMRR:
    • ≥ 140dB (AC On)
    • ≥ 123 dB (AC Off)
  • Sampling Frequency: 16000 Hz
• Pacemaker:
  • Amplitude: ±750 μV to ±700 mV
  • Width: 50 μs to 2.0 ms
• Stress Test:
  • Display Style: 3x1, 3x4+1R, 6x2, or 12x1
  • Speed Unit: mph or km/h
  • Post J: 0 ms, 20 ms, 40 ms, 60 ms, or 80 ms
  • Device Type: Treadmill or Ergometer
  • Device Model:
    • Treadmill: TM400, Trackmaster, T2000, LODE, Runner, CardioMed
    • Ergometer: Ergoline, Ergosana, LODE (Ergo)
  • BP Monitor: Suntech Tango M2
• Filter:
  • AC Filter: 50/60 Hz
  • DFT Filter: 0.01 Hz/ 0.05 Hz/ 0.15 Hz/ 0.25 Hz/ 0.32 Hz/ 0.5 Hz/ 0.67 Hz
  • EMG Filter: Off/ 25 Hz/ 35 Hz/ 45 Hz
  • LOWPASS Filter: 300 Hz/ 270 Hz/ 150 Hz/ 100 Hz/ 75 Hz
• Data Transmission:
  • Report Format: PDF, XML, DICOM, FDA-SCP
  • Data Transmission: Wi-Fi, Ethernet, RS232
  • Data Management System:
    • SE-1515 Data Management System
    • Bi-Directional Communication
  • HIS Connection: DICOM Worklist/ DICOM Storage/ HL7/ GDT
• WiFi:
  • Transmitting Frequency: 2400-2497 MHz
  • Frequency Band: 2400-2497 MHz
  • Modulation Type: DSSS, CCK, OFDM
  • Transmitting Power: 6-17 dBm
  • Effective Radiated Power: 6-17 dBm
• Safety Specifications:
  • Anti-Electric-Shock Type: Class І with Internal Power Supply
  • Anti-Electric-Shock Degree: CF Type with Defibrillation-Proof
  • Patient Leakage Current:
    • NC < 10 μA (AC) / < 10 μA (DC)
    • SFC < 50 μA (AC) / < 50 μA (DC)
  • Patient Auxiliary Current:
    • NC < 10 μA (AC) / < 10 μA (DC)
    • SFC < 50 μA (AC) / < 50 μA (DC)
• Working Environment Specifications:
  • Temperature: +5ºC ~ +40ºC
  • Relative Humidity: 25% ~ 80% Non-Condensing
  • Atmospheric Pressure: 86 kPa ~ 106 kPa
• Overall Dimensions: 16.54" L x 12.99" W x 4.72" H
• Actual Product Weight: 14.33 lbs (Excluding Recorder Paper and Battery)
• Warranty: 2 Years
