Product Description

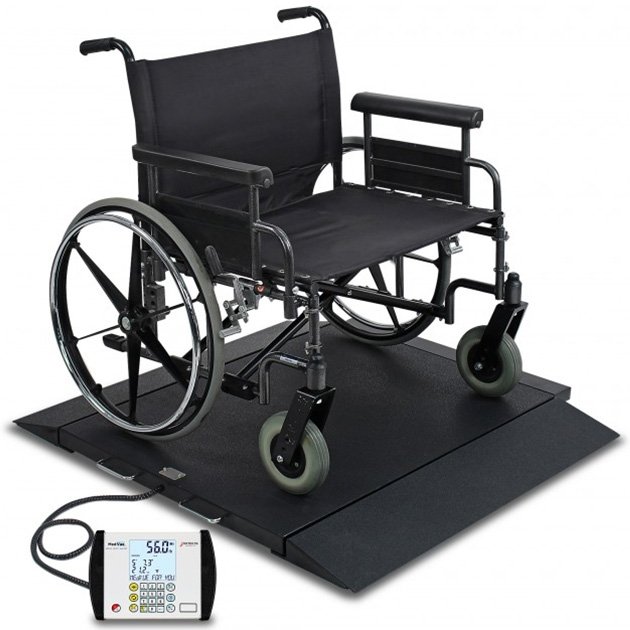

DETECTO BRW1000 Bariatric Digital Wheelchair Scale with MedVue® Multifunctional Indicator offers a large 40" wide platform to accommodate bariatric-size wheelchairs.

  • High 1,000 lb / 450 kg capacity
  • Spacious 32" x 40" and low profile 2.2" high platform for easy patient accessibility
  • Two-way built-in ramps for accessibility from both sides
  • Ramps rest on floor for easier patient access
  • Black rubber mat included on the scale platform and ramp for superior traction

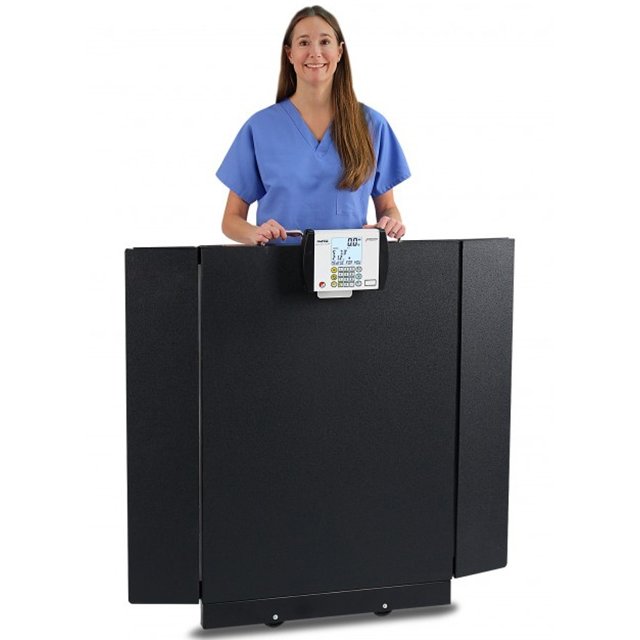

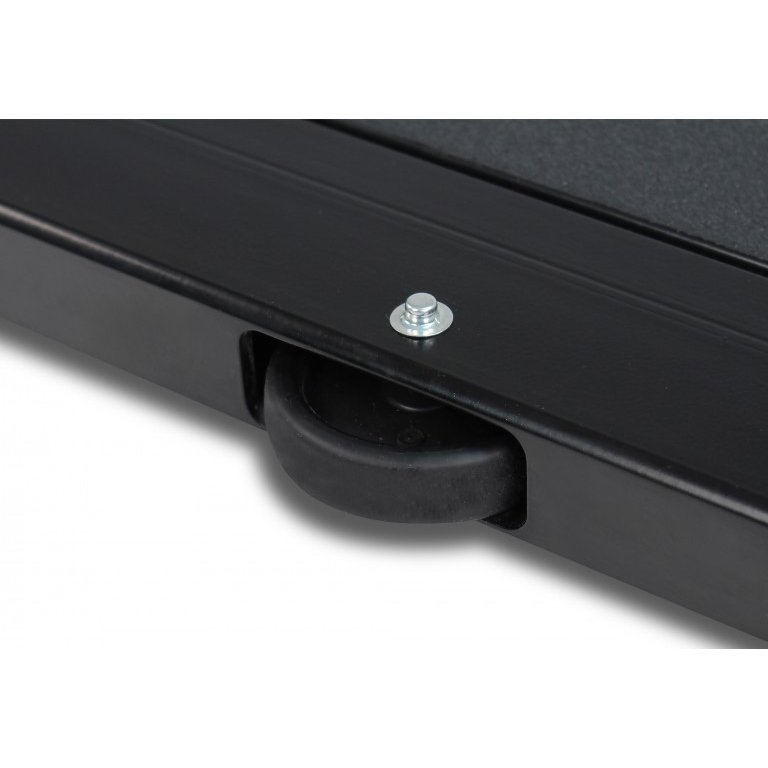

  • Two guide handles and two wheels for vertical transport mode
  • Despite its size, the BRW1000 wheelchair scale is amazingly easy to handle
  • Comes with the MedVue multi-functional indicator with alphanumeric keypad and RS232 and USB ports (optional Wi-Fi and Welch Allyn connectivity) - Displays Height, Weight, and Body Mass Index onscreen simultaneously
  • Using the convenient push-button or keypad tare which allows you to remove the wheelchair weight, so that only the patient weight is displayed, all in one pass
  • The display is connected to the scale by a long coiled cable that extends up to 14 ft, it can be positioned where the healthcare professional can most easily read the results
  • The included MedVue's® ballmount swivel bracket for the back of the indicator allows wall-mount or mobile tabletop weighing with adjustable viewing
  • Powered by 6 C batteries (not included) for easy mobility or optional AC adapter
  • 2-year warranty

Please Note: This item ships motor freight carrier. During the checkout process you will be required to indicate whether your facility requires liftgate or inside delivery services. (These services are described on our shipping information page.) In the order comments please include a name & phone number for the delivery point of contact. Please also include receiving hours and any other delivery requirements or instructions. If additional services necessitate an additional fee, you will be contacted by Customer Service. If you have questions about the motor freight delivery process please contact Customer Service prior to placing your order.


1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Platform Size
32" L x 40" W x 2.2" H
Ramp Size (each)
40" W x 7.9" L
Cable Length
6 ft coiled cable, 14 ft fully extended (from scale to indicator)
Optional model MV1PWR AC adapter OR 6 C batteries (not included)
Indicator MedVue® Model MV1
Indicator Dimensions 9.8" W x 6.8" H x 1.8" D
LCD Digits
0.9" high LCD, 5 digit, 7 segment
Keypad Buttons


TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys

RS232 serial, USB and optional wired and Wi-Fi Ethernet
Operating Temperature
14 to 104°F / -10 to +40°C
Guide Handles
2 included
Transport Wheels 2 included
Net Weight
120 lbs
Shipping Weight
Approx. 123 lbs
Country of Origin USA
UPC Code 809161139303


Manufacturer Detecto Scales
Latex Free Yes
Actual Product Weight 120 lbs
Weight Capacity 1000 lb / 450 kg
Country of Manufacture United States
Item Ships From Missouri




Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.


This warranty does not apply to peripheral equipment not manufactured by Detecto; this equipment will be covered by certain manufacturer’s warranty only.


This warranty does not include replacement of expendable or consumable parts. This does not apply to any item which has deteriorated or damaged due to wear, accident, misuse, abuse, improper line voltage, overloading, theft, lightning, fire, water or acts of God, or due to extended storage or exposure while in purchaser’s possession. This warranty does not apply to maintenance service. Purchased parts will have a ninety (90) day repair or replacement warranty only.


Conditions Which Void Limited Warranty

This warranty shall not apply to equipment which:

A.) Has been tampered with, defaced, mishandled or has had repairs and modifications not authorized by Detecto.

B.) Has had serial number altered, defaced, or removed.

C.) Has not been properly grounded according to Detecto’s recommended procedure.


A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.
