Product Description

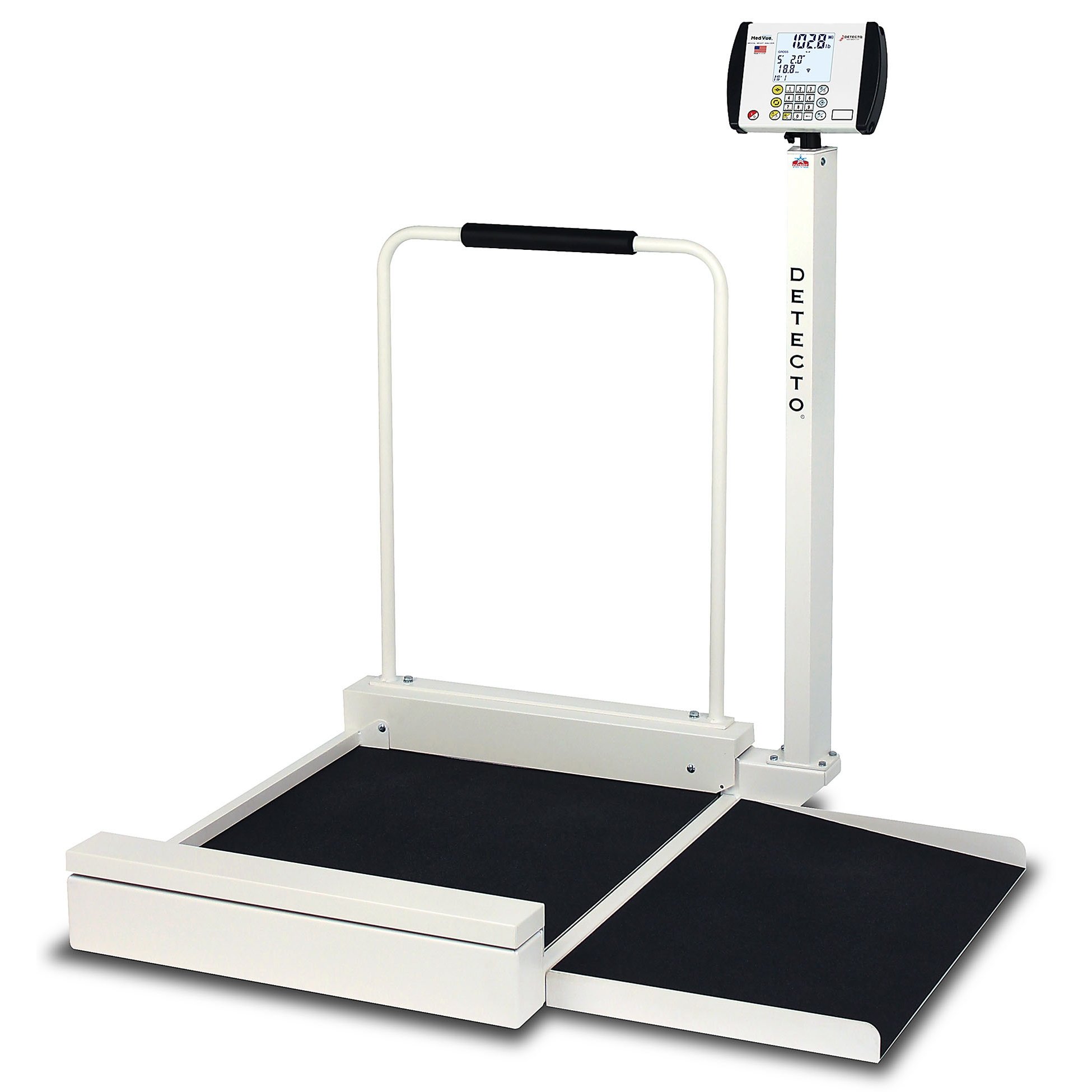

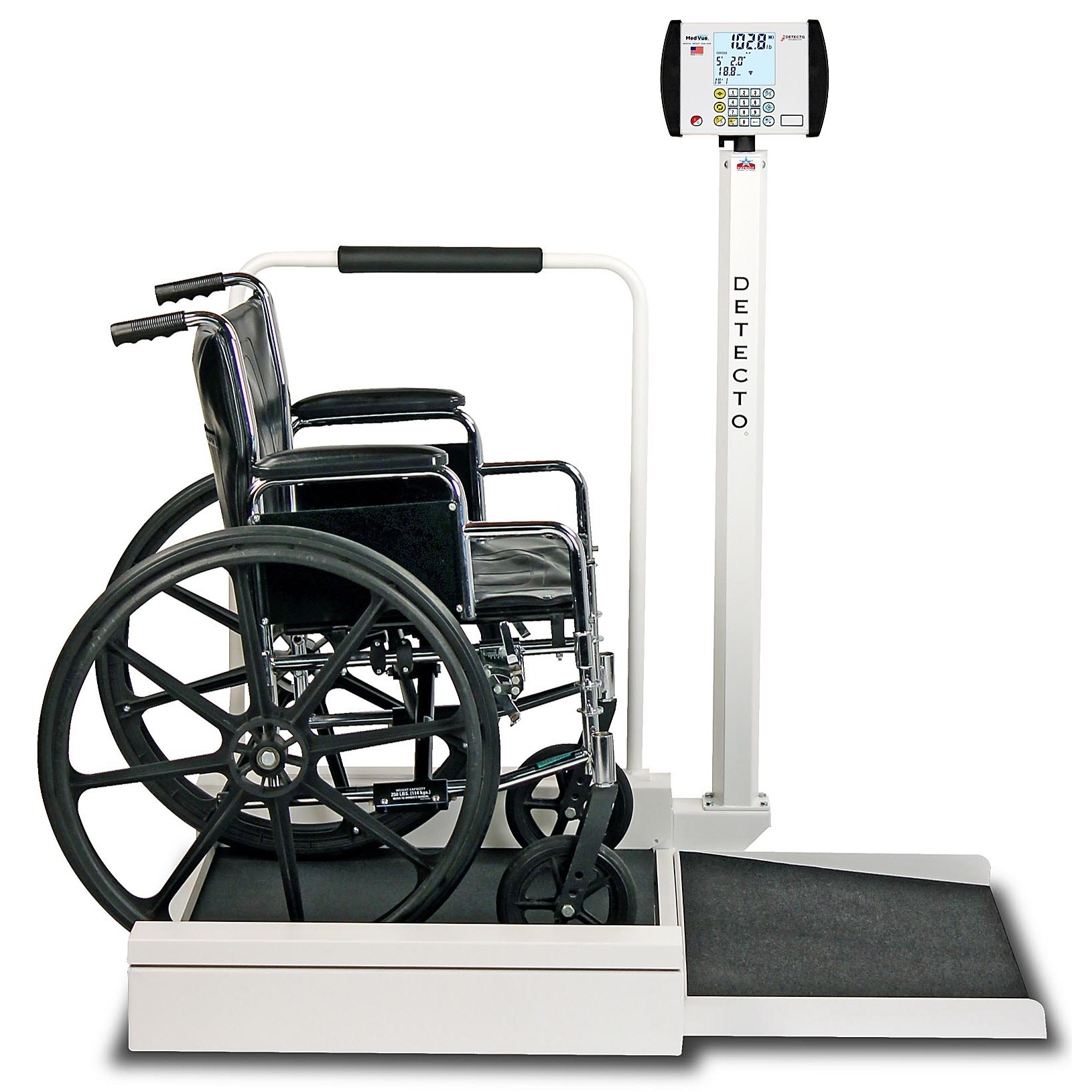

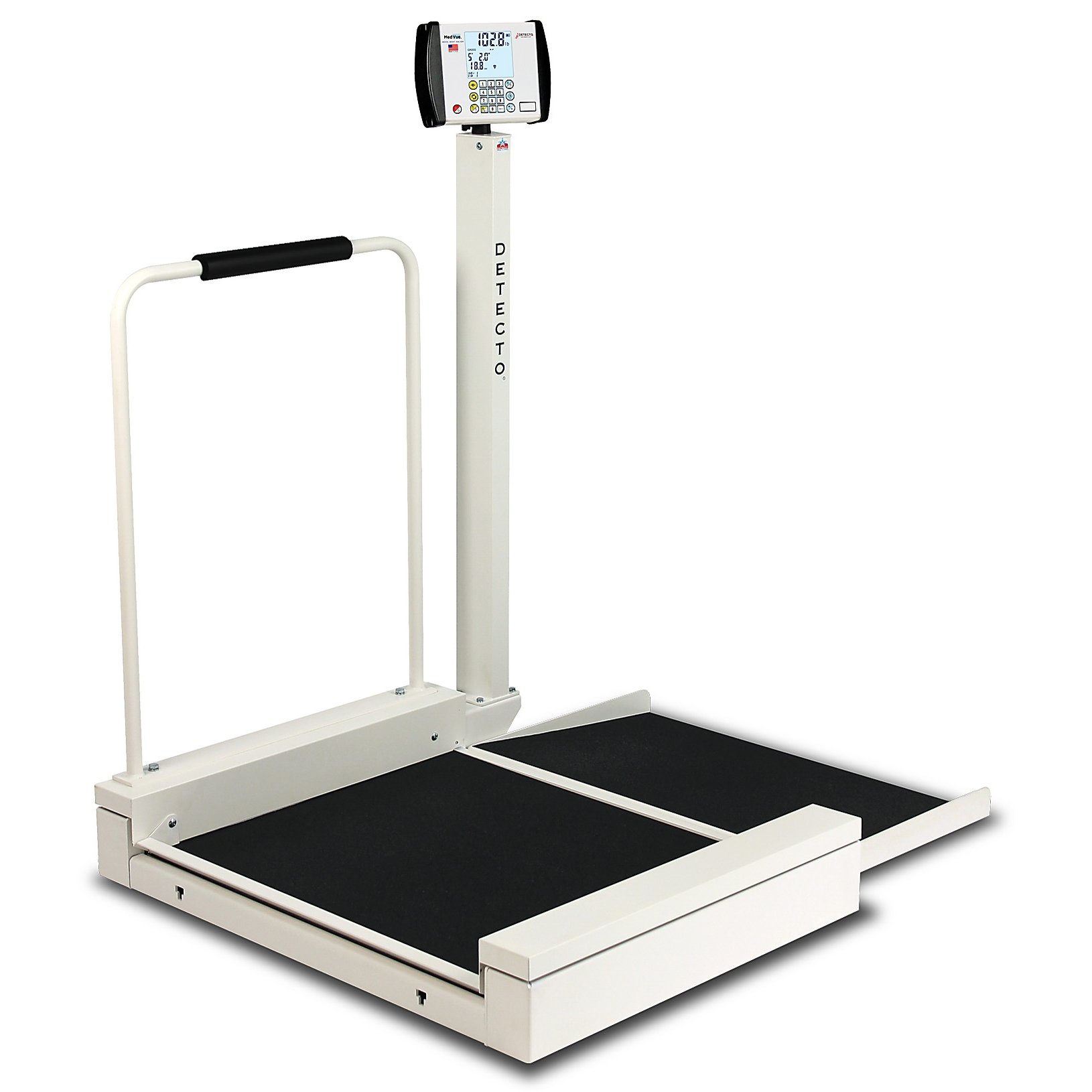

With this heavy-duty, sturdy steel Digital Wheelchair Scale, you get speed and increased accuracy that only electronic weighing can provide.

  • Weigh in pounds or kilograms at the press of a button
  • The display is mounted on a ball-pivot mount swivel, so that it can be positioned wherever it's easiest for the patient and medical professional to view
  • An alphanumeric keypad for entry of known weights of empty wheelchairs is also provided, thus giving the exact weight of the patient accurately and instantly on the MedVue 1LOOK indicator
  • Also features RS232 serial and USB (optional wired or Wi-Fi Ethernet for connectivity to EMR/EHR in healthcare facilities)
  • Powered by 6 C batteries (not included) or optional AC adapter MV1PWR
  • The non-skid platform is designed to accommodate all sizes of wheelchairs
  • The detachable ramp with non-skid surface further ease wheelchair weighing operations
  • Sturdy steel padded handrails for patient assurance and safety


800 lb x 0.2 lb / 360 kg x 0.1 kg
Display (Weight)
5-digit, 7-segment, 7/8 inch (22.2 mm) high LCD
Display (Height)
4-digit, 7-segment, 1/2 inch (12.7 mm) high LCD
Membrane type with 19 keys
Connectivity Ports
RS232 serial and USB (standard), wired and Wi-Fi Ethernet (optional)

6 C cell Alkaline, Ni-Cad or NiMH batteries (not included)

OR an optional 12 VDC 1.25A wall plug-in AC power adapter (MV1PWR)

Resolution 5,000 divisions, maximum
Operating Temperature
14° to 104° F (-10° to +40° C)
Indicator Dimensions
6.8 inch H x 7.6 inch W x 1.8 inch D (171.4 mm W x 193.8 mm H x 44.4 mm D)
Platform Dimensions
26.5" W x 30" D x 2 1/8" H
Ramp Dimensions 30" W x 19" L
Hand Rail Dimensions
25" W x approx. 37" H from floor
Overall Footprint
37 1/2" W x 47 5/8" L x 52" H
Construction Steel
Shipping Weight
Approx. 187 lbs


Manufacturer Detecto Scales
Weight Capacity 800 lb / 360 kg
Country of Manufacture United States
Item Ships From Missouri


(Size: 546.9 KB)



Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.

Freight Shipping

Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.


A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.
