Product Description

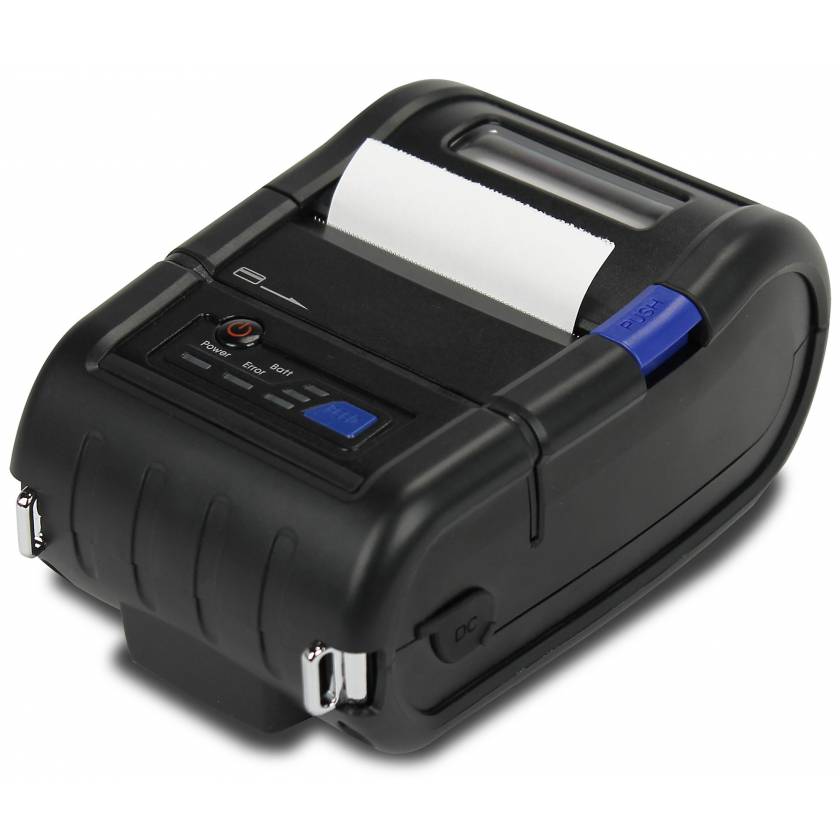

The compact P150 portable high-speed direct line thermal printer is ideal for ticket printing use with any Detecto Scale weight indicator featuring RS232 serial port connectivity!

  • Compact and robust mobile printing
  • Long-life printing head with high reliability
  • Easy paper-handling (Paper drop-in style)
  • Lithium-Ion Rechargeable Battery (included)
  • 3 LEDs to Indicate battery status
  • Standard serial printer cable provided
  • Made in Korea



  P150
Printing Method
 Direct line thermal printing
Printing Speed
 Max. 3.15 in / 80 mm per second
Resolution 203 DPI x 203 DPI
Print Width
 1.89 in / 48 mm, 384 dot
Character
 ALPHA NUMERIC Character, Extension Character
Font Font A (12 x 24 dot), Font B (9 x 17 dot)
Number of Columns 32 (Font A) 42 (Font B)
Barcode EAN-8, EAN-13, CODE 39, ITF, UPC-A, Codabar, Code93, Code128, PDF417(2D)
Emulation
 ESC/POS
Driver Window CE 4.2&5.0, Window Mobile 5.0
Sensor Paper End Sensor, Gap Sensor, Cover open Sensor
Paper Type Thermal
Paper Width 3.5 in / 88 mm
Paper Thickness 64um
Paper External Diameter Max. Ø 1.9" / 48 mm
Paper Internal Diameter 0.5" / 12.5 mm +/- 0.02" / 0.5 mm
Thermal Head 50km
Battery Continuous printing for 90 min. Standby for 24 hours
Communications Serial (RS232C), USB, Wireless Lan 802.11b/g (CMP-20WF)
Battery Charger Input AC100-240V, 50/60 Hz
Battery Charger Output 8.4V, 1200 mA
Battery Type Lithium Ion
Battery Output Type 7.4V, 1800mAh
Battery Charging Time 2 hours
Overall Dimensions 3.7" W x 5.3" D x 2.2" H (96mm W x 136mm D x 58mm H)
Temperature (Operation) 41-104°F / 5-40°C
Temperature (Storage) 14-122°F / -10-50°C
Humidity (Operation) 35 - 95 %
Humidity (Storage) 10 - 95 %

Specifications

Specifications
Manufacturer Detecto Scales
Latex Free Yes
Overall Height 2.2"
Overall Width 3.7"
Overall Length 5.3"
Item Ships From Missouri

Instructions

Warranty:

Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.

Returns

A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.
