Product Description

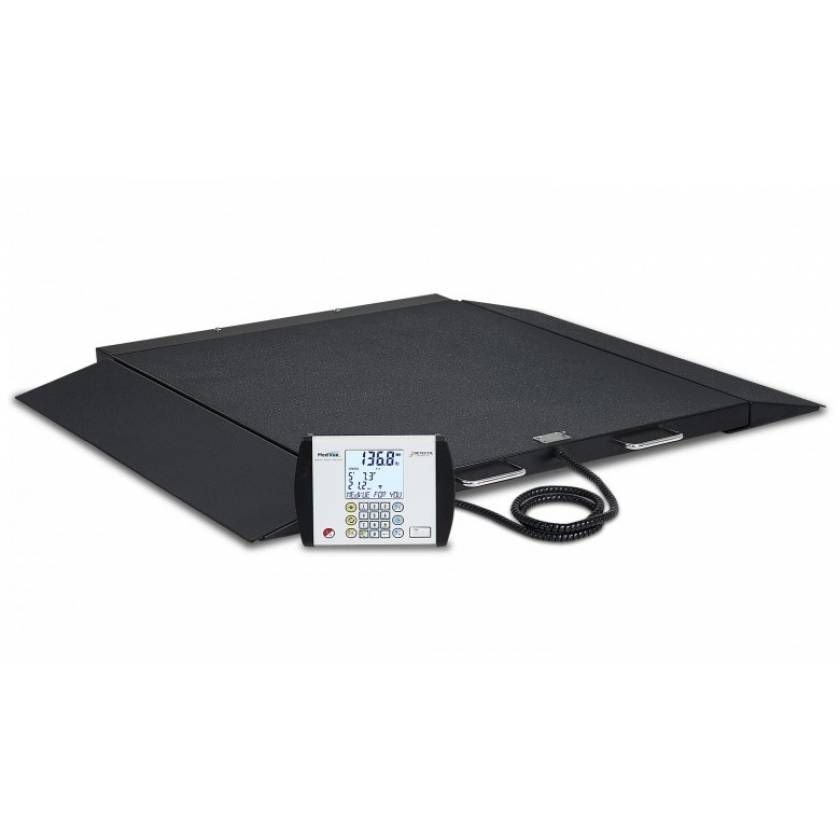

DETECTO 6500 Digital Wheelchair Scale with MedVue® Multifunctional Indicator is a portable, high-capacity, low-profile wheelchair scale with integral guide handles and wheels for quick and easy mobility for transport or vertical storage.

  • High 1,000 lb / 450 kg capacity
  • Spacious 32" x 36" and low profile 2.2" high platform for easy patient accessibility
  • Two-way built-in ramps for accessibility from both sides
  • Ramps rest on floor for easier patient access
  • Black rubber mat included on the scale platform and ramp for superior traction

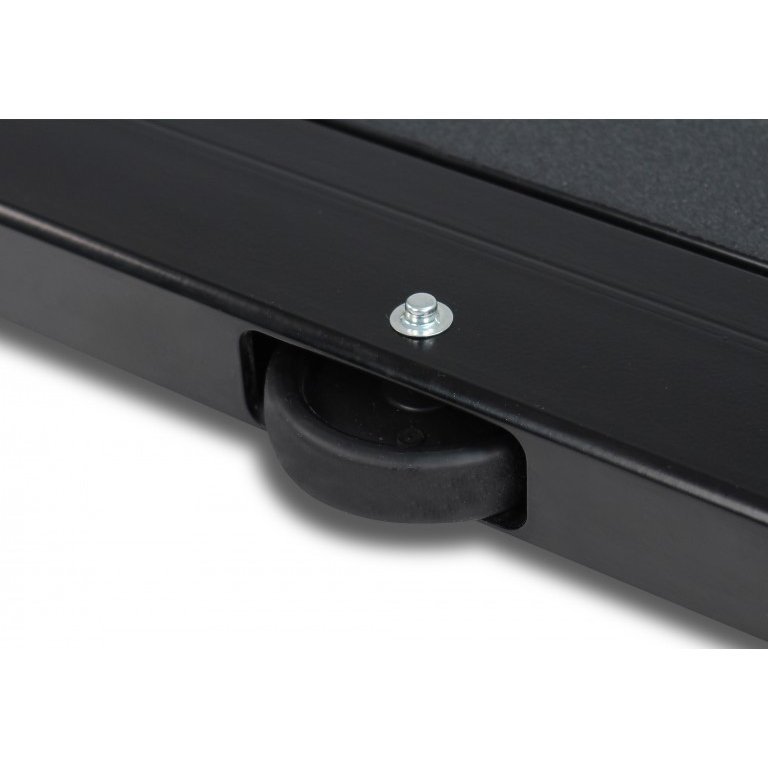

  • Two guide handles and two wheels for vertical transport mode
  • Despite its size, the 6500 wheelchair scale is amazingly easy to handle
  • Comes with the MedVue multi-functional indicator with alphanumeric keypad and RS232 and USB ports (optional Wi-Fi and Welch Allyn connectivity) - Displays Height, Weight, and Body Mass Index onscreen simultaneously
  • Using the convenient push-button or keypad tare which allows you to remove the wheelchair weight, so that only the patient weight is displayed, all in one pass
  • The display is connected to the scale by a long coiled cable that extends up to 14 ft, it can be positioned where the healthcare professional can most easily read the results
  • The included MedVue's® ballmount swivel bracket for the back of the indicator allows wall-mount or mobile tabletop weighing with adjustable viewing

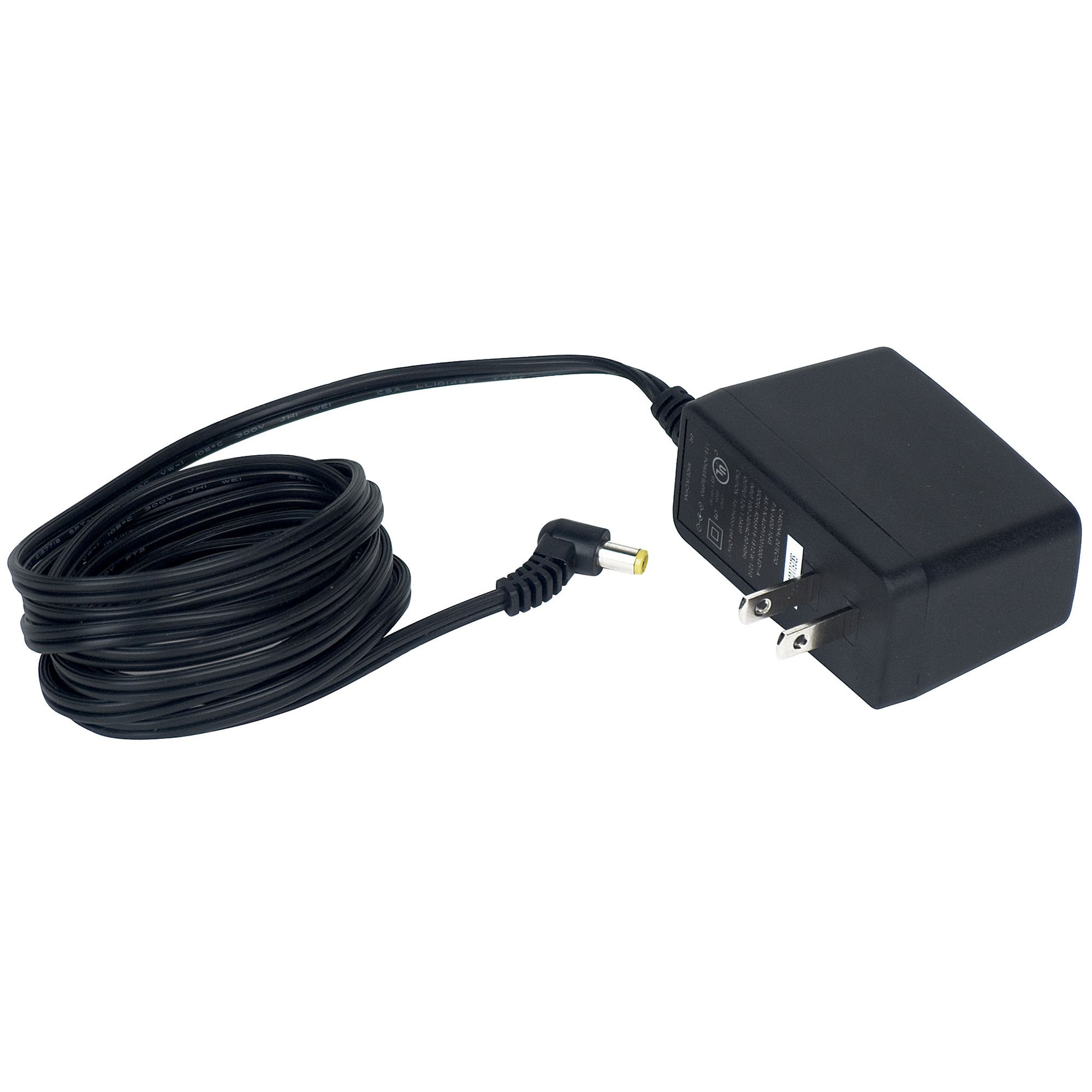

  • Powered by 6 C batteries (not included) for easy mobility or optional AC adapter
  • 2-year warranty



  6500
Capacity
1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Platform Size
32" L x 36" W x 2.2" H
Ramp Size (each)
36" W x 7.9" L
Cable Length
6 ft coiled cable, 14 ft fully extended (from scale to indicator)
Power
Optional model MV1PWR AC adapter OR 6 C batteries (not included)
Indicator MedVue® Model MV1
Indicator Dimensions 9.8" W x 6.8" H x 1.8" D
LCD Digits
0.9" high LCD, 5 digit, 7 segment
Keypad Buttons

ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/GROSS,

TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys

Connectivity
RS232 serial, USB and optional wired and Wi-Fi Ethernet
Operating Temperature
14 to 104°F / -10 to +40°C
Guide Handles
2 included
Transport Wheels 2 included
Net Weight
112 lbs
Shipping Weight
Approx. 115 lbs
Country of Origin USA
UPC Code 809161139204

Specifications

Specifications
Manufacturer Detecto Scales
Latex Free Yes
Actual Product Weight 112 lbs
Weight Capacity 1000 lb / 450 kg
Country of Manufacture United States
Item Ships From Missouri

Literature

Instructions

Warranty:

Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.



This warranty does not apply to peripheral equipment not manufactured by Detecto; this equipment will be covered by certain manufacturer’s warranty only.



This warranty does not include replacement of expendable or consumable parts. This does not apply to any item which has deteriorated or damaged due to wear, accident, misuse, abuse, improper line voltage, overloading, theft, lightning, fire, water or acts of God, or due to extended storage or exposure while in purchaser’s possession. This warranty does not apply to maintenance service. Purchased parts will have a ninety (90) day repair or replacement warranty only.



Conditions Which Void Limited Warranty

This warranty shall not apply to equipment which:

A.) Has been tampered with, defaced, mishandled or has had repairs and modifications not authorized by Detecto.

B.) Has had serial number altered, defaced, or removed.

C.) Has not been properly grounded according to Detecto’s recommended procedure.

Freight Shipping

Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.

Returns

A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.
