Product Description

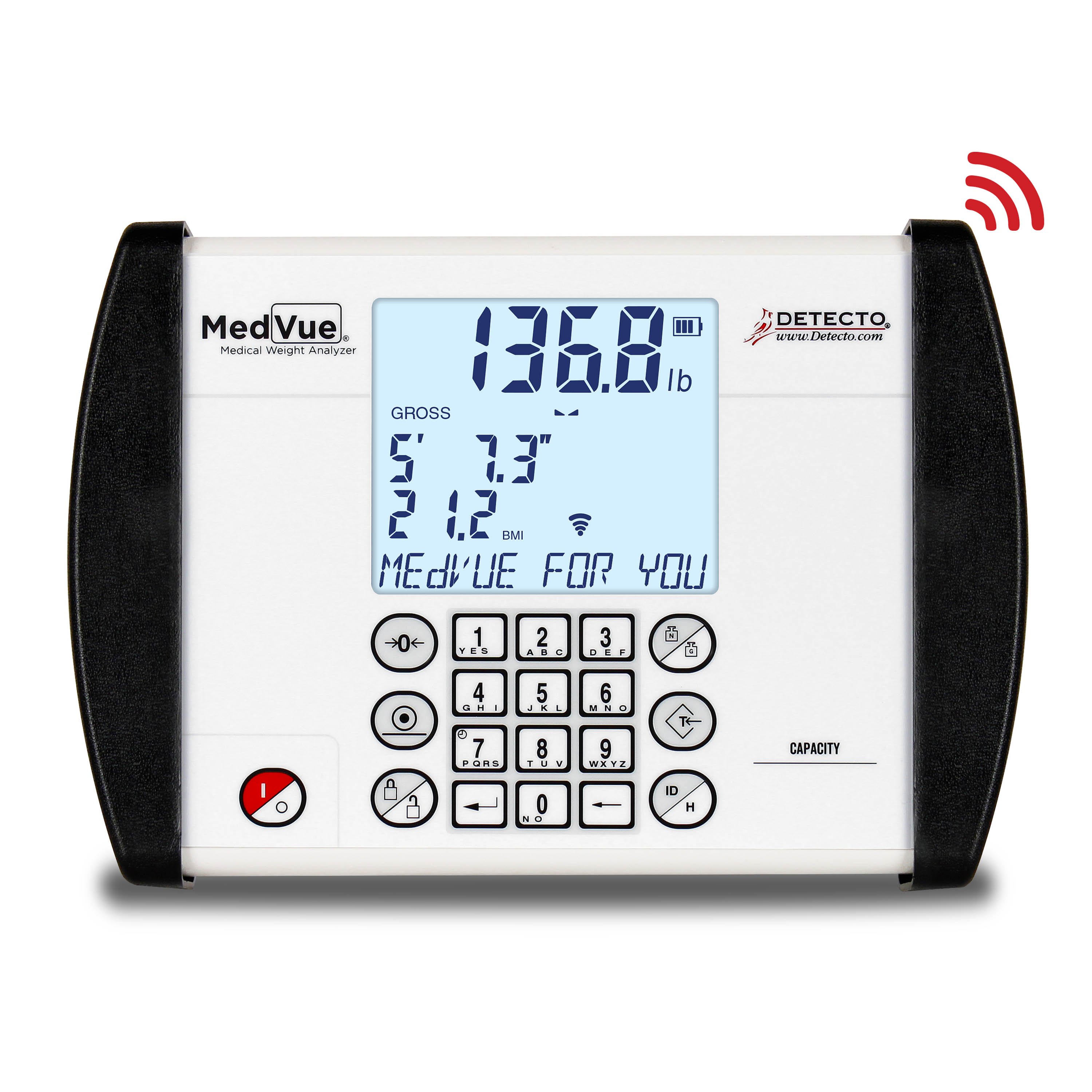

DETECTO's MedVue® medical weight analyzer is utilized on select clinical scales, including DETECTO’s wheelchair, bariatric, and stretcher scales.

  • MedVue indicator with Wi-Fi/Bluetooth Model MV1C offers connectivity with up to 150 ft. range for completely wireless EMR/EHR (range varies depending upon environmental conditions)
  • The MedVue® features a vivid 3.5-in-wide by 3-in-high backlit LCD display screen with nearly 1-in-high weight digit readouts for easy visibility
  • 350-degree swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional and/or patient to view
  • Units Locking into Kilograms or Pounds
  • Weight, Height, and BMI All Displayed Simultaneously
  • 14-Digit Patient ID which may be entered via the alphanumeric keypad
  • 99 Stored Tare Weights
  • BMI Calculation
  • EMR/EHR Ready
  • NTEP Legal for Trade
  • RS232 Serial and USB Ports Standard
  • Sturdy Steel Construction
  • The MedVue® weight indicator/analyzer is compatible with the following Detecto scales: 6854DHR, 6857DHR, 6550, BRW1000, 6500, 6495, and GP-600-MV1
  MV1C
Power Requirements

6 "C" cell Alkaline, Ni-Cad or NiMH batteries (not included)

OR an optional 12 VDC 1.25A wall plug-in AC power adapter (MV1PWR)
Units Locking
 Established upon initiliazation and user selects either LB or KG
Overall LCD Display Size
 3.5" W x 3" H (89 mm W x 76 mm H) backlit blue LCD
Weight Display 5 digit, seven segment, 0.875" (22.23 mm) high LCD
Height Display 4 digit, seven segment, 0.5" (12.7 mm) high LCD
Body Mass Index Display 3 digit, seven segment, 0.5" (12.7 mm) high LCD
ID Display 14 digit, 14 segment, 0.35" (8.89 mm) high LCD
Sensitivity 0.5 uV/division (0 to 3.0 mV/V), Class III
Operating Temperature 14 to 104°F (-10 to +40°C)
Signal Input Range 0 to 15mV max.
Transducer Excitation 5.0 VDC
Number of Load Cells up to 4 each 350 Ω
Load Cell Cable Length 30 feet (9 meters) max.
Resolution 10,000 divisions
Capacities Weight: 10,000 divisions commercial - Height: 0 - 9' 11.9 - BMI: up to 999
NTEP Certificate of Conformance Number 13-011
Division Value 1, 2 or 5 x 1, 0.1, 0.01, 0.001
Sample Rate 1 to 100 samples per second selectable
Auto Zero Range 0.5 or 1 through 9 divisions
Weighing Units Pounds (lb), Pounds/Kilograms (lb/kg), Kilograms (kg) and Kilograms/Pounds (kg/lb)
Keyboard Membrane type with 19 keys
Enclosure Size 9.8" W x 6.8" H x 1.8" D (248.9 mm W x 172.7 mm H x 45.7 mm D)
Construction Painted steel
Battery Life 7,560 weighments (with backlight fully ON) / 10,620 weighments (with backlight fully OFF)
LCD Viewing Range Up to 30 feet / 10 meters for weight digits

Specifications

Specifications
Manufacturer Detecto Scales
Country of Manufacture United States
Item Ships From Missouri

Literature

pdf
Operation Manual
(Size: 1.2 MB)
pdf
Product Info
(Size: 2.2 MB)
pdf
User Manual
(Size: 3.6 MB)

Instructions

Warranty:

Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.

Returns

A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.
