Product Description

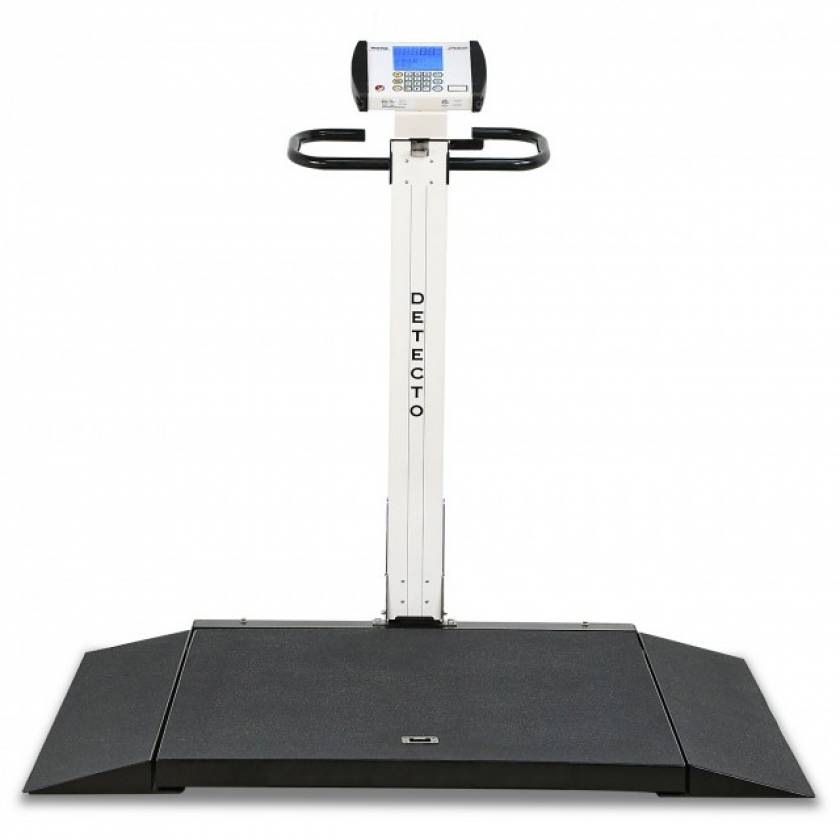

One of the most popular medical scales in the industry, this ingeniously-designed scale offers a wide range of versatility!

  • This sturdy, but lightweight, low-profile, thin platform  (2.2" H) scale can be used with wheelchairs, straight-legged chairs or as a stand-on scale
  • Two-way built-in ramps for accessibility from both sides

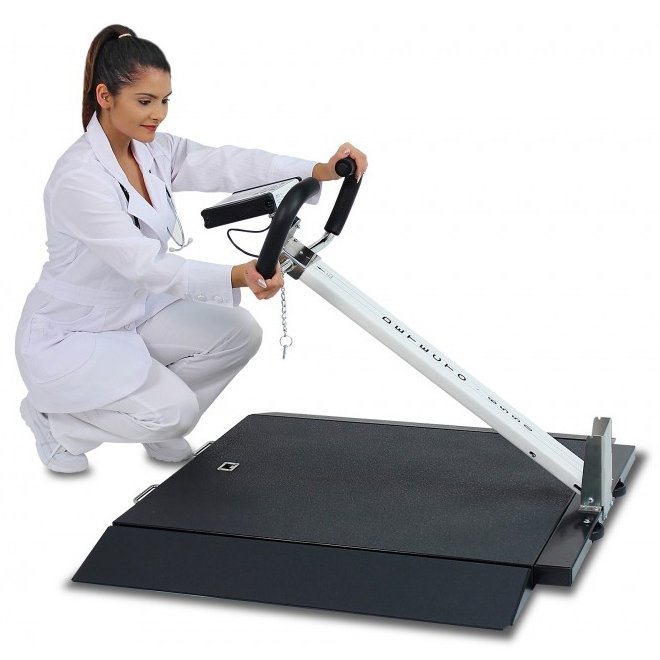

  • The scale's column folds down and latches securely for easy transport in four directions made possible by the dual-direction wheels
  • Vertical fold-up feature also equals minimal follor space for storage in an upright position when not in use
  • The digital weight indicator is the industry's most advanced, featuring EMR/EHR-ready serial, USB, and optional Wi-Fi connectivity, BMI calculation, yellow "quick keys" for basic weighing, and a multiline LCD display
  • The scale is powered by 6 C batteries (not included) or optional AC adapter model MV1PWR
  • Enjoy the time-saving benefits of this scale, by using the convenient pushbutton or keypad tare, which allows you to remove the wheelchair weight, so that only the patient weight is displayed

Please Note: This item ships motor freight carrier. During the checkout process you will be required to indicate whether your facility requires liftgate or inside delivery services. (These services are described on our shipping information page.) In the order comments please include a name & phone number for the delivery point of contact. Please also include receiving hours and any other delivery requirements or instructions. If additional services necessitate an additional fee, you will be contacted by Customer Service. If you have questions about the motor freight delivery process please contact Customer Service prior to placing your order.


1000 lb x 0.2 lb / 450 kg x 0.1 kg
Platform Size
32" L x 36" W x 2.2" H
Ramp Size (each)
36" W x 7.9" L
Keypad 19 key, color-coded, sealed membrane
Connectivity Ports

RS232 serial and USB (standard)

Wired and Wi-Fi Ethernet (optional)

LCD Display Dimensions 3.5" W x 3" H backlit blue LCD

Optional model MV1PWR AC adapter

OR 6 C batteries (not included)

Resolution 5000 divisions, max.
Operating Temperature 14 to 104°F / -10 to +40°C

Weight: 5 digit, 7 segment, 7/8" high LCD

Height: 4 digit, 7 segment, 1/2" high LCD

Net Weight
100 lbs
Shipping Weight
Approx. 120 lbs


Manufacturer Detecto Scales
Weight Capacity 1000 lb / 450 kg
Country of Manufacture United States
Item Ships From Missouri
GSA Contract Number V797D-40002




Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.


A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.
