Product Description

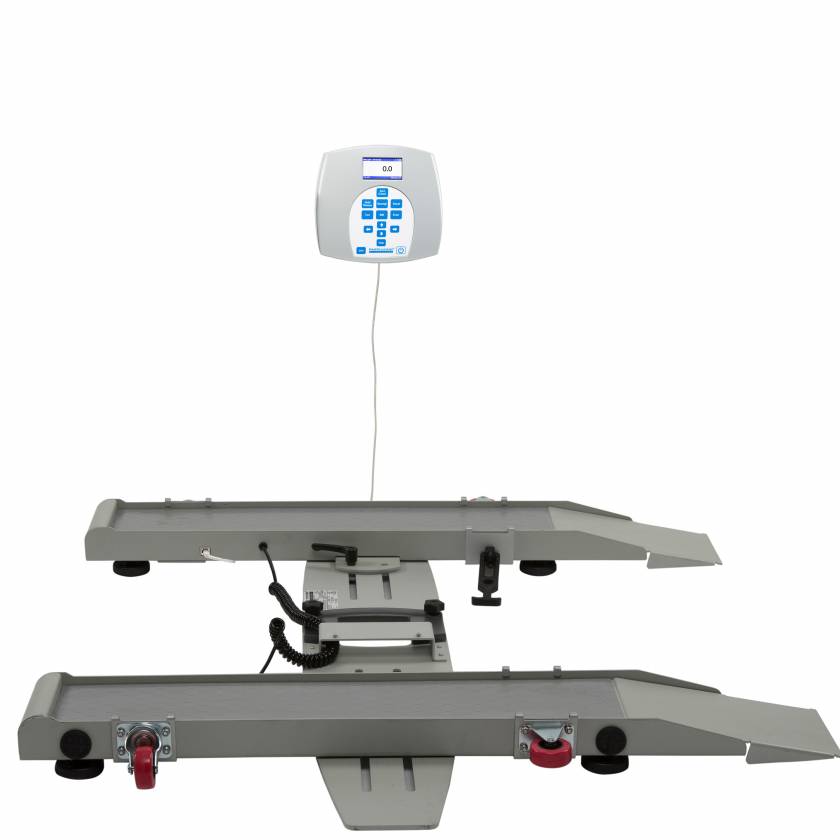

The 2400 Series Digital Portable Wheelchair Scales are the perfect scale for locations where occasional wheelchair-bound patients need to be weighed. The scale folds easily and requires minimal room for storage. The scale includes a handle and wheels for easy portability.


  • EMR Connectivity - The scale can interface with a computer, EMR software, or other electronic devices via various Health o meter® Professional Connectivity Solutions
  • Remote Display and Adjustable Tracks - The display can be mounted on a wall or placed on the table. Wheelchair rails expand and adjust from 25 3/4” to 50 1/8” to accommodate all standard and bariatric wheelchairs
  • Antimicrobial Keypad - The keypad features antimicrobial protection.
  • Easy Mobility - Incorporated wheels and casters enable smooth and easy portability, reducing strain on staff
  • Convenient Storage - Track base folds, can easily be stored in a closet or other small space
  • The exclusive Everlock® function allows the measuring unit (LB or KG) to be permanently locked on the scale.


  • LB/KG conversion
  • LB/KG lockout
  • BMI
  • Zero
  • Tare
  • Pre-tare
  • Hold/release
  • Reweigh
  • Recall
  • Auto zero
  • Auto-off
  • Time/date
  • Variable auto off-time
  • Audible/mute sound option
  • Parent/child weighing function
  • Everlock®

Technical Specifications:

  • Weight Capacity: 800 lbs / 363 kg
  • EMR Connectivity: Via USB, optional Pelstar® wireless technology
  • Resolution: 0.2 lbs / 0.1 kg
  • Display: 1 1/2" High-Contrast Color TFT-LCD Screen
  • Power Source: 100-240V Adapter (ADPT30) included or 6 D batteries (Not Included)
  • Wheels: (2) Wheels, (2) Casters
  • Rail Size: 6" W x 40" D
  • Platform Size: Expands and adjusts from 25 3/4" to 50 1/8"
  • Product Dimension (Ramps Fully Extended): 51 1/4" W x 40 1/2" D x 3 1/2" H
  • Product Dimension (Folded Position): 6 3/4" W x 40 1/2" D x 30" H
  • Actual Product Weight: 40 lbs

The Pelstar Wireless Technology allows facilities to wirelessly transmit measurements directly to a myriad of devices to increase workflow efficiency and reduce the risk of error from manual data entry. Once the data reaches the device, it can be conveniently displayed, reviewed, and smoothly transferred into EMR systems.

SKU Measurement System Pelstar Wireless Technology
2400KL Kilograms & Pounds Purchased Separately
2400KL-BT Kilograms & Pounds Built-in
2400KG Kilograms Only Purchased Separately
2400KG-BT Kilograms Only Built-in

About this Brand


Manufacturer Pelstar LLC
Actual Product Weight 40 lbs
Overall Width 51 1/4"
Overall Length 40 1/2"
Weight Capacity 800 lbs / 363 kg
Country of Manufacture China
Item Ships From Illinois


(Size: 264 KB)
(Size: 894.6 KB)
(Size: 1.4 MB)


Warranty: Health o meter® Professional scales are warranted from the date of purchase against defects of materials or in workmanship for a period of time (see product instruction manual for the warranty period). Your warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, abuse including tampering, damage in transit, or unauthorized repair or alternations. If the manufacturer determines that a defect of material or workmanship exists, a customer’s sole remedy will be the replacement of scale at no charge. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, a replacement may be made with a similar product of equal or greater value. All parts including replaced parts are covered only for the original warranty period.

Freight Shipping

Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.


Products must be returned in unused, unopened, resalable condition with the original packaging. To return this item you must contact Customer Service within 30 days of receipt to obtain a valid Return Authorization Number. Restocking fees may apply at the discretion of the manufacturer. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.

Custom made products are non returnable and non exchangeable.
