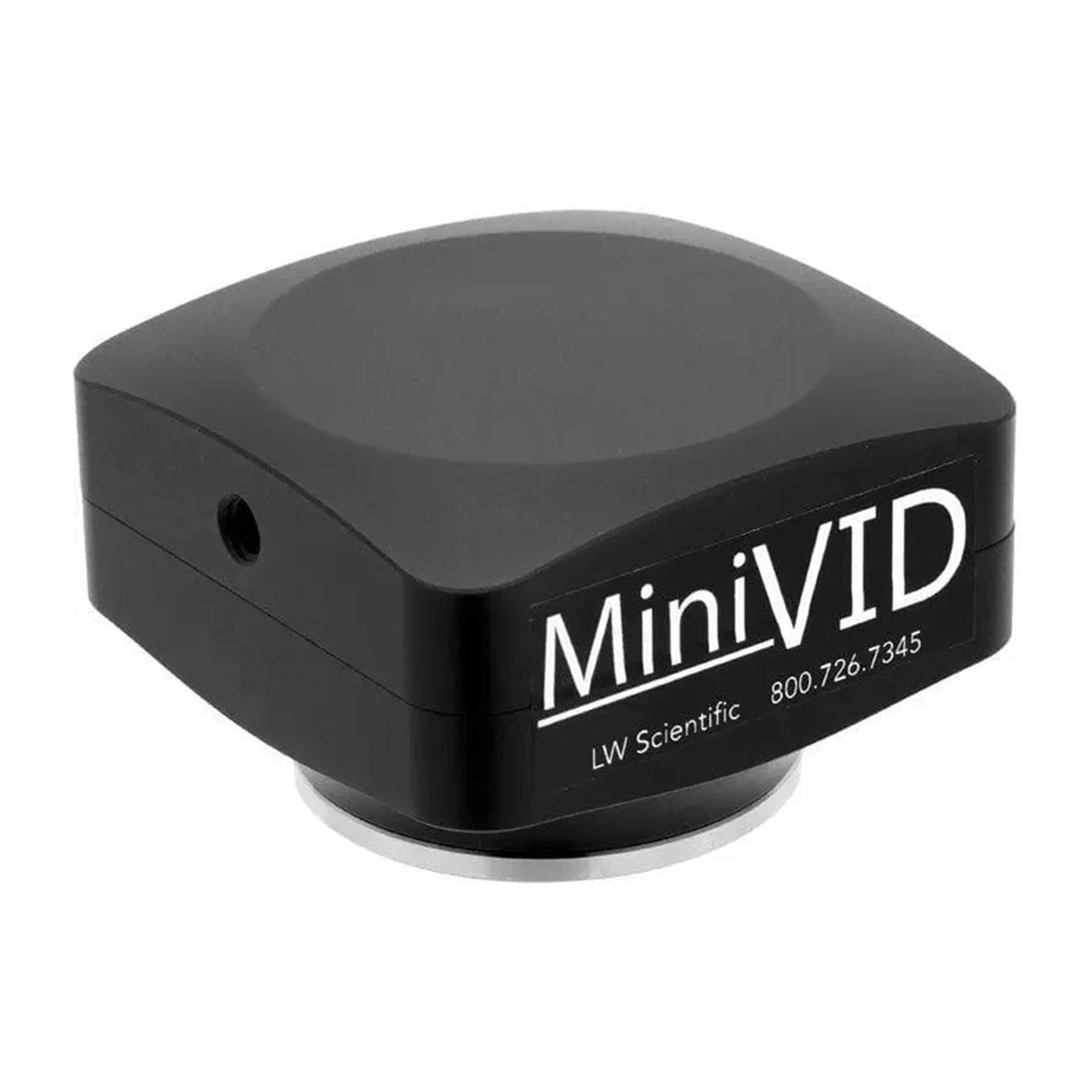

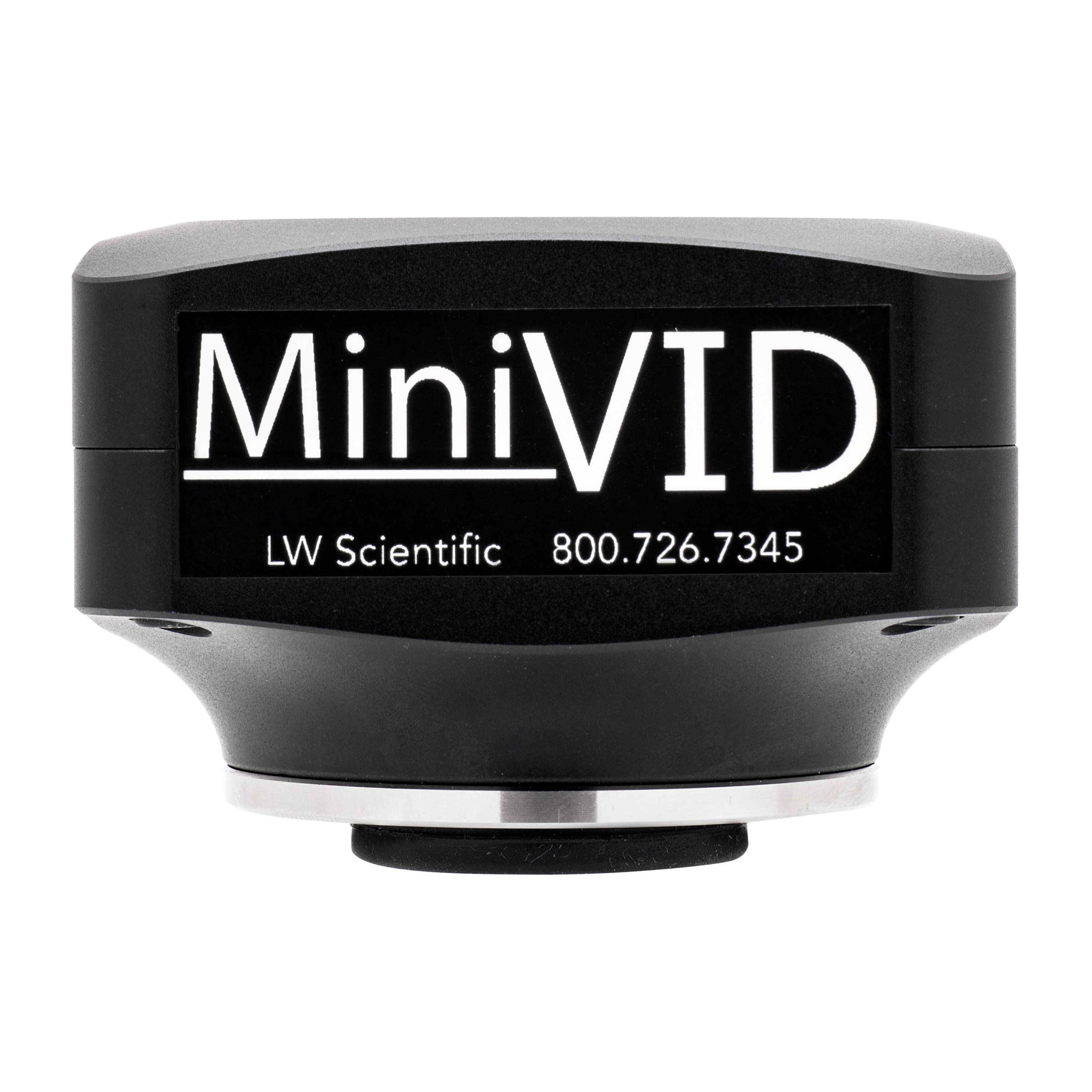

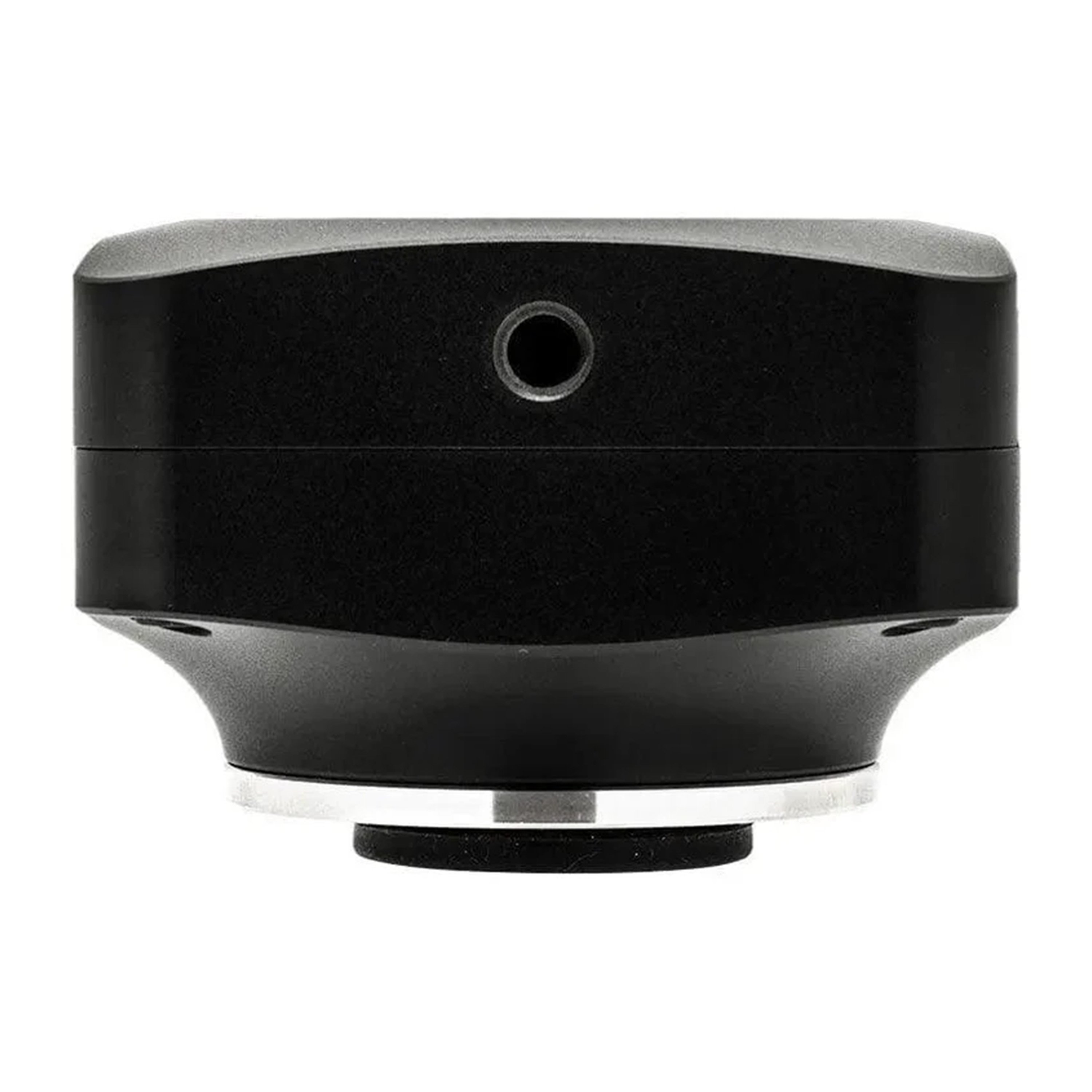

LW Scientific MiniVID USB Microscope Camera
Usually Ships in 1 Week
In stock
You May Also Need
Checked products are added to the cart with this item.
Product Description
The LW Scientific MiniVID USB Microscope Camera is the perfect addition to any microscope for training techs, educating clients, or documenting for patient files and medical device records.
Features:
- Small and Portable

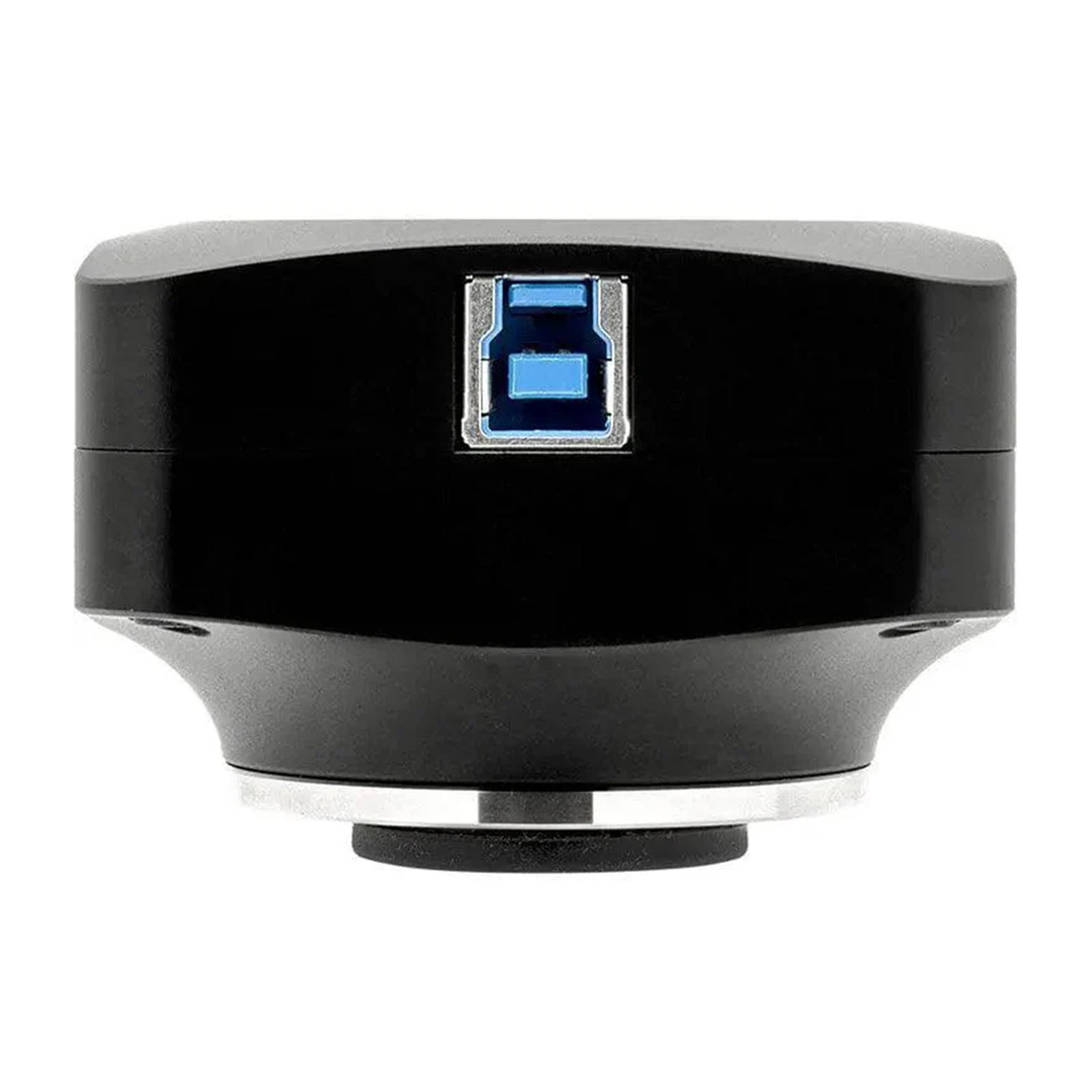

- Sony sensor; 3.0 USB for super-fast "LIVE" streaming
- Can be mounted to nearly any microscope with a trinocular C-mount threading
- Very fast frame rate for fast-action digital video
- Works on any MAC or PC with a USB 3.0 port
- Comes Standard With:
- Optical eyetube adapter (for use in 23 mm eyetube)
- CD with driver and software
- USB cable
Technical Specifications:
- Chip Identification: USB 3.0: E3ISPM06300KPA
- Hardware Configuration:
- Sensor Model: APTINA MT9P001
- Scan Mode: Progressive
- Maximum Resolution: 3072 x 2048

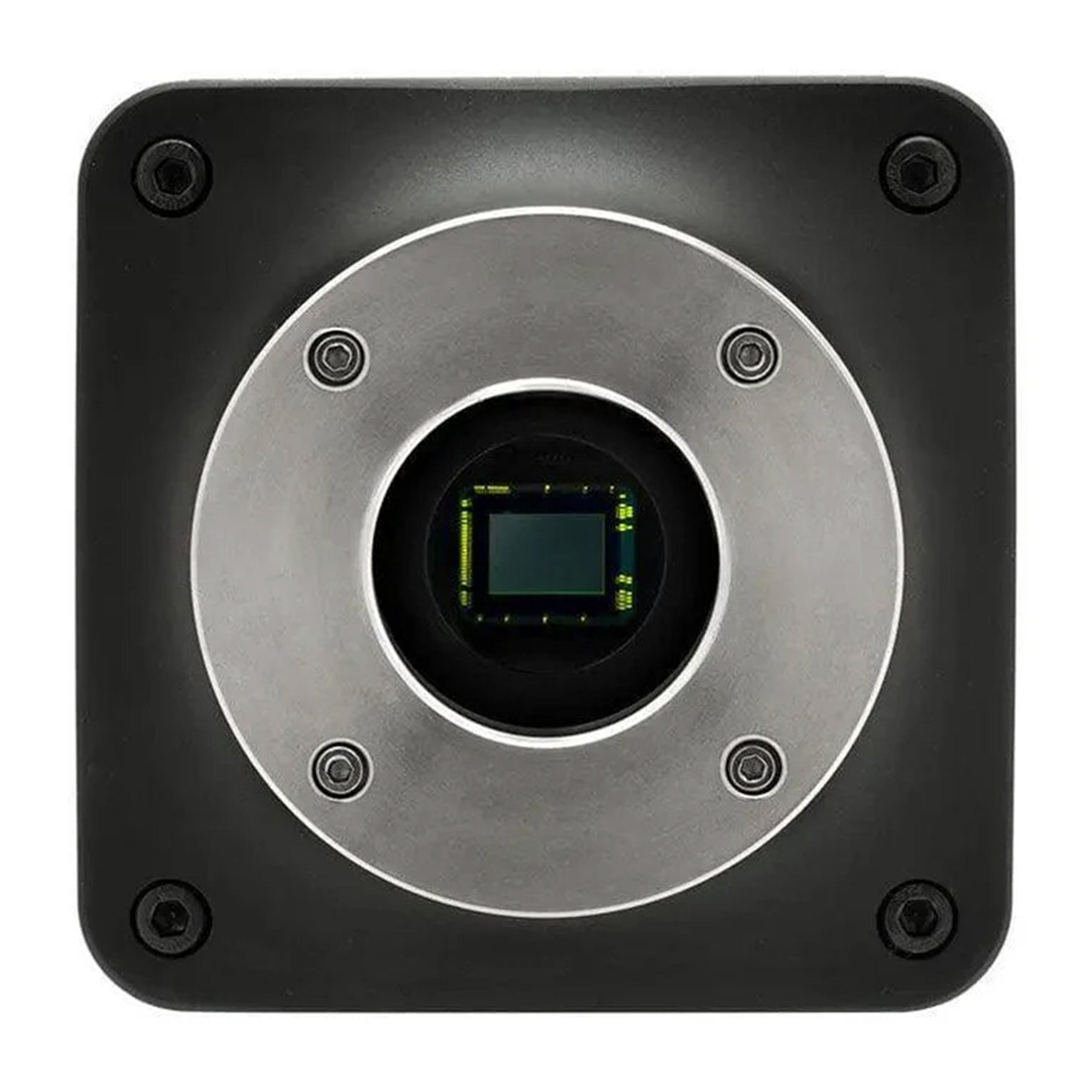

- Image Sensor: Color Sony CMOS chip - 6.3mp
- Sensor Size: 1/1.8’’ (8.92mm)
- Pixel Size: 2.4 µm x 2.4 µm
- Frame Size and Rate: 30 fps @ 3072 x 2048, 38 fps @ 1536 x 1024
- Binning: 1 x 1, 2 x 2, 4 x 4
- Exposure: 0.1 ms - 15 seconds
- White Balance: One Push ROI White Balance/ Manual Temp-Tint Adjustment
- Capture/Control API: DirectShow, Twain
- Capture Mode: Still Picture and Video
- Mounting Requirements: C-mount, eyetube (optical adapter included)
- Software Environment:
- Operating System: Microsoft Windows XP / Vista / 7 / 8 / 10 (32 & 64 bit) / Mac OS
- Software: ToupView micro-image analysis software (save digital images and videos)
- PC Requirements: CPU: Equal to Intel Core2 2.8GHz or higher
- Memory: 2GB or more
- Operating Environment:
- Operating Temperature: -30°C ~ 70°C
- Storage Temperature: -40°C ~ 125°C
- Operating Humidity: 30% ~ 80% relative humidity
- Storage Humidity: 10% ~ 60% relative humidity
- Power Supply: USB Port <5V 500mA DC
*Please note: Microscope and monitor are sold separately.
Specifications
| Manufacturer | LW Scientific |
|---|---|
| Latex Free | Yes |
| Country of Manufacture | China |
| Item Ships From | Georgia |
Literature
Instructions
Limited Warranty: When purchased from LW Scientific or an authorized distributor, Professional Stereoscopes and Laboratory Microscopes are covered by a limited lifetime warranty against defects in materials and workmanship. Electronic components are covered by a one (1) year limited warranty from the date of purchase. All other LW Scientific products, including Student Microscopes and Stereoscopes, are covered by a one (1) year limited warranty.
This warranty does not cover normal wear and tear, cosmetic damage caused by chemicals, solvents, or cleaning solutions, or damage resulting from acts of God.
For Complete Warranty Details, please see the literature above.
Returns
Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 15% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
