LW Scientific Revelation III DIN Microscope

Name: LW Scientific Revelation III DIN Microscope
Brand: LW Scientific
SKU: R3M-BN4A-DAL3-CON
Price: 801 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LW Scientific Cleaning Your Microscope Objectives: A Step-by-Step Guide

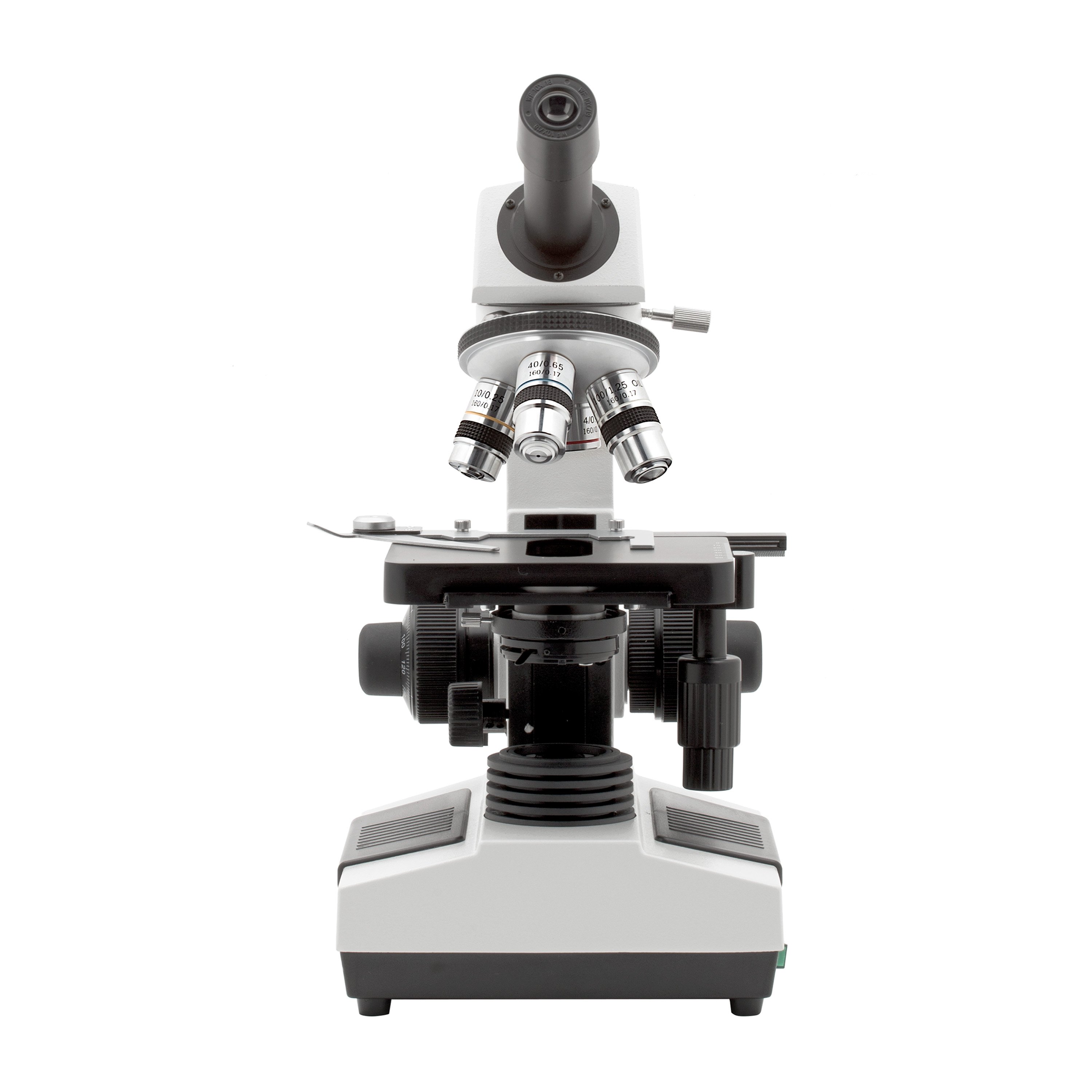

LW Scientific R3M-MN4A-DAL3 Revelation III DIN Microscope, Monocular with Achromatic Objectives - Front View

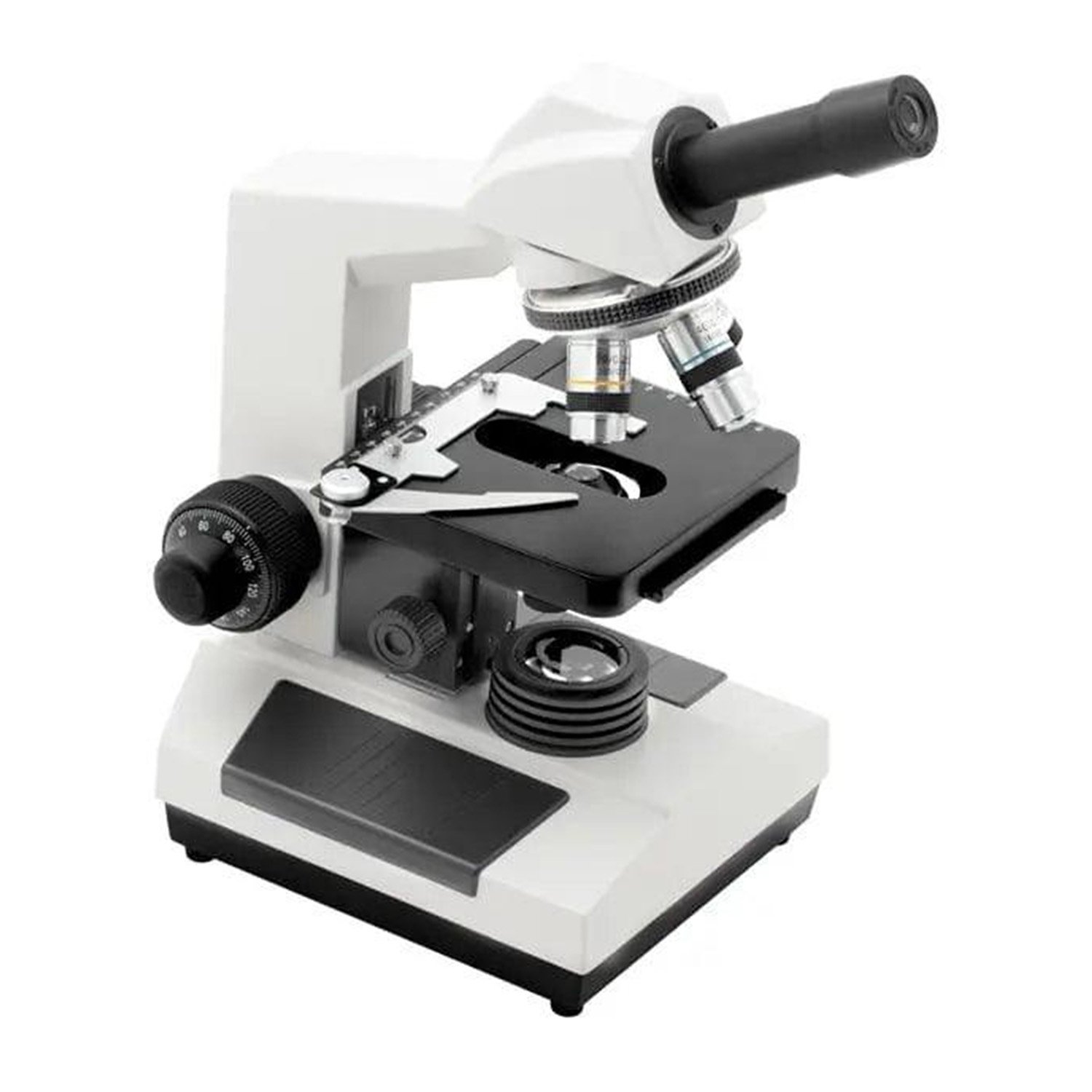

LW Scientific R3M-MN4A-DAL3 Revelation III DIN Microscope, Monocular with Achromatic Objectives - Right Facing View

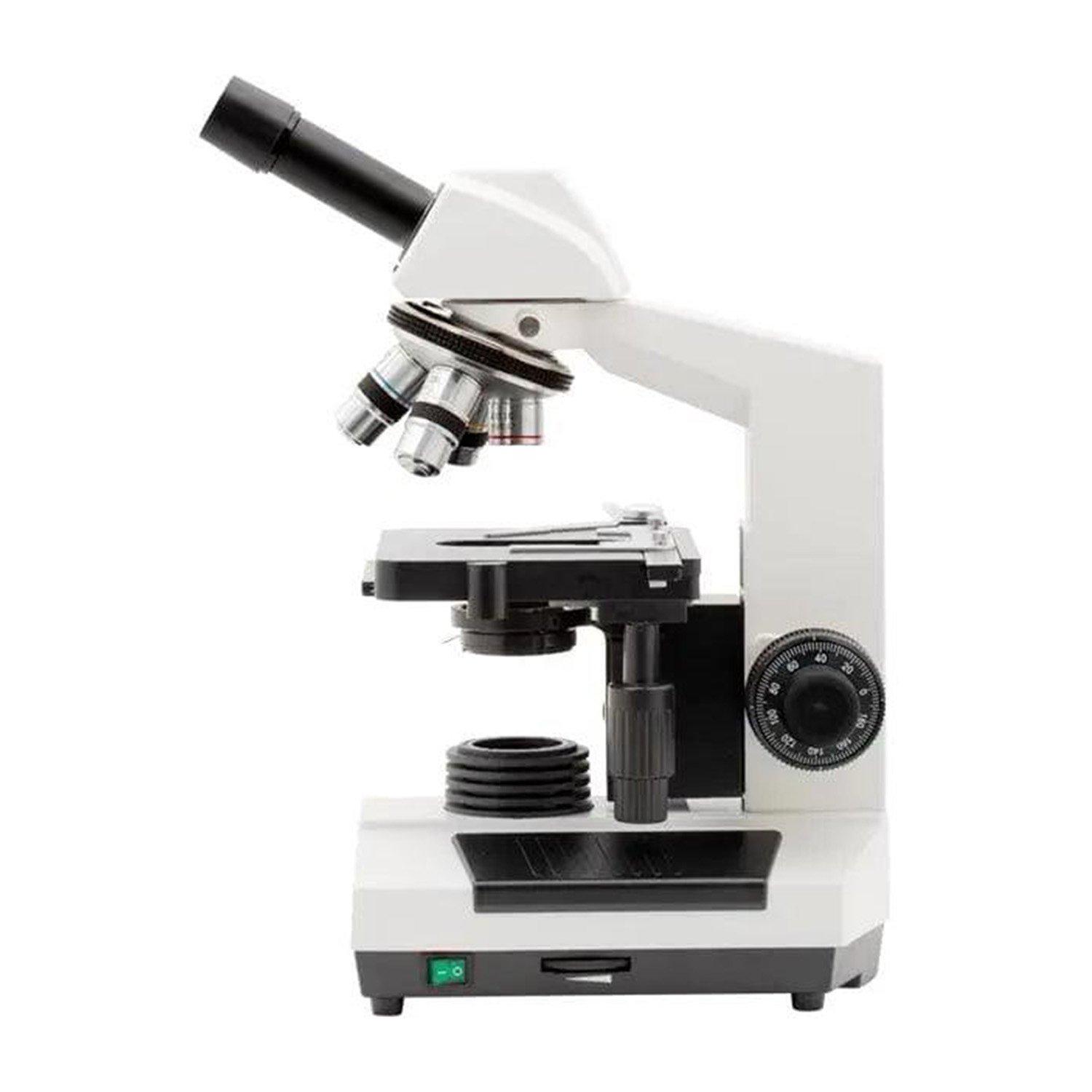

LW Scientific R3M-MN4A-DAL3 Revelation III DIN Microscope, Monocular with Achromatic Objectives - Side View

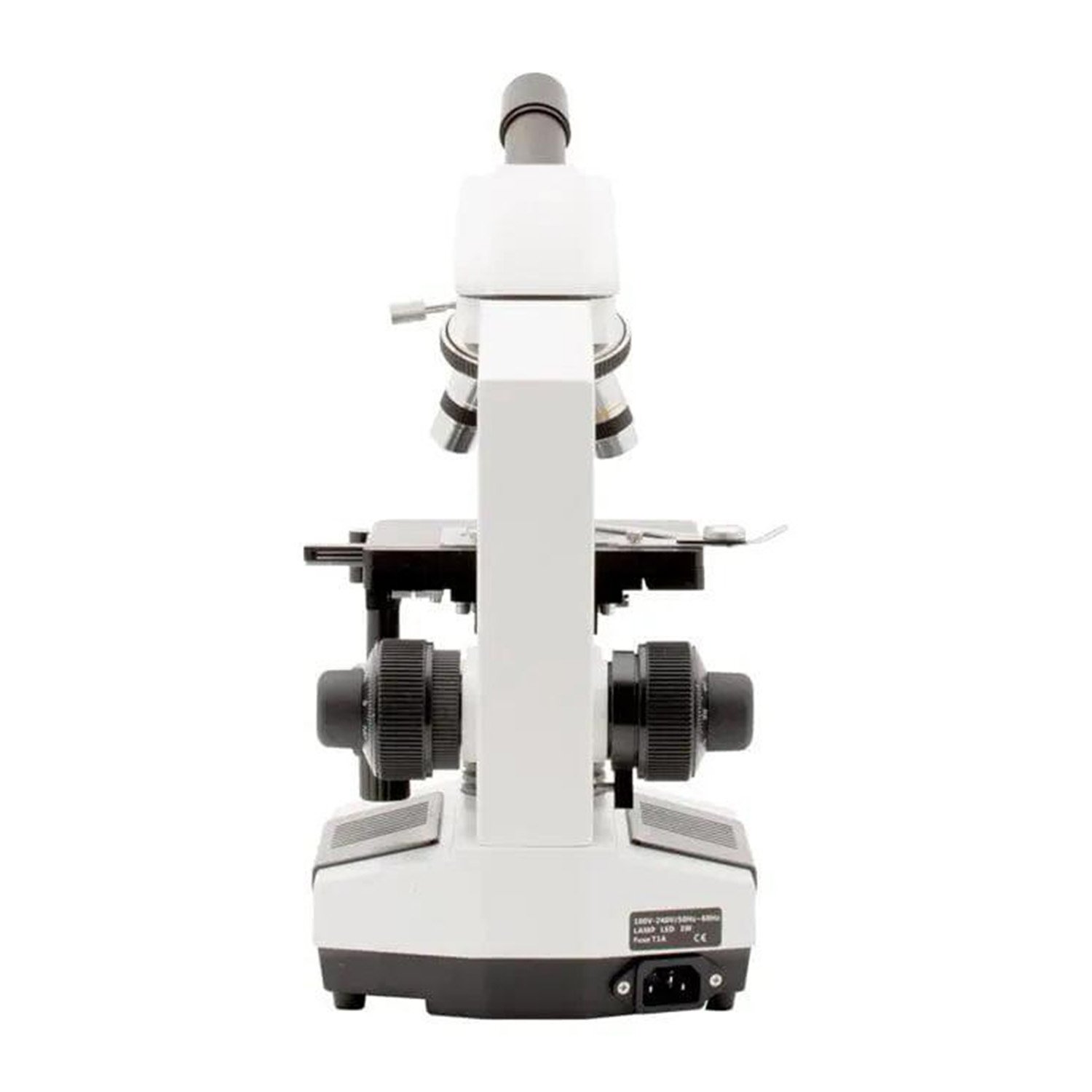

LW Scientific R3M-MN4A-DAL3 Revelation III DIN Microscope, Monocular with Achromatic Objectives - Back View

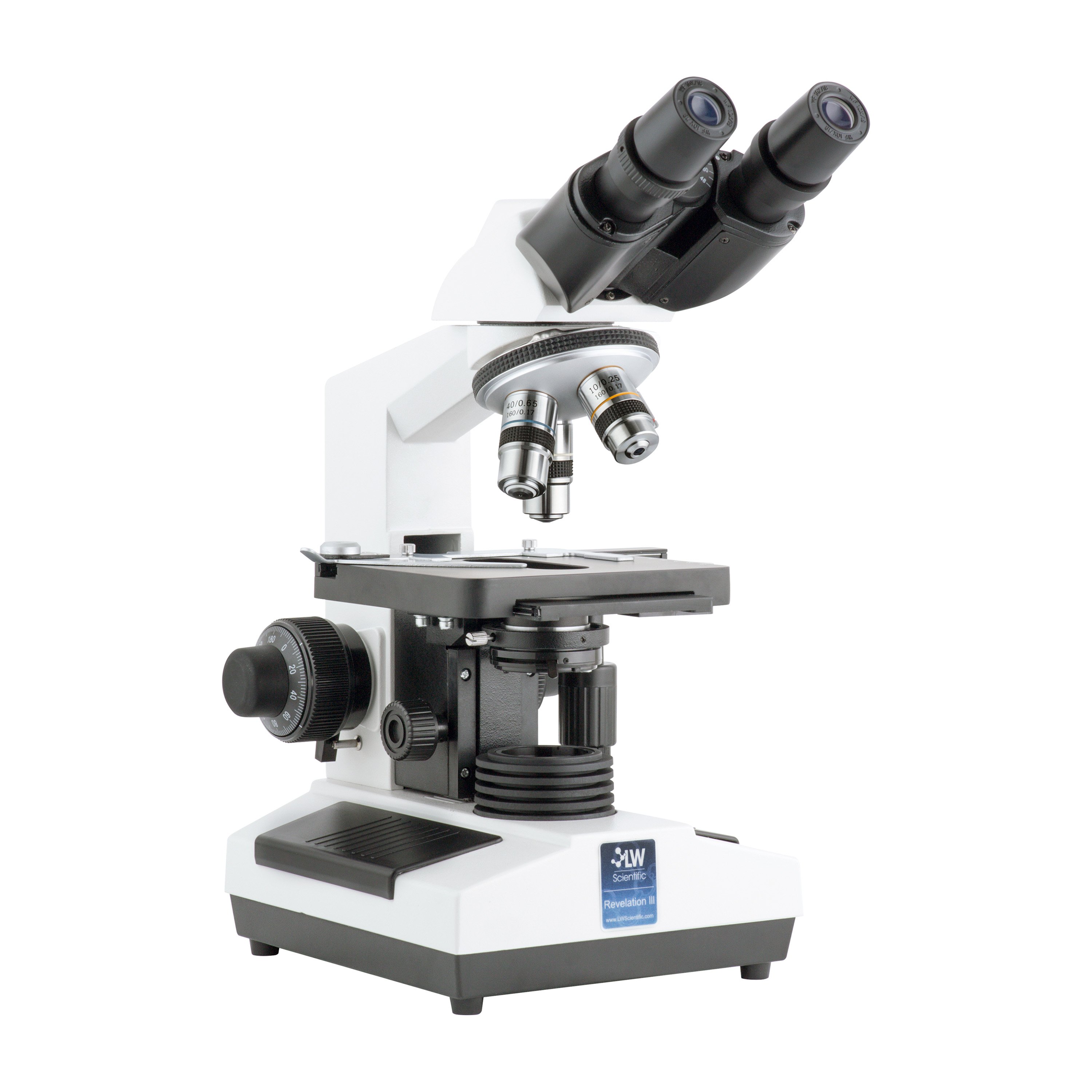

LW Scientific R3M-BN4A-DAL3 Revelation III DIN Microscope, Binocular with Achromatic Objectives - Right Facing View

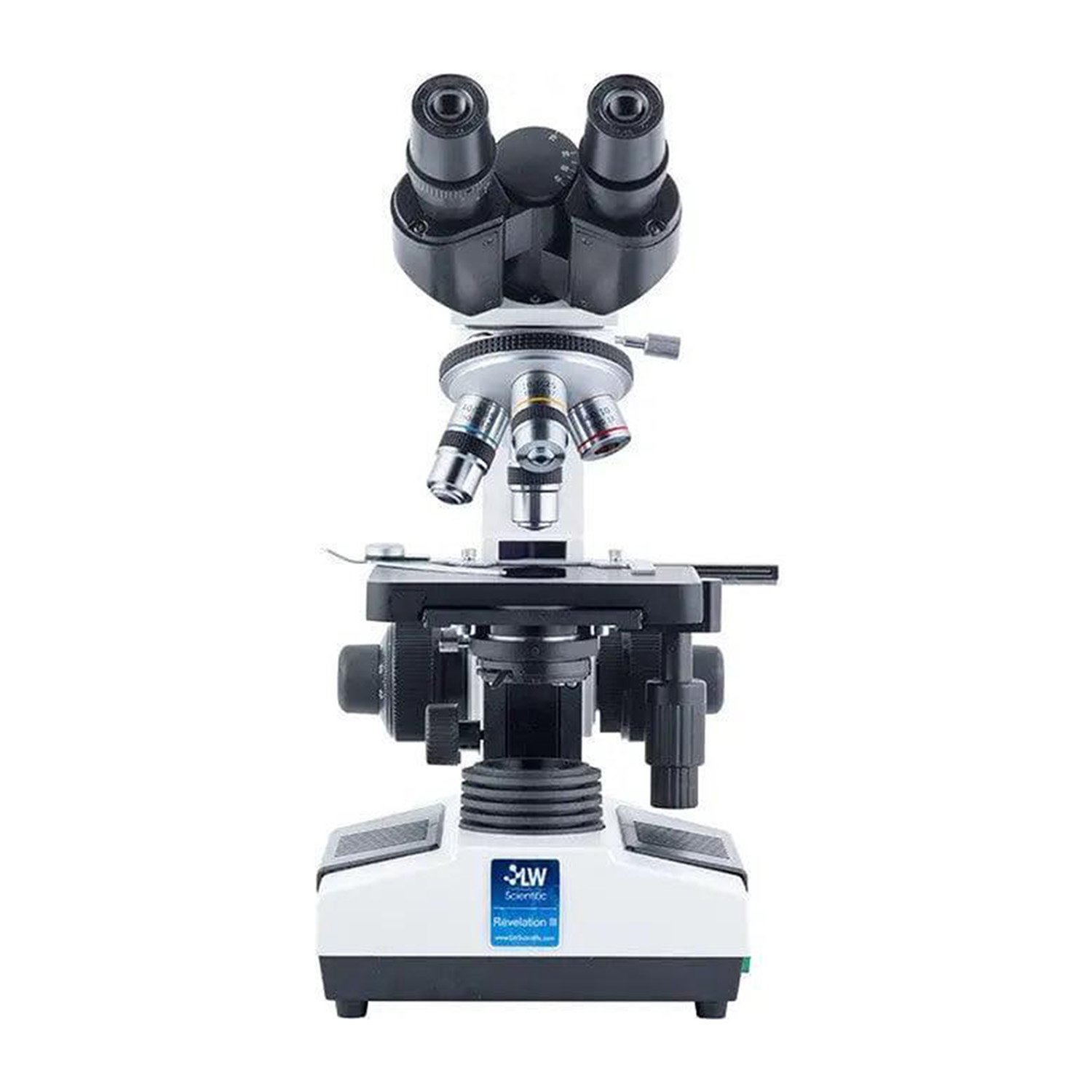

LW Scientific R3M-BN4A-DAL3 Revelation III DIN Microscope, Binocular with Achromatic Objectives - Front View

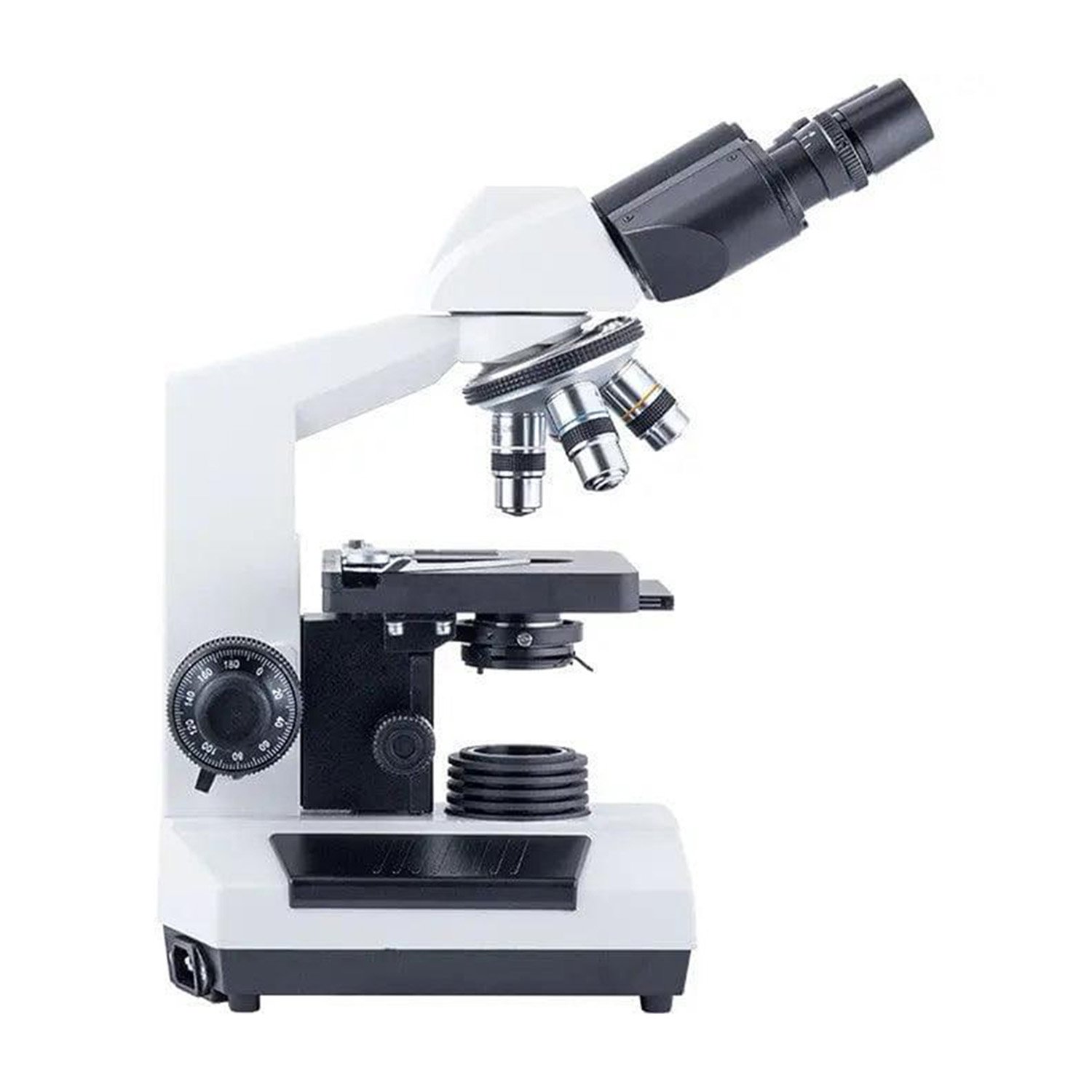

LW Scientific R3M-BN4A-DAL3 Revelation III DIN Microscope, Binocular with Achromatic Objectives - Side View

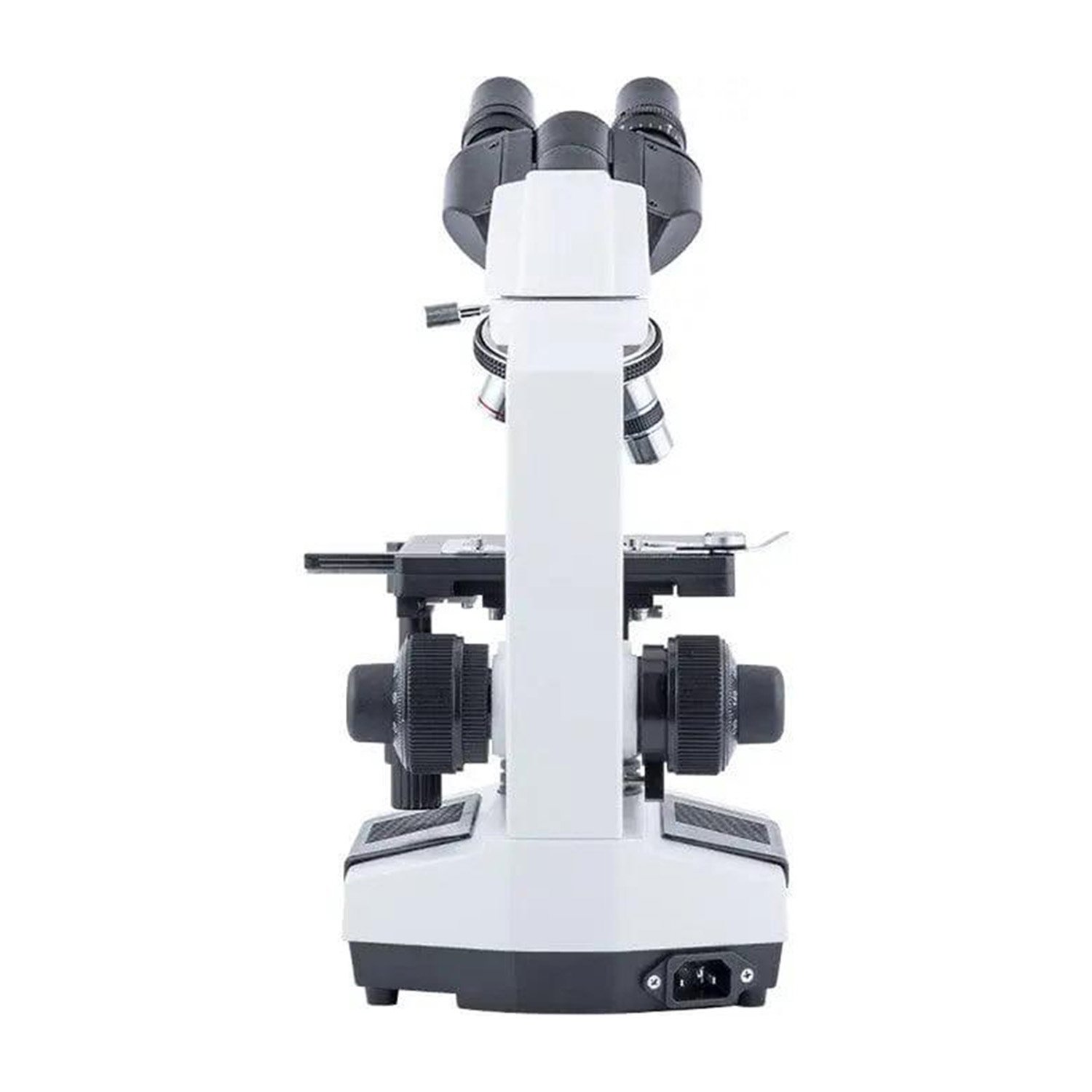

LW Scientific R3M-BN4A-DAL3 Revelation III DIN Microscope, Binocular with Achromatic Objectives - Back View

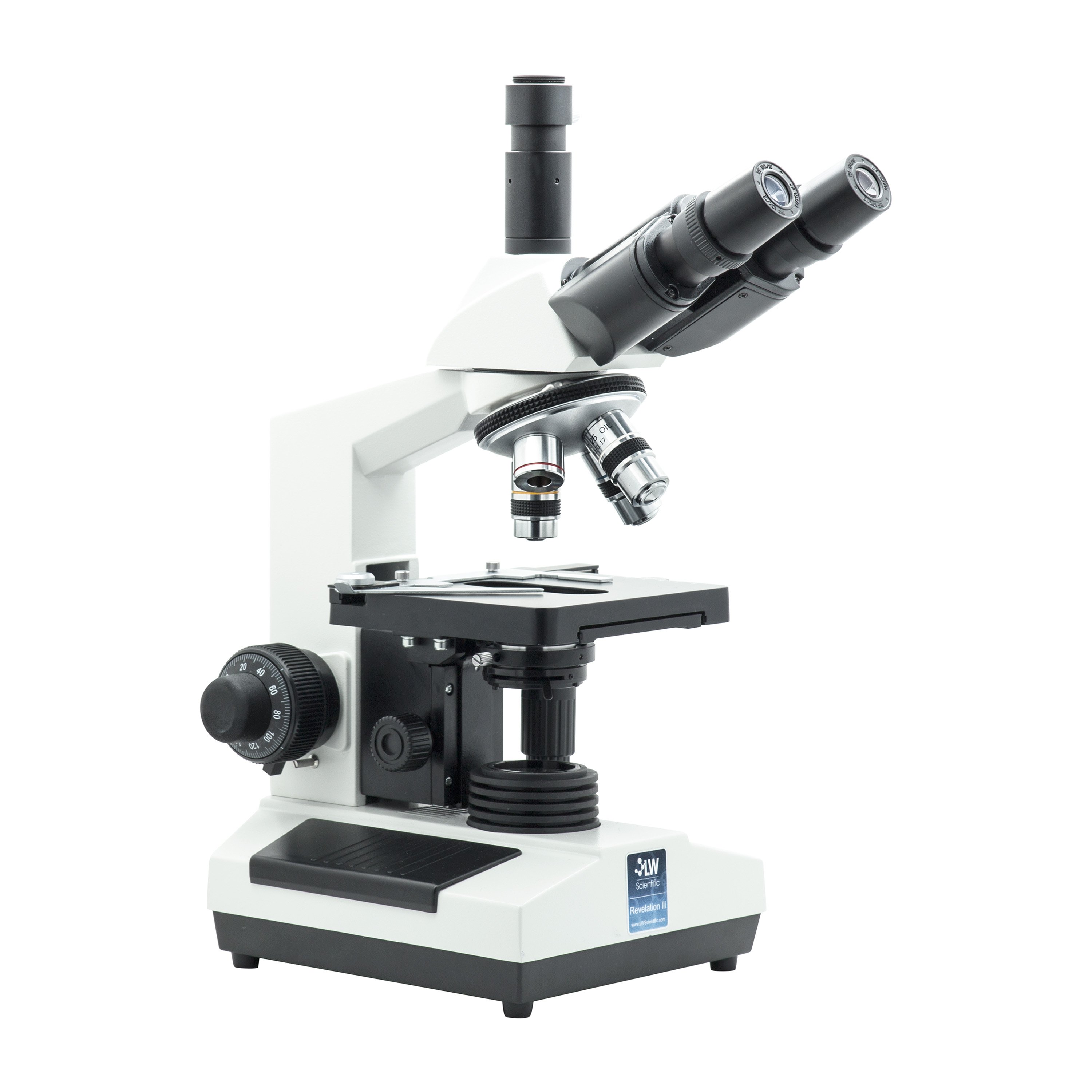

LW Scientific R3M-TN4A-DAL3 Revelation III DIN Microscope, Trinocular with Achromatic Objectives - Right Facing View

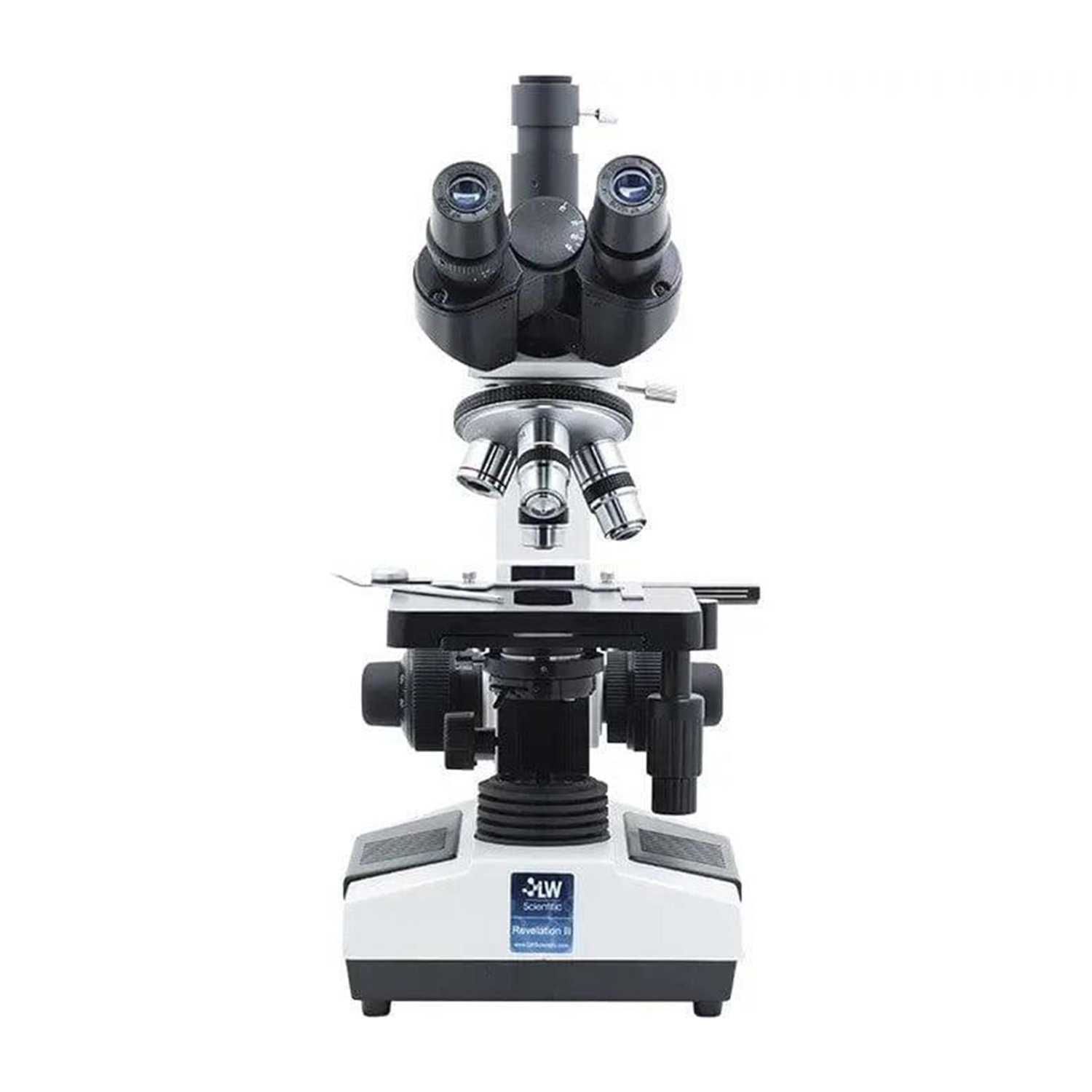

LW Scientific R3M-TN4A-DAL3 Revelation III DIN Microscope, Trinocular with Achromatic Objectives - Front View

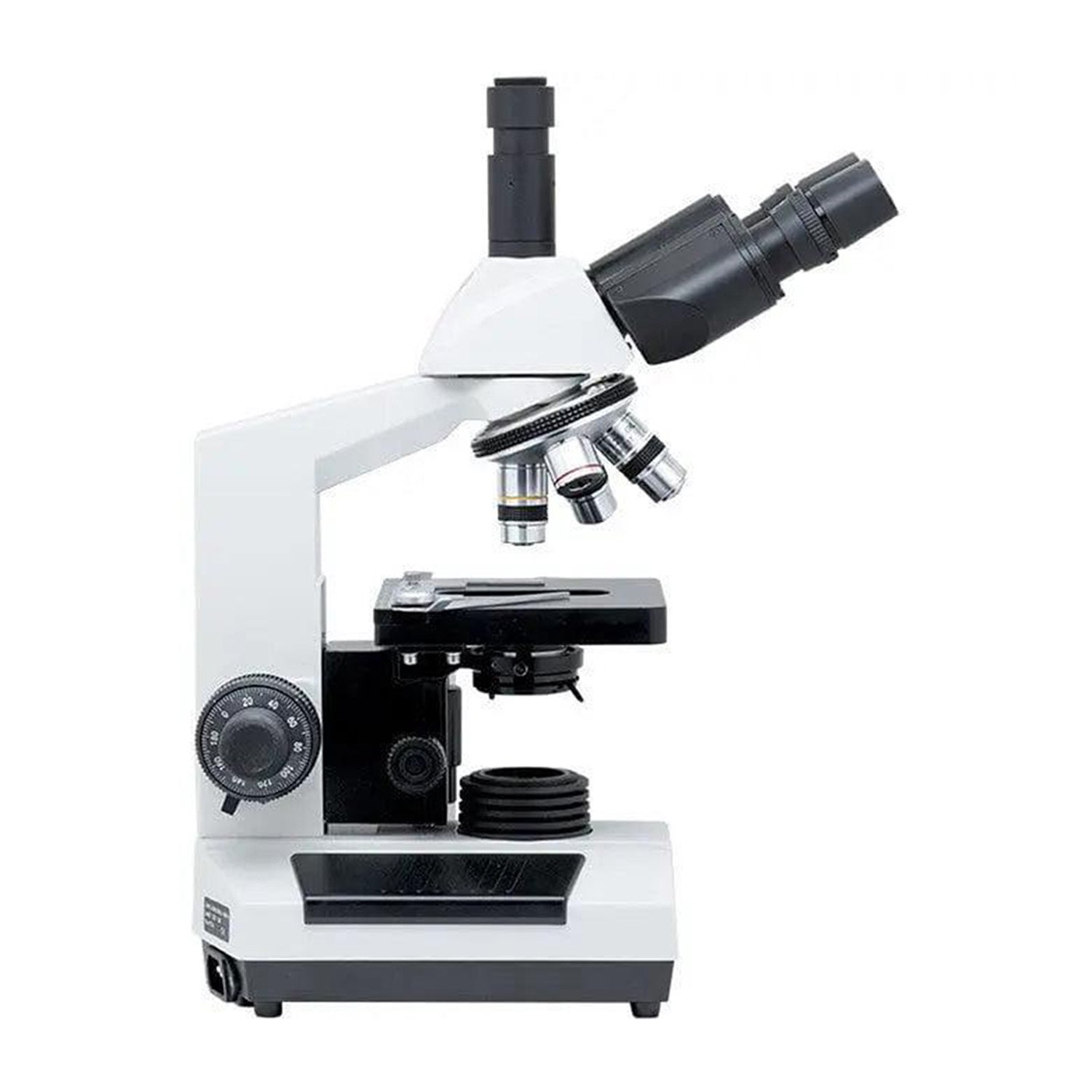

LW Scientific R3M-TN4A-DAL3 Revelation III DIN Microscope, Trinocular with Achromatic Objectives - Side View

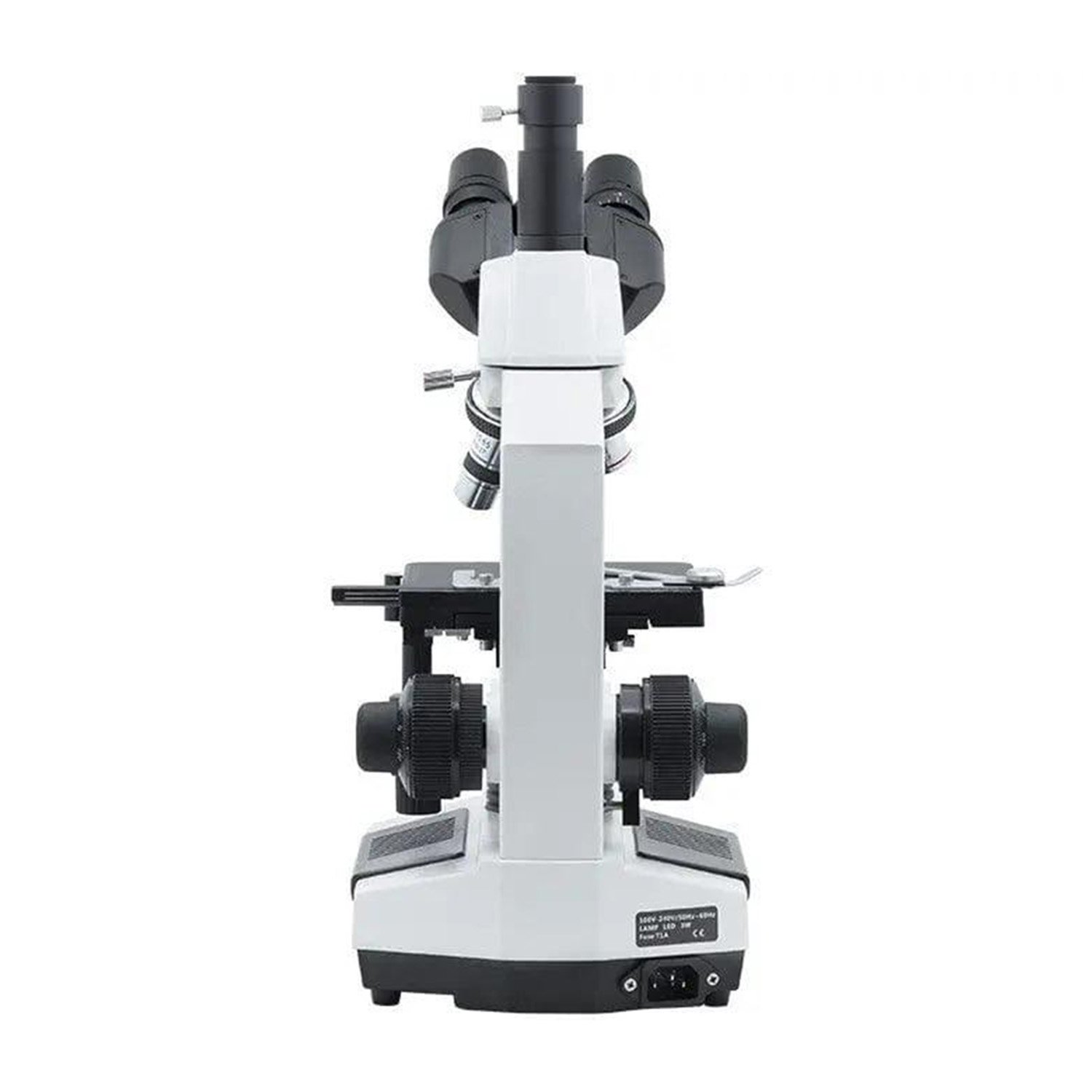

LW Scientific R3M-TN4A-DAL3 Revelation III DIN Microscope, Trinocular with Achromatic Objectives - Back View

Move your mouse over image or click to enlarge

Is this item the best fit for your needs?

Let our experts help.

800-423-2767

Live Chat

Usually Ships in 1 Week

In stock

Only %1 left

Be the first to review this product

Choose an Option

MSRP $1,700.00 MSRP $1,700.00 As low as $801.00

SKU

Choose options above

Packaging: Per Each

Qty

Product Description

The LW Scientific Revelation III DIN Microscope is a trusted choice for medical clinics, veterinary laboratories, research facilities, and educational institutions that require clear, high-contrast imaging and long-term durability.

Features:

Precision Optical Performance - Ensures detailed and accurate specimen analysis with minimal distortion
Infinity Plan and Semi-Plan Optics - Offers superior clarity, making it ideal for pathology, cytology, microbiology, and general laboratory applications
Energy-Efficient LED Illumination - Provides consistent brightness with a long lifespan, minimizing maintenance needs while enhancing specimen visibility. Its LED ensures daylight color, low heat, low power consumption, and super-long bulb life (30,000 hours)
Ergonomic Viewing Head - Built for extended microscope sessions, ensuring comfort and reduced eye strain
Durable and Reliable Construction - Built for daily use in clinical, veterinary, and research settings
Modular and Upgradeable - Compatible with additional accessories for enhanced functionality
Comes standard with a 3-prong power cord
Optional microscope camera available for the trinocular microscope*

Technical Specifications:

Head	Available in Three Options: Monocular Binocular (Seidentopf head) Trinocular Inclined at 30° and rotates 360° Diopter adjustment Eyepieces: 10X/18 mm wide field Interpupillary Distance Range: Binocular Head: 48 mm – 75 mm Trinocular Head: 55 mm – 75 mm
Nosepiece	Quadruple forward-facing nosepiece Multiple ball bearing mounted
Objectives	Available in Two Options: DIN achromatic DIN plan Magnification and Numerical Aperture: 4X, N.A. 0.10 10X, N.A. 0.25 40XR, N.A. 0.65 100XR, N.A. 1.25 (oil) 30-year anti-fungal coating Parfocal, parcentric, color-coded
Stage	Mechanical Stage X-Y coaxial drive controls Stage locking lever Slow-close hydraulic slide finger Acid and reagent-resistant finish Etched vernier scales Range of Traverse: 78 mm (X-axis) x 50 mm (Y-axis)
Focus	Tension control knob Coarse Adjustment: Range of 30 mm Fine Adjustment: Graduation of 2µm
Illumination	LED light Swing-out filter holder with blue and green filters Moveable Abbe condenser (N.A. 1.25), rack and pinion Iris Diaphragm
Operating Environment	Indoor Use Only Ambient Temperature: 5°C – 40°C
Power	100V – 240V AC / 50 Hz – 60 Hz auto-switching input
Physical Specifications	Construction: Rugged alloy Stage Dimensions: 5.51" L x 5.12" W Overall Dimensions: 9" L x 7" W x 15" H Actual Product Weight: 14 lbs

*Please note: The microscope camera is sold separately and is compatible with the trinocular microscope only.

Specifications

Specifications
Manufacturer	LW Scientific
Latex Free	Yes
Actual Product Weight	14 lbs
Overall Height	15"
Overall Width	7"
Overall Length	9"
Country of Manufacture	China
Item Ships From	Georgia

Literature

Instruction Manual

(Size: 229.8 KB)

Specification Sheet

(Size: 189.9 KB)

Warranty Information

(Size: 41.9 KB)

Product Videos

Instructions

Limited Warranty: When purchased from LW Scientific or an authorized distributor, Professional Stereoscopes and Laboratory Microscopes are covered by a limited lifetime warranty against defects in materials and workmanship. Electronic components are covered by a one (1) year limited warranty from the date of purchase. All other LW Scientific products, including Student Microscopes and Stereoscopes, are covered by a one (1) year limited warranty, while accessories carry a 90-day limited warranty.

This warranty does not cover normal wear and tear, cosmetic damage caused by chemicals, solvents, or cleaning solutions, or damage resulting from acts of God.

For Complete Warranty Details, please see the literature above.

Returns

Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 15% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
