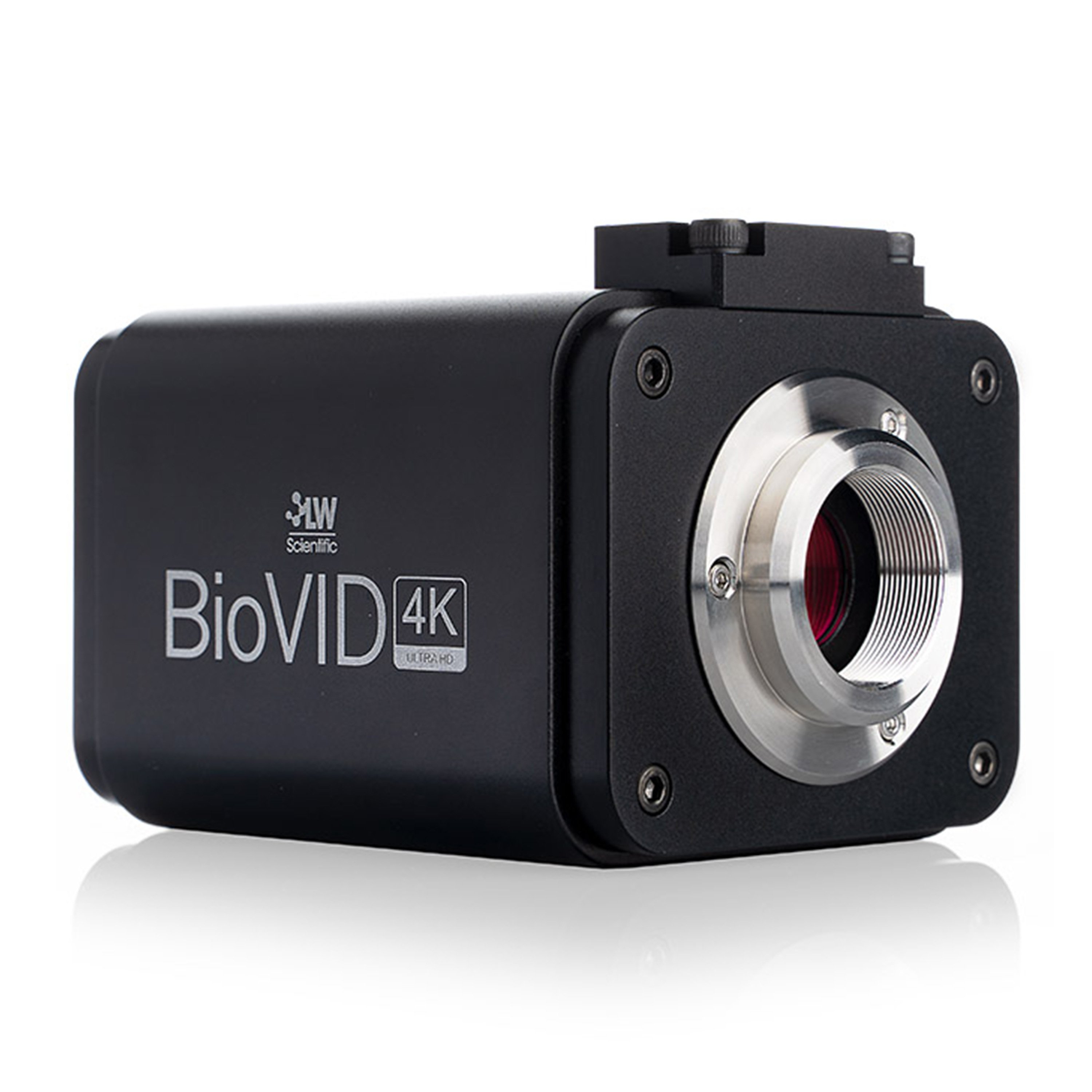

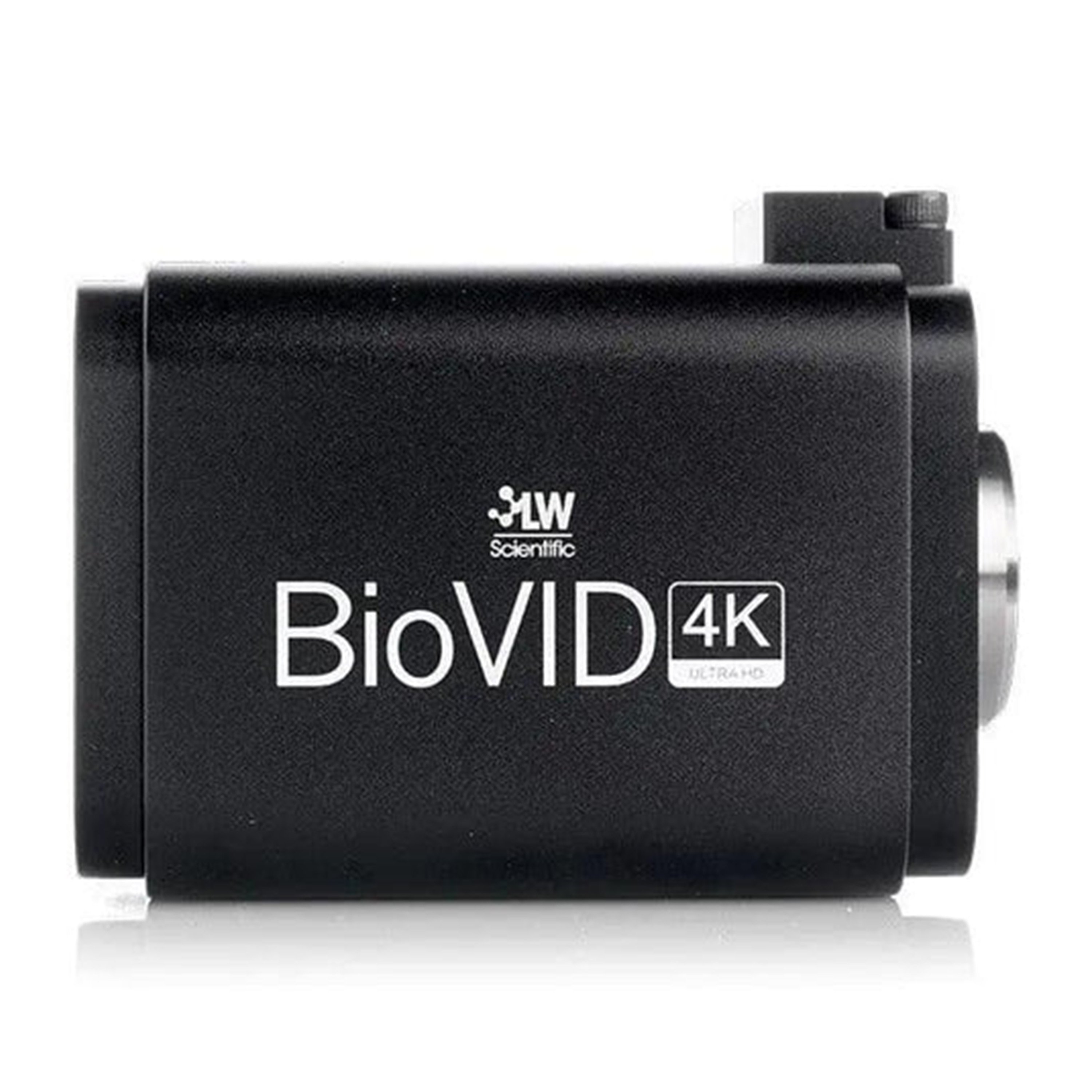

LW Scientific BioVID Ultra HD 4K Microscope Camera

The LW Scientific BioVID Ultra HD 4K Microscope Camera provides stunning resolution and color for client education and live presentations. It ensures a crisp, clear image from the lecture hall to the laboratory.

Features:

• High-quality, 8-megapixel imaging
• Compatible with any trinocular microscope with a C-mount*
• Displays 4K-quality video onto any 4K-compatible screen
• Store images and videos directly to the camera's SD card
• Using the provided memory storage, you can view, edit, and compare images and videos side-by-side with any compatible display platform
• Utilize the included image capture software when connected to a PC or MAC via USB
• Connect to a larger HDTV or projector via HDMI, allowing clients and students to view microscope images clearly
• Equipped with an extremely sensitive Sony IMX334(C) sensor chip to help it maintain 4K resolution and a fast frame rate in low-light and high magnification settings
• For HDMI Output:
  • Color adjustment, exposure, and white balance
  • Zoom and freeze, mirror, and comparison
  • "Side-by-Side" viewing
• For USB Output:
  • 2D measurement
  • HDR (High Dynamic Range) for more accurate representations of color and light
  • Image segmentation and count, image stacking
• Comes Standard With:
  • HDMI cable
  • 8G SD card
  • Power adapter
  • USB mouse with 1.3 m cable
  • USB220-ATA | USB2.0 A cable - 2 meter
  • CD with camera driver and software
• Optional Accessory:
  • 1080p Monitor (BVP-SCRN-1163*) - This monitor will not display the full 4K resolution from the camera

Technical Specifications:

• Resolution: 4K - 8 MegaPixels (3840 x 2160)
• Image Sensor:
  • Sony IMX334C
  • CMOS color 1/1.8” (7.68 mm x 4.32 mm)
• Pixel Size: 2.0 µm x 2.0 µm
• Auto-Exposure: 0.1 ms - 2000 ms
• Power:
  • cUL/CE-approved power adapter
  • AC Input: 100V - 240V AC, 50Hz / 60Hz, 0.31A (auto-switching power adapter)
  • DC Output: 12V, 2A adaptor
• Operating Condition:
  • Temperature: -10°C ~ 50°C (14°F to 122°F)
  • Humidity: 30% - 80% relative humidity

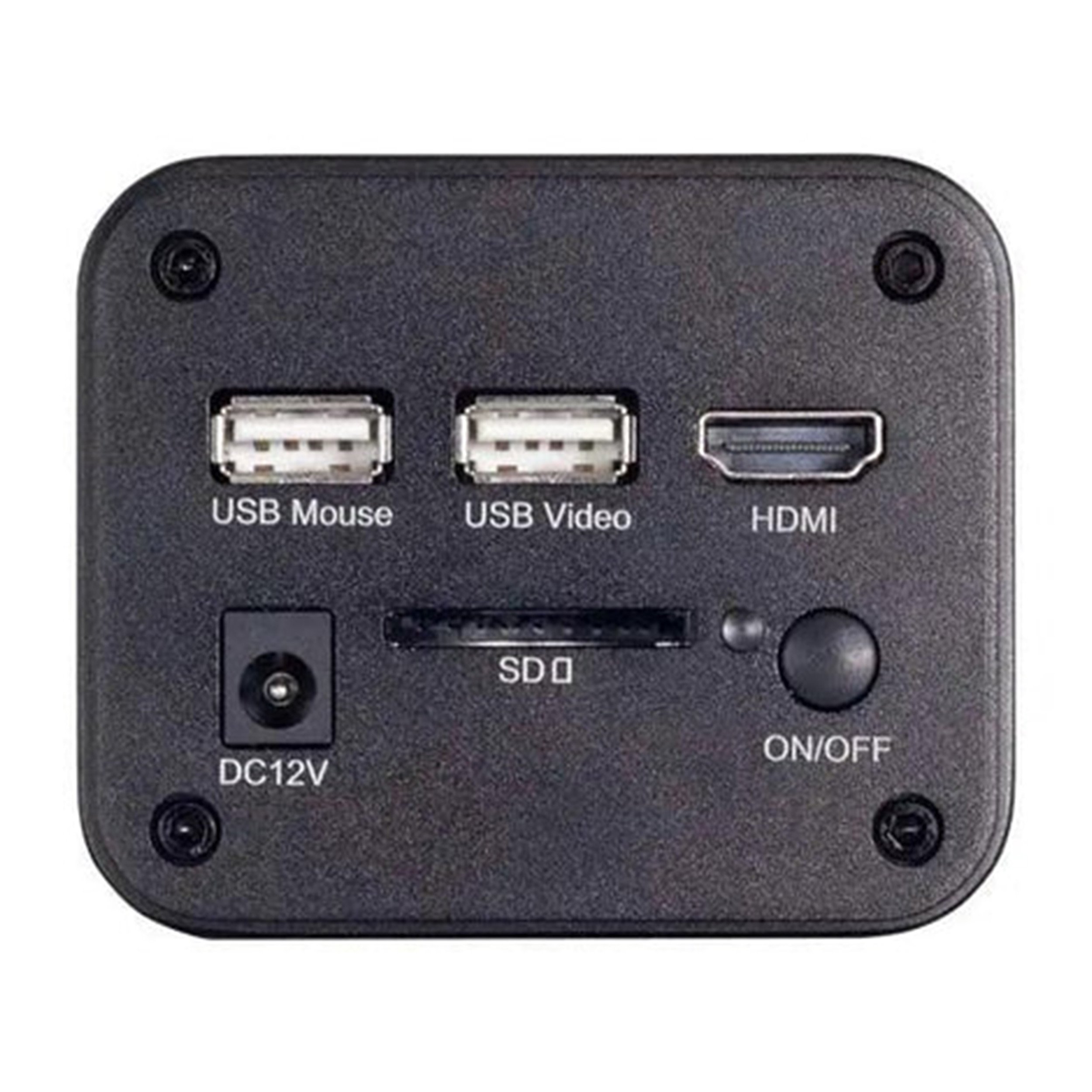

• Connections and Controls:
  • USB Port: USB cable
  • USB Mouse Port
  • HDMI Port: HDMI cable to TV
  • DC 12V Jack: 12V DC power in
  • SD Slot: For an included SD card
  • ON/OFF: Power button
  • LED Light: Red = OFF; Blue = ON
• Requirements:
  • Operating System: Microsoft Windows XP, Vista, 7, 8, 10 (32 and 64 bit), Mac OSX, Linux
  • CPU: Intel Core2 2.8GHz or higher
  • Memory: > 4GB
  • USB high-speed port
• Video Output:
  • HDMI:
    • User interface: USB mouse (included)
    • Image/Video Capture: SD card
    • Video: 30 frames per second @ 3840 x 2160 (HDMI)
    • On-screen camera control panel and toolbar
  • USB:
    • Includes software for capturing, rotating, measuring, etc.
    • Image/video capture into PC
    • Image capture on Mac
    • Video: 20 frames per second @ 3840 x 2160 (USB)
    • White balance and standard color controls
• Mounting Options: C-mount
• Overall Dimensions: 2.6" L x 3.1" W x 3.9" H
• Actual Product Weight: 1.03 lbs

*Please note: Microscope and monitor are sold separately.
