LW Scientific i4 Lumin™ Epi-Fluorescence Microscope

Name: LW Scientific i4 Lumin™ Epi-Fluorescence Microscope
Brand: LW Scientific
SKU: I4S-EPB4-IPL3-CON
Price: 5440 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LW Scientific i4 Microscope: How To Set Up

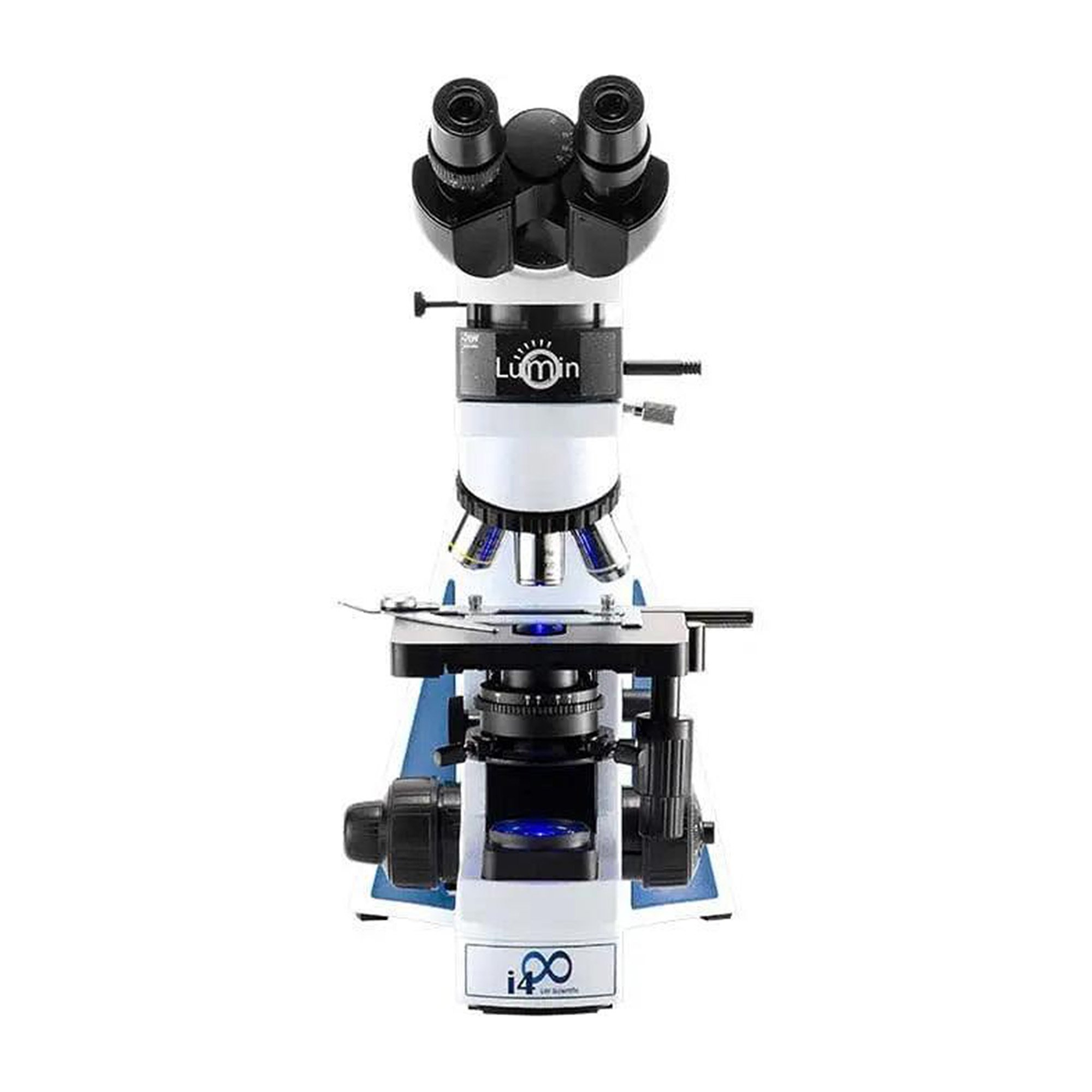

LW Scientific I4S-EPB4-IPL3 i4 Lumin™ Epi-Fluorescence Microscope, Binocular - Front View

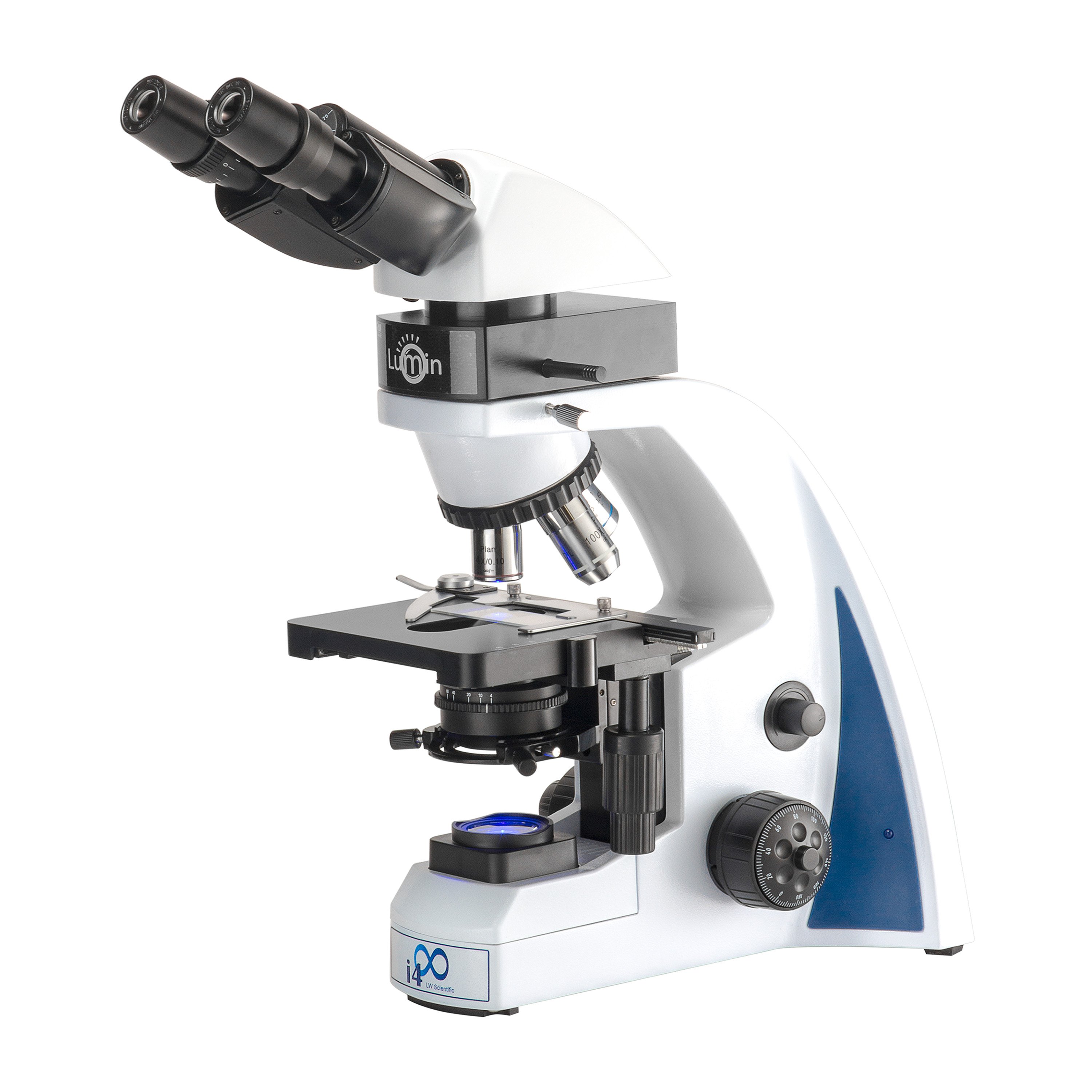

LW Scientific I4S-EPB4-IPL3 i4 Lumin™ Epi-Fluorescence Microscope, Binocular - Left Facing

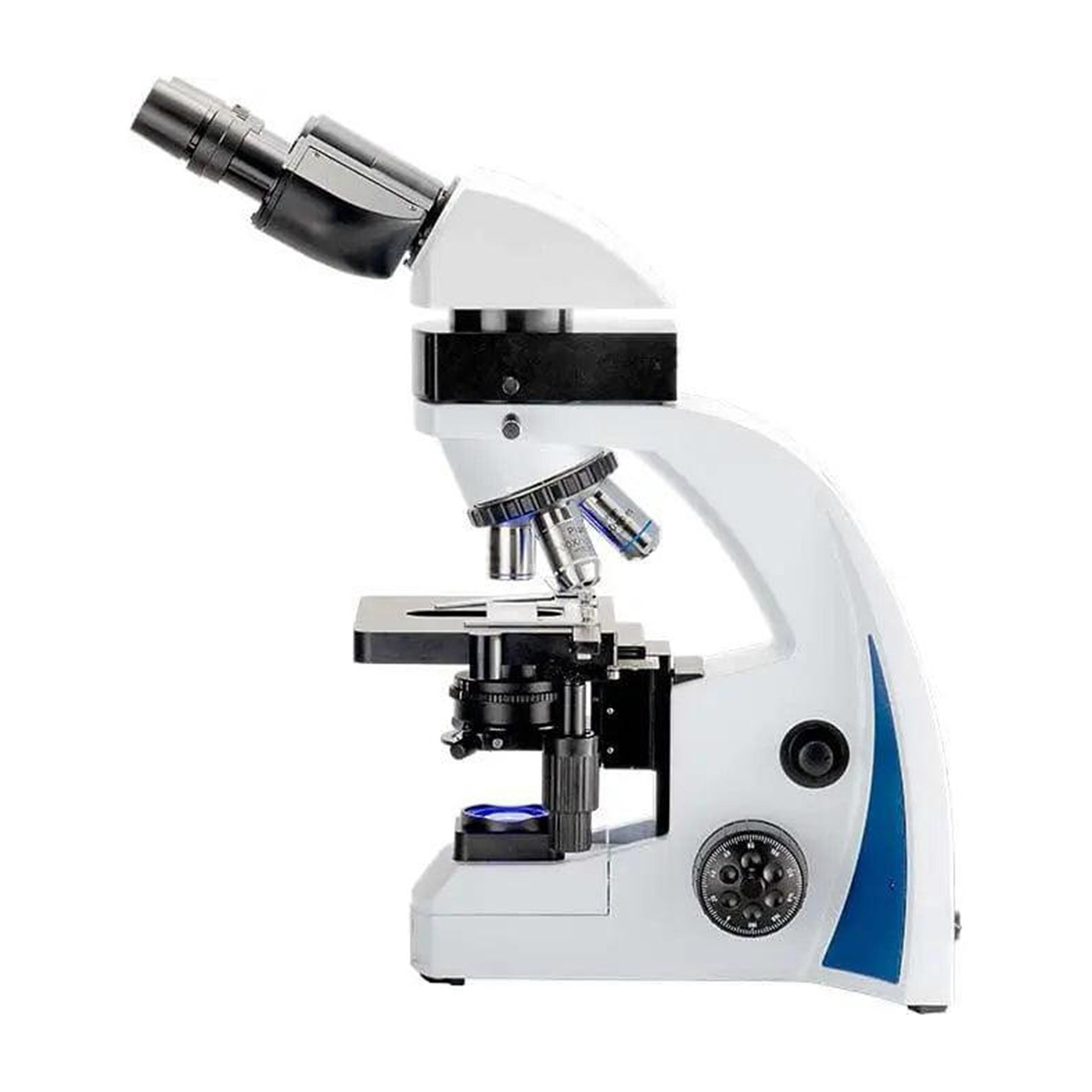

LW Scientific I4S-EPB4-IPL3 i4 Lumin™ Epi-Fluorescence Microscope, Binocular - Side View

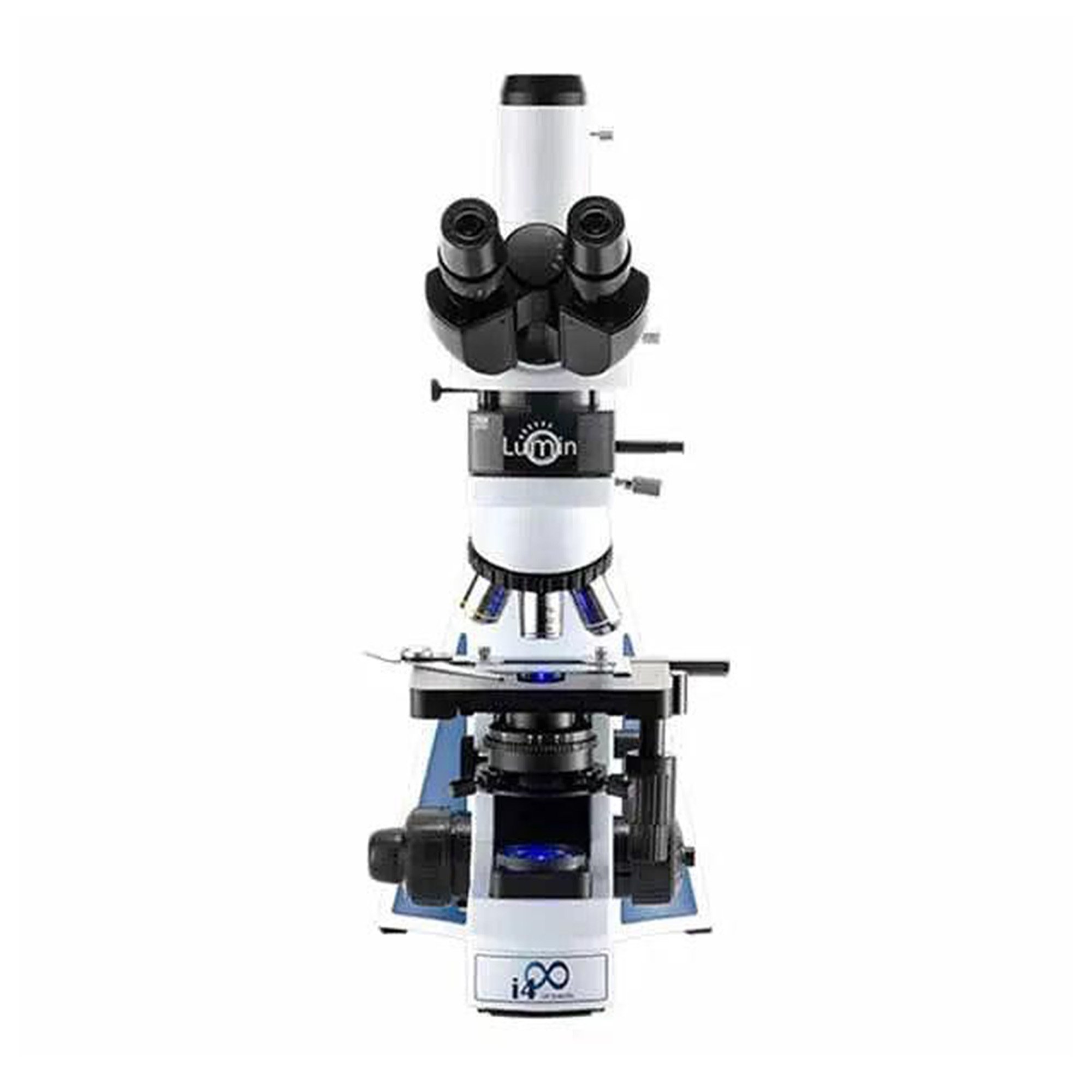

LW Scientific I4S-EPT4-IPL3 i4 Lumin™ Epi-Fluorescence Microscope, Trinocular - Front View

Move your mouse over image or click to enlarge

Is this item the best fit for your needs?

Let our experts help.

800-423-2767

Live Chat

Usually Ships in 1 Week

In stock

Only %1 left

Be the first to review this product

Choose an Option

MSRP $6,000.00 MSRP $6,000.00 As low as $5,440.00

SKU

Choose options above

Packaging: Per Each

Qty

Product Description

The LW Scientific i4 Lumin™ Epi-Fluorescence Microscope offers superior clarity and crisp imaging at an affordable price, allowing laboratories on a limited budget to benefit from the latest technological advances.

Features:

High-Sensitivity Fluorescence Imaging - Ideal for clinical diagnostics, microbiology, and molecular research
LED Epi-Fluorescence Illumination - Provides brighter, more stable, and longer-lasting imaging compared to traditional mercury or halogen bulbs
Infinity Plan Optics - Delivers sharp, high-resolution images for accurate analysis
Modular Expandability - Customizable with multiple fluorescence filter sets for various applications
Energy-Efficient and Mercury-Free - Reduces maintenance costs and eliminates hazardous waste
Durable and Cost-Effective - Designed for long-term use in clinical, veterinary, and research laboratories
User-Friendly and Ergonomic Design - Easy to operate with minimal maintenance requirements
Reliable and Long-Lasting Performance - LED illumination ensures consistent fluorescence imaging without frequent bulb replacements
Optional microscope camera available for the trinocular microscope*

Technical Specifications:

Head	Available in Two Options: Binocular (Seidentopf head) Trinocular Inclined at 30° and rotates 360° Diopter adjustment Eyepieces: 10X/18 mm WF Interpupillary Distance Range: 55 mm – 75 mm
Nosepiece	Reverse quadruple nosepiece Multiple ball bearing mounted
Objectives	Infinity Plan Achromat Objectives: 4X, 10X, 40XR, and 100XR (oil) Anti-fungal, parfocal, parcentric, color-coded
Stage	Mechanical Stage X-Y coaxial drive controls, metal rack, and pinion Stage locking lever Slow-close hydraulic slide finger Range of Traverse: 78 mm (X-axis) x 50 mm (Y-axis)
Focus	Tension control knob Coarse Adjustment: Range of 30 mm Fine Adjustment: Graduation of 2µm
Illumination	LED long-life light source Excitation Spectrum: FITC standard Excitation: 485 nm Emission: 510 nm
Condenser	Moveable Abbe condenser (N.A. 1.25) Iris Diaphragm
Power	Input: 12V, 1A (use only supplied power adapter) Power Adapter: Input 100V – 240V / 50 Hz – 60 Hz auto-switching
Physical Specifications	Stage Dimensions: 5.51" L x 5.19" W Overall Dimensions: 10.7" L x 6.1" W x 18" H Actual Product Weight: 24 lbs

*Please note: The microscope camera is sold separately and is compatible with the trinocular microscope only.

Specifications

Specifications
Manufacturer	LW Scientific
Latex Free	Yes
Actual Product Weight	24 lbs
Overall Height	18"
Overall Width	6.1"
Overall Length	10.7"
Country of Manufacture	China
Item Ships From	Georgia

Literature

Specification Sheet

(Size: 142.1 KB)

Warranty Information

(Size: 41.9 KB)

Product Videos

Instructions

Limited Warranty: When purchased from LW Scientific or an authorized distributor, Professional Stereoscopes and Laboratory Microscopes are covered by a limited lifetime warranty against defects in materials and workmanship. Electronic components are covered by a one (1) year limited warranty from the date of purchase. All other LW Scientific products, including Student Microscopes and Stereoscopes, are covered by a one (1) year limited warranty, while accessories carry a 90-day limited warranty.

This warranty does not cover normal wear and tear, cosmetic damage caused by chemicals, solvents, or cleaning solutions, or damage resulting from acts of God.

For Complete Warranty Details, please see the literature above.

Returns

Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 15% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
