Product Description

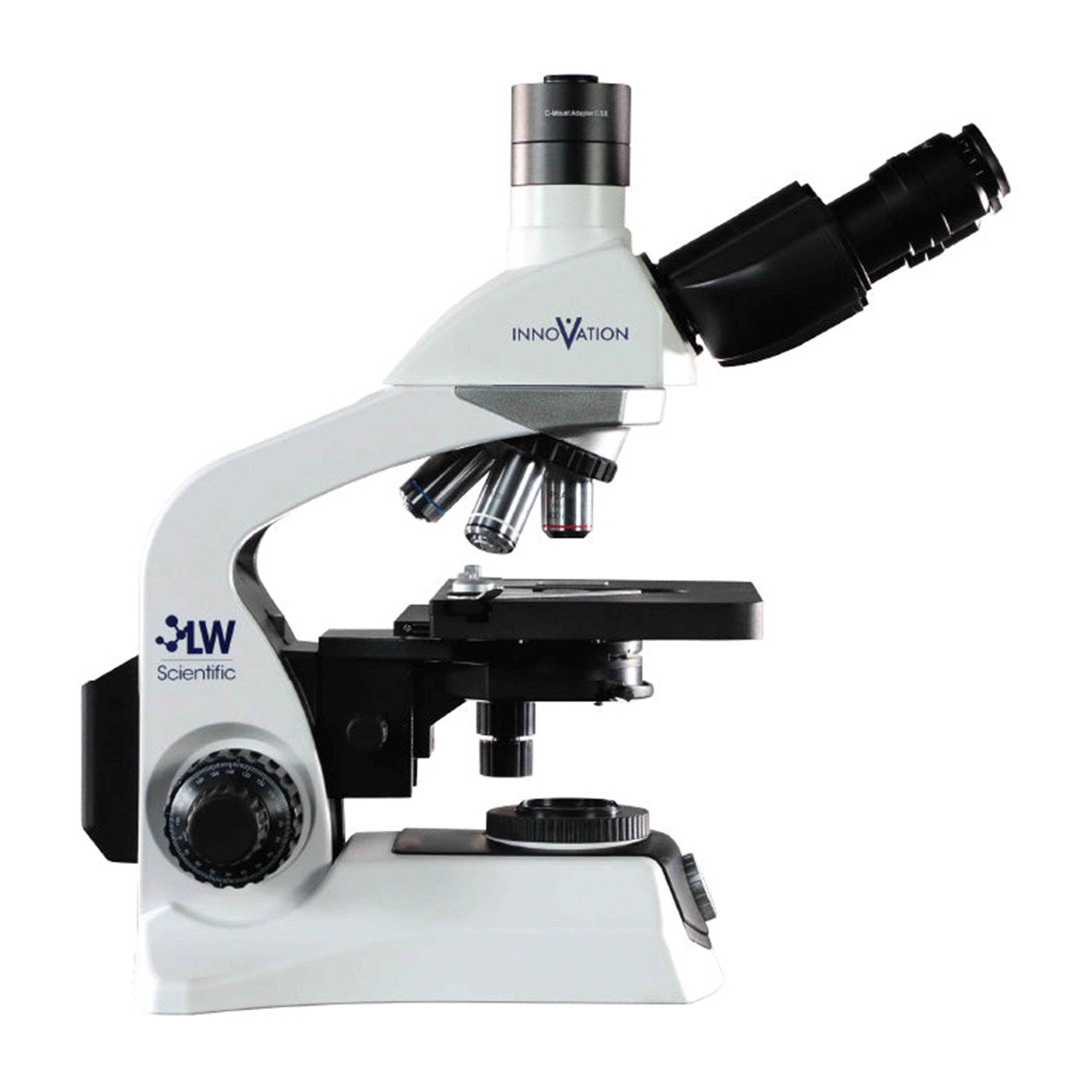

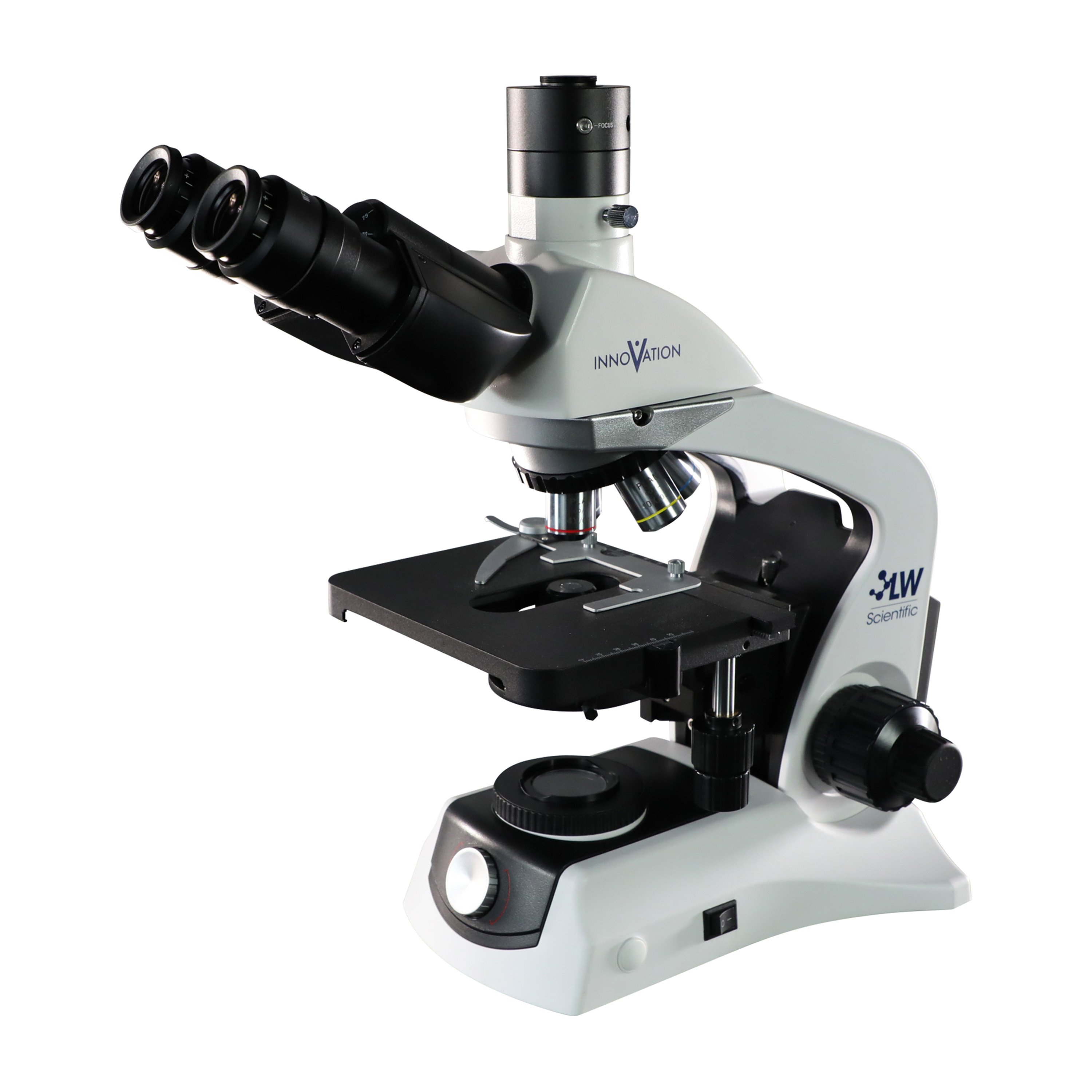

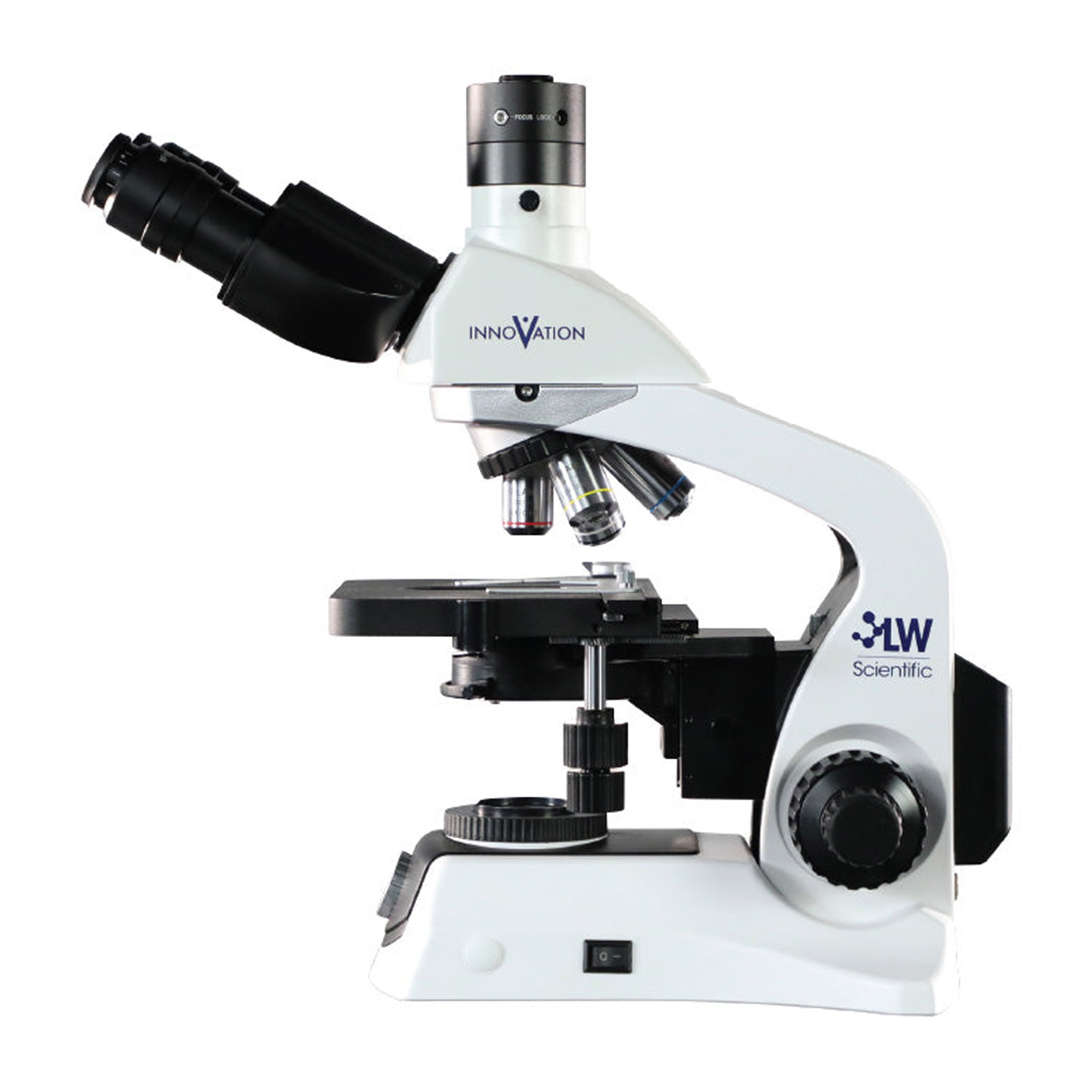

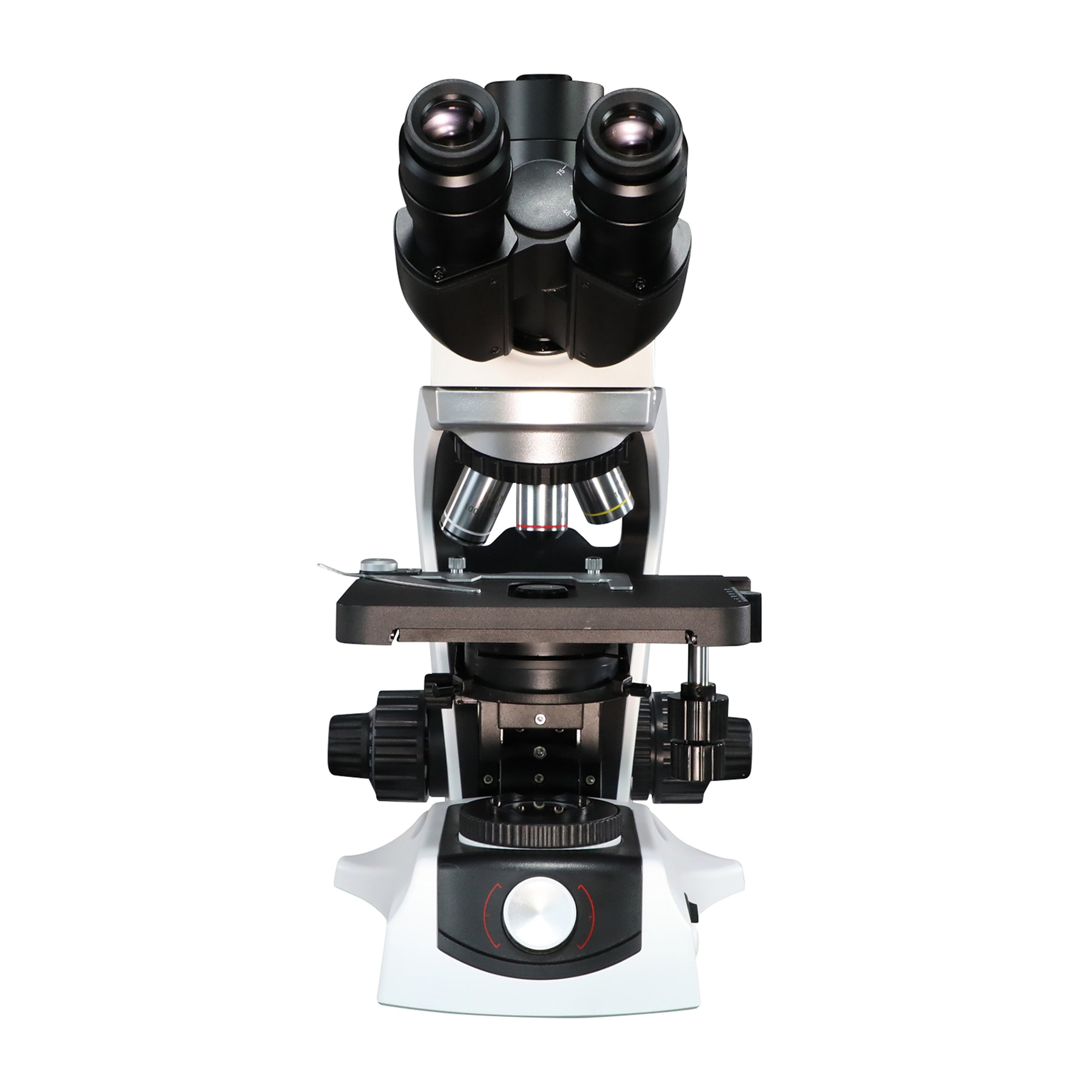

The LW Scientific Innovation Biological Microscope is engineered for high-performance imaging, making it an essential tool for clinical diagnostics, research, and educational laboratories.

Features:

  • Infinity Plan Optics - Provides sharp, high-contrast, and flat-field images across the entire field of view for detailed analysis of biological specimens
  • Largest and Widest-Viewing Eyepieces - A 22 mm field number allows for a much broader view under each objective power
  • High Focal Point Eyepieces - Allow users to keep their eyeglasses on while using the microscope
  • Reverse Nosepiece - For greater access to slides for quick changes
  • Rackles, Belt-Drive System - Enables the stage to operate smoothly, comfortably, and safely by eliminating left and right projection of the gear track, as on traditional microscopes
  • Ergonomic Tilting Head - Reduces strain during long observation periods and provides adjustable viewing angles for user comfort
  • Narrow Front and Low Controls - Allows for arms and hands to rest flat on the table, reducing arm and shoulder strain
  • Rubber Feet and Wide Rear Footprint - Keeps the microscope stable and reduces vibration for steady viewing

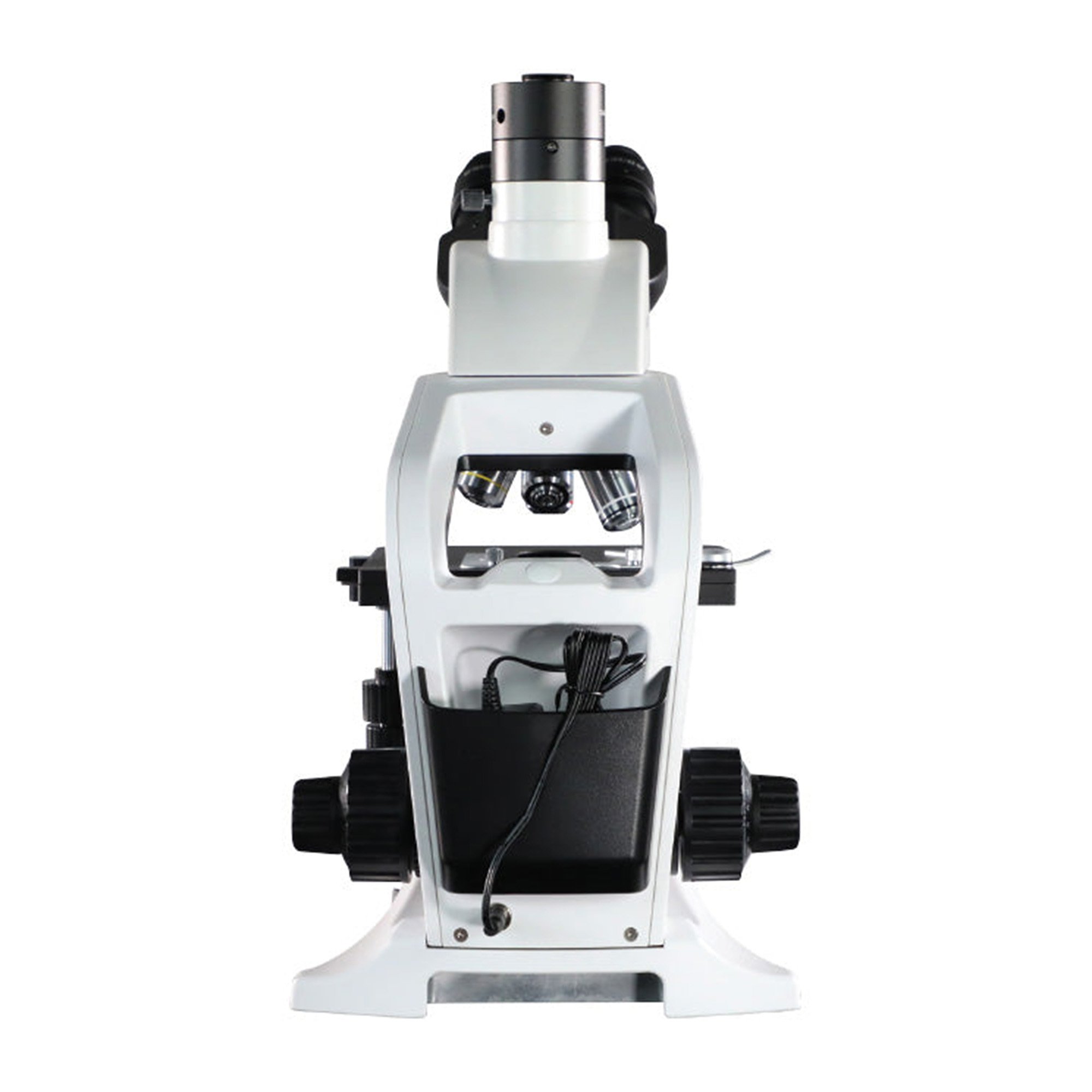

  • Built-In Cord Wrap and Handle - Keeps the lab counter neat and makes the microscope easy to move and store
  • Energy-Efficient Cool LED Illumination - Ensures consistent, bright lighting with long lifespan and without the heat of traditional halogen bulbs
  • Calibrated Indicator Marks on Condenser - Helps the user set the sub-stage iris diaphragm to the perfect numerical aperture to match each objective for the best resolution
  • Modular and Expandable Design - Allows for easy customization to meet the needs of various laboratory applications
  • Durable Construction - Built for long-term use in medical, veterinary, and educational laboratories
  • Superior Optical Performance - High-resolution imaging for clear and accurate specimen observation
  • Comes standard with both C-mount and eyetube pipes (for trinocular models only) and two pairs of rubber eye-guards (for all models)
  • Optional microscope camera available for the trinocular microscope*

Technical Specifications:

Head
  • Available in Two Options:
    • Binocular (Seidentopf head) - For routine use
    • Trinocular - For mounting any C-mount or eyetube-type camera
  • Inclined at 30° and rotates 360°
  • Can be rotated 180° upward to a higher position for taller users
  • Diopter adjustment ± 5 (built into each eyepiece)
  • Eyepieces: 10X/22 mm super-wide field high-point
  • Eyetube Diameter: 30 mm
  • Interpupillary Distance Range: 50 mm – 75 mm
Nosepiece
  • Available in Two Options:
    • Reverse quadruple nosepiece
    • Reverse quintuple nosepiece
  • Multiple ball bearing mounted
Objectives
  • Infinity High Contrast Plan Objectives:
    • 4-Hole Nosepiece: 4X, 10X, 40XR, and 100XR (oil)
    • 5-Hole Nosepiece: 4X, 10X, 20X, 40XR, and 100XR (oil)
  • Anti-fungal, parfocal, parcentric, color-coded

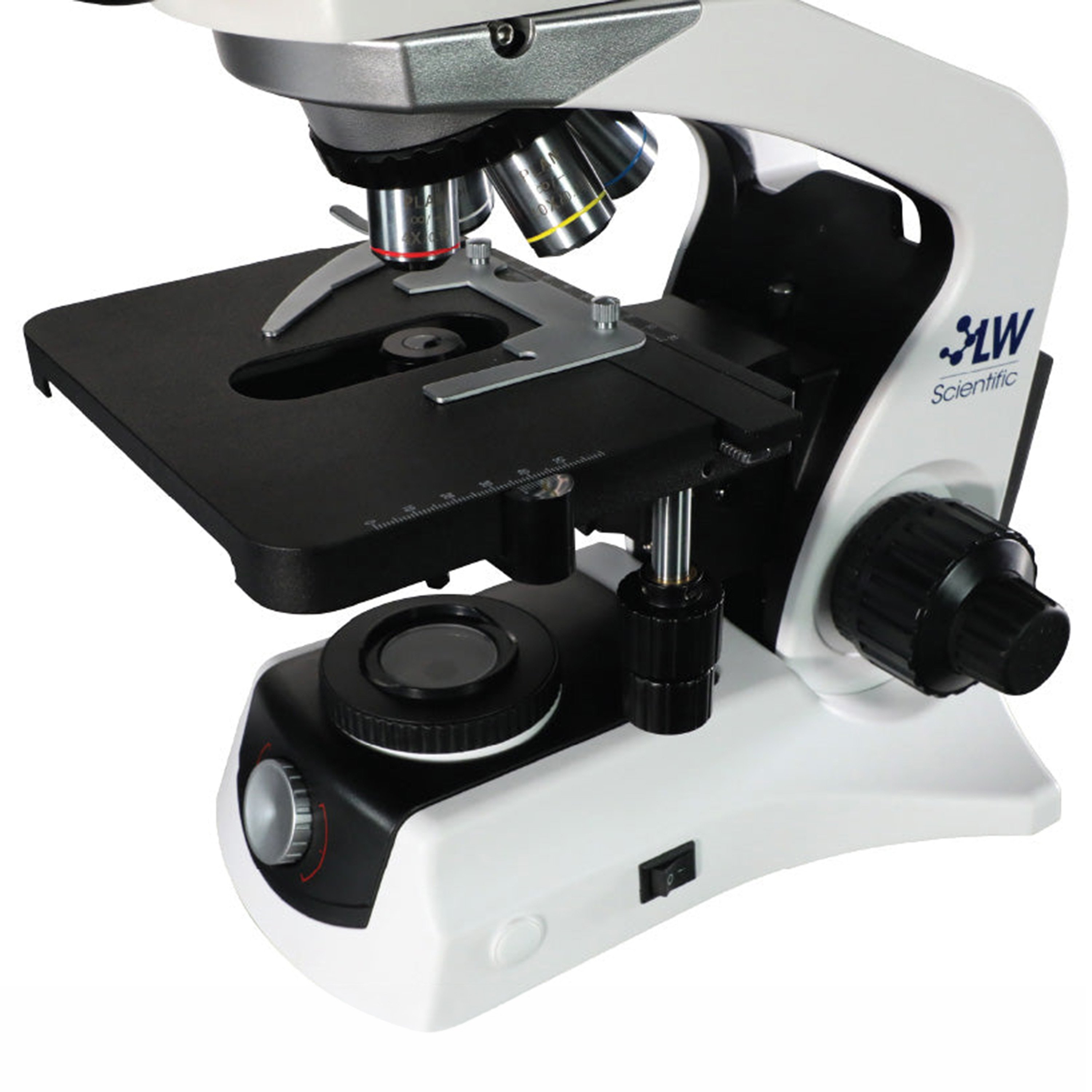

Stage
  • Double-layer mechanical stage
  • Graphite-coated surface
  • X-Y coaxial drive controls, rackless
  • Slow-close hydraulic slide finger
  • Range of Traverse: 75 mm (X-axis) x 55 mm (Y-axis)
Focus
  • Tension control knob
  • Coarse Adjustment: Range of 18 mm
  • Fine Adjustment: Graduation of 0.001 mm
Illumination
  • LED provides 50,000 hours of light and consistent, even brightness
  • Variable light adjustment
  • Simple Kohler illumination
Condenser
  • Movable Abbe condenser (N.A. 1.25)
  • Iris Diaphragm
Power
  • 12V DC / 2 amp input with 90V – 240V / 50 Hz – 60 Hz automatic-switching power adapter
Physical Specifications
  • Mechanical Stage Dimensions: 8.50" L x 5.91" W
  • Overall Dimensions: 15" L x 8.5" W x 16" H
  • Actual Product Weight: 16.7 lbs

*Please note: The microscope camera is sold separately and is compatible with the trinocular microscope only.
