LW Scientific Revelation III DIN Microscope, Portable USB-Powered

Name: LW Scientific Revelation III DIN Microscope, Portable USB-Powered
Brand: LW Scientific
SKU: R3M-BN4A-DALP-CON
Price: 1238 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

LW Scientific Cleaning Your Microscope Objectives: A Step-by-Step Guide

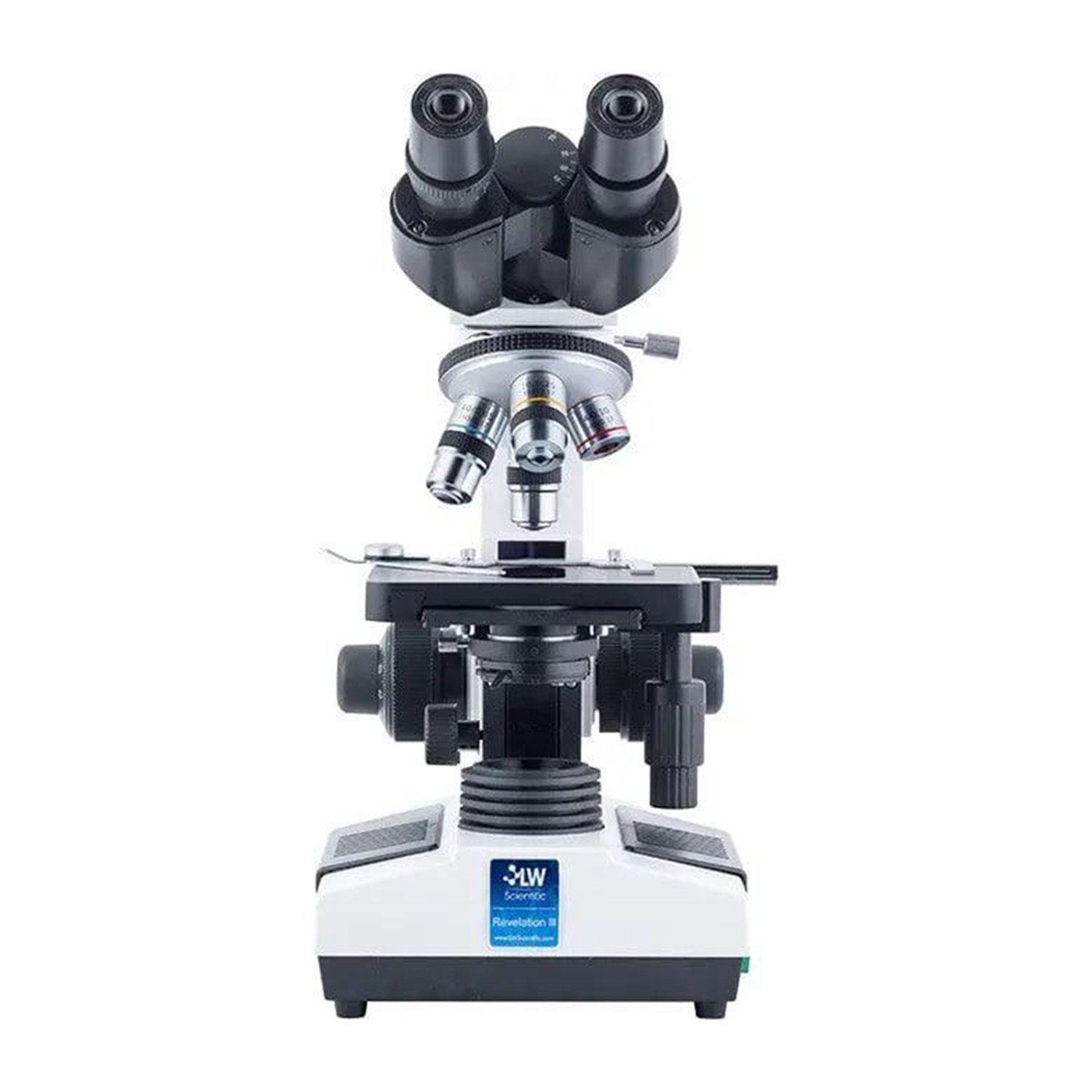

LW Scientific R3M-BN4A-DALP Revelation III DIN Microscope, Portable USB-Powered, Binocular - Front View

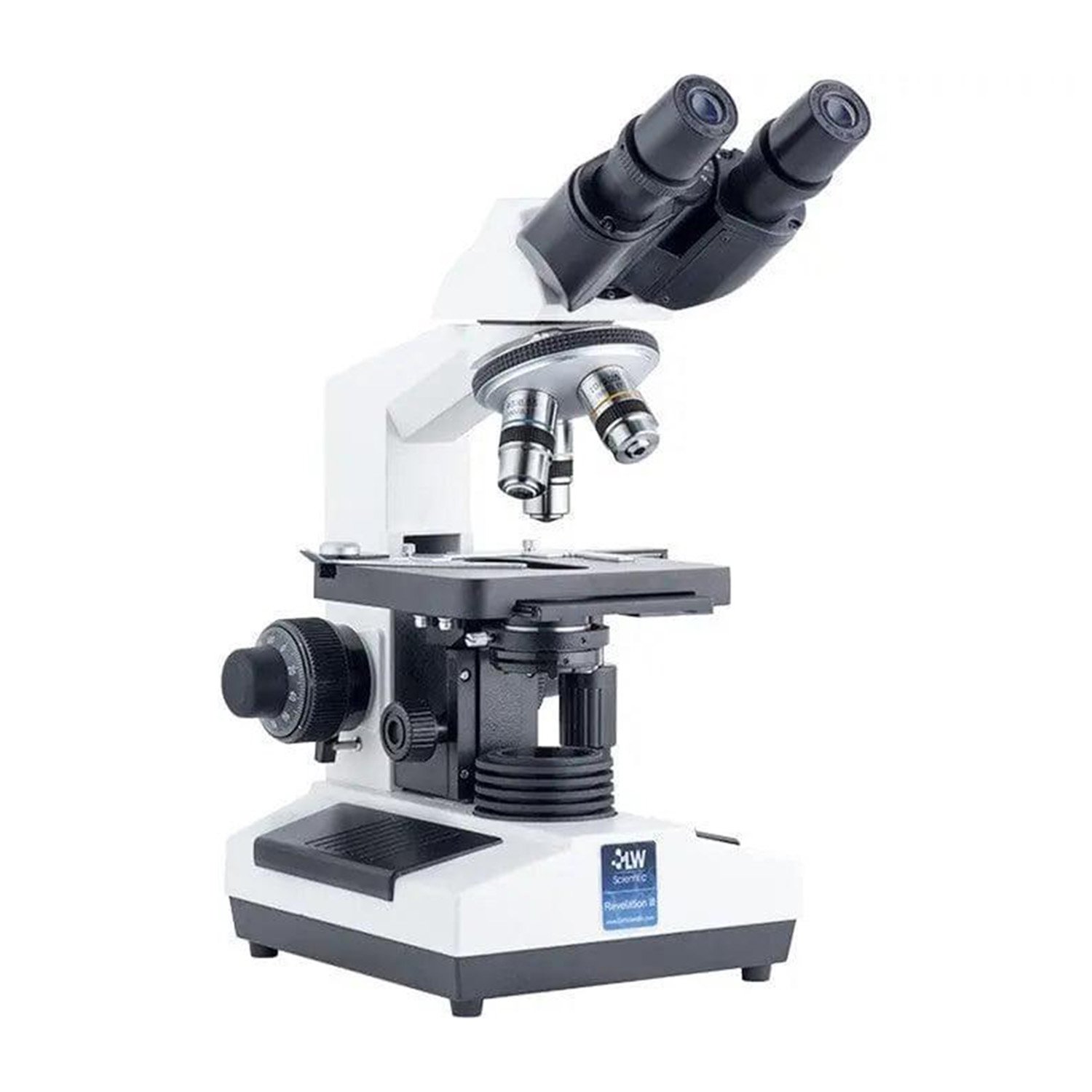

LW Scientific R3M-BN4A-DALP Revelation III DIN Microscope, Portable USB-Powered, Binocular - Right Facing View

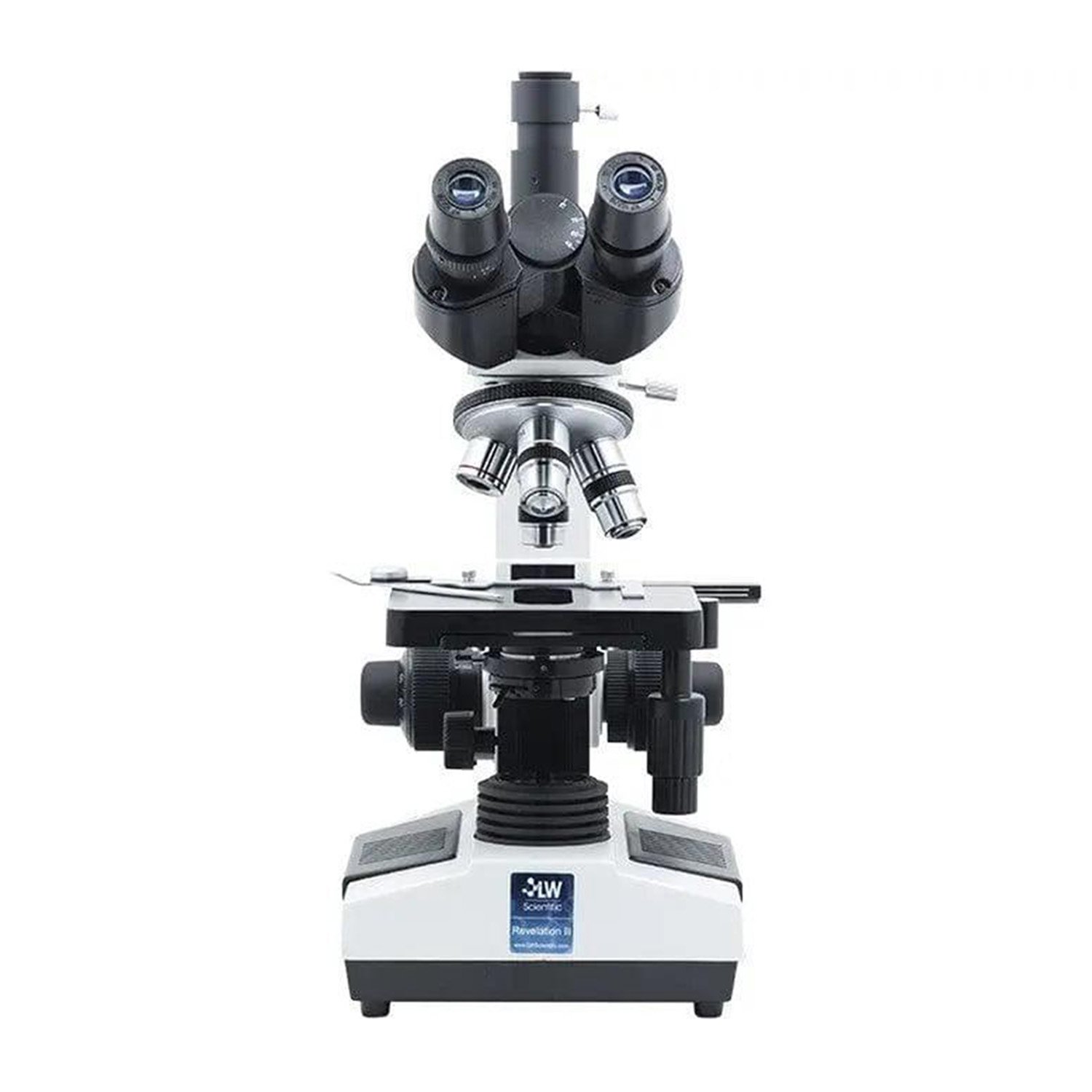

LW Scientific R3M-TN4A-DALP Revelation III DIN Microscope, Portable USB-Powered, Trinocular - Front View

LW Scientific R3M-BN4A-DALP and R3M-TN4A-DALP Revelation III DIN Microscope, Portable USB-Powered - Showing Battery and Laptop Charging (Laptop is Not Included)

LW Scientific R3M-BN4A-DALP and R3M-TN4A-DALP Revelation III DIN Microscope, Portable USB-Powered - Rechargeable Battery

LW Scientific R3M-BN4A-DALP and R3M-TN4A-DALP Revelation III DIN Microscope, Portable USB-Powered - Rechargeable Battery Attached

LW Scientific R3M-BN4A-DALP and R3M-TN4A-DALP Revelation III DIN Microscope, Portable USB-Powered - Charging Using Laptop USB Port (Laptop is Not Included)

LW Scientific R3M-BN4A-DALP and R3M-TN4A-DALP Revelation III DIN Microscope, Portable USB-Powered - Charging Using USB Adapter (Extension Cord is Not Included)

Move your mouse over image or click to enlarge

Is this item the best fit for your needs?

Let our experts help.

800-423-2767

Live Chat

Usually Ships in 1 Week

In stock

Only %1 left

Be the first to review this product

Choose an Option

MSRP $1,550.00 MSRP $1,550.00 As low as $1,238.00

SKU

Choose options above

Packaging: Per Each

Qty

Product Description

The LW Scientific Revelation III DIN Microscope, Portable USB-Powered is designed for medical professionals, veterinarians, researchers, and educators who need a high-performance microscope with the flexibility of cordless operation.

Features:

Precision Optics Anywhere - Get high-quality imaging even in remote or mobile settings
Long-Lasting and Cost-Effective - Rechargeable LED illumination provides consistent performance without frequent battery changes
Infinity Plan and Semi-Plan Optics - Offers sharp, distortion-free images for accurate analysis
Rechargeable LED Illumination - Ensures consistent brightness without the need for constant access to power outlets
Portable and Lightweight Design - Ideal for fieldwork, mobile labs, and classroom settings
Ergonomic Viewing Head - Built for extended microscope sessions, ensuring comfort and reduced eye strain
Durable and Reliable Construction - Built for daily use in medical, veterinary, and educational environments
Comes standard with a USB cord, a powerblock, and a rechargeable battery
Optional microscope camera available for the trinocular microscope*

Technical Specifications:

Head	Available in Two Options: Binocular (Seidentopf head) Trinocular Inclined at 30° and rotates 360° Diopter adjustment Eyepieces: 10X/18 mm wide field Interpupillary Distance Range: Binocular Head: 48 mm – 75 mm Trinocular Head: 55 mm – 75 mm
Nosepiece	Quadruple forward-facing nosepiece Multiple ball bearing mounted
Objectives	DIN achromatic Magnification and Numerical Aperture: 4X, N.A. 0.10 10X, N.A. 0.25 40XR, N.A. 0.65 100XR, N.A. 1.25 (oil) 30-year anti-fungal coating Parfocal, parcentric, color-coded
Stage	Mechanical Stage X-Y coaxial drive controls Stage locking lever Slow-close hydraulic slide finger Acid and reagent-resistant finish Etched vernier scales Range of Traverse: 78 mm (X-axis) x 50 mm (Y-axis)
Focus	Tension control knob Coarse Adjustment: Range of 30 mm Fine Adjustment: Graduation of 2µm
Illumination	LED light Swing-out filter holder with blue and green filters Moveable Abbe condenser (N.A. 1.25), rack and pinion Iris Diaphragm
Operating Environment	Indoor Use Only Ambient Temperature: 5°C – 40°C
Power	5 V DC power from USB port or battery
Physical Specifications	Construction: Rugged alloy Stage Dimensions: 5.51" L x 5.12" W Overall Dimensions: 9" L x 7" W x 15" H Actual Product Weight: 14 lbs

*Please note: The microscope camera is sold separately and is compatible with the trinocular microscope only.

Specifications

Specifications
Manufacturer	LW Scientific
Latex Free	Yes
Actual Product Weight	14 lbs
Overall Height	15"
Overall Width	7"
Overall Length	9"
Country of Manufacture	China
Item Ships From	Georgia

Literature

Instruction Manual

(Size: 229.8 KB)

Specification Sheet

(Size: 189.9 KB)

Warranty Information

(Size: 41.9 KB)

Product Videos

Instructions

Limited Warranty: When purchased from LW Scientific or an authorized distributor, Professional Stereoscopes and Laboratory Microscopes are covered by a limited lifetime warranty against defects in materials and workmanship. Electronic components are covered by a one (1) year limited warranty from the date of purchase. All other LW Scientific products, including Student Microscopes and Stereoscopes, are covered by a one (1) year limited warranty, while accessories carry a 90-day limited warranty.

This warranty does not cover normal wear and tear, cosmetic damage caused by chemicals, solvents, or cleaning solutions, or damage resulting from acts of God.

For Complete Warranty Details, please see the literature above.

Returns

Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 15% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
