Product Description

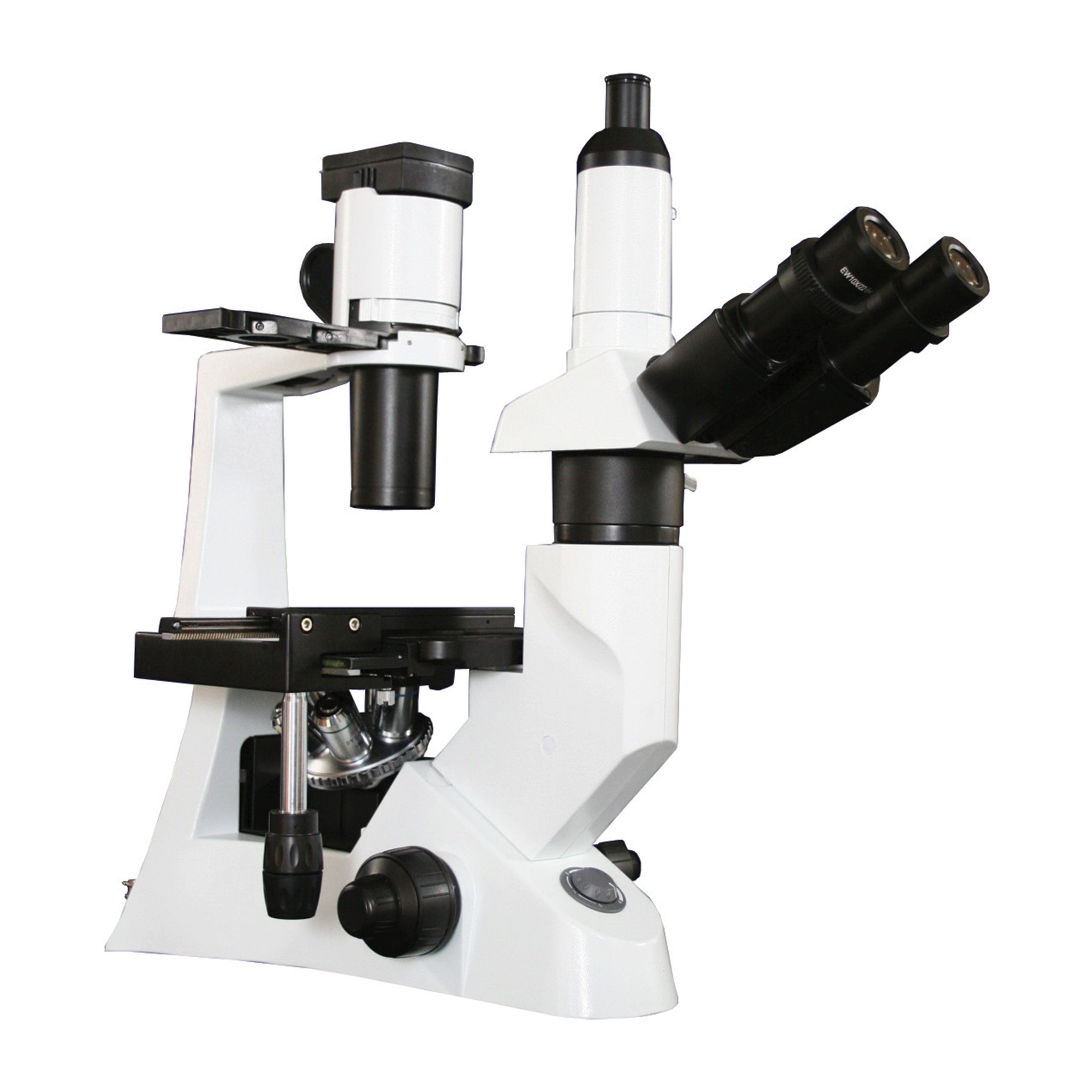

The LW Scientific Infinity Trinocular Inverted Microscope delivers clear imaging and reliable performance for a wide range of laboratory applications, designed for professionals working with live cell cultures, fluid samples, and tissue analysis.

Features:

  • Inverted Design - Enables easy viewing of specimens in petri dishes and culture flasks
  • Compact Footprint - Makes it suitable for space-conscious environments
  • High-Resolution Optics and a Rugged Build - Make it ideal for daily use in laboratories focused on diagnostics, sample preparation, and educational training
  • Ideal for video and photography
  • Perfect for observation and education, as well as professional research in clinical laboratories
  • Comes Standard With:
    • Green, blue, and neutral filters
    • Dust cover
    • Immersion oil
    • Manual
    • Warranty card
  • Optional microscope camera available*

Technical Specifications:

Head
  • Trinocular head
  • Inclined at 30°
  • Centered eyepiece for phase objectives
  • Eyepieces: EW 10X/22 mm extra-wide field
  • Interpupillary Distance Range: 48 mm - 75 mm
Nosepiece
  • Quintuple nosepiece (includes 4 objectives with 1 open slot for an additional objective)
Objectives
  • Infinity Optical System Objectives: Plan 4X, Plan Phase 10X, Plan Phase 20X, and Plan 40X
Stage
  • Mechanical stage with auxiliary stage
  • X-Y coaxial drive controls
  • Range of Traverse: 120 mm (X-axis) x 78 mm (Y-axis)
Focus
  • Vertical objective movement
  • Coarse Adjustment: Range of 37.7 mm
  • Fine Adjustment: 0.002 mm per rotation
Illumination
  • 6V/30W halogen bulb
Condenser
  • Abbe condenser with 20X phase
Physical Specifications
  • Mechanical Stage Dimensions: 9.84" L x 6.30" W
  • Auxiliary Stage Dimensions: 7.09" L x 2.76" W
  • Overall Dimensions: 21" L x 11" W x 20" H
  • Actual Product Weight: 24 lbs

*Please note: The microscope camera is sold separately.

Specifications

Specifications
Manufacturer LW Scientific
Latex Free Yes
Actual Product Weight 24 lbs
Overall Height 20"
Overall Width 11"
Overall Length 21"
Country of Manufacture China
Item Ships From Georgia

Literature

pdf
Specification Sheet
(Size: 169.9 KB)
pdf
Warranty Information
(Size: 56.3 KB)

Product Videos

Instructions

Limited Warranty: When purchased from LW Scientific or an authorized distributor, Professional Stereoscopes and Laboratory Microscopes are covered by a limited lifetime warranty against defects in materials and workmanship. Electronic components are covered by a one (1) year limited warranty from the date of purchase. All other LW Scientific products, including Student Microscopes and Stereoscopes, are covered by a one (1) year limited warranty.

This warranty does not cover normal wear and tear, cosmetic damage caused by chemicals, solvents, or cleaning solutions, or damage resulting from acts of God.

For Complete Warranty Details, please see the literature above.

Returns

Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 15% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
