Product Description

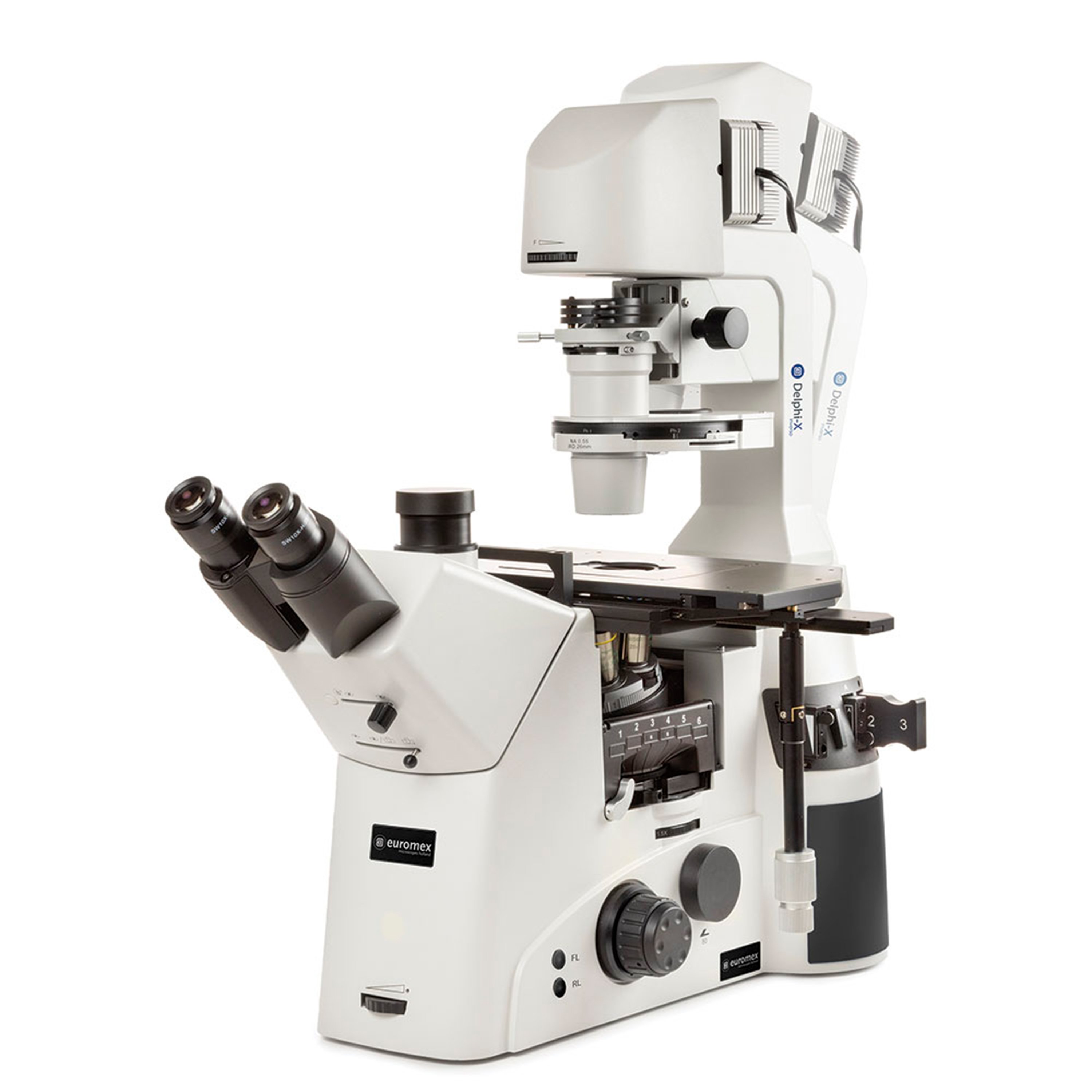

The Delphi-X Inverso Trinocular Inverted Microscope, WF10x/25mm Eyepieces, Sextuple Nosepiece with Semi-Apochromatic Plan Phase Fluarex PLPHFi is the ultimate inverted microscope designed to meet the demands of professionals working with living cell cultures and stained samples. This exceptional instrument is available in two configurations, catering to specific applications:

  • Phase Contrast plus DIC (Differential Interference Contrast) Equipment: This configuration provides enhanced contrast and enables detailed imaging of challenging samples, such as transparent or low-contrast specimens. It empowers you to observe living cells and tissues with exceptional clarity and precision.

  • Fluorescence Application: For those working with fluorescently labeled samples, the Delphi-X Inverso offers a dedicated configuration that optimizes fluorescence imaging capabilities. Unlock the full potential of molecular interactions and cellular processes with this advanced fluorescence setup.

Features:

  • Super Contrast Semi-Apochromatic Objectives with Collar Adjustment Ring: This innovative feature ensures perfect observation of cells or tissues in 1.2mm thick Petri dishes or flasks, providing accurate and detailed imaging.

  • Observation of Tissue Cultures and Living Cells: This microscope is specifically designed for observing tissue cultures and living cells. Whether you're conducting cell biology research, investigating cellular behavior, or examining dynamic processes, the Delphi-X Inverso delivers exceptional performance.

  • Brightfield and Phase Contrast Imaging: Benefit from both brightfield and phase contrast imaging techniques with this versatile instrument. Capture clear, high-resolution images in brightfield mode or enhance contrast and visibility of transparent samples using phase contrast.

  • Long Working Distance IOS Plan Semi-Apochromatic Objectives: The long working distance Infinity-Corrected Objective Systems (IOS) with plan semi-apochromatic optics allow you to observe samples even when using large containers, such as Petri dishes or flasks. This feature provides ample space for manipulating samples and conducting experiments.

  • 5W LED Illumination: Experience uniform and efficient illumination with the 5W LED system. This lighting solution ensures bright and consistent illumination, enabling you to visualize your samples with exceptional clarity.

  • Easy Placement of Large Objects: The Delphi-X Inverso is designed to accommodate large objects with ease, facilitating effortless placement of Petri dishes, flasks, or other bulky specimens. This user-friendly feature enhances convenience and efficiency in your laboratory workflow.

  • DIC (Differential Interference Contrast): The inclusion of DIC capabilities enables advanced imaging of transparent or low-contrast samples. This technique provides enhanced detail and visualization, allowing you to explore subtle structural variations within your specimens.

  • Revolving Sextuple Nosepiece: Easily switch between multiple objective lenses with the revolving sextuple nosepiece. This feature enables quick and precise magnification adjustments to suit your research needs.

  • Backwards Tilting Condenser Arm: The condenser arm can be tilted backwards, providing easy access and facilitating quick sample changes or adjustments. This ergonomic design feature enhances user comfort and efficiency during microscopy sessions.

  • The Delphi-X Inverso is CE certified, ensuring compliance with international safety and quality standards.

  • 10-Year Warranty

Technical Information:

Head
  • Trinocular 45° inclined tubes.
  • Interpupillary distance of 47 to 78mm.
  • Diopter adjustment on both eye tubes
  • Trinocular head with 100-0, 80/20 and 0/100 positions.

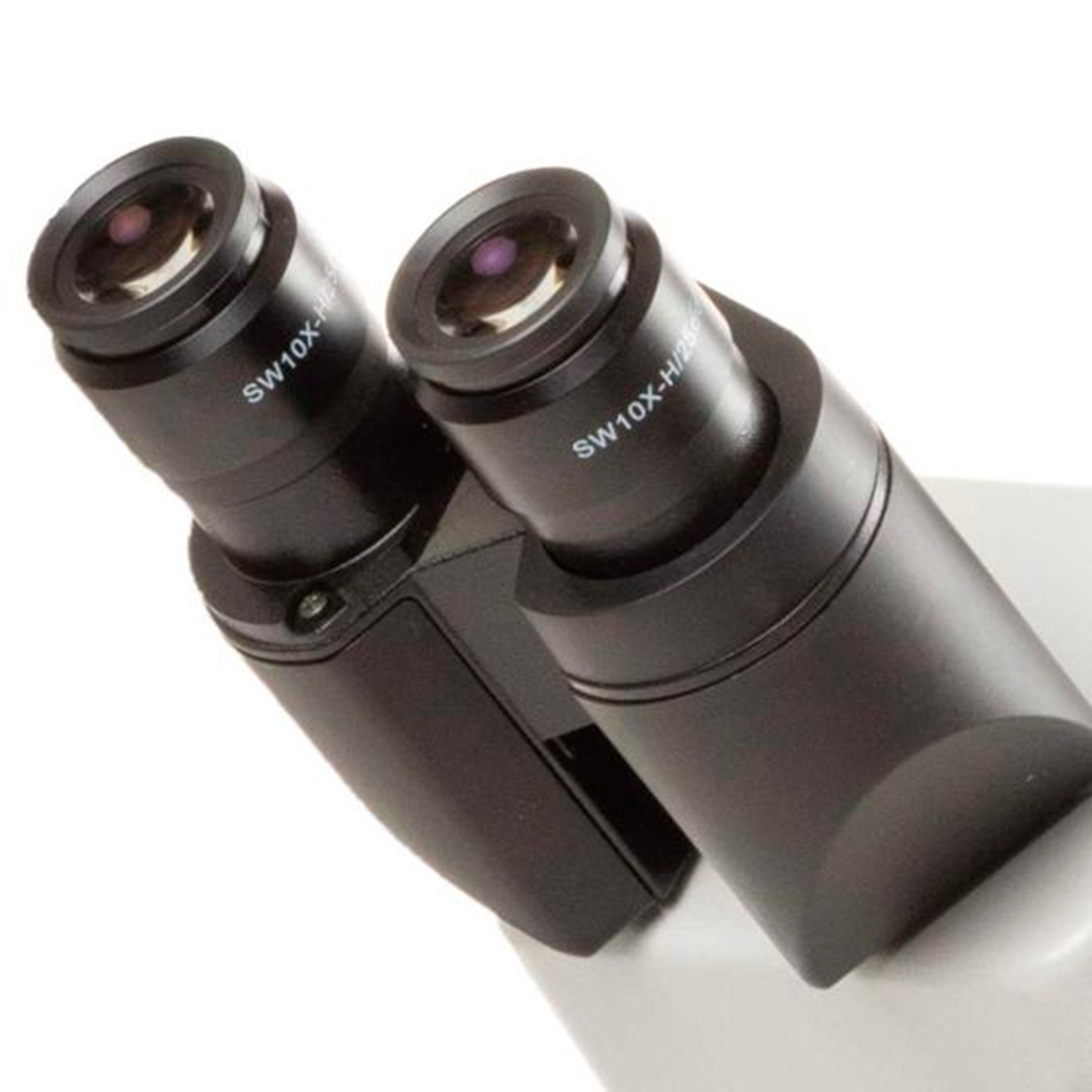

Eyepieces
  • Pair of DIN HWF plan 10x/25mm eyepieces.
Nosepiece
  • Revolving sextuple (6) nosepieces on ball bearings.
  • The nosepiece can be equipped with DIC prisms for 10x/20x/40x and 60x objectives for future DIC observation.
Objectives
  • High numerical aperture Infinity Semi-Apochromatic LWD plan phase Fluarex™ PLPHFi IOS objectives enable the sub-cellular structures.
    • PLPHFI 10x/0.30 WD 10.2mm
    • PLPHFI 20x/0.45 WD 7.5 to 8.8mm
    • PLPHFI 40x/0.60 spring WD 3 to 4.4mm
  • The 20x and 40x objectives are equipped with collar adjustment ring for glass thicknesses from 0 to 1.2mm
  • Fluarex™ objectives are made of low-absorption glass.
  • All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.

Fluarex™ is a trademark of Euromex.
Stage
  • Stage 340 x 230mm, equipped with a coaxial mechanical 130 x 85mm X-Y stage. Supplied with:
    • Metal insert for Ø 38mm cell culture dish
    • Metal insert for Ø 54mm cell culture dish or 76 x 26mm slides
    • Metal insert for Multiwell plates (127.76 x 85.48mm)
    • Metal insert for Teraski plates (83.3 x 58.0mm)

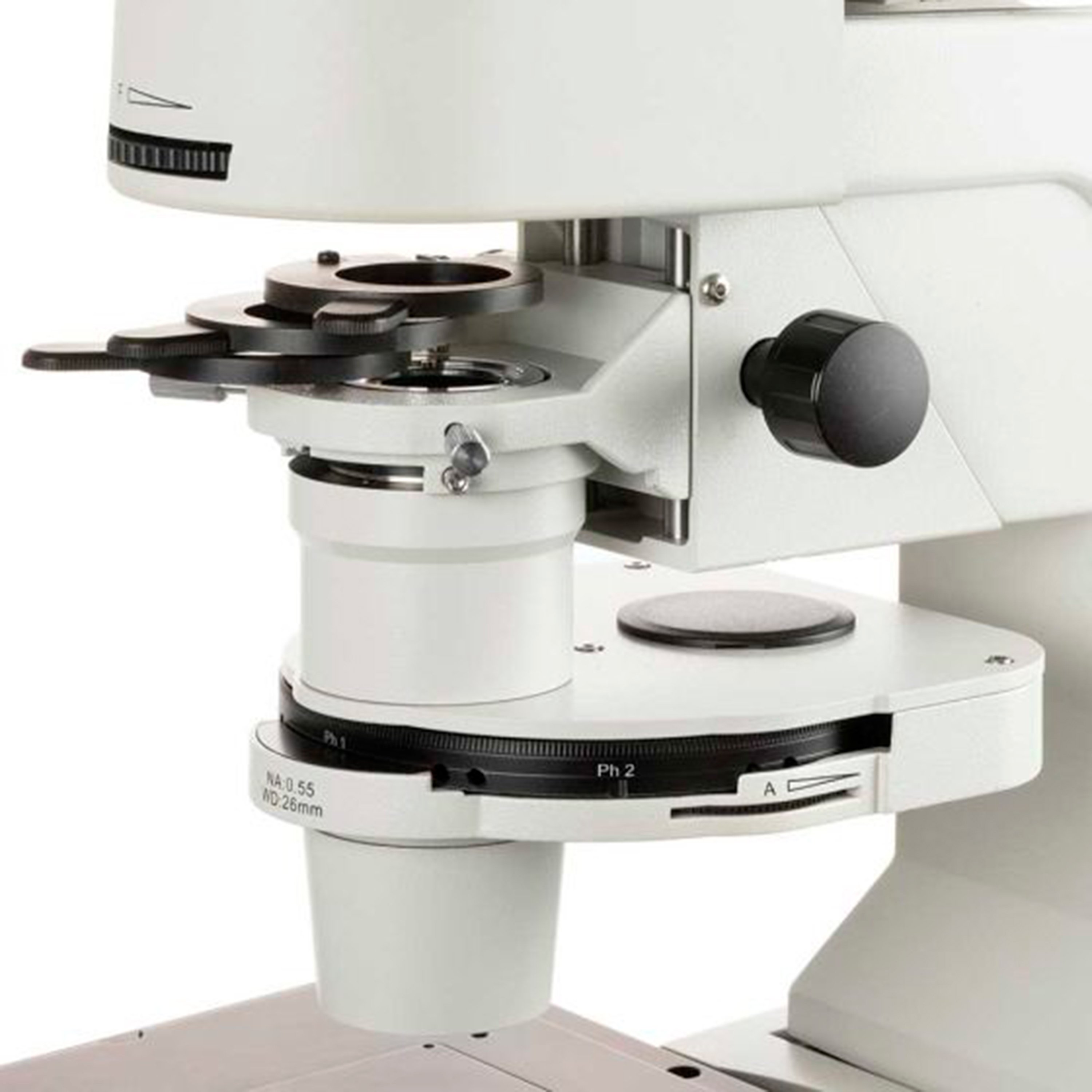

Condenser
  • Rotating N.A. 0.55 condenser with 6 positions, iris diaphragm and filter holders.
  • Working distance is 26mm.
  • Supplied with phase contrast annuli for 10x/20x, 40x and 60x objectives, brightfield position and slots for optional DIC prisms.
  • Three filter holders allow the insertion of Ø 38mm filters in the optical path.

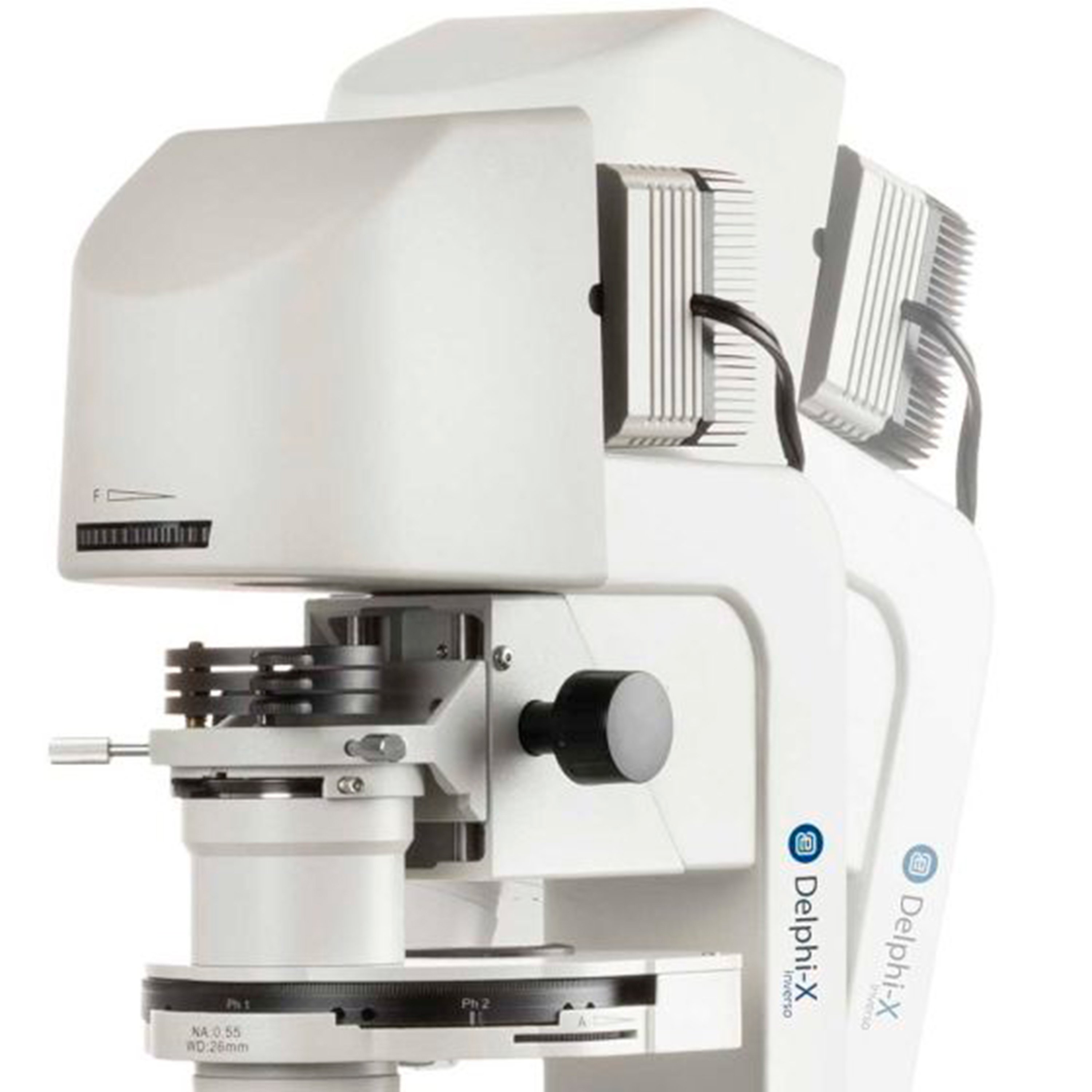

  • The arm with condenser can be tilted backwards for convenient access to the stage. This allows easy placement of large objects like flasks and Petri dishes.
Focusing Adjustment
  • Coaxial 10mm coarse and fine adjustments, 1μm precision and with friction adjustment.
Illumination
  • Transmitted 5W LED with internal 100-240VAC power supply.
  • Fuse holder 5A/250VAC.
Magnification Changer
  • A magnification changer with a 1.5x lens allows intermediary magnifications of 1.5 times the standard objective magnifications.
  • For example, switching from 20x to 30x or from 60x to 90x magnification can be done without changing objectives.

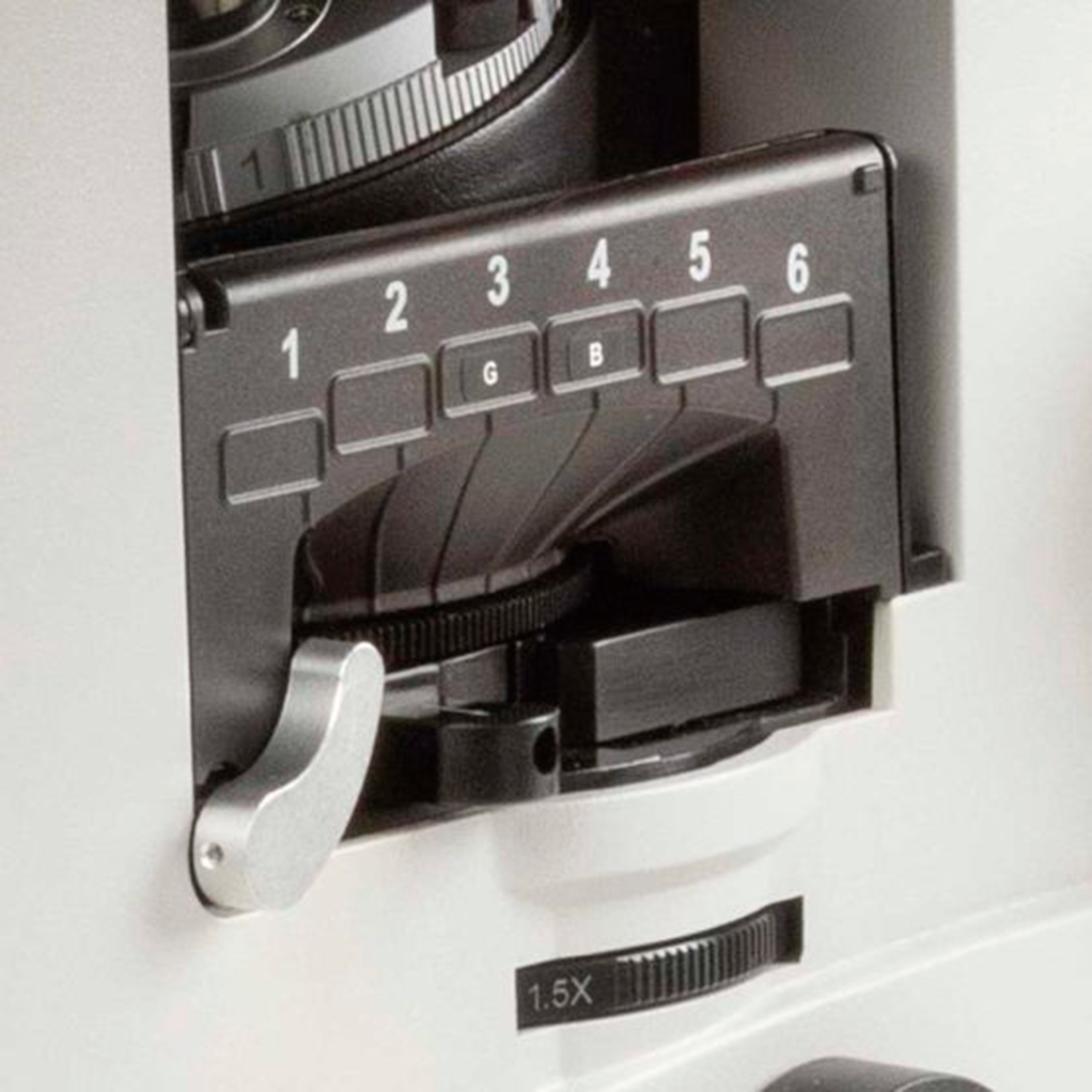

Fluorescence Filter Set Wheel
  • Supplied with a 6-position fluorescence filter set wheel.
  • Fluorescence filters are not included.
Microscope Package Content
  • Supplied with power cord, dust cover, green filter, alignment telescope, and user manual.
  • Supplied with metal insert for Ø 38mm cell culture dish and a metal insert for Ø 54mm cell culture dish with 76 x 26mm slides, metal insert for multiwell plates, metal insert for Teraski plates, blue and green interference Ø 38mm filters.

Specifications

Specifications
Manufacturer Globe Scientific
Country of Manufacture China
Item Ships From New Jersey
