Product Description

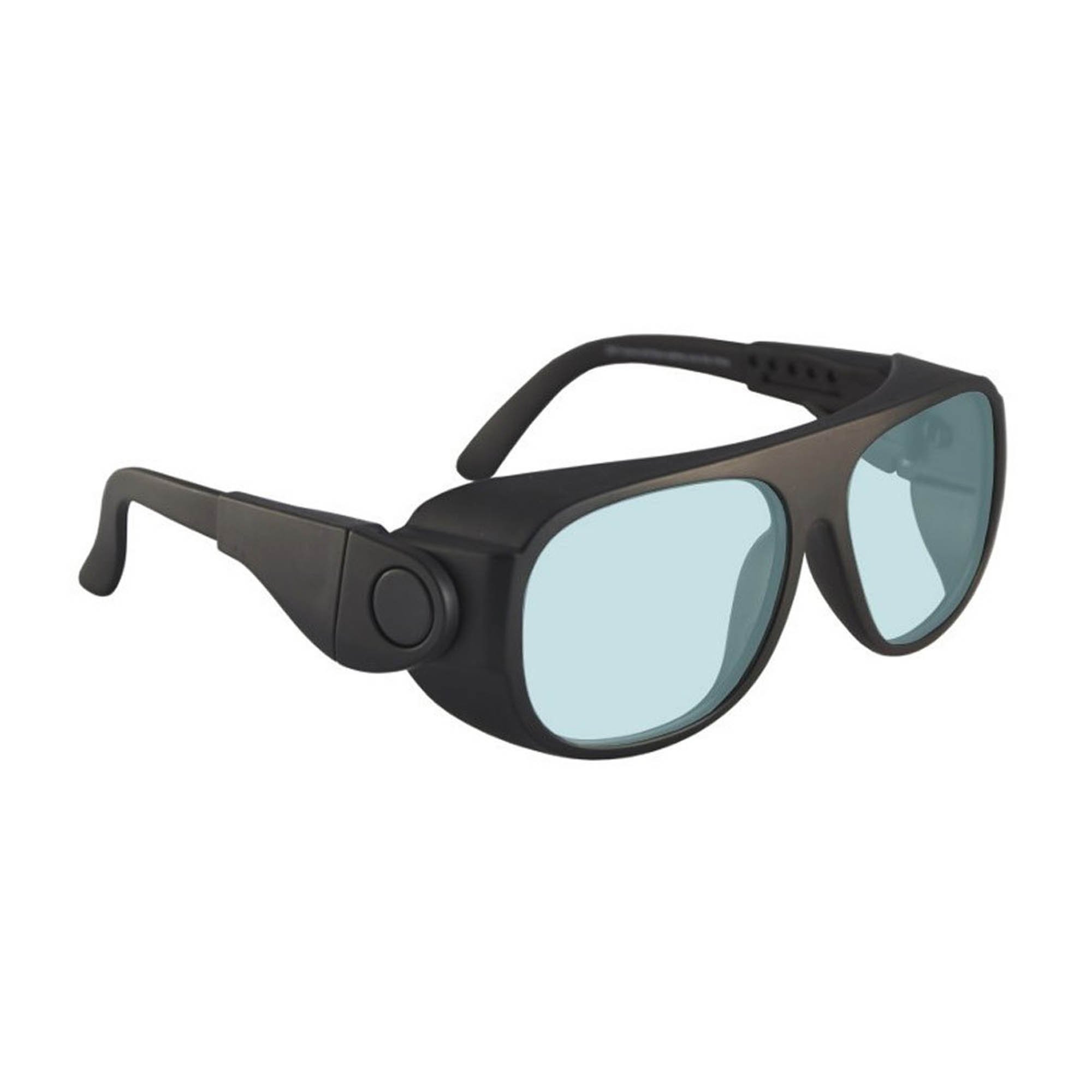

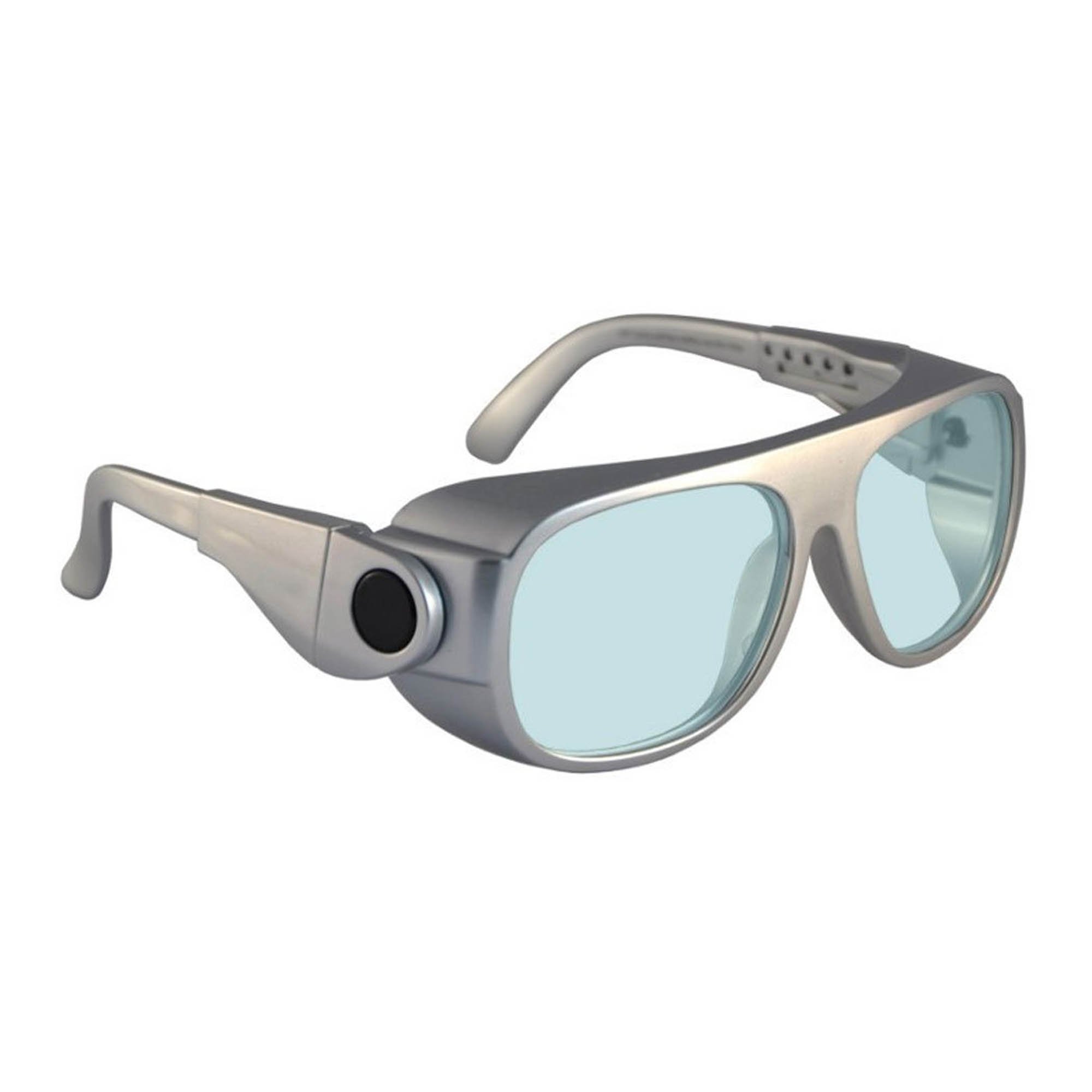

The AKG-5 Holmium/Yag/Co2 is a laser safety lens made of a light blue AKG5 glass filter. It is cut and mounted into model 66 frame. The temple bars are fully adjustable, ratcheting up and down and telescoping for a perfect fit. The large lens design ensures maximum safety and visibility.

  • Lens Type: KG5
  • Filter Type: Glass
  • Lens Color: Light Blue
  • Visible Light Transmission: Excellent
  • Protection Specifications:
    • OD>4+ from 870-950nm
    • OD>5+ from 950-1000nm
    • OD>7+ from 1000-1550nm
    • OD>4+ from 1550-2750nm
    • OD>6+ from 2800-11,000nm
  • CE EN 207 Certified
  • CE Laser Rating:
    • 900 – 925 DIR LB4
    • 925 – 1000 DIR LB5
    • 1000 – 1025 DIR LB6
    • 1025 – 1400 D LB6 + IR LB7
    • 1400 – 2400 DIR LB4
    • 2900 – 10600 DI LB4
  • Meets or exceed ANSI Z87.1 standards for protective eyewear (non-impact)
  • Meets or exceed ANSI Z136.1 requirements for use with laser systems
  • Ships with case, adjustable strap & microfiber pouch
  • Overall Dimensions - Bridge Size: 19 mm, Frame Width: 135 mm, Temple Size: Adjustable, from Hinge 115-120 mm, Lens Width: 58 mm, Lens Height: 49 mm
  • Product Weight: 74.4 grams

About this Brand

Specifications

Specifications
Manufacturer Phillips Safety Products
Laser Type Carbon Dioxide (Co2), Erbium Yag (Er: YAG), Holmium, Nd: Yag
Filter Material Glass
Certifications ANSI Z136.1, ANSI Z87.1, CE EN 207
Actual Product Weight 74.4g
Item Ships From New Jersey
GSA Contract Number V797D-40002

Literature 3

pdf
(Size: 117.6 KB)
Laser Safety Specifications KG5

Product Video



Instructions

APPLICATION: Phillips Laser Safety Eyewear offers protection against accidental exposure to stray or diffused reflection of laser beam energy for a maximum exposure of 10 seconds. All Phillips Laser Safety glasses are clearly marked with wavelength (nm) and absorption (OD) protection levels

CAUTION:

  • Never look directly into the path of a laser beam.
  • Filtering glasses are not to be used as impact safety lenses. Impact resistant over-goggles must be used if impact protection is required.
  • Color recognition (of warning lights, etc.) may be affected by tinted lenses.

STORAGE: Glasses should be stored in protective case when not in use. Normal room temperature and low relative humidity is ideal.

CLEANING: Use clear water; mild, non-alkali, non-acidic soap or detergent; and soft, lint-free cloth. !Do not autoclave!

WARRANTY: All Phillips Safety products are fully guaranteed against manufacturer defects (material and workmanship) for 6 months from the date of purchase. This does not cover negligent use of the product (including scratched lenses). Phillips-Safety will repair or replace any defective merchandise at no charge. All shipping charges remain payable by the purchaser.

Returns

Customers wishing to return this product must contact Customer Service to obtain a valid return authorization number within 14 days of receipt. A restocking fee may be deducted at the discretion of the manufacturer.

Reviews 1

Ask a Question (2)

Customer Questions
Will these glasses fit over prescription glasses? I am looking for glasses at the 2080 nm range, and the AKG-5 model 66 will work. One of my doctors with prescription eyewear won't wear googles due to fogging concerns, so I am looking for fit over glasses that might work.

Unfortunately, this frame style is not designed to be worn over existing eyewear. Please refer to item# LS-KG5-33 which is a fit over frame.

Do these goggles go over regular eye glasses?

They would work, but are not "true" fit over glasses. Please follow this link to our fit over glasses that are made for holmium ad yag. https://www.universalmedicalinc.com/search/?q=fit+over
