Radiation/Laser (Holmium/Yag/CO2) Combination Glasses Model 33
Product Description
Our radiation/laser glasses offers Laser and Radiation protection in a single lens, making it ideal for operator eye protection during procedures using C-Arm Fluoroscopy and Holmium/YAG/Excimer Lasers.
The RGLS-SF6-KG5-33 combination radiation/laser glasses are designed to comfortably fit over existing eyewear. The glass lenses have exceptional optical clarity and durability for long periods of wear. Glasses are ideal for use in medical, lab and industrial applications.
- Lens Type: KG5
- Filter Type: Glass
- Wavelength Ranges and corresponding Optical Density information is printed on the frame of the eyewear
- Meet or exceed ANSI Z136.1 requirements for use with laser systems
- Frames are ANSI Z87.1 Approved, however the lenses are glass and not ANSI Z87 approved
- Distortion-free SF6HT Schott glass radiation-reducing lenses with 0.75 mm Pb lead equivalency
- Designed as a fit over frame
- Large viewing area
- Excellent side protection
- Ships with case, adjustable strap & microfiber pouch

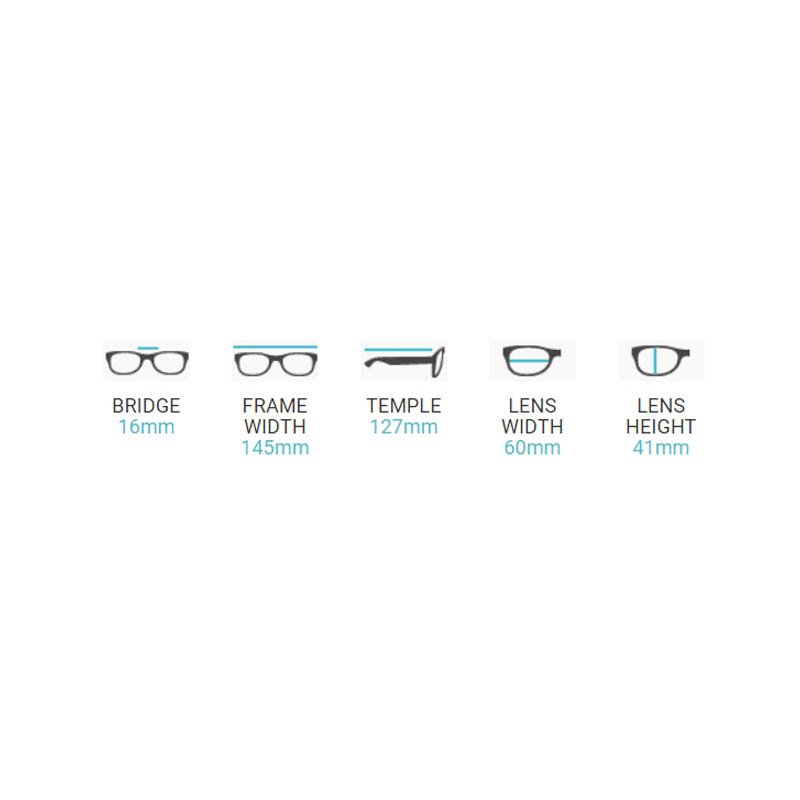

- Frame Dimensions - Bridge Size: 16 mm, Frame Width: 145 mm, Temple Size: 127 mm, Lens Width: 60 mm, Lens Height: 41 mm
- Latex Free
Protection Specifications:
- Radiation: 0.75mm (+/- 0.05) Pb lead equivalency
- KG5 Holmium/YAG/CO2:
| Wavelength |
Optical Density |
Color |
Visible Light Transmission |
| 870-950nm | 4+ | Clear | Excellent Visibility |
|
950-1000nm
|
5+
|
Clear
|
Excellent Visibility
|
|
1000-1550nm
|
7+
|
Clear
|
Excellent Visibility
|
|
1550-2750nm
|
4+
|
Clear
|
Excellent Visibility
|
| 2800-11,000nm | 6+ | Clear | Excellent Visibility |
About this Brand
The Phillips family's deep roots in the optical business were planted over 115 years ago with producing glasses for Bausch & Lomb in 1905. With the creation of Phillips Safety Products in 2001, the company began to focus its extensive optical experience on occupational safety, specifically protecting the eyes of customers using X-ray and laser equipment for healthcare, education, and military purposes. As the company has grown, its experience safeguarding professionals working with X-rays has led to the creation of innovative radiation protection barriers that provide both radiation protection and patient visibility. Phillips' state-of-the-art computer numeric control (CNC) edging facility enables them to produce the highest quality products, ensuring accurate production of both spherical and aspheric lenses. With a wide range of both designer and affordable classic frames coupled with its capability to incorporate prescriptions in safety glasses, Phillips Safety stands apart for blending the best and most affordable styles with the necessary safety functions to keep your eyes protected.
Specifications
| Manufacturer | Phillips Safety Products |
|---|---|
| Laser Type | Carbon Dioxide (Co2), Erbium Yag (Er: YAG), Holmium, Nd: Yag |
| Filter Material | Glass |
| Certifications | ANSI Z136.1, ANSI Z87.1 |
| Latex Free | Yes |
| Country of Manufacture | United States |
| Item Ships From | New Jersey |
Literature
Instructions
Storage: Eyewear should be stored in clean and sanitary "ready for use" condition in an area away from dust, dirt and other contaminants.
Cleaning: If the eyewear needs to be cleaned, generally, a mild soap solution is fine for eyewear and dry with a dry cloth free of abrasives and all chemicals.
Warranty: All Phillips Safety products are fully guaranteed against manufacturer defects (material and workmanship) for 6 months from the date of purchase. This does not cover negligent use of the product (including scratched lenses). Phillips-Safety will repair or replace any defective merchandise at no charge. All shipping charges remain payable by the purchaser.
