Product Description

Our radiation/laser glasses offers Laser and Radiation protection in a single lens, making it ideal for operator eye protection during procedures using C-Arm Fluoroscopy and Holmium/YAG/Excimer Lasers.

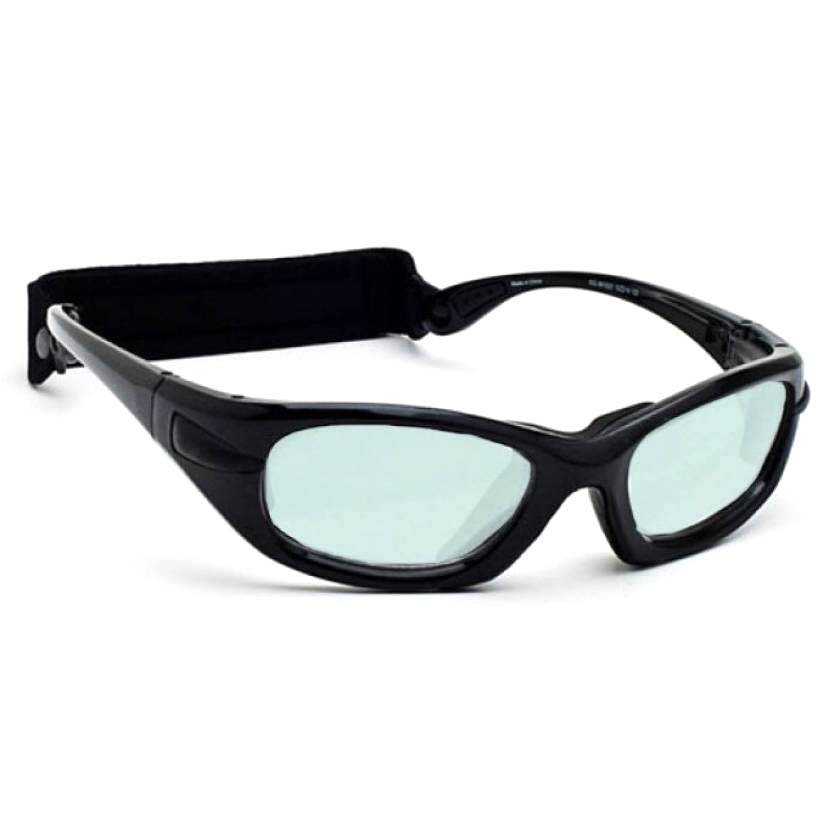

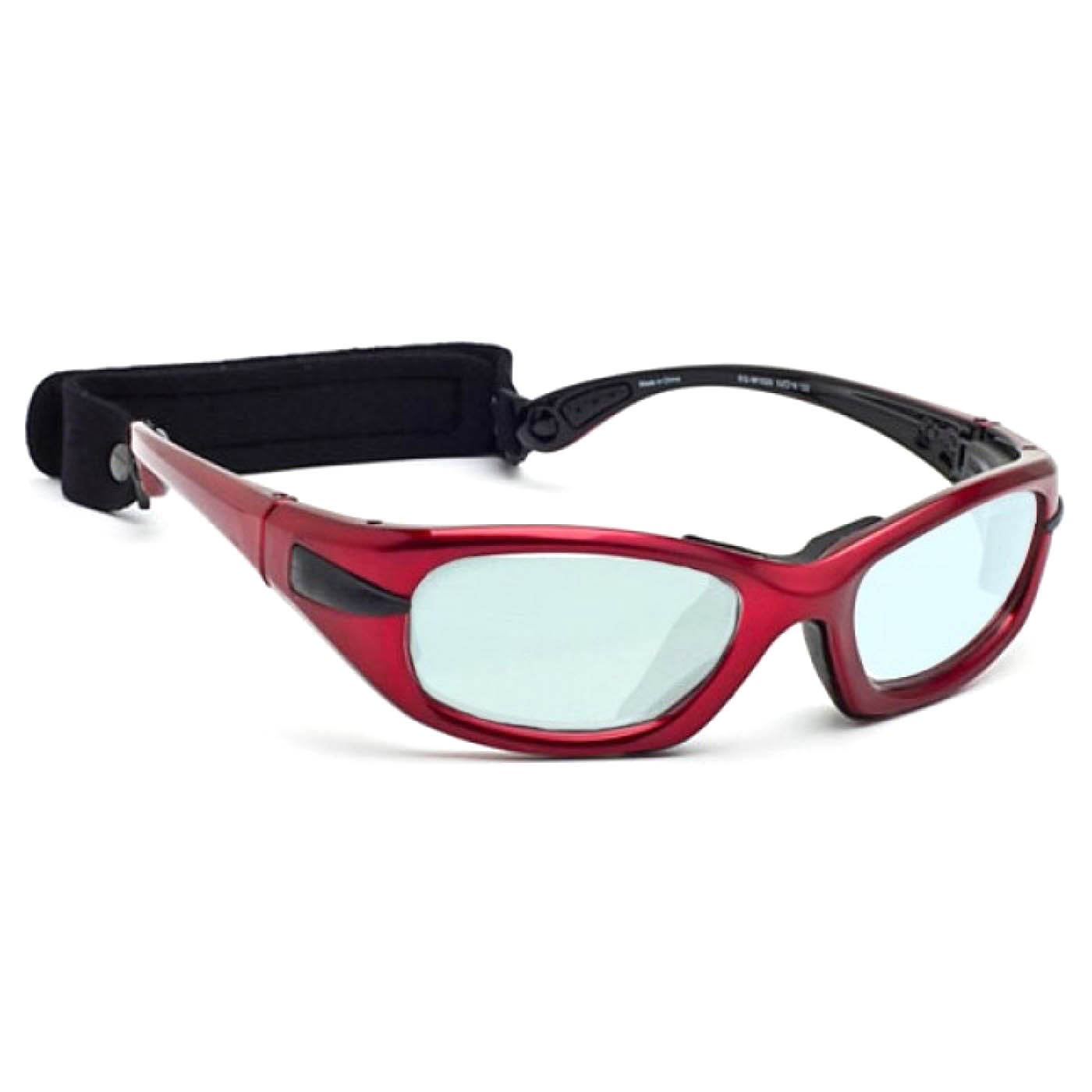

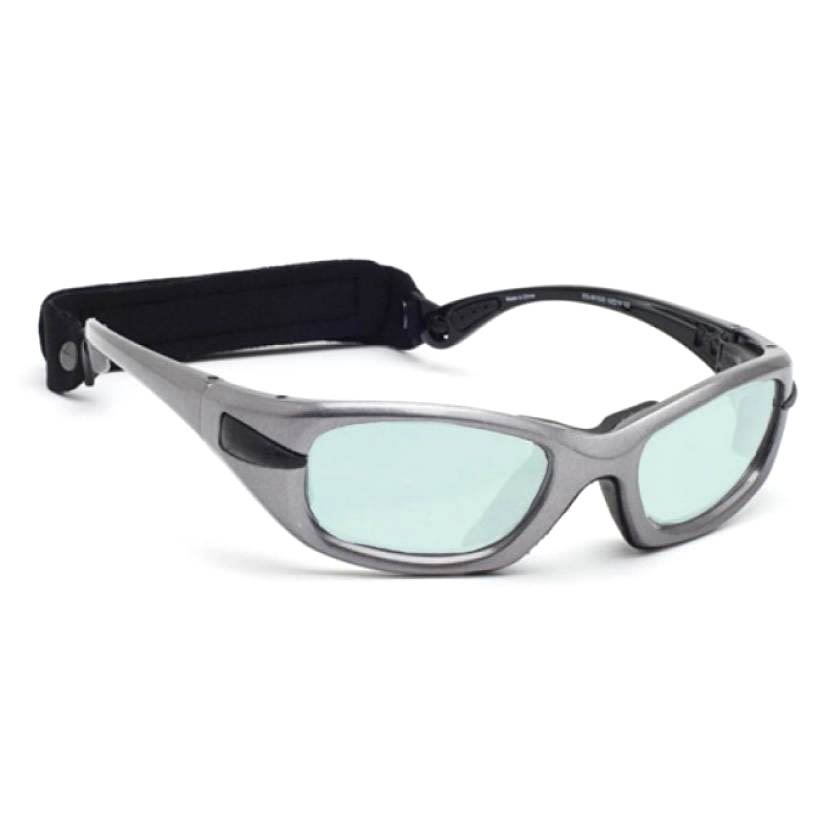

The RGLS-SF6-KG5-EGM combination radiation/laser glasses are designed to provide protection in a wraparound frame. The glass lenses have exceptional optical clarity and durability for long periods of wear. Glasses are ideal for use in medical, lab and industrial applications.

  • Lens Type: KG5
  • Filter Type: Glass
  • Wavelength Ranges and corresponding Optical Density information is printed on the frame of the eyewear
  • Meet or exceed ANSI Z136.1 requirements for use with laser systems
  • Frames are ANSI Z87.1 Approved, however the lenses are glass and not ANSI Z87 approved
  • Distortion-free SF6HT Schott glass radiation-reducing lenses with 0.75 mm Pb lead equivalency
  • Designed as a fit over wraparound frame
  • Unisex shape with soft rubberized padding inside the temples and nose bridge for extra comfort and grip
  • Ships with case, adjustable strap & microfiber pouch

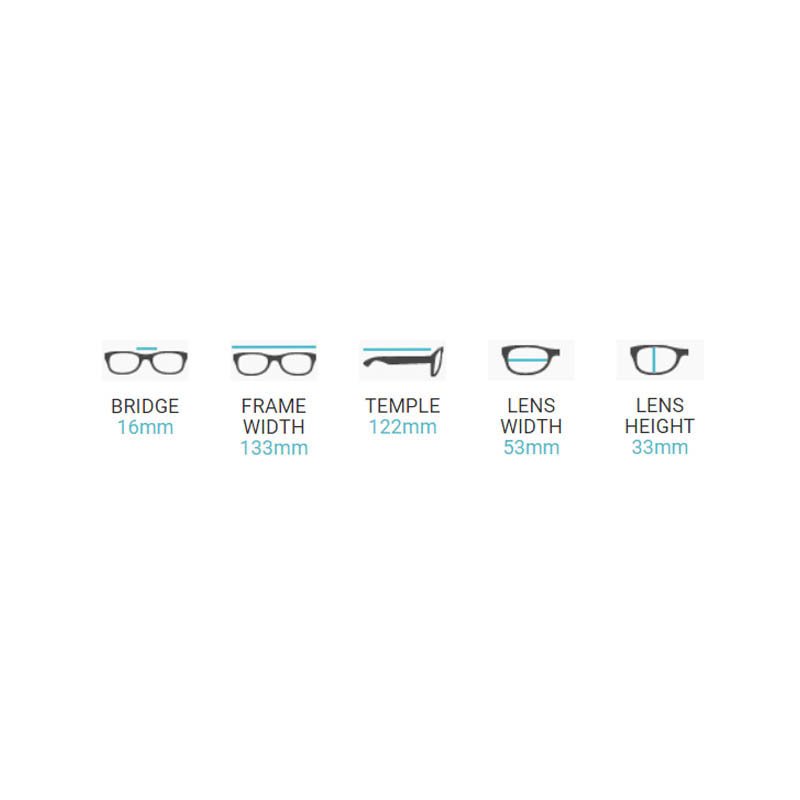

  • Frame Dimensions - Bridge Size: 16 mm, Frame Width: 133 mm, Temple Size: 122 mm, Lens Width: 53 mm, Lens Height: 33 mm
  • Latex Free

Protection Specifications:

  • Radiation: 0.75mm (+/- 0.05) Pb lead equivalency
  • KG5 Holmium/YAG/CO2:
Wavelength
Optical Density
Color
Visible Light Transmission
870-950nm 4+ Clear Excellent Visibility
950-1000nm
5+
Clear
Excellent Visibility
1000-1550nm
7+
Clear
Excellent Visibility
1550-2750nm
4+
Clear
Excellent Visibility
2800-11,000nm 6+ Clear Excellent Visibility

About this Brand

Specifications

Specifications
Manufacturer Phillips Safety Products
Laser Type Carbon Dioxide (Co2), Erbium Yag (Er: YAG), Holmium, Nd: Yag
Filter Material Glass
Certifications ANSI Z136.1, ANSI Z87.1
Latex Free Yes
Country of Manufacture United States
Item Ships From New Jersey

Literature

pdf
(Size: 117.6 KB)
Laser Safety Specifications KG5

Instructions

Storage: Eyewear should be stored in clean and sanitary "ready for use" condition in an area away from dust, dirt and other contaminants.

Cleaning: If the eyewear needs to be cleaned, generally, a mild soap solution is fine for eyewear and dry with a dry cloth free of abrasives and all chemicals.

Warranty: All Phillips Safety products are fully guaranteed against manufacturer defects (material and workmanship) for 1 year from the date of purchase. This does not cover negligent use of the product (including scratched lenses). Phillips-Safety will repair or replace any defective merchandise at no charge. All shipping charges remain payable by the purchaser.

Returns

Customers wishing to return this product must contact Customer Service to obtain a valid return authorization number within 14 days of receipt. A restocking fee may be deducted at the discretion of the manufacturer. Prescription orders cannot be returned. Frames with custom imprints cannot be returned.

Reviews

Ask a Question (1)

Customer Questions
What is weight of these glasses?
The weight of this frame is approximately 75 grams.
