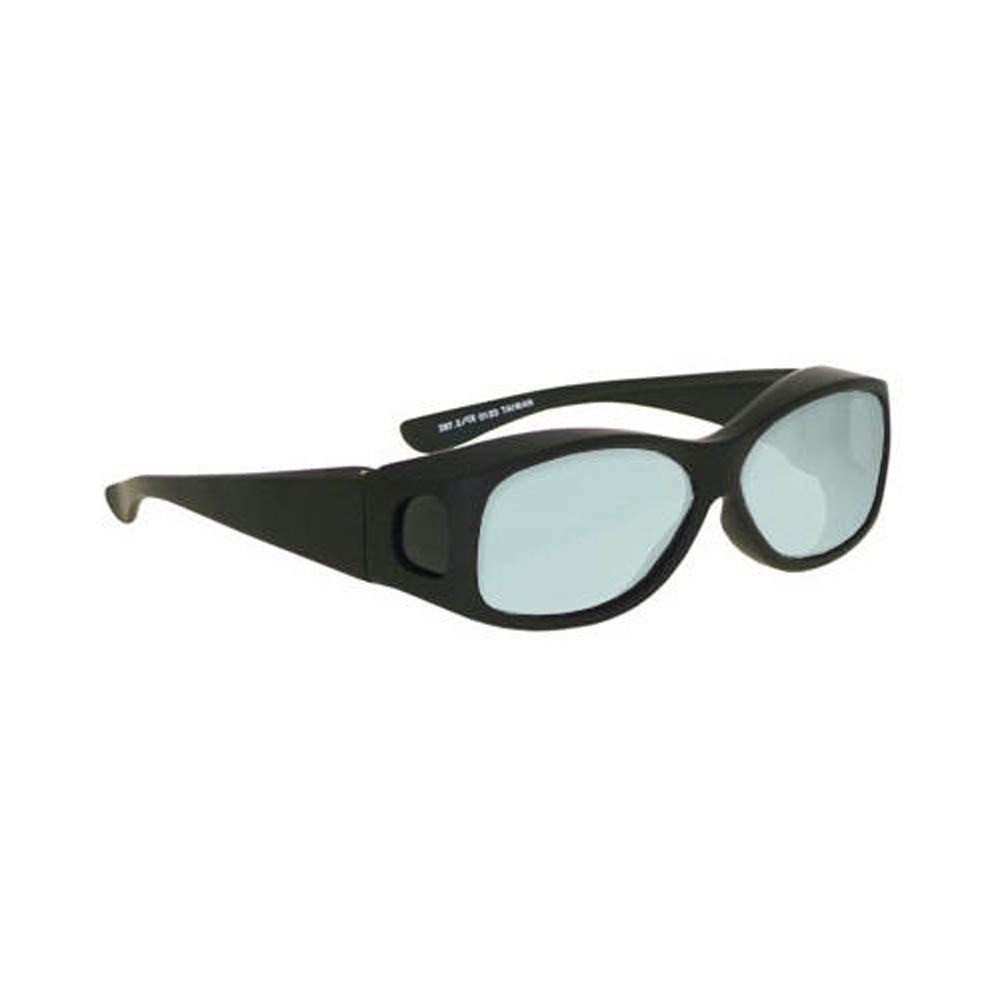

AKG-5 Holmium/Yag/CO2 Laser Safety Glasses - Model 33
Move your mouse over image or click to enlarge
Laser safety glasses that provide laser protection with a comfortable design and fit over existing eyewear. Ideal for medical, lab and industrial applications. Glass lenses have exceptional optical clarity and durability for long periods of wear. Exceptional field of view, rubberized grip, and extremely lightweight. Meet or exceed ANSI Z136.1 (use with laser systems) and ANSI Z87.1 (non-impact protective eyewear). Comes complete with a case, adjustable strap and microfiber pouch. Eye size: 60 mm, bridge size: 16 mm, frame width: 145 mm. For an adjustable fit option, consider our Model 66 AKG-5 Holmium/Yag/CO2 Laser Safety Glasses or view our entire selection of Holmium Yag CO2 Laser Glasses.
Free Shipping!
Usually Ships in 2-3 Business Days
In stock
You May Also Need
Checked products are added to the cart with this item.
Product Description
The AKG-5 Holmium/Yag/Co2 is a laser safety lens made of a light blue AKG5 glass filter. It is cut and mounted into model 33 Eurolite Fitover. This model fits over most types of prescription glasses. It is the perfect fitover frame if you need laser safety glasses to fit over your current eyewear. Excellent side protection.
- Lens Type: KG5
- Filter Type: Glass
- Lens Color: Light Blue
- Visible Light Transmission: Excellent
- Protection Specifications:
- OD>4+ from 870-950nm
- OD>5+ from 950-1000nm
- OD>7+ from 1000-1550nm
- OD>4+ from 1550-2750nm
- OD>6+ from 2800-11,000nm
- CE Certified
- CE Laser Rating:
- 900 – 925 DIR LB4
- 925 – 1000 DIR LB5
- 1000 – 1025 DIR LB6
- 1025 – 1400 D LB6 + IR LB7
- 1400 – 2400 DIR LB4
- 2900 – 10600 DI LB4
- Meets or exceed ANSI Z87.1 standards for protective eyewear (non-impact)
- Meets or exceed ANSI Z136.1 requirements for use with laser systems

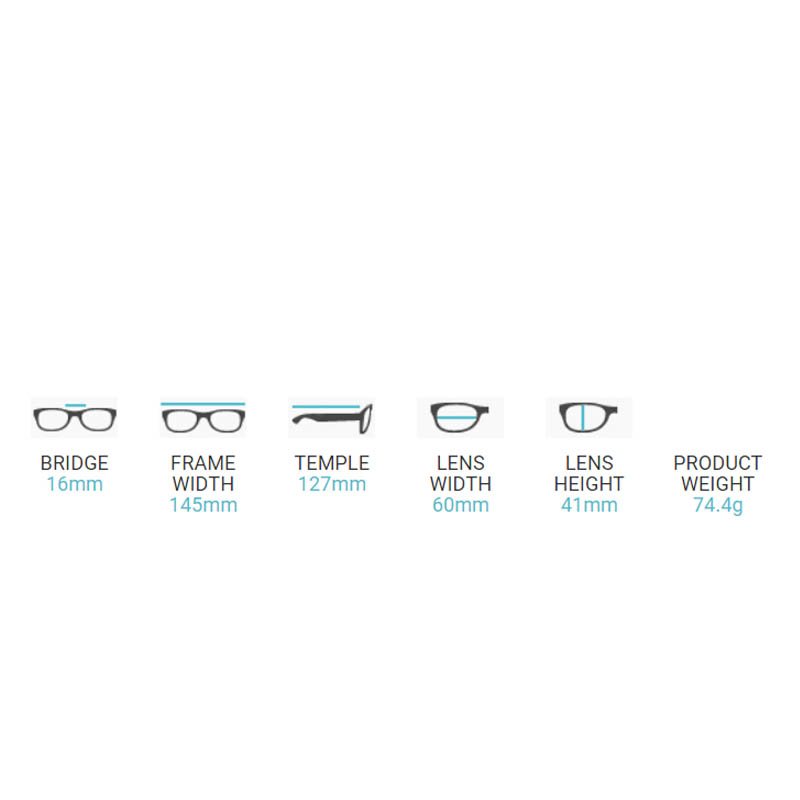

- Overall Dimensions - Bridge Size: 16 mm, Frame Width: 145 mm, Temple Size: 127 mm, Lens Width: 60 mm, Lens Height: 41 mm
- Product Weight: 74.4 grams
About this Brand
The Phillips family's deep roots in the optical business were planted over 115 years ago with producing glasses for Bausch & Lomb in 1905. With the creation of Phillips Safety Products in 2001, the company began to focus its extensive optical experience on occupational safety, specifically protecting the eyes of customers using X-ray and laser equipment for healthcare, education, and military purposes. As the company has grown, its experience safeguarding professionals working with X-rays has led to the creation of innovative radiation protection barriers that provide both radiation protection and patient visibility. Phillips' state-of-the-art computer numeric control (CNC) edging facility enables them to produce the highest quality products, ensuring accurate production of both spherical and aspheric lenses. With a wide range of both designer and affordable classic frames coupled with its capability to incorporate prescriptions in safety glasses, Phillips Safety stands apart for blending the best and most affordable styles with the necessary safety functions to keep your eyes protected.
Specifications
| Manufacturer | Phillips Safety Products |
|---|---|
| Laser Type | Carbon Dioxide (Co2), Erbium Yag (Er: YAG), Holmium, Nd: Yag |
| Filter Material | Glass |
| Certifications | ANSI Z136.1, ANSI Z87.1, CE Certified |
| Actual Product Weight | 74.4g |
| Item Ships From | New Jersey |
| GSA Contract Number | 36F79724D0011 |
Literature
Product Videos
Instructions
APPLICATION: Phillips Laser Safety Eyewear offers protection against accidental exposure to stray or diffused reflection of laser beam energy for a maximum exposure of 10 seconds. All Phillips Laser Safety glasses are clearly marked with wavelength (nm) and absorption (OD) protection levels
CAUTION:
- Never look directly into the path of a laser beam.
- Filtering glasses are not to be used as impact safety lenses. Impact resistant over-goggles must be used if impact protection is required.
- Color recognition (of warning lights, etc.) may be affected by tinted lenses.
STORAGE: Glasses should be stored in protective case when not in use. Normal room temperature and low relative humidity is ideal.
CLEANING: Use clear water; mild, non-alkali, non-acidic soap or detergent; and soft, lint-free cloth. !Do not autoclave!
WARRANTY: All Phillips Safety products are fully guaranteed against manufacturer defects (material and workmanship) for 1 year from the date of purchase. This does not cover negligent use of the product (including scratched lenses). Phillips-Safety will repair or replace any defective merchandise at no charge. All shipping charges remain payable by the purchaser.
Returns
Customers wishing to return this product must contact Customer Service to obtain a valid return authorization number within 14 days of receipt. A restocking fee may be deducted at the discretion of the manufacturer. Prescription orders cannot be returned. Frames with custom imprints cannot be returned.
