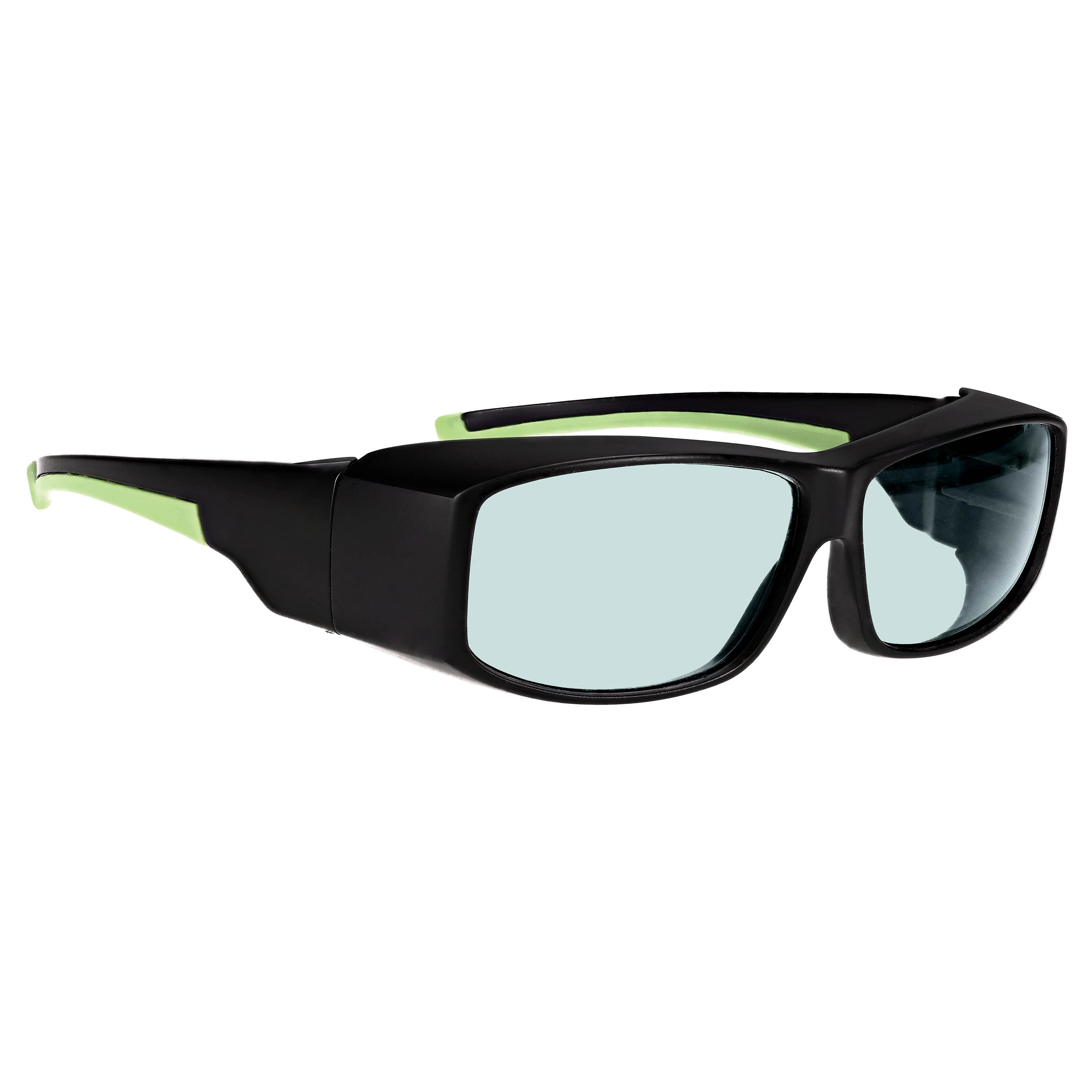

The AKG-5 Holmium/Yag/Co2 is a laser safety lens made of a light blue AKG5 glass filter. It is cut and mounted into model 17001, a rectangular plastic frame that is very durable and provides a comfortable fit! This large frame provides green accent secure grip rubber temples and integrated lateral protection.
Lens Type: KG5
Filter Type: Glass
Lens Color: Light Blue
Visible Light Transmission: Excellent
OD>4+ from 870-950nm
OD>5+ from 950-1000nm
OD>7+ from 1000-1550nm
OD>4+ from 1550-2750nm
OD>6+ from 2800-11,000nm
CE Laser Rating:
900 – 925 DIR LB4
925 – 1000 DIR LB5
1000 – 1025 DIR LB6
1025 – 1400 D LB6 + IR LB7
1400 – 2400 DIR LB4
2900 – 10600 DI LB4
Meets or exceed ANSI Z87.1 standards for protective eyewear (non-impact)
Meets or exceed ANSI Z136.1 requirements for use with laser systems
Ships with case, adjustable strap & microfiber pouch
Overall Dimensions - Bridge Size: 18 mm, Frame Width: 146 mm, Temple Size: 130 mm, Lens Width: 63 mm, Lens Height: 42 mm
Product Weight: 74.4 grams
About this Brand
The Phillips family's deep roots in the optical business were planted over 115 years ago with producing glasses for Bausch & Lomb in 1905. With the creation of Phillips Safety Products in 2001, the company began to focus its extensive optical experience on occupational safety, specifically protecting the eyes of customers using X-ray and laser equipment for healthcare, education, and military purposes. As the company has grown, its experience safeguarding professionals working with X-rays has led to the creation of innovative radiation protection barriers that provide both radiation protection and patient visibility. Phillips' state-of-the-art computer numeric control (CNC) edging facility enables them to produce the highest quality products, ensuring accurate production of both spherical and aspheric lenses. With a wide range of both designer and affordable classic frames coupled with its capability to incorporate prescriptions in safety glasses, Phillips Safety stands apart for blending the best and most affordable styles with the necessary safety functions to keep your eyes protected.
APPLICATION: Phillips Laser Safety Eyewear offers protection against accidental exposure to stray or diffused reflection of laser beam energy for a maximum exposure of 10 seconds. All Phillips Laser Safety glasses are clearly marked with wavelength (nm) and absorption (OD) protection levels
Never look directly into the path of a laser beam.
Filtering glasses are not to be used as impact safety lenses. Impact resistant over-goggles must be used if impact protection is required.
Color recognition (of warning lights, etc.) may be affected by tinted lenses.
STORAGE: Glasses should be stored in protective case when not in use. Normal room temperature and low relative humidity is ideal.
CLEANING: Use clear water; mild, non-alkali, non-acidic soap or detergent; and soft, lint-free cloth. !Do not autoclave!
WARRANTY: All Phillips Safety products are fully guaranteed against manufacturer defects (material and workmanship) for 1 year from the date of purchase. This does not cover negligent use of the product (including scratched lenses). Phillips-Safety will repair or replace any defective merchandise at no charge. All shipping charges remain payable by the purchaser.
Customers wishing to return this product must contact Customer Service to obtain a valid return authorization number within 14 days of receipt. A restocking fee may be deducted at the discretion of the manufacturer.
