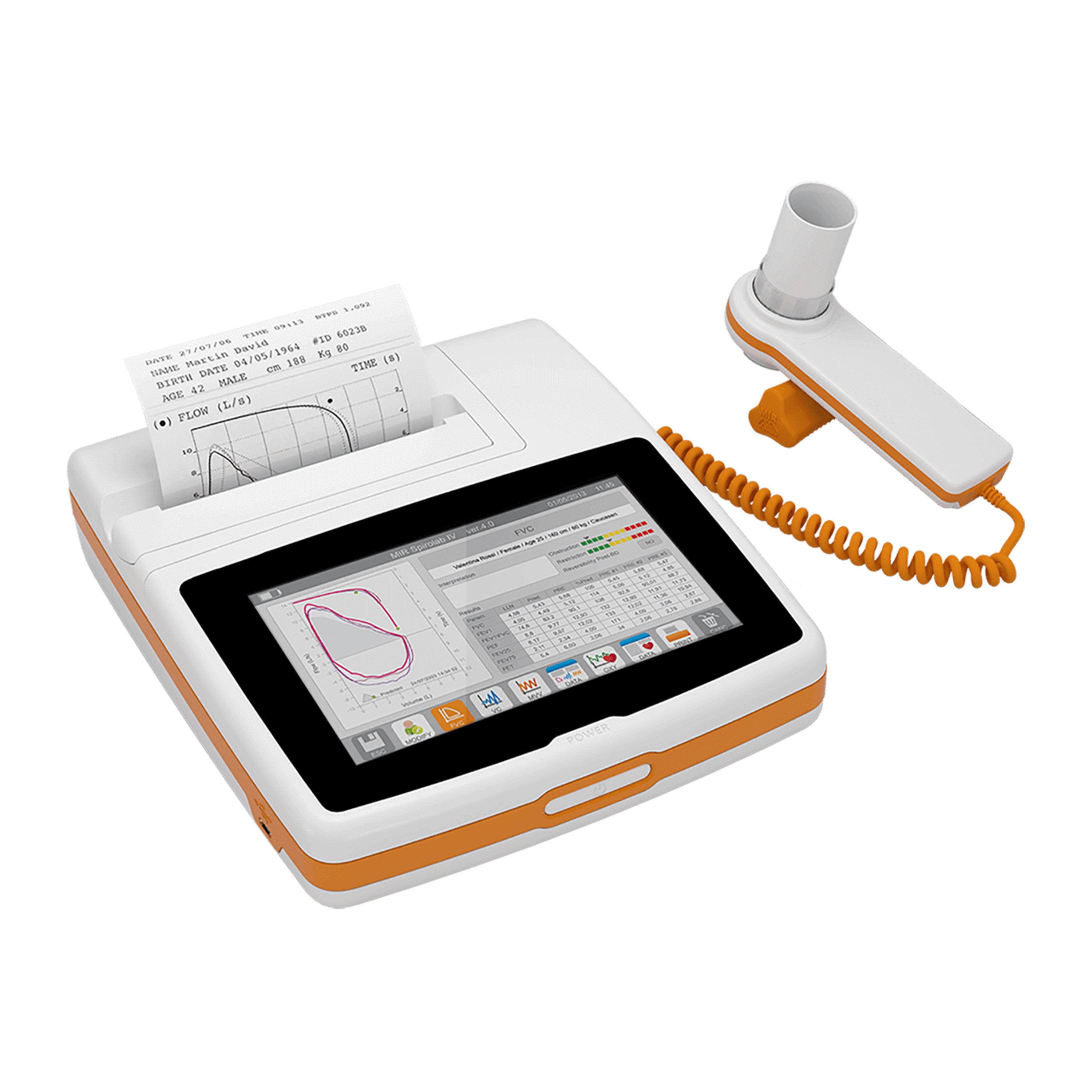

MIR Spirolab Portable Spirometer

The MIR Spirolab Portable Spirometer is an all-in-one desktop spirometer with an oximetry option. Equipped with a touch display and integrated printer for rapid and comprehensive testing without the need for a computer.

Features:

• All-in-One: Complete spirometer to perform tests without the need for a computer
• Usage Modes: Operates in both Stand-Alone mode and connected to a PC via USB cable
• 7" Color Touchscreen: Intuitive interface and clear data display
• Embedded Thermal Printer: Customizable printing and immediate detailed test reports
• External Printing: Capable of printing to compatible PostScript printers
• Long-Lasting Ni-MH Rechargeable Battery: For extended autonomy in Stand-Alone mode
• Integrated Temperature Sensor: Automatic Body Temperature and Pressure, Saturated (BTPS) conversion

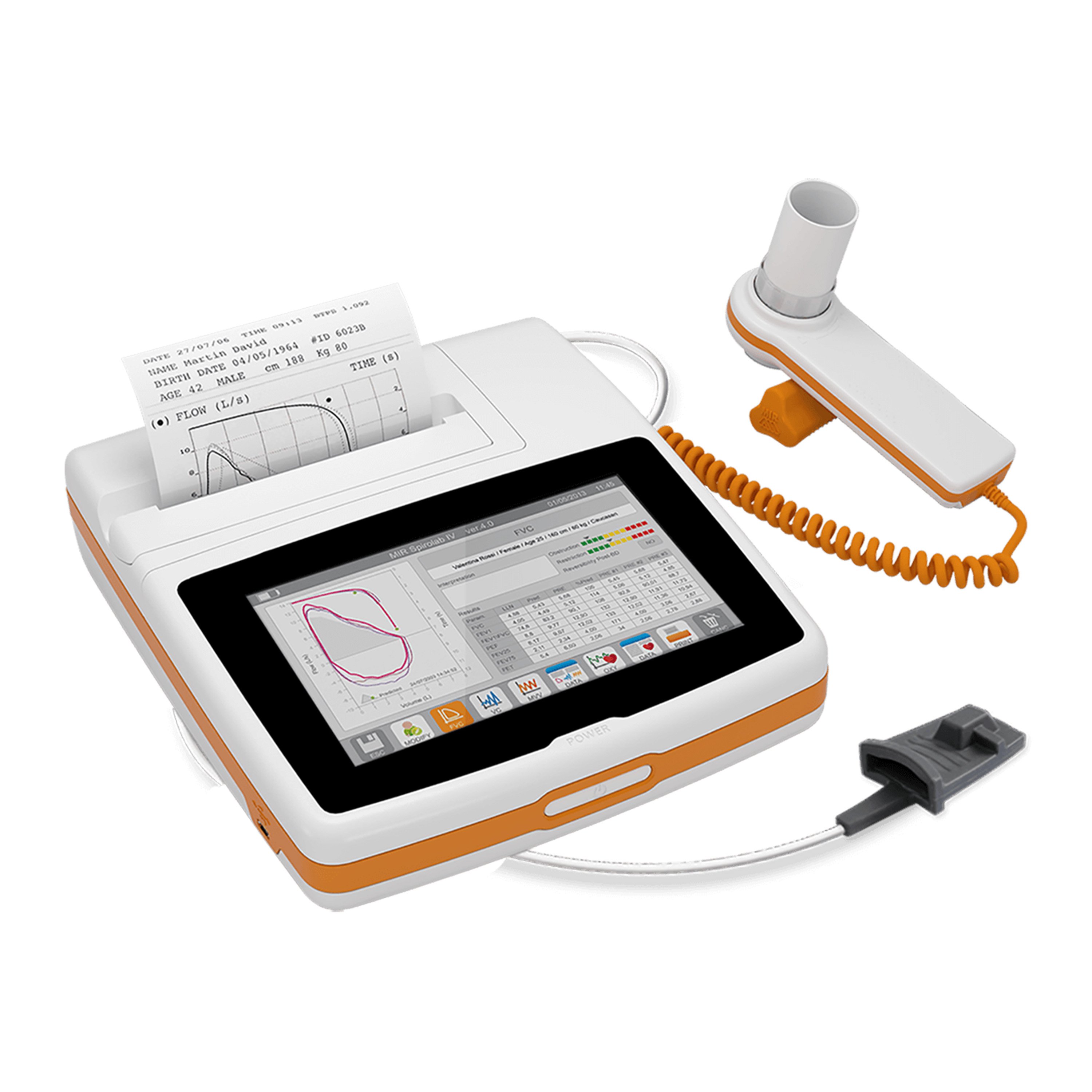

• Optional SpO2% Sensor: Oximetry sensor to detect blood oxygen saturation (Available in 911081 only)
• Calibration: Available on the device, with a printable calibration report
• Large Internal Memory: Storage of up to 10,000 spirometric tests (For both 911080 and 911081) or 500 hours of oximetry (For 911081 only)
• Pediatric Incentive: Real-time animation both on the device screen and in PC mode via MIR Spiro Software to improve patient compliance during the test
• Real-Time Testing: Tests displayed both on the device screen and on the PC via MIR Spiro Software
• Traffic Light System: Integrated traffic light system for immediate test interpretation
• Wide Selection of Predicted Sets and Values: Including GLI and ERS, among others, directly on the device and in PC mode
• EMR/EHR Connectivity: Integration via MIR Spiro Software with EMR/EHR (in HL7, GDT, FHIR, and Exchange Protocol)
• Software Compatibility: Compatible with Winspiro PRO and MIR Spiro for Windows or Mac-based software solutions in spirometry, oximetry, and telemedicine
• Additional Prevention During COVID-19: Compatible with the use of disposable in-line filters as recommended by the ERS
• Compatible Turbine Flowmeters (Sold Separately):
  • MIR FlowMIR® Disposable Turbine Flowmeter with Mouthpiece
  • MIR FlowMIR® Disposable Turbine Flowmeter with VBMax™ Filter Mouthpiece
  • MIR Reusable Turbine Flowmeter
• Comes Standard With:
  • 1-Year Code for MIR Spiro Platinum
  • 1 Micro USB Cable
  • 1 MiniFlowmeter with Cable
  • 1 Power Supply
  • 1 Roll of Thermal Paper
  • 1 Carrying Case
  • 1 Adult Oximetry Finger Sensor (For 911081 only)

Technical Specifications:

• Power Supply: Ni-MH Rechargeable Battery Pack (6 Elements)
• Current: 4500 mAh
• Average Consumption: 250 mA
• Backup Battery Voltage: Absent
• Battery Charging:
  • Output Voltage: 12 V
  • Current: 1 A
  • Compliant with EN 60601-1
• Autonomy: Approximately 10 Hours
• Connectivity: USB 2.0, Bluetooth® 5
• Display: 7-inch Color Touchscreen LCD with 800x480 Pixel Resolution
• Keyboard: Absent, Touchscreen
• Electrical Safety Specifications:
  • Safety Class: Internally Powered (Class II while Battery is Charging)
  • Applied Part: Type BF Device
• Terms of Use: Device for Continuous Use
• Operating Conditions:
  • Temperature: 10°C to 40°C
  • Humidity: 10% to 95% RH
• Degree of Protection Against Water Penetration: IPX1
• Spirometry Specifications:
  • Sensor: Two-Way Digital Turbine
  • Volume Range: 10 L
  • Flow Range: ±16 L/s
  • Volume Accuracy: ±2.5% or 50 mL
  • Flow Accuracy: ±5% or 200 mL/s
  • Dynamic Resistance: <0.5 cm H2O/L/s
  • Temperature Sensor: Semiconductor (0°C to 45°C)
  • Available Tests: FVC, VC, IVC, MVV, PRE-POST
  • Measured Parameters: FVC, FEV1, FEV1/FVC%, FEV1/PEF, FEV1/VC, FEV1/FEV0.5, PEF Time, FEV 0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, PEF, FEF25, FEF50, FEF75, FEF2575, FEF7585, FET, Vext, ELA, EVOL, FIVC, FIV1, PIF, FIV1/FIVC, FIF25, FIF50, FIF75, R50, MVVcal, VC, EVC, IVC, IC, ERV, IRV, FEV1/VC, TV, VE, RR, ti, te, ti/t-tot, tv/ti, MVV
  • Memory Capacity: More than 10,000 Tests
• Oximetry Specifications (For 911081 only):

  • Measurement Method: Infrared Absorption
  • SpO2% Range: 0-99%
  • Accuracy of SpO2%: ±2% Between 70-99% SpO2
  • Average Number of Beats for SpO2% Calculation: 8 Beats
  • Cardiac Pulse Range: 18-300 BPM
  • Cardiac Pulse Accuracy: ±2 BPM or 2% (Whichever is Greater)
  • Mean Interval for Calculation of Heartbeat: 8 Seconds
  • Signal Quality Indication: 0-8 Segments on Screen
  • Test Available: Spot
  • Measured Parameters:
    • SpO2% (Min, Max, Average)
    • BPM (Min, Max, Average)
    • Test Duration
    • % Duration of Bradycardia (<40 BPM)
    • % Duration of Tachycardia (>120 BPM)
    • % Time with %SpO2 ≤ 90% (T90%, T89%), T5
  • Memory Capacity: About 500 Hours of Oximetry
• Certifications:
  • Spirometry: ATS/ERS 2005 + 2019 Update, ISO 23747:2015, ISO 26782:2009
  • Oximetry: ISO 80601-2-61:2017 (For 911081 only)
• Mouthpiece Diameter: Ø 1.18" (30 mm)
• Overall Dimensions: 8.27" L x 8.66" W x 2.01" H
• Actual Product Weight (Battery Pack Included): 3.20 lbs
• Warranty: 3 Years

Please note: The turbine flowmeters and plastic nose clip are sold separately.
