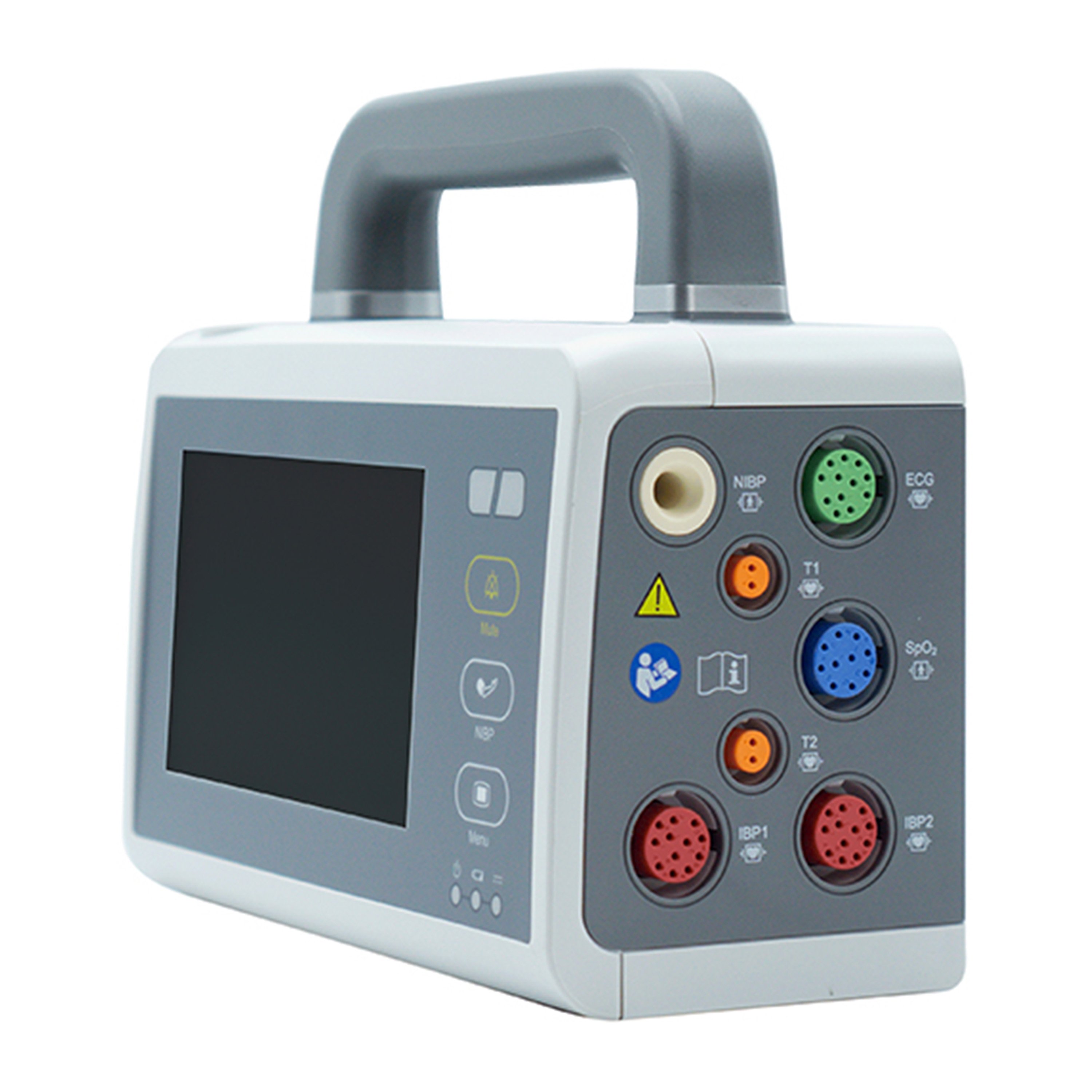

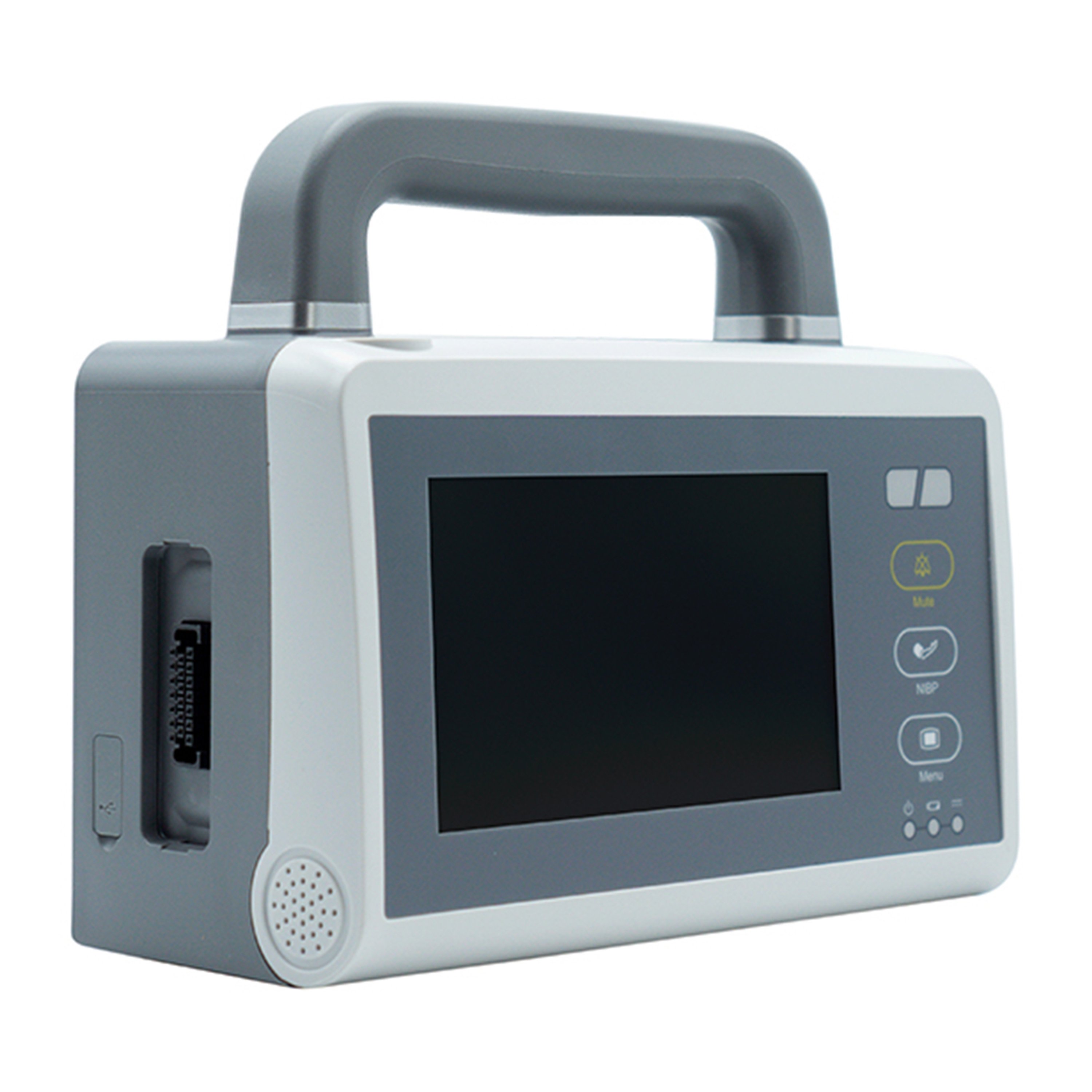

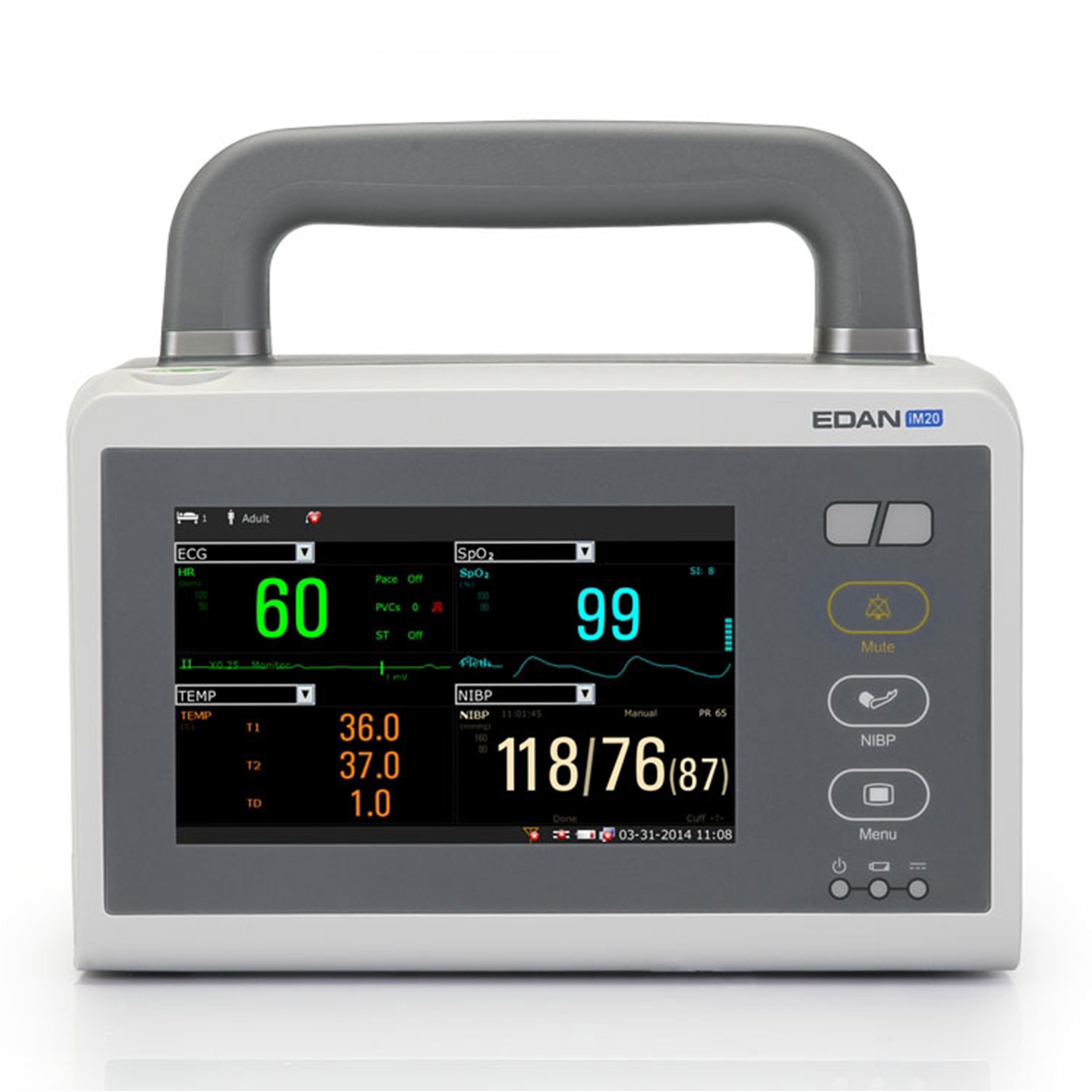

Edan iM20 Modular Patient Monitor with 5" Touch Screen

The Edan iM20 Modular Patient Monitor with 5" Touch Screen is a compact, powerful transport and a multi-parameter patient monitor providing a comprehensive and seamless solution both inside the hospital and outside, connecting ambulatory care to intensive care.

Features:

• One of the lightest transport monitors, weighing less than 1.5 kg with the battery installed
• Features efficient power saving, fanless cooling, and extended battery life for transport without external power
• Built-in Temporary Memory
  • 150 hours of Trend Review
  • 1200 sets of NIBP Measurement Review
  • 200 sets of Alarm Review
  • 200 sets of Arrhythmia Review
  • 50 sets of 12-lead Diagnosis Review
• Supports basic parameters and 2-channel IBP, expanding its usage for various medical cases
• A unique and modern full-touch, button-free design, delivering an enhanced and intuitive user experience
• IP44 waterproof and dustproof standard makes it outstanding for field medical practice
• Comes with a built-in handle that doesn't need to be removed, even when plugging into the Elite Series Monitors
• Switches role easily between modules with its plug-and-play feature
• Built with 1.2 m shock resistance, the monitor ensures uninterrupted operation even during drops, impacts, or bumpy rides on rough or hilly areas
• It can be used in cold mountains as well as hot tropical places because of its ability to resist extreme temperatures and altitudes
• Available in four different options:
  • Edan iM20 Modular Patient Monitor with 5" Touch Screen - Base Model (IM20)
  • Edan iM20 Modular Patient Monitor with 5" Touch Screen - With Built-In 12-Lead ECG Module (IM20-12L)
  • Edan iM20 Modular Patient Monitor with 5" Touch Screen - With Built-In 2-IBP Module (IM20-2-IBP-MODULE)
  • Edan iM20 Modular Patient Monitor with 5" Touch Screen - With Suntech NIBP Module (IM20-ST)
• Parameter Configurations:
  • iSEAPTM ECG algorithm optimized for arrhythmia detection, pacemaker detection, and HR measurement
  • SEMIP® 12-lead diagnosis algorithm with 208 kinds of ECG findings in an optional 12-lead ECG configuration
  • iMATTM SpO2 algorithm with outstanding motion resistance and low perfusion resistance performance
  • Signal Intensity (SI) measurement as a blood perfusion indicator
  • Optional Nellcor SpO2 with SatSecondsTM technology
  • iCUFSTM NIBP algorithm optimized for cardiac patients, hypertensive patients, and neonatal patients
  • Optional 2-channel invasive blood pressure with waveform overlapping function
  • 2-channel temperature monitoring
• It comes standard with:

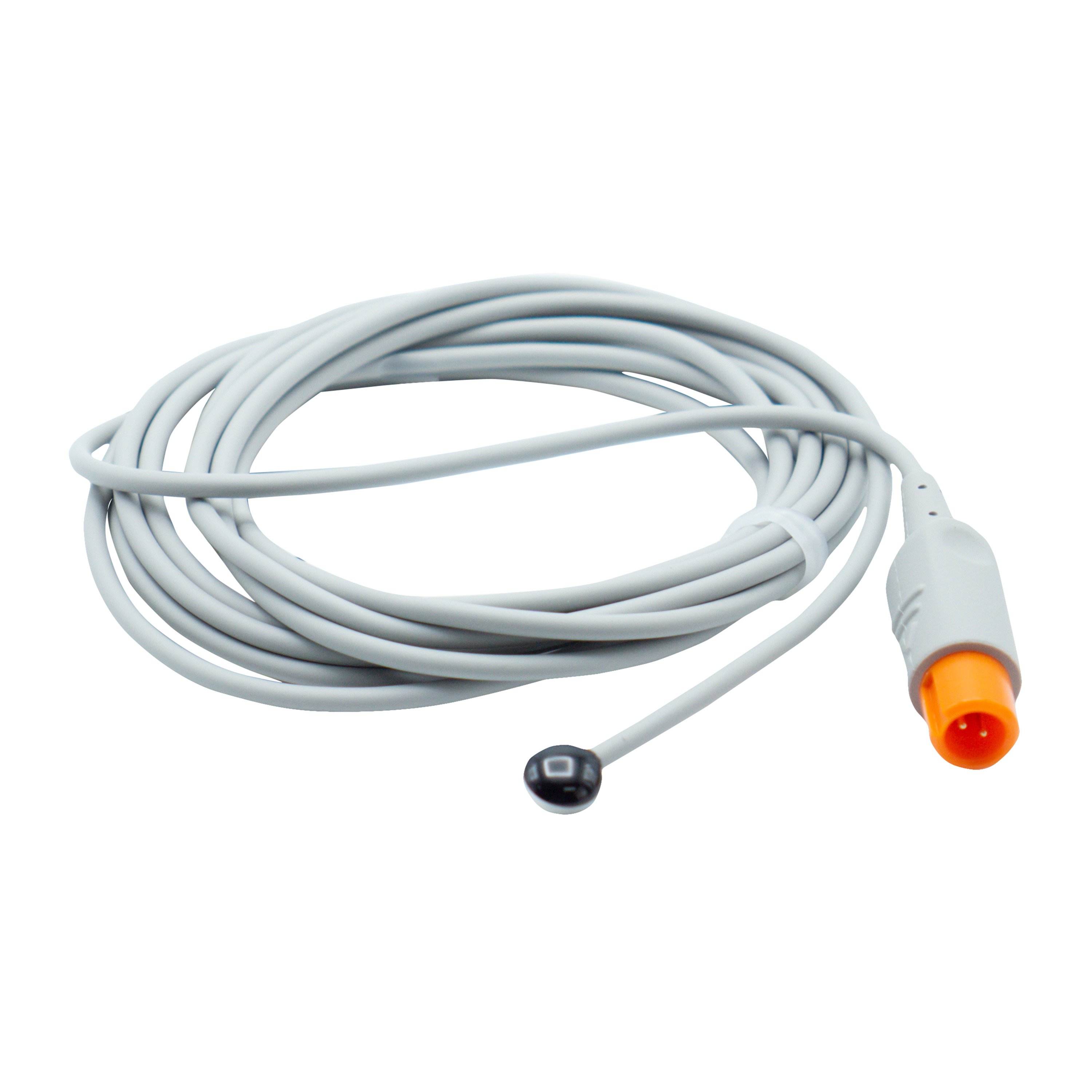

  • Skin Temperature Probe
  • Reusable SpO2 Sensor

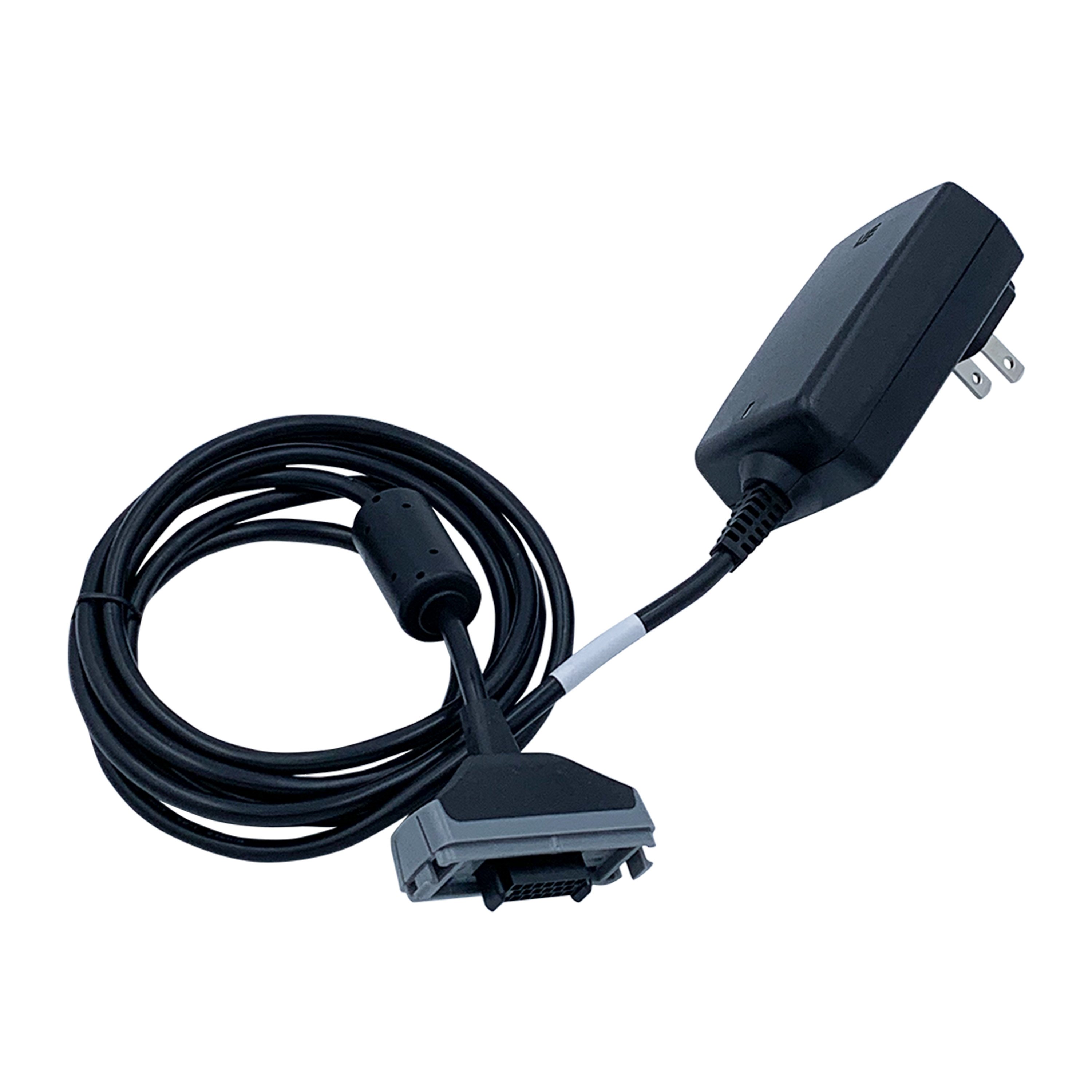

  • Power Cable

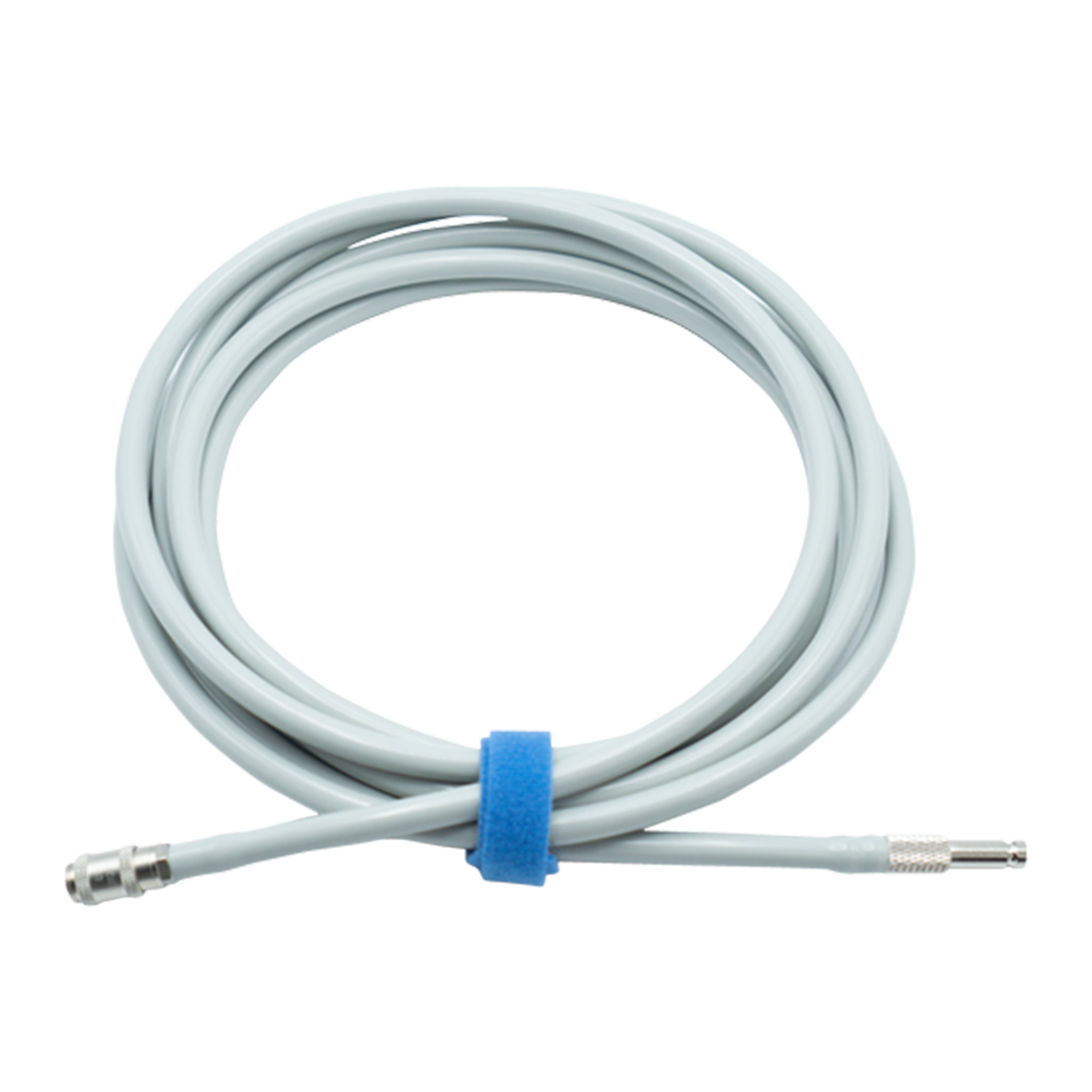

  • NIBP Tubing

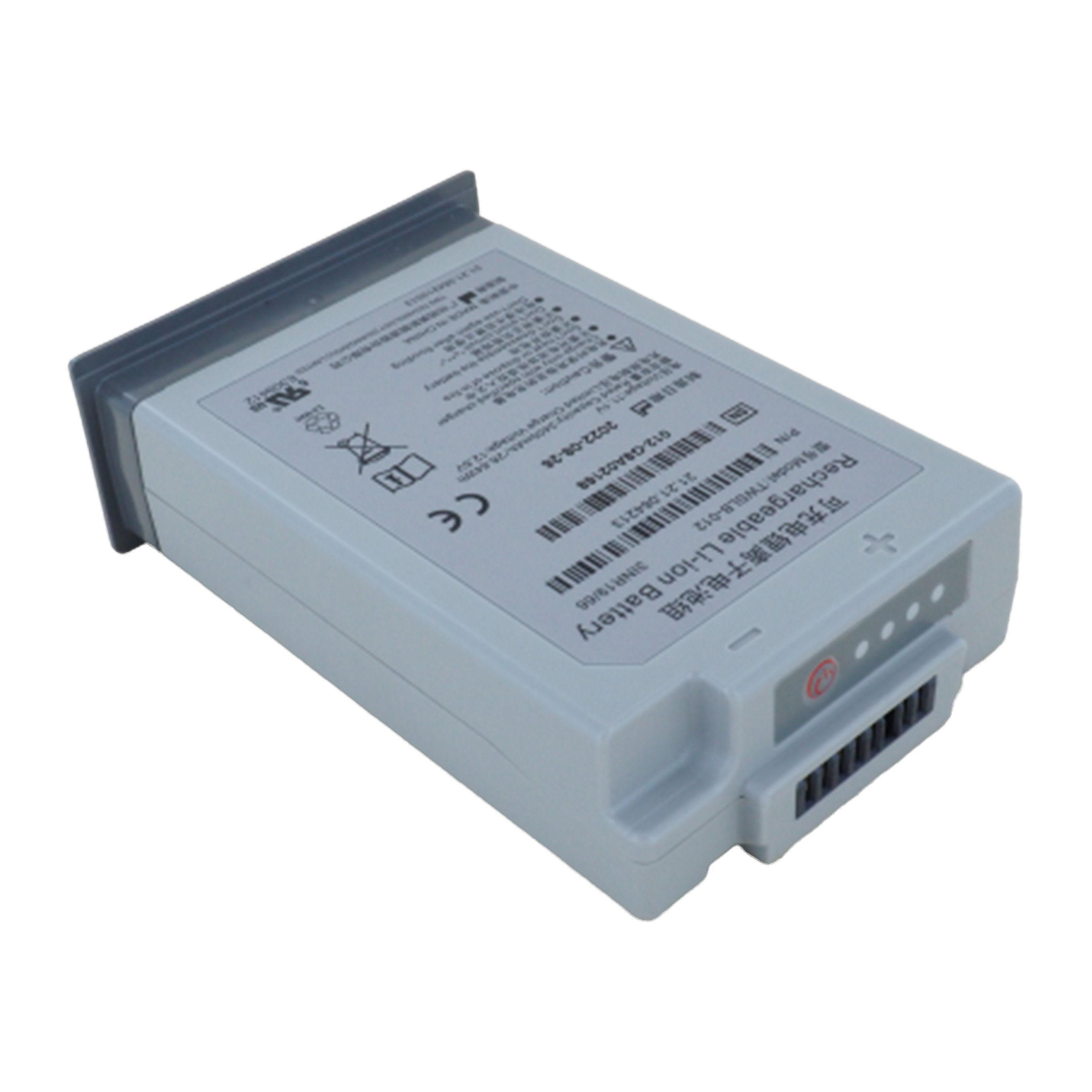

  • Battery

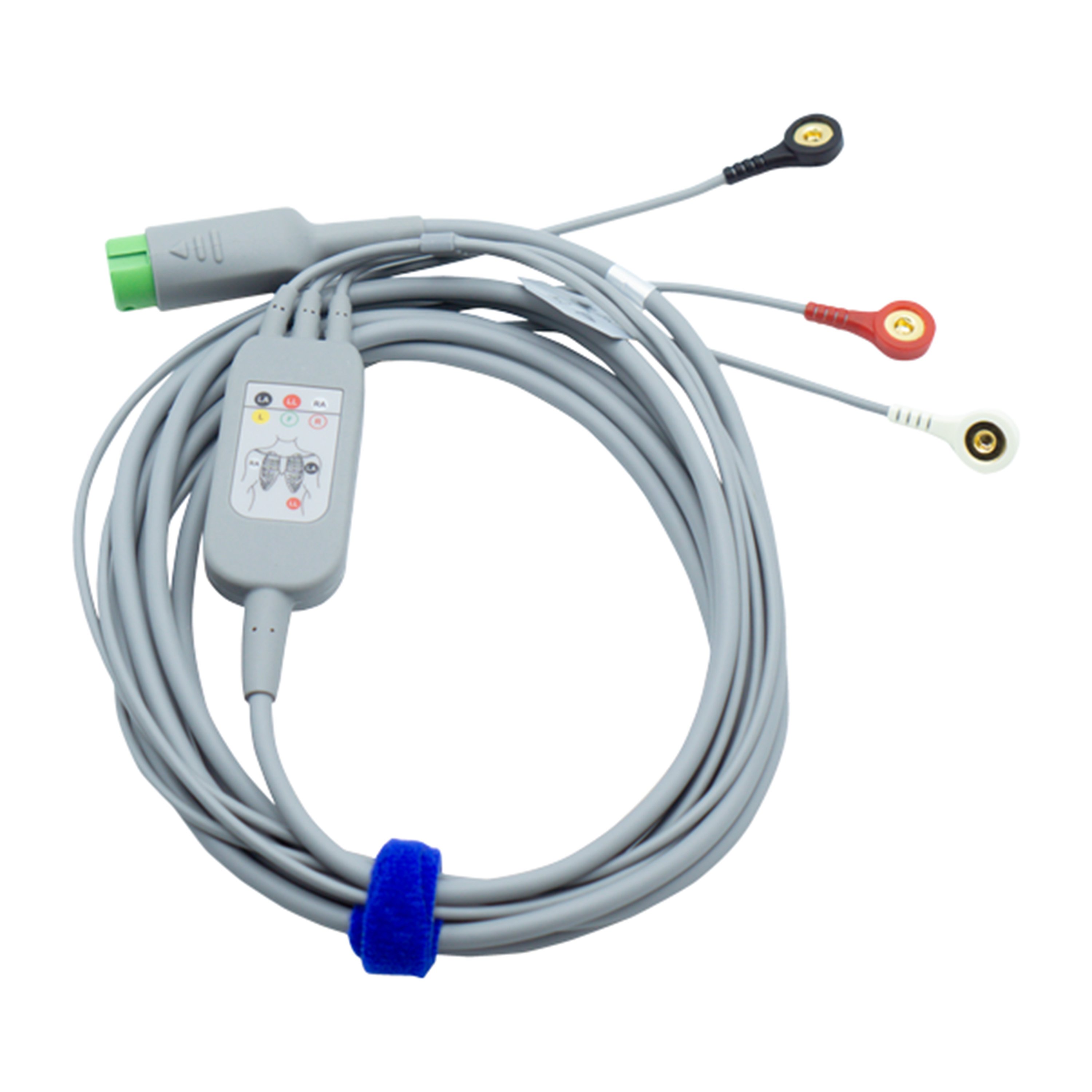

  • 3-Lead ECG Cable

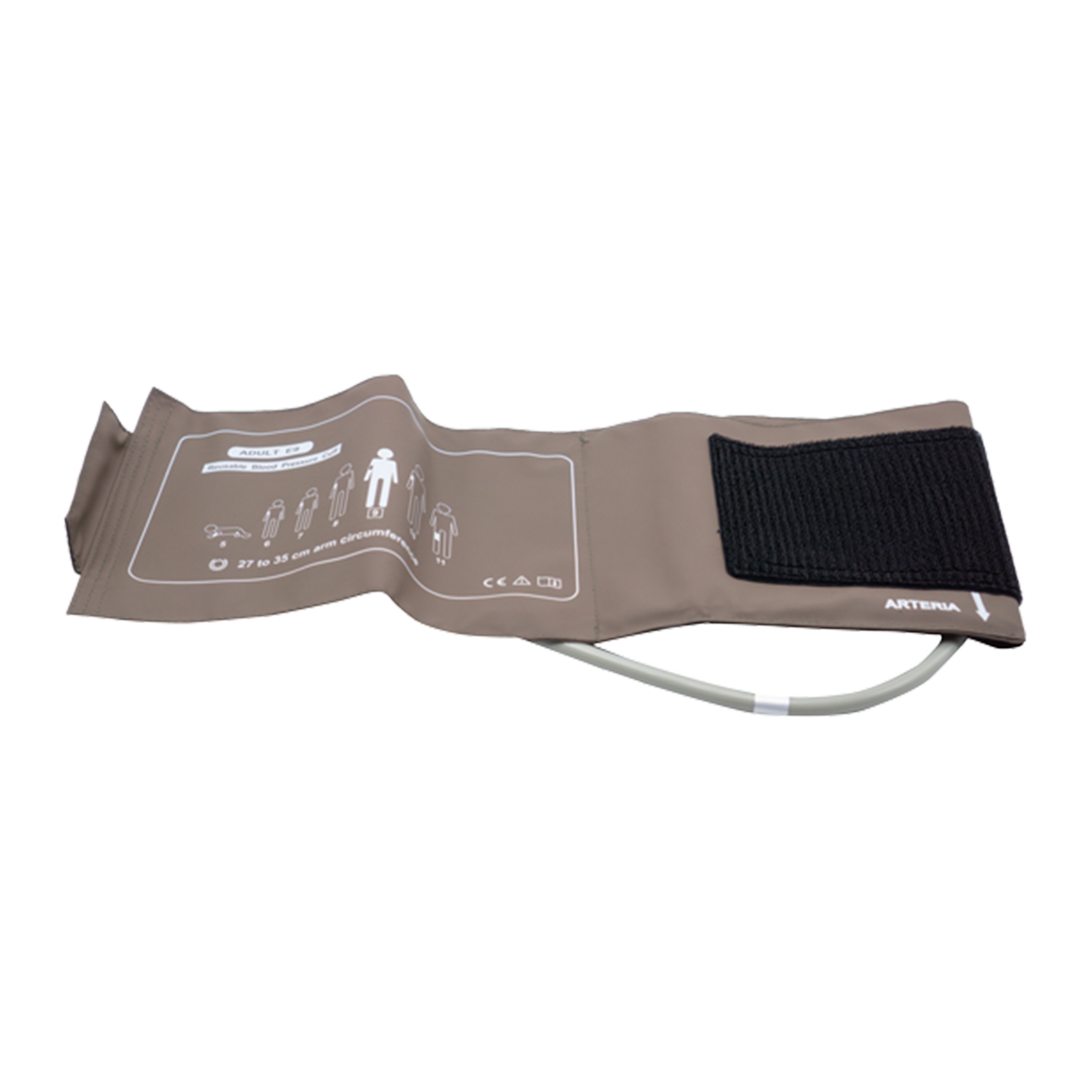

  • Adult CCuff
  • Snap Electrodes

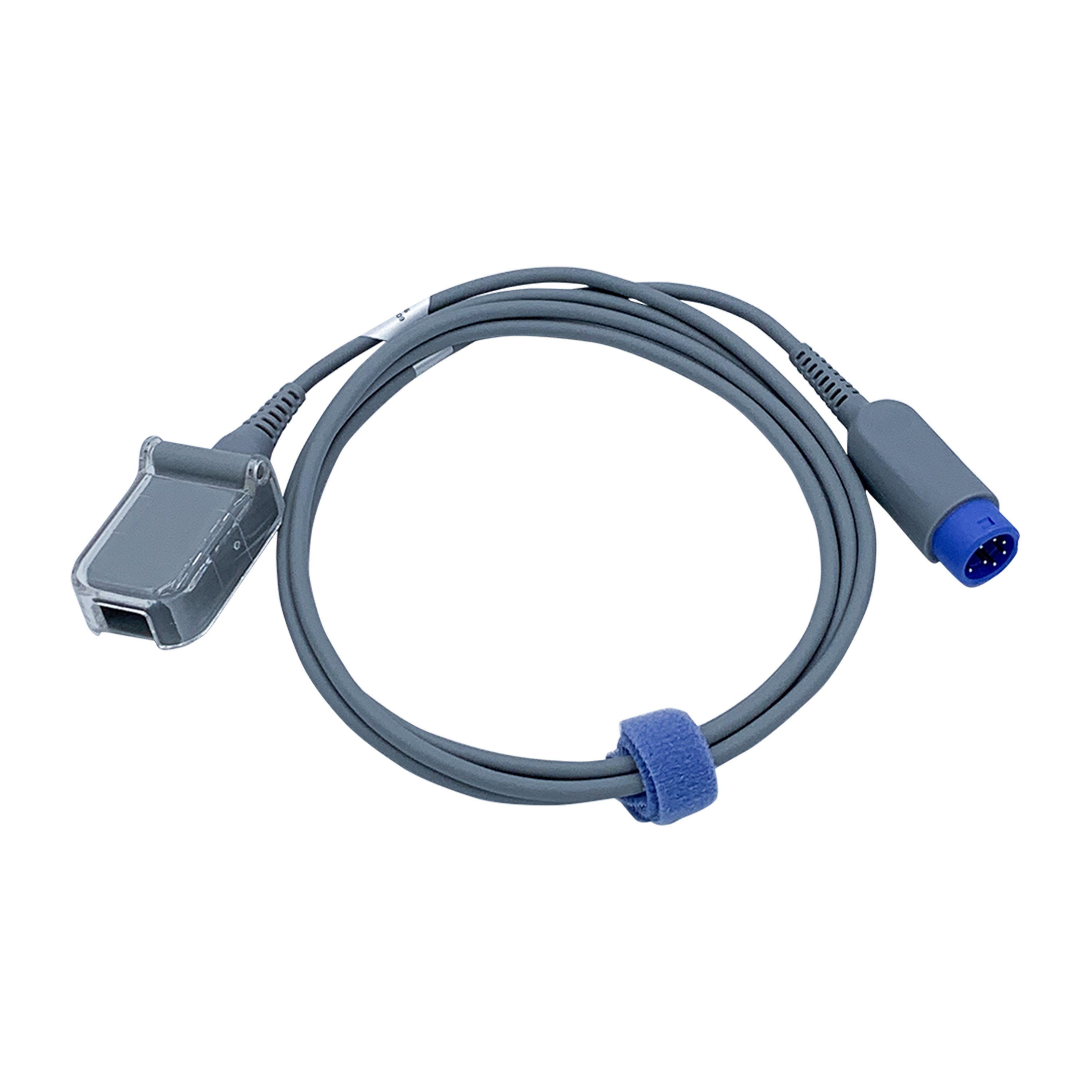

  • SpO2 7-pin Extension Cable

Technical Specifications:

• Display Screen: 5-inch color TFT, touch screen is configurable
• Resolution: 800 x 480
• Temperature:
  • Working: 0°C to 40°C
  • Transport and Storage: - 30°C to 70°C
• Humidity:
  • Working: 15%RH to 95%RH
  • Transport and Storage: 15%RH to 95%RH
• Altitude:
  • Working: 61.5 kPa to 106 kPa
  • Transport and Storage: 61.5 kPa to 106 kPa
• Power Supply:
  • Voltage: DC 11.1V to 19.8V
  • Current: 1.27A to 2.3A
• AC Power Adapter:
  • Input: 100V to 240Vac, 40VA
  • Output: 15V±5%dc, 24VA
• DC Power Adapter:
  • Input: 12.4V to 15.1Vdc or 24.8V to 30.3Vdc, 1.6A max
  • Output: 15Vdc, 1A max

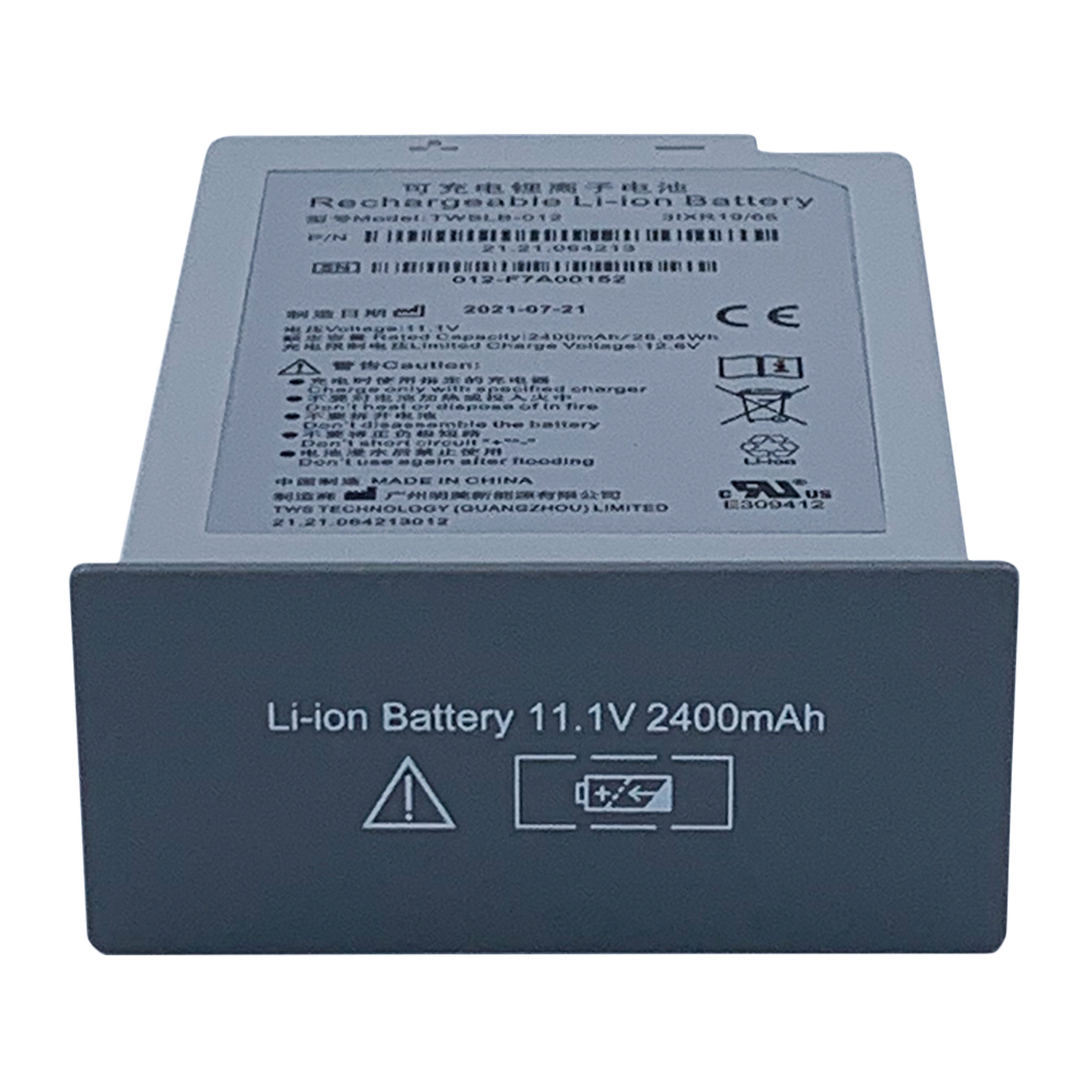

• Battery:
  • Number: 1
  • Battery Type: Lithium battery
  • Capacity: 11.1 V, 2400 mAh
  • Operating Time: 5.5 hrs (At 25 °C±2 °C, with (a) new fully charged battery, ECG (RESP)/TEMP/SpO2 module connected, NIBP automatic measurement mode at an interval of 15 minutes, brightness set to “1”.)
  • Charging Time:
    • ≤ 14 hrs (The monitor is on or in standby mode, 100% charge)
    • ≤ 12.6 hrs (The monitor is on or in standby mode, 90% charge)
    • 2.5 hrs (The monitor is off, 100% charge)
    • 2.3 hrs (The monitor is off, 90% charge)
• Wi-Fi
  • IEEE: 802.11b/g/n
  • Frequency: 2.4 GHz ISM band
  • Modulation: OFDM with BPSK, QPSK, 16-QAM, and 64-QAM, 802.11b with CCK and DSSS
  • Typical Transmit Power (±2 dBm):
    • 17 dBm for 802.11b DSSS
    • 17 dBm for 802.11b CCK
    • 15 dBm for 802.11g/n OFDM
• Number of USB Interfaces (Standard): 1
• Drive Mode: OTG, USB1.0/2.0 protocol
• Power Supply: 5 VDC±5%, 150 mA Max
• Interface Type: Micro USB-type port
• Data Review:
  • Trend data:
    • 1 hour, resolution: 1 s
    • 150 hours, resolution: 1 min
  • Alarm Events: Up to 200 sets
  • NIBP Measurement Data: 1200 sets
  • Arrhythmia Events: Up to 200 sets
  • 12-Lead Analysis Result: Up to 50 sets
• Data Storage:
  • Patient information: MRN, name, date of birth, date of admission, gender, type, height, weight, blood type, pace, doctor, bed No. department
  • Trend Graph and Trend Table: 240 hours, resolution: 1 min
  • NIBP Measurement Review: 1200 sets
  • Alarm Review: 200 sets
  • Arrhythmia Event: 200 sets
  • 12-lead Analysis Review: 50 sets
  • Full Disclosure Waveforms:
    • 3-lead/5-lead: 48 hours
    • 12-lead: 35 hours

Note: The time required for the patient monitor to warm from the minimum storage temperature between uses until it is ready for intended use is at least 2 hours; the time required for the patient monitor to cool from the maximum storage temperature between uses until it is ready for intended use is at least 2 hours.
