Product Description

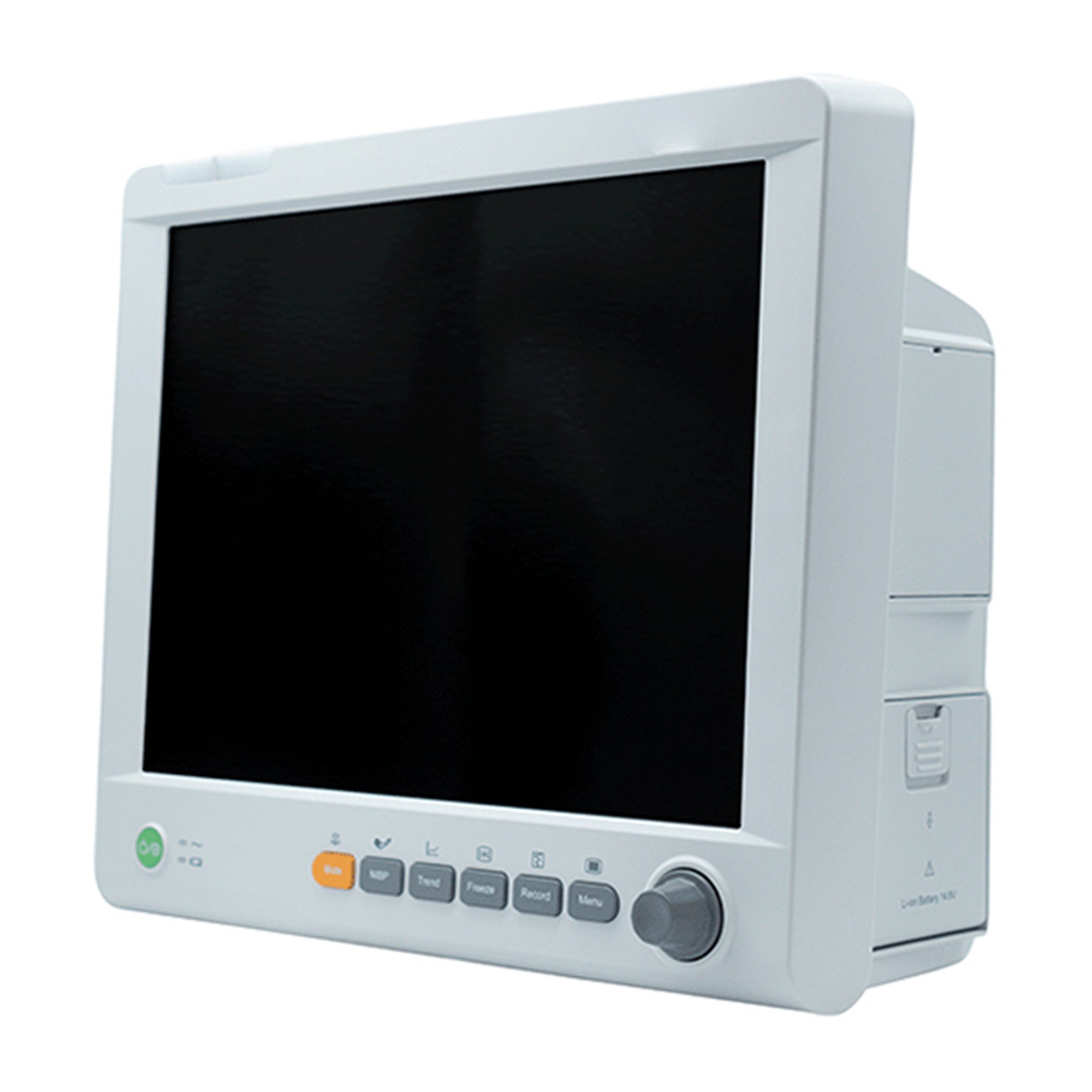

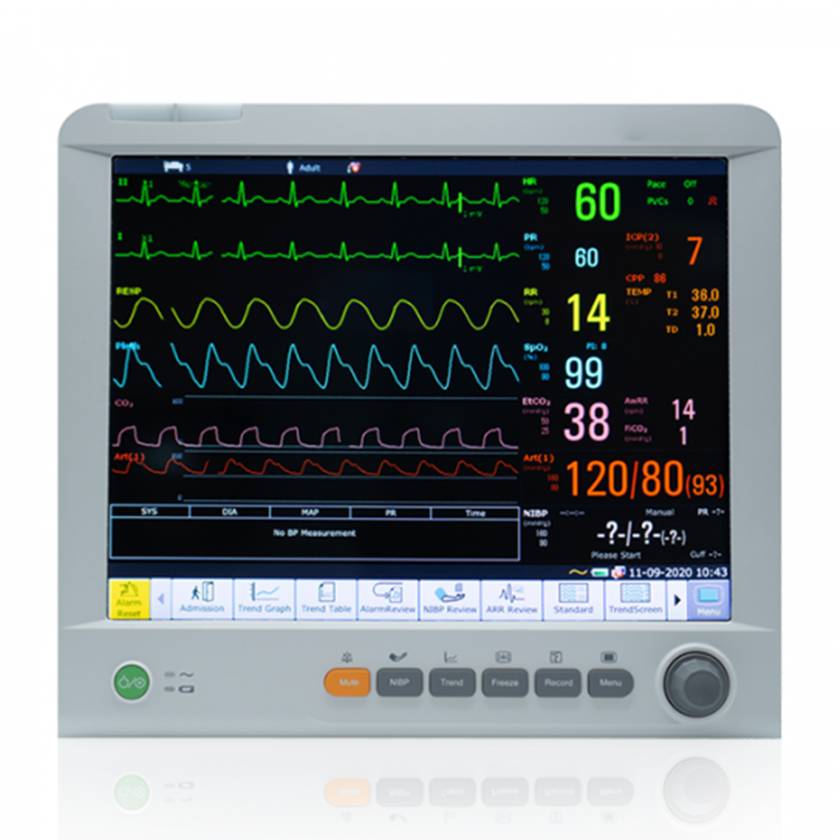

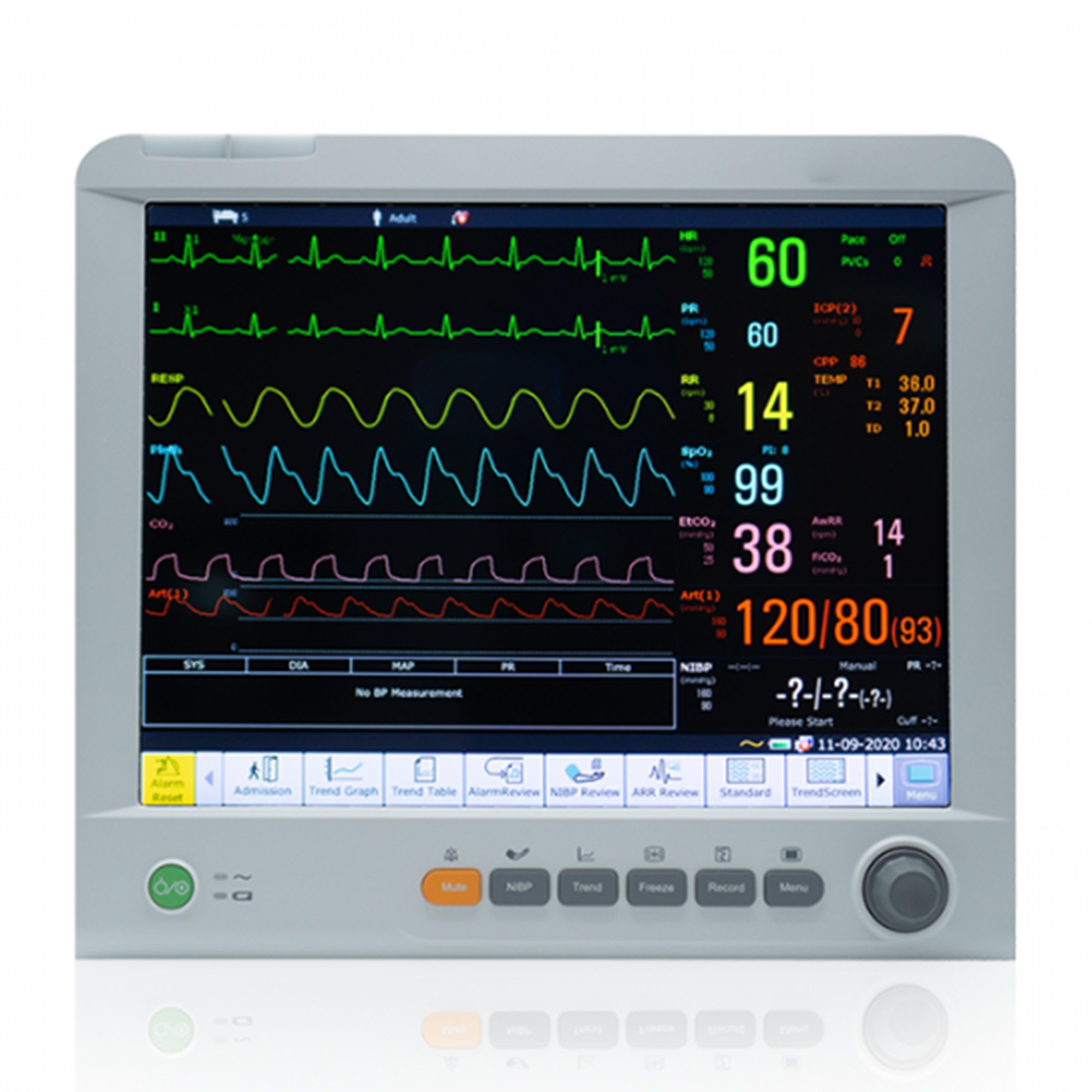

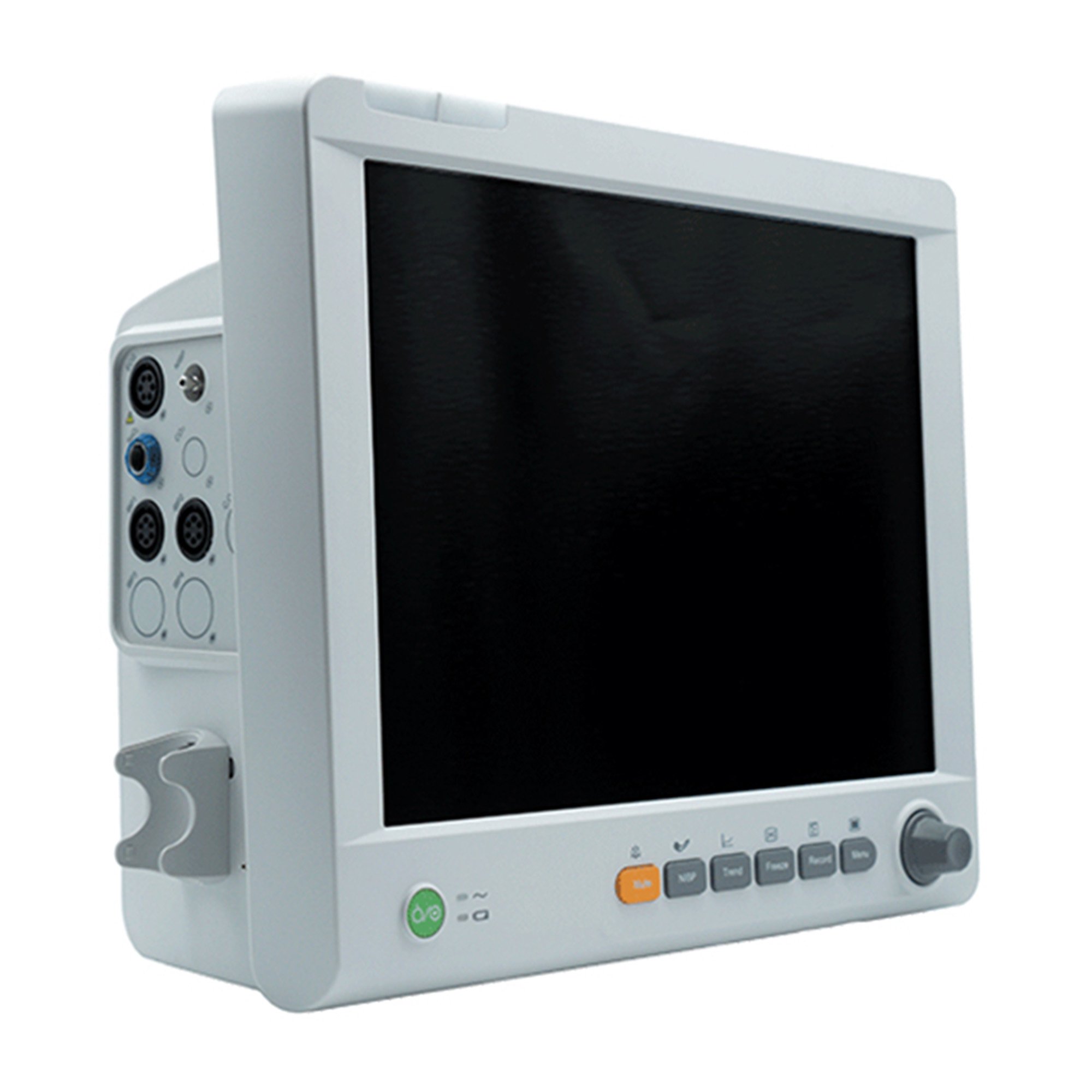

The Edan iM80 Patient Monitor with 15" Touch Screen and WiFi can provide an all-in-one solution for hospital segments. It is designed to match the needs for critical care, post-anesthesia care, and operating rooms.

Features:

  • 15" High-resolution color TFT display and WiFi

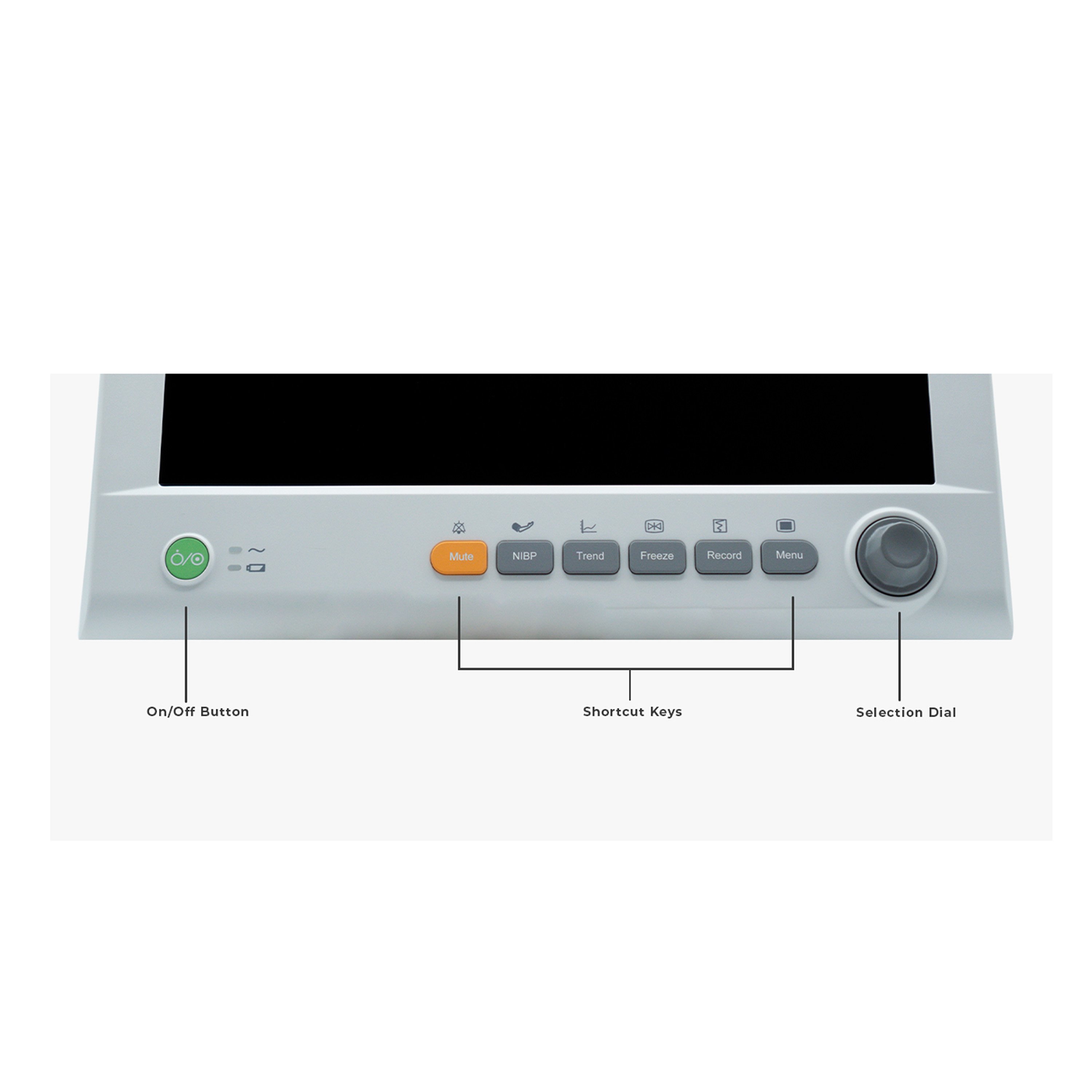

  • No-fan design, night mode, pitch tone, shortcut menu, large font display, customizable alarms, and dual IBP slots
  • Electrosurgical interference-proof and nurse call function
  • Bi-directional communication and MFM-CMS central station
  • VGA and analog output
  • Arrhythmia, S-T Analysis, and OxyCRG
  • 120 seconds full-disclosure waveforms review and 120-hour graphic and tabular trends of all parameters
  • iSEAP™ ECG - Optimized for arrhythmia detection, pacemaker detection, and HR measurement
  • iMAT™ SpO2 - Outstanding motion resistance and low perfusion resistance performance
  • iCUFS™ NIBP - Optimized for cardiac patients, hypertensive patients, and neonatal patients
  • Standard Parameters: 3/5-lead ECG, RESP, NIBP, Edan SpO2, 2-TEMP, PR, and HR
  • Optional Parameters:
    • G2 CO2 (Sidestream)
      • Superior water trap design for accurate monitoring
      • iCARB™ algorithm with intelligent CO2 pseudo wave identification technology
    • Dräger Anesthetic Gas/O2 (Sidestream)
      • Built-in sidestream module with optional paramagnetic O2
      • Single-channel module or dual-channel module with AAID
      • Utilizes disposable Dräger water traps
      • 5 Anesthetic Agents: Halothane (HAL), Isoflurane (ISO), Enflurane (ENF), Sevoflurane (SEV), Desflurane (DES)
  • Optional Feature: Thermal printer
  • Available in 8 Configurations:
    • Base Model (IM80-TOUCH-WIFI) - Standard parameters
    • With Thermal Printer (IM80-TOUCH-WIFI-P) - Standard parameters with thermal printer installed
    • With G2 CO2 Module (IM80-G2-TOUCH-WIFI) - Standard parameters with internal sidestream G2 CO2 module
    • With Edan Multigas Module (IM80-G7-TOUCH-WIFI) - Standard parameters with Edan Multigas module
    • With Edan Multigas Module and Thermal Printer (IM80-G7-TOUCH-WIFI-P) - Standard parameters with Edan Multigas module and thermal printer installed
    • With Edan Multigas Module and Paramagnetic O2 (IM80-G7O2-TOUCH-WIFI) - Standard parameters with Edan Multigas module with paramagnetic O2
    • With Edan Multigas Module, Thermal Printer, and Paramagnetic O2 (IM80-G7O2-TOUCH-WIFI-P) - Standard parameters with Edan Multigas module with paramagnetic O2 and thermal printer installed
    • With Dräger Multigas Module (IM80-DAG-TOUCH-WIFI) - Standard parameters with Dräger Multigas module
    • With Dräger Multigas Module and Thermal Printer (IM80-DAG-TOUCH-WIFI-P) - Standard parameters with Dräger Multigas module and thermal printer installed
    • With Dräger Multigas Module and Paramagnetic O2 (IM80-DAGO2-TOUCH-WIFI) - Standard parameters with Dräger Multigas module and paramagnetic O2
    • With Dräger Multigas Module, Thermal Printer, and Paramagnetic O2 (IM80-DAGO2-TOUCH-WIFI-P) - Standard parameters with Dräger Multigas module, paramagnetic O2, and thermal printer installed
  • Accessories Included:
    • Standard:
      • Skin temperature probe
      • Adult reusable SpO2 sensor
      • Adult non-invasive blood pressure cuff - Limb range: 25 cm - 35 cm
      • Non-invasive blood pressure tube with connector - 3 meters
      • 3-Lead ECG integrative cable with lead wires
      • Snap electrodes
      • Rechargeable lithium-ion battery - 14.8V, 4200 mAh
      • Power cord
      • Grounding cable
    • G2 CO2 (Optional):
      • Water trap
      • Adult nasal CO2 sampling cannula
      • Disposable CO2 sampling line with male Luer lock

Technical Specifications:

  • Display:
    • Color TFT LCD: 15"
    • Resolution: 800 x 600
    • Waveforms Displayed: Up to 11
  • Thermal Printer (Optional):
    • Print Speed: 25 mm/s, 50 mm/s
    • Power Supply:
      • AC Power: 100V ~ 240V AC, 50/60 Hz
      • Battery: 14.8V rechargeable lithium-ion
  • Warranty: 2 Years
  • Overall Dimensions: 14.57" L x 6.89" W x 12.60" H
  • Actual Product Weight: 15.41 lbs

PARAMETERS

RESP

  • Method: Trans-thoracic impedance
  • Operation Mode: Auto/Manual
  • RR Measurement Range:
    • Adult: 0 rpm ~ 120 rpm
    • Neonate/Pediatric: 0 rpm ~ 150 rpm
  • Resolution: 1 rpm
  • Apnea Alarm Threshold (in seconds): 10, 15, 20, 25, 30, 35, 40
  • Band Width: 0.2 Hz - 2.5 Hz (-3 dB)
  • Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

SPO2

  • Measurement and Alarm Range: 0% ~ 100% (SpO2)
  • Resolution: 1%
  • Accuracy: +2% (70% ~ 100%, Adult/Pediatric), +3% (70% ~ 100%, Neonate)
  • PR Measurement:
    • Resolution: 25 bpm - 300 bpm
    • 1 bpm
    • Refresh Rate: 1 second

TEMP (2 Channels)

  • Measurement/Alarm Range:
    • Resolution: 0°C ~ 50°C
    • Accuracy: 0.1 °C
  •  Channel: +1 °C (without probe) Dual-channel. Provide T1; T2; ΔT

 CO2 SIDESTREAM (Optional)

  • Range: 0% ~ 13% (0 mmHg - 100 mmHg)
  • Accuracy: +2 mmHg < 5.0% CO2 < 6% of the reading > 5.0% CO2
  • Sample Flow Rate: 100 mL/min ~ 200 mL/min

NIBP

  • Method: Automatic Oscillometric
  • Operation Modes: Manual/Automatic/Continuous
  • Auto Measurement Time Interval (in minutes): 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 240, and 480
  • Measurement Unit: mmHg/kPa
  • Measurement Types: Systolic, Diastolic, Mean
  • Pressure Range:
    • Adults:
      • Systolic: 40 mmHg ~ 200 mmHg
      • Diastolic: 10 mmHg ~ 160 mmHg
      • Mean: 20 mmHg ~ 235 mmHg
    • Pediatrics:
      • Systolic: 40 mmHg ~ 200 mmHg
      • Diastolic: 10 mmHg ~ 150 mmHg
      • Mean: 20 mmHg ~ 165 mmHg
    • Neonates:
      • Systolic: 40 mmHg ~ 135 mmHg
      • Diastolic: 10 mmHg ~ 100 mmHg
      • Mean: 20 mmHg ~ 110 mmHg
  • Resolution: 1 mmHg
  • Accuracy:
    • Max Mean Error: +5 mmHg
    • Max Standard Deviation: 8 mmHg
  • PR from NIBP Measurement Range: 40 bpm ~ 240 bpm
  • Resolution: 1 bpm
  • Accuracy: 3 bpm or 3.5%

ECG

  • Lead Type: 5-lead and 3-lead selectable
  • Gain: Auto, x 0.125, x 0.25, x 0.5, x 1, x 2, x 4
  • Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
  • ECG HR Range:
    • Adult: 15 bpm - 300 bpm
    • Pediatric/Neonate: 15 bpm - 350 bpm
  • Resolution: 1 bpm
  • Accuracy: +1 bpm or +1%
  • Filter:
    • Diagnostic Mode: 0.05 Hz ~ 150 Hz
    • Monitoring Mode: 0.5 Hz ~ 40 Hz
    • Surgical Mode: 1 Hz ~ 20 Hz
  • ST-Segment Detection:
    • Measurement Range: ~2.0 mV ~ 2.0 mV Alarm
    • Range: ~2.0 mV ~ 2.0 mV

About this Brand

edanusa logo Founded in 2009, EdanUSA provides products, service, and training for Edan products in the US market. Its broad product line features patient monitors, vitals monitors, ECGs, dopplers, and ultrasounds.

Specifications

Specifications
Manufacturer EdanUSA
Actual Product Weight 15.41 lbs
Overall Height 12.60"
Overall Width 6.89"
Overall Length 14.57"
Country of Manufacture China
Item Ships From California

Literature

pdf
Product Brochure
(Size: 384.3 KB)
pdf
Specifications Sheet
(Size: 359.8 KB)
