Product Description

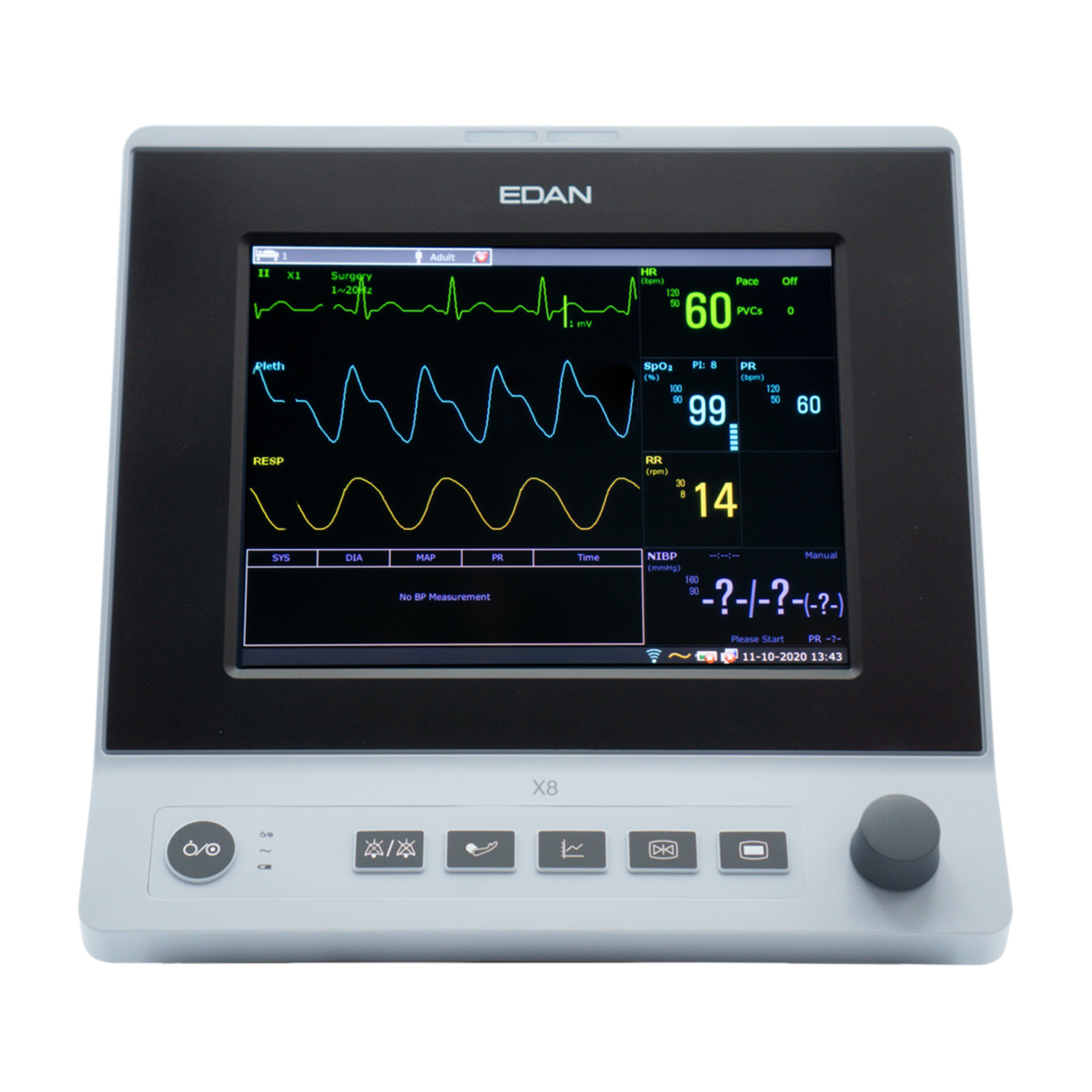

The Edan X8 Patient Monitor with 8" Touch Screen and WiFi offers crisp and detailed vital sign information for effortless interpretation and fulfills primary clinical requirements in various environments, covering all patient types from neonate to adult.

Features:

  • Ultraslim, high-resolution 8" touch screen and built-in WiFi

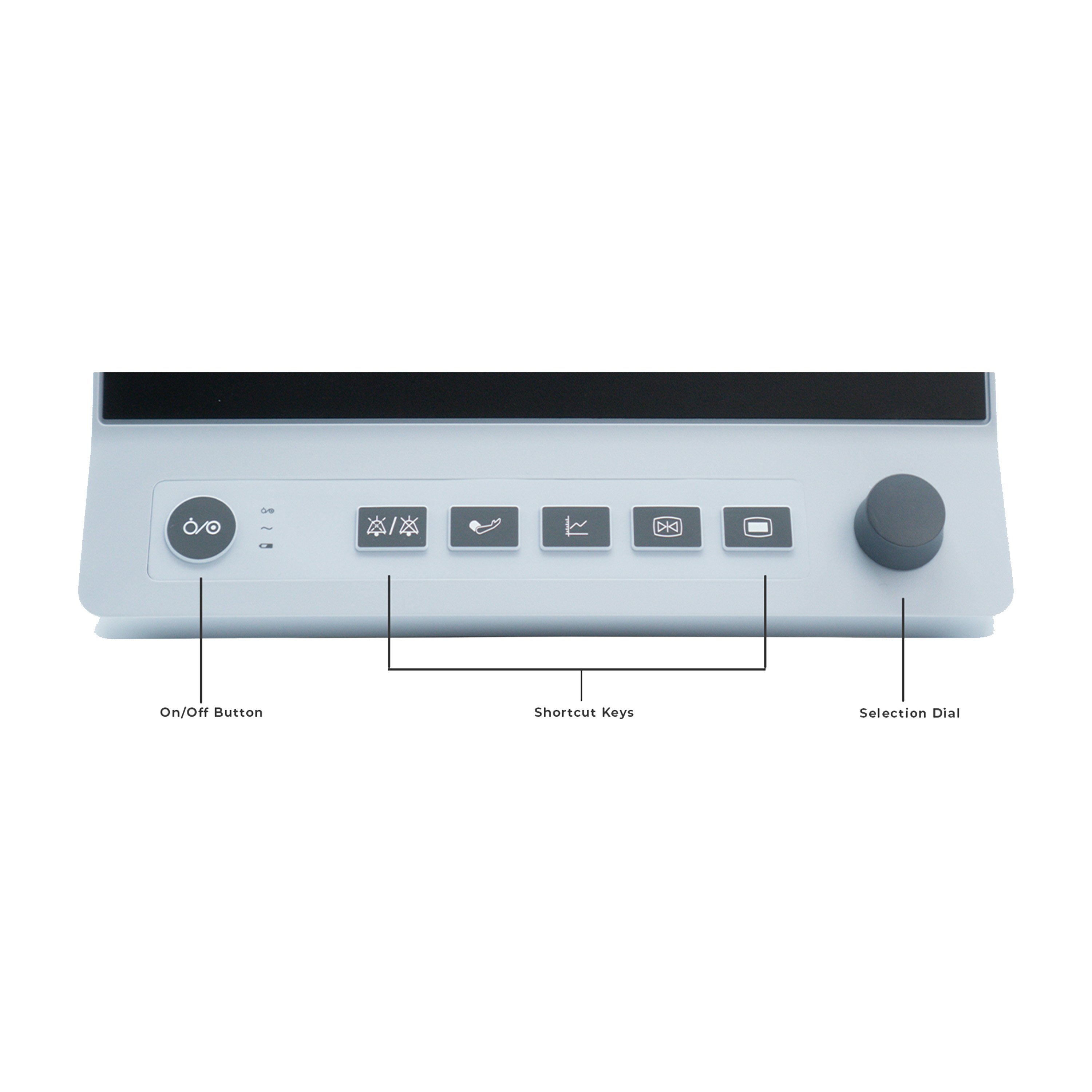

  • User-friendly interface and intuitive shortcut menu for easy operation
  • Comprehensive connectivity options for easy data transfer
  • Built-in carry handle and cable-receiving design
  • Portable with or without a cart*
  • Easy review and data transfer to an EMR
  • 240 hours of trend graph and table review
  • 200 sets of alarm and arrhythmia review
  • 1200 sets of NIBP review
  • 48 hours of waveform review and 120 seconds of frozen waveform
  • Extensive data storage with 8GB internal memory
  • Bi-directional communications with the central monitoring system
  • Advanced and high-precision patient monitoring algorithm with alerts and notifications
  • Standard Parameters:
    • 3/5 lead ECG
      • Automatic lead type detection
      • Industry-leading iSEAP™ algorithm with auto-detection of 33 types of arrhythmias
      • SEMIP® algorithm with 208 ECG findings over age/gender diversities
    • NIBP
      • The dual dust filter design means no blockage inside and provides accurate NIBP readings
      • Unique cleaning mode for routine maintenance
      • iCUFS™ algorithm with smart deflation technology
    • SpO2
      • iMAT algorithm with motion resistance and low perfusion resistance performance
      • Reference reading of Perfusion Index (PI) from 0 to 10 according to perfusion changes
      • Simultaneous measurements of SpO2 and NIBP of the same limb
    • HR, RESP, PR, 2-Temp
  • Optional Parameter:
    • G2 CO2 (Sidestream)
      • Superior water trap design for accurate monitoring. Can be used with a male luer-lock cannula
      • iCARB™ algorithm with intelligent CO2 pseudo wave identification technology
      • Sampling rate as low as 50 mL/min
  • Standard Features: Touch screen, WiFi, USB, thermal printer (optional), VGA Output, and 8GB internal memory
  • Available in 4 Configurations:
    • Base Model (X8) - Standard parameters
    • With Thermal Printer (X8-P) - Standard parameters with thermal printer installed
    • With G2 CO2 Module (X8-G2) - Standard parameters with internal sidestream G2 CO2 module
    • With Thermal Printer and G2 CO2 Module (X8-G2-P) - Stardard parameters with internal sidestream G2 CO2 module and thermal printer installed
  • Accessories Included:
    • Standard:
      • 3-Lead ECG cable - 3.4 meters
      • Adult reusable SpO2 finger sensor - 2.5 meters (Direct connect 7 pin)
      • Adult non-invasive blood pressure cuff - Limb range: 25 cm - 35 cm
      • Non-invasive blood pressure tube
      • Adult skin temperature probe
      • Rechargeable lithium-ion battery - 10.8V, 2550 mAh
      • Grounding cable
      • Power cable
    • G2 CO2 (Optional):
      • Water trap
      • Adult nasal CO2 sampling cannula
      • Disposable CO2 sampling line with male Luer lock

Technical Specifications:

  • Display:
    • Color TFT LCD: 8"
    • Resolution: 800 x 600
    • Waveforms Displayed: Up to 13
  • Warranty: 2 Years
  • Overall Dimensions: 5.79" D x 9.29" W x 9.29" H
  • Actual Product Weight: 5.27 lbs

PARAMETERS

RESP

  • Method: Impedance between RA-LL, RA-LA
  • Measurement Lead: Options are Lead I and Lead II. The default is Lead II
  • Calculation Type: Manual, Automatic
  • Baseline Impedance Range: 200 to 2500 (with ECG cables of 1 K resistance)
  • Measuring Sensitivity:
    • Within the baseline
    • Impedance Range: 0.3
    • Waveform Bandwidth: 0.2 Hz to 2.5 Hz (-3 dB)
  • Respiration Excitation Waveform: Sinusoid, 45.6 kHz (10%), < 350 A RR
  • Measuring Range:
    • Adult: 0 rpm to 120 rpm
    • Neo/Ped: 0 rpm to 150 rpm
    • Resolution: 1 rpm
  • Accuracy:
    • Adult: 6 rpm to 120 rpm: 2 rpm 0 rpm to 5 rpm: Not specified
    • Neo/Ped: 6 rpm to 150 rpm: 2 rpm 0 rpm to 5 rpm: Not specified
  • Gain Selection: 0.25, 0.5, 1, 2, 3, 4, 5
  • Sweep: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
  • No RR Detected Delay (in seconds): 10, 15, 20, 25, 30, 35, 40; Default value is 20 seconds.

ECG

  • Lead Mode:
    • 3 Electrodes: I, II, III
    • 5 Electrodes: I, II, III, aVR, aVL, aVF, V
    • 6 Electrodes: I, II, III, aVR, aVL, aVF, and leads corresponding to Va Vb.
    • 10 Electrodes: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6
  • Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
  • CMRR:
    • Diagnosis: > 95 dB
    • Diagnosis 1: > 105 dB (when Notch is turned on)
  • Monitor: > 105 dB
  • Surgery: > 105 dB
  • Enhanced: > 105 dB
  • Customized: > 105 dB (Low-pass Filter < 40Hz) > 95 dB (Low-pass Filter > 40 Hz)
  • Sampling Frequency: 1000 Hz
    Range:
    • ADU: 15 bpm to 300 bpm
    • PED/NEO: 15 bpm to 350 bpm
  • Accuracy: ±1% or 1 bpm
  • Resolution: 1 bpm
  • Sensitivity: 300 VPP

SPO2

  • Measuring Range: 0% to 100%
  • Resolution: 1%
  • Data Update Period: 1 seconds
  • Accuracy:
    • Adult /Pediatric 2% (70% to 100% SpO2), Undefined: (0% to 69% SpO2)
    • Neonate: 3% (70% to 100% SpO2), Undefined: (0% to 69% SpO2)
  • Sensor:
    • Red Light (660+/-3) nm I
    • Infrared Light (905+/-10) nm
    • Emitted Light Energy: < 15 mW
  • PI:
    • Measuring Range: 0-10, invalid PI value is 0.
    • Resolution: 1

TEMP

  • Technique: Thermal resistance
  • Position: Skin, oral cavity, rectum
  • Measure Parameter: T1, T2, TD (the absolute value of T2 minus T1)
  • Channel: 2
  • Sensor Type: YSI-10K and YSI-2.252K
  • Unit: °C, °F
  • Measuring Range: 0°C to 50°C (32°F to 122°F)
  • Resolution: 0.1°C (0.1°F)
  • Accuracy: 0.3°C
  • Refresh Time: Every 1 second to 2 seconds
  • Temperature Calibration: At an interval of 5 to 10 minutes
  • Measuring Mode: Direct Mode
  • Transient Response Time: 30 seconds

CO2 SIDESTREAM (Optional)

  • Complies with ISO 80601-2-55: 2011.
  • Intended Patient: Adult, pediatric, neonatal
  • Measure Parameters: EtCO2, FiCO2, AwRR
  • Unit: mmHg, %, kPa
  • Measuring Range:
    • EtCO2 0 mmHg to 150 mmHg (0 % to 20%)
    • FiCO2 0 mmHg to 50 mmHg
    • AwRR 2 rpm to 150 rpm
  • Resolution:
    • EtCO2 1 mmHg
    • FiCO2 1 mmHg
    • AwRR 1 rpm
  • Accuracy EtCO2: ± 2 mmHg, 0 mmHg to 40 mmHg
  • Typical Conditions:
    • Ambient Temperature: (25 ± 3)°C
    • Barometric Pressure: (760 ± 10) mmHg
    • Balance Gas: N2
  • Sample Gas Flow Rate: 100 ml/min
    • ± 5% of reading, 41 mmHg to 70 mmHg
    • ± 8% of reading, 71 mmHg to 100 mmHg
    • ± 10% of reading, 101 mmHg to 150 mmHg
    • ± 12% of reading or ± 4 mmHg
  • AwRR: ± 1 rpm
  • Sample Gas Flow Rate 70 ml/min or 100 ml/min (default)
  • Accuracy: ±15 ml/min
  • Warm-up Time: Display reading within 20 seconds; reach the designed accuracy within 2 minutes.
  • Rise Time < 400 ms (with 2 m gas sampling tube, sample gas flow rate: 100 ml/min) < 500 ms (with 2 m gas sampling tube, sample gas flow rate: 70 ml/min)
  • Response Time < 4 s (with 2 m gas sampling tube, sample gas flow rate: 100 ml/min/70 ml/min)
  • Work Mode Standby (default), measure
    • O2
      • Compensation Range: 0% to 100%
      • Resolution: 1%
      • Default: 16%
    • N2O
      • Compensation Range: 0% to 100%
      • Resolution: 1%
      • Default: 0%
    • AG
      • Compensation Range: 0% to 20%
      • Resolution: 0.1%
      • Default: 0%
  • Humidity Compensation Method ATPD (default)
  • BTPS Barometric Pressure Compensation Automatic (The change of barometric pressure will not add additional errors to the measurement values.)
  • Zero Calibration Support: Calibration Support (recommended for operation by trained personnel.)
  • Alarm: EtCO2, FiCO2, AwRR
  • No RR
  • Detected Delay (in seconds): 10, 15, 20, 25, 30, 35, 40; Default value is 20 seconds.
  • Data Sample Rate: 100 Hz EtCO2
    • AwRR 80 rpm, meet the accuracy mentioned above;
    • AwRR > 80 rpm, EtCO2 descends 8%;
    • AwRR > 120 rpm, EtCO2 descends 10%; with a 2 m gas sampling tube, sample gas flow rate: 100 ml/min)
    • AwRR 60 rpm, meet the accuracy mentioned above;
    • AwRR > 60 rpm, EtCO2 descends 8%;
    • AwRR > 90 rpm, EtCO2 descends 10%;
    • AwRR > 120 rpm, EtCO2 descends 15%; with a 2 m gas sampling tube, sample gas flow rate: 70 ml/min

NIBP

  • Technique: Oscillometry
  • Mode: Manual, Auto, Continuous, Sequence
  • Measuring Interval in AUTO Mode (unit: minutes): 1/2/3/4/5/10/15/30/60/90/120/180/240/360/480 and User Define
  • Continuous: 5 minutes, interval is 5 seconds
  • Measuring Parameter: SYS, DIA, MAP, PR
  • Pressure Unit: kPa, mmHg, cmH2O
  • Measuring Range:
    • Adult Mode:
      • SYS: 25 mmHg to 290 mmHg
      • DIA: 10 mmHg to 250 mmHg
      • MAP: 15 mmHg to 260 mmHg
    • Pediatric Mode:
      • SYS: 25 mmHg to 240 mmHg
      • DIA: 10 mmHg to 200 mmHg
      • MAP: 15 mmHg to 215 mmHg
    • Neonatal Mode:
      • SYS: 25 mmHg to 140 mmHg
      • DIA: 10 mmHg to 115 mmHg
      • MAP: 15 mmHg to 125 mmHg
  • Alarm Type: SYS, DIA, MAP, PR (NIBP)
  • Cuff Pressure Measuring Range: 0 mmHg to 300 mmHg
  • Pressure Resolution: 1 mmHg
  • Maximum Mean Error: ±5 mmHg
  • Maximum Standard Deviation: 8 mmHg
  • Maximum Measuring Period:
    • Adult/Pediatric: 120 seconds
    • Neonate: 90 seconds
  • Typical Measuring Period: 20 seconds to 35 seconds (depending on HR/motion disturbance)

*Please Note: The cart is sold separately.

About this Brand

edanusa logo Founded in 2009, EdanUSA provides products, service, and training for Edan products in the US market. Its broad product line features patient monitors, vitals monitors, ECGs, dopplers, and ultrasounds.

Specifications

Specifications
Manufacturer EdanUSA
Actual Product Weight 5.27 lbs
Overall Height 9.29"
Overall Width 9.29"
Overall Depth 5.79"
Country of Manufacture China
Item Ships From California

Literature

pdf
Product Brochure
(Size: 395.5 KB)
pdf
Specifications Sheet
(Size: 554.8 KB)
