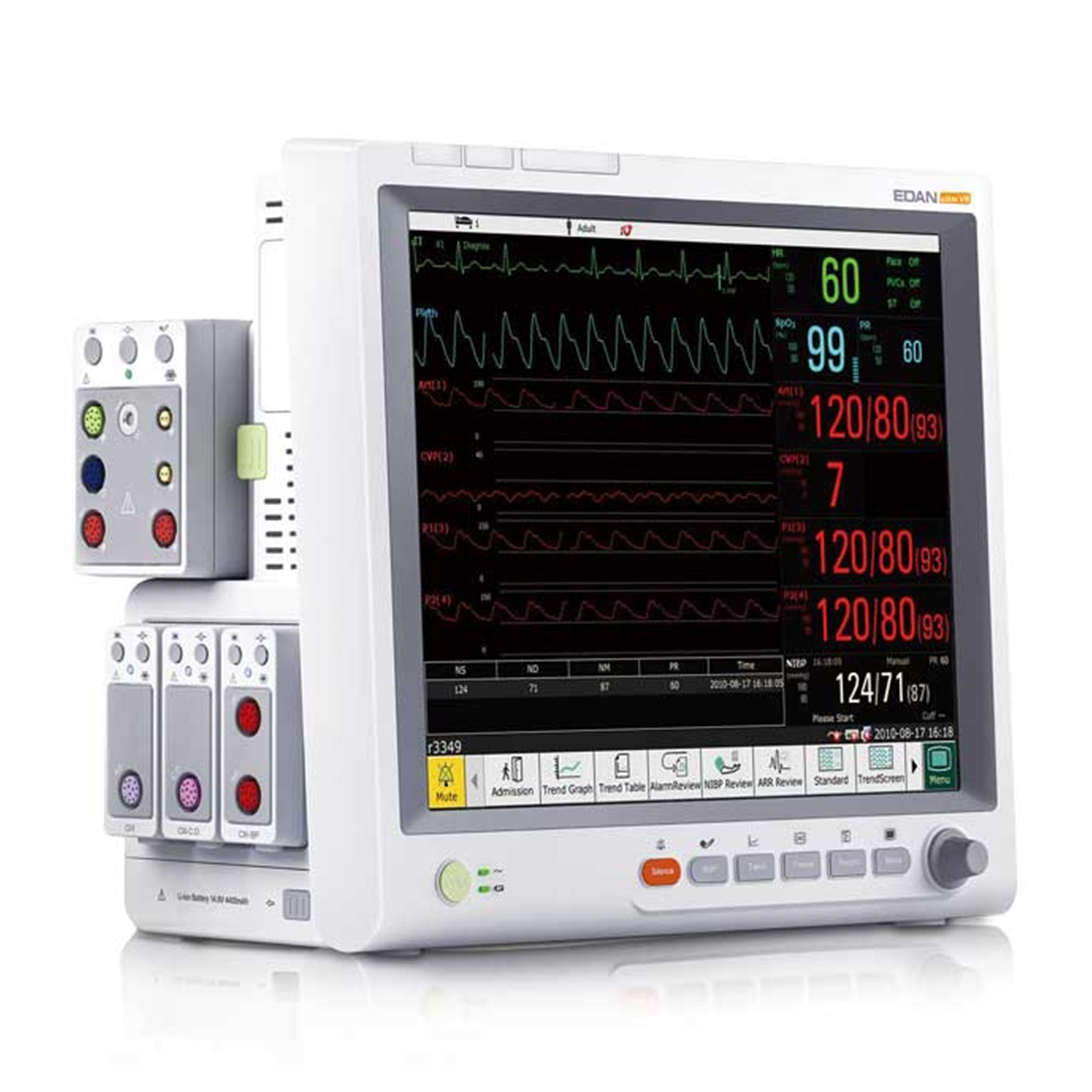

Edan Elite V8 Modular Patient Monitor with 17" Touch Screen

The Edan Elite V8 Modular Patient Monitor with 17" Touch Screen is designed to monitor a wide range of parameters simultaneously, particularly suited for critical care divisions. It features a modular design, a user-friendly interface, and plug-and-play modules.

Features:

• High-resolution color 17" TFT-LCD touchscreen, customizable shortcut menu, and easy one-touch access to functions
• Includes a DVI video output in addition to VGA
• Lists "Bed-to-bed" view as a feature of its external communications
• Night mode with dimmer screen, backlit buttons, lower alarm volume, and no HR beeps
• It can assist treatments, such as 12-lead ECG diagnosis, hemodynamic calculation, drug dosing calculation, and IBP overlapping
• Connects to hospital networks seamlessly and interacts with the hospital information system with HL7/XML output and internal Wi-Fi
• Enables a seamless continuum of care, allowing patient monitoring to transition smoothly from ambulance transport to in-hospital settings when used with the iM20
• Remote login capability via web access from PC, tablet, or smartphone
• Fanless design that results in low power consumption, maintains a lower noise level in critical departments, and keeps dust below the dust regulations in such divisions
• 3-segment alarm lights that give clearer-than-ever indications on ongoing alarms and alarm muting/pause status
• 1GB non-volatile built-in memory together with a USB flash disk and an SD card that support flexible data storage
• Rich interface implemented to connect to an Ethernet printer, a USB barcode scanner, a VGA display, a nurse call system, and to synchronize a defibrillator
• Can be used with plug-and-play multi-parameter XM modules, and 15 separate modules to tailor patient-to-patient requirements, including cardiology, hemodynamics, respiratory, anesthesia, and neurology
• Scientifically validated algorithms:
  • Monitoring ECG iSEAP™ - Excellent sensitivity in arrhythmia and heartbeat detection, ST analysis, and giant T-wave differentiation
  • Diagnostic ECG SEMIP® - Provides 208 ECG findings over age/gender diversities
  • SpO2 iMAT™ - Improved stability in high-motion and low-perfusion conditions
  • NIBP iCUFS™ - Confirmed accuracy in cardiac, hypertensive, and neonatal patients
  • G2 CO2 iCARB™ - Intelligent identification of CO2 pseudo waves
  • 5 Calculations - Hemodynamic, Drug Dose, Ventilation, Oxygenation, and Renal Function
  • Modified early warning score (MEWS) has been introduced to assist with the identification and documentation of clinical deterioration
  • Quadratic Spline Wavelet Transform Technology - Ensures the P-wave detection accuracy
• It comes standard with:

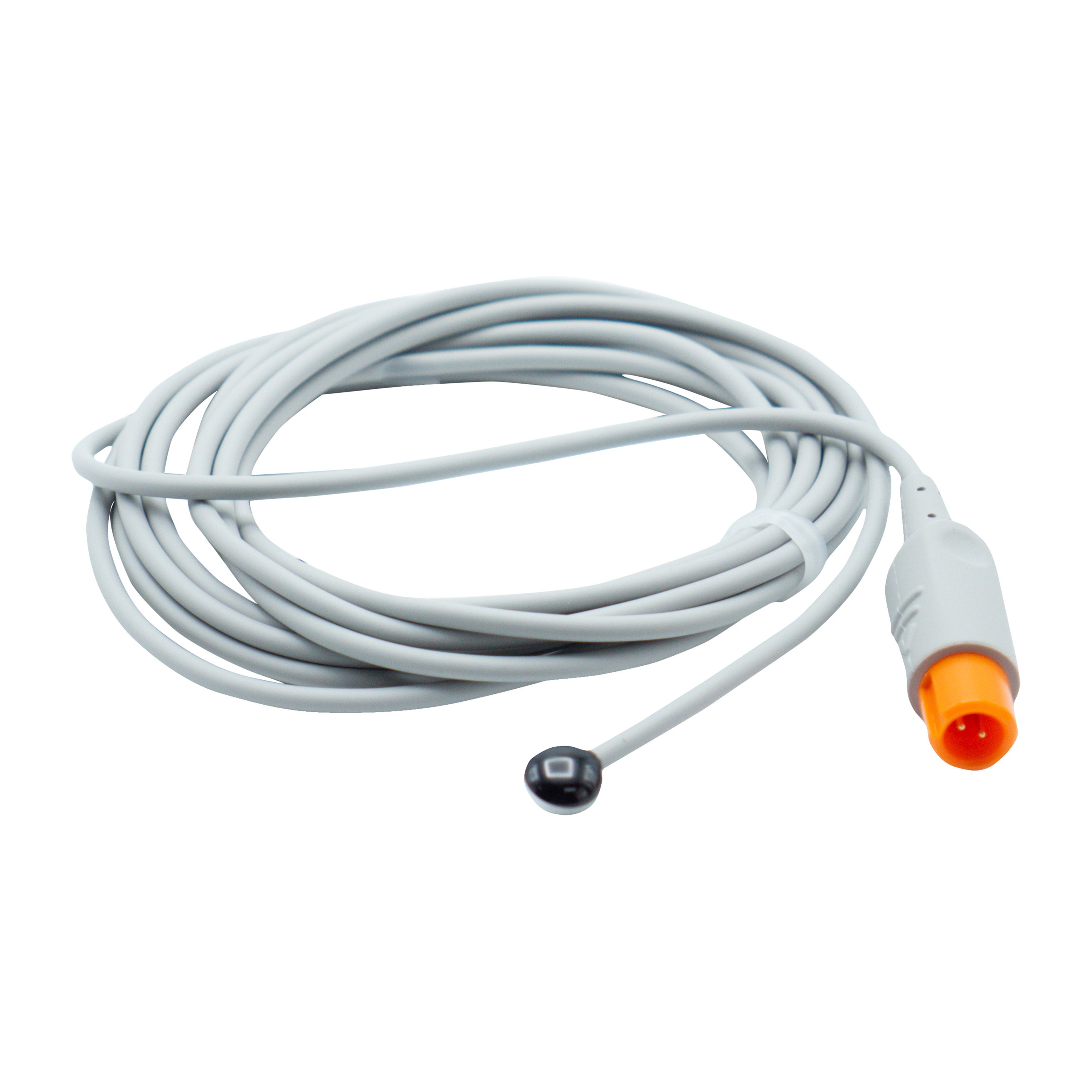

  • Skin Temperature Probe
  • Reusable SpO2 Sensor

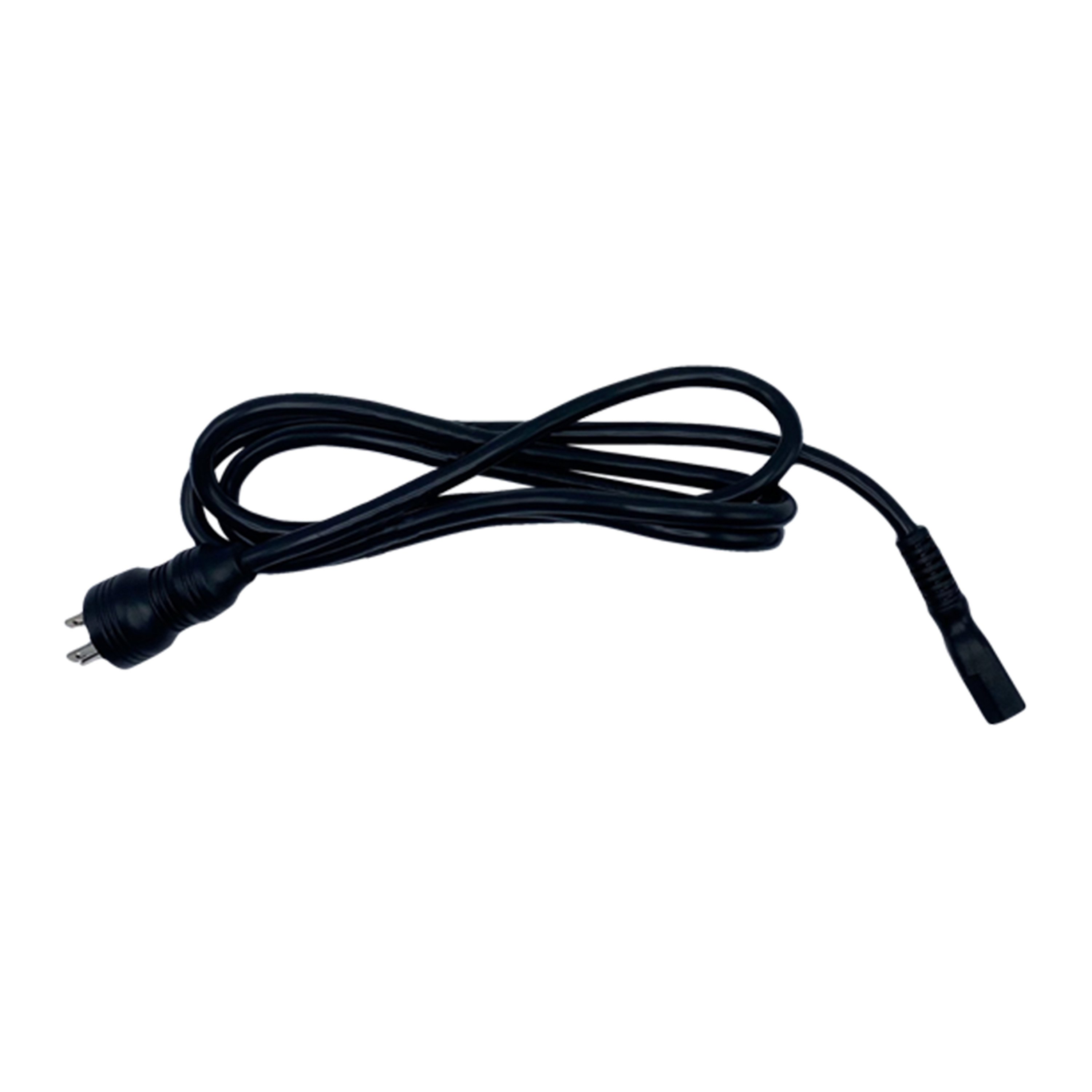

  • Power Cable

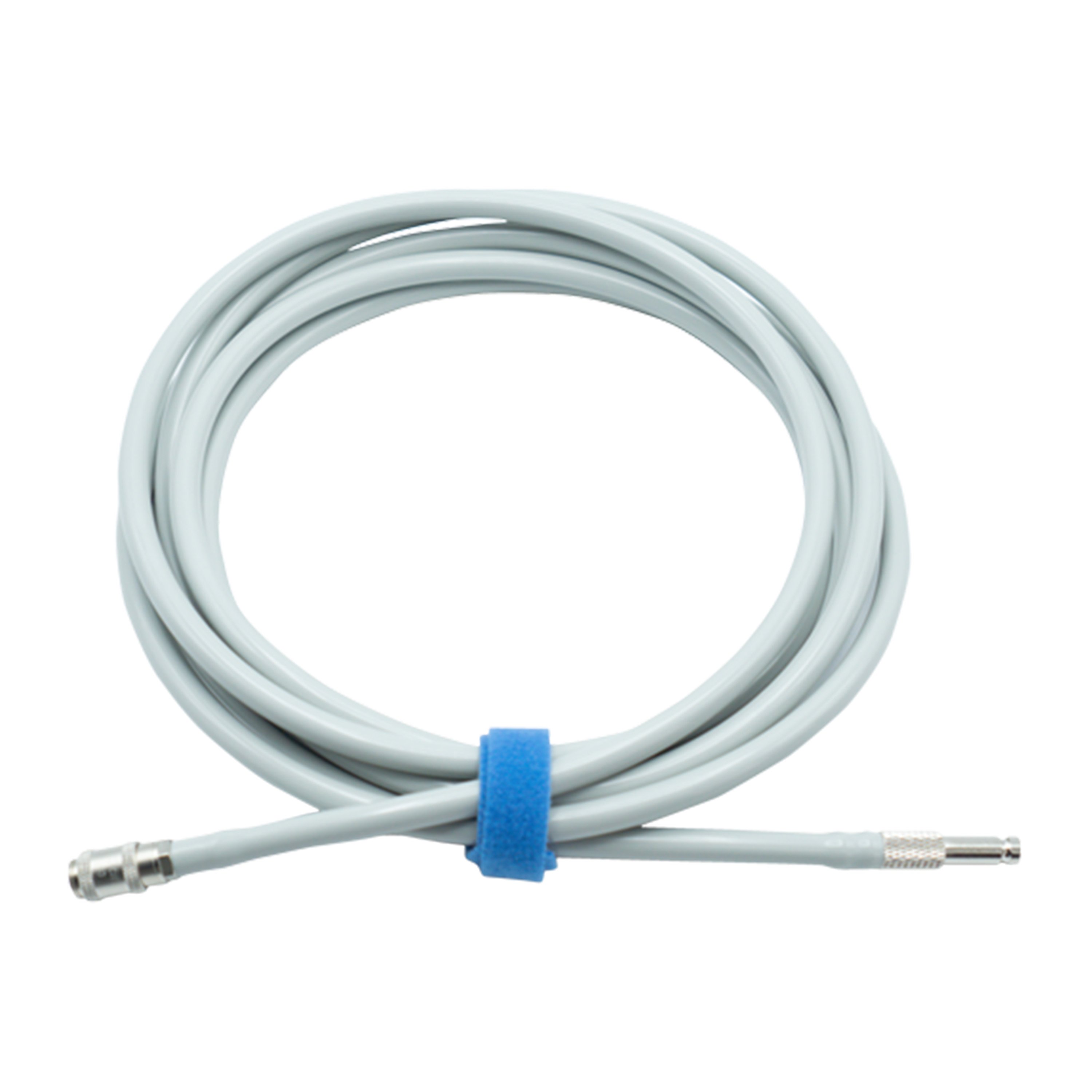

  • NIBP Tubing

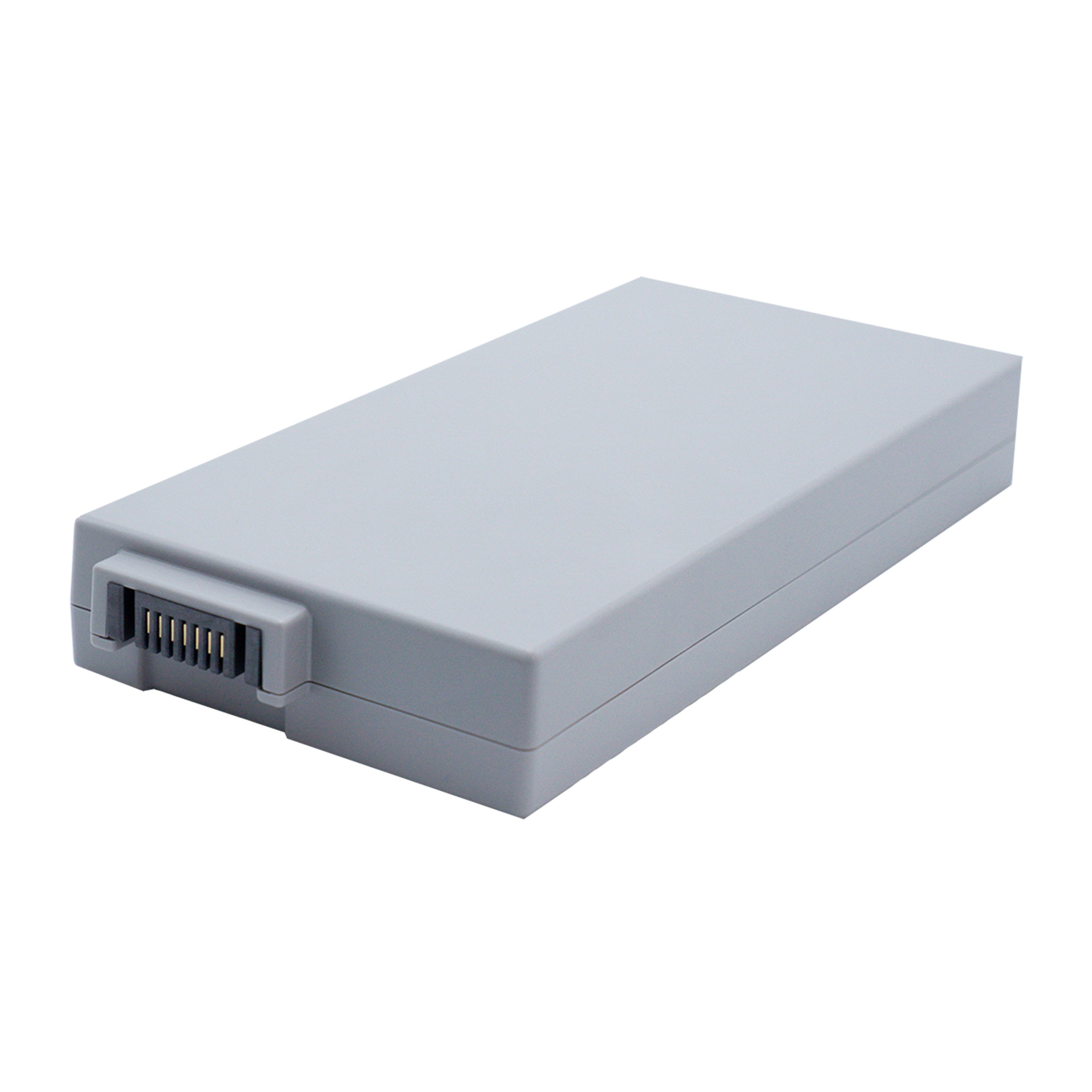

  • Battery
  • 3-Lead ECG Cable

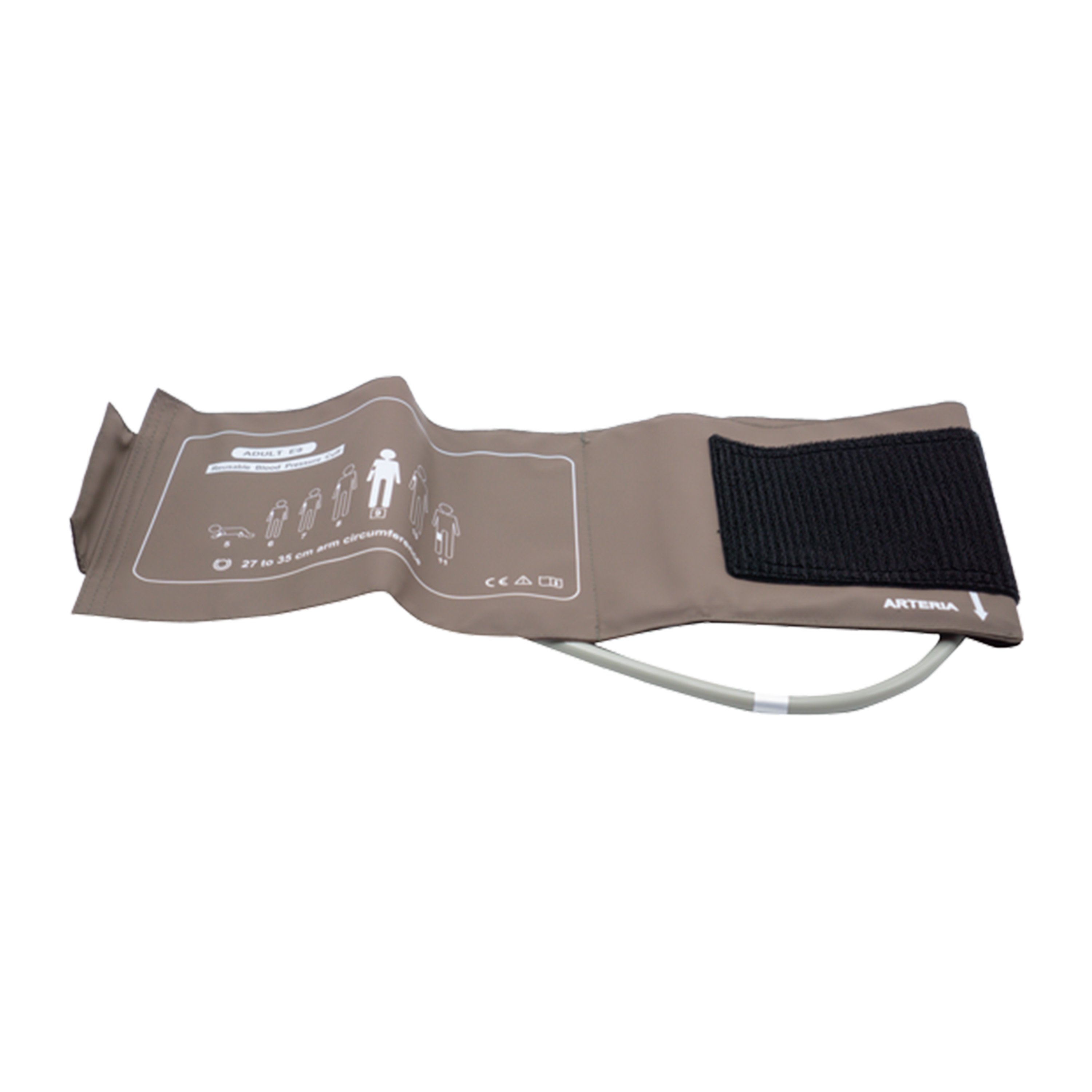

  • Adult Cuff
  • Snap Electrodes
  • Grounding Cable

Note: This product requires compatible parameter modules for patient monitoring. Modules are sold separately.
