Edan iM60 Patient Monitor with 10.4" Touch Screen and WiFi

Name: Edan iM60 Patient Monitor with 10.4" Touch Screen and WiFi
Brand: EdanUSA
SKU: IM60-TOUCH-WIFI-CON
Price: 3480 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

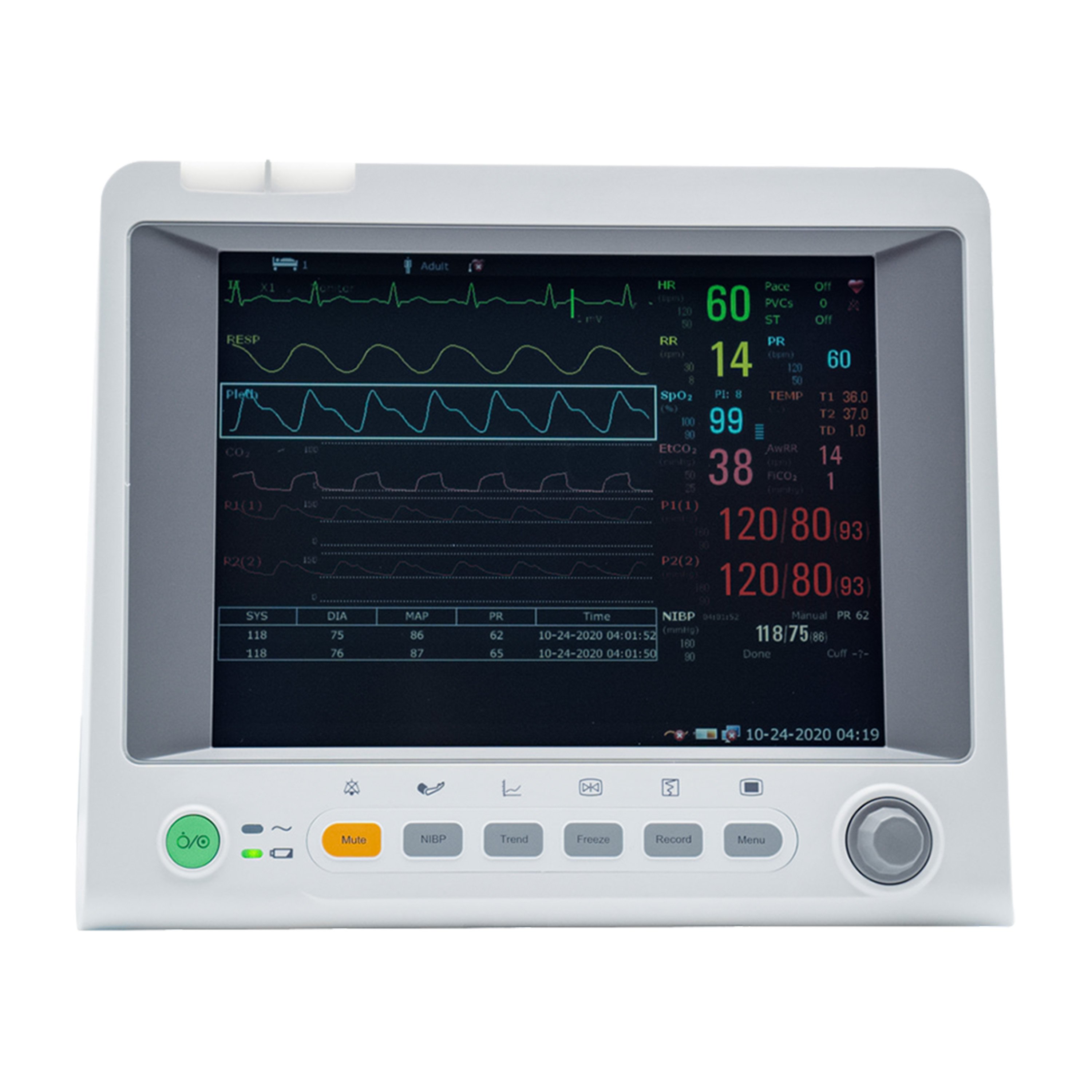

Edan iM60 Patient Monitor with 10.4" Touch Screen and WiFi

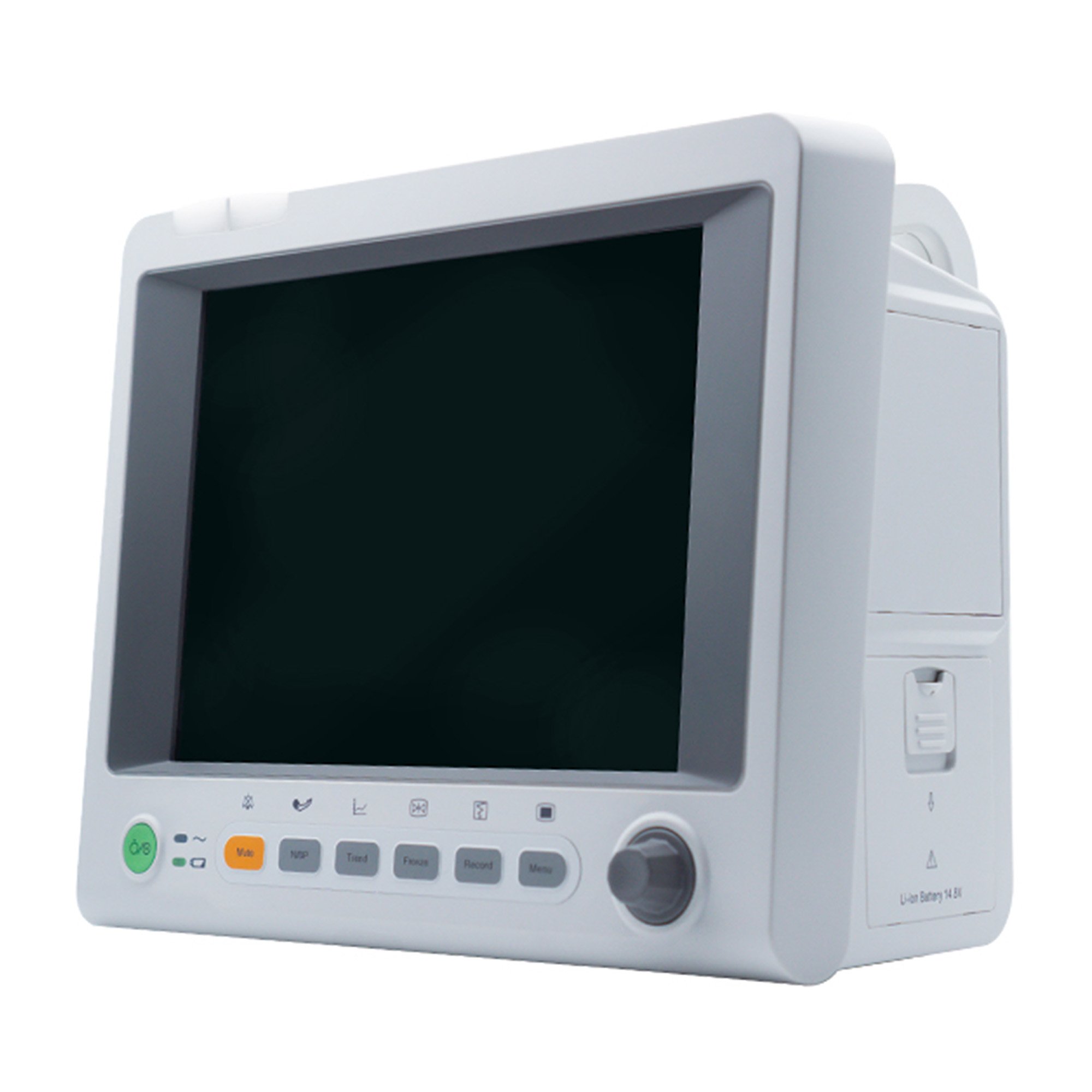

Edan iM60 Patient Monitor with 10.4" Touch Screen and WiFi - Left Facing

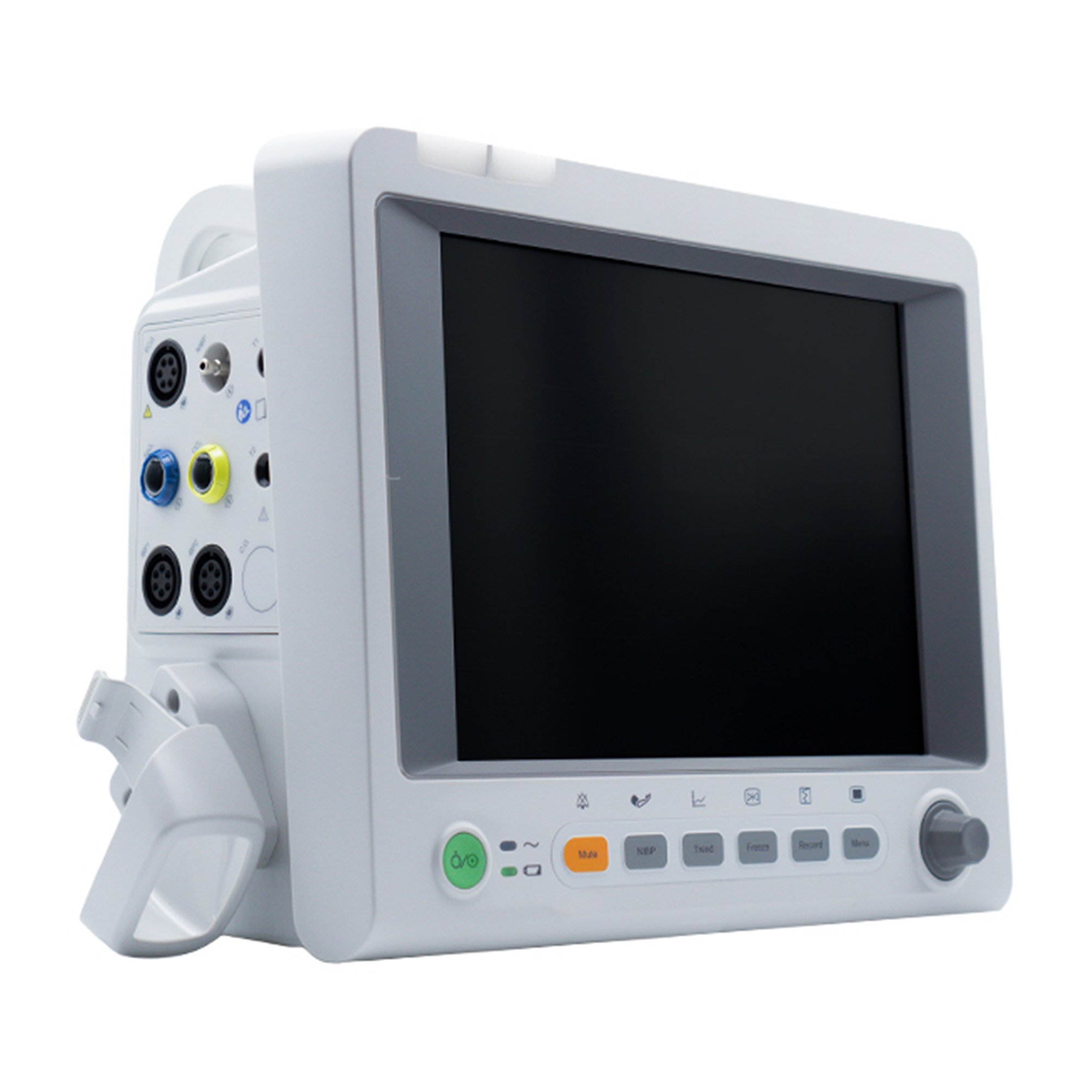

Edan iM60 Patient Monitor with 10.4" Touch Screen and WiFi - Right Facing

Edan iM60 Patient Monitor with 10.4" Touch Screen and WiFi - Ports

Edan CUFF-E9 Non-Invasive Blood Pressure Cuff for iM Series and X Series Patient Monitors, Adult

Skin Temperature Probe for iM Series Patient Monitors

Adult Reusable SpO2 Sensor for iM Series Patient Monitors

Non-Invasive Blood Pressure Tubing for iM Series Patient Monitors

3-Lead ECG Integrative Cable with Lead Wires and Snap Electrodes for iM Series Patient Monitors

Power Cord for iM Series Patient Monitors

Rechargeable Lithium-Ion Battery for iM Series Patient Monitors

Move your mouse over image or click to enlarge

Is this item the best fit for your needs?

Let our experts help.

800-423-2767

Live Chat

Usually Ships in 3-5 Business Days

In stock

Only %1 left

Be the first to review this product

Choose an Option

MSRP $8,363.00 MSRP $8,363.00 As low as $3,480.00

SKU

Choose options above

Packaging: Per Each

Qty

Product Description

The Edan iM60 Patient Monitor with 10.4" Touch Screen and WiFi offers a comprehensive array of parameters and meets the diverse clinical needs across various settings, ranging from general wards to intensive care units.

Features:

10.4" Touch screen display and WiFi
Waterproof and dust-proof keypad
No-fan design, night mode, pitch tone, shortcut menu, large font display, customizable alarms, and dual IBP slots
HL7 support, VGA output, and bi-directional communication with the central monitoring system
Arrhythmia, S-T Analysis, and OxyCRG
120 seconds full-disclosure waveforms review and 120-hour graphic and tabular trends of all parameters
iSEAP™ ECG - Optimized for arrhythmia detection, pacemaker detection, and HR measurement
iMAT™ SpO2 - Outstanding motion resistance and low perfusion resistance performance
iCUFS™ NIBP - Optimized for cardiac patients, hypertensive patients, and neonatal patients
Standard Parameters: 3/5-lead ECG, RESP, NIBP, Edan SpO2, 2-TEMP, PR, and HR
Optional Parameter:
- G2 CO2 (Sidestream)
  - Superior water trap design for accurate monitoring
  - iCARB™ algorithm with intelligent CO2 pseudo wave identification technology
Optional Feature: Thermal printer
Available in 4 Configurations:
- Base Model (IM60-TOUCH-WIFI) - Standard parameters
- With Thermal Printer (IM60-TOUCH-WIFI-P) - Standard parameters with thermal printer installed
- With G2 CO2 Module (IM60-G2-TOUCH-WIFI) - Standard parameters with internal sidestream G2 CO2 module
- With Thermal Printer and G2 CO2 Module (IM60-G2-TOUCH-WIFI-P) - Standard parameters with internal sidestream G2 CO2 module and thermal printer installed
Accessories Included:
- Standard:
  - Skin temperature probe
  - Adult reusable SpO2 sensor
  - Adult non-invasive blood pressure cuff - Limb range: 25 cm - 35 cm
  - Non-invasive blood pressure tube with connector - 3 meters
  - 3-Lead ECG integrative cable with lead wires
  - Snap electrodes
  - Rechargeable lithium-ion battery - 14.8V, 4200 mAh
  - Power cord
  - Grounding cable
- G2 CO2 (Optional):
  - Water trap
  - Adult nasal CO2 sampling cannula
  - Disposable CO2 sampling line with male Luer lock

Technical Specifications:

Display:
- Color TFT LCD: 10.4"
- Resolution: 800 x 600
- Waveforms Displayed: Up to 11
Thermal Printer (Optional):
- Print Speed: 25 mm/s, 50 mm/s
- Power Supply:
  - AC Power: 100V ~ 240V AC, 50/60 Hz
  - Battery: 14.8V rechargeable lithium-ion
Warranty: 2 Years
Overall Dimensions: 11.93" L x 6.34" W x 10" H
Actual Product Weight: 11 lbs

PARAMETERS

RESP

Method: Trans-thoracic impedance
Operation Mode: Auto/Manual
RR Measurement Range:
- Adult: 0 rpm ~ 120 rpm
- Neonate/Pediatric: 0 rpm ~ 150 rpm
Resolution: 1 rpm
Apnea Alarm Threshold (in seconds): 10, 15, 20, 25, 30, 35, 40
Band Width: 0.2 Hz - 2.5 Hz (-3 dB)
Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

SPO2

Measurement and Alarm Range: 0% ~ 100% (SpO2)
Resolution: 1%
Accuracy: +2% (70% ~ 100%, Adult/Pediatric), +3% (70% ~ 100%, Neonate)
PR Measurement:
- Resolution: 25 bpm - 300 bpm
- 1 bpm
- Refresh Rate: 1 second

TEMP (2 Channels)

Measurement/Alarm Range:
- Resolution: 0°C ~ 50°C
- Accuracy: 0.1 °C
Channel: +1 °C (without probe) Dual-channel. Provide T1; T2; ΔT

CO2 SIDESTREAM (Optional)

Range: 0% ~ 13% (0 mmHg - 100 mmHg)
Accuracy: +2 mmHg < 5.0% CO2 < 6% of the reading > 5.0% CO2
Sample Flow Rate: 100 mL/min ~ 200 mL/min

NIBP

Method: Automatic Oscillometric
Operation Modes: Manual/Automatic/Continuous
Auto Measurement Time Interval (in minutes): 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 240, and 480
Measurement Unit: mmHg/kPa
Measurement Types: Systolic, Diastolic, Mean
Pressure Range:
- Adults:
  - Systolic: 40 mmHg ~ 200 mmHg
  - Diastolic: 10 mmHg ~ 160 mmHg
  - Mean: 20 mmHg ~ 235 mmHg
- Pediatrics:
  - Systolic: 40 mmHg ~ 200 mmHg
  - Diastolic: 10 mmHg ~ 150 mmHg
  - Mean: 20 mmHg ~ 165 mmHg
- Neonates:
  - Systolic: 40 mmHg ~ 135 mmHg
  - Diastolic: 10 mmHg ~ 100 mmHg
  - Mean: 20 mmHg ~ 110 mmHg
Resolution: 1 mmHg
Accuracy:
- Max Mean Error: +5 mmHg
- Max Standard Deviation: 8 mmHg
PR from NIBP Measurement Range: 40 bpm ~ 240 bpm
Resolution: 1 bpm
Accuracy: 3 bpm or 3.5%

ECG

Lead Type: 5-lead and 3-lead selectable
Gain: Auto, x 0.125, x 0.25, x 0.5, x 1, x 2, x 4
Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
ECG HR Range:
- Adult: 15 bpm - 300 bpm
- Pediatric/Neonate: 15 bpm - 350 bpm
Resolution: 1 bpm
Accuracy: +1 bpm or +1%
Filter:
- Diagnostic Mode: 0.05 Hz ~ 150 Hz
- Monitoring Mode: 0.5 Hz ~ 40 Hz
- Surgical Mode: 1 Hz ~ 20 Hz
ST-Segment Detection:
- Measurement Range: ~2.0 mV ~ 2.0 mV Alarm
- Range: ~2.0 mV ~ 2.0 mV

About this Brand

Founded in 2009, EdanUSA provides products, service, and training for Edan products in the US market. Its broad product line features patient monitors, vitals monitors, ECGs, dopplers, and ultrasounds.

Specifications

Specifications
Manufacturer	EdanUSA
Actual Product Weight	11 lbs
Overall Height	10"
Overall Width	6.34"
Overall Length	11.93"
Country of Manufacture	China
Item Ships From	California

Literature

Product Brochure

(Size: 384.3 KB)

Specifications Sheet

(Size: 359.8 KB)
