Product Description

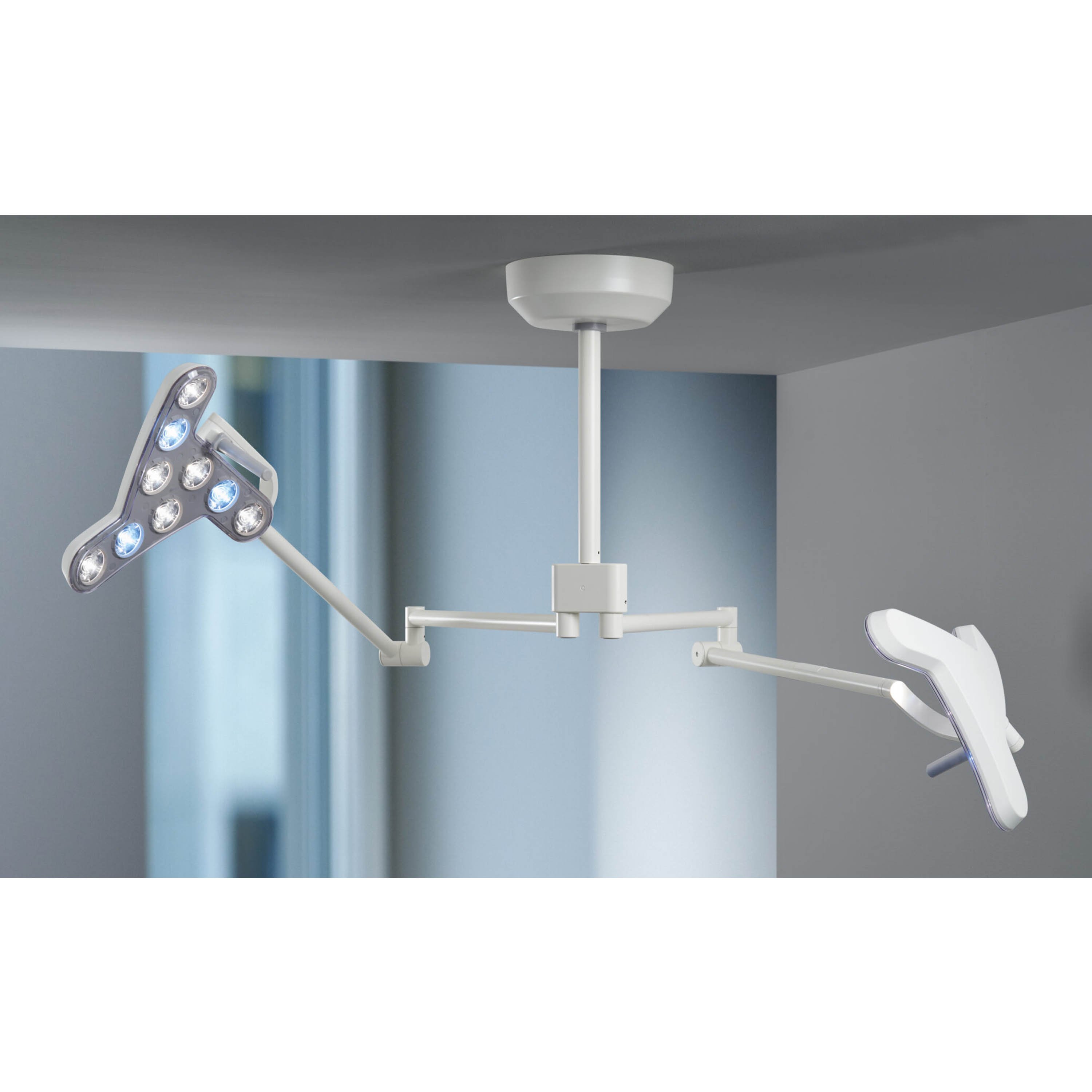

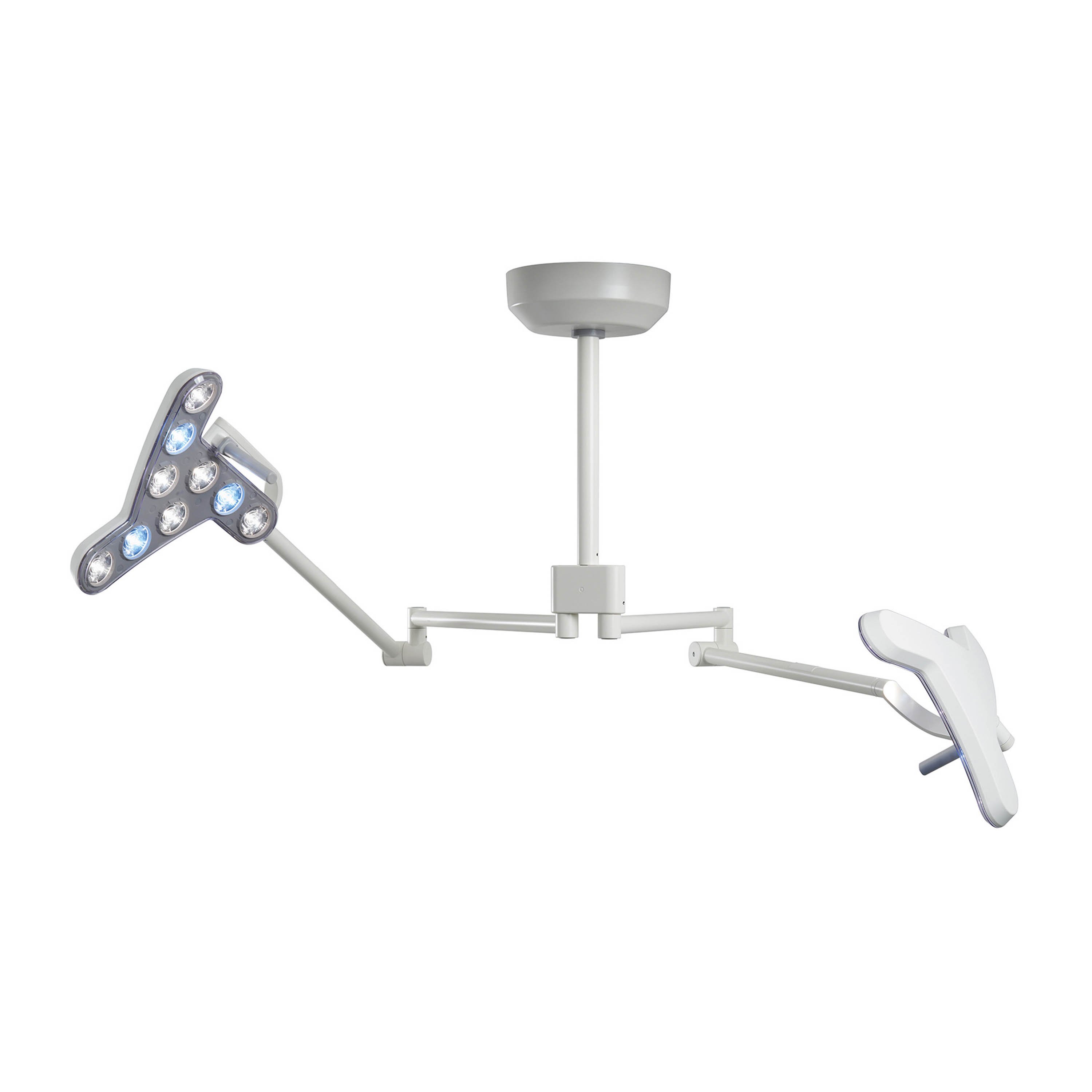

This TRIANGO 100 C Dual LED Procedure Light is a minor procedure light that has perfect maneuverability and a large operating radius for optimal illumination in all situations.

Features:

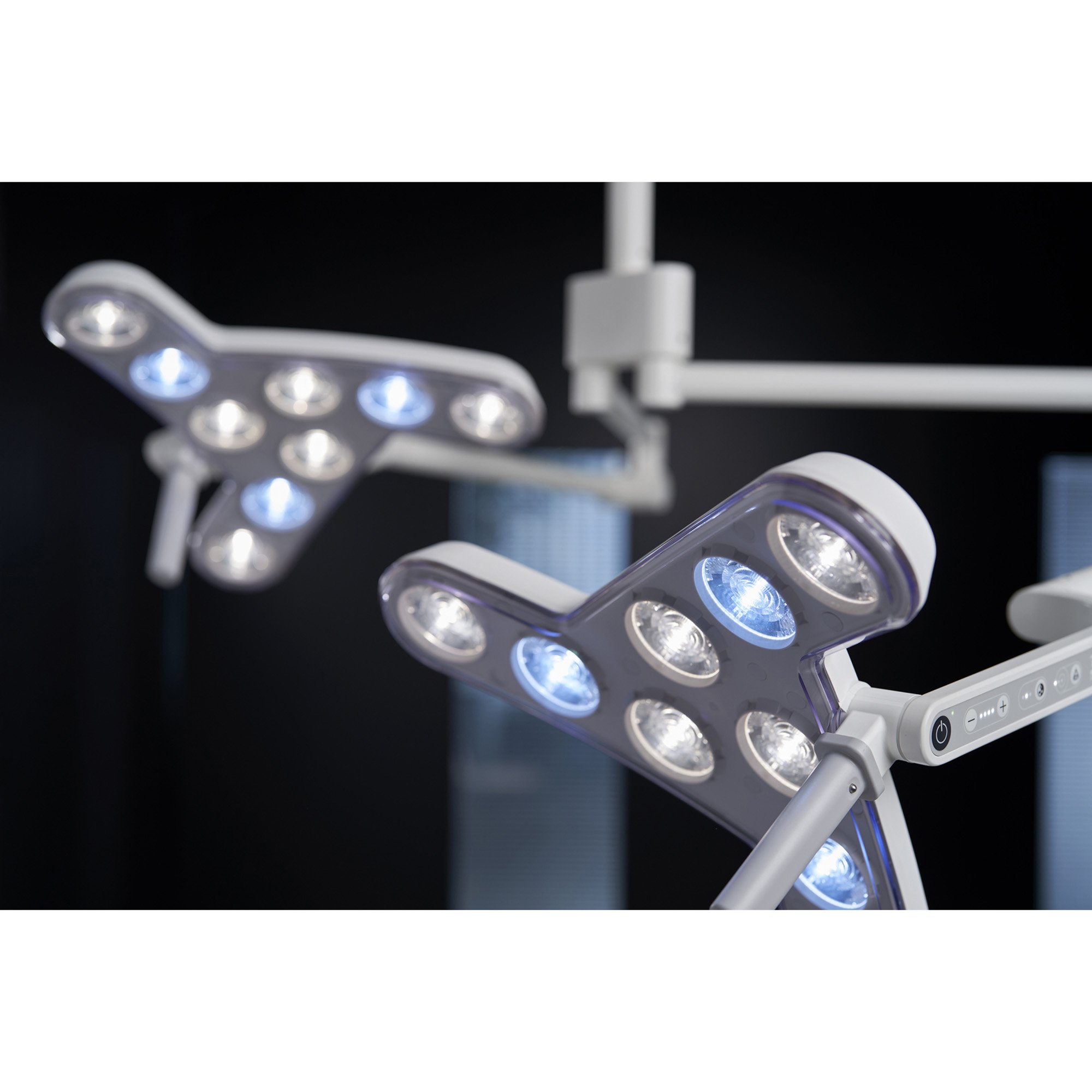

  • The dual light head allows simultaneous illumination of the treatment area, resulting in state-of-the-art shadow control capabilities
  • Four dimming levels (40%/60%/80%/100%)
  • Color Temperatures:
    • Model with 4 Dimming Levels (SKU D16205000): Fixed 4300 K
    • Model with 4 Dimming Levels and 3 Color Shades (SKU D16206000): Adjustable 3700K/ 4300K/ 4700K
  • Its dual arm system enables efficient use of space and is particularly suitable for low-height rooms
  • The dual ceiling light enables the illumination of two surgical fields
  • With a unique dual-arm system and perfect mobility, the device offers a large radius of movement

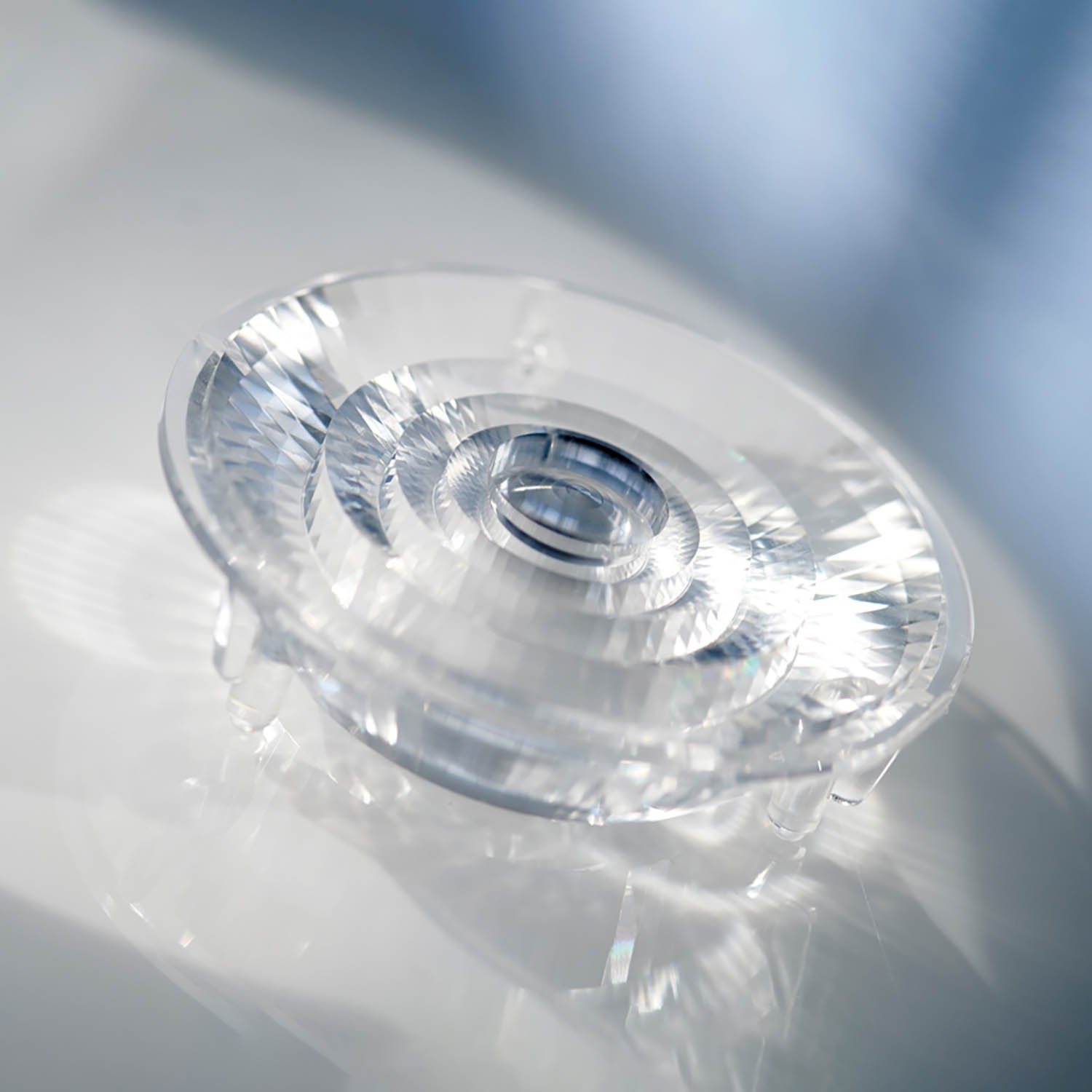

  • A diamond optic provides homogeneous light with an intensity of 100,000 Lux at 1.0 meter
  • Excellent color rendering properties (Ra 95) for accurate color representation
  • The illumination field is homogeneous and low shadowing, available as a fixed 7 inches, or adjustable to 7, 9, and 11 inches

Technical Specifications:

  • Product Type: Procedure Light
  • IP Rating: IP 20 (Luminaire Body), IP 43 (Luminaire Head)
  • Class of Protection: Class I
  • Color Rendering Index (CRI): ≥95
  • Lighting Field 1.0 m: ø 7"
  • Lux: 100000
  • Voltage: 100-240v AC
  • Wattage: 80W
  • Average Life Hours: 50000
  • Work Equipment: Electronic Converter
  • Color Finish: White
  • Arm Type: Articulating
  • Lens and Luminaire Body Material: Polyamide
  • Fitted with: LED Category A+
  • Cord Length: N/A (wired to the ceiling)
  • Certifications:
    • EN 60601-1
    • EN 60601-2-41

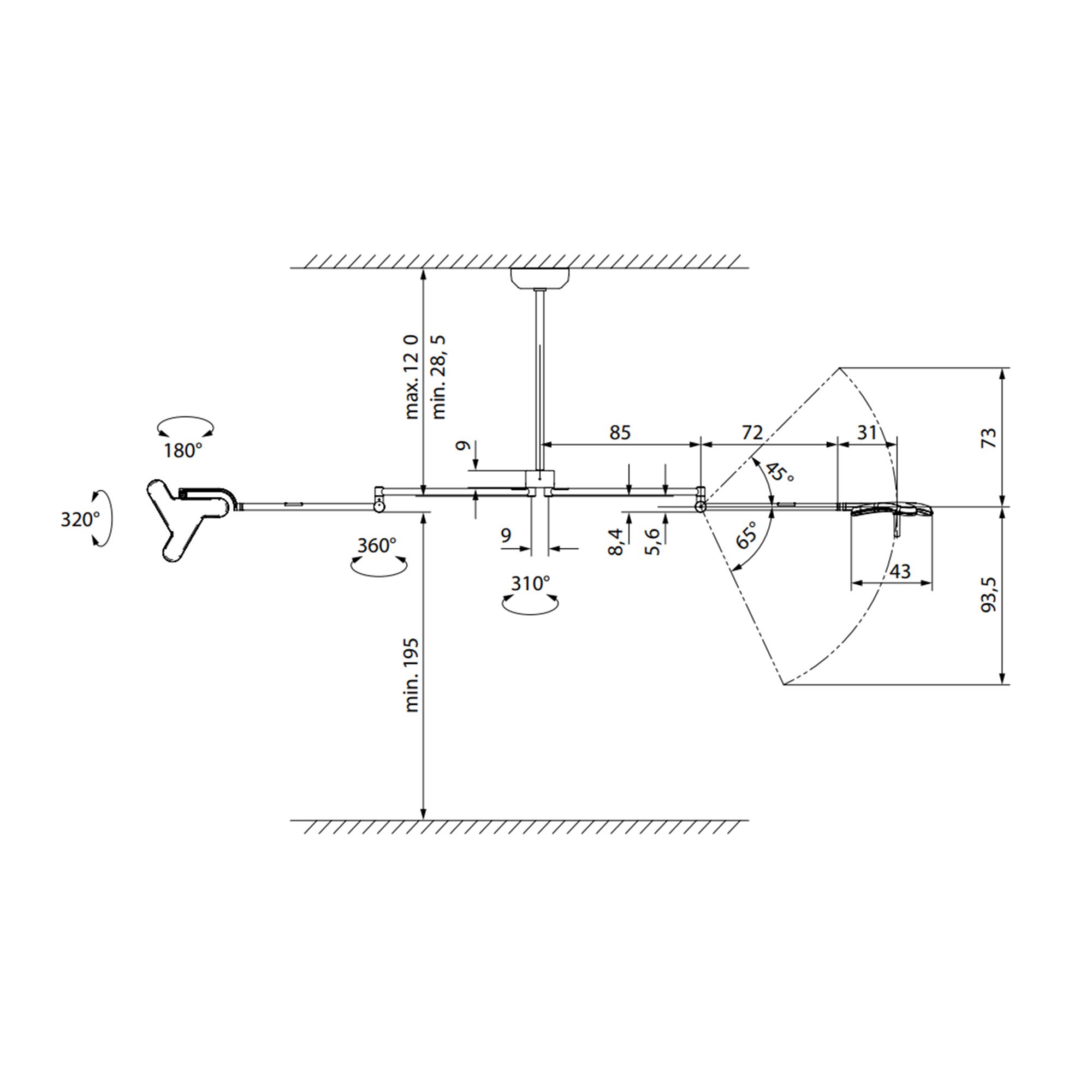

  • Actual Product Dimensions: 16.9" L x 16.9" W x 47.2" H
  • Actual Product Weight: 66.1 lbs
  • Dimming Type: 4 Dimming Levels
  • Mounting Type: Ceiling Mount
SKU / Model Color Temperature
   D16205000 / 100-1 C DUAL 4300 K
              D16206000 /  Fokus 100-3 C DUAL 3700 K / 4300 K / 4700 K

Specifications

Specifications
Manufacturer Waldmann
Latex Free Yes
Actual Product Weight 66.1 lbs
Overall Height 47.2"
Overall Width 16.9"
Overall Length 16.9"
Country of Manufacture Germany
Item Ships From Illinois

Literature

pdf
(Size: 777.7 KB)
pdf
(Size: 716.3 KB)
pdf
(Size: 939.7 KB)
SKU: D16205000
pdf
(Size: 941.4 KB)
SKU: D16206000
pdf
(Size: 221.5 KB)

Instructions

LIMITED WARRANTY: Waldmann warrants to the purchaser that for a period of five (5) years from the date of shipment (“Warranty Period”) of the qualified products, when delivered in new condition and in its original packaging, they will be free from defects in materials and workmanship and will conform to the published product specifications. Qualified product determined by Waldmann to be defective after return to Waldmann or to a service agent authorized by Waldmann during the Warranty Period will be, at Waldmann’s sole discretion and without charge to purchaser:

a.) Repaired utilizing new or comparable refurbished parts or;

b.) Exchanged for new or refurbished qualified product or;

c.) Refunded for the purchase price paid by purchaser for the defective qualified product.

Except where prohibited by law, the requirements under this Section shall be Waldmann’s sole obligation and liability to purchaser for claims under this Warranty. Qualified product that is repaired or replaced under this Warranty will continue to be covered for the longer of i.) one hundred eighty (180) days from the date of return shipment by Waldmann, or ii.) the remaining duration of the applicable Warranty period.

For Complete Warranty Details, please see the literature above.

Returns

Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 20% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
