Product Description

This TRIANGO Fokus 60-1 LED Procedure Light with 4 Dimming Levels suits the versatile daily routine in family practices and clinics and in gynecology, dermatology, or veterinary medicine. All versions of TRIANGO 60 are infinitely dimmable.

Features:

  • Four dimming levels (40%/60%/80%/100%) with Focusable Feature
  • The focus feature can be used when adjusting the operating function into 4 level
  • The homogeneous light field is achieved because of the unique diamond optic
  • Diamond optics offer a wide, homogeneous light field
  • An intuitive touch panel on the cardanic system allows for the illumination to be infinitely adjusted from 60,000 lux at 1 meter, ensuring intuitive operation
  • The device features ergonomic handling and easy alignment for both right- and left-handed users

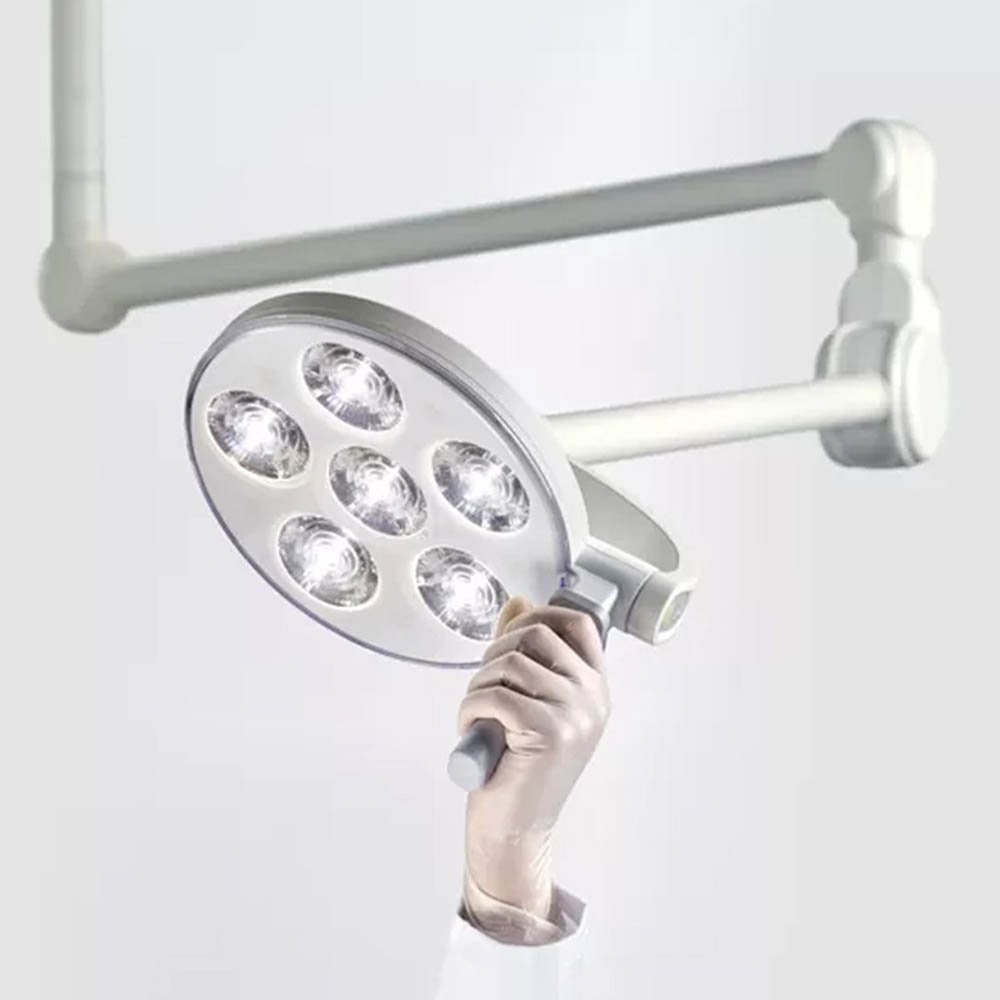

  • The streamlined design and removable handle make for easy cleaning
  • Hygiene is made simple with a good design that avoids unnecessary details and emphasizes closed-building structures
  • It is versatile and suitable for use in family practices, clinics, gynecology, dermatology, and veterinary medicine

Technical Specifications:

  • Product Type: Procedure Light
  • IP Rating: IP 20 (Luminaire Body), IP 43 (Luminaire Head)
  • Class of Protection: Class I
  • Color Temperature: 4300K
  • Color Rendering Index (CRI): ≥93
  • Lighting Field 1.0 m: ø 7.1"
  • Lux: 60000
  • IP Rating: IP 43
  • Voltage: 100-240v AC
  • Wattage: 30W
  • Average Life Hours: 50000
  • Work Equipment: Electronic Converter
  • Color Finish: White
  • Lens and Luminaire Body Material: Polyamide
  • Fitted with: LED Category A+
  • Cord Length: 5.9 ft for D16267000 except for D16255000 (wired to the ceiling) and D16276000 (wired to the wall)
  • Certifications:
    • EN 60601-1
    • EN 60601-2-41
  • Dimming Type: 4 Dimming Levels
SKU / Model Mounting Type Product Dimensions Product Weight

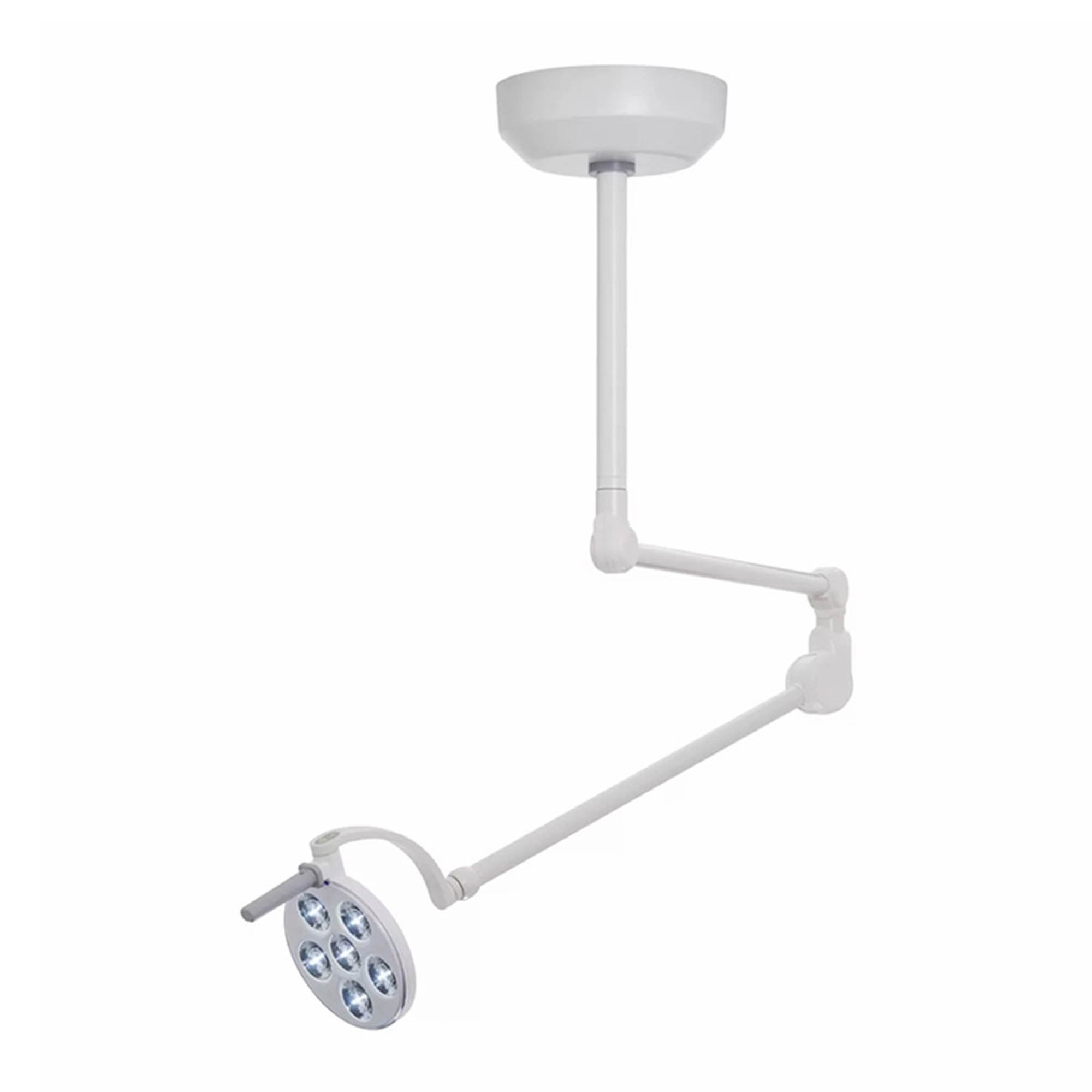

D16255000 / Fokus 60-1 C  Ceiling Mounted 4.3" L x 4.3" W x 48" H  28.7 lbs

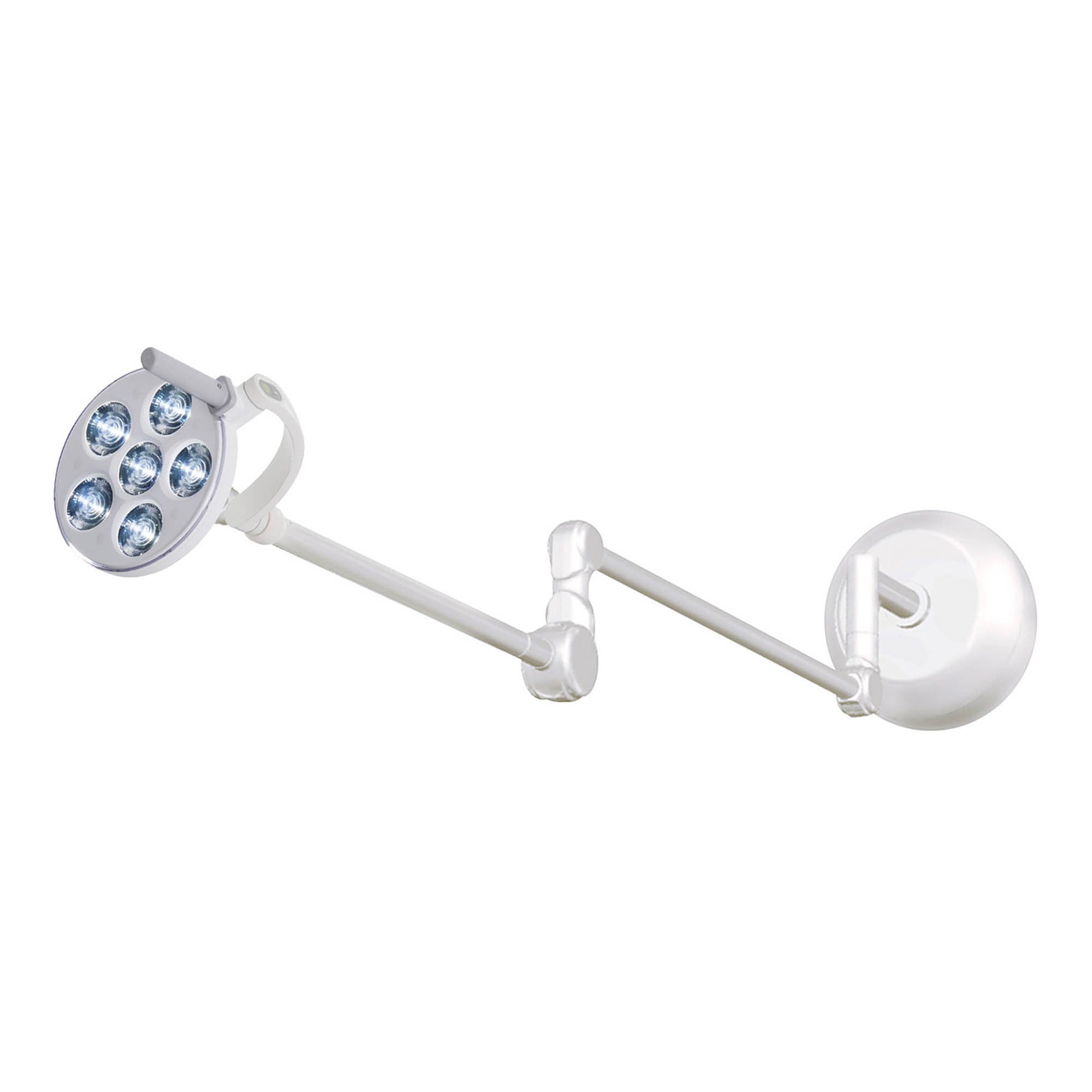

 D16276000 / Fokus 60-1 W Wall Mounted 4.3" L x 4.3" W x 80" H 27.6 lbs

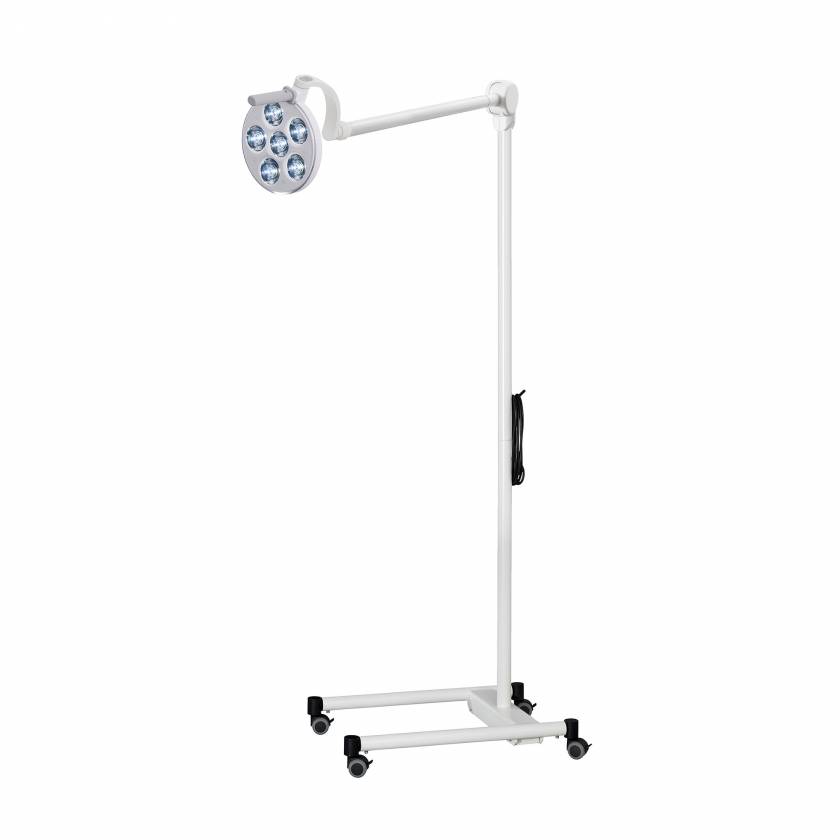

D16267000 / Fokus 60-1 F Rolling Stand Mounted    4.3" L x 4.3" W x 54.3" H 41.9 lbs

Specifications

Specifications
Manufacturer Waldmann
Latex Free Yes
Country of Manufacture Switzerland
Item Ships From Illinois

Literature

pdf
(Size: 988.4 KB)
pdf
(Size: 2.3 MB)
SKUs: D16255000, D16276000 and D16267000
pdf
(Size: 221.5 KB)

Instructions

LIMITED WARRANTY: Waldmann warrants to the purchaser that for a period of five (5) years from the date of shipment (“Warranty Period”) of the qualified products, when delivered in new condition and in its original packaging, they will be free from defects in materials and workmanship and will conform to the published product specifications. Qualified product determined by Waldmann to be defective after return to Waldmann or to a service agent authorized by Waldmann during the Warranty Period will be, at Waldmann’s sole discretion and without charge to purchaser:

a.) Repaired utilizing new or comparable refurbished parts or;

b.) Exchanged for new or refurbished qualified product or;

c.) Refunded for the purchase price paid by purchaser for the defective qualified product.

Except where prohibited by law, the requirements under this Section shall be Waldmann’s sole obligation and liability to purchaser for claims under this Warranty. Qualified product that is repaired or replaced under this Warranty will continue to be covered for the longer of i.) one hundred eighty (180) days from the date of return shipment by Waldmann, or ii.) the remaining duration of the applicable Warranty period.

For Complete Warranty Details, please see the literature above.

Returns

Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 20% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
