Product Description

This TRIANGO 100-1 LED Procedure Light with 4 Dimming Levels is a minor procedure light series that offers many benefits for the practitioner and patient. The unusual concave shape allows the physician to position the light directly above the patient. Wrapped in a minor procedure light in which long-standing experience in light technology and ergonomics merge. TRIANGO 100 provides optimum light conditions making it the ideal assistant for any physician. It enables precise interventions and accurate diagnoses - for the patient’s benefit.

Features:

  • Four dimming levels (40%/60%/80%/100%)
  • Its illumination field is adjustable, offering light fields of 7, 9, and 11 inches

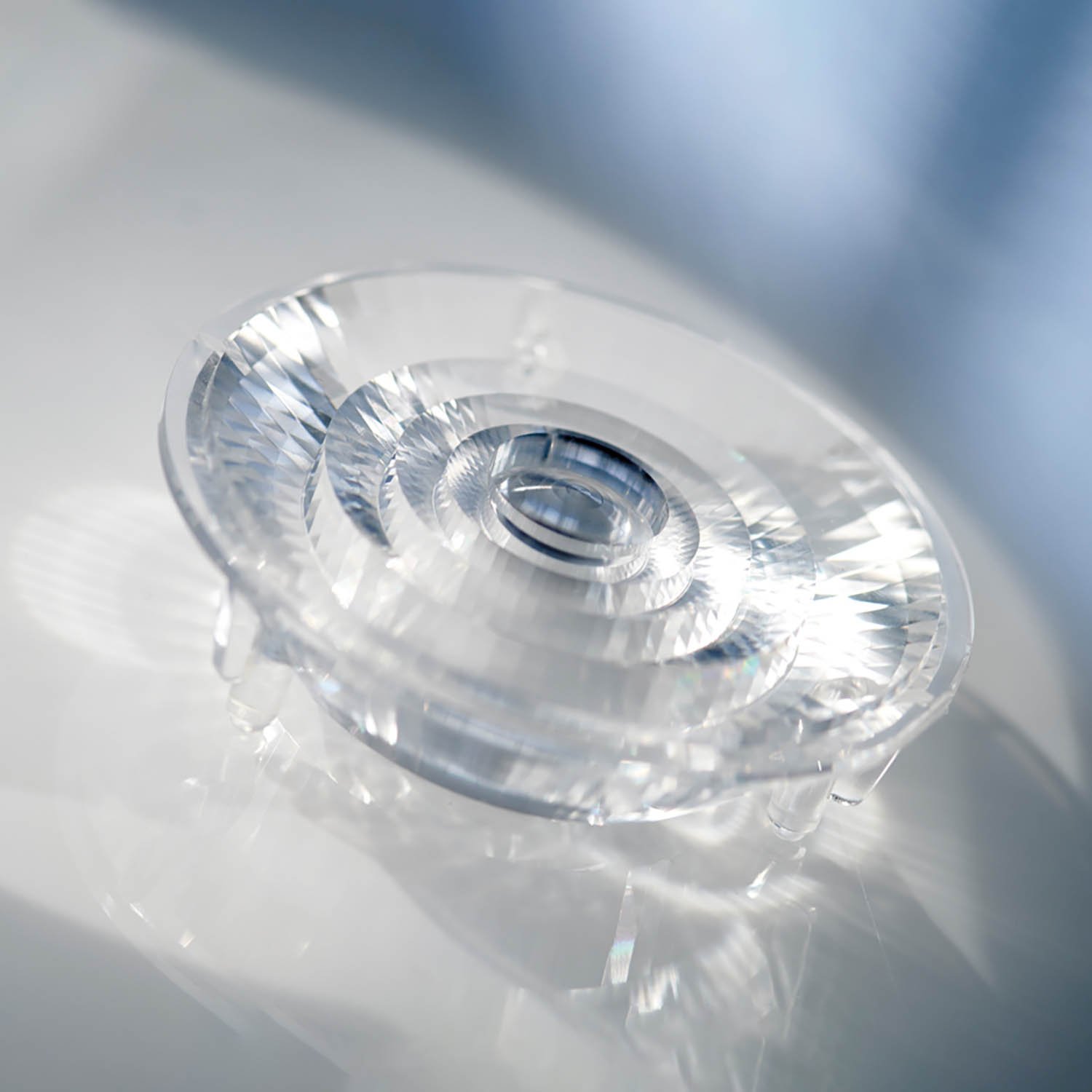

  • Its diamond cluster optics ensure uniform light distribution with an intensity of 100,000 lux at 1 meter
  • The unique unobtrusive design of the contoured light head allows practitioners to position the light as close as possible to the patient
  • Shadows are eliminated during examinations, as the uniform illumination of TRIANGO 100 prevents shadowing commonly caused by handling lighting
  • Modular design enables users to choose customized versions with features that meet the specific needs of their application

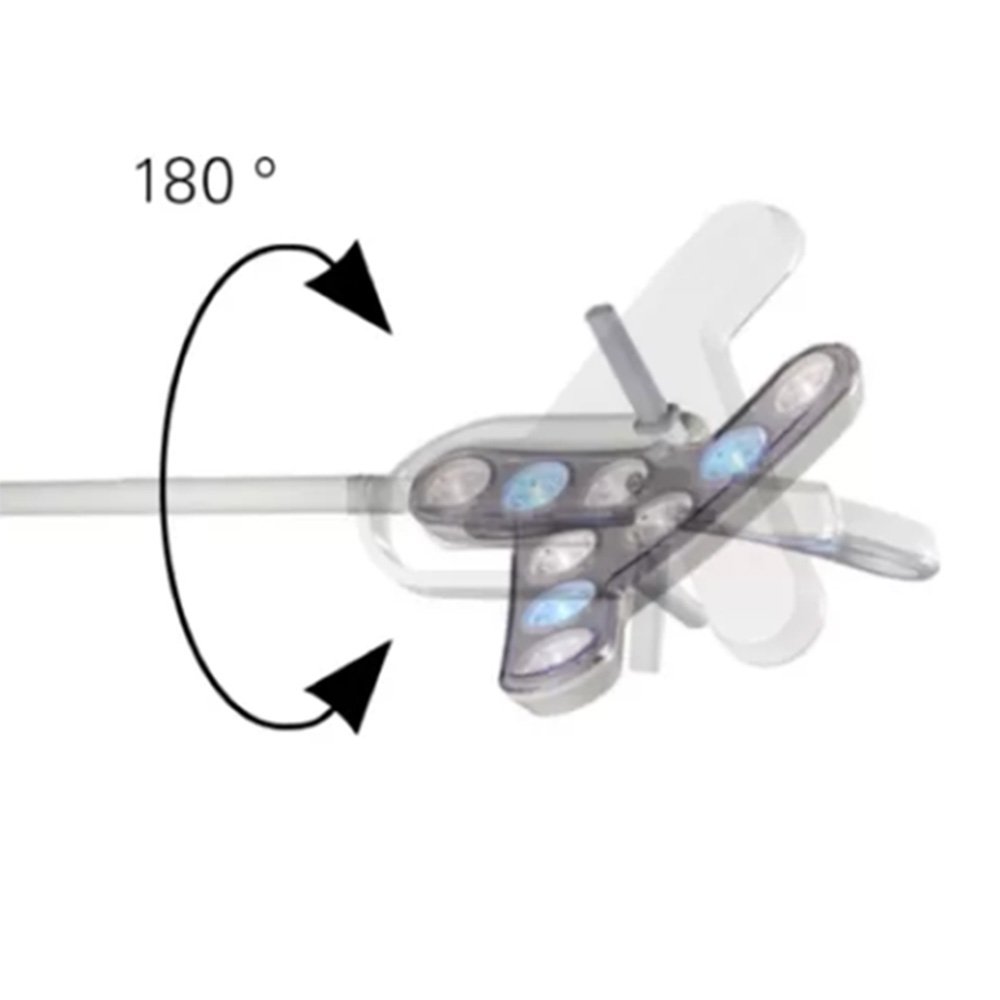

  • The unique arm system provides a large range of motion and a long reach
  • Its intuitive operation features a simple interface with an easy-to-reach keypad
  • Minimal maintenance is required, as the sealed housing prevents particles and liquids from permeating the light, making it ideal for use in facilities

Technical Specifications:

  • Product Type: Procedure Light
  • IP Rating: IP 20 (Luminaire Body), IP 43 (Luminaire Head)
  • Class of Protection: Class I
  • Color Temperature: 4300K
  • Color Rendering Index (CRI): ≥95
  • Lighting Field 1.0 m: ø 7"
  • Lux: 100000
  • Voltage: 100-240v AC
  • Wattage: 40W
  • Average Life Hours: 50000
  • Work Equipment: Electronic Converter
  • Color Finish: Grey/White
  • Arm Type: Articulating
  • Lens and Luminaire Body Material: Polyamide
  • Fitted with: LED Category A+
  • Cord Length: 5.9 ft for all except for D16072000 (wired to the ceiling) and D16077000 (wired to the wall)
  • Certifications:
    • EN 60601-1
    • EN 60601-2-41
  • Dimming Type: 4 Dimming Levels
SKU / Model Mounting Type Product Dimensions Product Weight
D16072000 / 100-1 C  Ceiling Mounted 16.9" L x 16.9" W x 47.2" H 35.1 lbs
 D16077000 / 100-1 W Wall Mounted 16.9" L x 16.9" W x 81.9" H 33.7 lbs
D15915000 / 100-1 F Rolling Stand Mounted 16.9" L x 16.9" W x 63.8" H 44.1 lbs
            D16232000 / 100-1 F Battery Rolling Stand Mounted with Battery 16.9" L x 16.9" W x 63.8" H 70.5 lbs

Specifications

Specifications
Manufacturer Waldmann
Latex Free Yes
Country of Manufacture Switzerland
Item Ships From Illinois

Literature

pdf
(Size: 777.7 KB)
pdf
(Size: 1.3 MB)
pdf
(Size: 3.8 MB)
SKU: D15915000, D16232000, D16072000 and D16077000
pdf
(Size: 221.5 KB)

Instructions

LIMITED WARRANTY: Waldmann warrants to the purchaser that for a period of five (5) years from the date of shipment (“Warranty Period”) of the qualified products, when delivered in new condition and in its original packaging, they will be free from defects in materials and workmanship and will conform to the published product specifications. Qualified product determined by Waldmann to be defective after return to Waldmann or to a service agent authorized by Waldmann during the Warranty Period will be, at Waldmann’s sole discretion and without charge to purchaser:

a.) Repaired utilizing new or comparable refurbished parts or;

b.) Exchanged for new or refurbished qualified product or;

c.) Refunded for the purchase price paid by purchaser for the defective qualified product.

Except where prohibited by law, the requirements under this Section shall be Waldmann’s sole obligation and liability to purchaser for claims under this Warranty. Qualified product that is repaired or replaced under this Warranty will continue to be covered for the longer of i.) one hundred eighty (180) days from the date of return shipment by Waldmann, or ii.) the remaining duration of the applicable Warranty period.

For Complete Warranty Details, please see the literature above.

Returns

Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 20% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
