Waldmann TRIANGO Fokus 100-3 LED Procedure Light with 4 Dimming Levels and 3 Color Shades
Product Description
This TRIANGO Fokus 100-3 LED Procedure Light with 4 Dimming Levels and 3 Color Shades is a minor procedure light series that offers many benefits for the practitioner and patient. The unusual concave shape allows the physician to position the light directly above the patient. Wrapped in a minor procedure light in which long-standing experience in light technology and ergonomics merge. TRIANGO 100 provides optimum light conditions making it the ideal assistant for any physician. At an illuminance of 100,000 Lux at 1.0 m, it enables precise interventions and accurate diagnoses - for the patient’s benefit.
Features:
- Four dimming levels (40%/60%/80%/100%)
- Adjustable color temperatures: 3700K/ 4300K/ 4700K with Focusable feature
- The focus feature can be used when adjusting the operating function into 4 level
- Its illumination field is adjustable, offering light fields of 7, 9, and 11 inches

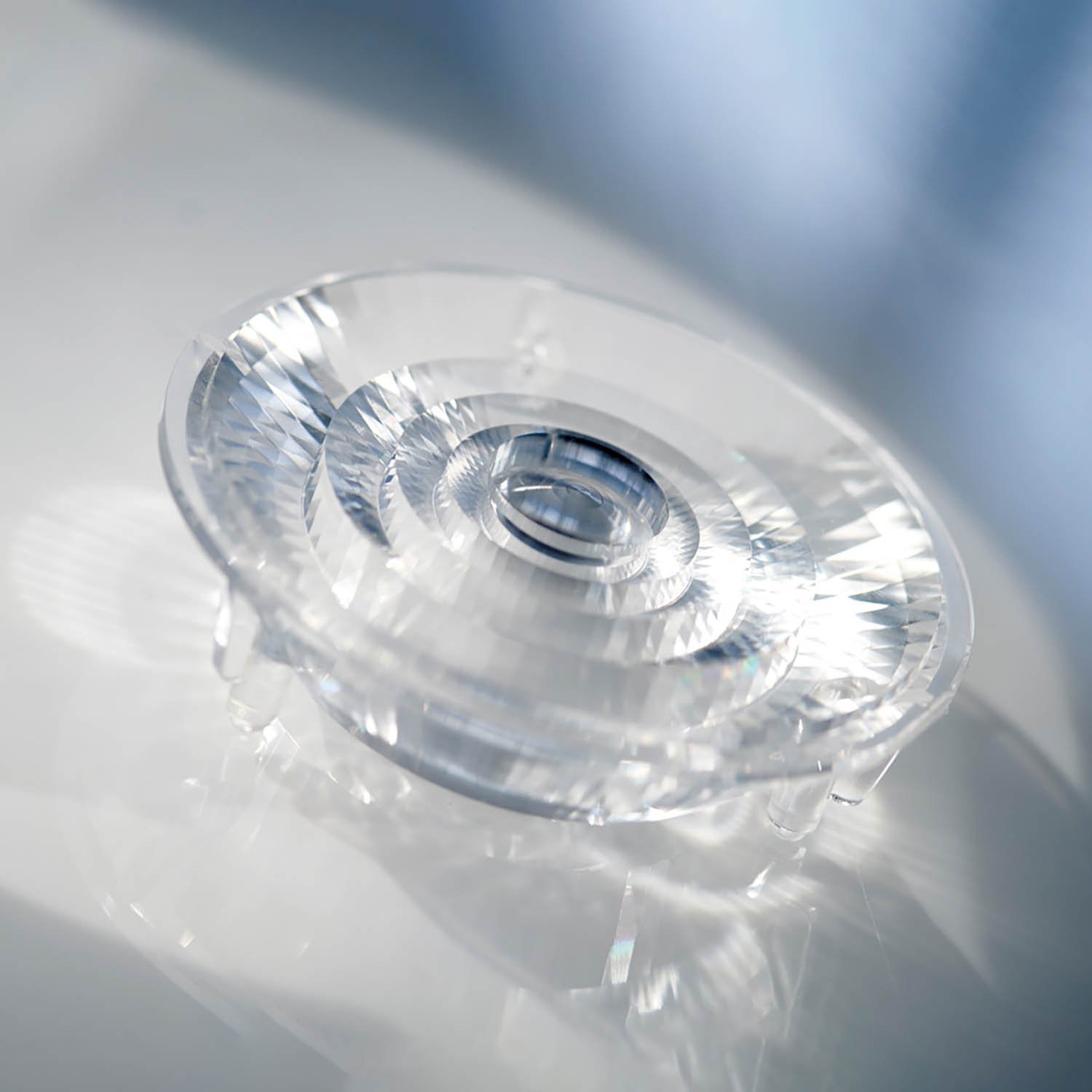

- Its diamond cluster optics ensure uniform light distribution with an intensity of 100,000 lux at 1 meter
- The unique unobtrusive design of the contoured light head allows practitioners to position the light as close as possible to the patient
- Shadows are eliminated during examinations, as the uniform illumination of TRIANGO 100 prevents shadowing commonly caused by handling lighting
- Modular design enables users to choose customized versions with features that meet the specific needs of their application
- The unique arm system provides a large range of motion and a long reach
- Its intuitive operation features a simple interface with an easy-to-reach keypad
- Minimal maintenance is required, as the sealed housing prevents particles and liquids from permeating the light, making it ideal for use in facilities
Technical Specifications:
- Product Type: Procedure Light
- IP Rating: IP 20 (Luminaire Body), IP 43 (Luminaire Head)
- Class of Protection: Class I
- Color Temperature: 3700K, 4300K, and 4700K with the ability to switch between these temperatures
- Color Rendering Index (CRI): ≥95
- Lighting Field 1.0 m: ø 7"
- Lux: 100000
- Voltage: 100-240v AC
- Wattage: 40W
- Average Life Hours: 50000
- Work Equipment: Electronic Converter
- Color Finish: Grey/White
- Arm Type: Articulating
- Lens and Luminaire Body Material: Polyamide
- Fitted with: LED Category A+
- Cord Length: 5.9 ft for D15915000 except for D16075000 (wired to the ceiling) and D16080000 (wired to the wall)
- Certifications:
- EN 60601-1
- EN 60601-2-41
- Dimming Type: 4 Dimming Levels
SKU / Model | Mounting Type | Product Dimensions | Product Weight |
D16075000 / Fokus 100-3 C | Ceiling Mounted | 16.9" L x 16.9" W x 47.2" H | 35.1 lbs |
D16080000 / Fokus 100-3 W | Wall Mounted | 16.9" L x 16.9" W x 81.9" H | 33.7 lbs |

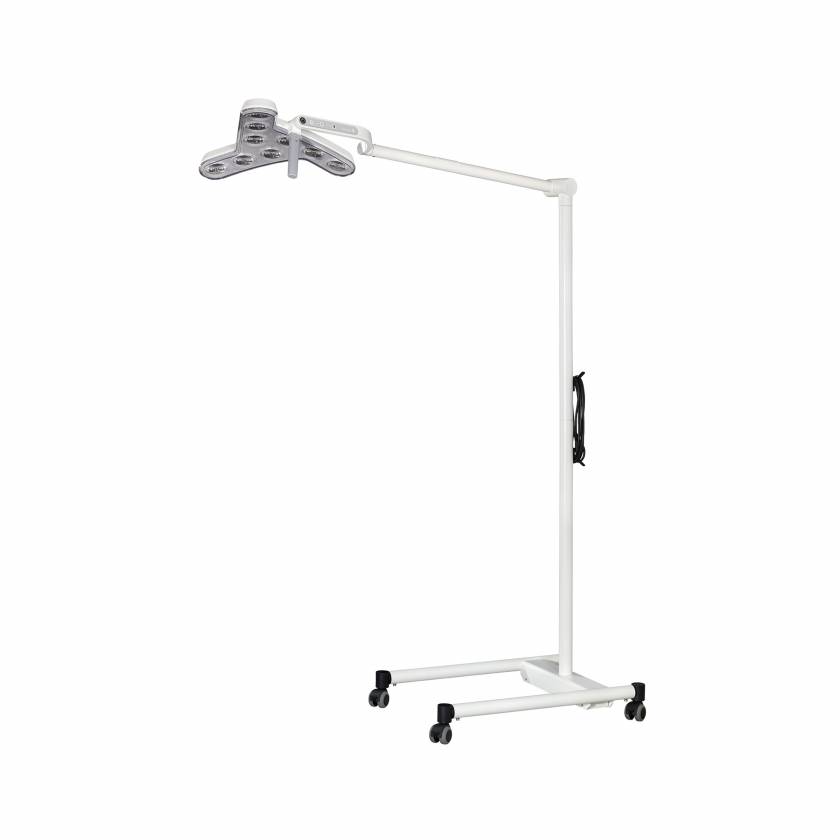

D15915000 / Fokus 100-3 F | Rolling Stand Mounted | 16.9" L x 16.9" W x 63.8" H | 44.1 lbs |
Specifications
Manufacturer | Waldmann |
---|---|
Latex Free | Yes |
Country of Manufacture | Switzerland |
Item Ships From | Illinois |
