Product Description

This TRIANGO Endo 100-1 LED Procedure Light with 4 Dimming Levels is a minor procedure light series that offers many benefits for the practitioner and patient. The unusual concave shape allows the physician to position the light directly above the patient. Wrapped in a minor procedure light in which long-standing experience in light technology and ergonomics merge. TRIANGO 100 provides optimum light conditions making it the ideal assistant for any physician. At an illuminance of 100,000 Lux at 1.0 m, it enables precise interventions and accurate diagnoses - for the patient’s benefit.

Features:

  • Four dimming levels (40%/60%/80%/100%)
  • It has optimal light conditions for endoscopic and minimally invasive procedures
  • Its illumination field is adjustable, offering light fields of 7, 9, and 11 inches

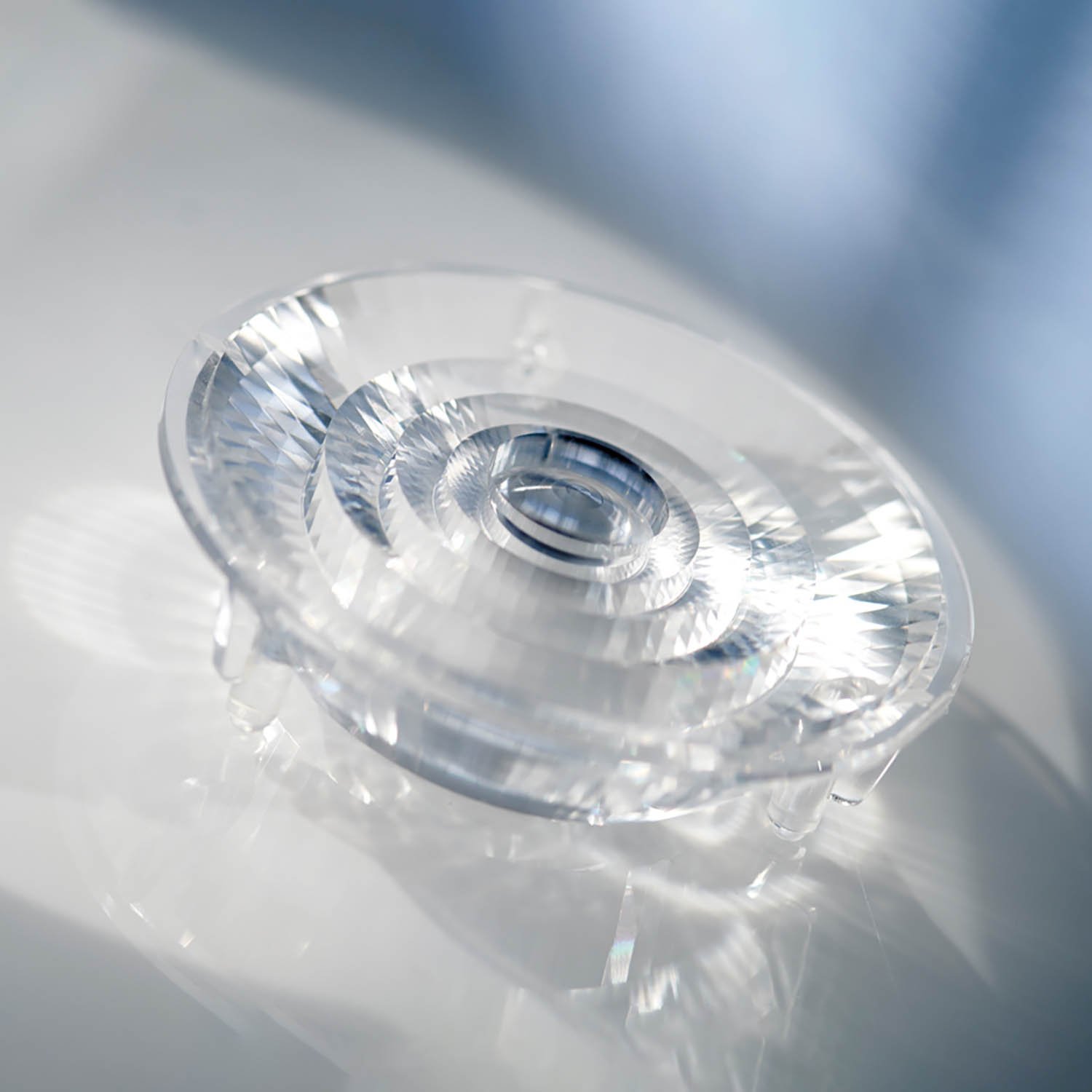

  • Its diamond cluster optics ensure uniform light distribution with an intensity of 100,000 lux at 1 meter
  • The unique unobtrusive design of the contoured light head allows practitioners to position the light as close as possible to the patient
  • Shadows are eliminated during examinations, as the uniform illumination of TRIANGO 100 prevents shadowing commonly caused by handling lighting
  • Modular design enables users to choose customized versions with features that meet the specific needs of their application

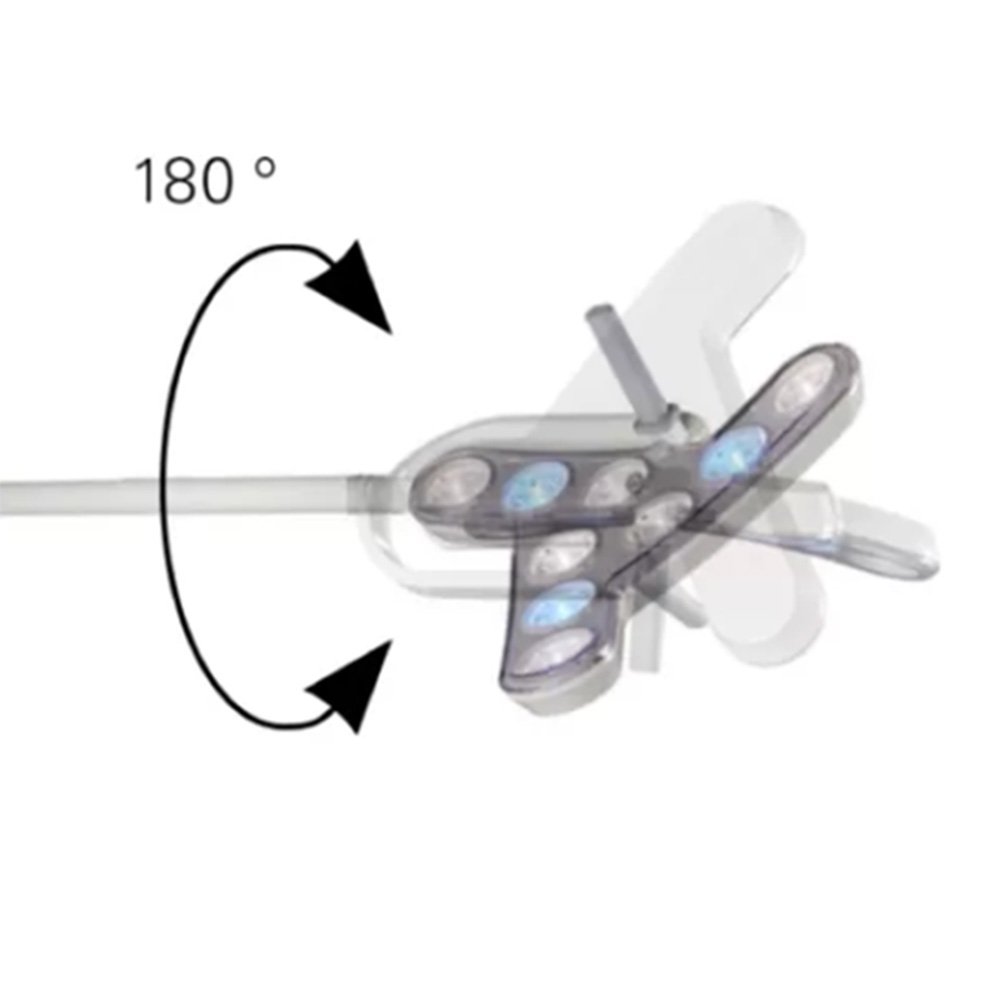

  • The unique arm system provides a large range of motion and a long reach
  • Its intuitive operation features a simple interface with an easy-to-reach keypad
  • Minimal maintenance is required, as the sealed housing prevents particles and liquids from permeating the light, making it ideal for use in facilities

Technical Specifications:

  • Product Type: Procedure Light
  • IP Rating: IP 20 (Luminaire Body), IP 43 (Luminaire Head)
  • Class of Protection: Class I
  • Color Temperature: 4300K
  • Color Rendering Index (CRI): ≥95
  • Lighting Field 1.0 m: ø 7"
  • Lux: 100000
  • Voltage: 100-240v AC
  • Wattage: 40W
  • Average Life Hours: 50000
  • Work Equipment: Electronic Converter
  • Color Finish: Grey/White
  • Arm Type: Articulating
  • Lens and Luminaire Body Material: Polyamide
  • Fitted with: LED Category A+
  • Cord Length: 5.9 ft for D15976000 except for D16076000 (wired to the ceiling) and D16081000 (wired to the wall)
  • Certifications:
    • EN 60601-1
    • EN 60601-2-41
  • Dimming Type: 4 Dimming Levels
SKU / Model Mounting Type Product Dimensions Product Weight
  D16076000 /  Endo 100-1 C   Ceiling Mounted 16.9" L x 16.9" W x 47.2" H 35.1 lbs
   D16081000 /  Endo 100-1 W  Wall Mounted 16.9" L x 16.9" W x 81.9" H 33.7 lbs
D15976000 /  Endo 100-1 F Rolling Stand Mounted 16.9" L x 16.9" W x 63.8" H 44.1 lbs

Specifications

Specifications
Manufacturer Waldmann
Latex Free Yes
Country of Manufacture Germany
Item Ships From Illinois
