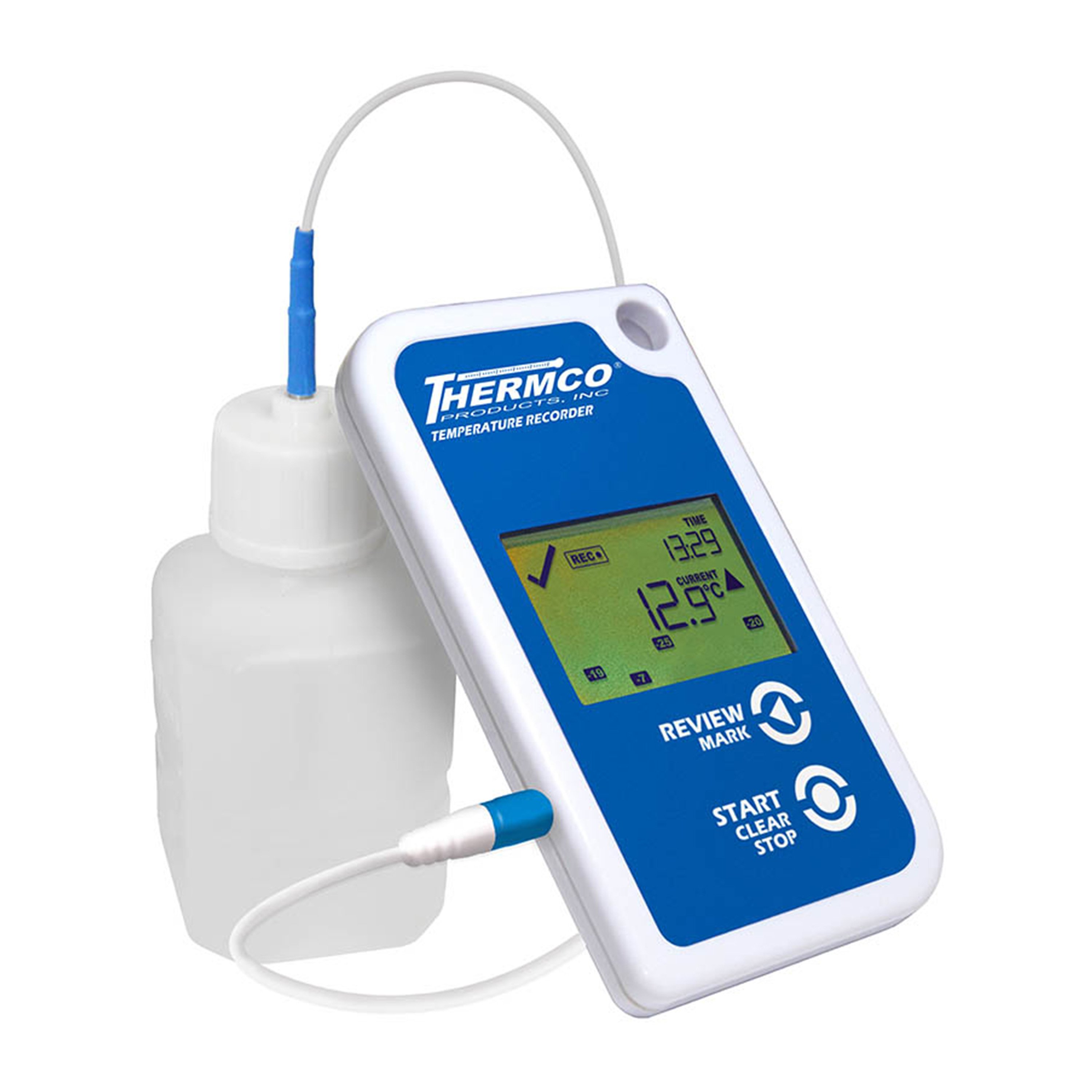

Thermco Temperature Data Logger with LCD Display

The Thermco Temperature Data Logger with LCD Display is ideal for use in monitoring and recording vaccine temperatures in refrigerators and freezers.

Features:

• Comprehensive customisation options, including alarm settings, sample interval, and trip duration
• A real-time clock provides date/ time stamps for each temperature reading
• Inspections can be recorded at the push of a button
• It has a built-in audible alarm

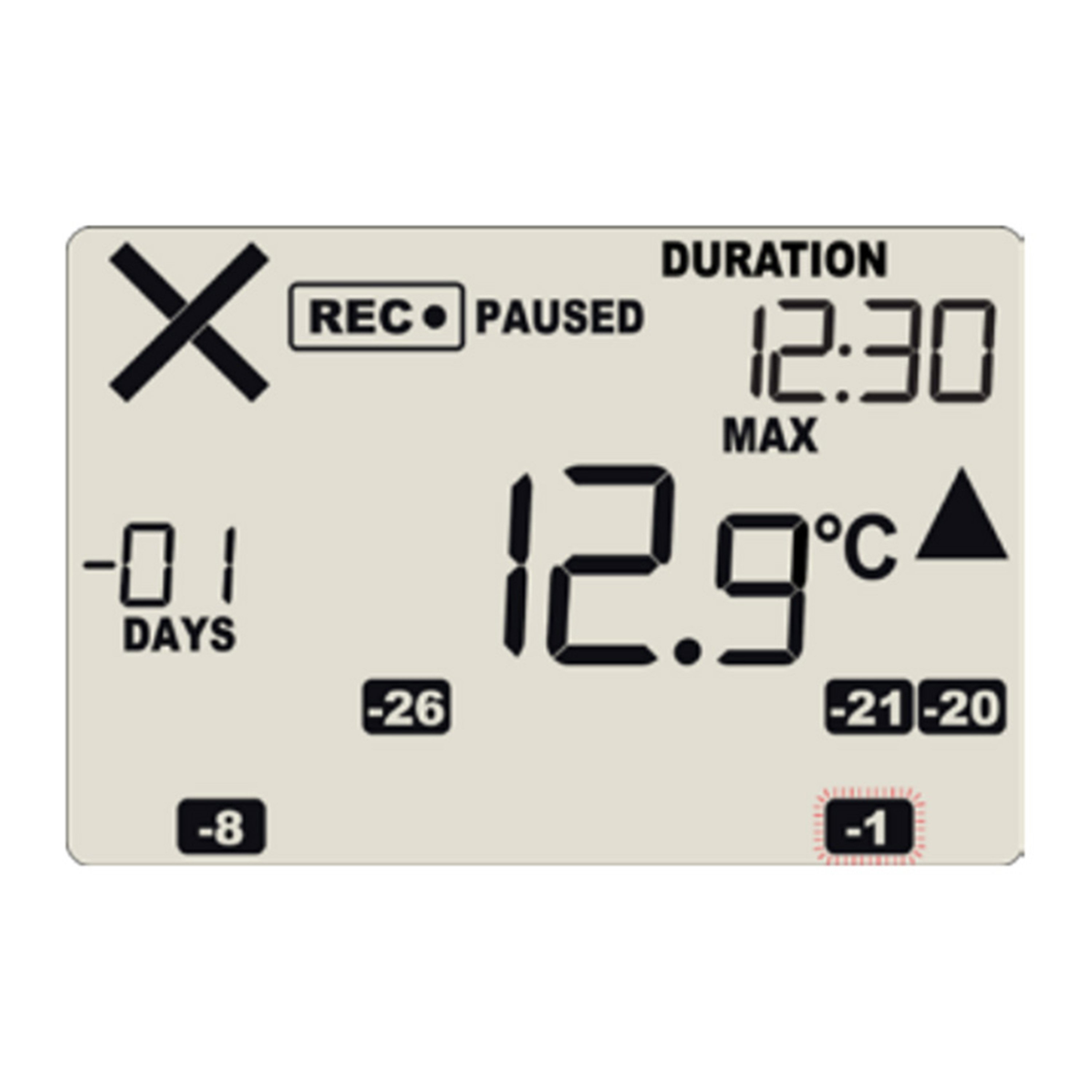

• Easy-to-read LCD with 30-day summary in calendar format
• Auto-pause function - Unplugging the external probe automatically suspends alarm and statistics processing
• Rapid configuration and download
• Interchangeable external probe with a high-quality gold-plated connector
• Made with a robust and durable polycarbonate case
• User-replaceable coin cell battery
• Comes with a 3m probe and a buffer bottle

Technical Specifications:

• Temperature Measurement Range: -40°C to 99°C
• Operating Temperature Range: -30°C to 60°C
• Storage Temperature Range: -10°C to 40°C
• Rated Temperature Reading Accuracy: Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration
  • Better than ±0.5°C for -20°C to 40°C, typically ±0.3°C
  • Better than ±0.8°C for -40°C to -20°C, typically ±0.5°C
  • Better than ±0.8°C for 40°C to 70°C, typically ±0.7°C
  • Better than ±1.2°C for 70°C to 99°C, typically ±1°C
• Rated Temperature Reading Resolution: LogTag Analyzer currently displays to one decimal place of °C. The native resolution is what is stored in the LogTag®
  • 0.1°C for -40°C to 50°C
  • 0.2°C for 50°C to 70°C
  • 0.3°C for 70°C to 80°C
  • 0.4°C to 0.6°C for 80°C to 99°C
• Memory: 15,905 temperature readings. 66 days at 6-minute logging
• Sampling Interval: Configurable from 30 seconds to hourly
• Logging Start Options: Push button start or specific date and time. Optional start delay of up to 18 hours
• Download Time: Typically less than 10 seconds for full memory, depending on the computer or readout device used
• Power Source: 3V CR2032 (LiMnO2) coin cell battery, user replaceable
• Battery Life: 1 year storage, followed by 1 year of operation with normal use (6-minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly)
  NOTE: Continual activation of the audible alarm will reduce the working life of the battery. When an alarm is triggered, the alarm should be cleared and reset as soon as possible
• Real Time Clock:
  • Rated accuracy ±25 ppm at 25°C (equivalent to 2.5 seconds/day)
  • Rated temperature coefficient is -0.034 ±0.006 ppm/°C (I.e typically +/- 0.00294 seconds/day/°C
• Standard External Probe Cable Lengths:
  • Standard: 59.05"
  • Extended: 118.11"
• Remote External Probe Type: PTFE (FDA food contact rated) coaxial
• Certifications: FDA 21 CFR Part 11, EC Annex 11, IATA’s 2018 Dangerous Goods Regulations 59th Edition, FCC, CE, RCM, and RoHS
• Overall Dimensions: 0.5" L x 2.5" W x 4.8" H
