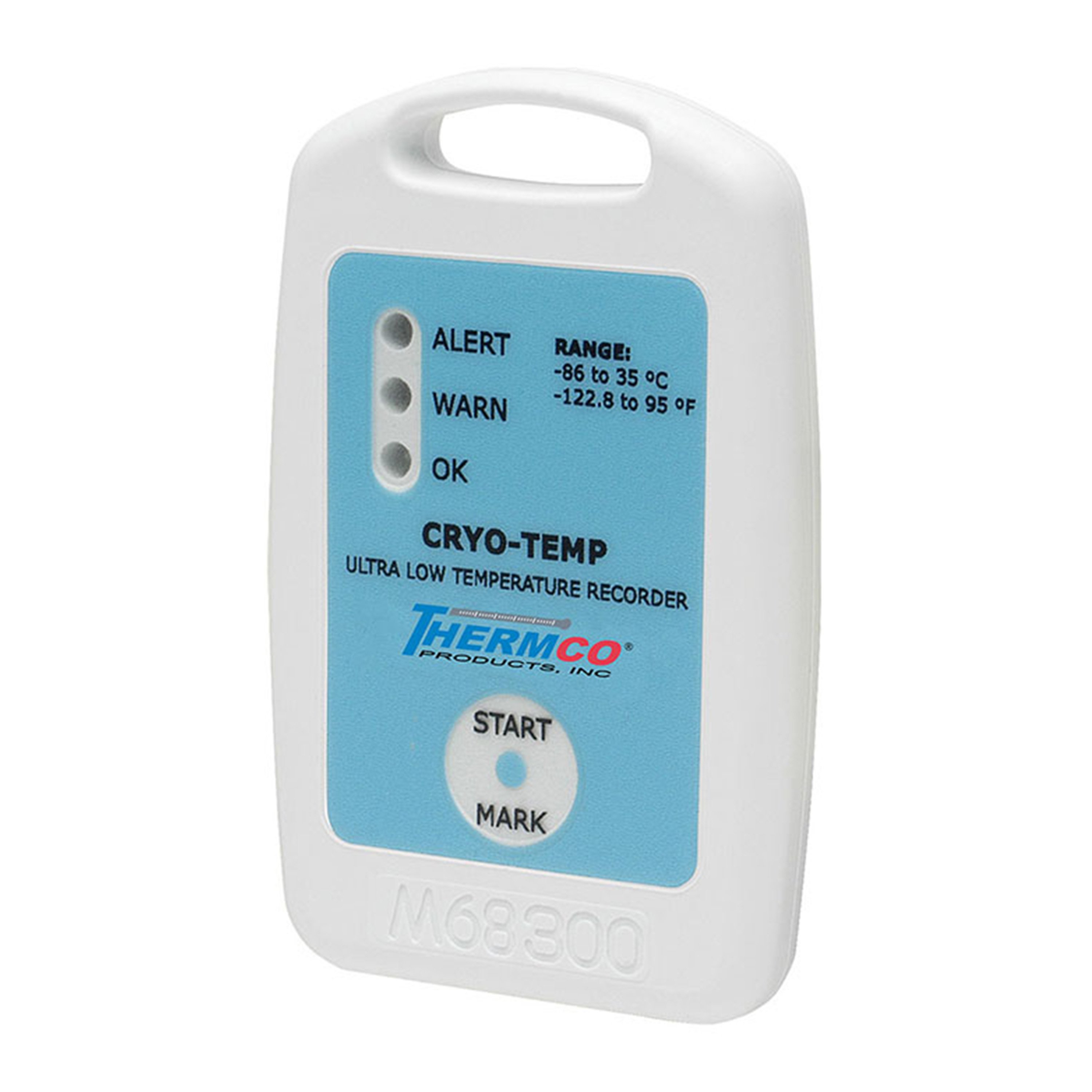

Thermco CryoTemp Ultra-Low Temperature Data Logger

The Thermco CryoTemp Ultra-Low Temperature Data Logger is a high-accuracy device designed for use in ultra-low operating temperatures for processes such as monitoring blood plasma, vaccines, pharmaceuticals, frozen foods, and shipping containers.

Features:

• It can be placed in direct contact with dry ice
• No external probes or wiring
• Magnetic Start
• Programmable alarm and warm ranges with alarm delay
• Led status indicators for instant alarm notification
• Optional password protection - It may be programmed into the device to restrict access to configuration options. Data may be read out without the password

Note: ACCTIFC300 is required for data retrieval and is sold separately.

Technical Specifications:

• Temperature Range: -86°C to 35°C recommended, may be used up to 55°C
• Temperature Sensor: NTC Thermistor
• Temperature Resolution: 0.1°C
• Calibrated Accuracy: ±1.0°C
• Memory: 32,767 readings
• Reading Rate: 5 seconds to 30 minutes, selectable in software
• Start Modes: Software programmable immediate start, delay start up to 30 days in advance, or manual start with a magnetic switch
• Temperature Alarm: Software programmable high and low alarm limits. High and low warning limits for each setpoint may be individually enabled or disabled
• Alarm Delay: Software programmable time delay for warn/alarm limits (Logger will not indicate out of range status until the temperature has been out of range for a set period of time)
• Status Indicators:
  • Green - Blinks to indicate safe conditions during logging
  • Yellow - Blinks to indicate warning limits have been exceeded
  • Red - Blinks to indicate alarm criteria (limits/delay) have been exceeded
• Calibration: Digital calibration through software
• Calibration Date: Automatically recorded within the device
• Battery Type: 3.6V lithium battery (LTC-7PN), factory replaceable only
• Battery Life: 2 years typical at 25°C, 1 minute reading intervals, 1 year typical at -80°C, 1 minute reading intervals
• Data Format: Date and time stamped ºC, ºF, K, ºR
• Time Accuracy: ±2 minutes/month maximum at 20 to 30°C ±5 minutes/month max at -80°C

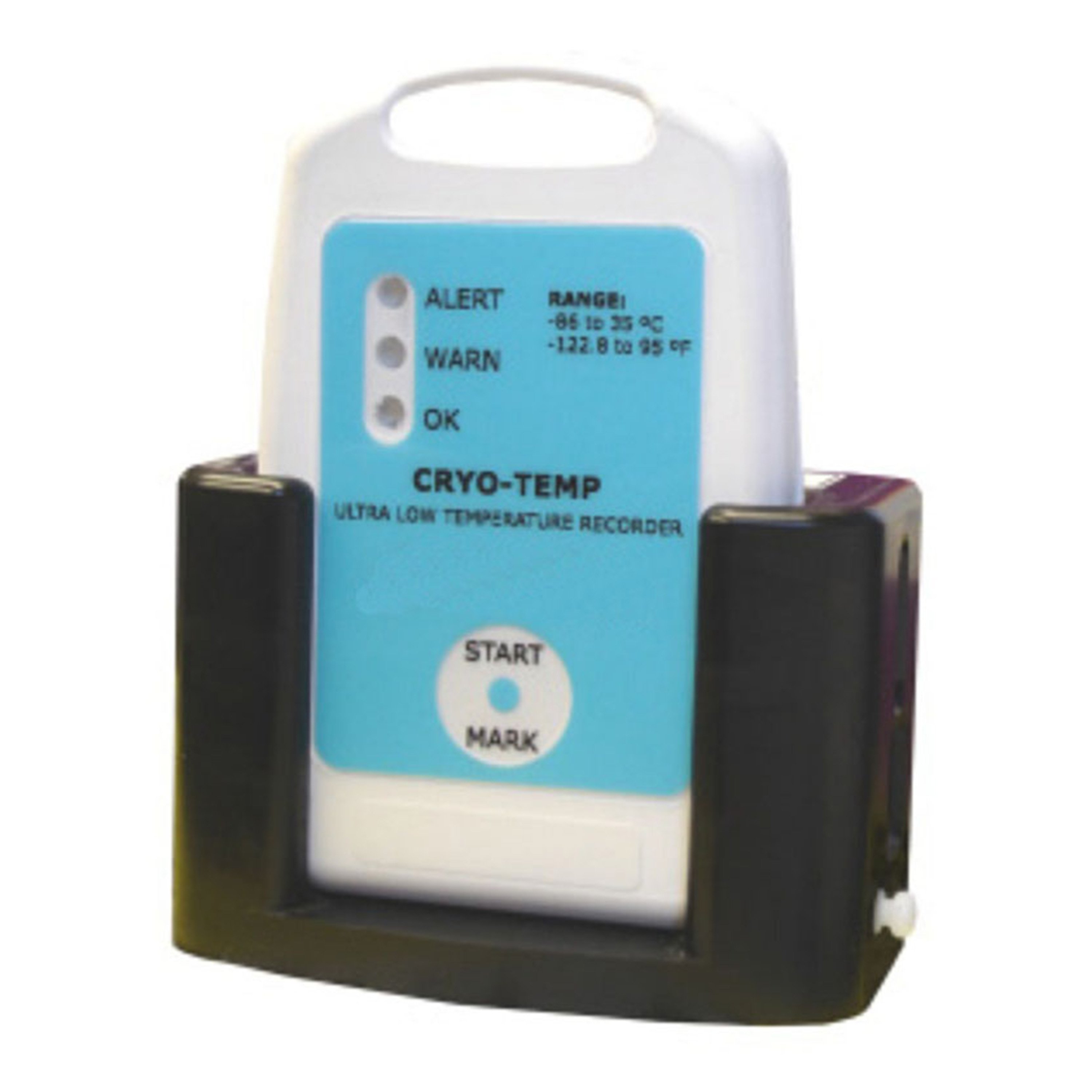

• Computer Interface: USB docking station to PC (IFC300) 38,400 baud
• Software: XP SP3/Vista/Windows 7
• Operating Environment: -86°C to +35°C (may be used up to +55°C); 0 to 100% RH
• Enclosure: ABS plastic, white, polycarbonate labeling
• Certifications: CE Compliant, IP64 (Splash resistant), IP65 (Splash resistant, not submersible)
• Overall Dimensions: 0.4" L x 2.1" W x 3.3" H
