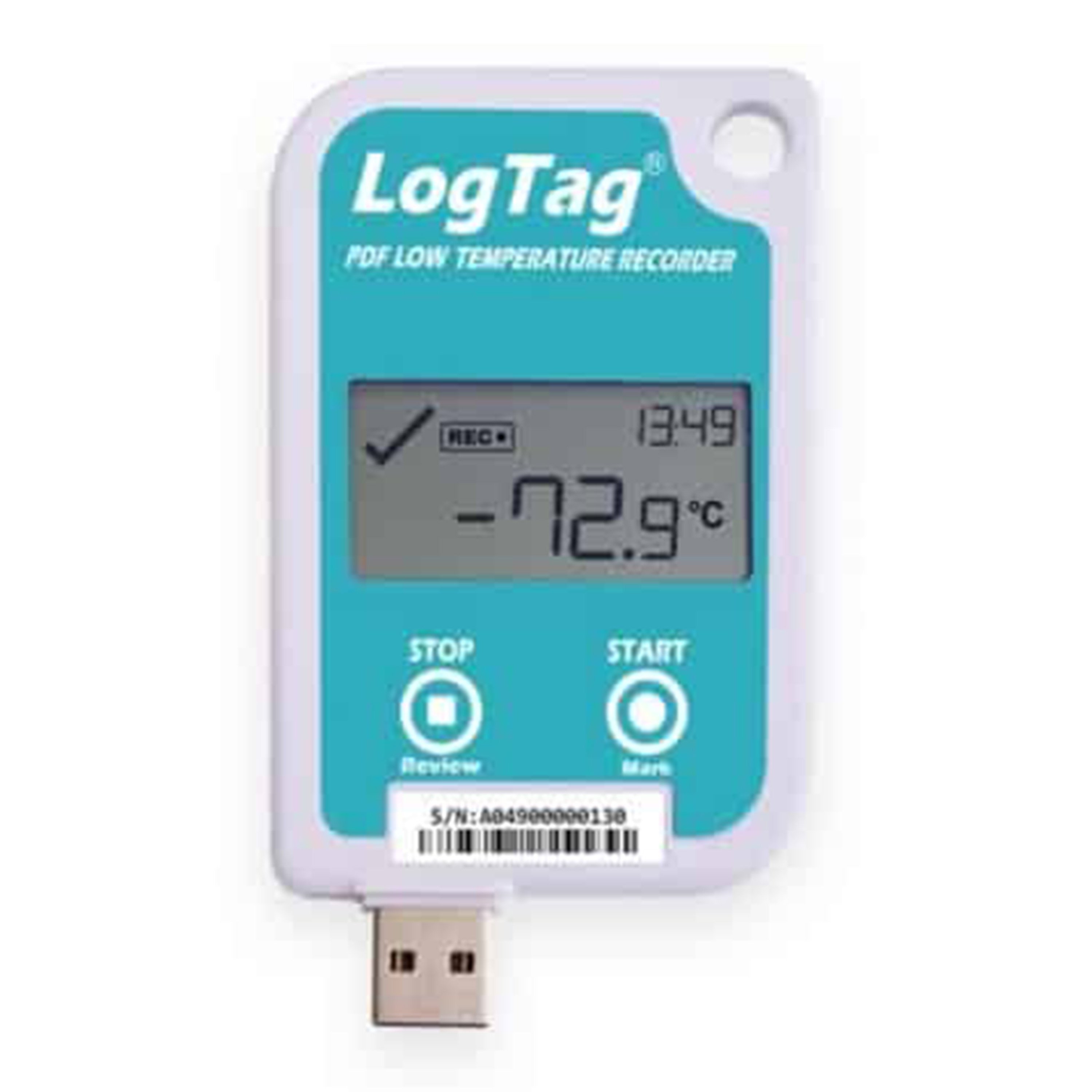

Thermco PDF Ultra-Low Temperature Data Logger with LCD Display

The Thermco PDF Ultra-Low Temperature Data Logger with LCD Display is a cost-effective multi-use recorder used to measure and store real-time temperatures.

Features:

• An integral USB connector with no separate interface cradle required
• Automatically generates a PDF report as a permanent record of the data

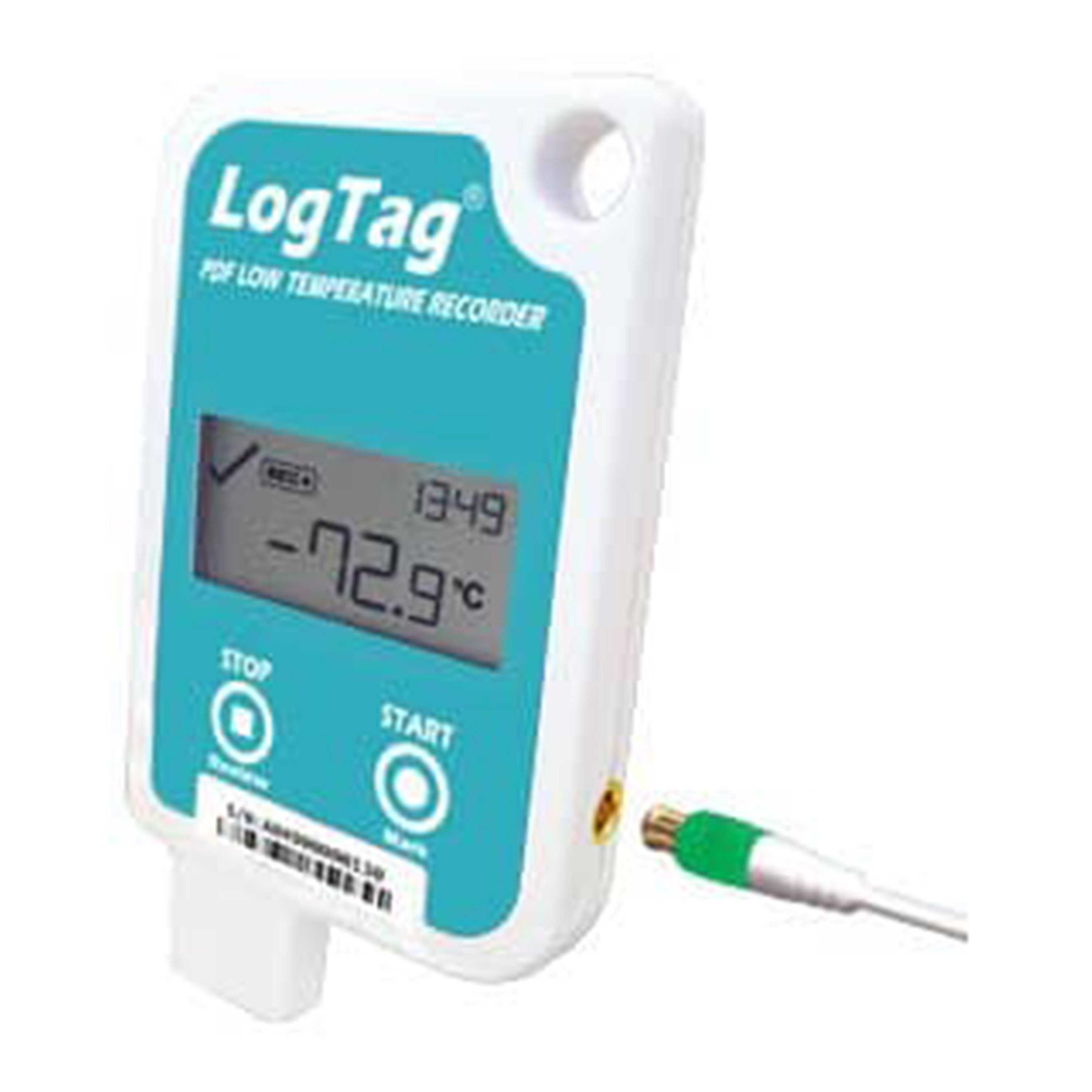

• Compatible with the ST10 external probe
• Generates an encrypted data file compatible with the widely used LogTag® Analyzer software and LogTag® Online platform

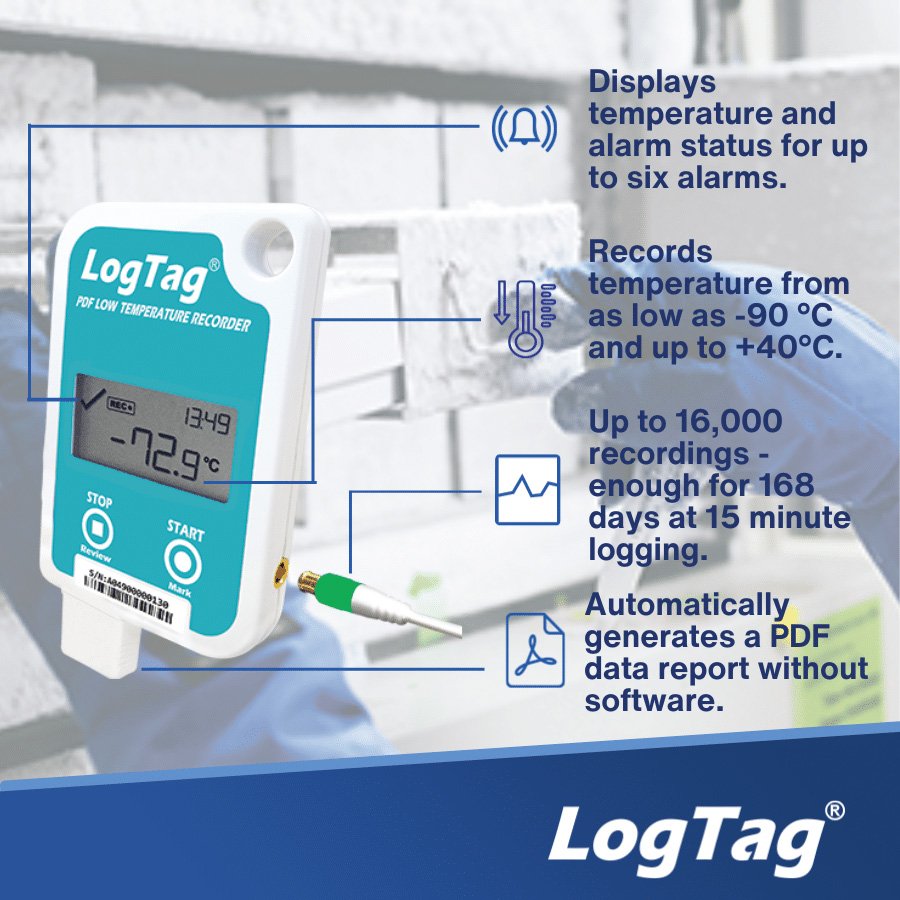

• Display showing temperature and alarm status of up to six alarms
• Made with a robust and durable polycarbonate case
• A real-time clock that timestamps each temperature reading with the date and time

Note: Silica sand is recommended for temperatures below -40°C for buffer assembly (Buffer bottle and silica sand are not included).

Technical Specifications:

• Temperature Measurement Range: -90°C to 40°C
• Operating Temperature Range: -30°C to 60°C
• Storage Temperature Range: 0°C to 40°C
• Rated Temperature Reading Accuracy:
  • Better than ±0.5°C for -20°C to 10°C
  • Better than ±0.7°C for -50°C to -20°C and 10°C to 30°C
  • Better than ±1°C for -80°C to -50°C and 30°C to 40°C
  • Better than ±1.8°C for -90°C to -80°C
• Rated Temperature Reading Resolution: LogTag Analyzer® currently displays to one decimal place of °C. The native resolution is what is stored in the LogTag®
  • 0.1°C for measurements -80°C to 10°C
  • 0.2°C for measurements 10°C to 20°C and -90°C to -80°C
  • 0.3°C for measurements 20°C to 30°C
  • 0.5°C for measurements 30°C to 40°C
• Memory: 16,129 temperature readings. 112 days at 15-minute logging
• Sampling Interval: Configurable from 30 seconds to 18 hours
• Logging Start Options: Push button start or specific date and time. Optional start delay
• Alarms: 3 configurable upper and 3 configurable lower alarms
• Download Time:
  • Typically, less than 30 seconds for full memory from time of insertion to availability of PDF report
  • Typically, less than 10 seconds from time of insertion to availability of the LTD file in LogTag® Analyzer (if configured)
• Power Source: CR2450 3V LiMnO2 (Fixed battery)
• Battery Life: 1 year storage, 2 years of normal use (based on 15-minute logging, download data monthly)
• Real Time Clock:
  • Rated accuracy ±25 ppm @ 25°C (equivalent to 2.5 seconds/day).
  • Rated temperature coefficient is -0.034 ±0.006 ppm/°C (I.e typically +/- 0.00294 seconds/day/°C)
• Connection: USB 2.0, A-type plug
• Software: PDF Reader, LogTag® Analyzer 3.1.9 or higher
• Multi-language Support: English, Spanish, French, Russian, and German
• PDF Report:
  • One-page report with trip and alarm summary
  • Multi-page report with a list of readings, including date and time
• Certifications: FDA 21 CFR Part 11, EC Annex 11, IATA’s 2018 Dangerous Goods Regulations 59th Edition, FCC, CE, RCM, and RoHS
• Overall Dimensions (Including USB cap): 0.49" L x 2.48" W x 4.8" H
